USER MANUAL SI110298.4 Emerio

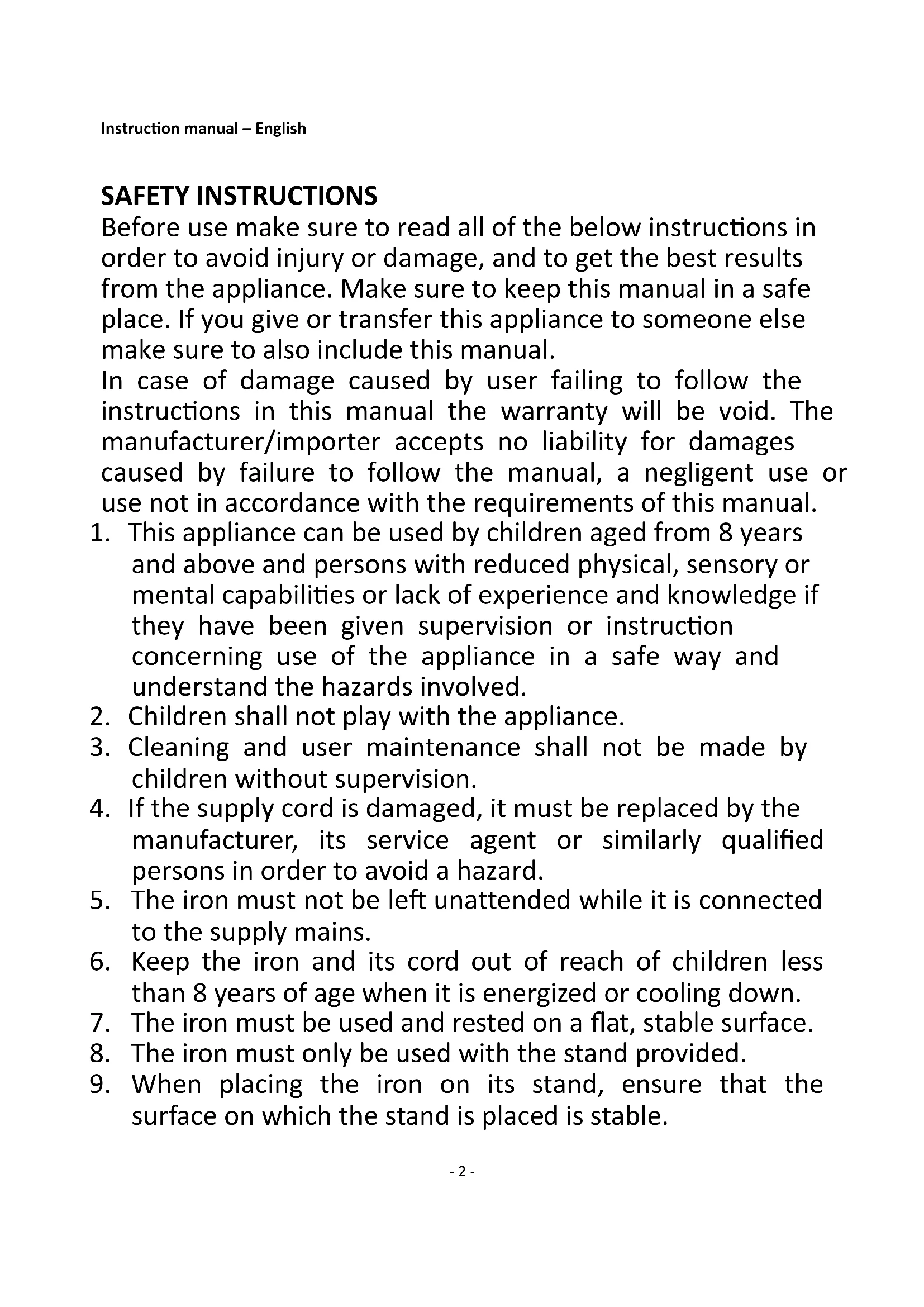

1. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by

children without supervision.

4. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. The iron must not be left unattended while it is connected

to the supply mains.

6. Keep the iron and its cord out of reach of children less

than 8 years of age when it is energized or cooling down.

7. The iron must be used and rested on a flat, stable surface.

8. The iron must only be used with the stand provided.

9. When placing the iron on its stand, ensure that the

surface on which the stand is placed is stable.- 3 -

10. The filling aperture must not be opened during use.

11. The iron is not to be used if it has been dropped, if there

are visible signs of damage or if it is leaking.

12. The plug must be removed from the socket-outlet before

the water reservoir is filled with water.

13. Before inserting the plug into the mains socket, please

check that the voltage and frequency comply with the specifications on the rating label.

14. Always plug the appliance into an earthed plug socket.

15. If an extension cord is used it must be suited to the power

consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

16. Disconnect the mains plug from the socket when the

appliance is not in use and before cleaning.

17. Ensure that the mains cable is not hung over sharp edges

and keep it away from hot objects and open flames.

18. Do not immerse the appliance or the mains plug in water

or other liquids. There is danger to life due to electric shock!

19. To remove the plug from the plug socket, pull the plug. Do

not pull the power cord.

20. Do not touch the appliance if it falls into water. Remove

the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

21. Do not plug or unplug the appliance from the electrical

outlet with a wet hand.

22. Never attempt to open the housing of the appliance, or to

repair the appliance yourself. This could cause electric shock.

23. Never leave the appliance unattended during use.

24. This appliance is not designed for commercial use.

25. Do not use the appliance for other than intended use.- 4 -

26. Do not wind the cord around the appliance and do not

27. The iron should always be off before plugging or

unplugging from the wall socket.

28. Never use the appliance if damaged in anyway.

29. When leaving, even when only for a short while, always

30. Burns can occur from touching hot metal parts, hot water

31. Use caution when you turn a steam iron upside

down-there may be hot water in the reservoir.

32. Always place the iron standing on a firm flat surface when

interrupting ironing and after use.

33. Keep the soleplate smooth. Avoid hard contact with a

34. The cord should not be allowed to touch the soleplate

35. Prevent water overflow. Do not over max level.

36. When using the iron for the first time use it on an old

piece of fabric to check if the soleplate and water from the water tank are completely clean.

37. Remove the plug from the socket before filling or

emptying water reservoir.

38. The iron shall be used on a stable ironing board.

39. Regarding the instructions for cleaning and maintenance,

please refer to the below paragraphs.

Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.- 5 - SI-110298.4 EN

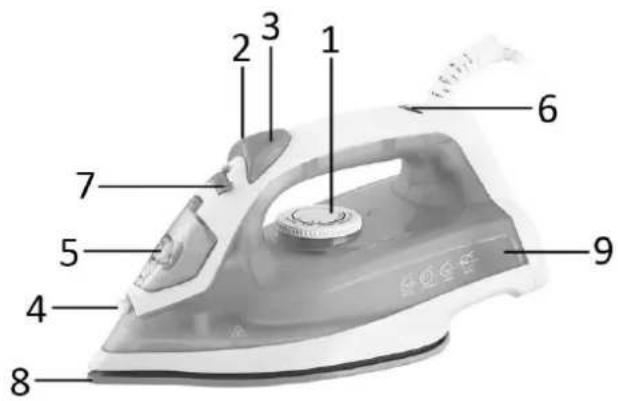

1. Temperature regulator

2. Burst of steam button

5. Water inlet cover

Remove all packaging material. Make sure the appliance is unplugged and the temperature regulator is set at position “OFF”. Open the water inlet cover and fill water into the opening up to the max level marked on the water tank. For this, use the measuring cup. Do not use chemically de-calcified water. Insert the power plug into a designated outlet and set the temperature regulator on the highest temperature setting. After the indicator light goes off, set the steam control knob to your desired position and iron on an old piece of cloth to remove possible residue. With first use, there can be slight odour or smoke, but this is harmless and only of short duration. Make sure there is adequate ventilation. OPERATION Before selecting the temperature, read the instruction manual for the iron or the care advice on the tag of the clothing. Note: If there is no care advice on the piece of clothing, then you should begin ironing with the lowest temperature. With lower temperature, there will be less steam. OFF

Silk, wool ●●● MAX Linen, cotton, highest temperature

DRY IRONING Connect the iron to a suitable mains supply outlet. Ensure that the steam control knob is in the position . Select the setting on the temperature regulator. When the indicator light goes off, the required temperature is reached. The iron is ready for use. To turn off the iron, turn the temperature regulator counter-clockwise to position “OFF”, set the iron upright, and pull out the power plug. STEAM IRON Fill the water tank, as described before initial usage.- 6 - Steam ironing can be used in the temperature ranges ●, ●●, ●●● MAX. For the reliable functioning of the steam ironing, the water tank must be at least 1/4 filled. Spraying function: Press the spray button to moisten a spot to be ironed. Water will come out of the spray nozzle. Steam Function: Turn the steam control knob to the required position , steam starts coming out from the holes in the soleplate. Burst of steam: Turn the temperature regulator to the position “MAX”. The indicator light will go off when the required temperature is reached. Then press the burst of steam button. This function provides an extra amount of steam to remove stubborn wrinkles. For optimal use, please allow the appliance to have a rest of 3 - 5 seconds between each press. “Burst of steam” can also be applied when holding the iron in vertical position, which is useful for removing creases from hanging clothes, curtains, etc. The iron surface must always be kept in an upright position. To turn off, turn the temperature regulator counter-clockwise to “OFF” and pull out the power plug. Turn the appliance upside down and carefully pour the remaining water out of the water tank. Carefully shake the appliance. Press the spray button to allow possible remaining water to come out more easily. Notice: With conventional steam ironing, water may leak from the soleplate if a too low temperature has been selected. If this happens, turn the temperature regulator to the ●●● MAX position. Steam will recommence as soon as the appropriate temperature has been reached. SELF-CLEAN FUNCTION You can use the self-clean function to remove scale and impurities. The self-clean function should be used at least once per month. If the water is very hard in your area, use the self-clean function every two weeks. Fill the water tank with water to maximum level. Switch the temperature regulator to the ●●● MAX position. Plug the appliance into an appropriate plug socket. When the indicator light turns off, unplug the appliance. Hold the iron over the sink, set the steam control knob to the position and hold it at the position for about one minute. The appliance will conduct self-cleaning. (Steam and boiling water will come out of the soleplate. Impurities and flakes (if any) will be flushed out). If the iron still contains a lot of impurities, repeat the self-clean process as long as there is water in water tank.

CLEANING AND MAINTENANCE

Before cleaning the iron ensure it is disconnected from the power supply and has completely cooled down. Deposits on the soleplate may be removed with a rough cloth soaked in a vinegar water solution. The casting may be wiped with a damp cloth and then polished with a dry one. Do not use abrasives on the soleplate. Keep the soleplate smooth. Avoid hard contact with metal objects.- 7 - TIPS Which type of water to use? Your appliance has been designed to function with untreated tap water. If your water is very hard, it’s possible to mix untreated tap water with store-bought distilled or demineralized water in the following proportion: 50% tap water / 50% distilled water. Which type of water not to use? The types of water listed below contain organic waste or mineral elements that can cause spitting, brown staining, or leakage: water from clothes dryers, scented or softened water, and water from air conditioners. If problems occur? Water drips from the holes in the soleplate. The chosen temperature is too low and does not allow for the formation of steam. Position the thermostat to the maximum temperature setting. You are using steam while the iron is not hot enough. Wait until the control light goes out. You have stored the iron horizontal, without emptying it and without switching off the steam function. Empty the iron after each use, and store it vertical. Brown streaks come through the holes in the soleplate and stain the linen. You are using chemical descaling agents. Do not add any descaling agents to the water. Fabric fibers have accumulated in the holes of the soleplate and are burning. Let the iron cool down and clean the soleplate with a sponge. Vacuum the holes of the soleplate from time to time. Your linen has not been rinsed sufficiently or you have ironed a new garment before washing it. Make sure that your laundry is rinsed sufficiently so as to remove any deposits of soap or chemical products on new clothes. The soleplate is dirty or brown and can stain the linen. You are ironing with a too high temperature. Let the iron cool down and clean the soleplate with a sponge. Select the appropriate temperature. The soleplate is scratched. You have placed your iron flat on a metal rest-plate or ironed over a zip. Always set your iron on its heel in an upright position. Do not iron over zips.

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee: For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase. Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can’t claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.
