USER MANUAL EVE E50Z Chauvet

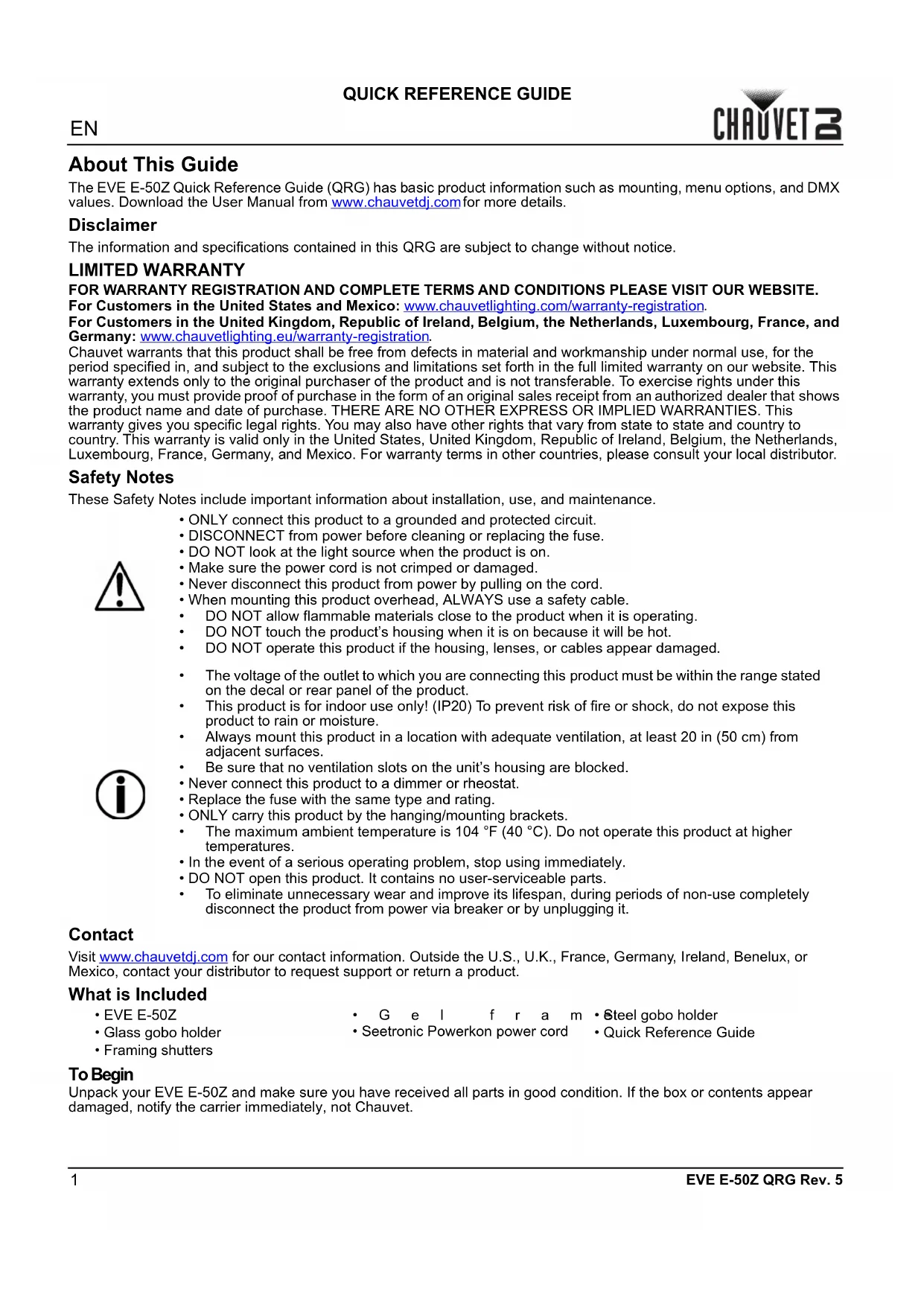

EVE E-50Z QRG Rev. 5 About This Guide The EVE E-50Z Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetdj.com for more details. Disclaimer The information and specifications contained in this QRG are subject to change without notice. LIMITED WARRANTY FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE. For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany, and Mexico. For warranty terms in other countries, please consult your local distributor. Safety Notes These Safety Notes include important information about installation, use, and maintenance. Contact Visit www.chauvetdj.com for our contact information. Outside the U.S., U.K., France, Germany, Ireland, Benelux, or Mexico, contact your distributor to request support or return a product. What is Included To Begin Unpack your EVE E-50Z and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

• ONLY connect this product to a grounded and protected circuit.

• DISCONNECT from power before cleaning or replacing the fuse.

• DO NOT look at the light source when the product is on.

• Make sure the power cord is not crimped or damaged.

• Never disconnect this product from power by pulling on the cord.

• When mounting this product overhead, ALWAYS use a safety cable.

• DO NOT allow flammable materials close to the product when it is operating.

• DO NOT touch the product’s housing when it is on because it will be hot.

• DO NOT operate this product if the housing, lenses, or cables appear damaged.

• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.

• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.

• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

• Be sure that no ventilation slots on the unit’s housing are blocked.

• Never connect this product to a dimmer or rheostat.

• Replace the fuse with the same type and rating.

• ONLY carry this product by the hanging/mounting brackets.

• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.

• In the event of a serious operating problem, stop using immediately.

• DO NOT open this product. It contains no user-serviceable parts.

• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

EVE E-50Z QRG Rev. 5

QUICK REFERENCE GUIDE

Product Description The EVE E-50Z is a framing spot with built-in dimmer curves and DMX control. Framing shutters easily alter the projected beam. Using custom gobos, an image can be projected from almost any distance with the 20° to 39° zoom range. The EVE E-50Z is also fully compatible with the wireless D-Fi USB by Chauvet. Product Overview AC Power This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz. Power Linking For the maximum number of EVE E-50Z that can be power linked at 120 V or at 230 V, see the User Manual or the label on the product. Fuse Replacement

1. Disconnect the product from power.

2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.

3. Pry the safety cap out of the housing.

4. Remove the blown fuse from the clip on the front of the safety cap and replace with a fuse of the exact same

5. Re-insert the fuse holder and reconnect power.

WARNING! DO NOT plug anything other than a D-Fi USB into the USB port. Doing so may cause damage to the product. To eliminate wear and improve its lifespan, during periods of disuse completely disconnect the product from power via breaker or by unplugging it. Fuse holder Power in Menu buttons Power out DMX in/out LED fisplay D-Fi USB port Safety loop Focus knob Gel frame holder Bracket adjustment knob Gel frame Framing shutter x4 Zoom knob Gobo holder Thumbscrew3

EVE E-50Z QRG Rev. 5 Mounting Before mounting this product, read the LIMITED WARRANTY. Mounting Diagram Control Panel Description Menu Map BUTTON FUNCTION <MENU> Exits from the current menu or function <UP> Navigates upwards through the menu list and increases the numeric value when in a function <DOWN> Navigates downwards through the menu list and decreases the numeric value when in a function <ENTER> Enables the currently displayed menu or sets the currently selected value into the selected function

Mounting bracket Mounting clamp (Such as the CLP-15N from Chauvet) Safety cable (such as CH-05 from Chauvet) Bracket adjustment knobEN

EVE E-50Z QRG Rev. 5

QUICK REFERENCE GUIDE

Gobo The EVE E-50Z includes 2 types of gobo holders, glass and steel.

• Gobo Size: D (53.3 mm outside, 43 mm image, 2 mm max thickness) DMX Linking The EVE E-50Z can work with a DMX controller. Instructions for connecting and configuring this product for DMX operation are in the User Manual. If you are not familiar with DMX or DIP-switch configuration, download the DMX Primer from www.chauvetdj.com

Starting Address To ensure full access to the two channels available in DMX mode, the highest recommended DMX address is 510. Master/Slave Connection The EVE E-50Z uses the DMX data connection for its Master/Slave mode. Instructions for connecting and configuring this product for Master/Slave operation are in the User Manual. D-FI USB Connectivity The EVE E-50Z is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from CHAUVET DJ. Simply set the DIP switch D-Fi receiving/transmitting channel, plug it into the USB port then set the product's DMX Personality and DMX Address. Further instructions for D-Fi USB operation for this product are in the User Manual. DMX Values 3-CH 1-CH Once plugged in, the D-Fi USB will take over the product. Wired DMX and manual display control/menu buttons will be unavailable until you unplug the D-Fi USB. The priority levels are:

WARNING! DO NOT plug anything other than a D-Fi USB into the USB port. Doing so may cause damage to the product.

255 Strobe (slow to fast)
