USER MANUAL GOsafe 5700FP OLYMPIA

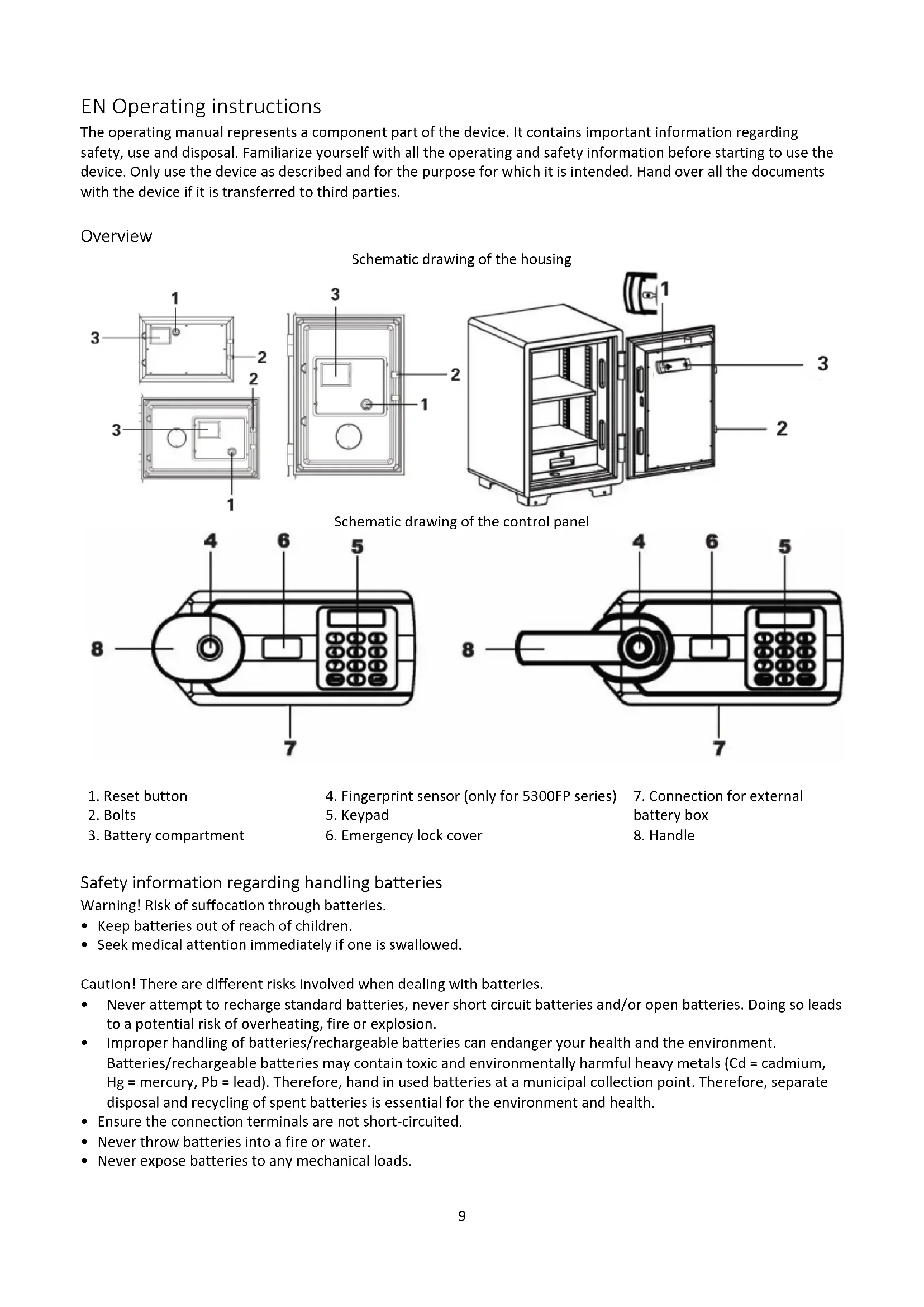

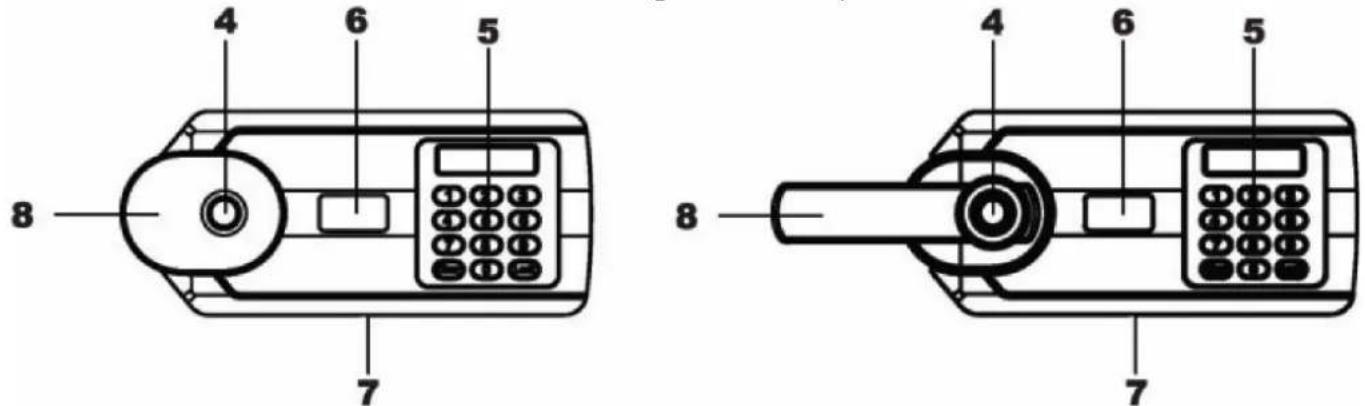

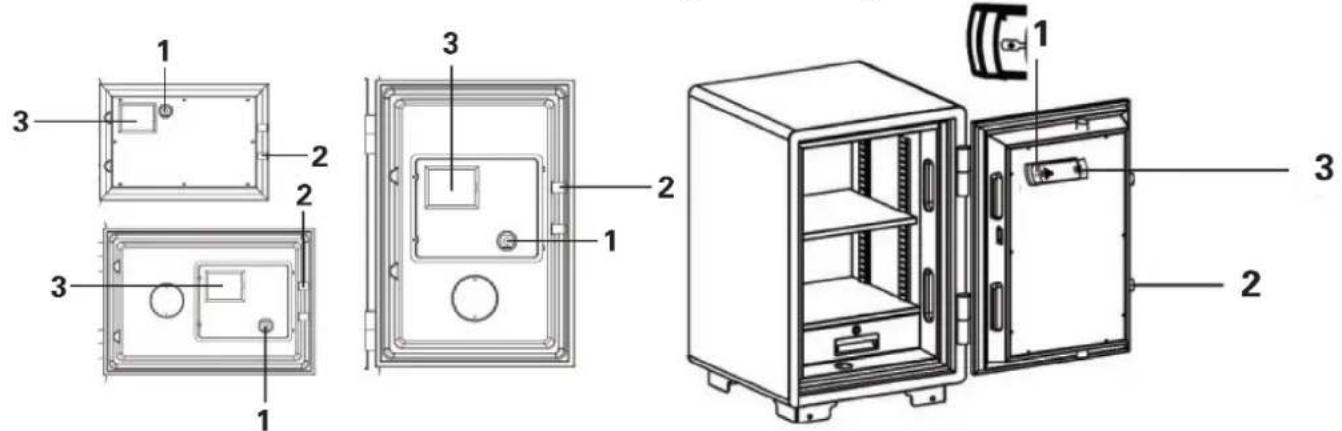

3. Battery compartment

4. Fingerprint sensor (only for 5300FP series)

6. Emergency lock cover

7. Connection for external

Safety information regarding handling batteries Warning! Risk of suffocation through batteries.

• Keep batteries out of reach of children.

• Seek medical attention immediately if one is swallowed. Caution! There are different risks involved when dealing with batteries.

• Never attempt to recharge standard batteries, never short circuit batteries and/or open batteries. Doing so leads to a potential risk of overheating, fire or explosion.

• Improper handling of batteries/rechargeable batteries can endanger your health and the environment. Batteries/rechargeable batteries may contain toxic and environmentally harmful heavy metals (Cd = cadmium, Hg = mercury, Pb = lead). Therefore, hand in used batteries at a municipal collection point. Therefore, separate disposal and recycling of spent batteries is essential for the environment and health.

• Ensure the connection terminals are not short-circuited.

• Never throw batteries into a fire or water.

• Never expose batteries to any mechanical loads.10

• Leaking batteries could cause damage to the device. If a battery should start to leak, remove it from the device immediately to prevent any further damage. Take the utmost care when handling damaged or leaking batteries and always wear protective gloves.

• Avoid any contact with the skin, eyes and mucous membranes. Rinse any parts of the body which have come into contact with battery acid with plenty of clean water and contact a doctor immediately. Avoid extreme conditions and temperatures which could affect the batteries, e.g. by placing them on radiators or exposing them to direct sunlight.

• Only use batteries of the type specified.

• Never use batteries of different types or new and old batteries together.

• Ensure batteries are inserted with the correct polarity.

• If the device will not be used for a longer period, switch the device off and remove the batteries.

• Remove empty batteries from the device and dispose of them according to the applicable directives.

• The batteries must be removed from the device before its disposal.

• You are legally obliged to dispose of batteries at your dealer or at the collection points provided by the responsible waste disposal authority. Package Contents Check the package contents of the safe before you actually use the safe. If anything is missing or damaged, contact our Service Department.

• 1x Emergency power supply

• 1x Instruction manual Setup Open the safe for the first time / Open the safe with the emergency key: Variant 1:

• Opening by external power supply

• Insert the batteries into the external battery box.

• Connect the external battery box to the safe interface (see "Schematic diagram of the control panel").

• Open safe with user code/fingerprint (only for 5300FP series) Variant 2:

• Opening with emergency key

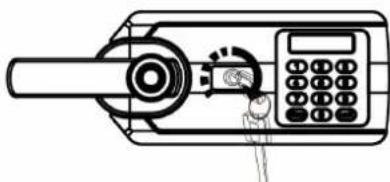

• Remove the cover of the emergency key.

• Insert the emergency key and turn the key clockwise.

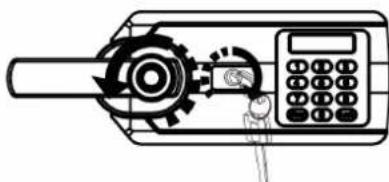

• Turn the handle anticlockwise to open the door. CAUTION: When finished, remove the emergency key and keep it in a safe place. !!!NOT IN THE SAFE!!! Inserting the batteries

• Open the door and remove the battery cover.

• Insert 4 x AAL LR6 batteries into the battery compartment.

• Each time the batteries are inserted, the safe performs a self-test in which the display counts down from "9" to "0" and then shows "GOOD" at the end of the self-test, which means that the batteries are inserted correctly and the safe is working properly.11 Low battery level If the display shows "LO-BATTE", this means that the batteries have a low voltage and you should insert new batteries immediately. Replace the batteries by arranging them as indicated by the "+" and "-" signs. Removing the batteries Follow the steps below to remove the batteries. Remove the battery compartment cover. Caution! Danger of short circuit.

• Remove batteries only with a non-conductive object, e.g. a wooden or plastic spatula. Remove the batteries. Replace the battery compartment cover. Closing the door When you close the door, the handle is automatically turned to the horizontal position. The safe is closed and locked. ATTENTION: for GOsafe 5300 & 5300FP, GOsafe 5350 & 5350FP, GOsafe 5500 & 5500FP the handle must be turned clockwise (upwards) manually to close the door. Open door with user code or master code

• Press the "LOCK" button to activate the safe.

• Enter the registered user code (3 to 8 digits).

• OPEN" appears on the display.

• Turn the handle counterclockwise (downwards) to open the door. ATTENTION: The preset user code is "159". Opening the door with fingerprint (only for 5300FP series)

• Press the fingerprint sensor on the control panel with the registered finger.

• OPEN" appears on the display.

• Turn the handle counterclockwise (downwards) to open the door. ATTENTION: In factory setting mode, the door cannot be opened with a fingerprint! Setting the user code

• Open the door and press the reset button once.

• You will hear a short beep.

• You will see the display and the fingerprint scanner (only for 5300FP series) flash.

• Then enter a new user code (3 to 8 digits).

• Press "LOCK" to confirm. ATTENTION: Please leave the door open until the test of the new code has been successfully completed! Opening the door with a hidden user code

• Press "Lock" once to activate the safe.

• Then press "Clear" once before entering the code.

• As you enter the code, it disappears from the LCD display. Setting the fingerprint (only for 5300FP series)

• Open the door and press the reset button once.

• You will hear a short beep.

• You will see the display and the fingerprint scanner flashing.

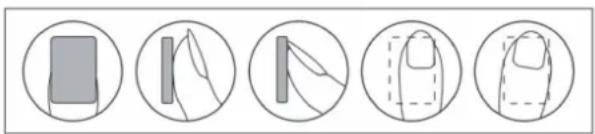

• Place your finger on the fingerprint scanner and remove it.

• You will hear 1 beep.

• Repeat the fingerprint scanning process two more times.

• Finally, you will hear 2 beeps and see the fingerprint scanner flash twice.

• The new fingerprint has been successfully registered!12 ATTENTION: A maximum of 100 fingerprints are supported! Please use the same finger when registering fingerprints! To improve the rate of correct finger identification, you can follow the advice below: We recommend that each user register 2-3 fingerprints. We recommend women and children to register with thumb and middle finger. Try to press with even force. In very dry weather, we recommend breathing on the fingers until they are a little wet.

Alarm - Wrong code If 5 consecutive incorrect code entries or 5 consecutive incorrect fingerprint (only for 5300FP series) entries are made, a warning tone sounds for 30 seconds. In the meantime, both the keypad and the fingerprint scanner (only for 5300FP series) are locked for 210 seconds. Alarm - Shake alarm

• Press "0" while the unit is in sleep mode.

• Then the vibration alarm system is activated.

• You can stop the alarm by entering a password or fingerprint (only for 5300FP series). Restoring the factory settings

• Press the reset button for 3-4 seconds.

• You will hear two beeps.

• The safe is reset to the factory settings. In the factory settings, the user code is "1234" and the master code is "123456" and each fingerprint (only for 5300FP series) allows the safe to be opened. ATTENTION: In the factory settings. The user code is "159" and no fingerprint (only for 5300FP series) allows the safe to be opened! Turning the sound off/on The key tone can be switched off and on by pressing the "CLEAR" key while the safe is in sleep mode (the display is off). The display shows "SOUND ON" or "SOUND OF".13 Technical data Name Colour Article no. External dimensions (H x W x D mm) Dimensions inside (H x W x D mm) Weight in kg Lock variant Batteries GOsafe 5300FP black 7120 300x420x350 182x303x215 33 Fingerprint, numeric code, emergency key 4 × AA LR6 (Mignon) GOsafe 5350FP black 7121 354x496x390 224x366x250 45 Fingerprint, numeric code, emergency key 4 × AA LR6 (Mignon) GOsafe 5500FP black 7122 496x355x390 366x224x250 45 Fingerprint, numeric code, emergency key 4 × AA LR6 (Mignon) GOsafe 5530FP black 7123 530x460x470 390x320x310 73 Fingerprint, numeric code, emergency key 4 × AA LR6 (Mignon) GOsafe 5600FP black 7124 600x480x470 460x340x310 90 Fingerprint, numeric code, emergency key 4 × AA LR6 (Mignon) GOsafe 5700FP black 7125 700x500x490 560x360x330 106 Fingerprint, numeric code, emergency key 4 × AA LR6 (Mignon) GOsafe 5920FP black 7126 920x600x570 780x455x410 186 Fingerprint, numeric code, emergency key 4 × AA LR6 (Mignon) GOsafe 5300 black 7127 300x420x350 182x303x215 33 Numeric code, emergency key 4 × AA LR6 (Mignon) GOsafe 5350 black 7128 354x496x390 224x366x250 45 Numeric code, emergency key 4 × AA LR6 (Mignon) GOsafe 5500 black 7129 496x355x390 366x224x250 45 Numeric code, emergency key 4 × AA LR6 (Mignon) GOsafe 5530 black 7130 530x460x470 390x320x310 73 Numeric code, emergency key 4 × AA LR6 (Mignon) GOsafe 5600 black 7131 600x480x470 460x340x310 90 Numeric code, emergency key 4 × AA LR6 (Mignon) GOsafe 5700 black 7132 700x500x490 560x360x330 106 Numeric code, emergency key 4 × AA LR6 (Mignon) GOsafe 5920 black 7133 920x600x570 780x455x410 186 Numeric code, emergency key 4 × AA LR6 (Mignon) Warranty Dear customer, We are delighted that you have chosen this equipment. In the case of a defect, please return the device together with the receipt and original packing material to the point of sale. Cleaning Clean the surface of the housing with a soft, dry, lint-free cloth. Do not use any solvents or cleaning agents.14 Disposal Packaging materials must be disposed of according to local regulations. The device and packaging materials can be recycled; sort them for disposal to simplify waste management. The Triman logo is only relevant for France. The packaging is made of environmentally friendly materials that you can dispose of at local recycling points. Advice on the options with which to dispose of your old device can be obtained from your municipal or local administration offices. The adjacent symbol indicates laws dictate that electrical and electronic apparatus no longer required must be disposed of separate from domestic waste. Dispose of your device at a collection point provided by your local public waste authority. Packaging materials must be disposed of according to local regulations. Defective or empty batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Return batteries and the device via the collection points provided. Observe the identification on the packaging materials during the waste sorting process; they are identified by abbreviations (b) and numbers (a) which have the following significance: 1–7: plastic/20–22: paper and cardboard/80–98: composite materials. The device and the packaging material can be recycled, so sort them prior to disposal for better waste management. Contact your local authorities for information on the various options available to ensure correct disposal. Observe the following identifications of the packaging materials: (a) numbers, (b) abbreviations and (c) materials which have the following significance: 1–7: plastics / 20–22: paper and cardboard / 80–98: composite materials and (d) type of packaging. The logo is only applicable to Italy. Find out about the possibilities of taking back old appliances and used batteries free of charge from your dealer. Conformity The CE Mark on the device confirms conformity. The Declaration of Conformity can be read online at www.go-europe.com or http://productip.com/?f=1670dd The full EU Declaration of Conformity is available online by scanning the QR code:
