USER MANUAL HW07CP1439N HAIER

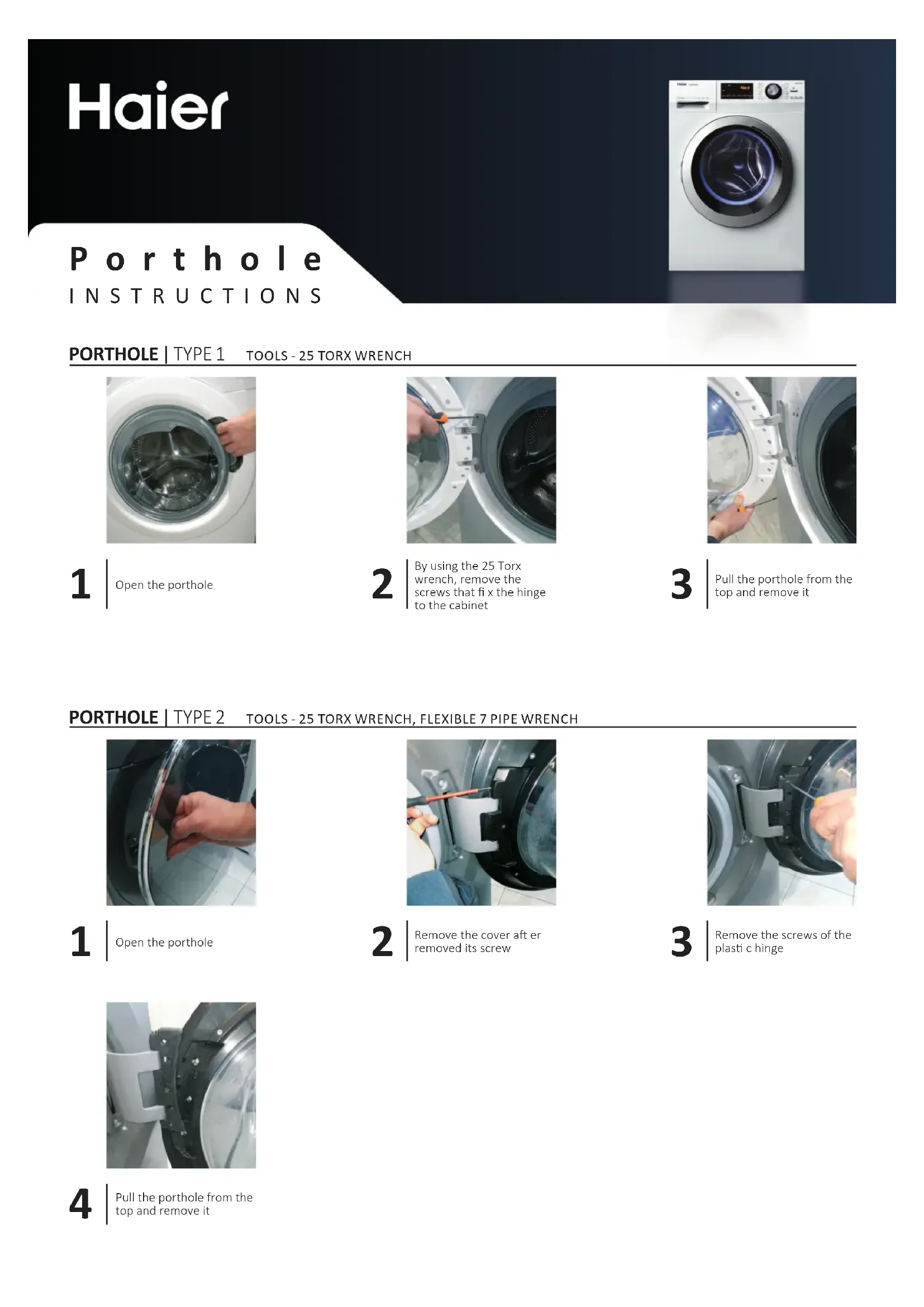

Open the porthole By using the 25 Torx wrench, remove the screws that fi x the hinge to the cabinet Pull the porthole from the top and remove it PORTHOLE | TYPE 2 TOOLS - 25 TORX WRENCH, FLEXIBLE 7 PIPE WRENCH

Open the porthole Remove the cover a er removed its screw Remove the screws of the plas c hinge Pull the porthole from the top and remove it Porthole

INSTRUCTIONSHINGE | TYPE 1 TOOLS - 25 TORX WRENCH

Open the porthole By using the 25 pipe wrench, remove the screws that fi x the hinge to the cabinet Pull the porthole from the top and remove it Remove all the screws of the porthole Separate the frame from the counter frame Replace the hinge, taking care not to lose the bushes HINGE | TYPE 2 TOOLS - 25 TORX WRENCH, FLEXIBLE 7 PIPE WRENCH

Open the porthole Remove the cover a er removed its screw Remove the screws of the plas c hinge Pull the porthole from the top and remove it Remove the pin Remove the door clip Once the strap is removed, detach the fl ap from the gasket, to allow access to the inside of the product Remove the external screws from the hinge Remove the screws inside the cabinet with the 7 pipe wrench.Remove the hinge Hinge INSTRUCTIONSDOOR LOCKTYPE 1

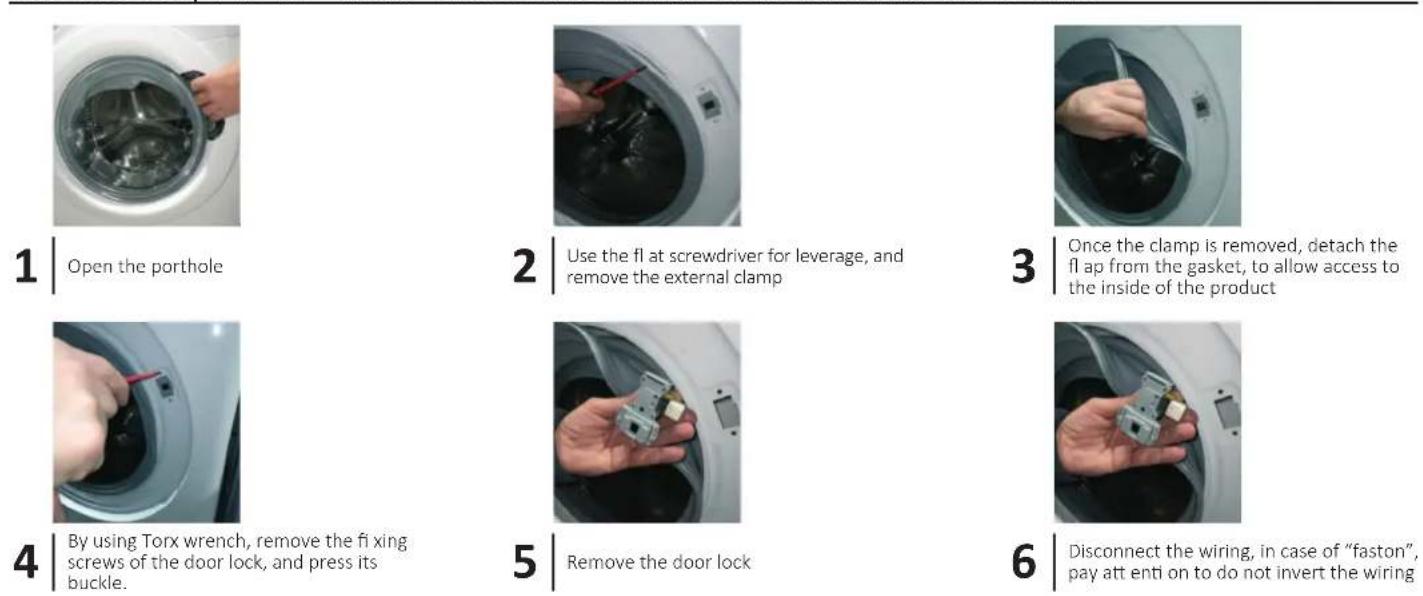

Open the porthole Use the fl at screwdriver for leverage, and remove the external clamp Once the clamp is removed, detach the fl ap from the gasket, to allow access to the inside of the product By using Torx wrench, remove the fi xing screws of the door lock, and press its buckle. Remove the door lock Disconnect the wiring, in case of “faston”, pay a en on to do not invert the wiring DOOR LOCKTYPE 2

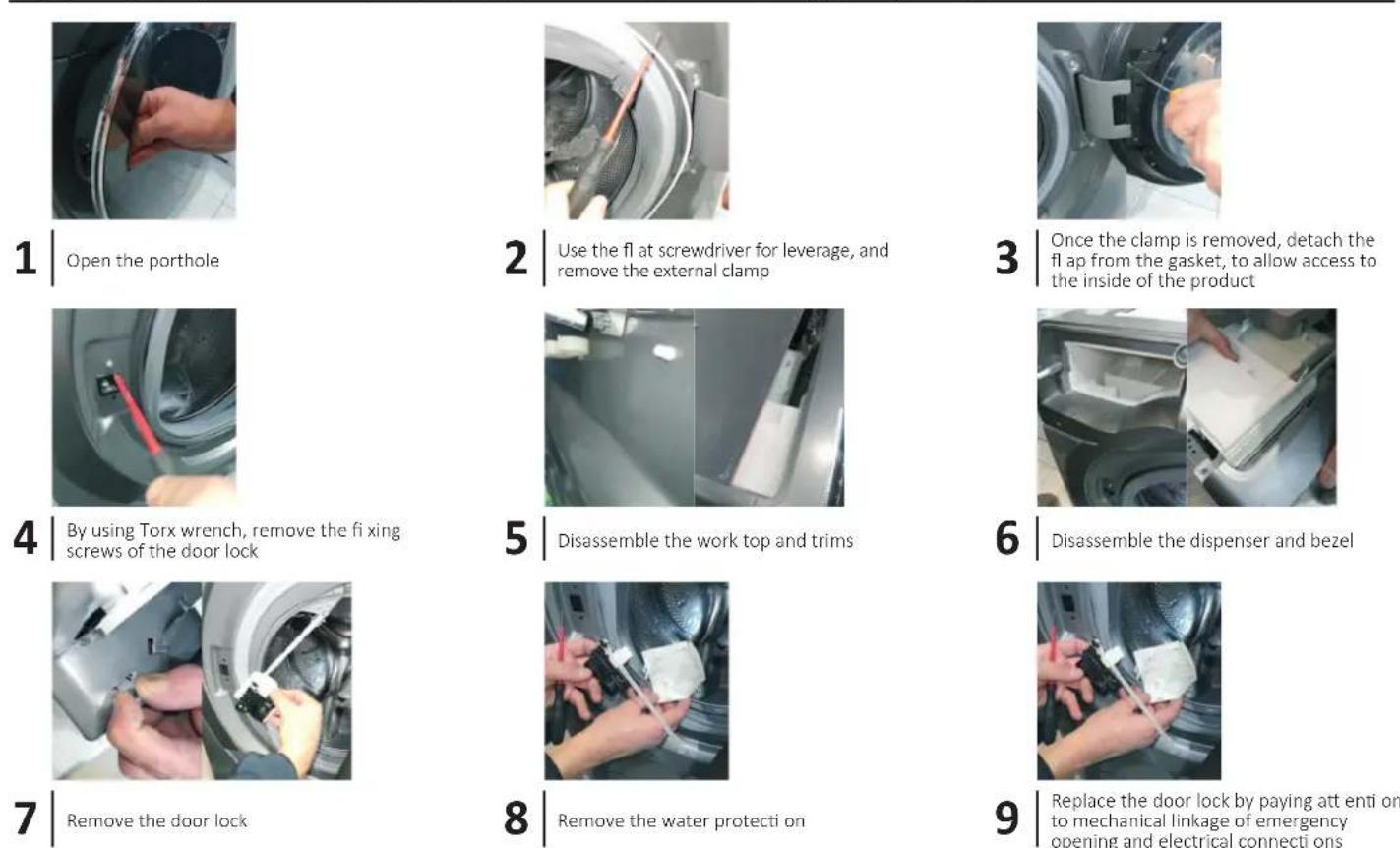

Open the porthole Use the fl at screwdriver for leverage, and remove the external clamp Once the clamp is removed, detach the fl ap from the gasket, to allow access to the inside of the product By using Torx wrench, remove the fi xing screws of the door lock Disassemble the work top and trims Disassemble the dispenser and bezel Remove the door lock Remove the water protec on Replace the door lock by paying a en on to mechanical linkage of emergency opening and electrical connec ons Door lock INSTRUCTIONSDOOR’S GASKET TOOLS - TORX WRENCH, TONG, FLAT SCREWDRIVER, TWO 7 PIPE WRENCHES

Open the porthole Use the fl at screwdriver for leverage, and remove the external clamp Once the clamp is removed, detach the fl ap from the gasket, to allow access to the inside of the product By using fl at screwdriver, remove the clamp on the tube

Remove the gasket Place the new gasket, paying a en on to the posi oning notches Insert wiring clamp on the tube side Tighten the clamp fl ush on the tube by using the tooling Fit the gasket on the cabinet. Fix the external clamp and ghten it (if needed with tong) Door’s gasket INSTRUCTIONSDETERGENT DRAWER

Open the detergent drawer

By using two hands, pull it out fi rmly

Unhook the mask from the detergent drawer, being careful not to break the hooks Detergent drawer INSTRUCTIONS We recommend following the instruc ons here above. In case of doubt, seek expert advice. Haier Europe disclaims all liability for any damages that may arise from failure to comply with the instruc ons given.PUERTA FRONTAL | TIPO 1 HERRAMIENTAS - LLAVE TORX 25
