USER MANUAL Inverter NNSD297SR PANASONIC

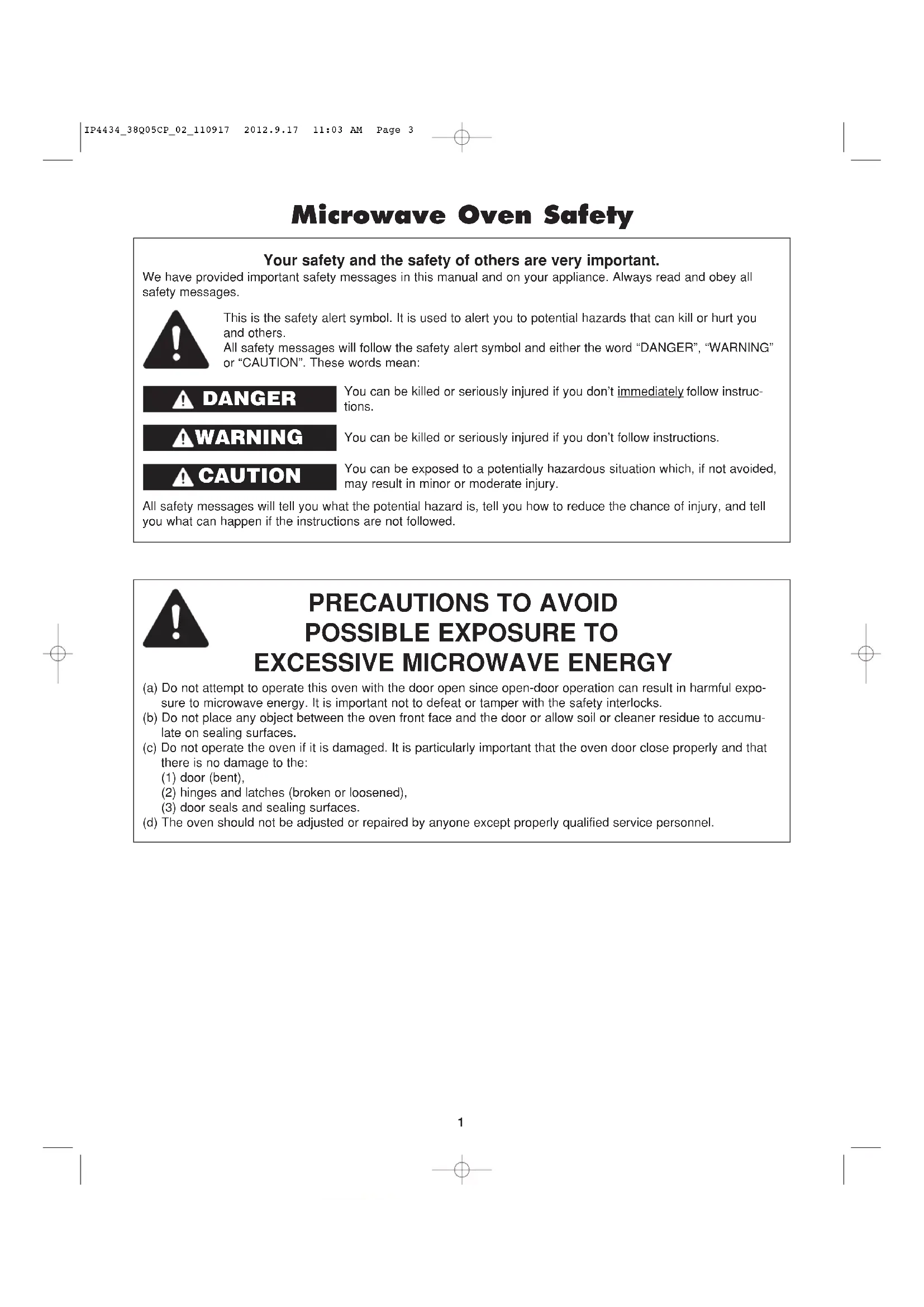

POSSIBLE EXPOSURE TO

EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful expo- sure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumu- late on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. This is the safety alert symbol. It is used to alert you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER”, “WARNING” or “CAUTION”. These words mean: You can be killed or seriously injured if you don’t immediately follow instruc- tions. You can be killed or seriously injured if you don’t follow instructions. Microwave Oven Safety DANGER WARNING You can be exposed to a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. CAUTION IP4434_38Q05CP_02_110917 2012.9.17 11:03 AM Page 32

IMPORTANT SAFETY INSTRUCTIONS

—To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy:

1. Read all instructions before using this appliance.

2. Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE

ENERGY,” found on page 1.

3. This appliance must be grounded. Connect only to a properly grounded outlet. See “GROUNDING

INSTRUCTIONS” found on page 4.

4. As with any cooking appliance, DO NOT leave oven unattended while in use.

5. Install or locate this appliance only in accordance with the installation instructions found on page 4.

6. DO NOT cover or block any openings on this appliance.

7. DO NOT store this appliance outdoors. DO NOT use this product near water — for example, near a kitchen sink,

in a wet basement, or near a swimming pool or similar locations.

8. Use this appliance only for its intended use as described in this manual. DO NOT use corrosive chemicals,

vapors, or non-food products in this appliance. This type of oven is specifically designed to heat, or cook food. It is not designed for industrial or laboratory use. The use of corrosive chemicals in heating or cleaning will damage the appliance and may result in radiation leaks.

9. When cleaning surfaces of the door and oven that come together upon closing the door, use only mild,

non-abrasive soaps or detergents applied with a sponge or soft cloth.

10. DO NOT allow children to use this appliance, unless closely supervised by an adult. DO NOT assume that

because a child has mastered one cooking skill he/she can cook everything.

11. DO NOT operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been

12. DO NOT immerse cord or plug in water.

13. Keep cord away from heated surfaces.

14. DO NOT let cord hang over edge of a table or counter.

15. This appliance should be serviced only by qualified service personnel. Contact the nearest authorized service

center for examination, repair or adjustment.

16. Some products such as whole eggs with or without shell, narrow neck bottles and sealed containers—for

example, closed glass jars—may explode and should not be heated in this oven.

17. To reduce the risk of fire in the oven cavity:

(a) DO NOT overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. (b) Remove wire twist-ties from paper or plastic bags before placing bag in oven. (c) If material inside the oven ignites, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. (d) DO NOT use the cavity for storage purposes. DO NOT leave paper products, cooking utensils or food in the cavity when not in use.

Superheated Liquids Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without showing evi- dence (or signs) of boiling. Visible bubbling is not always present when the container is removed from the microwave oven. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CON- TAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons: (a) STIR THE LIQUID BOTH BEFORE AND HALFWAY THROUGH HEATING IT. (b) DO NOT heat water and oil, or fats together. The film of oil will trap steam, and may cause a violent eruption. (c) DO NOT use straight-sided containers with narrow necks. (d) After heating, allow the container to stand in the microwave oven for a short time before removing the container.

19. DO NOT cook directly on the turntable. It can crack, cause injury or damage to the oven.

Your microwave oven is a cooking appliance and you should use as much care as you use with a stove or any other cooking appliance. When using this electrical appliances, basic safety precautions should be followed, including the following: Thank you for purchasing a Panasonic Microwave Oven. WARNING IP4434_38Q05CP_02_110917 2012.9.17 11:03 AM Page 43

IMPORTANT SAFETY INSTRUCTIONS

(continued) TO AVOID THE RISK OF SHOCK: DO NOT remove top or outer panel from oven. Repairs must be done only by a qualified service person. TO REDUCE THE RISK OF EXPOSURE TO MICROWAVE ENERGY: DO NOT tamper with, or make any adjustments or repairs to Door, Control Panel Frame, Safety Interlock Switches, or any other part of oven, microwave leakage may result. TO AVOID THE RISK OF FIRE:

1. DO NOT operate the oven empty. The microwave energy will reflect continuously throughout the

oven causing overheating and damage, if food or water is not present to absorb energy.

2. DO NOT store flammable materials next to, on top of, or in the oven.

3. DO NOT dry clothes, newspapers or other materials in the oven, or use newspaper or paper

4. DO NOT hit or strike Control Panel. Damage to controls may occur.

5. DO NOT use recycled paper products unless the paper product is labeled as safe for microwave oven use.

Recycled paper products may contain impurities which may cause sparking. TO AVOID THE RISK OF SCALDING: POT HOLDERS should always be used when removing items from the oven. Heat is transferred from the HOT food to the cooking container and from the container to the Glass Tray. The Glass Tray can also be very HOT after remov- ing the cooking container from the oven. Glass Tray

1. DO NOT operate the oven without the Roller Ring and the Glass Tray in place.

2. DO NOT operate the oven without the Glass Tray fully engaged on the drive hub. Improper cooking or damage to

the oven could result. Verify that the Glass Tray is properly engaged and rotating by observing its rotation when you press Start. Note: The Glass Tray can turn in either direction.

3. Use only the Glass Tray specifically designed for this oven. DO NOT substitute any other glass tray.

4. If the Glass Tray is hot, allow to cool before cleaning or placing in water.

5. DO NOT cook directly on the Glass Tray. Always place food in a microwave safe dish, or on a rack set in a

microwave safe dish.

6. If food or utensil on the Glass Tray touches oven walls, causing the tray to stop moving, the tray will automatically

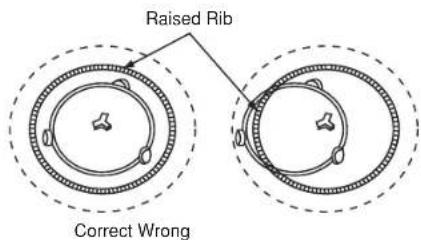

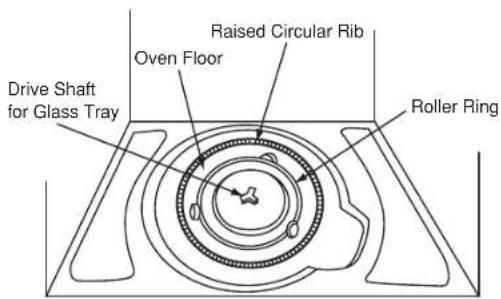

rotate in the opposite direction. Roller Ring

1. The Roller Ring and oven floor should be cleaned frequently to prevent excessive noise.

2. Always replace the Roller Ring and the Glass Tray in their proper positions.

3. The Roller Ring must always be used for cooking along with the Glass Tray.

SAVE THESE INSTRUCTIONS

For proper use of your oven, read remaining safety cautions and operating instructions.

20. This appliance is suitable for use above both gas and electric cooking equipment 91.4 cm (36 inches) or less

wide. To reduce the risk of fire and electric shock, install at least 34.6 cm (13

/8 inches), above a cooktop, meas- ured to the bottom of the oven.

21. Clean Ventilating Hoods Frequently – Grease should not be allowed to accumulate on hood or filter.

22. Use care when cleaning the Grease filter. Corrosive cleaning agents, such as lye-based oven cleaners, may dam-

age the filter. Clean in hot detergent solution every month.

23. Never flame foods under the oven with the vent fan operating because it may spread the flames.

Examine Your Oven Unpack oven, remove all packing material and examine the oven for any damage such as dents, broken door latches or cracks in the door. Notify dealer immediately if oven is damaged. DO NOT install if oven is damaged. Installation 1. This oven must be installed in at least a 30 inch opening, it is suitable for use above gas or electric cooking equip- ment 36 inches or less wide.

2. Be sure to install this oven only in accordance with the additional installation instructions provided.

3. It is recommended that the product be mounted to a flush wall of 5 x 10cm (2" x 4") stud and 1cm (

/8") minimum thickness drywall or plaster/lath construction. For further information, please consult the additional installation instructions provided.

4. Make sure the kitchen cabinet height is as high as the specification described in the installation instructions.

5. This oven was manufactured for household use only.

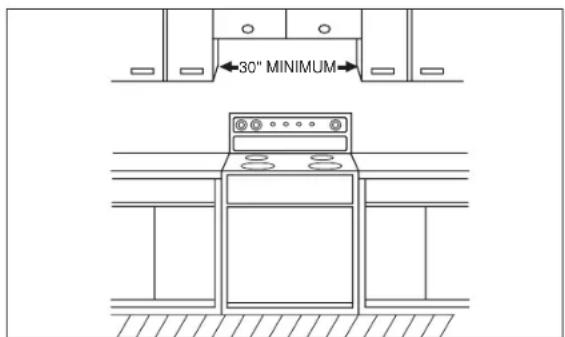

30" MINIMUM —IMPROPER USE OF THE GROUNDING PLUG CAN RESULT IN A RISK OF ELECTRIC SHOCK. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded. Grounding Instructions THIS APPLIANCE MUST BE GROUNDED. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

• Plug into properly installed and grounded 3 prong outlet.

• DO NOT remove ground prong.

(continued) Wiring Requirements 1.The oven must be operated on a SEPARATE CIRCUIT. No other appliance should share the circuit with the microwave oven. If it does, the branch circuit fuse may blow or the circuit breaker may trip. 2.The oven must be plugged into a 15 AMP or 20 AMP, 120 VOLT, 60 Hz GROUNDED OUTLET. Where a standard two-prong outlet is encountered, it is the personal responsibility and obligation of the consumer to have it replaced with a properly grounded three-prong outlet. 3.The VOLTAGE used must be the same as specified on this microwave oven (120 V, 60 Hz). Using a higher voltage is dangerous and may result in a fire or oven damage. Using a lower voltage will cause slow cooking. Panasonic is NOT responsible for any damages resulting from the use of the oven with any voltage other than specified. TV / Radio Interference 1.Operation of the microwave oven may cause interference to your radio, TV or similar equipment. 2.When there is interference, it may be reduced or eliminated by taking the following measures: (a) Place the radio, TV, etc. away from the microwave oven as far as possible. (b) Use a properly installed antenna to obtain stronger signal reception. (c) Clean door and sealing surfaces of the oven. (See Care and Cleaning of Your Microwave Oven) The Hood 1.The vent fan in your oven will operate automatically under certain cooktop operating conditions. This is normal. Caution is required to prevent the starting and spreading of accidental cooking fires while the vent fan is in operation. 2.Never leave surface units unattended at high heat setting. Boil over causes smoking and greasy spillovers that may ignite and spread if vent fan is operating. To minimize automatic fan operation, use adequate sized utensils and use high heat settings only when necessary. 3.In the event of a grease fire, smother flaming pan on surface unit by covering pan completely with well-fitting lid, cookie sheet or flat tray. 4.Keep hood and grease filters clean, according to instructions on page 27, to maintain adequate venting and avoid grease fires. 5.To protect the automatic fan feature, always keep the filter clean (see page 27). Should the fan require repair, do not operate microwave oven until it has been repaired. 6.Charcoal filter should be replaced periodically. It may be purchased from a local Panasonic dealer. Indoor Venting If the air exhaust must be recirculated by this unit inside the kitchen, a charcoal filter must be used. A charcoal filter has been installed for your convenience. However, we recommend that this filter be changed as soon as possible with the replacement charcoal filter kit (NN-CF203) that can be purchased from your local Panasonic dealer. Fan Motor Operation After using the oven repeatedly or for long time, the fan may operate to cool the electric components. This is perfectly normal, and you can take out the food from the oven while the fan operates. IP4434_38Q05CP_02_110917 2012.9.17 11:03 AM Page 76 Follow These Safety Precautions When Cooking in Your Oven. IMPORTANT Proper cooking depends upon the power, the time setting and quantity of food. If you use a smaller portion than recommended but cook at the time for the recommended portion, fire could result.

1) HOME CANNING / STERILIZING / DRYING FOODS / SMALL QUANTITIES OF FOODS

• DO NOT use your oven for home canning. Your oven cannot maintain the food at the proper canning temperature. The food may be contaminated and then spoil.

• DO NOT use the microwave oven to sterilize objects (baby bottles, etc.). It is difficult to keep the oven at the high temperature needed for sterilization.

• DO NOT dry meats, herbs, fruits or vegetables in your oven. Small quantities of food or foods with low moisture content can dry out, scorch or catch on fire if overheated.

Popcorn may be popped in a microwave oven corn popper. Microwave popcorn which pops in its own package is also available. Follow popcorn manufacturers’ directions and use a brand suitable for the cooking power of your microwave oven. CAUTION: When using pre-packaged microwave popcorn, you can follow recommended package instructions or use the popcorn pad (refer to page 13). Otherwise, the popcorn may not pop adequately or may ignite and cause a fire. Never leave oven unattended when popping popcorn. Allow the popcorn bag to cool before opening, always open the bag facing away from your face and body to prevent steam burns.

• DO NOT deep fat fry in your microwave oven. Cooking oils may burst into flames and may cause damage to the oven and perhaps result in burns. Microwave utensils may not withstand the temperature of the hot oil, and can shatter or melt.

4) FOODS WITH NONPOROUS SKINS

• DO NOT COOK/REHEAT WHOLE EGGS, WITH OR WITHOUT THE SHELL. Steam buildup in whole eggs may cause them to explode, and possibly damage the oven or cause injury. Reheating SLICED hard-boiled eggs and cooking SCRAMBLED eggs is safe.

• Potatoes, apples, whole squash and sausages are examples of foods with nonporous skins. These types of foods must be pierced before microwave cooking to prevent them from exploding. CAUTION: Cooking dry or old potatoes can cause fire.

5) GLASS TRAY / COOKING CONTAINERS / FOIL

• Cooking containers get hot during microwaving. Heat is transferred from the HOT food to the container and the Glass Tray. Use pot holders when removing containers from the oven or when removing lids or plastic wrap covers from cooking containers, to avoid burns.

• The Glass Tray will get hot during cooking. It should be allowed to cool before handling or before paper products, such as paper plates or microwave popcorn bags, are placed in the oven for microwave cooking.

• When using foil in the oven, allow at least 2.5 cm (1-inch) of space between foil and interior oven walls or door.

• Dishes with metallic trim should not be used, as arcing may occur.

6) PAPER TOWELS / CLOTHS

• DO NOT use paper towels or cloths which contain a synthetic fiber woven into them. The synthetic fiber may cause the towel to ignite. Use paper toweling under supervision.

7) BROWNING DISHES / OVEN COOKING BAGS

• Browning dishes or grills are designed for microwave cooking only. Always follow instructions provided by the manu- facturer. DO NOT preheat browning dish for longer than 6 minutes.

• If an oven cooking bag is used for microwave cooking, prepare according to package directions. DO NOT use a wire twist-tie to close bag, instead use plastic ties, cotton string or a strip cut from the open end of the bag.

• DO NOT use a conventional meat thermometer in your oven. Arcing may occur. Microwave safe thermometers are available for both meat and candy.

9) BABY FORMULA / BABY FOOD

• DO NOT heat baby formula or baby food in the microwave oven. The glass jar or surface of the food may appear warm while the interior can be so hot as to burn the infant’s mouth and esophagus.

10) REHEATING PASTRY PRODUCTS

• When reheating pastry products, check temperatures of any fillings before eating. Some foods have fillings which heat faster and can be extremely hot, while the surface remains warm to the touch (e.g. Jelly Donuts).

11) GENERAL OVEN USAGE GUIDELINES

• DO NOT use the oven for any purpose other than the preparation of food. Safety Precautions IP4434_38Q05CP_02_110917 2012.9.17 11:03 AM Page 87 Cookware Guide

ITEM MICROWAVE COMMENTS

Yes for Small strips of foil can be molded around thin parts of meat or poultry to Aluminum Foil Shielding prevent overcooking. Arcing can occur if foil is too close to oven wall or only door and damage to your oven will result. Browning dishes are designed for microwave cooking only. Check Browning Dish Yes browning dish information for instructions and heating chart. Do not preheat for more than 6 minutes. Brown paper bags No May cause a fire in the oven. Dinnerware: Check manufacturers' use and care directions for use in microwave Labeled Yes heating. Some dinnerware may state on the back of the dish, “Microwave Safe” “Oven-Microwave Safe”. Unlabeled Dinnerware ? Use CONTAINER TEST below. Disposable polyester Yes Some frozen foods are packaged in these dishes. Can be purchased in Paperboard Dishes grocery stores. Fast Food Carton No Metal handle may cause arcing. with Metal Handle Frozen Dinner Tray No Metal can cause arcing and damage to your oven. Metal Frozen Dinner Tray Yes Heat only 1 tray in the oven at one time. Microwave safe Glass Jars No Most glass jars are not heat resistant. Do not use for cooking or reheating. Heat Resistant Oven Yes Ideal for microwave cooking and browning. Glassware & Ceramics (See CONTAINER TEST below) Metal Bakeware

Not recommended for use in microwave ovens. Metal can cause arcing and damage to your oven. Metal Twist-Ties No May cause arcing which could cause a fire in the oven. Follow manufacturers' directions. Close bag with the nylon tie provided, Oven Cooking Bag Yes a strip cut from the end of the bag, or a piece of cotton string. Do not close with metal twist-tie. Make six 1 cm (

2-inch) slits near the closure. Paper Plates & Cups Yes Use to warm cooked foods, and to cook foods that require short cooking times such as hot dogs. Paper Towels & Napkins Yes Use to warm rolls and sandwiches, only if labeled safe for microwave use. Recycled Paper Towels No Recycled paper products may contain impurities which may cause sparks. & Napkins Parchment Paper Yes Use as a cover to prevent spattering. Safe for use in microwave, microwave/convection and conventional ovens. Plastic: Should be labeled, "Suitable for Microwave Heating." Check Microwave Safe Yes, manufacturers’ directions for recommended uses. Some microwave safe Cookware use caution plastic containers are not suitable for cooking foods with high fat or sugar content. The heat from hot food may cause the plastic to warp. Plastic, Melamine No This material absorbs microwave energy. Dishes get HOT! Plastic Foam Cups Yes, Plastic foam will melt if foods reach a high temperature. Use to reheat use caution foods to a low serving temperature only. Use to cover food during cooking to retain moisture and prevent Plastic Wrap Yes spattering. Should be labeled “Suitable for Microwave Heating”. Check package directions. Straw, Wicker, Wood Yes, Use only for short term reheating and to bring food to a low serving use caution temperature. Wood may dry out & split or crack when used. Thermometers- Yes Use only microwave safe meat and candy thermometers. Microwave safe Thermometers-

Not suitable for use in microwave oven, will cause sparks Conventional and get hot. Wax paper Yes Use as a cover to prevent spattering and to retain moisture. CONTAINER TEST TO TEST A CONTAINER FOR SAFE MICROWAVE OVEN USE: Fill a microwave safe cup with cool water and place it in the microwave oven alongside the empty container to be tested; heat one (1) minute at P10 (HIGH). If the con- tainer is microwave oven safe (transparent to microwave energy), the empty container should remain comfortably cool and the water should be hot. If the container is hot, it has absorbed some microwave energy and should NOT be used. This test cannot be used for plastic containers. IP4434_38Q05CP_02_110917 2012.9.17 11:03 AM Page 98 Oven Components Diagram

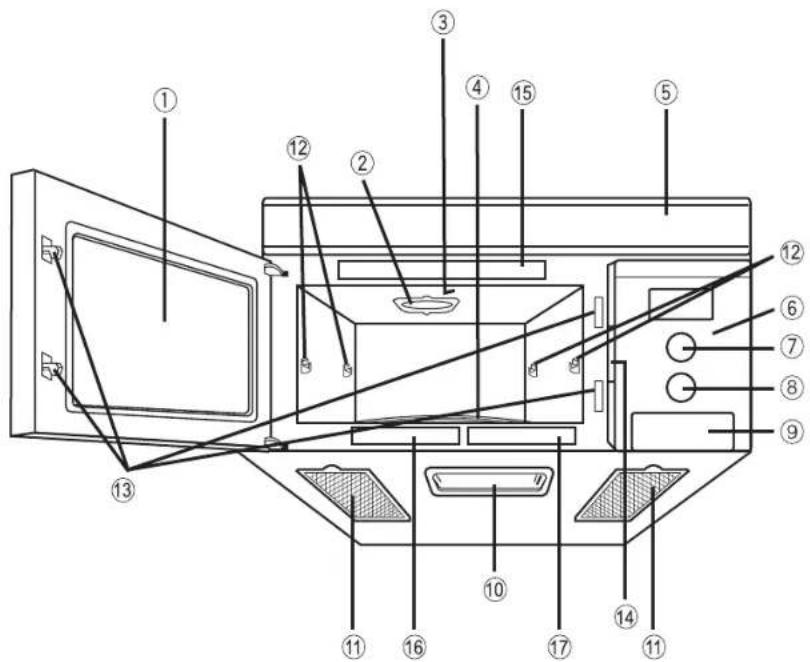

See-through Oven Window

Oven Light (Oven Light can be replaced, see page 27)

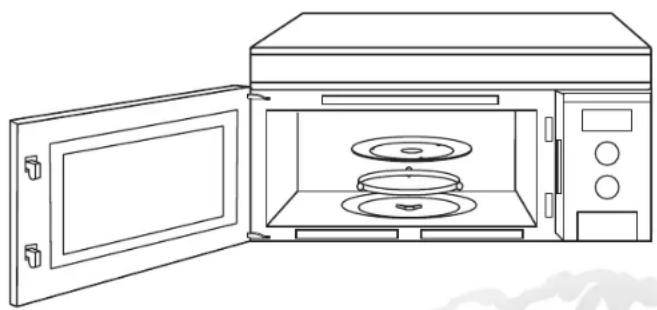

Glass Tray (Turntable)

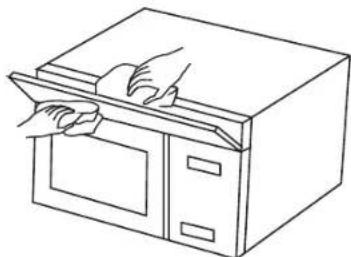

Oven Air Vent (Vent Grille is removable and can be cleaned, see page 26)

Grease Filter (Grease filter is removable and can be cleaned, see page 27)

Menu Label Shelf Do not place SHELF permanently in the oven cavity. Use SHELF for 2-level cooking only. see page 20 Glass Tray Roller Ring IP4434_38Q05CP_02_110917 2012.9.17 11:03 AM Page 109 Control Panel (1) Display Window: The Display includes a clock and indicators to tell you time of day, cooking time settings and cooking functions selected. (2) Popcorn Pad: Touch this pad to pop a bag of packaged microwave popcorn. (☛ page 13) (3) Sensor Reheat Pad: Touch this pad to reheat food with only one touch. (☛ page 16) (4) Inverter Turbo Defrost Pad: This feature allows you to defrost meat, poultry and seafood simply by entering the weight. (☛ page 14) (5) Keep Warm Pad: Touch this pad to keep foods warm for up to 30 minutes after cooking. (☛ page 12) (6) Sensor Menu Dial: Rotate the dial to select the Sensor Menus. (☛ page 16) (7) Time/Weight Dial: Rotate the dial to increase/decrease the cooking time/weight. (☛ page 10) (8) Stop/Reset Pad: Touch this pad to stop oven or clear all entries. (9) Timer/Clock Pad: Touch this pad to set the kitchen timer/enter the time of day. (10) Fan High/Low/Off Pad: Touch this pad to turn the fan on high, low, or off. (☛ page 11) (11) Super/Turbo/Off Pad: Touch this pad to turn the fan on super, turbo, or off. (☛ page 11) (12) Sensor Cook Pad (☛ page 16) (13) Power Level Pad: Touch this pad to select a cooking power level. (☛ page 12) (14) More/Less Pad: Touch this pad to cook food for a longer or shorter time when using Popcorn, Sensor Reheat and Sensor Cooking pads. (☛ page 13, 16) (15) Quick Min Pad: Touch this pad to set or add cooking time in 1 minute increments. (☛ page 12) (16) Start Pad: Touch this pad to start functioning. If you open the door after oven begins to cook, retouch START. (17) Turntable On/Off Pad: Touch this pad to turn the Turntable on or off. (☛ page 11) (18) Light On/Night/Off Pad: Touch this pad to turn on the cooktop light. (☛ page 11) (19) Auto Off 1/3/5/10 Pad: Touch this pad to set the fan time. (☛ page 11) Note: If an operation is set and Start Pad is not pressed, after 6 minutes, the oven will automatically cancel the operation. The display will revert back to clock or colon mode. (1) (2) (3) (13) (12) (14) (15) (16) (17) (18) (19) (4) (5) (6) (7) (8) (10) (11) (9) IP4434_38Q05CP_02_110917 2012.9.17 11:03 AM Page 1110 Function Features LANGUAGE CHOICE The oven has a choice of English, French or Spanish display. The language can be changed when you keep pressing More/Less Pad for 2 seconds.

The oven has both imperial and metric weight measurements. The weight measure- ment can be changed when you keep pressing Start Pad for 2 seconds. *LB KG

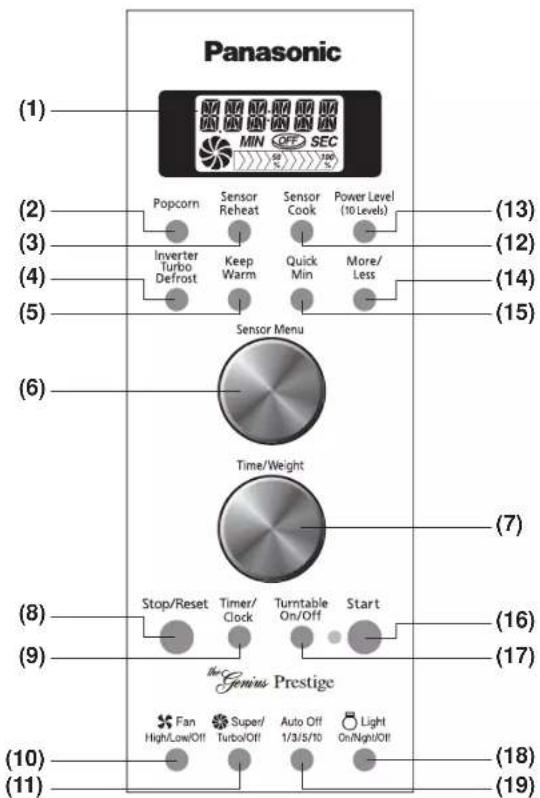

MENU ACTION SCREEN helps you to program your oven by prompting the next step to be taken. When you become familiar with your oven, the prompt can be turned off. *ON OFF

Demo mode is designed for retail store display. In this mode, the oven can be demon- strated with no power in the oven. *OFF ON

• DEFAULT MODE Dial Features Child Safety Lock TIME CHOICE Rotate the dial clockwise to increase the cooking time and rotate the dial counter- clockwise to decrease the cooking time. WEIGHT CHOICE Rotate the dial clockwise to increase the weight and rotate the dial counter-clockwise to decrease the weight setting.

Dial can be rotated in either direction to select the Sensor Menus. Press Press 3 times Press 4 times Press NOTE: The maximum of programmable time using Time Select Dial is up to 90 minutes. This feature prevents the electronic operation of the oven until cancelled. It does not lock the door. NOTE:

1. You can set Child Lock feature when the display shows a colon or time of day.

2. You cannot set Child Lock feature when setting Language Choice or LB/KG choice.

• Press Start 3 times. “LOCK” appears in the display window. ➤ "LOCK" continues to be displayed until Child Lock is cancelled. Keypads may be pressed but the microwave will not start.

• Press Stop/Reset 3 times. ➤ The display will return to colon or time of day when Child Lock has been cancelled. To Set: To Cancel: IP4434_38Q05CP_02_110917 2012.9.17 11:03 AM Page 1211 Setting Light On/Night/Off This feature allows you to control the brightness of Cooktop Light. Press "Light On/Night/Off" pad once for bright light, twice for the night light, and press again to turn the light off. NOTE: When "Turntable OFF" is selected, it will automatically return to "ON" again after the heating cycle is completed. Do not operate the oven "Turntable Off" when cooking foods on Popcorn / Inverter Turbo Defrost / Sensor Reheat / Sensor Cook. Sometimes the glass tray can become too hot to touch. Be careful when touching the glass tray during and after cooking. Setting Turntable On/Off For best cooking results, leave the turntable on. It can be turned off for large dishes. Press "Turntable On/Off" pad to turn the turntable on or off. When you turn it off, will appear in the display window. NOTE: Automatic Fan If the microwave oven is used for a long time or if cooking equipment under the microwave oven is used simultaneously, the temperature may get too hot around the microwave oven and the vent hood fan will automatically turn on at the Turbo setting to cool the oven. When this occurs the display window shows "VENTILATING", and the fan cannot be manually turned off. If subsequently another key is pressed and "HOT" appears in the display window, the microwave oven will not operate, and you must wait until the microwave is cool and "HOT" disappears from the display to re-program. The fan will automatically turn off when the internal components are cool. It may continue cooling for 30 minutes or longer. When "COOLING" appears in the display window After either using the microwave oven for a long time or using the cooking equipment under the microwave, "COOLING" may appear in the display window, and the cooling fan will run until components inside are cool. The microwave oven will continue to operate normally. Setting Fan High/Low/Off The Fan (Vent Fan) removes steam and other vapors from the cooking surface below the microwave oven. Press "Fan High/Low/Off" pad once for High fan speed, twice for Low fan speed, and press again to turn the fan off. When you turn it on, will appear in the display window. Note: The "Turbo" fan speed will run for a few seconds even though the "High/Low" fan setting is selected. This is absolutely normal. NOTE: If Auto Off is touched after Auto Off time had been set, you must reset the time. Setting Auto Off 1/3/5/10 After you have selected Fan High/Low or Super Fan/Turbo Fan On, you can set the desired time that automatically turns off the Fan or Super/Turbo Fan. Press "Auto Off 1/3/5/10" pad to set fan time. The following is the set times for the number of taps to the key: Setting Super/Turbo/Off Use "Super/Turbo/Off" pad for maxi- mum fan speed. Press "Super/Turbo/Off" pad once to turn on the Super Fan, twice to turn on the Turbo Fan and press again to turn it off. When you turn it on, will appear in the display window. one tap two taps three taps four taps five taps 1 min 3 min 5 min 10 min CAUTION: Keeping the cooktop light on for a long period of time will shorten the lifespan of the components. Please select the Nightlight mode for longer periods of use. IP4434_38Q05CP_02_110917 2012.9.17 11:03 AM Page 1312 Press 5 times. Press once twice 3 times 4 times 5 times 6 times 7 times 8 times 9 times 10 times Power Level P10 (HIGH)

P1 (LOW) This feature allows you to set or add cooking time in 1 minute increments up to 10 minutes. To Set Cooking Time: Selecting Power & Cook Time Example: To cook at P 6 (MEDIUM) power for 1 minute 30 seconds

• Press Power Level until the desired power level appears in the display window.

• Set cooking time by using Time Select Dial to 1 minute and 30 seconds.

• Press Start. ➤Cooking will start. The time in the display window will count down. NOTES:

1. For more than one stage cooking, repeat steps 1 and 2 for

each stage of cooking before pressing Start Pad. The maxi- mum number of stages for cooking is 5. When operating, two beeps will sound between each stage. Five beeps will sound at the end of the entire sequence.

2. When selecting P10 (HIGH) power for the first stage, you

may begin at step 2.

3. When selecting P10 (HIGH) power, the maximum program-

mable time is 30 minutes. For other power levels, the maxi- mum time is 90 minutes.

4. For reheating: use P10 (HIGH) for liquids, P7 (MED-HIGH)

for most foods and P6 (MEDIUM) for dense foods.

5. For defrosting, use P3 (MED-LOW).

DO NOT OVER COOK. This oven requires less time to cook than an older unit. Over cooking will cause food to dry out and may cause a fire. A microwave oven’s cooking power tells you the amount of microwave power available for cooking. Quick Min Feature

• Press Quick Min until the desired cooking time (up to 10 minutes) appears in the display window. Power Level is pre-set at P10.

• Press Start. Cooking begins and the time will count down. At the end of cooking, 5 beeps sound. NOTES:

1. If desired, you can use other power levels. Select desired

power level before setting cooking time.

2. After setting the time by using the Quick Min Pad, you

cannot use Time Dial.

3. Quick Min Pad can be used to add more time during

manual cooking. Check the Display Window to verify the additional cooking time. NOTES: Keep Warm cannot be used in combination with sensor or auto features. This feature will keep food warm for up to 30 minutes after cooking. Keep Warm Feature

• Set warming time, up to 30 minutes.

• Press Start. ➤ Keep Warm will start. The time in the display window will count down. Example: To keep 2 cups of gravy warm Time Dial Rotate Time Dial Rotate Setting the Clock Example: To set 11:25 a.m. or p.m.

• Press Time/Clock twice. ➤ Colon flashes.

• Set time of day by using Time Select Dial. ➤ Time appears in the display window; colon continues flashing.

• Press Timer/Clock once. ➤ Colon stops flashing; time of day is entered. NOTES:

1. To reset the clock, repeat steps 1-3.

2. The clock will retain the time of day as long as the oven is

plugged in and electricity is supplied.

3. Clock is a 12 hour display.

4. Oven will not operate while colon is flashing.

Time Dial Rotate IP4434_38Q05CP_02_110917 2012.9.17 11:03 AM Page 1413 For Popcorn: By using the More/Less Pad, the programs can be adjusted to cook popcorn for a longer or shorter time if desired. 1 tap = More (Adds Approx. 3% time) 2 taps = More (Adds Approx. 6% time) 3 taps = Less (Subtracts Approx. 3% time) 4 taps = Less (Subtracts Approx. 6% time) 5 taps = Original setting Press More/Less pad before pressing Start. For Sensor Reheat/Cook: Preferences for food doneness vary with each individual. After having used the Sensor Reheat/Cook feature a few times, you may decide you would prefer your food cooked to a differ- ent doneness. 1 tap = More (Adds Approx. 10% time) 2 taps = Less (Subtracts Approx. 10% time) 3 taps = Original setting Press More/Less pad before pressing Start. More/Less Feature Popcorn Feature

• (see More/Less Feature.)

1. Pop one bag at a time.

2. Place bag in oven according to manufacturers’ directions.

3. Start with popcorn at room temperature.

4. Allow popped corn to sit unopened for a few minutes.

5. Open bag carefully to prevent burns, because steam will

REMARKS: When popping multiple bags one right after the other, the cooking times may vary slightly. This does not affect the pop- corn results. This sensor feature allows you to pop popcorn without setting weight and time. The oven simplifies programming. Optional Cooking is complete when 5 beeps sound. (When steam is detected by the Genius Sensor and 2 beeps sound, the remaining cooking time will appear in the display window.) IP4434_38Q05CP_02_110917 2012.9.17 11:03 AM Page 1514 Conversion Chart: Follow the chart to convert ounces or hundredths of a pound into tenths of a pound. To use Inverter Turbo Defrost, enter the weight of the food in lbs. (1.0) and tenths of a lb. (0.1). If a piece of meat weighs 1.95 lbs. or 1 lb. 14 oz., enter 1.9 lbs. Inverter Turbo Defrost Feature

• Set weight of the food, using the Weight Select Dial to 1.5 pounds.

• Press Start. Defrosting will start. The time will count down. Larger weight foods will cause a signal midway through defrosting. If 2 beeps sound, turn over, rearrange foods or shield with aluminum foil. This feature allows you to automatically defrost foods such as: meat, poultry and seafood simply by entering the weight. Defrosting Tips & Techniques Preparation For Freezing:

1. Freeze meats, poultry, and fish in packages with only 1 or 2 layers of food. Place wax paper between layers.

2. Package in heavy-duty plastic wraps, bags (labeled “For Freezer”), or freezer paper.

3. Remove as much air as possible.

1. Remove wrapper. This helps moisture to evaporate. Juices from food can get hot and cook the food.

2. Set food in microwave safe dish.

3. Place roasts fat-side down. Place whole poultry breast-side down.

4. Select power and minimum time so that items will be under-defrosted.

5. Drain liquids during defrosting.

6. Turn over (invert) items during defrosting.

7. Shield edges and ends if needed. (See Cooking Techniques).

1. Large items may be icy in the center. Defrosting will complete during STANDING TIME.

2. Let stand, covered, following stand time directions on page 15.

3. Rinse foods indicated in the chart.

4. Items which have been layered should be rinsed separately or have a longer stand time.

Hundredths of a Pound .01 - .05 .06 - .15 .16 - .25 .26 - .35 .36 - .45 .46 - .55 .56 - .65 .66 - .75 .76 - .85 .86 - .95 Tenths of a Pound

Place food on microwave safe dish. NOTE: The maximum weight for Inverter Turbo Defrost is 3 kg (6 lb). Weight Dial Rotate IP4434_38Q05CP_02_110917 2012.9.17 11:03 AM Page 1615 Defrosting Tips & Techniques (continued) MANUAL

DEFROST AFTER DEFROSTING

FOOD TIME at P3 DURING DEFROSTING (min/kg)(min/lb) Stand Time Rinse Fish and Seafood [up to 1.4 kg (3 lbs.)] Crabmeat 13 6 Break apart/Rearrange Fish Steaks 8 to 12 4 to 6 Turn over 5 min. YES Fish Fillets 8 to 12 4 to 6 Turn over/Rearrange/Shield ends Sea Scallops 8 to 12 4 to 6 Break apart/Remove defrosted pieces Whole fish 8 to 12 4 to 6 Turn over Meat 8 to 10 4 to 5 Turn over/Remove defrosted portion/Shield edges 10 min. Ground Meat Roasts 8 to 16 4 to 8 Turn over/Shield ends and defrosted surface 30 min. in refrig. [1.1-1.8 kg (2

/2-4 lbs.)] Chops/Steak 12 to 16 6 to 8 Turn over/Rearrange/Shield ends and defrosted surface Ribs/T-bone 12 to 16 6 to 8 Turn over/Rearrange/Shield ends and defrosted surface 5 min. NO Stew Meat 8 to 16 4 to 8 Break apart/Rearrange/Remove defrosted pieces Liver (thinly sliced) 8 to 12 4 to 6 Drain liquid/Turn over/Separate pieces Bacon (sliced) 8 4 Turn over - - - - Poultry Chicken, Whole 8 to 12 4 to 6 Turn over/Shield 20 min. in refrig. [up to 1.4 kg (3 lbs.)] Cutlets 8 to 12 4 to 6 Break apart/Turn over/Remove defrosted Pieces 5 min. YES Pieces 8 to 12 4 to 6 Break apart/Turn over/Shield Cornish Hens 12 to 16 6 to 8 Turn over/Shield 10 min. Turkey Breast 12 6 Turn over/Shield 20 min. in refrig. [2.3-2.7 kg (5-6 lbs.)] IP4434_38Q05CP_02_110917 2012.9.17 11:03 AM Page 1716 Sensor Reheat Feature Example: To reheat a plate of food

• (see More/Less Feature) (☛ page 13)

Cooking is complete when 5 beeps sound. (When steam is detected by the Genius Sensor and 2 beeps sound, the remaining cooking time will appear in the display window.)

• Press Start. ➤ Cooking starts. NOTE: Casseroles - Add 3 to 4 tablespoons of liquid, cover with lid or vented plastic wrap. Stir when time appears in the display win- dow. Canned foods - Empty contents into casserole dish or serving bowl, cover dish with lid or vented plastic wrap. After reheating, let stand for a few minutes. Plate of food - Arrange food on plate; top with butter, gravy, etc. Cover with lid or vented plastic wrap. After reheating, let stand for a few minutes. DO NOT USE SENSOR REHEAT:

1. To reheat bread, meat pie and pastry products. Use manual

power and time for these foods.

2. For raw or uncooked foods.

3. If oven cavity is warm.

5. For frozen foods.

This sensor feature allows you to reheat food without setting time. The oven simplifies programming. Sensor Cook Feature This sensor feature allows you to cook food without setting time. The oven simplifies programming. For the best results with the GENIUS SENSOR, follow these recommendations. BEFORE Reheating/Cooking:

1. The room temperature surrounding the oven should be

3. Be sure the glass tray, the outside of the cooking containers

and the inside of the microwave oven are dry before placing food in the oven. Residual beads of moisture turning into steam can mislead the sensor.

4. Cover food with lid, or with vented plastic wrap. Never use

tightly sealed plastic containers—they can prevent steam from escaping and cause food to overcook. DURING Reheating/Cooking: DO NOT open the oven door until the end of cooking or 2 beeps sound. Doing so will cause inaccurate cooking since the steam from food is no longer contained within the oven cavity. If 2 beeps sounds, the remaining cooking time will begin to count down. The oven door may be opened to stir, turn, or rearrange foods. AFTER Reheating/Cooking: All foods should have a stand time. Example: To cook a 300 g (10 oz.) Frozen Entrée

• (see More/Less Feature) (☛ page 13)

Cooking is complete when 5 beeps sound. (When steam is detected by the Genius Sensor and 2 beeps sound, the remaining cooking time will appear in the display window.)

• Press Start. ➤ Cooking starts. Optional Automatic features are provided for your convenience. If results are not suitable to your individual preference or if serving size is other than what is listed on page 17, please refer to page 12 for manual cooking. Optional

1. Potatoes 1 - 4 potatoes Pierce each potato with a fork 6 times spacing around surface.

(170 - 225 g) Place potato or potatoes around the edge of paper-towel-lined (6 - 8 oz. each) glass tray (Turntable), at least 2.5 cm (1-inch) apart. Do not cover. Let stand 5 minutes to complete cooking.

2. Fresh Vegetables 110 - 450 g All pieces should be the same size. Wash thoroughly, add 1 tbsp of

2 cup of vegetables, and cover with lid or vented plastic wrap. Do not salt/butter until after cooking.

/2 cup of vegetables, (6 - 16 oz.) and cover with lid or vented plastic wrap. Do not salt/butter until after cooking. (Not suitable for vegetables in butter or sauce.) After 2 beeps, stir or rearrange.

4. Canned Vegetables 430 g Empty contents into microwave safe serving bowl.

(15 oz.) Do not cover.

5. Frozen Pizza (single) 225 g Follow manufacturers’ directions for preparation.

6. Frozen Pocket 1 sandwich Follow manufacturer's directions for preparation.

Sandwich (128 g) (4.5 oz.)

7. Frozen Entrées 225 - 900 g Follow manufacturers' directions for preparation. After 2 beeps, stir

(8 - 32 oz.) or rearrange. Be careful when removing the film cover after cooking. Remove facing away from you to avoid steam burns. If additional time is needed, continue to cook manually.

8. Frozen Dinners 300 - 450 g Follow manufacturer’s directions for covering or removing covers.

(11 - 16 oz.) Do not use frozen foods packaged in foil trays.

9. Oatmeal 40 - 80 g Place inside a microwave safe serving bowl with no cover. Follow

(0.5 - 1 cup) manufacturers’ directions for preparation.

10. Soup 1 - 2 cups Pour soup into a microwave safe serving bowl. Cover with lid or

(250 - 500 ml) vented plastic wrap. Stir after cooking.

11. Rice 0.5 - 1.5 cups Place rice with hot tap water in a microwave safe casserole dish.

(110 - 335 g) Cover with lid or vented plastic wrap. Let stand 5 to 10 minutes before serving.

12. Pasta 56 - 225 g Place pasta with hot tap water in a microwave safe casserole dish.

(2 - 8 oz.) Cover with lid or vented plastic wrap.

13. Breakfast Sausage 2 - 8 links Follow manufacturers’ directions for preparation of pre-cooked

breakfast sausage. Place in a radial pattern.

14. Ground Meat 450 - 900 g Break apart in glass bowl or colander. Cover with lid or vented

(16 - 32 oz.) plastic wrap. After 2 beeps, stir. Re-cover and press Start. Juices should be clear. Drain.

15. Fish Fillets 110 - 450 g Arrange in a single layer. Cover with lid or vented plastic wrap.

(4 - 16 oz.) IP4434_38Q05CP_02_110917 2012.9.17 11:03 AM Page 1918 Microwave Recipes OMELET Basic Omelet 1 tablespoon butter or margarine 2 eggs 2 tablespoons milk salt and ground black pepper, if desired Heat butter in a microwave safe 22.5 cm (9-inch) pie plate, 30 seconds at P10, or until melted. Turn the plate to coat the bot- tom with butter. Meanwhile, combine the remaining ingredients in a separate bowl, beat together and pour into the pie plate. Cover with vented plastic wrap, and cook at P6 power for 3-4 minutes. Let stand 2 minutes. With a spatula, loosen the edges of the omelet from the plate, fold into thirds to serve. Always use scrambled eggs. Yield: 1 serving NOTE: Double ingredients for a 4 egg Omelet. (Cook at P6 power for 5 minutes.) CASSEROLE Shepherd’s Pie 450 g (1 pound) lean ground beef

2 teaspoon curry powder

4 teaspoon ground black pepper 2 cups mashed potatoes In a 2-Qt. casserole dish, crumble the ground beef and cook for 8-10 minutes at P6 or until the meat is cooked, stirring twice. Add the remaining ingredients, except for potatoes. Stir well, and then spread the potatoes evenly on the top. Cover with a lid or vented plastic wrap and cook at P6 power for 19-21 minutes. Yield: 4 servings Macaroni and Cheese

4 cup butter 2 tablespoons chopped onion 1 clove minced garlic

/4 cup all-purpose flour 1 teaspoon dry mustard 1 teaspoon salt

/4 teaspoon ground black pepper 2 cups milk 2 cups grated cheddar cheese 250 g (8 oz.) (dry weight) macaroni, cooked and drained

/3 cup bread crumbs 1 teaspoon paprika In a 2-Qt. casserole dish, melt the butter for 40 seconds at P10. Add onion and garlic and cook for 1 minute at P10. Stir in flour, mustard, salt and pepper, and gradually add the milk. Cook for 3-4 minutes at P10 until sauce thickens, stirring once. Add the cheddar cheese, stirring thoroughly. Pour and stir the sauce into the macaroni, in a 3-Qt. casserole.Top with bread crumbs and paprika. Cover with lid or vented plastic wrap. Cook at P6 power for 19-21 minutes. Yield: 6 servings Beef and Macaroni Casserole 450 g (1 pound) lean ground beef 1 small onion, chopped

/4 cups water 1 cup uncooked elbow macaroni 1 teaspoon parsley

/4 teaspoon ground black pepper

/2 cup grated cheddar cheese Crumble the ground beef in a 3-Qt. casserole. Cook for 5-7 minutes at P6 or until the meat is cooked, stirring twice. Stir in onion, peppers and celery. Cook for 3-4 minutes at P10. Stir in the remaining ingredients, except cheese. Cover with lid or vented plastic wrap. Cook at P6 power for 19-21 minutes. Sprinkle with cheese. Cover and let stand 5 minutes. Yield: 4-6 servings Tuna Casserole 1 170 g (6 oz.) can tuna, drained and flaked 4 cups cooked and drained noodles 1 300 g (10

/4 oz.) can condensed cream of mushroom soup 1 110 g (4 oz.) can mushroom pieces and stems, drained 1 450 g (16 oz.) package frozen peas, defrosted

4 cup milk 1 cup crushed potato chips

/2 cup grated cheddar cheese In a 3-Qt. casserole, combine tuna, noodles, soup, mush- rooms, peas and milk; mix well. Cover with lid or vented plastic wrap. Cook at P6 power for 19-21 minutes. Top with potato chips and cheese before serving. Yield: 4-6 servings IP4434_38Q05CP_02_110917 2012.9.17 11:03 AM Page 2019 Timer Feature Example: To count down 5 minutes.

• Press Timer/Clock once.

• Set time, using Time Select Dial to 5 minutes.

• Press Start. ➤ Time will count down without oven operating. NOTE:

1. When each stage finishes, a two-beep signal sounds. At the

end of the program, the oven will beep five times.

2. If the oven door is opened during Stand Time, Kitchen Timer

or Delay Time, the time on the display will continue to count down.

3. Stand time and Delay start cannot be programmed before

any automatic Function. This is to prevent the starting tem- perature of food from rising before defrosting or cooking begins. A change in starting temperature could cause inac- curate results.

4. The maximum programmable time of Standing Time,

Kitchen Time or Delay Time is up to 90 minutes. This feature allows you to program the oven as a kitchen timer. It can also be used to program a standing time after cooking is completed and/or to program a delay start. To Use as a Kitchen Timer: CAUTION: If oven lamp is lit while using the timer feature, the oven is incorrectly programmed. Stop oven immediately and re-read instructions. To Set Delay Start: Example: To cook at P6 power for 3 minutes, with stand time of 5 minutes.

• Enter the desired Power Level (see page 12 for directions).

• Set cooking time, using Time Select Dial to 3 minutes.

• Press Timer/Clock once.

• Press Start. ➤ Cooking will start. After cooking, stand time will count down without oven operating. To Set Stand Time: Example: To delay the start of cooking for 5 minutes, and cook at P6 power for 3 minutes.

• Press Timer/Clock once.

• Set delay time, using Time Select Dial to 5 minutes.

• Enter the desired Power Level (see page 12 for directions).

• Set cooking time, using Time Select Dial.

• Press Start. ➤ Delay time will count down. Then cooking will start. Press 5 times Press 5 times Time Dial Rotate Time Dial Rotate Time Dial Rotate to 5 minutes. Time Dial Rotate to 3 minutes. Time Dial Rotate IP4434_38Q05CP_02_110917 2012.9.17 11:03 AM Page 2120 Operation How to Use the Shelf When Microwaving

1. The shelf must be positioned on Shelf Supports securely to

prevent damage to the oven from arcing.

2. DO NOT use a microwave browning dish on the shelf. The

shelf and dish could overheat.

3. DO NOT use the oven with the shelf on the microwave floor.

This could damage the microwave.

4. Use pot holders when handling the shelf—it may be hot.

Caution: Do not heat liquids on shelf, use the turntable for heating liq- uids. Also be careful when removing hot items from the shelf or turntable. Placement of the Roller Ring Before using the microwave oven, be sure the Roller Ring is properly installed. Incorrect installation can result in improper cooking, damage to the oven or spillage of food. The Roller Ring must be located on the surface between the raised rib and raised floor. For best cooking results 1-Level cooking Food microwaves best when placed onto the turntable, with turntable on (rotating). When a large dish or more than one dish is used for cooking, the turntable can be turned off. For best results, rotate large dish and interchange mul- tiple dishes, halfway through cooking cycle. For best cooking results, remove the shelf unless you are reheating on more than one level. 2-Level cooking

1. Multiply reheat time by 1

2. Interchange dishes halfway

through cooking. DO NOT use the shelf or operate Turntable Off when cooking foods on Popcorn / Inverter Turbo Defrost / Keep Warm / Sensor Reheat / Sensor Cook. Roller Ring Raised Circular Rib Oven Floor Raised Rib Drive Shaft for Glass Tray Correct Wrong (Turntable On) For best results (Turntable Off) Rotate dish halfway through cooking (Turntable Off) Interchange dishes halfway through cooking Uneven results Interchange dishes halfway through cooking IP4434_38Q05CP_02_110917 2012.9.17 11:03 AM Page 2221 Microwave Shortcuts FOOD POWER TIME DIRECTIONS (in mins.) To separate refrigerated P10 (HIGH) 30 sec. Remove wrapper and place in microwave safe dish. After Bacon, heating, use a plastic spatula to separate slices. 450 g (1 pound) To soften Brown Sugar P10 (HIGH) 20 - 30 sec. Place brown sugar in microwave safe dish with a slice of 1 cup (250 ml) bread. Cover with lid or plastic wrap. To soften refrigerated Butter, P3 (MED-LOW) 1 Remove wrapper and place butter in a microwave safe 1 stick, 110 g (

/4 pound) dish. To melt refrigerated Butter, P6 (MEDIUM) 1

2 - 2 Remove wrapper and place butter in a microwave safe

/4 pound) dish covered with lid or vented plastic wrap. To melt Chocolate, P6 (MEDIUM) 1 - 1

/2 Remove wrapper and place chocolate in a microwave 1 square, 28 g (1 oz.) safe dish. After heating, stir until completely melted. To melt Chocolate, P6 (MEDIUM) 1 - 1

/2 Note: Chocolate holds its shape even when softened.

/2 cup (125 ml) chips To toast Coconut, P10 (HIGH) 1 Place in a microwave safe dish.

2 cup (125 ml) Stir every 30 seconds. To soften Cream Cheese, P3 (MED-LOW) 1 - 2 Remove wrapper and place in a microwave safe bowl. 225 g (8 oz.) To brown Ground Beef, P10 (HIGH) 4 - 5 Crumble into a microwave safe colander set into another 450 g (1 pound) dish. Cover with plastic wrap. Stir twice. Drain grease. To cook Vegetables, Fresh P8 3

2 - 4 All pieces should be the same size. Wash thoroughly, add

/2 cup of vegetables, and cover with

lb) lid or vented plastic wrap. Do not salt/butter until after cooking. Frozen P8 4

/2 - 5 Wash thoroughly, add 1 tbsp of water per

/2 cup of (285 g) vegetables, and cover with lid or vented plastic wrap. (10 oz.) Do not salt/butter until after cooking. (Not suitable for vegetables in butter or sauce.) Canned P8 3

- 4 Empty contents into microwave safe serving bowl. (430 g) Do not cover. (15 oz.) IP4434_38Q05CP_02_110917 2012.9.17 11:03 AM Page 2322 Microwave Shortcuts (continued) FOOD POWER TIME DIRECTIONS (in mins.) To cook baked Potato, Pierce each potato with a fork 6 times spacing around

170 - 225 g surface. Place potato or potatoes around the edge of

(6 - 8 oz.) each paper-towel-lined glass tray (Turntable), at least 2.5 cm 1 potato P8 4

/2 - 5 (1-inch) apart. Do not cover. Let stand 5 minutes to complete cooking. 2 potatoes P8 8 - 9 To steam Hand Towels - 4 P10 (HIGH) 20 - 30 sec. Soak in water, then wring out excess. Place on a microwave safe dish. Heat. Present immediately. To soften Ice Cream, P3 (MED-LOW) 1 - 1

/2 Check often to prevent melting. 2 qt. (

/2 - 3 2 cups, 500 ml (16 oz.) 4 Heated liquids can erupt if not stirred. Do not heat liquids in microwave oven without stirring before heating. Cup of liquid To warm Beverage, P7 (MED-HIGH) 1 cup, 250 ml (8 oz.) 2 - 3 2 cups, 500 ml (16 oz.) 4 - 5 To roast Nuts, P10 (HIGH) 4 - 5 Spread nuts into a 23 cm (9-inch) microwave safe pie

/2 cups (375 ml) plate. Stir occasionally. To toast Sesame Seeds, P10 (HIGH) 3 - 5 Place in a small microwave safe bowl. Stir twice.

4 cup (60 ml) To skin Tomatoes, P10 (HIGH) 30 sec. Place tomato into a microwave safe bowl containing (one at a time) boiling water. Rinse and peel. Repeat for each tomato. To remove Cooking Odours, P10 (HIGH) 5 Combine 1 to 1

/2 cups (250 - 375 ml) water with the juice and peel of one lemon in a 2 quart microwave safe bowl. After water finishes boiling, wipe interior of oven with a cloth. IP4434_38Q05CP_02_110917 2012.9.17 11:03 AM Page 2423 Food Characteristics Cooking Techniques Bone and Fat Both bone and fat affect cooking. Bones may cause irregular cooking. Meat next to the tips of bones may overcook while meat positioned under a large bone, such as a ham bone, may be undercooked. Large amounts of fat absorb microwave ener- gy and the meat next to these areas may overcook. Density Porous, airy foods such as breads, cakes or rolls take less time to cook than heavy, dense foods such as potatoes and roasts. When reheating donuts or other foods with different centres be very careful. Certain foods have centres made with sugar, water, or fat and these centres attract microwaves (For example, jelly donuts). When a jelly donut is heated, the jelly can become extremely hot while the exterior remains warm to the touch. This could result in a burn if the food is not allowed to cool properly in the centre. Quantity Two potatoes take longer to cook than one potato. As the quantity of the food decreases so does the cook- ing time. Overcooking will cause the moisture content in the food to decrease and a fire could result. Never leave microwave unattended while in use. Shape Uniform sizes heat more evenly. The thin end of a drumstick will cook more quickly than the meaty end. To compensate for irregular shapes, place thin parts toward the centre of the dish and thick pieces toward the edge. Size Thin pieces cook more quickly than thick pieces. Starting Temperature Foods that are at room temperature take less time to cook than if they are chilled, refrigerated, or frozen. Piercing Foods with skins or membranes must be pierced, scored or have a strip of skin peeled before cooking to allow steam to escape. Pierce clams, oysters, chicken liv- ers, whole potatoes and whole vegetables. Whole apples or new potatoes should have a 1-inch strip of skin peeled before cooking. Score sausages and frankfurters. Do not Cook/Reheat whole eggs with or with- out the shell. Steam build up in whole eggs may cause them to explode, and possibly damage the oven or cause injury. Reheating SLICED hard-boiled eggs and cooking SCRAM- BLED eggs is safe. Browning Foods will not have the same brown appearance as conventionally cooked foods or those foods which are cooked utilizing a browning feature. Meats and poultry may be coated with browning sauce, Worcestershire sauce, barbecue sauce or shake-on browning sauce. To use, combine browning sauce with melted butter or margarine and brush on before cooking. For quick breads or muffins, brown sugar can be used in the recipe in place of granulated sugar, or the surface can be sprinkled with dark spices before baking. Spacing Individual foods, such as baked potatoes, cup- cakes and appetizers, will cook more evenly if placed in the oven equal distances apart. When possible, arrange foods in a circular pat- tern. IP4434_38Q05CP_02_110917 2012.9.17 11:03 AM Page 2524 Cooking Techniques (continued) Covering As with conventional cooking, moisture evaporates during microwave cooking. Casserole lids or plastic wrap are used for a tighter seal. When using plastic wrap, vent the plastic wrap by folding back part of the plastic wrap from the edge of the dish to allow steam to escape. Loosen or remove plastic wrap as recipe directs for stand time. When removing plastic wrap covers, as well as any glass lids, be careful to remove them facing away from you to avoid steam burns. Various degrees of moisture retention are also obtained by using wax paper or paper towels. Shielding Thin areas of meat and poultry cook more quickly than meaty portions. To prevent overcooking, these thin areas can be shielded with strips of aluminum foil. Wooden toothpicks may be used to hold the foil in place. CAUTION is to be exercised when using foil. Arcing can occur if foil is too close to oven wall or door and damage to your oven will result. Cooking time A range of cooking time is given in each recipe. The time range compensates for the uncontrollable differences in food shapes, starting temperature, and regional preferences. Always cook food for the minimum cooking time given in a recipe and check for doneness. If the food is undercooked, continue cooking. It is easier to add time to an undercooked product. Once the food is overcooked, nothing can be done. Stirring Stirring is usually necessary during microwave cooking. Always bring the cooked outside edges toward the centre and the less cooked centre portions toward the outside of the dish. Rearranging Rearrange small items such as chicken pieces, shrimp, ham- burger patties, or pork chops. Rearrange pieces from the edge to the centre and pieces from the centre to the edge of the dish. Turning It is not possible to stir some foods to distribute the heat even- ly. At times, microwave energy will concentrate in one area of the food. To help ensure even cooking, these foods need to be turned. Turn over large foods, such as roasts or turkeys, halfway through cooking. Stand Time Most foods will continue to cook by conduction after the microwave oven is turned off. In meat cookery, the internal temperature will rise 3°C to 8°C (5°F to 15°F), if allowed to stand, tented with foil, for 10 to 15 minutes. Casseroles and vegetables need a shorter amount of standing time, but this standing time is necessary to allow foods to complete cooking to the centre without overcooking on the edges. Test for Doneness The same tests for doneness used in conventional cooking may be used for microwave cooking. Meat is done when fork- tender or splits at fibers. Chicken is done when juices are clear yellow and drumstick moves freely. Fish is done when it flakes and is opaque. Cake is done when a toothpick or cake tester is inserted and comes out clean.

ABOUT FOOD SAFETY AND COOKING

TEMPERATURE Check foods to see that they are cooked at the recommended temperatures. TEMP FOOD 71˚C (160˚F) ...for fresh pork, ground meat, boneless white poultry, fish, seafood, egg dishes and frozen prepared food. 74˚C (165˚F) ...for leftover, ready-to-reheat refrigerated, and deli and carryout “fresh” food. 77˚C (170˚F) ...white meat of poultry. 82˚C (180˚F) ...dark meat of poultry. To test for doneness, insert a meat thermometer in a thick or dense area away from fat or bone. NEVER leave the ther- mometer in the food during cooking, unless it is approved for microwave oven use. IP4434_38Q05CP_02_110917 2012.9.17 11:03 AM Page 2625 Care and Cleaning of Your Microwave Oven AFTER CLEANING: Be sure to place the Roller Ring and the Glass Tray in the proper position and press Stop/Reset Pad to clear the Display. Inside of the oven: Wipe with a damp cloth after using, mild detergent may be used if need- ed. Do not use harsh detergents or abrasives. Glass Tray: Remove and wash in warm soapy water or in a dishwasher. Outside oven surfaces: Clean with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into ventilation openings. Oven Door: Wipe with a soft, dry cloth when steam accumulates inside or around the outside of the oven door. During cooking, especially under high humidity conditions, steam is given off from the food. (Some steam will condense on cooler surfaces, such as the oven door. This is normal.) Inside surface is covered with a heat and vapor barrier film. Do not remove. Roller Ring and oven cavity floor: Clean the bottom surface of the oven with mild detergent water or window cleaner, and dry. Roller Ring may be washed in mild soapy water or dishwasher. These areas should be kept clean to avoid excessive noise. Shelf Clean with a soft damp cloth to avoid scratches. Control Panel: If the Control Panel becomes wet, clean it with a soft, dry cloth. Do not use harsh detergents or abrasives. IT IS IMPORTANT TO KEEP THE OVEN CLEAN AND DRY. FOOD RESIDUE AND CONDEN- SATION MAY CAUSE RUSTING OR ARCING AND DAMAGE TO THE OVEN. AFTER USE, WIPE DRY ALL SURFACES-INCLUDING VENT OPENINGS, OVEN SEAMS, AND UNDER GLASS TRAY. BEFORE CLEANING: Unplug oven at wall outlet. Warning/Function/Menu Label: Do not remove, wipe with a damp cloth. IP4434_38Q05CP_02_110917 2012.9.17 11:03 AM Page 2726 Care and Cleaning of Your Microwave Oven (continued) Cleaning Vent Grille (Oven Air Vent)

1. Moisten a soft cloth in hot water containing mild detergent.

2. Wipe the front surface gently.

3. Tilt the Grille cover forward slowly as shown in Fig. A.

4. Wipe inside the Grille cover.

To avoid the risk of injury when cleaning, DO NOT directly contact the metal edges of the Grille cover. For Non-vented (ductless) application only. Charcoal Filter Replacement (NN-CF203) This product is shipped for use in the top exhaust ventilation mode. If you wish to install this product without using an exhaust duct, the exhaust must be recirculated through the front louver and a charcoal filter. A temporary charcoal filter has been installed for your convenience. However, we recommend that this filter be changed as soon as possible with the replacement charcoal filter kit (NN-CF203) that can be purchased from your local Panasonic dealer. The charcoal filter cannot be cleaned. Once the replacement filter has been installed, it should be replaced periodically every 6 to 12 months, or more often if necessary. Refer to the following instructions for replacement.

1. Remove the Vent Grille

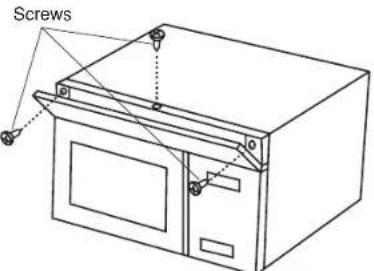

Pull the front louver down to open as shown in Fig. B. Remove two screws from the front and one from the top, then pull the Vent Grille forward.

2. Remove the temporary Charcoal Filter

Insert your finger under the bottom of the filter, and pull the Charcoal Filter forward as shown in Fig.C. Installing Vent Grille

1. Slide the top flange of Grille along the top plate, then tilt the

Grille down to fit as shown in Fig. E.

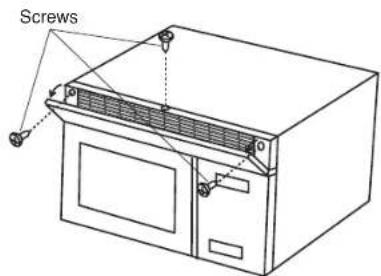

2. Tilt the front louver downwards, then secure with three

screws, one on each side and one on top as shown in Fig. F. (Fig. A) Screws (Fig. B) (Fig. D) Screw ScrewTop flange of GrilleTop Plate (Fig. E) Screws (Fig. F) (Fig. C)

3. Install replacement Charcoal Filter (NN-CF203)

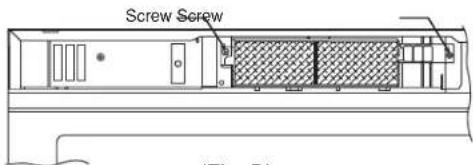

Install the Charcoal Filter aligning the two holes, then secure with two screws as shown in Fig. D. IP4434_38Q05CP_02_110917 2012.9.17 11:03 AM Page 2827 Care and Cleaning of Your Microwave Oven (continued) Cleaning Grease Filters The Grease Filters should be removed and cleaned often, at least once a month.

1. Grasp the "metal ring" on the Grease Filter. Slide the

Grease Filter to the rear of oven.

2. Pull the Grease Filter out.

3. Use care when cleaning the Grease Filters. Corrosive clean-

ing agents, such as lye-based oven cleaners, may damage the Grease Filters. Clean the Grease Filters with a warm detergent solution. Do not use ammonia or other alkali because it will darken metal. Light brushing can be used to remove embedded dirt. Shake and remove moisture before replacing. Installing Grease Filters

1. Slide in the edge of the Grease Filters along the opening's

2. Push up front edge and pull forward until it fits.

Caution: After removing the Grease Filter, be careful with the sharp edges at the openings. Never operate the Vent Fan without the Grease Filters in place. Halogen Cooktop/Night Light Replacement Be careful as the Cooktop Light Cover and the bulb may be hot.

1. Unplug microwave oven or disconnect power.

2. Loosen the screw to open the Cooktop Light Cover.

(Be careful not to lose the screw.)

3. Replace the old bulb with a new one.

(Halogen 30 W, 120 V, GY8.6 Bi-pin base) Do not touch a new Halogen bulb with bare hands. Fingerprints may result in shorter life. Remove fingerprints with alcohol. If this bulb is not available locally, contact your local Panasonic dealer. Part number is F67536Z00AP.

4. Reinstall the Cooktop Light Cover with a screw.

Oven Light Replacement Be careful as the Oven Light Cover and the bulb may be hot.

1. Unplug microwave oven or disconnect power.

2. Remove the Vent Grille and Charcoal Filter.

(see page 26 for Charcoal Filter replacement).

3. Lift the tab of Oven Light Cover, and push back. Lift up and

4. Replace the old bulb with a new one.

(use Max. 125 V, 30 W) If this bulb is not available locally, contact your local Panasonic dealer. Part number is F60305H00AP.

5. Reinstall the Oven Light cover securely aligning the hole in

cover, onto the detent. When cleaning the Oven Light Cover or the adjacent area, clean with a soft damp cloth. To avoid scratches, do not use harsh detergents or abrasives. Grasp the ringopeningguideGrease Filterdetent hole Oven Light CoverCooktop Light CoverscrewIP4434_38Q05CP_02_110917 2012.9.17 11:03 AM Page 2928 Before Requesting Service These things are normal: The oven causes interference Some radio and TV interference might occur when you cook with the microwave oven. with my TV. This interference is similar to the interference caused by small appliances such as mixers, vacuums, blow dryers, etc. It does not indicate a problem with your oven. Steam accumulates on the oven During cooking, steam and warm air are given off from the food. Most of the steam and door and warm air comes from warm air are removed from the oven by the air which circulates in the oven cavity. the oven vents. However, some steam will condense on cooler surfaces such as the oven door. This is normal. After use, the oven should be wiped dry (see page 25). The oven is not plugged in securely. Remove plug from outlet, wait 10 seconds and re-insert. Circuit breaker or fuse is tripped or Reset circuit breaker or replace fuse.blown. There is a problem with the outlet. Plug another appliance into the outlet to check if it is working. The door is not closed completely. Close the oven door securely. Start Pad was not pressed after Press Start Pad. programming. Another program is already entered Press Stop/Reset Pad to cancel the previous into the oven. program and enter new program. The program is not correct. Program again according to the Operating Instructions. Stop/Reset Pad has been pressed Program oven again. accidentally. The Glass Tray is not positioned Take out Glass Tray and Roller Ring. Wipe with properly on the Roller Ring or there a damp cloth and reset Roller Ring and Glass is food under the Roller Ring. Tray properly. The Roller Ring and oven bottom Clean these parts according to Care and are dirty. Cleaning of your Microwave Oven (see page 25). The CHILD LOCK was activated. Deactivate LOCK by pressing Stop/Reset pad 3 times (see page 10). Oven will not turn on. Oven will not start cooking. The Glass Tray wobbles. When the oven is operating, there is noise coming from the glass tray. The word “LOCK” appears in the Display Window.

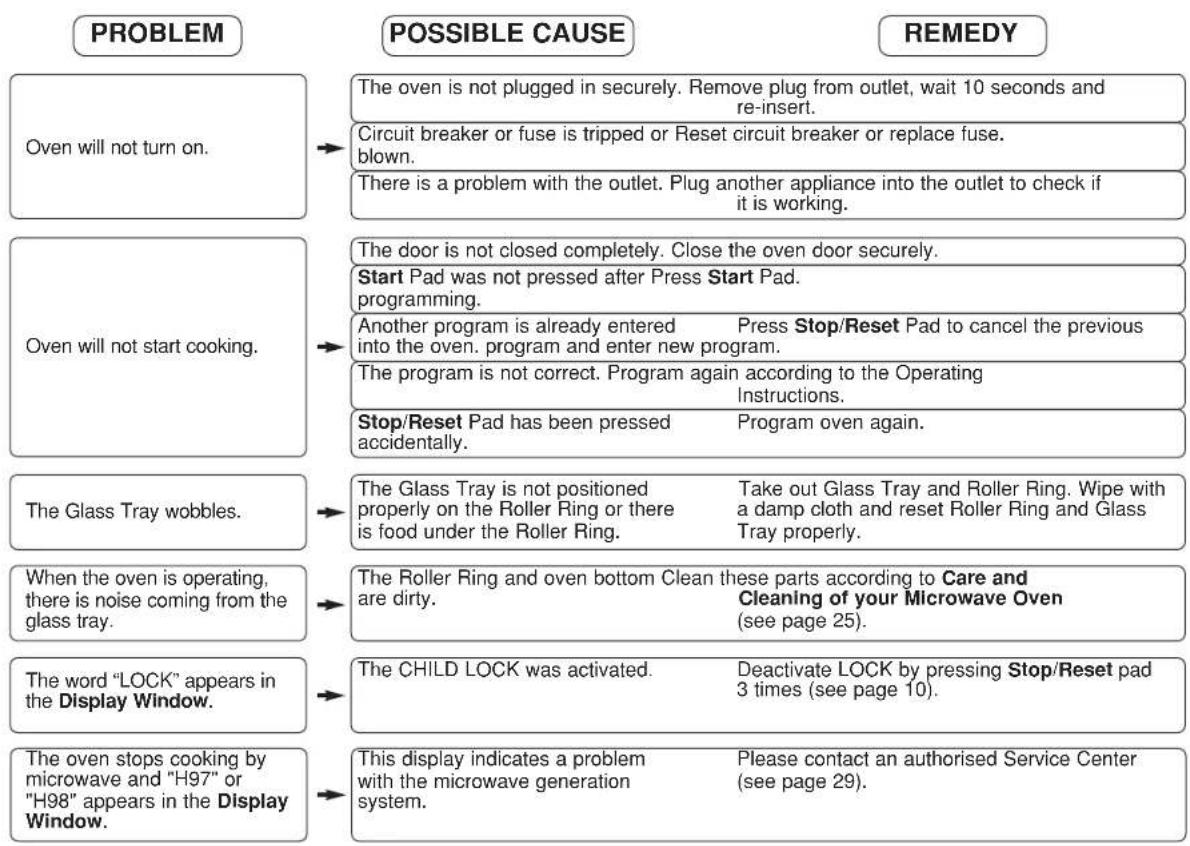

PROBLEM POSSIBLE CAUSE REMEDY

This display indicates a problem with the microwave generation system. Please contact an authorised Service Center (see page 29). The oven stops cooking by microwave and "H97" or "H98" appears in the Display Window. IP4434_38Q05CP_02_110917 2012.9.17 11:03 AM Page 3029 Warranty Panasonic Canada Inc. 5770 Ambler Drive, Mississauga, Ontario L4W 2T3

PANASONIC PRODUCT – LIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by Panasonic Canada Inc. Microwave Oven: Two (2) years, parts and labour (Carry-in Service). Additional three (3) year warranty on the magnetron (parts only, labour extra). In-home Service applies to Convection, Over-The-Range and Stainless Steel ovens only. In-home Service will be carried out only to locations accessible by roads and within 50 km of an authorized Panasonic service facility. This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada, which product was not sold “as is”, and which product was delivered to you in new condition in the original packaging. IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS REQUIRED LIMIT

TIONS AND EXCLUSIONS

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cos- metic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Authorized Servicer, or damage that is attributable to acts of God. Over-The-Range cooktop light bulbs are excluded from coverage under this warranty. THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from the Authorized Servicer, loss of or damage to media or images, data or other memory or record- ed content. This list of items is not exhaustive, but for illustration only.) In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable. This warranty gives you specific legal rights and you may have other rights which vary depending on your province or territory.

ARRANTY SERVICE For product operation and information assistance, please contact:

PRODUCT OPERATION ASSISTANCE

Customer Care Centre: Telephone #: 1-800-561-5505 Fax #: (905) 238-2360 Email link: "Support—> contact us—> email" on www .panasonic.ca PRODUCT REPAIRS Please locate your nearest Authorized Servicentre. Link: "Support—> Panasonic Servicentre® locator" on www .panasonic.ca IF YOU SHIP THE PRODUCT TO A SERVICENTRE Carefully pack and send prepaid, adequately insured and preferably in the original carton. Include details of the defect claimed, and proof of date of original purchase. IP4434_38Q05CP_02_110917 2012.9.17 11:03 AM Page 3130 Quick Guide to Operation Feature To Set Clock (☛ page 11) To Set Light On/Night/Off (☛ page 11) To Set Turntable On/Off (☛ page 11) To Set Fan High/Low/Off (☛ page 11) How to Operate Press twice. Press once. Bright Light Press once. To turn on for one minute Press twice. To turn on for 3 minutes Press three times. To turn on for 5 minutes Press again. To turn on for 10 minutes Press twice. Night Light Press again. Turn off the Light Press once. To turn on at High Speed Press twice. To turn on at Low Speed Press again. To turn off Press once. To Set Power and Time (☛ page 12) Press to select Power Level. Press. Set Cooking Time. To Cook Using Quick Min (☛ page 12) (up to 10 min) Press. To use Keep Warm (☛ page 12) Press once. Press.Set keep warm time. (up to 30 min.) To Cook using Popcorn (☛ page 13) Press once. Press.Optional. To Defrost using Inverter Turbo Defrost (☛ page 14) Press once. Press.Set weight. To Reheat Using Sensor Reheat (☛ page 16) Press once. Press.Optional. To Cook Using Sensor Cook (☛ page 16) To Use as a Kitchen Timer (☛ page 19) Press once. Press. Set time. To Set Stand Time (☛ page 19) Press once. Press. Press once. To Set Turntable off Press again. To Set Turntable on To Set Super/Turbo/Off (☛ page 11) To Use Auto Off 1/3/5/10 (☛ page 11) Press once. To set Super Fan Press twice. To set Turbo Fan Press again. To turn off

Input up to 4-stage cooking programs. To Set Delay Start (☛ page 19) Press once. Press.

Input up to 4-stage cooking programs. Set time. Set time. Set time of day. Time Dial Time Dial Time Dial Weight Dial Time Dial Time Dial Time Dial Press once. Press.Optional. Sensor Menu Dial To select category. IP4434_38Q05CP_02_110917 2012.9.17 11:03 AM Page 3231 The serial number of this product may be found on the left side of the control panel. You should note the model number and the serial number of this oven in the space provided and retain this book as a permanent record of your purchase for future reference. Model No. ______________________________ Serial No. ______________________________ Date of Purchase ________________________ User’s Record Power Source: Power Consumption: Cooking Power:* Outside Dimensions (W x H x D): Oven Cavity Dimensions (W x H x D): Charcoal Filter (optional): Operation Frequency: Ventilation Power: Noise Level: Net Weight: 120 V, 60 Hz 1,490 W 1,100 W 759 mm x 418 mm x 393 mm (29

420 CFM 300 CFM 160 CFM 130 CFM
