Brand	Fellowes
Model	AeraMax DX95
Product Type	Air Purifier
Coverage Area	27 m² (295 sq ft)
Power Supply	120 V AC, 60 Hz
Rated Power	6 W (low) to 86 W (high)
Number of Speeds	4 (Low, Medium, High, Turbo)
Control Type	Touchscreen
Operating Modes	Auto, Manual, Aera+™
Air Quality Sensor	AeraSmart™ (Blue/Amber/Red indicators)
Filtration System	4 stages: Carbon filter, True HEPA filter, AeraSafe™ antimicrobial treatment, PlasmaTRUE™ technology
True HEPA Filter	With AeraSafe™ antimicrobial treatment (annual replacement)
Carbon Filter	Replace every 3 months
PlasmaTRUE™ Technology	Yes (ionization to suppress pollutants)
CADR (Smoke)	191
CADR (Dust)	196
CADR (Pollen)	188
Warranty	3 years (parts, excluding filters)
Replacement Parts	True HEPA Filter (ref. 9287201), Carbon Filter (ref. 9324201)
Color	White
Silent Operation	Yes (ultra silent)

Frequently Asked Questions - AeraMax DX95 FELLOWES

How do I replace the filters on my Fellowes AeraMax DX95 air purifier?

Unplug the device. Remove the drawer, then take out the old filters. Insert the new carbon filter first, then the True HEPA filter. Close the drawer. Plug the device back in and reset the filter indicator by pressing and holding the replacement icon for 3 seconds, then select the relevant filter.

How do I reset the filter replacement indicator after changing the filters?

Once the new filters are installed and the device is powered on, press and hold the filter replacement icon for 3 seconds until you hear a beep. The HEPA filter icon flashes. Press again to toggle between HEPA and carbon. Hold for 3 to 5 seconds to reset each filter.

What do the colors of the AeraSmart™ air quality indicator mean?

The blue indicator means the air is clean, the amber indicator indicates poor quality, and the red indicator signals a high amount of pollutants.

How do I use the Aera+™ mode on my air purifier?

Press the ⚙️ icon (Aera+™ mode) after turning on the device. This mode increases the air flow by 50% compared to low speed, ideal during allergy season. To return to automatic mode, press the icon again.

Why does my air purifier make a sound like a clockwork mechanism?

This noise is normal and indicates that the PlasmaTRUE™ feature is activated. It produces an ionized field to eliminate pollutants.

The filter indicator stays on after replacement, what should I do?

Reset the indicator by following the procedure: press the replacement icon for 3 seconds, select the filter, then hold for 3 to 5 seconds until the beep. If the problem persists, repeat the operation.

Can I wash and reuse the True HEPA or carbon filters?

No, the True HEPA and carbon filters are not washable. They must be replaced according to the recommended schedule (annually for HEPA, every 3 months for carbon) to maintain efficiency.

What is the power supply required for the Fellowes AeraMax DX95?

The device operates on a 120 V AC, 60 Hz power outlet with a polarized plug. Do not use with other voltages.

How often should I replace the filters on my air purifier?

Under normal conditions, replace the True HEPA filter every 12 months and the carbon filter every 3 months. The replacement indicators alert you when necessary.

What is PlasmaTRUE™ technology and how does it work?

The PlasmaTRUE™ technology creates an ionized field that helps safely suppress air pollutants. It works in conjunction with the filters to improve purification.

USER MANUAL AeraMax DX95 FELLOWES

Exterior view of a white and black Feliowes air conditioner unit (no visible text or symbols on body)

Please read these instructions before use. Do not discard: keep for future reference.

Warranty....2
Package Contents 2
Safety Instructions....3
Product Specifications....4
Air Purifier Features.... 5
Air Purifier Set-Up....6

Display Panel 7
Operation....8
Care and Maintenance....9-10
Troubleshooting ....11

LIMITED PRODUCT WARRANTY

Limited Warranty: Fellowes, Inc. ("Fellowes") warrants the parts of the machine to be free of defects in material and workmanship and provides service and support for 3 years from the date of purchase by the original consumer. If any part is found to be defective during the warranty period, your sole and exclusive remedy will be repair or replacement, at Fellowes' option and expense, of the defective part. This warranty does not cover damage caused by use of non-Fellowes approved filters or failure to follow the recommended replacement schedule. This warranty does not apply in cases of abuse, mishandling, failure to comply with product usage standards, operation using an improper power supply (other than listed on the label), or unauthorized repair. Fellowes reserves the right to charge the consumers for any additional costs incurred by Fellowes to provide parts or services outside of the country where the air purifier is initially sold by an authorized reseller. This warranty does not include the air cleaner's replaceable filters, this is an expendable part that can wear out from normal use before three years expire. ANY IMPLIED WARRANTY, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED IN DURATION TO THE APPROPRIATE WARRANTY PERIOD SET FORTH ABOVE. In no event shall Fellowes be liable for any consequential or incidental damages attributable to this product. This warranty gives you specific legal rights. The duration, terms, and conditions of this warranty are valid worldwide, except where different limitations, restrictions, or conditions may be required by local law. For more details or to obtain service under this warranty, please contact us or your dealer.

PACKAGE CONTENTS

• Fellowes® AeraMax™ Air Purifier
• True HEPA Filter with AeraSafe™ Antimicrobial Treatment (1 filter)

• Carbon Filter (1 filter)
- Instruction Sheet
- Survey Card

SAFETY INSTRUCTIONS

Thank you for purchasing a Fellowes® Air Purifier. Please read this manual carefully before using. This product is for indoor use only.

IMPORTANT CAUTIONS AND INSTRUCTIONS FOR USING YOUR AIR PURIFIER

WARNING: Follow the instructions in this manual to reduce the risk of electric shock, short circuit, and/or fire:

• Do not repair or modify the unit unless specifically recommended in this manual. All repairs should be completed by a qualified technician.
• The plug for this unit is polarized with one blade wider than the other. Do not force the plug into an electrical outlet.
• Do not alter the plug in any way. If the plug does not fit into the outlet, reverse the plug. If it still does not fit, contact a qualified technician to install a proper outlet.
• Do not use if the power cord or plug is damaged or the connection to the wall outlet is loose.
• Use AC 120V only.
• Do not damage, break, forcefully bend, pull, twist, bundle, coat, pinch, or place heavy objects on the power cord.
• Periodically remove dust from the power plug. This will reduce the chance that humidity will accumulate, which increases the risk of electric shock.
• If the power plug is damaged, it must be replaced by the manufacturer or a qualified technician.

• Remove the power plug from the outlet before cleaning the unit. When removing the power plug, grasp by holding the plug itself, never hold by the cord.

• Remove the power plug from the outlet when the unit is not in use.

• Do not handle the power plug with wet hands.
• Do not operate the unit when using indoor smoke-generating insecticides.
• Do not clean unit with benzene or paint thinner. Do not spray insecticides on the unit.
• Do not use the unit where it is humid or where the unit may get wet, such as in a bathroom.
• Do not insert fingers or foreign objects into the air intake or outlet.
• Do not use the unit near flammable gases. Do not use near cigarettes, incense, or other spark-creating items.
• Unit will not remove carbon monoxide emitted from heating appliances or other sources.
• Do not block the intake or outlet vents.
• Do not use near hot objects, such as a stove. Do not use where the unit may come into contact with steam.
• Do not use the unit on its side.
• Keep away from products that generate oily residue, such as a deep fryer.
• Do not use detergent to clean the unit.
• Do not operate without a filter.
• Do not wash and reuse the True HEPA Filter.
• Do not run power cord under carpets or cover with throw rugs.
• When moving machine, always lift using handle.

PRODUCT SPECIFICATIONS
	AeraMaxTM DX95 Air Purifier
Room Area Served	295 sq. ft./27 sq. m.
Power Supply AC 120V/60Hz
Power Rate Low 6W, Turbo 86W
Fan Speed 4 Speeds
Display Touch Screen
Control Type Auto/M	Manual/Aera+TM
Air Quality Sensor Yes
Filters	1 True HEPA Filter with AeraSafeTM Antimicrobial Treatment1 Carbon Filter
Cleaning System	Carbon FilterTrue HEPA Filter with AeraSafeTM Antimicrobial TreatmentPlasmaTRUETM
CADR 191 Smoke/	196 Dust/ 188 Pollen
Color White

FILTER SPECIFICATIONS
True HEPA Filter Replacement with AeraSafeTM Antimicrobial Treatment	9287201
Carbon Filter Replacement	9324201

For replacement filters please visit: www.fellowes.com

Warning

Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment.

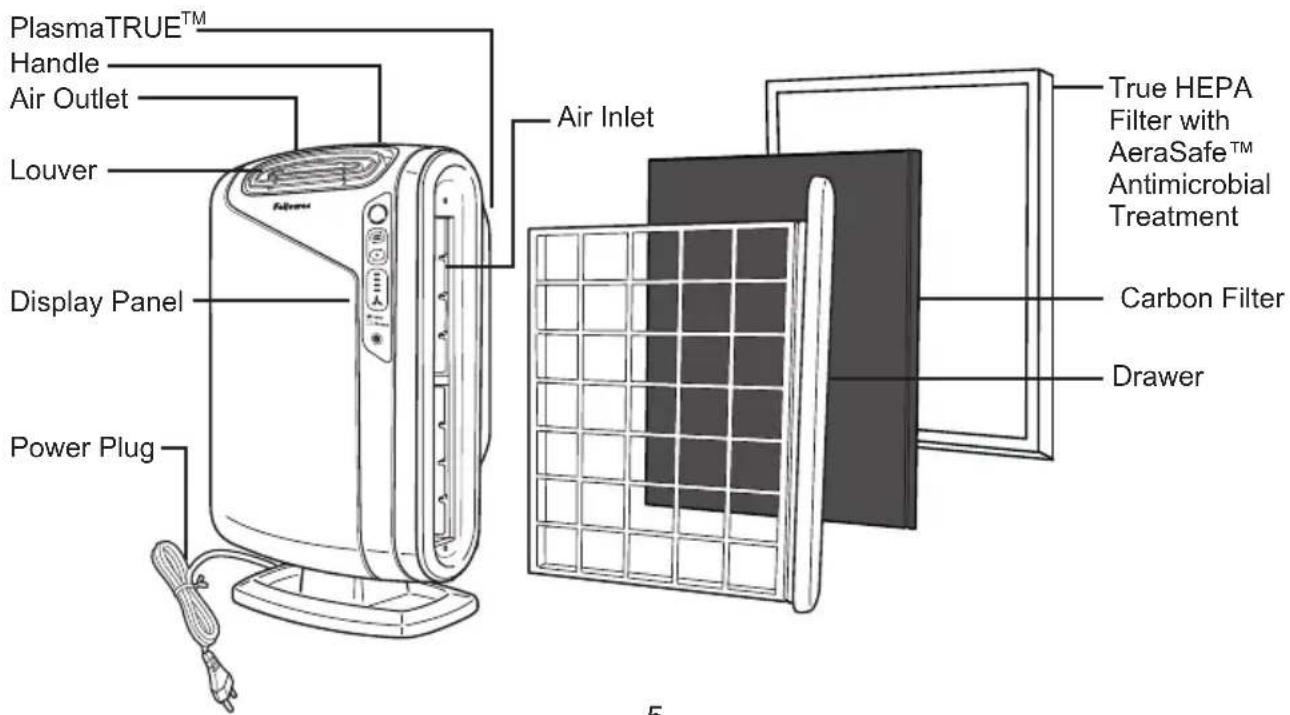

AIR PURIFIER FEATURES

- Ultra-Quiet Operation

This Fellowes AeraMax™ Air Purifier has a four-speed fan with ultra-quiet operation that is ideal for 24 hour use.

- Easy Maintenance

For optimum performance, replace the True HEPA Filter when the HEPA Filter indicator has changed to red, or approximately every 12 months under normal usage conditions. Change the Carbon Filter when the Carbon Filter indicator has changed to red or approximately every 3 months under normal usage conditions.

- AeraSmart™ Sensor

This air purifier is equipped with an air quality sensor that automatically adjusts the fan speed to keep your air purified. Blue, amber and red lights indicate the purity of your air.

- Four-Speed Setting

From LOW for quiet, energy-efficient operation to TURBO for the most effective cleaning.

Aera+TM Mode

Designed for peak allergy season conditions. Increases air turnover rate by 50% versus low fan setting mode to remove even more allergens from your air.

- Replacement Filter Indicator Lights Indicate when to replace the True HEPA Filter and Carbon Filter, depending on usage.

FOUR-STAGE PURIFICATION SYSTEM

• Carbon Filter
• True HEPA Filter
• AeraSafe™ Antimicrobial Treatment
• PlasmaTRUE™ Technology

AIR PURIFIER SET-UP

NOTE: Follow these instructions for best results.

• Place unit at least 2 feet ( 12 meter) from the wall.
• Keep unit away from drafty areas.
• Keep curtains away from unit, as they may interfere with air intake/outlet.

• Place unit on a stable surface with plenty of air circulation.

• Remove protective film from the control panel.

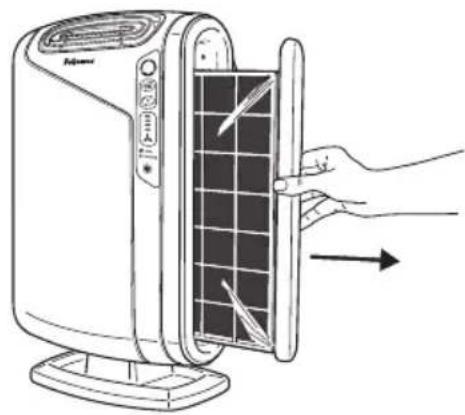

• Pull out drawer.

Line drawing of a hand opening a power heater with a grid panel, showing internal components and airflow direction (no text or symbols)

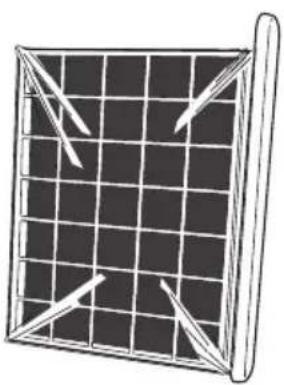

1. Remove bag from filters drawer.

Diagram of a solar panel with grid lines and four blades, no text or symbols present

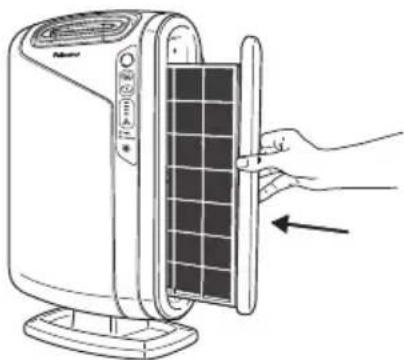

1. Insert Carbon Filter first and then True HEPA Filter.

2. Fully insert drawer into unit until click is heard.

Line drawing of a hand inserting a solar panel into a power heater (no text or symbols)

1. Plug in the power cord to a wall outlet.

2. Turn unit on. Unit will beep.

Hand holding a button with a circular icon, no text or symbols present

For approximately the first 4 minutes after turning the unit on, the auto icon will flash while the unit measures air quality.

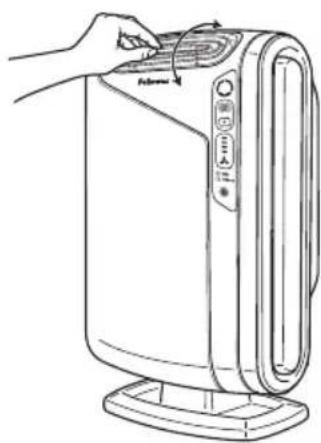

1. Adjust louvers to direct air flow.

Line drawing of a hand operating a portable air conditioner unit (no text or symbols)

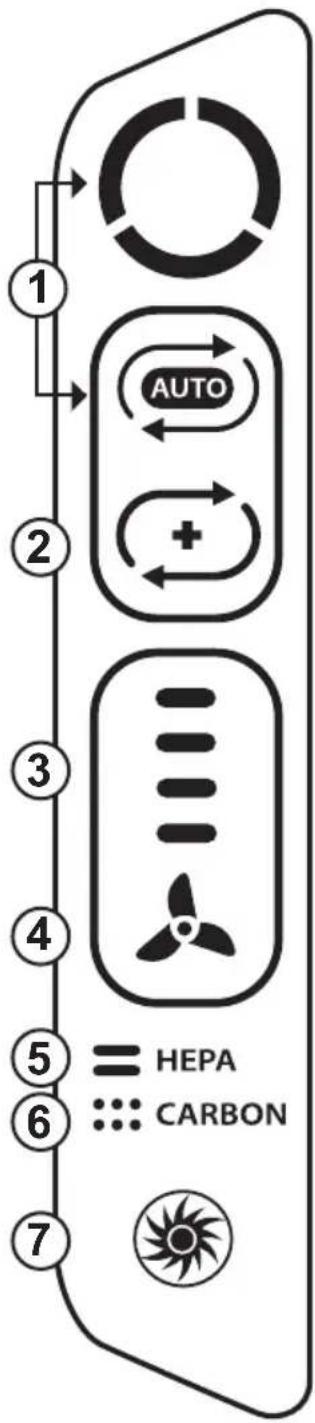

DISPLAY PANEL

1. AeraSmart™ SENSOR - Monitors the air quality and automatically adjusts the fan speed to keep your air purified. Blue, amber and red lights indicate the purity of your air. The unit is set to default to automatic operation when it is first turned on. If in manual operation, go back to auto at any time by pressing the auto icon.
2. Aera+TM MODE - Designed for peak allergy season conditions. Increases air turnover rate by 50% versus low fan setting mode to remove even more allergens from your air. Switch to Aera+TM mode by pressing the 🎨 icon. To return to auto operation, press the 🔊 icon once more to turn off.
3. FAN SPEED INDICATOR - Shows current fan speed setting: low, medium, high or turbo speed.
4. MANUAL FAN SPEED ADJUSTMENT - Tap fan icon to manually select fan speed.
5. TRUE HEPA FILTER CHANGE INDICATOR - Amber and red lights indicate when to replace filter. The red indicator light will signal when to replace filter. (Recommended to replace filter every twelve months under normal usage conditions.) For replacement filters, see page 4.
6. CARBON FILTER CHANGE INDICATOR - Amber and red lights indicate when to replace filter. The red indicator light will signal when to replace filter. (Recommended to replace filter every three months under normal usage conditions.) For replacement filters, see page 4.
7. PlasmaTRUE™ TECHNOLOGY - Creates an ionized field to help safely remove airborne pollutants.

OPERATION

AUTOMATIC OPERATION

The unit is set to default to automatic operation when it is first turned on. The air purifier will automatically sense the amount of impurities in the air, and adjust the fan speed to keep your air purified.

Hand pressing a button on a keyboard (no text or symbols visible)

MANUAL OPERATION

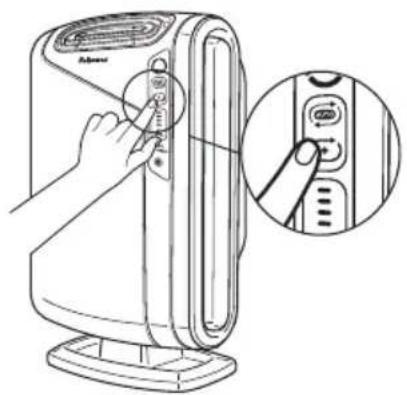

After you turn on the unit, you can switch to manual operation by tapping the fan icon to manually select fan speed.

- LOW, MEDIUM, OR HIGH SETTINGS

These levels are recommended for standard daytime use. HIGH will activate automatically when sensors detect poor air quality.

Simple icon of a propeller inside a rounded rectangle (no text or symbols)

LOW

Simple icon of a propeller inside a rounded rectangle, no text or symbols present

MEDIUM HIGH

Simple icon of a propeller inside a rounded rectangle (no text or symbols)

• TURBO

The TURBO level, the highest fan speed, can be activated manually for maximum air purification.

Simple icon of a propeller inside a rounded rectangle (no text or symbols)

TURBO

AeraSmart™ SENSOR

Air quality indicator shows levels of air quality.

Blue level indicates air is clean.

Amber level indicates air quality is poor.

Red level indicates high level of pollutants in the air.

Aera+TM MODE

After you turn on the unit, you can switch to Aera+TM mode by pressing the Aera+TM mode icon (☐). To go back to auto operation, press Aera+TM mode icon (☐) to turn off.

CARE AND MAINTENANCE

CLEANING

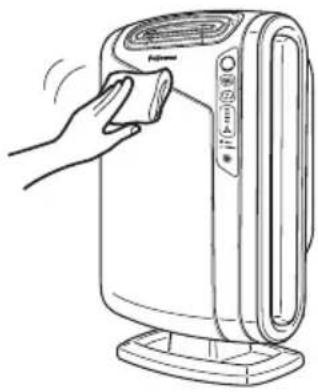

• Clean unit as necessary by wiping with a dry, soft cloth; for stubborn stains, use a warm, damp cloth.
• Do not use volatile fluids such as benzene, paint thinner, or scouring powder, as they may damage the unit surface.
• Keep the unit dry.

Line drawing of a hand holding a small device next to a portable air conditioner unit (no text or symbols visible)

Filter Replacement

The replacement filter indicators will signal when to replace the True HEPA Filter and/or Carbon Filter. The replacement period will vary depending on the hours of use and air quality. However, under normal usage, most True HEPA Filters need to be replaced annually, and Carbon Filters every three months.

Do not wash and reuse the True HEPA or Carbon Filters—they will not work effectively. Only use Fellowes brand AeraMax™ replacement filters.

Replacement Procedure

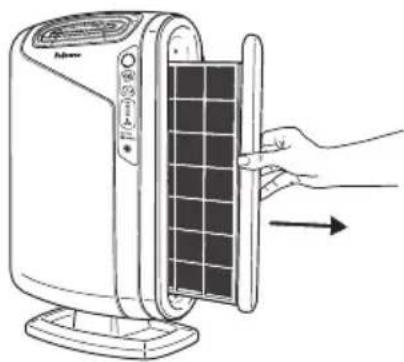

1. Pull out drawer.

Line drawing of a hand inserting a solar panel into a power heater (no text or symbols)

1. Pull out the filters that need to be changed.

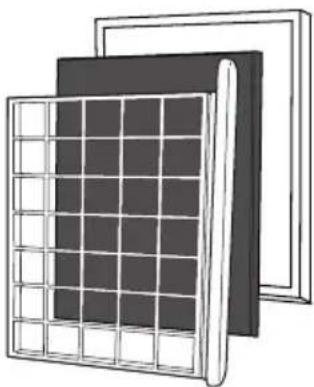

Illustration of a solar panel with grid panels, shown in three different orientations (no text or symbols)

1. Remove any packaging wrap from the new filter(s).

For replacement filter part numbers, see page 4.

WARNING: Before replacing any filters, make sure to remove the power plug from the wall outlet.

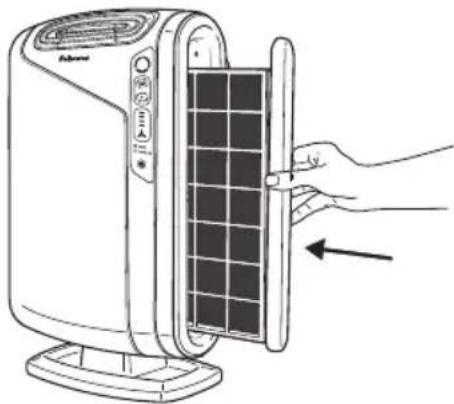

1. Place the new filters in the main unit. (Carbon Filter should always be inserted first, then the True HEPA filter into drawer.)

Line drawing of a hand inserting a solar panel into a power heater (no text or symbols)

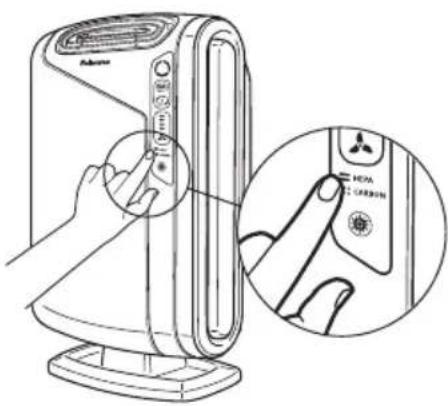

1. To reset the filter light once a new True HEPA and/or Carbon Filter is installed:

a. Be sure that drawer is closed.
b. Turn on the unit.
c. Locate the filter replacement icon on the display panel.
d. Press and hold the filter replacement icon for 3 seconds until unit beeps.

HEPA Filter icon will flash amber.

Press filter icon area to alternate

between HEPA and Carbon.

e. Once desired filter is illuminated, press and hold for 3-5 seconds. A short beep will be heard and the light should turn off. Repeat process for each filter as needed.

TROUBLESHOOTING

Before you call

Solutions to Common Problems

Review this list before you call for service. This list covers problems that are not the result of defective materials or workmanship.

PROBLEM POSSIBLE SOLUTION

The unit leaves smoke and odors in the air.	Make sure the sensor is not blocked or clogged.Move the unit closer to the offending odors.Replace the filters as needed.
The unit seems to produce odors.	Replace the filters as needed.
The unit makes a faint ticking sound.	This indicates that the PlasmaTRUETM function is working.
The unit interferes with radio or television reception.	Because this unit radiates radio frequency energy, we suggest you try one or more of the following:- For better reception, adjust the television/radio antenna.- Move the unit away from the affected television/radio.- Plug the unit power cord into an outlet different from the television/radio power cord.
The True HEPA and Carbon Filter indicators remain lit after replacing the True HEPA and/or Carbon Filter.	Repeat filter light reset instructions from page 10.
The PlasmaTRUETM icon is not illuminated.	Touch and hold PlasmaTRUETM icon for five seconds until unit beeps.
The wrong filter replacement light was reset.	In the case of unintended filter reset, repeat the filter reset procedure on page 10 within 5 minutes of unintended reset.The filter counter and indicator will return to the status previous to the reset.

TABLE DES MATIÈRES

GARANTIE LIMITÉE DU PRODUIT

Line drawing of a hand inserting a grid into a power heater (no text or symbols)

Diagram of a solar panel with grid lines and needle tips, no text or symbols present

Line drawing of a hand inserting a solar panel into a power heater (no text or symbols)

Hand holding a button with an 'O' symbol, no text or labels present

Line drawing of a hand operating a portable air conditioner unit (no text or symbols)

Hand pressing a button on a black square (no text or symbols visible)

MODE DE FONCTIONNEMENT MANUEL

Simple icon of a thermometer with three blades and a propeller, no text or symbols present.

TURBO

CAPTEUR AERASMART™

Line drawing of a hand operating a power heater with a close-up inset showing the switch (no text or symbols present)

ENTRETIEN

NETTOYAGE

Line drawing of a hand holding a small electronic device next to a digital kitchen appliance (no text or symbols)

Line drawing of a portable air conditioner unit with a hand inserting a grid into its side panel (no text or symbols)

Stacked solar panels with grid patterns, no text or symbols visible

Line drawing of a hand inserting a solar panel into a power heater (no text or symbols)

DÉPANNAGE

PROBLÈME SOLUTION POSSIBLE

Line drawing of a hand inserting a fan into a power heater (no text or symbols)

Diagram of a solar panel with grid lines and needle tips, no text or symbols present

Line drawing of a hand inserting a solar panel into a power heater (no text or symbols)

Hand holding a black square button with an 'O' and exclamation mark (no text or symbols on the button itself)

Line drawing of a hand operating a portable air conditioner unit (no text or symbols)

Hand pressing a button on a square panel (no text or symbols visible)

Simple icon of a propeller inside a rounded rectangle (no text or symbols)

TURBO

SENSOR AeraSmart™

Line drawing of a hand holding a small electronic device labeled 'Adaptive' (no text or symbols on device body)

Line drawing of a power supply unit with a hand inserting a grid into its side panel (no text or symbols)

Illustration of stacked solar panels with grid patterns (no text or symbols)

Line drawing of a hand inserting a solar panel into a power heater (no text or symbols)
