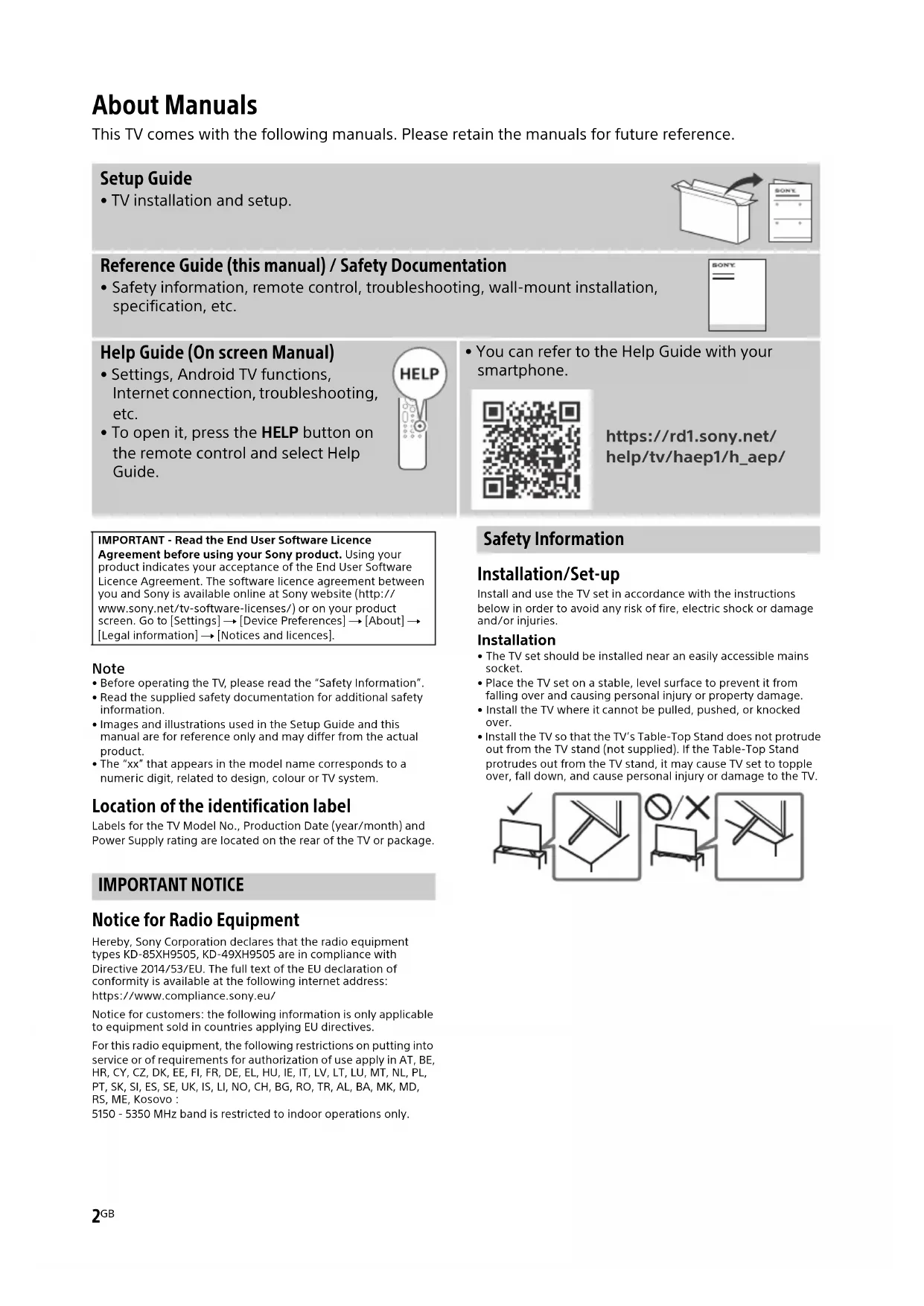

USER MANUAL KD55XH9505 SONY

• Before operating the TV, please read the “Safety Information”.
• Read the supplied safety documentation for additional safety information.• Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.• The “xx” that appears in the model name corresponds to a numeric digit, related to design, colour or TV system. Location of the identification label Labels for the TV Model No., Production Date (year/month) and Power Supply rating are located on the rear of the TV or package. IMPORTANT NOTICE Notice for Radio Equipment Hereby, Sony Corporation declares that the radio equipment types KD-85XH9505, KD-49XH9505 are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.compliance.sony.eu/Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives.For this radio equipment, the following restrictions on putting into service or of requirements for authorization of use apply in AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, EL, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, UK, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo :5150 - 5350 MHz band is restricted to indoor operations only. Safety Information Installation/Set-up Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electric shock or damage and/or injuries. Installation

• The TV set should be installed near an easily accessible mains socket.• Place the TV set on a stable, level surface to prevent it from falling over and causing personal injury or property damage.
• Install the TV where it cannot be pulled, pushed, or knocked over.• Install the TV so that the TV’s Table-Top Stand does not protrude out from the TV stand (not supplied). If the Table-Top Stand protrudes out from the TV stand, it may cause TV set to topple over, fall down, and cause personal injury or damage to the TV. About Manuals This TV comes with the following manuals. Please retain the manuals for future reference. Setup Guide

• TV installation and setup. Reference Guide (this manual) / Safety Documentation

• Safety information, remote control, troubleshooting, wall-mount installation, specification, etc. Help Guide (On screen Manual)

• Settings, Android TV functions, Internet connection, troubleshooting, etc.

• To open it, press the HELP button on the remote control and select Help Guide.

• You can refer to the Help Guide with your smartphone. https://rd1.sony.net/ help/tv/haep1/h_aep/ IMPORTANT - Read the End User Software Licence Agreement before using your Sony product. Using your product indicates your acceptance of the End User Software Licence Agreement. The software licence agreement between you and Sony is available online at Sony website (http://www.sony.net/tv-software-licenses/) or on your product screen. Go to [Settings] t [Device Preferences] t [About] t [Legal information] t [Notices and licences].C:\Users\CHAILING_2\Desktop\SBH2_SBL2\EU\GB\5014725111_01GB.fm master page: Right KD-85XH95xx / 49XH95xx 5-014-725-11(1)

Transporting• Before transporting the TV set, disconnect all cables.• Two or more people (three or more people for KD-85XH95xx) are needed to transport a large TV set.• When transporting the TV set by hand, hold it as shown below. Do not put stress on the LCD panel and the frame around the screen.KD-85XH95xxKD-49XH95xx• When transporting the TV set, do not subject it to jolts or exce ssive vibration.• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.Topple prevention Remote Control and TV The remote control shape, location, availability and function of remote control buttons may vary depending on your region/ country/TV model. (Microphone): Use the Google Assistant*

. For hints on how to control your TV press (Microphone) button and speak the phrase “voice hints”.*

REC: Record the currently viewed programme on USB HDD/DVR*

/ LED To enable the built-in MIC, press (MIC) button on the remote control and follow the on-screen instructions. *1 Light sensor works when used in the dark, and light up the remote control buttons. The built-in backlight can be turned off.*2 RMF-TX611E only. To see the model name of the mote control, open the remote control cover and see the label on the remote control.*3 Only on limited region/country/TV model/ nguage.*4 The Google Assistant or voice search requires an nternet connection.*5 [TV box setup] setting is required.*6 Accessibility shortcut is available by pressing and lding (Mute).*7 Standby power consumption will increase because the built-in MIC is always listening when it is enabled. Installing the TV to the Wall Using the optional Wall-Mount Bracket (SU-WL450)* (not supplied) To Customers: For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself. To Sony Dealers and Contractors: Provide full attention to safety during the installation, periodic maintenance and examination of this product. Wall-Mount Bracket Installation Information This TV’s instruction manual only provides the steps to prepare the TV for Wall-Mount installation before it is installed on the wall. For instructions on Wall-Mount Bracket installation, see the Installation Information (Wall-Mount Bracket) on the product page for your TV model. https://www.sony.eu/support Preparing for Wall-Mount Installation Make sure to attach the Table-Top Stand before installing the TV to the wall by referring to the Setup Guide.

• Prepare the TV for the Wall-Mount Bracket before making cable connections.

• Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV’s weight.

• Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.

• The screws for Wall-Mount Bracket are not supplied.

• Only qualified service personnel should carry out wall-mount installations.

• For safety reasons, it is strongly recommended that you use Sony accessories, including: Wall-Mount Bracket SU-WL450

• Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Mount Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket. The diameter and length of the screws differ depending on the Wall-Mount Bracket model. Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.

• Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to attach the Table-Top Stand. Keep the screws away from small children.
• Only on limited region/country/TV model. Remove the screws from the rear of the TV. Troubleshooting General troubleshooting for issues like: black screen, no sound, frozen picture, TV does not respond, or network is lost, do the following steps. 1 Restart your TV by pressing the power button on the remote control for about five seconds. The TV will restart. If the TV does not recover, try unplugging the mains lead. Then press the power button on the TV, and release it. Wait for two minutes, and plug in the mains lead. 2 Refer to the Help menu by pressing HELP on the remote control. 3 Connect your TV to the Internet and perform a software update. Sony recommends you to keep your TV software updated. Software updates provide new features and performance improvements. 4 Visit Sony support website (information provided at the end of this manual). When you plug in the TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV. It takes time to initialize the system. Wait for about one minute, then operate it again. The remote control does not function.

• Replace the batteries. The parental lock password has been forgotten.

Specifications System Panel system: LCD (Liquid Crystal Display) Panel, LED Backlight TV system: Depending on your country/area selection/TV model Analogue: B/G, D/K, I Digital: DVB-T/DVB-C/DVB-T2*

: DVB-S/DVB-S2 Colour system: PAL/SECAM/NTSC3.58 (Video only)/NTSC4.43 (Video only) Channel coverage: Depending on your country/ area selection/TV model Analogue: UHF/VHF/Cable Digital: UHF/VHF/Cable Satellite*

: IF Frequency 950-2,150 MHz Sound output: 10 W + 10 W Wireless technology Protocol IEEE 802.11a/b/g/n/ac Bluetooth® Version 4.2 Frequency band(s) Input/Output jacks Antenna (aerial)/cable 75 ohm external terminal for VHF/UHF Satellite antenna*

Audio: In eARC (Enhanced Audio Return Channel) mode Refer to the Help Guide for details. Except eARC mode

5.1 channel linear PCM: 32/44.1/48/88.2/

In eARC mode Refer to the Help Guide for details. In ARC mode Two channel linear PCM: 48 kHz 16 bits, Dolby Audio, Dolby Atmos, DTS DIGITAL AUDIO OUT (OPTICAL) Digital optical jack (Two channel linear PCM: 48 kHz 16 bits, Dolby Audio, DTS) (Stereo mini jack) Headphone 1, 2, 3 (HDD REC)*

USB device port ( 3 USB HDD device for REC feature) USB port 1 and 2 support High Speed USB (USB 2.0) USB port 3 supports Super Speed USB (USB 3.1 Gen 1) CAM (Conditional Access Module) slot LAN 10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. The communication rate and quality are not guaranteed.) Power, Product Fiche and others Power requirements 220 V – 240 V AC, 50 Hz Energy Efficiency Class KD-85XH95xx: B KD-49XH95xx: B Screen size (measured diagonally) (Approx.) KD-85XH95xx: 214.8 cm / 85 inches KD-49XH95xx: 123.2 cm / 49 inches Frequency range Output power Wireless LAN (TV) 2400-2483.5 MHz 5150-5250 MHz 5250-5350 MHz 5470-5725 MHz 5725-5850 MHz

Power consumption In [Standard] mode KD-85XH95xx: 282 W KD-49XH95xx: 119 W In [Vivid] mode KD-85XH9505: 438 W KD-49XH9505: 203 W Annual energy consumption*

0.50 W (27 W in software/EPG update mode)

Display resolution 3,840 dots (horizontal) × 2,160 lines (vertical) Output Rating USB 1/2 5 V , 500 mA MAX USB 3 5 V , 900 mA MAX Dimensions (Approx.) (w × h × d) (cm) with Table-Top Stand (without Table-Top Stand) KD-85XH95xx: 191.0 × 117.9 × 41.2 (191.0 × 109.9 × 7.4) KD-49XH95xx: 109.3 × 69.9 × 26.1 (109.3 × 62.9 × 6.9)

• The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. Mass (Approx.) (kg) with Table-Top Stand (without Table-Top Stand) KD-85XH95xx: 49 (46) KD-49XH95xx: 14.4 (13.3) Others Optional accessories Wall-Mount Bracket: SU-WL450 Operating temperature: 0 ºC – 40 ºC Operating humidity: 10 % – 80 % RH (non-condensing) *1 Not all the TV sets have DVB-T2 or DVB-S/S2 technology or satellite antenna terminal. *2 When 4096 × 2160p is input and [Wide mode] is set

o [Normal], the resolution is displayed as 3840 × 2160p. To display 4096 × 2160p, set [Wide mode] setting to [Full 1] or [Full 2]. *3 To support 18 Gbps, set [HDMI signal format] to

nhanced format]. *4 Refer to the online Help Guide for details. *5 Connect your audio system to the HDMI IN 3 to route TV audio to your audio system. *6 Only on limited region/country/TV model. *7 Energy consumption in kWh per year, based on the

ower consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used. *8 Specified standby power is reached after the TV fin ishes necessary internal processes. *9 Standby power consumption will increase when your TV is connected to the network. Note

• Optional accessories availability depends on countries/region/TV model/stock.

• Design and specifications are subject to change

• Subscriptions for services and applications may be

equired and additional terms, conditions and/or charges may apply when using the Google Assistant. Notes on Digital TV function

• Digital TV (DVB terrestrial, satellite and cable), interactive services and network functions may not be available in all countries or areas. Some functions might not be enabled or might not operate correctly with some providers and network environments. Some TV service providers may charge a fee for their services.

• This TV supports digital broadcasting using MPEG-2, H.264/MPEG-4 AVC and H.265/HEVC codecs, but compatibility with all operator/ service signals, which may change over time, cannot be guaranteed. Trademark information

• Dolby, Dolby Vision, Dolby Atmos, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2018 Dolby Laboratories. All rights reserved.

• Gracenote, the Gracenote logo and logotype, “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote, Inc. in the United States and/or other countries.

• Google, Google Play, Chromecast, YouTube, Android TV and other related marks and logos are trademarks of Google LLC.

• For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS and the Symbol together, and Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

• Netflix is a registered trademark of Netflix, Inc.

• TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.
