SW 7550 - Croque monsieur clip Orbegozo - Free user manual and instructions

Product type	Sandwich press / 3-in-1 appliance (waffles, sandwiches, grill)
Brand	Orbegozo
Model	SW 7550
Power supply	220-240 V ~ 50/60 Hz
Power	800 W (estimated)
Dimensions (L x W x H)	Approximately 30 x 20 x 10 cm
Weight	Approximately 2 kg
Material	Plastic housing, non-stick cooking plates
Removable plates	Yes, interchangeable (waffle, sandwich, grill)
Indicator lights	Red (heating) and green (ready) indicator
Preheating	About 5 minutes
Adjustable temperature	No, fixed thermostat
Functions	Cooking waffles, sandwiches, grilling (meat, fish, vegetables)
Safety	Insulated handles, non-slip feet, auto shut-off (not specified)
Maintenance	Dishwasher-safe plates; wipe housing with a damp cloth
Power cord	Short, non-removable
Included accessories	Cooking plates (waffle, sandwich, grill) – depending on version
Use	Domestic use only

Frequently Asked Questions - SW 7550 Orbegozo

How to clean the cooking plates?

Let the appliance cool completely, then remove the plates by pressing the release button. Wash them with warm soapy water or in the dishwasher. Never use a metal sponge or abrasive products.

Can I use other brand's plates?

No, only use the plates provided or recommended by Orbegozo to avoid any risk of fire or electric shock.

Why does the green light not turn off?

The green light indicates that the appliance has reached the set temperature. It turns on and off during cooking to maintain the temperature. If the light stays on permanently, unplug the appliance and contact technical support.

How long does it take to preheat the appliance?

Preheating takes about 5 minutes. The green light turns off when the ideal temperature is reached.

Can I use frozen ingredients?

Yes, but increase the cooking time. For frozen meat or fish, allow an extra 2 to 4 minutes. Make sure food is cooked through.

What to do if grease overflows under the plates?

Unplug the appliance and let it cool. Remove the plates, then wipe the area with a damp cloth. Never immerse the housing in water.

Does the appliance shut off automatically?

The manual does not mention an automatic shut-off feature. Never leave the appliance unattended while plugged in.

Can I use spray oil?

Yes, you can spray a little oil on the plates before cooking to prevent food from sticking. Avoid excess oil to prevent smoke.

How to change the cooking plates?

Make sure the appliance is unplugged and cool. Press the release button to remove the plate. Insert the new plate by aligning the tabs into the grooves, then push down until it clicks into place.

What is the warranty of the appliance?

The manual does not specify the warranty period. Check with the retailer or the official Orbegozo website for more information.

USER MANUAL SW 7550 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

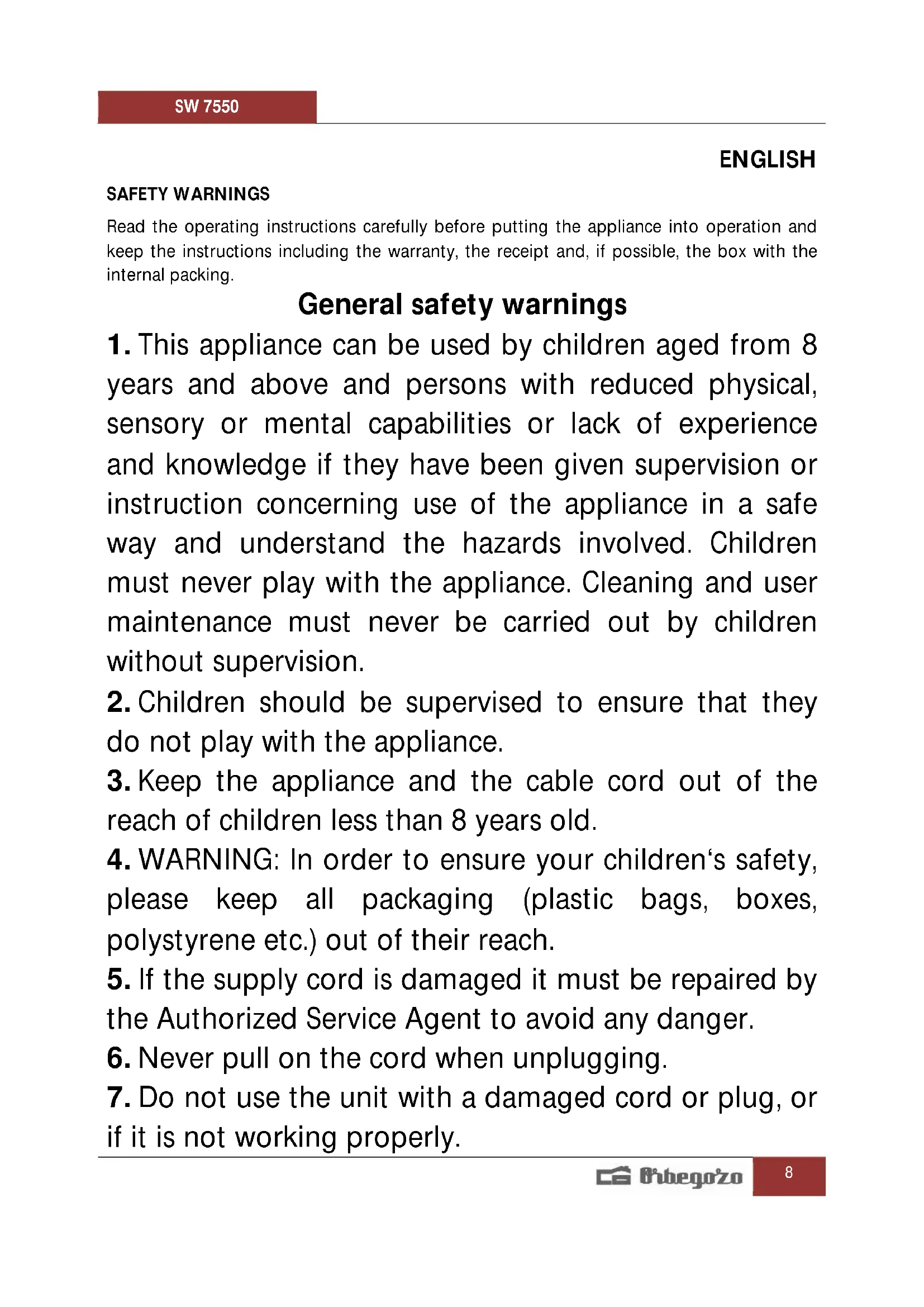

General safety warnings

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent to avoid any danger.
6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail].
14. WARNING: In case of misuse, there is a risk of possible injury.

Important safeguards

• CAUTION: The surface can remain hot during or after use.

• Do not operate the device connected to an external timer or a separate remote control system.
• This appliance becomes hot when in use. Use caution to reduce the risk of injury. Do not touch hot surfaces, always use handles with care, hot pads or mittens are recommended.

• Do not leave appliance unattended when plugged in.

• When using this appliance, provide 4 to 6 inches of air space above, behind and on both sides for air circulation. Do not use on surfaces where heat may cause a problem.

• Allow to cool before putting on or taking off parts and before moving or cleaning your appliance.
• To reduce the risk of fire or electrical shock, do not clean with metal scouring pads, Pieces can break off pad touch electrical parts.
• Do not operate unless cooking plates are properly installed in both housings.
• Do not use any attachments or accessories not recommended by international product Brands Ins, The use of such items may be hazardous.
• Do not let cord hang over edge of table or counter or touch hot surfaces, including the stove.
• Do not place the appliance on or near a hot gas or electric burner, in a heated oven, or near easily flammable material.
• Do not use outdoors or while standing in a damp area.
• Do not use appliance for other than intended use.

• Always allow the appliance to cool down completely before putting it away and never wind the cord around the appliance while it is still hot.

• Never move the unit when it contains hot oil, liquids, or hot foods.

• WARNING: Always use mittens to protect hands when opening a hot cooking plate; escaping steam heat may cause burning.

SAVE THESE INSTRUCTIONS

Consumer Safety Information

ELECTRICAL CORD: A short power cord is provided to reduce the hazards of becoming entangled in, or tripping over a longer cord. Using an extension cord is not recommended. If an extension cord is used it must be a VDE Listed Cord of an equal or greater rating than the rating of the appliance. Care must be taken to arrange the extension cord so it will not drape over countertop or table top where it can be pulled on by children or tripped over. If the appliance is of the grounded type, the extension cord should be of the same type. Do not leave this appliance unattended while in use.

BEFORE USING YOUR APPLIANCE

Cooking plates should be washed in warm soapy water, rinsed, and dried thoroughly before using. To remove or change cooking plates, place unit in the flat open position. Press the plate release button; this will release the plate for removal, lift the plate up and out.

CAUTION: Never place appliance housing or cord in water or any other liquid. To reduce the risk of fire or electrical shock, never operate unit unless cooking plates are securely snapped in place.

INSERTING COOKING PLATES

Make sure your 3 in 1 is unplugged when inserting or removing desired cooking plates.

To remove plates currently in your unit, just press the cooking plate release button and remove current cooking plate.

To insert desired cooking plates, insert tabs on cooking plate into slots on unit near the hinge area.

Push down and snap the other side of the cooking plate into place.

Repeat the same for second cooking plate.

HOW TO USE

Make sure device is unplugged. Select desired cooking plates. (See above for inserting and removing cooking plates).

Connect the device and the red and green light will turn on, start preheating. After about five minutes, the green light goes off. Now you are ready to use your 3 in 1 as a waffle baker, sandwich maker, grill or griddle! You can lightly oil your cooking plates before using.

When cooking is completed, unplug and let the unit cool down before removing or cleaning cooking plates.

CLEANING YOUR DEVICE

WARNING: To reduce the risk of burns to hands and fingers, always allow the unit to cool down before removing cooking plates.

Make sure unit is unplugged and has cooled down.

Press the button to remove the cooking plates. Wash plates in warm soapy water, and dry. You may also place them in your dishwasher if you like.

If grease has dripped into the area under the cooking plates, clean with a damp cloth, and dry. Never use abrasive pads or cleaners on cooking plates or any other part of your 3 in 1 Family Fun Machine.

RECIPES

Brussels Waffles

Ingredients (for approx. 6 waffles):

125g "creme fraiche"
125 g butter, 6 egg yolks
- 250 g sieved flour (type 405)
1 pinch of salt

• 6 egg whites
  1 vanilla pod
  100g icing sugar

Preparation:

• Slightly warm up crème fraîche.
• Beat the butter until frothy, stir in egg yolks.
• Mix flour with salt. Alternately stir flour and creme fraîche into the butter mixture until the batter thickens.
• Beat the egg whites until beaten white of egg develops and add to the batter. Allow the batter to rest for about 30 minutes.
• Bake the batter in portions.
• Scratch out the seeds of one vanilla pod, mix with icing sugar and sieve over the freshly baked waffles.
• Serve with whipped cream and morello cherries or sour cherry jam.

Grill

• Steaks/burgers (About 3 oz patties): Closed grilling- 2 to 10 minutes depending on desired doneness.
  Frankfurters: Between 3 and 6 minutes
  Chicken breast fillets (1/2 inch thick): between 4 and 8 minutes
• Pork loin chop (1/2 TO 1 Inch thick): between 4 and 12 minutes
  Fish/shrimp: Between 2 and 8 minutes.

Sandwich maker

Basic Cheese or Meat Sandwich Pockets:
To make sandwich on your 3 in 1, just lightly butter two slices of bread for each pocket.
- Place buttered side down on bottom plate. Fill with cheese and or meat of your choice.
- Lay second piece of bread, buttered side up. Repeat for second sandwich. Close and lock lid. Cook about 3 to 5 minutes or until desired brownness. Be careful the filling in your sandwich will be very hot, you may want to let it cool before eating.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.
