USER MANUAL TES 4650 Orbegozo

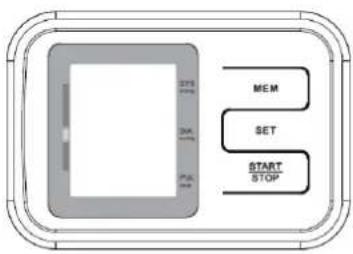

SYS DIA MEM SET START STOP Brugorza

TES 4650

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Four identical cylindrical batteries with different top caps, shown in a row (no text or symbols)

Line drawing of a hand holding a medical or surgical tool, no text or symbols present

5 XYB MEM SET PUL START STOP XYB XYB XYB XYB

6 120 80 M 01 10:05 60

Three-step diagram showing hand positioning of a device into a battery pack, with arrows indicating movement (no text or symbols present)

ATENCIÓN

3. Unidades

Simple line drawing of a device with wires and a magnifying glass (no text or symbols)

Illustration showing a battery with a switch and lightning symbols, indicating charging or discharging process.

Technical line drawing of an electronic device with battery pack and housing (no text or symbols)

European representative name:

ShangHai International Holding Corp. GmbH (Europe)

Address: Eiffestrasse 80, 20537 Hamburg Germany

Shenzhen Kingyield Technology Co., Ltd.

A5 Bldg, FuZhong Industrial Zone, Xia Shi Wei road, FuYong district, BaoAn ShenZhen, China

ENGLISH

INDEX

INTRODUCTION 22

SYMBOLS IN THIS MANUAL AND PRODUCT ....22

USING AND SAFETY INSTRUCTIONS 23

KNOW YOUR UNIT 23

IIRREGULAR HEARTBEAT SYMBOL 25

BEFORE TAKING A MESUREMENT....25

QUICK REFERENCE GUIDE....26

BATTERY INSTALLATION / REPLACEMENT....27

ADJUSTING SETTINGS....27

PROPER USE OF THE ARM CUFF....29

TAKE A MEASUREMENT ....30

USE THE MEMORY FUNCTION ....31

ABOUT BLOOD PRESSURE 32

ERROR INDICATORS 34

ELIMINATE FAULT 34

CARE AND MAINTENANCE....34

SPECIFICATIONS....36

INDICATIONS FOR USE STATEMENT....36

STATEMENT 37

ADDITIONAL INFORMATION....37

GUIDANCE AND MANUFACTURE'S DECLARATION....38

INTRODUCTION

— Thank you for having chosen a blood pressure monitor ORBEGOZO.
- The unit uses the oscillometric method of blood pressure measurement. It means the unit detects the movement of your blood through your brachial artery, and converts your blood pressure into a digital reading. The unit is simple to use because a stethoscope is not needed while using an oscillometric monitor.

- The unit stores automatically 60 sets of measurement values. You can read the stored data conveniently by pressing the memory button.

- The unit comes with the following components: main unit, arm cuff and instruction manual

- The unit stores automatically 60 sets of measurement values. You can read the stored data conveniently by pressing the memory button. - The unit comes with the following components: main unit, arm cuff and instruction manual

SYMBOLS IN THIS MANUAL AND PRODUCT

	Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
	Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury to the user or patient or damage to the equipment or other property.
	Type B applied part
	Authorised representative in the European community
	Refer to instruction manual/booklet
	Manufacturer
	Serial number
	The marking of electrical and electronics devices according to Directive 2002/96/EC. The device, accessories and the packaging have to be disposed of waste correctly at the end of the usage. Please follow Local Ordinances or Regulations for disposal.

USING AND SAFETY INSTRUCTIONS

To assure the correct use of the product basic safety measures should always be followed including

the precautions listed below:

• Read all information in the instruction manual and any other literature included in the box before using the unit.
• Contact your physician for specific information about your blood pressure. Self-diagnosis and treatment using measured results may be dangerous. Follow the instructions of your healthcare provider.
• Operate the unit only as intended. Don't use for any other purpose.
• The unit is intended to use in measuring blood pressure and pulse rate for adult only, not recommended for neonatal baby at home or medical centre.
• Do not use a cellular phone near the unit. It may result in operational failure.
• Please avoid using in high radiant area in order to make your measuring data correctly.
• Do not disassemble or attempt to repair the unit or components.
• Do not use the equipment where flammable gas (such as anesthetic gas, oxygen or hydrogen) or flammable liquid (such as alcohol) are present.

KNOW YOUR UNIT

Body

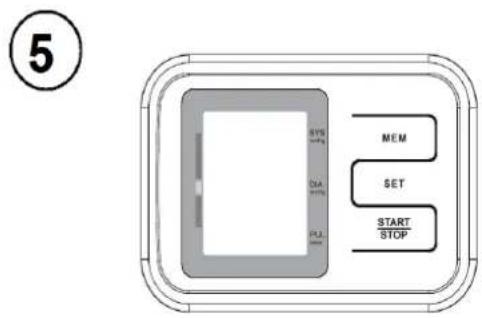

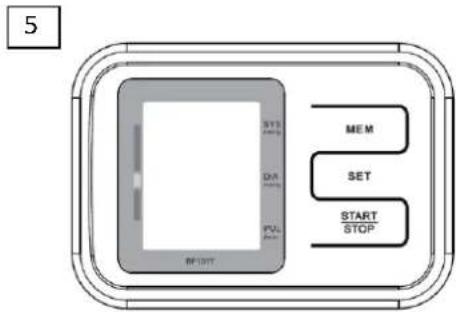

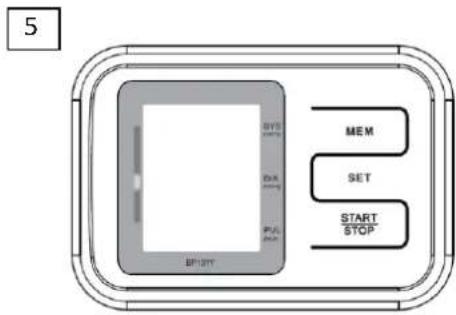

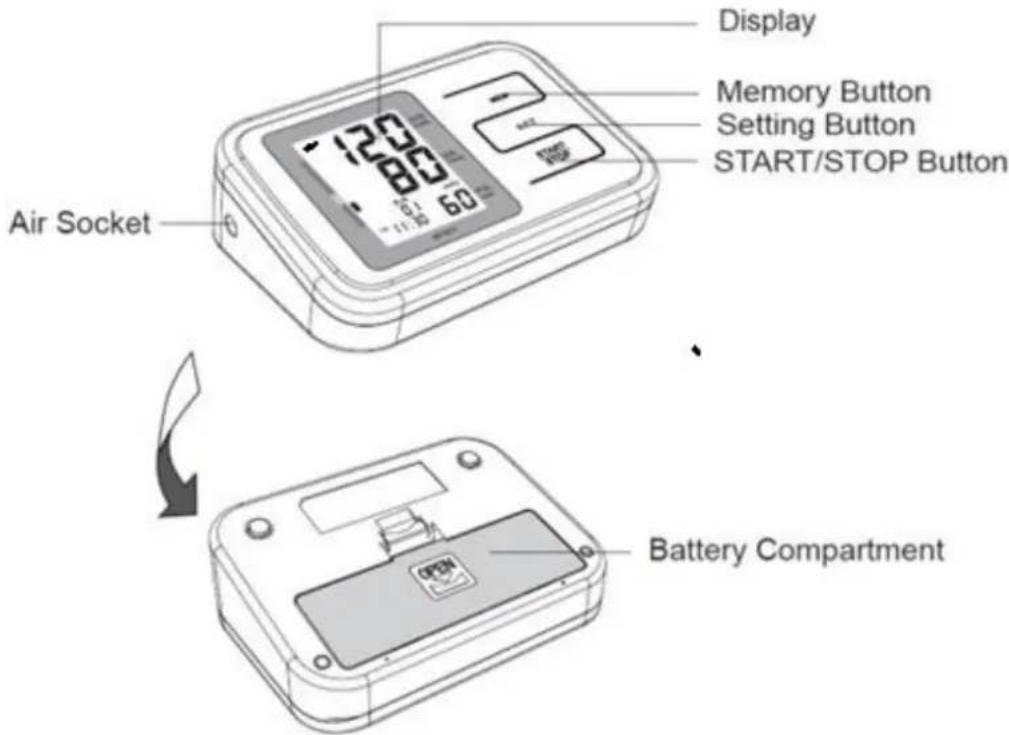

Display Memory Button Setting Button START/STOP Button Air Socket Battery Compartment

Display

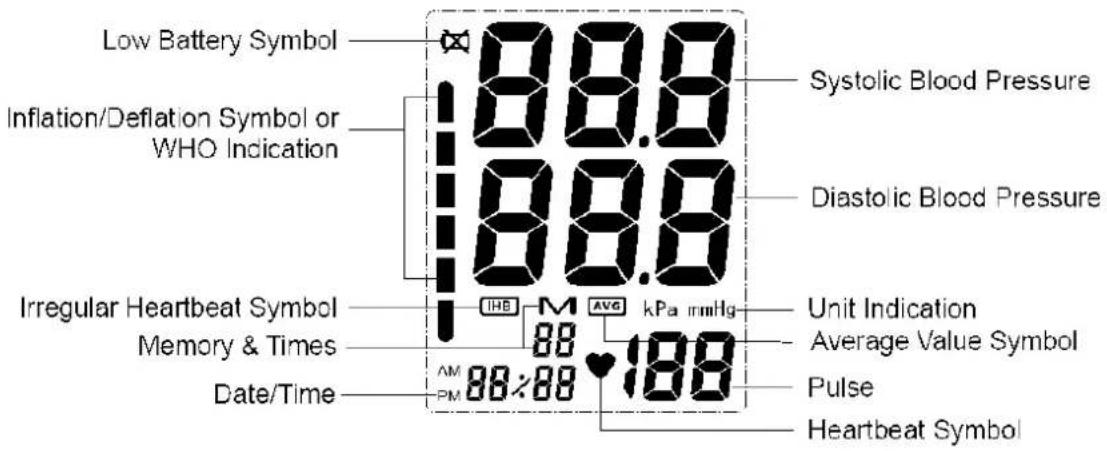

Low Battery Symbol Inflation/Deflation Symbol or WHO Indication Irregular Heartbeat Symbol Memory & Times Date/Time 88.0 88.0 188 PM Systolic Blood Pressure Diastolic Blood Pressure Unit Indication Average Value Symbol Pulse Heartbeat Symbol

Arm Cuff

• Fit for 22-36 cm range of upper arm perimeter

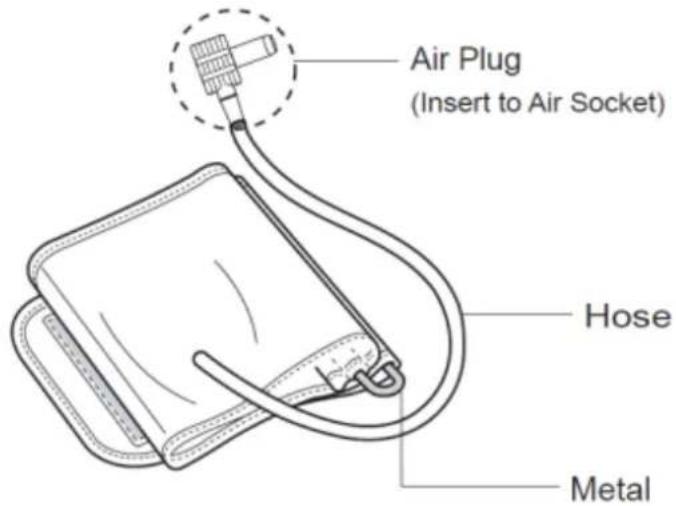

Air Plug (Insert to Air Socket) Hose Metal

⚠️ If your arm cuff is broken or not functional, please use a new cuff.
A new arm cuff does not include an air plug. Please continue to use the old air plug on the new arm cuff.

Power

• 4 AA Alkaline Batteries

Four identical cylindrical batteries with different top caps, shown in a row (no text or symbols)

Instruction Manual

- Please keep the instruction manual well after using.

Warning:

Do not use rechargeable batteries.

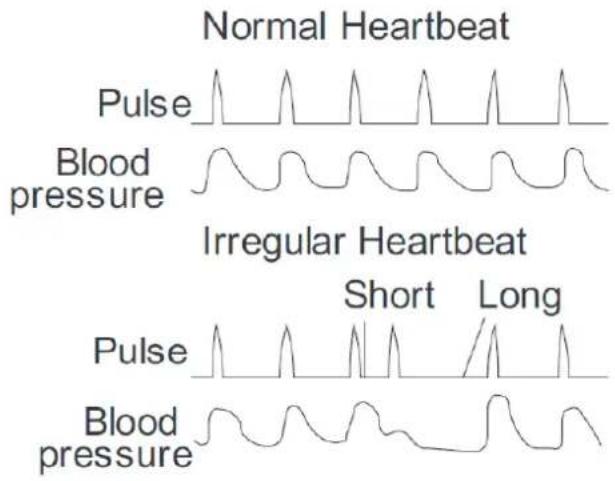

IIRREGULAR HEARTBEAT SYMBOL

When the unit detects an irregular rhythm two or more times during the measurement, the irregular heartbeat Symbol will appear on the display with the measurement values.

IHB

An irregular heartbeat rhythm is defined as a rhythm that is more than 25% slower or 25% faster from the average rhythm detected while the monitor is measuring the systolic blood pressure and the diastolic blood pressure. If the Irregular Heartbeat Symbol (IHB) displays with your measurement results, we recommend you consult your physician. Follow the directions of your doctor.

BEFORE TAKING A MESUREMENT

Follow these instructions before taking a measurement:

1. Avoid eating, drinking alcohol, smoking, exercising and bathing for 30 minutes before taking a measurement.
2. Stress raises blood pressure. Avoid taking measurements during stressful times.
3. The cuff can be applied to your left or right wrist. Always measure your blood pressure on the same Arm.
4. Measurements should be taken in a quiet place.
5. Position the unit at heart level throughout the measurement.
6. Remain still and do not talk during the measurement.
7. Keep a record of your blood pressure and pulse readings for your physician. A single measurement does not provide an accurate indication of your true blood pressure. You need to take and record several readings over a period of time. Try to measure your blood pressure at the same time each day for consistency.
8. Wait 30-60 seconds between measurements. The wait time allows the arteries to return to the condition prior to taking the blood pressure measurement. You may need to increase the wait time depending on your individual physiological characteristics.

©

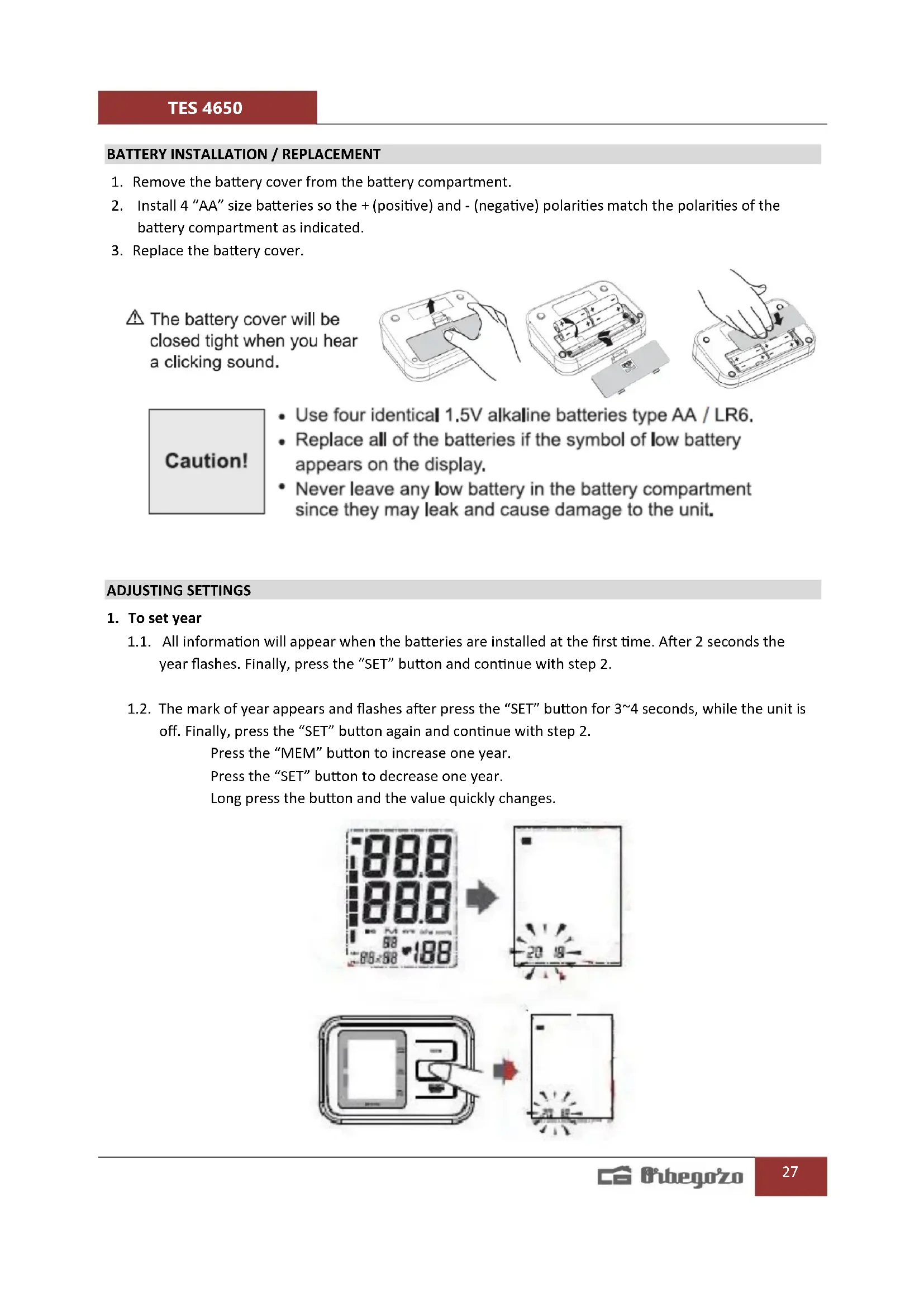

BATTERY INSTALLATION / REPLACEMENT

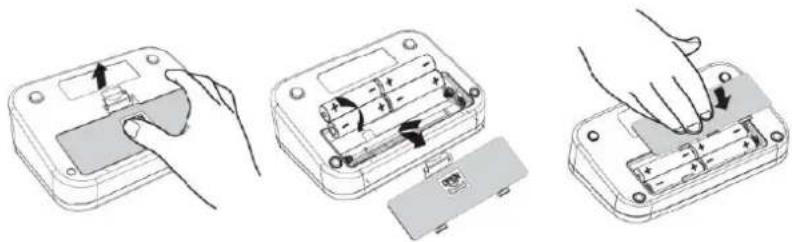

1. Remove the battery cover from the battery compartment.
2. Install 4 "AA" size batteries so the + (positive) and - (negative) polarities match the polarities of the battery compartment as indicated.
3. Replace the battery cover.

⚠ The battery cover will be closed tight when you hear a clicking sound.

Three-step diagram showing hand positioning of a device into a battery pack, with no visible text or symbols.

Caution!

• Use four identical 1.5V alkaline batteries type AA / LR6.
• Replace all of the batteries if the symbol of low battery appears on the display.
• Never leave any low battery in the battery compartment since they may leak and cause damage to the unit.

ADJUSTING SETTINGS

1. To set year

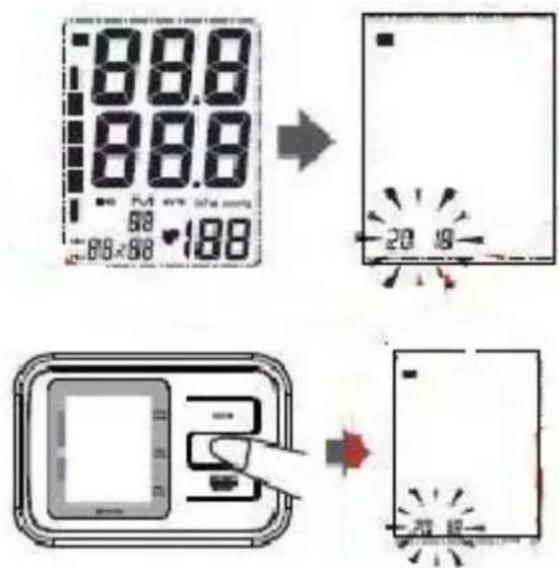

1.1. All information will appear when the batteries are installed at the first time. After 2 seconds the year flashes. Finally, press the "SET" button and continue with step 2.

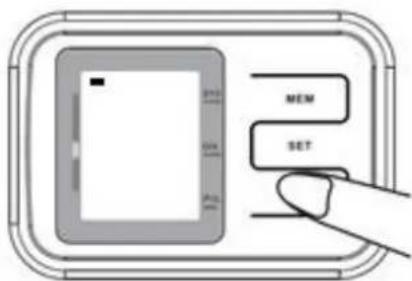

1.2. The mark of year appears and flashes after press the "SET" button for 3\~4 seconds, while the unit is off. Finally, press the "SET" button again and continue with step 2.
Press the "MEM" button to increase one year.
Press the "SET" button to decrease one year.
Long press the button and the value quickly changes.

88.8 88.8 58 188 20 19 88×88

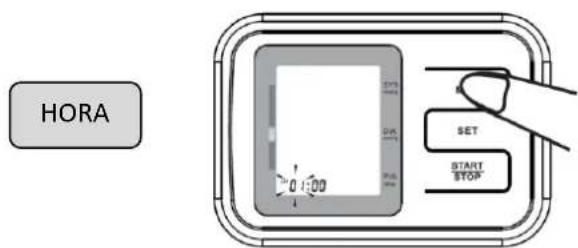

2. To set date and time

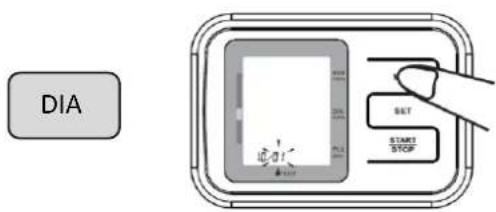

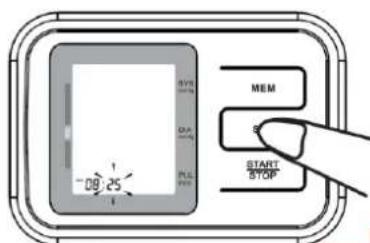

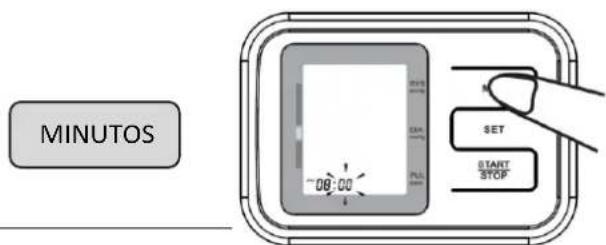

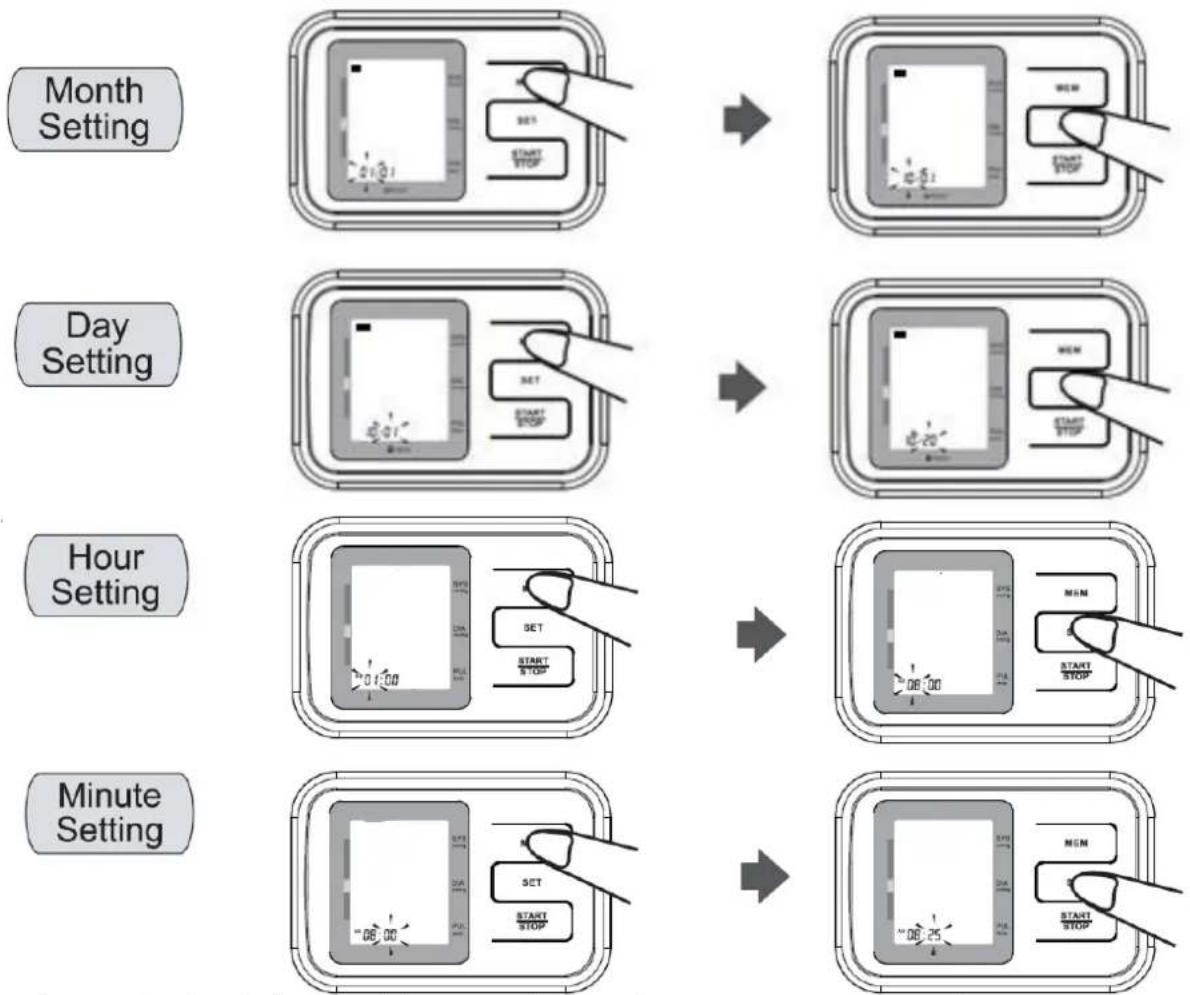

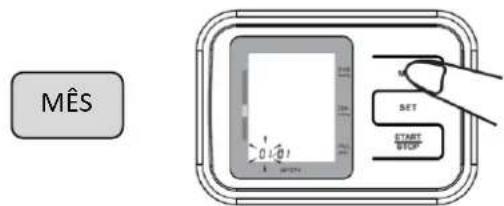

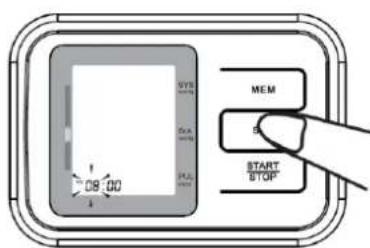

Press the "MEM" button to change the month and press the "SET" button and continue with next step.

Unit Setting

KDo8mmHg

    subgraph Timeframe
    A --> A1["SET START STOP"]
    B --> B1["SET START STOP"]
    C --> C1["SET START STOP"]
    D --> D1["SET START STOP"]
    end

    subgraph Scale
    A2["Start Stop"] --> A3["End Stop"]
    end

    style A fill:#f9f,stroke:#333
    style B fill:#f9f,stroke:#333
    style C fill:#f9f,stroke:#333
    style D fill:#f9f,stroke:#333

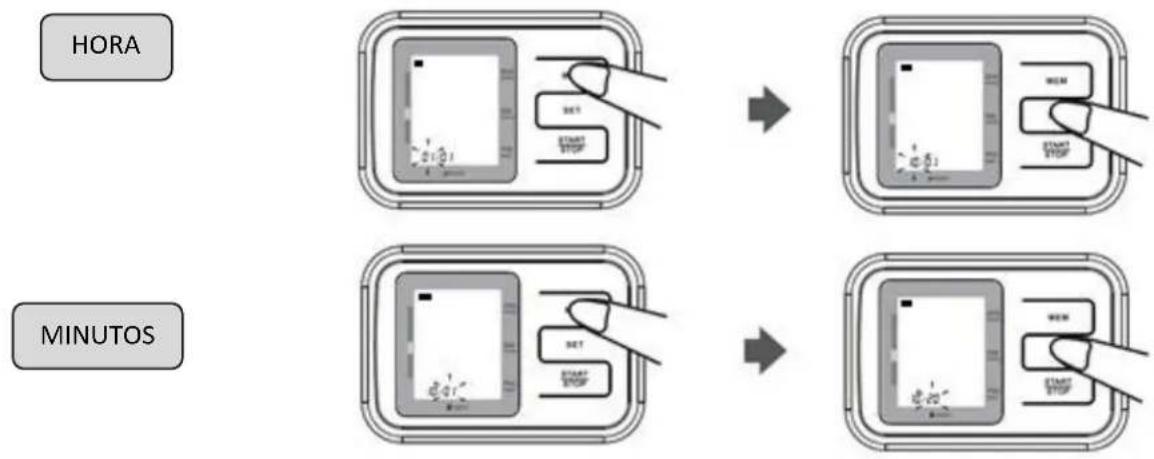

Then set the day, the hour and the minute by using the same way. Continue with step 3.

3. To set unit

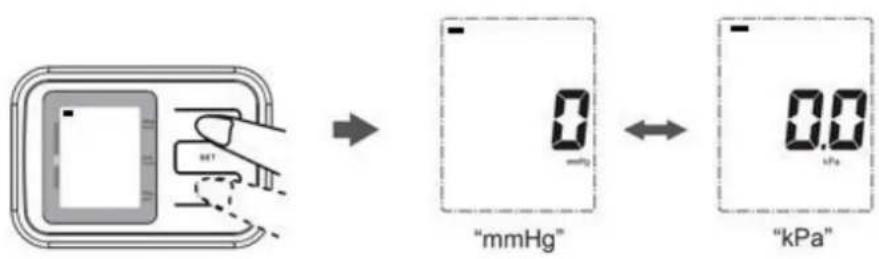

- Then press the "MEM" button again to change the current unit.

"mmHg" "kPa"

- Press the "START STOP" button to save the current setting and turn off

PROPER USE OF THE ARM CUFF

Make sure the air plug is inserted properly in the main unit.
Remove all clothes from your upper arm allowing the cuff to fit directly on the skin.

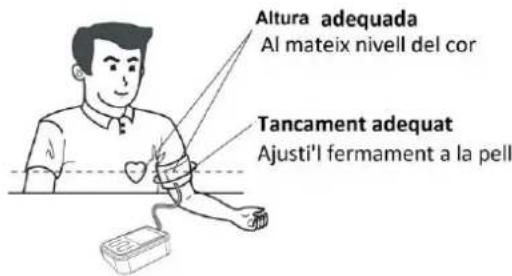

Sit in a chair with your feet flat on the floor.Place your arm on a table so as to level the cuff to your heart.
Pass the end of the cuff through the metal, and keep the hose outward.
Put your arm through the loop, then pull it up to the position of your upper arm.

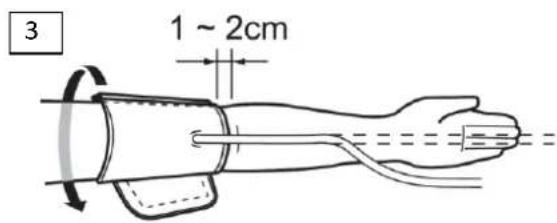

The hose runs down the inside of your arm. The bottom of the cuff should be approximately 1-2cm above your elbow.
Wrap the cuff tightly around your upper arm by using the Velcro strip. Do not leave any spacing between the arm and the cuff.
Relax your arm, keep the palm upward and the fingers curving naturally, then turn on the unit and start to measure.

TAKE A MEASUREMENT

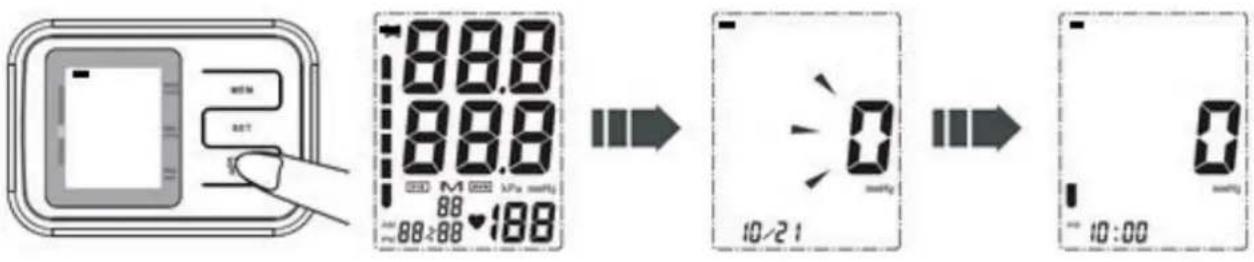

1. Press the START-STOP button. All display symbols appear on the screen. The cuff starts to inflate automatically.

Diagram showing a digital display setup with time and battery status indicators, likely for a device operation or testing process.

All symbols display
Deflating automat
Start to inflate

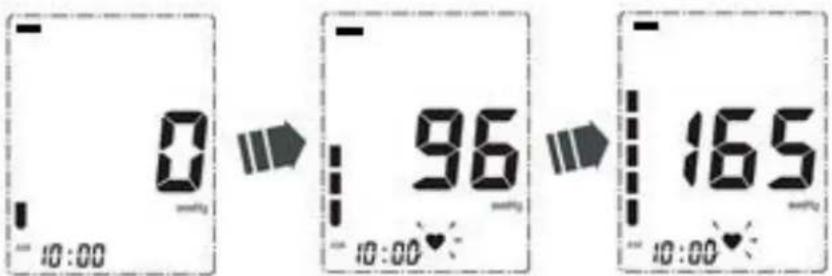

1. Inflation stop automatically and the measurement is started. The heartbeat symbol flashes once a pulse is detected.

0 10:00 96 10:00 165

Start to inflate
Inflating
Maximun inflating

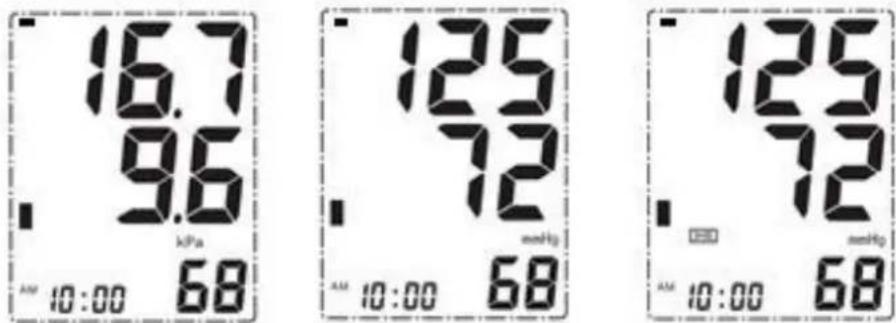

1. The blood pressure and pulse rate are displayed when the measurement completed. The cuff is deflated automatically, and all of the measurement results are stored in the memory with date and time. The "IHB" symbol will be displayed if irregular heartbeat is detected.

16.7 9.6 kPa 125 72 125 72 68 10:00 68 10:00 68 10:00 68

kPa display
mmHg display
IHB display

1. Press the "START-STOP" button to turn off the unit. The unit will automatically turn off after 2 minutes if you have forgotten to turn it off.

MEM SET

NOTE: To stop the inflation or measurement, press the "START-STOP" button in anytime. The unit will stop inflating and then release and turn off.

INSTRUCTIONS FOR SPECIAL CONDITIONS: In order to accelerate the measurement time for the systolic pressure more than 180 mmHg, press and hold the memory button until the unit inflates 30 to 40 mmHg higher than your suspected systolic pressure if you know. (The unit will not inflate above 299 mmHg).

USE THE MEMORY FUNCTION

• The unit stores the blood pressure and pulse rate in the memory after completing a measurement every time. It can automatically store 60 sets of measurement values. The oldest record is deleted to save the latest measurement value when more than 60 sets.
• The unit also calculates an average reading based on the values of the latest 3 times measurement taken

1. To read the average value

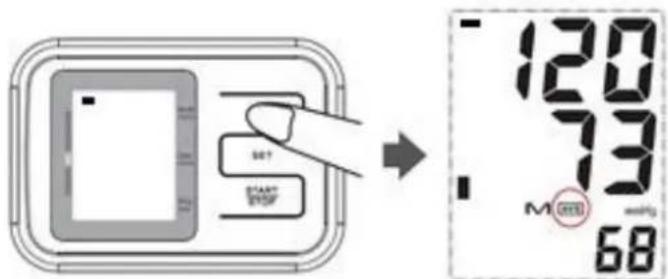

Press the "MEM" button. The average value symbol will display.

SET START BASF 120 79 M 68

2. To read the measurement value

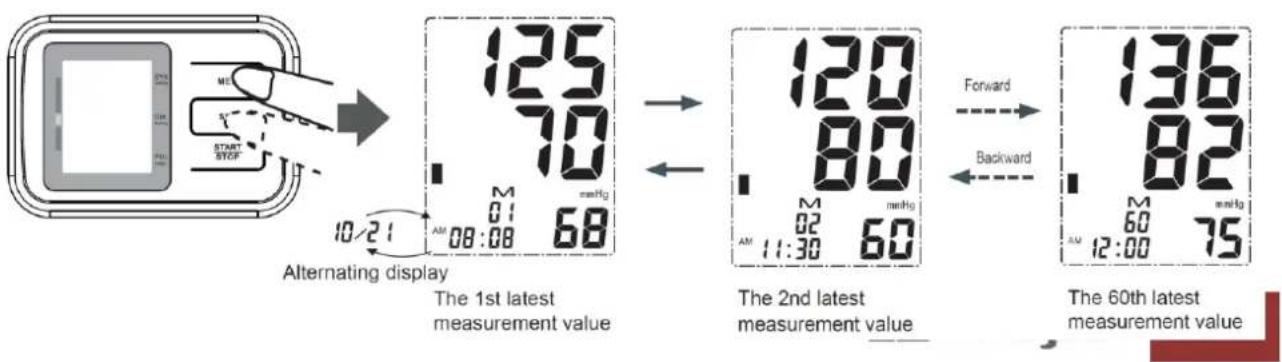

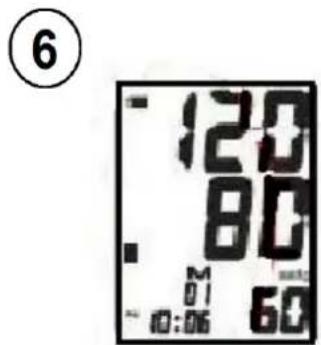

Press the "MEM" button to view the latest measurement value with the measuring date and time. Press the "SET" button to view the oldest measurement value with the measuring date and time.

125 70 M 0:1 68 AM 08:08 Alternating display The 1st latest measurement value 120 80 M 02 60 AM 11:30 Forward Backward 136 82 M 60 75 12:00 The 60th latest measurement value

3. To delete the memory value

In the memory reading mode, press the "SET" button for 4-6 seconds the unit will display →

dEL no

Press the "SET" button again and LCD will display →

If you are sure all the data of corresponding user can be deleted, press the "START-STOP" button. All the corresponding user's data will be deleted and the unit will turn off.

Note: if you have set YES, but do not press a button for 2 minutes, the product will shut off automatically, but the corresponding user's blood pressure data will not be deleted. The delete operation must be confirmed by user.

ABOUT BLOOD PRESSURE

Blood Circulation

The blood circulation is responsible for supplying the body with oxygen. Blood pressure is the pressure exerted on the arteries. The systolic blood pressure value (higher pressure or top value) represents the blood pressure produced by contraction of the heart muscle. The diastolic blood pressure value (lower pressure or lower value) represents the blood pressure produced by relaxation of the heart muscle.

Systolic Blood Pressure

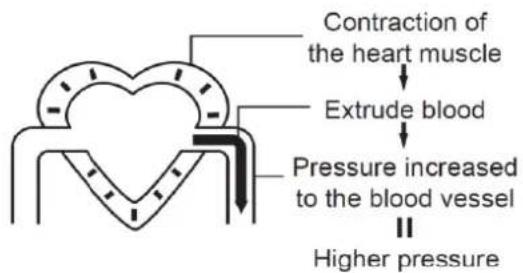

Contraction of the heart muscle Extrude blood Pressure increased to the blood vessel Higher pressure

Diastolic Blood Pressure

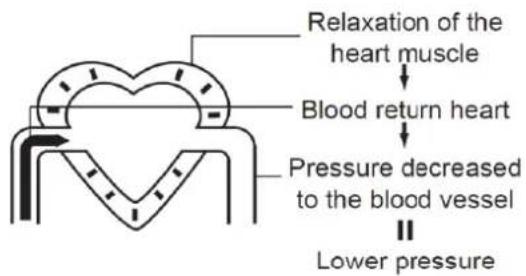

Relaxation of the heart muscle Blood return heart Pressure decreased to the blood vessel Lower pressure

Health and blood pressure

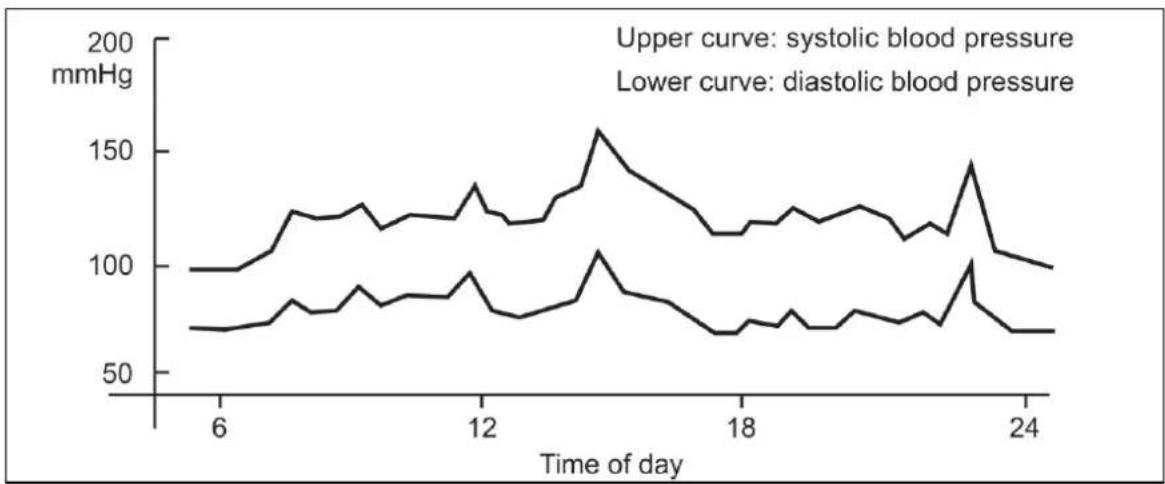

The incidence of hypertension increases with age. In addition, a lack of exercise, excess body fat and high levels of cholesterol (LDL), which sticks to the inside in blood vessels, reduces elasticity of these vessels. Hypertensioin accelerates arterial sclerosis which can lead to very serious conditions such as stroke and myocardial infarction. For these reasons it is very important to know whether the blood pressure is within a healthy range. Blood pressure fluctuates from minute to minute, throughout the day. Therefore it is essential to take regular measurements to help you identify an average blood pressure.

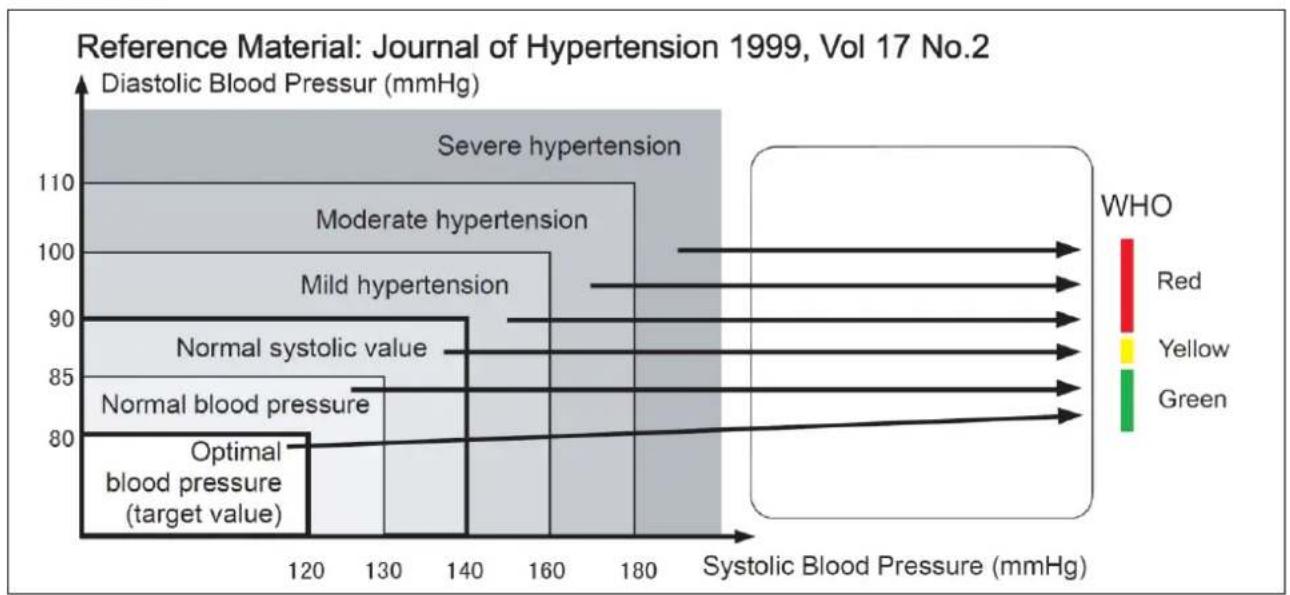

Classification of blood pressure

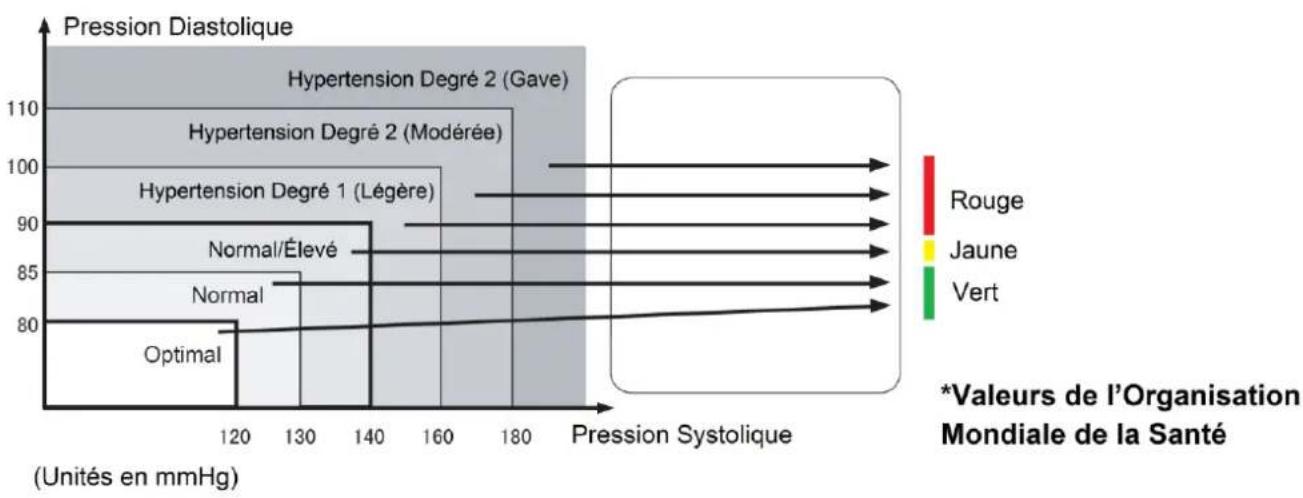

After each measurement is completed, the LCD display will show your position automatically on the six segments of the bar indicator which corresponds to World Health Organization (WHO) Blood Pressure Indicator.

*Note! When a person's systolic and diastolic pressures fall into different categories, the higher category should apply.

Symptoms of high blood pressure

High blood pressure can go unnoticed for a long time, since it does not cause noticeable symptoms. The following are all possible causes of abnormally high blood pressure:

• Overweight
• High cholesterol level
- Smoking
• Excessive alcohol consumption
• Stress and emotional upset
• Excessive consumption of salt

• Lack of physical exercise
  • Genetic/hereditary predisposition
  • Underlying illnesses, such as kidney disorders or endocrine disturbance

Treatment of high blood pressure

If your blood pressure reaches upper values of 140-160 mmHg and lower values of 90-95 mmHg in repeated measurements over several days, you

should consult your doctor for detailed medical examination. You can assist the treatment prescribed by your doctor in the following ways:

• Lose weight and lower you cholesterol level
• Reduce the consumption of alcohol and salt
• Stop smoking
  • Take regular exercise
  • Monitor your blood pressure

ERROR INDICATORS

SYMBOL	CAUSE	CORRECTION
	The course of inflating appears error.	Wrap the cuff correctly and tightly.
		Ensure the connection is close between the air plug and the unit.
		Inflate over again after ensuring.
	When measurement fails.	Do not move your arm and body, and keep quiet.
		Measure over again according to correct way.
	When the batteries power are too low.	Replace all of the worn batteries with new ones.

ELIMINATE FAULT

PROBLEM	CAUSES AND SOLUTIONS
No power.	Replace all the worn batteries with 4 new ones.
No display appears on the display screen.	Check the battery installation for proper placement of the batteries polarities.
Measurement values appear too high or too low.	Blood pressure varies constantly. Many factors including stress, time of day, how you wrap the cuff, may affect your blood pressure.Review the sections "Proper Use of the Arm Cuff" and "Take a Measurement".

CARE AND MAINTENANCE

Care

• Keep the unit in the storage case when not in use.
  – Clean the unit with a soft dry cloth.
• Do not use any abrasive or volatile cleaners.
• Never immerse the unit or any components in water.
• If needed, please use ultraviolet radiation for disinfection.
• Avoid subjecting the monitor to strong shocks or vibrations, such as dropping the unit on the floor.

Maintenance

Do not clean the body and cuff with naphtha, thinner or gasoline etc.	Do not wet the cuff or attempt to clean the cuff with water.
Store the unit in a clean and dry location. Do not subject the unit to extreme hot or cold temperature, humidity and direct sunlight.	Remove the batteries if the unit will not be used for 3 months or longer. Always replace all of the batteries with new ones at the same time.
※ Use the unit consistent with the instructions provided in this manual. Use only authorized parts and accessories.

SPECIFICATIONS

Model No.		TES 4650
Display		LCD Digital Display
Measuring Principle		Oscillometric Method
Measurement Localization		Upper Arm
Measurement Range	Pressure	0 ~ 299 mmHg (0 ~ 39.9 kPa)
	Pulse	40 ~180 Pulses/min
Accuracy	Pressure	± 3 mmHg (0.4 kPa)
	Pulse	± 5% of reading
LCD Indication	Pressure	3 Digits Display of mmHg or kPa
	Pulse	3 Digits Display
	Symbol	Memory/Average/IHB/Heartbeat/Low Battery, etc.
Inflation		Automatic by Internal Pump
Deflation		Automatic by Air Valve
Rapid Air Release		Automatic by Air Valve
Memory Function		60 Sets of Measurement Values
Power Source		4 AA Alkaline Batteries
Automatic Power-Off		Within 2 Minutes
Cuff		Soft Arm Cuff
Accessorial Components		Cuff, Instruction Manual
Main Unit Weight		Approx 473 g (Batteries not included)
Device Life		5 Years
Operating Environment	Temperature		10~40°C (50 ~ 104°F)
	Humidity		15 ~ 90% RH (Noncondensing)
	Barometric Pressure		80~105 kPa
Transport Storage Environment	Temperature		-20~60°C (-4 ~ 140°F)
	Humidity		10 ~ 95% RH (Noncondensing)

INDICATIONS FOR USE STATEMENT

• The unit is intended to be used to measure blood pressure (systolic and diastolic) and heart rate from the upper arm by using the oscillometric method.
• The unit is intended for using in only adult population, not applied to the other populations such as neonatal baby.
• It can't be used while the wirst (arm) has bleeding or wound to avoid the blood flowing from the wound in pressurzing.

STATEMENT

• The unit satisfies the requirements of IEC60601-1 Medical electrical equipment, EN1060-1: Non-invasive sphygmomanometer, EN1060-3: Non-invasive sphygmomanometer.
• The unit has passed the EMC test.
  — The Unit complies with IEC 80601-2-30.
• The risk of patient and user can be lowered to acceptable level.
  — Substitution of a cuff different from that supplied might result in measurement error.
  – Specifications are subject to change without notice due to improvements in performance.
• The unit might not meet its performance specifications if stored or used outside the following specified temperature and humidity ranges.

ADDITIONAL INFORMATION

Protection Class: Internally powered equipment

Applied Part Type: Type B

Moisture Protection: IPXO, continue operation

WARNING: No modification of this equipment is allowed.

Caution: this machine should not be used adjacent to or stacked with other equipment and that if adjacent or stacked use is necessary, this machine should be observed to verify normal operation in the configuration in which it will be used.

Caution: This unit has been thoroughly tested and inspected to assure proper performance and operation!

• The unit satisfies the requirements of

• EN60601-1 : Medical electrical equipment Part 1: General requirements for basic safety and essential performance;
• EN60601-1-2: Medical electrical equipment Part 1-2: General requirements for basic safety and essential performance – Collateral standard: Electromagnetic compatibility – Requirements and tests;
• EN1060-1: Non-invasive sphygmomanometers – requirements;
• EN1060-3: Non-invasive sphygmomanometers – Part 3: Supplementary requirements for electro-mechanical blood pressure measuring system.
• EN1060-4: Non-invasive sphygmomanometers – Part 4: Test procedures to determine the overall system accuracy of automated non-invasive sphygmomanometers.

MEDICAL ELECTRICAL EQUIPMENT needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided in this manual

WARNING: The use of other accessories, transducers and cables other than those provided may result in increased emissions or decreased immunity of the equipment.

Sensitive measuring devices must be checked from time to time for accuracy and leakage. We recommend that the performance should be checked every 2 years.

GUIDANCE AND MANUFACTURE'S DECLARATION

ELECTROMAGNETIC EMISSION
The Digital Blood Pressure Monitor is intended for use in the electromagnetic environment specified below. The customer of the user of the Digital Blood Pressure Monitor should assure that it is used in such an environment.
Emission test	Compliance	Electromagnetic environment – guidance
Radio frequency (RF) emissionsCISPR 11	Group 1	The Digital Blood Pressure Monitor use RF energy only for its internal function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment.
RF emissionsCISPR 11	Class B	The Digital Blood Pressure Monitor is suitable for use in all establishments other than domestic and those directly connected to the public low-voltage power supply network that supplies buildings used for domestic purposes.
Harmonic emissionsIEC 61000-3-2	Not applicable
Voltage fluctuations/flicker emissionsIEC 61000-3-3	Not applicable

ELECTROMAGNETIC IMMUNITY
The Digital Blood Pressure Monitor is intended for use in the electromagnetic environment specified below. The customer or the user of Digital Blood Pressure Monitor should assure that it is used in such an environment.
Immunity test	IEC 60601Test level	Compliancelevel	Electromagnetic environment - guidance
Electrostaticdischarge (ESD)IEC 61000-4-2	± 6 kVcontact± 8 kV air	± 6 kVcontact± 8 kVaie	Floors should be wood, concrete or ceramic tile. If floor are covered with synthetic material, the relative humidity should be at least 30%.
Power frequency(50Hz/60Hz)magnetic field IEC61000-4-8	3 A/m	3 A/m	Power frequency magnetic fields should be at levels characteristic of a typical location in a typical commercial or hospital environment.
Radiated RFIEC 61000-4-3	3 A/m80 MHz a2.5 GHz	3 A/m	Portable and mobile RF communications equipment should be used no closer to any part of the Digital Blood Pressure Monitor, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.Recommended separation distanced=1.167VP 80 MHz to 800 MHzd=2.333VP 800 MHz to 2.5 GHzWherePis the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer anddis therecommended separation distance in metres (m).Field strengths from fixed RF transmitters, as determined by an electromagnetic site surveyA, should be less than the compliance level in each frequency rangeBInterference may occur in the vicinity of equipment marked with the following symbol:
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
^A Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Digital Blood Pressure Monitor is used exceeds the applicable RF compliance level above, the Digital Blood Pressure Monitor should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the Digital Blood Pressure Monitor. ^B Over the frequency range 150 KHz to 80 MHz, field strengths should be less than 3V/m

Recommended separation distances between portable and mobile RF communications equipment and the Digital Blood Pressure Monitor.
Pressure Monitor is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Digital Blood Pressure Monitor can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Digital Blood Pressure Monitor as recommended below, according to the maximum output power of the communications equipment.
Output power of transmitter	Separation distance according to frequency of transmitter (m)
	80 MHz to 800 MHzd=1.167VP	80 MHz to 800 MHzd=2.333VP
0.01	0.117	0.233
0.1	0.369	0.738
1	1.167	2.333
10	3.689	7.379
100	11.667	23.333
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.

0197

European representative name:

ShangHai International Holding Corp. GmbH (Europe)

Address: Eiffestrasse 80, 20537 Hamburg Germany

Shenzhen Kingyield Technology Co., Ltd.

A5 Bldg, FuZhong Industrial Zone, Xia Shi Wei road, FuYong district, BaoAn

ShenZhen, China

INDEX

INTRODUCTION 42

SYMBOLES UTILISÉS 42

INDICATIONS D'USAGE ET DE SÉCURITÉ....43

DESCRIPTION DE L'UNITÉ ....43

DÉTECTION D'UN RYTHME CARDIAQUE IRRÉGULIER....45

AVANT LA MESURE 45

GUIDE RAPIDE....46

INSTALLATION OU CHANGEMENT DES PILES....47

RÉGLAGES....47

Four identical cylindrical batteries arranged horizontally (no text or symbols visible)

Illustration of a hand holding a wrist with a medical instrument inserted, labeled with number 4 (no text or symbols on the diagram itself)

5 I/O MEM SET START /STOP

6 120 80 M 01 10:05 60

INSTALLATION OU CHANGEMENT DES PILES

Three-step diagram showing hand positioning of a device into battery, with arrows indicating movement (no text or symbols)

ATTENTION

"mmHg" "kPa"

4. Terminer

Line drawing of a human foot with a heart symbol attached to the arm, no text or labels present

RÉALISATION D'UNE MESURE

88.0 88.0 M 88 88:88 188 → 0 10/21 → 0 10:00

SYS CHL FULL MEM SET

SET START STOP 120 79 13 M MHz mmHg 68

Source: Journal of Hypertension 1999, Vol 17 No.2

Simple line drawing of a medical or electrical device with wires and a tool, no text or symbols present.

Diagram showing a device with warning symbols and lightning, indicating electrical hazard or safety warning.

Technical line drawing of a battery pack with internal components and housing (no text or symbols)

European representative name: ShangHai International Holding Corp. GmbH (Europe) Address: Eiffestrasse 80, 20537 Hamburg Germany

Shenzhen Kingyield Technology Co., Ltd. A5 Bldg, FuZhong Industrial Zone, Xia Shi Wei road, FuYong district, BaoAn ShenZhen, China

ÍNDICE

INTRODUÇÃO 61

SÍMBOLOS UTILIZADOS....61

ESPECIFICAÇÕES....74

• 4 AA Alkaline Batteries

Four identical cylindrical batteries arranged horizontally (no text or symbols visible)

Line drawing of a hand holding a wrist with a medical instrument inserted (no text or symbols)

5

MEM SET START STOP

6

120 80 M 01 60 10:06

Three-step diagram showing hand positioning of a device into a battery pack, with no visible text or symbols.

ATENÇÃO

MÊS SET START STOP

MEM START STOP 心系！

DIA SET START STOP

BCEM START STOP -20° +20°

HORA 0:00 SET START STOP

08:00 VSS GVA PUL MEM B START STOP

MINUTOS 08:00 SET START /STOP

-08:25 MEM OUT PUL START STOP

3. Unidades

SPS DIA HUA MEM SET

SET START STOP 120 73 M circled 68 mmHg

NOTA: A unidade

Simple line drawing of a tool interacting with a device (no text or symbols)

Technical line drawing of a battery pack with internal components and housing (no text or symbols)

Diagram showing a battery with two crossed-out electrical lines and lightning bolts, indicating charging or discharging behavior.

ESPECIFICAÇÕES

European representative name:

ShangHai International Holding Corp. GmbH (Europe)

Address: Eiffestrasse 80, 20537 Hamburg Germany

Shenzhen Kingyield Technology Co., Ltd.

A5 Bldg, FuZhong Industrial Zone, Xia Shi Wei road, FuYong district, BaoAn ShenZhen, China

CATALÀ

CONTINGUT

INTRODUCCIÓ....81

SIMBOLOS UTILITZATS 81

INDICACIONS D'ÚS I DE SEGURETAT 82

CONEGUI LA SEVA UNITAT 82

Four identical cylindrical batteries with different top caps, shown in a row (no text or symbols)

Manual Instruccions

Line drawing of a person sitting at a desk in a seated posture (no text or symbols)

Postura apropiada Mantingui el cos recte i relaxat

Altura adequada Al mateix nivell del cor Tancament adequat Ajusti'l fermament a la pell

3 1 ~ 2cm

4

Line drawing of a hand holding an otoscope or wrist, no text or symbols present

5 ST3 MEM DA SET FULL START STOP RF 101T

6

120 80 M 01 10:06 60

Three-step diagram showing hand tool application on a device casing, with no visible text or symbols

ATENCIÓ

Diagram showing a device with a button and a magnified view of its screen, labeled in Chinese.

2. Data i hora

3. Unitats

Simple line drawing of a device with wires and a ruler, no text or symbols present

Diagram showing a device with warning symbols and text labels, possibly indicating electrical hazard or safety warning.

Technical line drawing of an electronic device showing internal components and housing (no text or symbols)

European representative name:

ShangHai International Holding Corp. GmbH (Europe)

Address: Eiffestrasse 80, 20537 Hamburg Germany

Shenzhen Kingyield Technology Co., Ltd.

A5 Bldg, FuZhong Industrial Zone, Xia Shi

Wei road, FuYong district, BaoAn

ShenZhen, China
