CA 08160 IN - Basket Orbegozo - Free user manual and instructions

Technical features	Hood type: Decorative hood
Dimensions	Width: 60 cm
Airflow	Max: 600 m8/h
Power levels	3 power levels
Lighting	LED lighting
Filter	Aluminum grease filter, washable
Usage	Controls: Touch control panel
Maintenance	Filters to be cleaned regularly, hood maintenance
Safety	Protection against electrical overloads
General information	Wall installation, modern design

Frequently Asked Questions - CA 08160 IN Orbegozo

How do I clean the filter of the Orbegozo CA 08160 IN hood?

To clean the filter, carefully remove it from the hood, then soak it in warm soapy water for about 30 minutes. Rinse it with clean water and let it dry completely before putting it back in place.

The hood is not working, what should I do?

First check if the hood is properly plugged in and if the fuse is not blown. Also make sure the motor is running and the speed settings are correct.

How do I adjust the speed of the Orbegozo CA 08160 IN hood?

Use the control panel located on the front of the hood to select the desired fan speed. There are usually several levels available.

What are the dimensions of the Orbegozo CA 08160 IN hood?

The dimensions of the hood are 60 cm wide, 50 cm deep, and 70 cm high.

How do I install the Orbegozo CA 08160 IN hood?

To install the hood, follow the provided installation manual. Make sure the mounting is secure and that the hood is placed at an appropriate distance from the stove, usually between 65 and 75 cm.

Is it normal to hear noise when the hood is running?

Yes, some level of noise is normal when the hood is operating, especially at high speeds. If the noise is excessive, check if the filter is dirty or if there are objects obstructing the motor.

How do I change the bulb of the hood?

To change the bulb, unplug the hood, remove the bulb cover, and replace the bulb with a new one of the same type. Make sure to put the cover back in place before plugging the hood back in.

What should I do if the hood emits an unpleasant odor?

If the hood emits an unpleasant odor, it is likely that the filter is dirty. Clean or replace the filter and make sure the area around the hood is clean.

What is the warranty of the Orbegozo CA 08160 IN hood?

The Orbegozo CA 08160 IN hood usually comes with a 2-year warranty, but check the specific details with your retailer.

USER MANUAL CA 08160 IN Orbegozo

Metal kitchen ventilation cover with ventilation grilles and mounting holes (no text or symbols visible)

CA 08160/90 IN

Sonifer,S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a multi-case appliance with internal components and mounting holes (no text or symbols)

Diagram of a ceiling-mounted air duct with internal components and airflow arrows (no text or symbols)

Open Close

AVISO:

O I ① O I II III ②

LIMPIEZA Y MANTENIMIENTO

Diagram of a device drawer with two compartments and a screwdriver inserted, showing internal structure (no text or symbols)

Diagram of a computer drive showing two ports and a cable, with no text or symbols present.

A) Carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations.
B) The appliance has been designed as a exhausting version(external exhaust)or as a filter version(internal air recycle) cooker hood.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]

14. WARNING: In case of misuse, there is a risk of possible injury.

• Take care when the cooker hood is operating simultaneously with an open fireplace or burner that depend on the air in the environment and are supplied by other than electrical energy, as the cooker hood removes the air from the environment which a burner or fireplace need for combustion.

- Risk of fire if the cleaning is not carried out according to instructions.

- Do not flambé under the hood.

- CAUTION: Accessible parts may become hot when used with cooking appliances.

- Exhaust air should not be sent by conductors used to evacuate fumes from equipment powered by gas or other fuel.

• The minimum distance between elements of cooking and the bottom of the hood must be at least 65cm if the hood is installed on a gas cooking element. If installation instructions gas cooking element indicate a greater distance should be taken into account. 65cm distance cannot be reduced.
• The regulations regarding air evacuation must be respected.
• The negative pressure in the environment must not exceed 4 Pa (4*10-5 bar).
• Provide adequate ventilation in the environment for a safe operation of the cooker hood.
• Follow the local laws applicable for external air evacuation. Appliance shall only be used with rated voltage and frequency.
• Do not check the status of the filters while the cooker hood is operating.
• Do not touch the light bulbs after appliance use.
• Flame cooking is prohibited underneath the cooker hood.
• Constantly check food frying to avoid that the overheated oil may become a fire hazard.

WARNING

The lamps of this cooker hood are designed as supplementary illumination when cooking. They are not suitable for household illumination

SUPPLIED PARTIES

Description	Picture			Quantity
Cooker hood				1
Screws(4 mm x 18 mm)				8
Valve				2
Reducer				1

INSTALLATION

If you have an air outlet to the outside, your hood can be connected as the figure below with a pull-out tube.

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

1. Before installation, make sure the Hood is unplugged from the mains.
2. The hood should be placed at a distance of 65-75 cm on the kitchen surface for better performance.

65cm 75cm

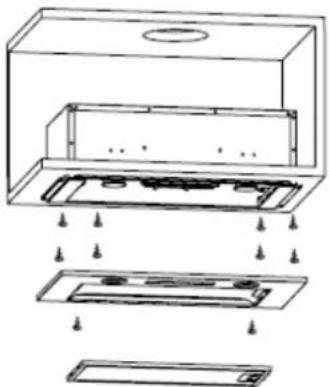

1. Drill a hole in the base of the cabinet, 490*265mm for the model CA 08160 IN and 715*265 mm for the model CA 08190 IN.

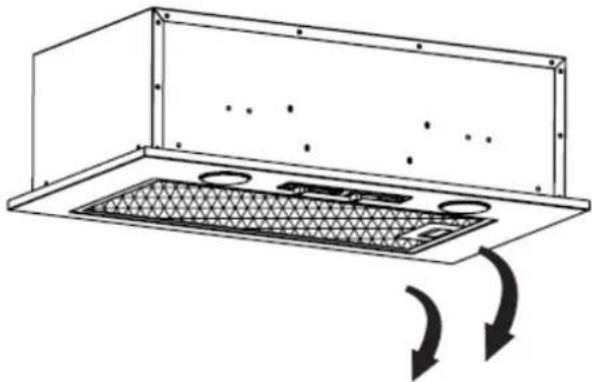

2. Remove the aluminum filter and remove the two front panel screws.
3. Use a screwdriver to secure the screws to the cabinet.
4. Replace the front panel with the two screws and replace the filter.

Technical line drawing of a multi-section appliance with mounting holes and internal compartments (no text or symbols)

CARBON FILTER (NOT SUPPLIED)

1. Remove the aluminum filter.

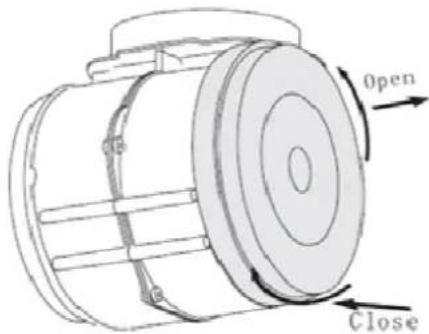

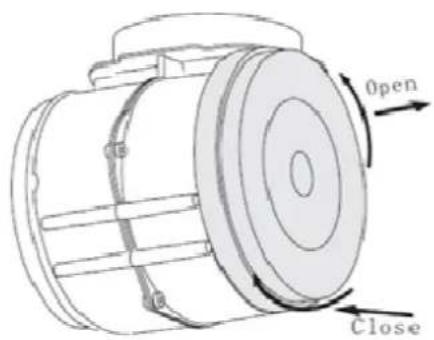

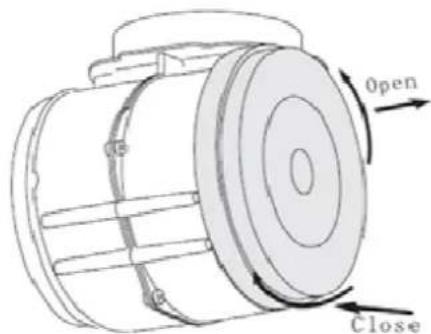

2. Place the activated carbon filter on one side of the engine and turn counterclockwise. Repeat the same operation on the other side.

Diagram of a ventilation duct system with cooling fans and airflow arrows (no text or labels)

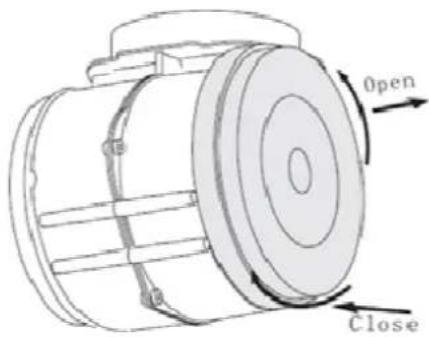

Open Close

NOTICE:

• Make sure that the filter is correctly positioned. Otherwise, it may loosen to damage the motor of the hood.
• When the carbon filter is in place, suction power will be reduced.
• This filter cannot be washed or reused. It should be changed every 3 to 6 months depending on usage.

UTILIZATION

1. Set the switch (1) to position I to turn on the hood light, in position 0 it will turn off.
2. Set the switch (2) to position I, II or III to select the suction speed (low, medium or high). In position 0 it will turn off.

O I ①

O I II III ②

CLEANING AND MAINTENANCE

Disassembly and cleaning of aluminum filters

• Follow this guide correctly to clean the filters.

• Press the filter lock button and pull down.

• Dip the filter into water, add detergent and leave it for 2-3 minutes. After cleaning with a brush, do not apply too much pressure, the filter is delicate and could easily be damaged.

• You can also wash the filters in the dishwasher at 60^ C.
• The filter is made of aluminum so it is advisable not to use aggressive cleaners that can corrode it.
• Make sure the hood is switched off when cleaning.

Regular cleaning

- Clean the aluminum filters monthly. This will prevent the risk of fire. As the filters collects grease, smoke and dust, it affects the efficiency of the hood. If the filters are not cleaned the grease can clog them.

Cleaning the hood

• To protect the hood body from corrosion, you should clean the outside of the hood with hot water and non-abrasive detergent every 2 months. To do this, moisten a cloth with that water and clean the hood.
• Take care not to wet the engine and other interior parts, this could damage the hood.

Changing the bulb.

1. Turn off and unplug the hood.
2. Wait until the bulb has cooled before changing it.
3. Use the same type of bulb, LED 2W.
4. The bulb replacement should be performed by a qualified technician.

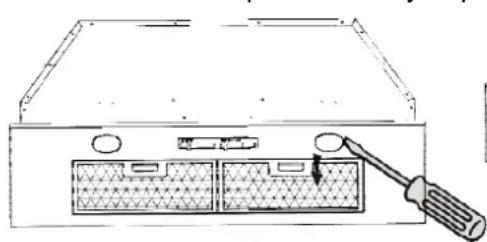

Diagram of a device with two internal compartments and a screwdriver inserted, no text or symbols present

Diagram of a vehicle rear panel with a cable connector inserted, showing internal compartments and arrows indicating movement (no text or symbols)

TROUBLESHOOTING

PROBLEM	CAUSE	SOLUTION
The lights come on but the fan does not work.	The fan is jammed	Turn off the Hood and have it serviced by a professional
	Engine is damaged
No lights or fan work.	The LED bulb has blown	Change the bulb for one exactly the same

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and

recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.
