CA 09160 BL - Range hood Orbegozo - Free user manual and instructions

Brand	Orbegozo
Model	CA 09160 BL
Product type	Range hood
Use	Domestic
Built-in dimensions (W x D)	500 x 275 mm
Minimum distance from hob	65 cm (gas) / 65-75 cm (recommended)
Power supply	220-240 V, 50 Hz
Number of speeds	3 (low, medium, high)
Lighting	Yes, replaceable bulb
Timer	Yes, 5-minute automatic shut-off
Grease filter	Metallic, dishwasher-safe
Activated carbon filter	Not supplied, optional (replace every 3-6 months)
Regular maintenance	Clean the grease filter every month
External cleaning	Cloth soaked in warm water and non-abrasive detergent
Safety	Do not flambé under the hood; avoid open flames; supervise during frying
Installation	By a qualified professional
Weight (estimated)	Approximately 10 kg

Frequently Asked Questions - CA 09160 BL Orbegozo

What is the minimum distance between the hood and the hob?

The minimum distance is 65 cm for gas cooking, and 65 to 75 cm for better performance.

How to install the hood CA 09160 BL?

Installation must be carried out by a qualified professional. Cut a hole of 500 x 275 mm in the cabinet, place the hood and secure it with the supplied screws. The electrical connection must comply with current standards.

How to use the hood controls?

The control panel has 5 buttons: standby (on/off), low speed, medium speed, high speed and timer. Press the corresponding button to activate each function.

What to do if the hood does not turn on?

Check that the plug is properly inserted and that the circuit breaker has not tripped. If nothing works, the cord or control panel may be damaged; contact a technical service.

How to clean the grease filter?

The metal filter can be washed in the dishwasher at 60°C or by hand in hot water (40-50°C) with a non-corrosive degreaser. Let it soak for 2-3 minutes then brush gently.

Is an activated carbon filter necessary?

The carbon filter is optional and not supplied. It is necessary if you use the hood in recirculation mode (without external evacuation). Replace it every 3 to 6 months depending on usage.

How to replace the hood bulb?

Unplug the hood, remove the glass panel by unscrewing the 4 screws, disconnect the bulb cables, replace with an identical bulb, then reassemble.

The hood vibrates abnormally, what to do?

Check that the hood is properly fixed to the cabinet, that the motor screws are tight, and that the air outlet valve is not damaged. If the problem persists, contact a professional.

Suction is insufficient, why?

This may be due to an excessive distance between the hood and the hob, an exhaust duct that is too long, too strong ambient ventilation, or a saturated filter. Adjust the distance, clean the filter, or open a window.

Can I cook on high heat under the hood?

No, it is forbidden to cook on high heat under the hood. Avoid open flames to prevent damage to the filters and reduce fire risk.

USER MANUAL CA 09160 BL Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

A) Carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations.
B) The appliance has been designed as a exhausting version(external exhaust) or as a filter version(internal air recycle) cooker hood.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]

14. WARNING: In case of misuse, there is a risk of possible injury.

15. Take care when the cooker hood is operating simultaneously with an open fireplace or burner that depend on the air in the environment and are supplied by other than electrical energy, as the cooker hood removes the air from the environment which a burner or fireplace need for combustion.

16. Risk of fire if the cleaning is not carried out according to instructions.
17. Do not flambe under the hood.
18. CAUTION: Accessible parts may become hot when used with cooking appliances.

19. Exhaust air should not be sent by conductors used to evacuate fumes from equipment powered by gas or other fuel.

20. The minimum distance between elements of cooking and the bottom of the hood must be at least 65cm if the hood is installed on a gas cooking element. If installation instructions gas cooking element indicate a greater distance should be taken into account. 65cm distance cannot be reduced.

21. The regulations regarding air evacuation must be respected.
22. The negative pressure in the environment must not exceed 4 Pa (4*10-5 bar).
23. Provide adequate ventilation in the environment for a safe operation of the cooker hood.
24. Follow the local laws applicable for external air evacuation. Appliance shall only be used with rated voltage and frequency.
25. Do not check the status of the filters while the cooker hood is operating.
26. Do not touch the light bulbs after appliance use.
27. Flame cooking is prohibited underneath the cooker hood.
28. Constantly check food frying to avoid that the overheated oil may become a fire hazard.

FUNCTION AND CHARACTERISTICS

1. This hood is made of high quality materials and with a modern design to fit the design of your home.
2. Equipped with an electric motor of great power and low noise with filter for the fat, easy to clean.
3. The grease filter is easy to remove and clean.

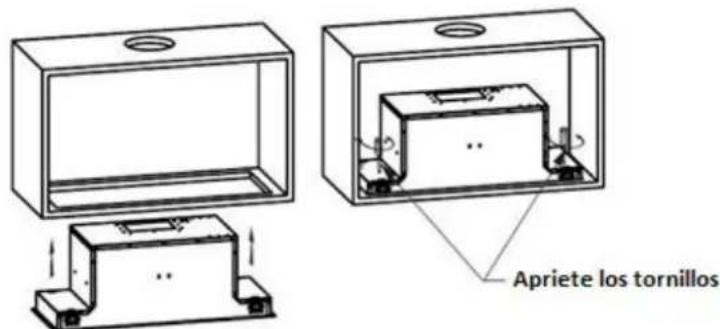

INSTALLATION

1 . The hood should be installed at a distance of 65 - 75cm from the kitchen surface for better performance
2. Make a hole in the cabinet, the size of the hole will be 500 × 275 ~mm for model CA 09160 BL and 730 × 275 ~mm for model CA 09190 BL.
3. Place the hood in the hole in the cabinet, tighten the screws with a screwdriver and make sure the hood is securely fastened.

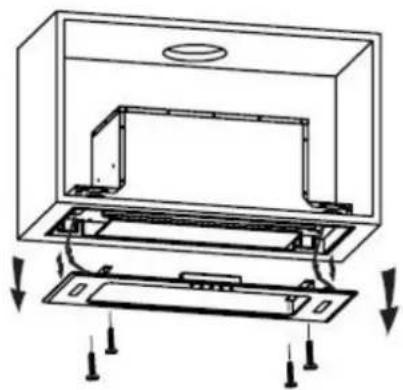

CHANGE OF BULB

Unplug the hood from the mains. Use a screwdriver to remove the 4 screws and remove the glass front. Disconnect the cables and remove the glass, remove the light screws and replace the bulb.

USE

How to use the control panel:

It has 5 functions: low speed, medium speed, high speed, light and timer.

1. First connection: when the Hood is plugged in for the first time the control panel will light up and after 5 seconds it will turn off, this is normal.

2. Press once and the lights will turn on. Press again and the lights will turn off.

3. Press, it will light and the hood will run at low speed. Press again to stop it.
4. Press, it will light up and the hood will run at medium speed. Press again to stop it.
5. Press , it will light up and the hood will run at high speed. Press again to stop it.
6. While the hood is working, pressing the timer button , will cause the hood to work for 5 minutes and turn off automatically.

MAINTENANCE

• The hood and filter should be regularly cleaned to keep it in good condition. Since the grease filter is metal, do not clean it with detergents that could corrode it. Please clean it in the following ways:

O Put the filter in hot water (40 - 50^) with a little degreasing detergent and leave it for 2-3 minutes and then wipe it with a soft brush. Do not brush very hard as this may damage the filter.

O Put the filter in the dishwasher with detergent and select a temperature of 60^

• To protect the hood from corrosion for a long period of time, clean it once a week with a cloth dampened with hot water and non-abrasive detergent.
• Keep the engine and other electronic parts away from the water, if they get wet they could be damaged.

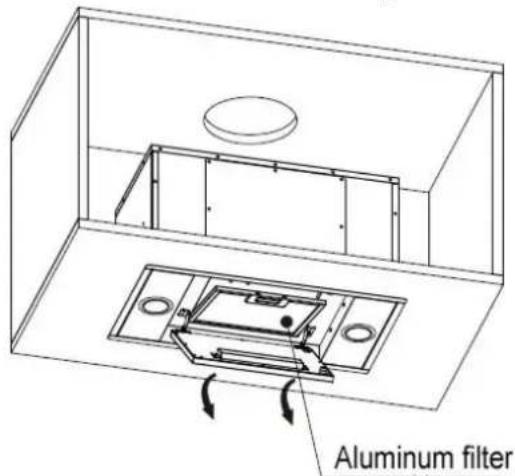

  Assembly and disassembly of the filter as shown in the drawing:

Pic 6

CARBON FILTER (NOT SUPPLIED)

1. Remove the aluminum filter.
2. Place the activated carbon filter on one side of the engine and turn counterclockwise. Repeat the same operation on the other side.

NOTICE:

• Make sure that the filter is correctly positioned. Otherwise, it may loosen to damage the motor of the

hood.

• When the carbon filter is in place suction power will be reduced.
• This filter cannot be washed or reused. It should be changed every 3 to 6 months depending on usage.

PROBLEM SOLVING

PROBLEM	CAUSE	SOLUTION
The lights do not work but the engine works	The bulb is broken	Change the bulb
	The bulb connection does not work properly	Repair or replace
	The button on the control panel is damaged	Repair or replace
Lights work but engine does not run	Damaged engine bearings	Replace engine
	Engine is burned	Replace engine
	Damaged engine control button	Repair or replace
Lights and engine do not work	Hood's plug is damage	Repair or replace
	Damage / cut cable	Replace the cable
	Damage connection button	Repair or replace
The Hood vibrates excessively	Output valve damaged	Repair or replace
	Motor screw loosened	Tighten the screw
	Hood improperly fitted to the cabinet	Adjust and tighten the screws
Insufficient suction	The distance between the hood and the cooking surface is too great.	Readjust the distance
	The ventilation in the room is very strong or the kitchen is very closed	Reduce the ventilation or open a window
	The extraction tube is very long	Adjust the length of the tube
	The air outlet valve is not open	Check whether the valve is flexible
	The wind on the outside is very strong	It is not a technical problem

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and

recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.
