Technical Specifications	Microwave oven with a power of 800 W, capacity of 25 liters, 5 power levels, grill function.
Usage	Ideal for reheating, cooking, and grilling food. Intuitive control panel with digital display.
Maintenance and Repair	Regular cleaning of the interior with a damp cloth. Periodic checking of door seals to ensure proper sealing.
Safety	Child safety lock system, overheating protection, automatic shutdown in case of malfunction.
General Information	Dimensions: 48 x 39 x 28 cm, weight: 13 kg, 2-year warranty, color: stainless steel.

Frequently Asked Questions - MTD 2531 GISB ECG

Why won\u0027t my ECG MTD 2531 GISB microwave oven turn on?

Check if the oven is properly plugged into a working outlet. Also ensure that the door is properly closed, as the oven will not turn on if the door is open.

How do I set the cooking time on my microwave oven?

To set the cooking time, use the timer button to select the desired time. Press \u0027Start\u0027 to begin cooking.

My microwave oven isn\u0027t heating food, what should I do?

Make sure the dish used is microwave-safe. Also check that the power setting is appropriate and that the cooking time is sufficient.

Is there an easy way to clean my microwave oven?

Yes, mix water and vinegar in a microwave-safe bowl and heat for 5 minutes. This will help loosen residues. Then wipe with a clean cloth.

What should I do if my microwave oven\u0027s display is flashing?

A flashing display may indicate an overheating issue. Turn off the oven and let it cool for at least 10 minutes before turning it back on.

How do I use the defrost function on my microwave oven?

Select the defrost function on the control panel, then enter the weight of the food to be defrosted. Press \u0027Start\u0027 to begin the process.

Is it normal for my microwave oven to make strange noises?

Clicking or buzzing noises can be normal during operation. However, if the noise is excessive or accompanied by a burning smell, unplug the appliance and contact a repair service.

How can I tell if the turntable is working properly?

Make sure the turntable is properly positioned on the central spindle. If it doesn\u0027t turn, check for obstructions and clean the support if necessary.

My ECG MTD 2531 GISB microwave oven smells strange, what should I do?

Check if any food is burnt or if there are food residues inside. Clean the interior of the oven and check that the filter is not clogged.

Where can I find the user manual for my microwave oven?

The user manual can usually be found on the manufacturer\u0027s website. You can also contact customer service to obtain a copy.

Can I use plastic containers in my microwave oven?

Make sure the plastic is labeled as microwave-safe. Avoid unsuitable plastics as they may melt or release harmful substances.

USER MANUAL MTD 2531 GISB ECG

Exterior view of a modern ECG microwave oven with digital display and control panel (no visible text or symbols on main body)

MTD 2531 GISB

MIKROVLNNÁ TROUBA

NÁVOD K OBSLUZE

MIKROVLNNÁ RÚRA

NÁVOD NA OBSLUHU

KUCHENKA MIKROFALOWA

INSTRUKCJA OBSŁUGI

MIKROHULLÁMÚ SÜTŐ

HASZNÁLATI ÚTMUTATÓ

MIKROWELLENHERD

BEDIENUNGSANLEITUNG

MICROWAVE OVEN

INSTRUCTION MANUAL

MIKROVALNA PEĆNICA

UPUTE ZA UPORABU

SUŠILEC ZA SADJE

NAVODILA

FOUR A MICRO-ONDES

MODE D'EMPLOI

FORNO A MICROONDE

Interior view of an oven with red arrows indicating flow or movement, no visible text or symbols

POPIS SPOTŘEBIČE

Technical diagram of a microwave oven with labeled components and numbered parts

1. Auto nheal 8.Grilled ham 2. Ice/Coffee 9.Grilled bacon 3. Soup 10.Grilled pork chops 4. Pomidge 11.Grilled steak 5. Pizza 12.Grilled chicken pieces 6. Pasta 13.Grilled fish pieces 7. Popcorn 14. Auto defrost. +30 sec Pause Cancel Start Quick Start

Pauza/Zrušit

Program Kombi 1 (CO-1)

Program Kombi 2 (CO-2)

Interior view of an oven with red arrows indicating flow or movement, no visible text or symbols

POPIS SPOTREBIČA

Technical diagram of a laboratory apparatus with numbered components and labeled parts

1. Auto nheat 8.Grilled ham 2. Tea/Coffee 9.Grilled bacon 3. Soup 10.Grilled pork chops 4. Porridge 11.Grilled steak 5. Pizza 12.Grilled chicken pieces 6. Pasta 13.Grilled fish pieces 7. Popcorn 14. Auto defrost. +30 sec Pause Cancel Start Quick Start

Program Kombi 1 (CO-1)

Program Kombi 2 (CO-2)

Interior view of an oven with red arrows indicating flow or movement, no visible text or symbols

OPIS URZĄDZENIA

Technical diagram of a microwave oven with labeled components and wiring connections

RETURN/CANCEL

7.Auto wheels 8.Grilled ham 2.Tea/Coffee 9.Grilled bacon 3.Soup 10.Grilled pork chops 4.Pomridge 11.Grilled steak 5.Pizza 12.Grilled chicken pieces 6.Pasta 13.Grilled fish pieces 7.Peppom 14.Auto defrost. OK 10 Min 1 Min 10 Sec Pause Cancel Start Quick Start

Szybki start

Program Kombi 1 (CO-1)

Program Kombi 2 (CO-2)

Interior view of an oven with red arrows indicating flow or movement, no visible text or symbols

HU

A KÉSZÜLÉK RÉSZEI

Technical diagram of a laboratory apparatus with numbered components and labeled parts

1. Auto nheat 8.Grilled ham 2. Tea/Coffee 9.Grilled bacon 3. Soup 10.Grilled pork chops 4. Porridge 11.Grilled steak 5. Pizza 12.Grilled chicken pieces 6. Pasta 13.Grilled fish pieces 7. Popcorn 14. Auto defrost. +30 sec Pause Cancel Start Quick Start

Kombi 1 (CO-1) program

Kombi 2 (CO-2) program

Interior view of an oven with red arrows indicating flow or movement, no visible text or symbols

GERÄTEBESCHREIBUNG

Technical diagram of a microwave oven with numbered components and labeled parts

1. Auto rheat 8.Grilled ham 2. Tea/Coffee 9.Grilled bacon 3. Soup 10.Grilled pork chops 4. Porridge 11.Grilled steak 5. Pizza 12.Grilled chicken pieces 6. Pasta 13.Grilled fish pieces 7. Popcorn 14. Auto defrost. +30sec Pause Cancel Start Quick Start

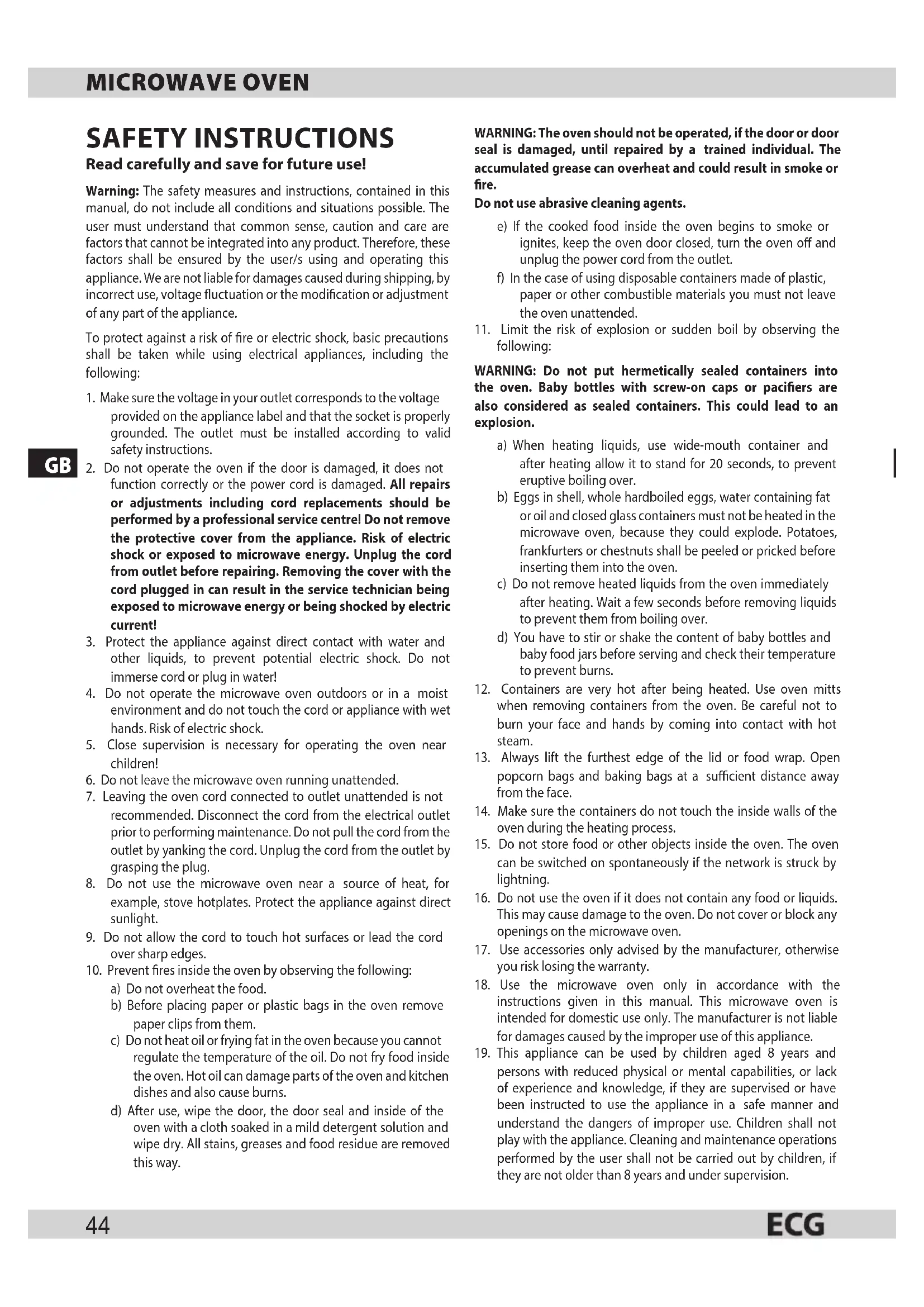

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is properly grounded. The outlet must be installed according to valid safety instructions.

2. Do not operate the oven if the door is damaged, it does not function correctly or the power cord is damaged. All repairs or adjustments including cord replacements should be performed by a professional service centre! Do not remove the protective cover from the appliance. Risk of electric shock or exposed to microwave energy. Unplug the cord from outlet before repairing. Removing the cover with the cord plugged in can result in the service technician being exposed to microwave energy or being shocked by electric current!

3. Protect the appliance against direct contact with water and other liquids, to prevent potential electric shock. Do not immerse cord or plug in water!

4. Do not operate the microwave oven outdoors or in a moist environment and do not touch the cord or appliance with wet hands. Risk of electric shock.

5. Close supervision is necessary for operating the oven near children!

6. Do not leave the microwave oven running unattended.

7. Leaving the oven cord connected to outlet unattended is not recommended. Disconnect the cord from the electrical outlet prior to performing maintenance. Do not pull the cord from the outlet by yanking the cord. Unplug the cord from the outlet by grasping the plug.

8. Do not use the microwave oven near a source of heat, for example, stove hotplates. Protect the appliance against direct sunlight.

9. Do not allow the cord to touch hot surfaces or lead the cord over sharp edges.

10. Prevent fires inside the oven by observing the following:

a) Do not overheat the food.
b) Before placing paper or plastic bags in the oven remove paper clips from them.
c) Do not heat oil or frying fat in the oven because you cannot regulate the temperature of the oil. Do not fry food inside the oven. Hot oil can damage parts of the oven and kitchen dishes and also cause burns.
d) After use, wipe the door, the door seal and inside of the oven with a cloth soaked in a mild detergent solution and wipe dry. All stains, greases and food residue are removed this way.

WARNING: The oven should not be operated, if the door or door seal is damaged, until repaired by a trained individual. The accumulated grease can overheat and could result in smoke or fire.

Do not use abrasive cleaning agents.

e) If the cooked food inside the oven begins to smoke or ignites, keep the oven door closed, turn the oven off and unplug the power cord from the outlet.
f) In the case of using disposable containers made of plastic, paper or other combustible materials you must not leave the oven unattended.

1. Limit the risk of explosion or sudden boil by observing the following:

WARNING: Do not put hermetically sealed containers into the oven. Baby bottles with screw-on caps or pacifiers are also considered as sealed containers. This could lead to an explosion.

a) When heating liquids, use wide-mouth container and after heating allow it to stand for 20 seconds, to prevent eruptive boiling over.
b) Eggs in shell, whole hardboiled eggs, water containing fat or oil and closed glass containers must not be heated in the microwave oven, because they could explode. Potatoes, frankfurters or chestnuts shall be peeled or pricked before inserting them into the oven.
c) Do not remove heated liquids from the oven immediately after heating. Wait a few seconds before removing liquids to prevent them from boiling over.
d) You have to stir or shake the content of baby bottles and baby food jars before serving and check their temperature to prevent burns.

1. Containers are very hot after being heated. Use oven mitts when removing containers from the oven. Be careful not to burn your face and hands by coming into contact with hot steam.
2. Always lift the furthest edge of the lid or food wrap. Open popcorn bags and baking bags at a sufficient distance away from the face.
3. Make sure the containers do not touch the inside walls of the oven during the heating process.
4. Do not store food or other objects inside the oven. The oven can be switched on spontaneously if the network is struck by lightning.
5. Do not use the oven if it does not contain any food or liquids. This may cause damage to the oven. Do not cover or block any openings on the microwave oven.
6. Use accessories only advised by the manufacturer, otherwise you risk losing the warranty.
7. Use the microwave oven only in accordance with the instructions given in this manual. This microwave oven is intended for domestic use only. The manufacturer is not liable for damages caused by the improper use of this appliance.

8. This appliance can be used by children aged 8 years and persons with reduced physical or mental capabilities, or lack of experience and knowledge, if they are supervised or have been instructed to use the appliance in a safe manner and understand the dangers of improper use. Children shall not play with the appliance. Cleaning and maintenance operations performed by the user shall not be carried out by children, if they are not older than 8 years and under supervision.

9. The microwave oven is designed to heat food and beverages. Drying food or clothing and heating cushions, slippers, sponges, wet fabric and similar items may lead to injury, explosion or fire.

10. This appliance is intended for household use and similar areas, including:

11. kitchenettes in shops, offices and other workplaces

12. appliances used in agriculture
13. appliances used by guests in hotels, motels and other residential environments
14. Appliances used in Bed and Breakfast accommodations.

Avoid exposure to excessive microwave radiation.

1. Do not attempt to operate the microwave oven if the door is open. By doing so, you can become exposed to harmful microwave energy. Do not attempt to break or hold safety locks on the oven door.
2. Do not insert foreign objects between the oven door. Make sure dirt or residue from cleaning agents are not left on the door seal or sealing elements of the oven.
3. Do not use the oven if damaged. The oven door should be perfectly tight upon closing and should not be damaged. Examples of damage caused to the oven door:

a) DENTING the oven door.
b) Loose or broken door HINGES or SAFEGUARDS.
c) OVEN DOOR SEAL OR SEALING AREAS ON THE FRAME HEAD.

Adjustments or repairs to the microwave oven should only be performed by a qualified person.

1. As with most appliances designed for cooking, a strict supervision is necessary to reduce the risk of fire in the oven space.

In case of fire:

1. Do not open oven door.
2. Turn off the oven and unplug cord from socket.
3. Turn off the master power switch.

CLEANING

Make sure you unplugged the oven from the outlet by disconnecting the plug from the outlet.

1. Use a damp cloth and clean the inside of the oven.
2. Clean accessories as usual in soap water.

Material that can be used in the microwave oven

Containers Notes

Aluminium foil	Only to cover small parts of food. Covering small amounts of meat or poultry with foil prevents overcooking or burning the food. The foil must be at least 2.5 cm away from the inner oven surface (the foil can bend if too close).
Baking trays Follow	the instructions of the manufacturer.
Plates Use only plates	es and dishes specified for microwave oven use. Follow the instructions of the manufacturer. Do not use cracked or otherwise damaged bowls.
Glass jars and jugs	Always remove the cover. Only heat the food. Do not cook! Most glass jugs and jars are not resistant to high temperatures and can crack.
Glass baking dishes	Use only those glass baking dishes resistant to high temperatures. Make sure the bowl does not have a metal border or other metal objects. Do not use cracked or otherwise damaged bowls.
Baking bags Follow	the instructions of the manufacturer. Do not close using metal clips. Leave the bag slightly opened enabling the free release of hot steam.

1. Clean the door frame, seal and neighbouring parts carefully using a damp cloth dipped into dishwashing detergent and wipe dry. The microwave oven must be grounded. The plug should be connected only to a properly grounded outlet.

Refer to a qualified electrician or service technician if you have any doubts regarding proper wiring or experience malfunctioning.

1. The microwave oven is equipped with a short cord to reduce the risk of tripping or tangling.
2. Long extension cords must meet the following requirements:

a) With respect to electric load, the rated values of the extension cord and outlet should comply with the rated values of the microwave oven.
b) The extension cord must be three-wire and the plug must be equipped with a grounding pin.
c) The cord must be sufficiently hidden, not hanging over the kitchen counter, to prevent against tripping over the cord or being pulled out by children.

UTENSILS AND DISHES CAUTION

Risk of injury

Tightly closed containers can explode when heated. Closed containers must be opened prior to cooking and plastic containers shall be pierced, see Materials to find out what material can and can not be used in the microwave oven. Some non-metal material may not be safely used for oven heating. If you are not sure whether or not the material is safe for oven heating, proceed as follows:

Test the container:

1. Fill the container, to be heated in the microwave oven, with cold water (250 ml).
2. Heat for 1 minute at maximum cooking power.
3. Check the temperature of the tested container carefully. If the tested container is warm, do not use it for oven heating.
4. Do not cook more than 1 minute.

Paper trays Suitable	only for heating or short cooking. Do not leave the oven unattended while cooking.
Paper towels Use these to cover food or remove melted grease. Use for short-term cooking only. Do not leave the oven unattended while cooking.
Parchment paper Use for covering food, packing food for stewing and as protection against spattering.
Plastic material	Use only plates and dishes specified for microwave oven use. Follow the instructions of the manufacturer. Plastic material, suitable for microwave oven use, should be equipped with a specific label: “Suitable for microwave ovens.” Some plastics become softer as a result of long-term exposure to high temperatures. “Boiling bags” and baking sacks must be cut, pierced or otherwise vented according to the food manufacturer's instructions.
Plastic packing foil	Use only plates and dishes specified for microwave oven use. Use them for covering food and to maintain food moist while cooking. Make sure the plastic foil does not touch the food being prepared.
Thermometers Use only thermometers suitable for microwave oven use. (Thermometers for meat, bread products and candy.)
Wax paper Use for covering food, as protection against spattering and to maintain food moist while cooking.

Material, which may not be used for oven heating

Utensils and dishes Notes

Aluminium platters and trays Risk of bending. Move the food to a container suitable for microwave oven use.
Food and cardboard boxes with metal holders	Risk of bending. Move the food to a container suitable for microwave oven use.
Metal dishes and dishes with metal objects	Metal prevents the penetration of microwave energy. Metal borders can bend.
Wired closing rings Risk of bending and fire inside the oven.
Paper bags Risk of catching fire. Risk of fire inside the oven.
Foam material Plastic foam can melt at high temperatures and spoil food.
Wood Wood dries and can crack when cooked.

INSTALLATION

1. Remove all the packing material and take out all accessories.

2. Make sure the oven is not damaged in any way (dented or damaged door etc.). Do not install the microwave oven if damaged.

3. Place the oven on a flat surface capable of supporting the total weight of the appliance together with food.

4. Ensure enough free space around the appliance for proper function of the ventilation openings: 20 cm above the appliance, 10 cm in the back and 5 cm on the sides of the appliance.

5. Do not place the microwave oven in hot or humid places and near flammable materials.

CAUTION: Do not install the oven above or near the kitchen stove, or near another source of heat. Placing the oven by a heat source could damage the oven and result in losing the warranty. The microwave oven should be used in an open space and should not be placed in a cabinet.

The surface of the microwave oven can become hot during operation.

Hot surface!

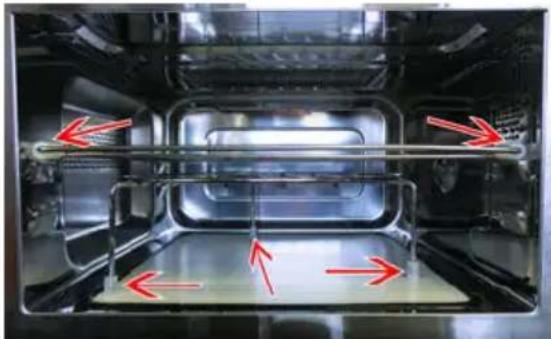

IMPORTANT WARNING: When using a roasting grate and grill, do not remove the silicone rollers from their parts, since this may cause irreversible damage to the microwave oven interior. Grates or their metal parts must not come into contact with the interior parts of the oven, see fig. beneath.

Interior view of an oven with red arrows indicating flow or movement, no visible text or symbols

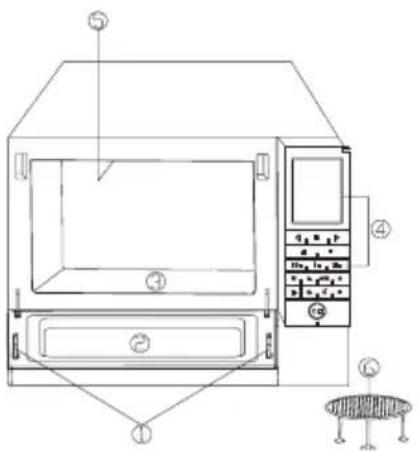

DESCRIPTION OF THE APPLIANCE

1. Safety lock
2. Oven door window
3. Ceramic bottom
4. Control panel
5. Grill heating element
6. Metal grill and grate

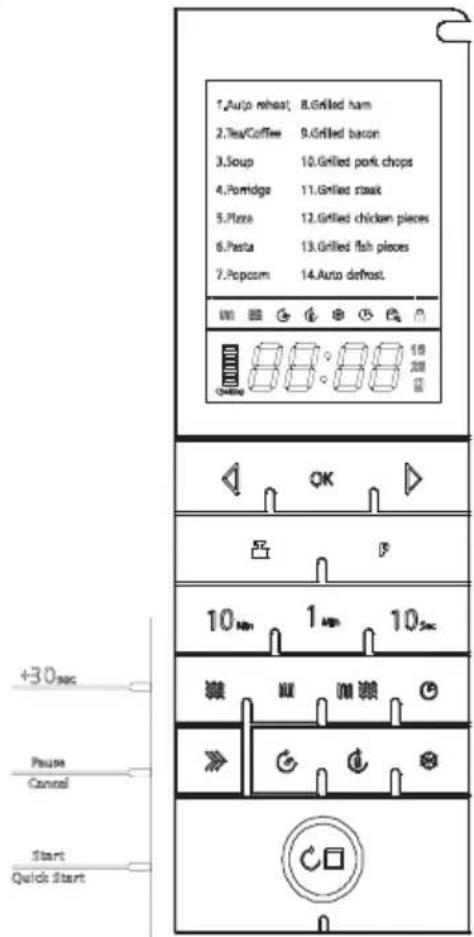

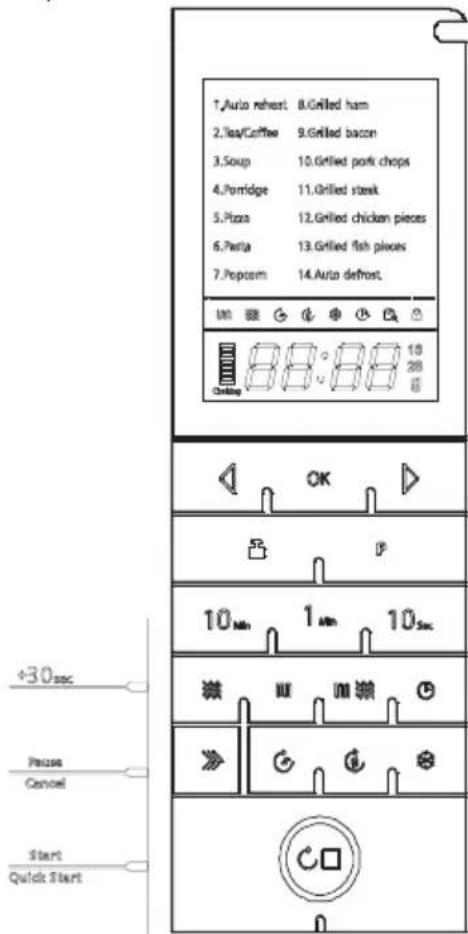

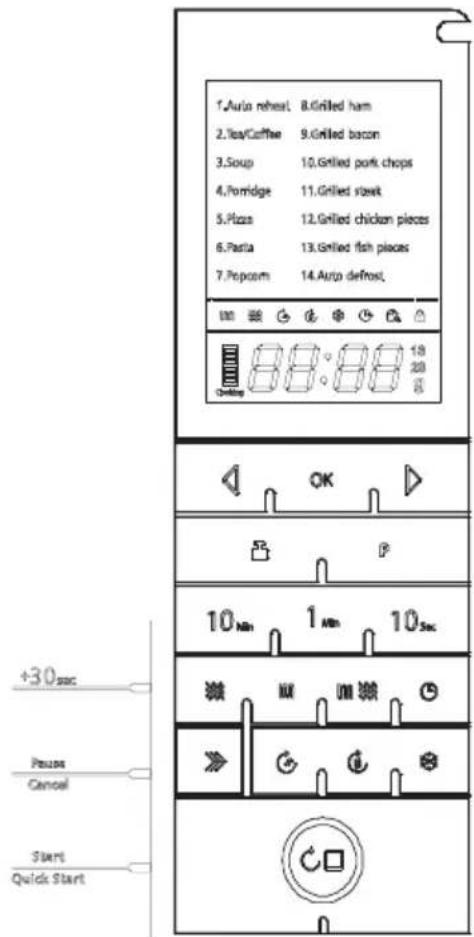

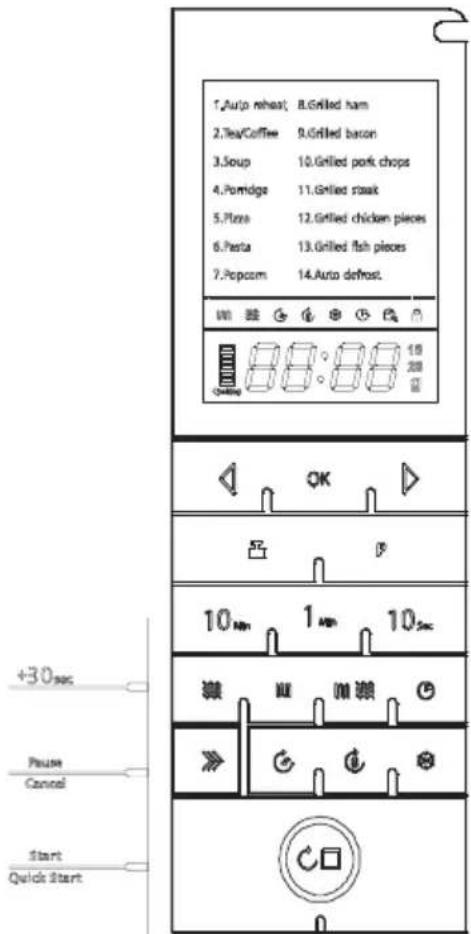

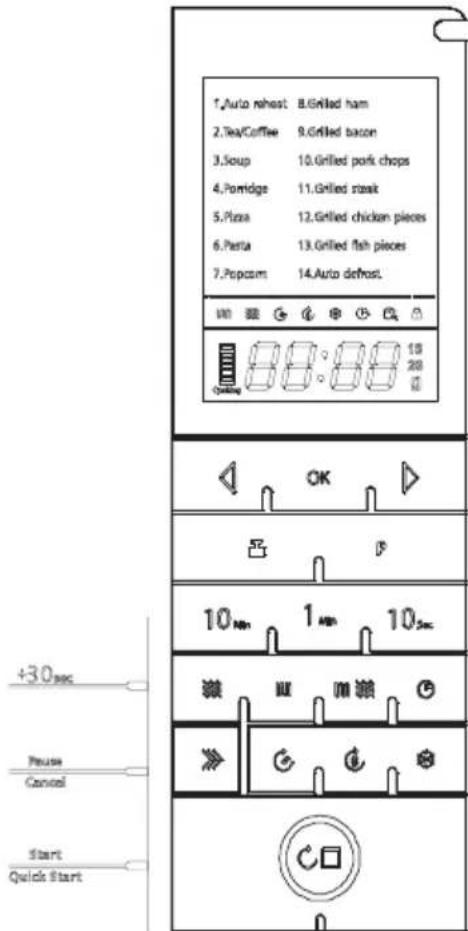

Control panel

Panel display

• Shows cooking time, power, activity indicator and clock.
- Press to select one of the automatic programs, including automatic defrosting.
- Press to specify food weight or number of servings.

Automatic food preparation

OK/Weight setting Weight Adjust

Preset PRESET P

- The preset function allows you to insert food into the oven and program the delayed start of cooking.

Number pad: 10 Min / 1 Min / 10 Sec

- Serves to set clock or cooking time.

Microwave heating INVERTER MICRO

- Press to set microwave power.

Grill

- Press to set cooking program using the grill.

Combination COMBI

• Preparing food using combination of microwave heating and grill.

Hours CLOCK

- Press to set digital clock.

Intelligent fast menu

• Sterilization STERILIZE
- Deodorization DEODORIZE
• Defrosting DEFROST

RETURN/CANCEL

- Deletes all previous settings before selection of another function.

+30 seconds +30sec

Pause/Cancel

• Press to stop cooking program or clear all previous settings before you start cooking.
• It is also used for setting child lock.
• Press the button several times to set cooking time and start cooking at full power.
• Press to start a preset cooking program.

Start/Quick start Start Quick Start

Technical diagram of a microwave oven with labeled components and numbered parts

1.Auto reheat 8.Grilled ham 2.Itea/Coffee 9.Grilled bacon 3.Soup 10.Grilled pork chops 4.Pomidge 11.Grilled steak 5.Pizza 12.Grilled chicken pieces 6.Pasta 13.Grilled fish pieces 7.Popcorn 14.Auto defrost. +30sec Pause Cancel Start Quick Start

USING THE APPLIANCE

This microwave oven uses modern electronic controlling to configure cooking parameters to better meet your needs.

Setting the time

When the microwave oven is in standby mode, press the button CLOCK once or twice and then select 12- or 24-hour display mode. Example: setting the clock of the appliance to 8:30:

1. Press CLOCK to select the clock display format (12/24).
2. Using the number pad enter "8:30".
3. Press CLOCK to confirm the setting.

The +30sec button function

Each time you press this button, you can extend the set cooking time (for microwave heating, grill or combination) by 30 seconds, up to total time 99 minutes 50 seconds.

Quick start

This function allows you to quickly start heating with maximum power. The longest cooking time is 10 minutes.

Suppose that you want to set heating time to 2 minutes using the quick start function:

1. Close the door of the microwave oven. If necessary press PAUSE/CANCEL to reset the appliance.
2. Press repeatedly START/QUICK START, until the display shows 2:00.

Microwave heating

The longest microwave heating time is 99 minutes and 50 seconds (99:50).

Suppose you want to cook for 5 minutes at 60% power.

1. If necessary, reset the appliance by pressing RETURN/CANCEL.
2. Press repeatedly INVERTER MICRO to set microwave power.

Number of pressings	Cooking power	Number of pressings	Cooking power
1 × 100% (P100) 4	× 40% (P-40)
2 × 80% (P-80) 5 ×	20% (P-20)
3 × 60% (P-60) 6 ×	0% (P-00)

1. Using number pad set the heating time so that display shows "5:00".
2. Close door and press START/QUICK START.

Grilling

The longest grilling time is 99 minutes and 50 seconds (99:50).

Suppose that you want to grill for 5 minutes.

1. If necessary, reset the appliance by pressing RETURN/CANCEL.
2. Press Grill
3. Using number pad set the cooking time so that the display shows "5:00".
4. Close door and press START/QUICK START.

Combination cooking

The longest cooking time is 99 minutes and 50 seconds (99:50).

Program Kombi 1 (CO-1)

Suppose you want to set combined program 1 to 25 minutes.

1. If necessary, reset the appliance by pressing RETURN/CANCEL.
2. Press once the button COMBI .
3. Using number pad set the cooking time to "25:00".
4. Close door and press START/QUICK START.

Program Kombi 2 (CO-2)

Suppose you want to set combined program 2 to 12 minutes.

1. If necessary, reset the appliance by pressing RETURN/CANCEL.
2. Press twice COMBI
3. Using number pad set the cooking time to "12:00".
4. Close door and press START/QUICK START.

Intelligent quick menu

Sterilization

1. Press the button STERILIZE
2. Close door and press START/QUICK START.

Deodorization

1. Press the button DEODORIZE
2. Close door and press START/QUICK START.

Defrosting

Here are two ways to defrost: defrosting by weight and defrosting by time.

In the middle of the defrosting process an alarm sounds, alerting you to the necessity to rotate the dish and the defrosting stops, until you press the button START/QUICK START to start the second phase of defrosting.

Defrosting according to weight

Microwave oven allows you to defrost food according to entered weight. The defrosting time and power are set automatically after you enter the weight. You can set weight in the range from 100 to 1800 grams.

1. Press the button DEFROST
2. Press OK or Weight Adjust ☐ to enter weight.
3. Close door and press START/QUICK START.

Defrosting according to time

The longest settable time is 99 minutes 50 seconds (99:50).

Microwave oven can quickly defrost food based on your entered specified defrosting time.

1. Press the button DEFROST
2. Press using number pad and enter defrosting time.
3. Close door and press START/QUICK START.

Cooking in phases

2 different preparation phases at most can be set for cooking.

Suppose you want to set the following cooking program.

Microwave heating --> Microwave heating (lower power level)

1. If necessary, reset the appliance by pressing RETURN/CANCEL.
2. Program the first phase of microwave heating.
3. Program the second phase of microwave heating.
4. Close door and press START/QUICK START.

Note:

Microwave heating, grill and combination can be set as program steps.

Preset function

This function allows starting the microwave oven at a predetermined time.

Suppose that the clock shows time 11:10 and you want to start cooking a meal at 11:30.

1. If necessary, reset the appliance by pressing RETURN/CANCEL.
2. Enter cooking program.
3. Press the button PRESET . P
4. Using number pad enter the chosen time "11:30".
5. Close door and press START/QUICK START.

Notes:

• When the preset time comes, the preset program starts automatically.
  • Once the preset function is activated, you can press PRESET Ⓞ to check the preset time or press PAUSE/CANCEL to cancel the function.
  • You cannot use the functions Quick Start and Defrosting when using Preset.

Child lock

It allows you to prevent accidental use of the appliance by young children. The display shows the lock symbol and the microwave oven cannot be used in that state.

• Child lock activation: Press and hold for minimum 3 seconds the button PAUSE/CANCEL. A beep sounds and an indicator lights up. No other function can be now used except the child lock.
• Child lock deactivation: Press and hold for minimum of 3 seconds PAUSE/CANCEL until the lock symbol disappears from the display. All functions of the appliance are reactivated.

Automatic menu

There is no need for individual dishes to have cooking time and microwave power programmed in this mode. You can just enter the type of food and its weight. In the process of cooking it may be necessary to rotate the dish to achieve uniform heating.

1. Press or to select one of the automatic programs from A-1 to A-13.
2. Press OK or to enter the weight of the food.
3. Close door and press START/QUICK START.

Automatic menu programs

Code Program Code Program
1 Automatic heating 8 Grilled ham
2 Coffee /Tea (200 ml) 9 Grilled bacon
3 Soup (200 ml) 10 Grilled pork ribs
4 Oatmeal 11 Grilled steak
5 Pizza 12 Grilled chicken pieces
6 Pasta 13 Grilled fish slices
7 Popcorn 14 Automatic defrosting

Notes:

1. The results of the automatic cooking depend on factors such as voltage, size and shape of the food, your personal preference and how you manage to place the food in the oven. If you find the results unsatisfactory, adjust appropriately the cooking time.
2. In case of pasta start cooking the dish with boiling water.
3. The microwave stops during the process for programs 8 to 14 to allow you to rotate the dish. Then close the door and press START/QUICK START to continue cooking.

GB

Automatic defrosting

Microwave oven defrosts meat, poultry and seafood. Time and power for defrosting is set automatically after you enter the weight of the food. The weight of frozen food can be set between 100 to 1800 grams.

Example: Suppose you want to defrost 600g of shrimp.

Place the shrimp you want to defrost in the oven.

1. Press or to select program A-14.

2. Press OK or to enter the weight 600g.

3. Close door and press START/QUICK START.

Note:

Beep will sound in the middle of defrosting, indicating the need to rotate the dish. The defrosting stops until you press START/QUICK START to start the second phase of defrosting.

TROUBLESHOOTING

If the microwave oven stops working:

1. Make sure that the oven is properly connected to power. If it is not, unplug the power cord from the outlet, wait 10 seconds and then reconnect properly.
2. Make sure that there is not blown fuse or that circuit breaker was not tripped. If everything seems to be in order, try the functionality of the outlet using another appliance.
3. On the front panel, make sure it is properly set to the desired program and the clock and timer are correctly set.
4. Make sure that the door of the oven is properly closed and the door lock is secured. Otherwise you cannot start microwave heating. If none of the above recommendations solves the problem, contact an authorized service center. Do not attempt to repair the device by yourself!

Error message (E-1):

If there is no detection of feedback signal (impulse) during operation for period of 5 seconds the system operation is interrupted, alarm will sound and the message "E-1" appears. Press PAUSE/CANCEL, to return the appliance to standby mode.

Common operation signals
The microwave oven interferes with the television reception.	The microwave oven can interfere with the radio and television when operating. It is similar to the interference of small electrical appliances such as the blender, vacuum cleaner and electrical ventilator.
Dimming the oven light	Cooking with low microwave power level may dim the oven light. This effect is normal.
Steam is accumulated on the door, hot air is coming from vents.	Steam can be released from food while cooking. Most of the steam is released through the exhaust vents, though some can accumulate in a cooler place, such as the door. This effect is normal.
The oven was started empty by accident.	The oven should not be operated empty. It is very dangerous.

USEFUL TIPS

1. Pay careful attention when arranging food. Place the thicker parts of food towards the edge of the plate.
2. Watch the cooking time. Cook for the shortest recommended time and if necessary extend cooking time. Too long cooking time may cause burning or ignition of the dish.
3. Cover the dish during microwave heating. You will prevent staining the inside walls of the oven and improve the uniformity of heating. Do not cover the food when grilling.
4. Rotate the food during microwave heating. You will speed up the cooking of dishes like e.g. chicken or hamburgers. Large pieces such as roasts must be rotated at least once.
5. Rearrange foods such as meatballs during microwave heating both downwards and from the middle of the plate towards the edge.

TECHNICAL SPECIFICATIONS

25 | capacity

1400 W (microwave) / 1000 W (grill)

Microwave power output 900 W

Weight 14 kg

External dimensions 303 × 504 × 410 mm

Internal dimensions 220 × 340 × 322 mm

Nominal voltage: 230–240 V\~50 Hz

Operating frequency: 2450 MHz

Noise level: 57 dB

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

The instruction manual is available at website www.ecg-electro.eu.

Changes in text and technical parameters reserved.

08/05

SIGURNOSNE UPUTE

Interior view of an oven with red arrows indicating flow or movement, no visible text or symbols

OPIS UREĐAJA

1. Sigurnosna bravica
2. Kontrolni prozorčić vrata pećnice
3. Keramičko dno
4. Upravljačka ploča
5. Grijač grila
6. Metalna rešetka i mrežica

Upravljačka ploča

Zaslon panela

• Prikazuje vrijeme pripreme, snagu, kontrolni indikator i sat.
• Pritiskom tipki odaberite neki od automatskih programa, uključujući automatsko odmrzavanje.

Automatska priprema hrane

OK/podešavanje težine Weight Adjust

Technical diagram of a microwave oven with labeled components and numbered parts

1. Auto reheat 8.Grilled ham 2. Tea/Coffee 9.Grilled bacon 3. Soup 10.Grilled pork chops 4. Porridge 11.Grilled steak 5. Pizza 12.Grilled chicken pieces 6. Pasta 13.Grilled fish pieces 7. Popcorn 14. Auto defrost. +30 sec Pause Cancel Start Quick Start

Program Kombi 1 (CO-1)

Pretpostavimo da želite postaviti kombinirani program 1 u trajanju od 25 minuta.

1. Ako je potrebno, uređaj resetirajte pritiskom tipke RETURN/CANCEL.
2. Jednom pritisnite tipku COMBI .
3. Pomoću numeričkih tipki postavite vrijeme pripreme tako da na zaslonu bude prikazano „25:00“.
4. Zatvorite vrata i pritisnite tipku START/QUICK START.

Program Kombi 2 (CO-2)

Pretpostavimo da želite postaviti kombinirani program 2 u trajanju od 12 minuta.

1. Ako je potrebno, uređaj resetirajte pritiskom tipke RETURN/CANCEL.
2. Dva puta pritisnite tipku COMBI
3. Pomoću numeričkih tipki postavite vrijeme pripreme tako da na zaslonu bude prikazano „12:00“.
4. Zatvorite vrata i pritisnite tipku START/QUICK START.

Inteligentni brzi izbornik

Sterilizacija

1. Pritisnite tipku STERILIZE .

1. Zatvorite vrata i pritisnite tipku START/QUICK START.

Deodorizacija

1. Pritisnite tipku DEODORIZE

1. Zatvorite vrata i pritisnite tipku START/QUICK START.

Odmrzavanje

Test kuhinjske posode:

Interior view of a stainless steel oven with red arrows indicating flow or movement, no visible text or symbols

OPIS APARATA

Technical diagram of a microwave oven with numbered components and labeled parts

Upravljalna plošča

Zaslon plošče

1. Auto reheat 8.Grilled ham 2. Tos/Coffee 9.Grilled bacon 3. Soup 10.Grilled pork chops 4. Porridge 11.Grilled steak 5. Pizza 12.Grilled chicken pieces 6. Parla 13.Grilled fish pieces 7. Popcorn 14. Auto defrost. +30sec Pause Cancel Start Quick Start

Zagon/Hitri zagon Quick Start

Program Kombi 1 (CO-1)

Predpostavljamo, da želite nastaviti kombinirani program 1 za 25 minut.

1. Če je potrebno, ponovno zaženite aparat s pritiskom na tipko RETURN/CANCEL.
2. Enkrat pritisnite tipko COMBI
3. S pomočjo številčnih tipk nastavite čas priprave na „25:00“.
4. Zaprite vrata in pritisnite na tipko START/QUICK START.

Program Kombi 2 (CO-2)

Predpostavljamo, da želite nastaviti kombinirani program 2 za 12 minut.

1. Če je potrebno, ponovno zaženite aparat s pritiskom na tipko RETURN/CANCEL.
2. Dvakrat pritisnite tipko COMBI
3. S pomočjo številčnih tipk nastavite čas priprave na „12:00“.
4. Zaprite vrata in pritisnite na tipko START/QUICK START.

Inteligentni hitri meni

Steriliziranje

1. Pritisnite tipko STERILIZE .

1. Zaprite vrata in pritisnite na tipko START/QUICK START.

Deodoriziranje

1. Pritisnite tipko DEODORIZE

1. Zaprite vrata in pritisnite na tipko START/QUICK START.

Odmrzovanje

Interior view of an oven with red arrows indicating flow or movement, no visible text or symbols

DESCRIPTION DE L'APPAREIL

Technical diagram of a vacuum chamber with numbered components and labeled parts

1. Auto nheat; 8.Grilled ham 2. Tea/Coffee 9.Grilled bacon 3. Soup 10.Grilled pork chops 4. Pomidge 11.Grilled roast 5. Pizza 12.Grilled chicken pieces 6. Pesta 13.Grilled fish pieces 7. Popcorn 14. Auto defrost. +30 sec Pause Cancel Start Quick Start

Pause/Annulation

Pause

Cancel

Programme Combi 2 (CO-2)

Interior view of an oven with red arrows indicating flow or movement, no visible text or symbols

DESCRIZIONE DELL'APPARECCHIO

Technical diagram of a microwave oven with numbered components and labeled parts

1. Auto nheat 8.Grilled ham 2.Tea/Coffee 9.Grilled bacon 3.Soup 10.Grilled pork chops 4.Pomidge 11.Grilled steak 5.Pizza 12.Grilled chicken pieces 6.Pasta 13.Grilled fish pieces 7.Popcorn 14. Auto defrost. +30 sec Pause Cancel Start Quick Start

Pausa/Annulla

Pause

Cancel

1400 W (forno a microonde) / 1000 W (grill)

Interior view of an oven with red arrows indicating flow or movement, no visible text or symbols

Technical diagram of a microwave oven with labeled components and numbered parts

1.Auto nheat; 8.Grilled ham 2.Tea/Coffee 9.Grilled bacon 3.Soup 10.Grilled pork chops 4.Pomidge 11.Grilled steak 5.Pizza 12.Grilled chicken pieces 6.Pasta 13.Grilled fish pieces 7.Popcorn 14.Auto defrost. +30sec Pause Cancel Start Quick Start
