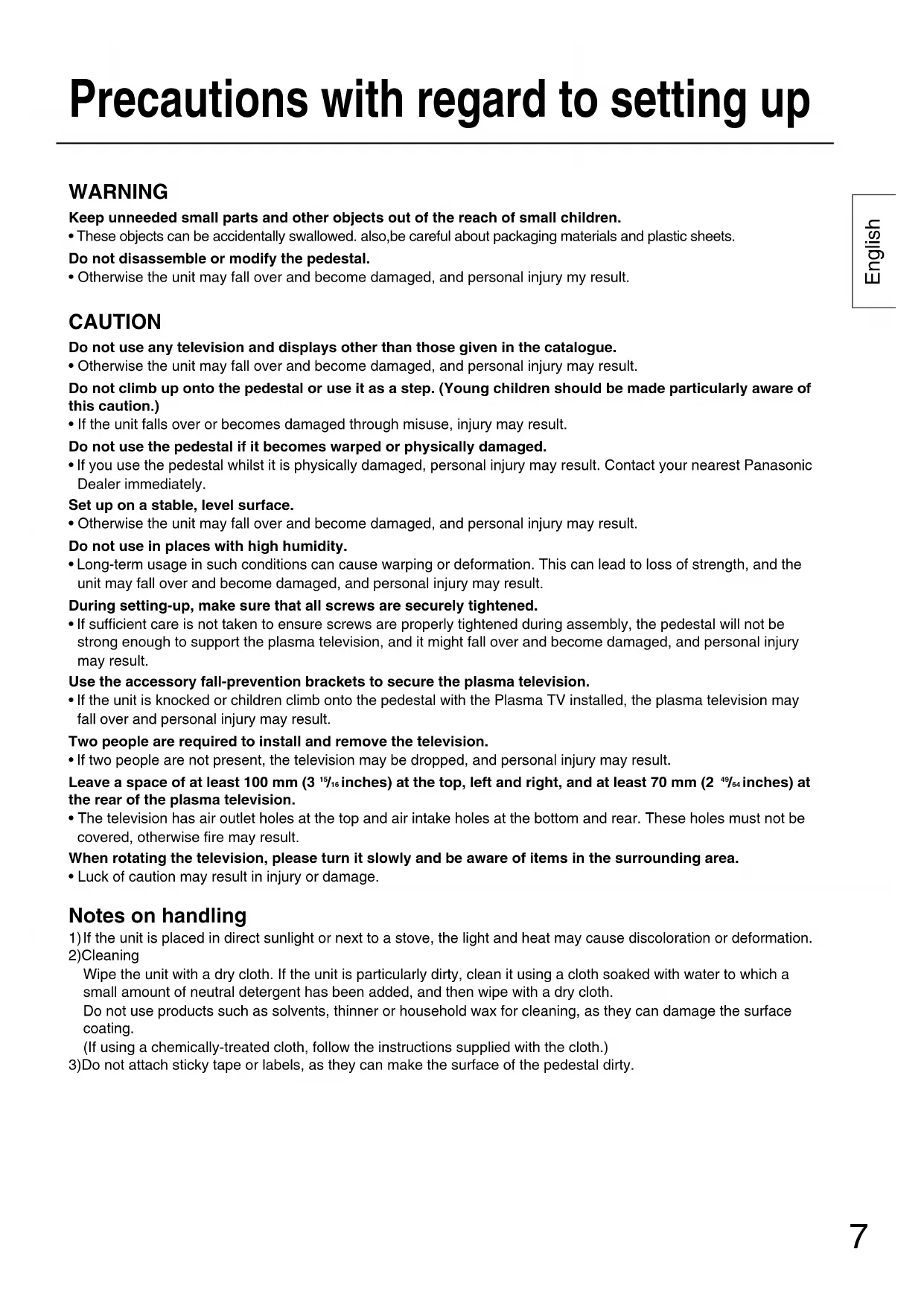

• These objects can be accidentally swallowed. also,be careful about packaging materials and plastic sheets. Do not disassemble or modify the pedestal.

• Otherwise the unit may fall over and become damaged, and personal injury my result. CAUTION Do not use any television and displays other than those given in the catalogue.

• Otherwise the unit may fall over and become damaged, and personal injury may result. Do not climb up onto the pedestal or use it as a step. (Young children should be made particularly aware of this caution.)

• If the unit falls over or becomes damaged through misuse, injury may result. Do not use the pedestal if it becomes warped or physically damaged.

• If you use the pedestal whilst it is physically damaged, personal injury may result. Contact your nearest Panasonic Dealer immediately. Set up on a stable, level surface.

• Otherwise the unit may fall over and become damaged, and personal injury may result. Do not use in places with high humidity.

• Long-term usage in such conditions can cause warping or deformation. This can lead to loss of strength, and the unit may fall over and become damaged, and personal injury may result. During setting-up, make sure that all screws are securely tightened.

• If sufficient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be strong enough to support the plasma television, and it might fall over and become damaged, and personal injury may result. Use the accessory fall-prevention brackets to secure the plasma television.

• If the unit is knocked or children climb onto the pedestal with the Plasma TV installed, the plasma television may fall over and personal injury may result. Two people are required to install and remove the television.

• If two people are not present, the television may be dropped, and personal injury may result. Leave a space of at least 100 mm (3

/16 inches) at the top, left and right, and at least 70 mm (2

/64 inches) at the rear of the plasma television.

• The television has air outlet holes at the top and air intake holes at the bottom and rear. These holes must not be covered, otherwise fire may result. When rotating the television, please turn it slowly and be aware of items in the surrounding area.

• Luck of caution may result in injury or damage. Notes on handling 1)If the unit is placed in direct sunlight or next to a stove, the light and heat may cause discoloration or deformation. 2)Cleaning Wipe the unit with a dry cloth. If the unit is particularly dirty, clean it using a cloth soaked with water to which a small amount of neutral detergent has been added, and then wipe with a dry cloth. Do not use products such as solvents, thinner or household wax for cleaning, as they can damage the surface coating. (If using a chemically-treated cloth, follow the instructions supplied with the cloth.) 3)Do not attach sticky tape or labels, as they can make the surface of the pedestal dirty. Precautions with regard to setting upAssembling & setting up the pedestal Accessories for pedestal assembly

Band .........2 Assembling the pedestal Using the four short screws , securely fasten the left and right poles to the base, as shown in the illustration below.

Align the stamped marks. Short screws For 42'', 50'' plasma television Front Pole

Align the stamped marks. For 37'' plasma television Front Pole

Align the stamped marks. For 42'', 50'' plasma television Front Pole

Align the stamped marks. For 37'' plasma television Front Points to note during installation

• Insert the mains plug into a mains socket which is close and easily accessible for the plasma television.

• Provide adequate ventilation so that the temperature around the television does not rise above 40°C (104 °F). If there is insufficient movement of the air inside the display, heat may build up inside the television and fire may result.

1) Fit the 37- and 42-inch plasma displays to the TY-ST42PX500, and the 50-inch plasma display to the TY-ST50PX500.

2) The illustrations show the TY-ST42PX500. The TY-ST50PX500 is not shown as it is similar in appearance.9

English Assembling & setting up the pedestal Television Cloth or similar Securely fasten using the four long screws .

• Perform work at a horizontal, stable location. Television Long screwsLong screws Attaching the pedestal to the television

3. Fasten with screws.

• Situate the pedestal so that the model No. label is facing to the rear. Push the pedestal assembly into the television until it stops. Spread a clean cloth or similar material over a level floor or base, and place the display unit on it face down. Rear Television Stamped mark

2. Insert the poles into the holes in the television.

4. Remove cable cover.

Push down hooks and pull the cover slightly towards yourself to disengage the claws (at 2 points). Slowly pull out in the downward direction.English

Fastening Loosening Fastening band Keep the knob pressed. To tighten. Band

5. Attach the bands.

6. Connect cables and Mains lead fixing.

Example of “connection cable routing” Insert the spigot on the two bands into the pedestal. Connect power plug to the socket of the main body. Fix the mains lend in clamper. How to fix: How to release: Fix by pushing in till a clicking sound is heard. Pull up while drawing the knob.

7. Fit the cable cover.

BAssembling & setting up the pedestal Attaching the pedestal to the television
