USER MANUAL TYWK42PV2W PANASONIC

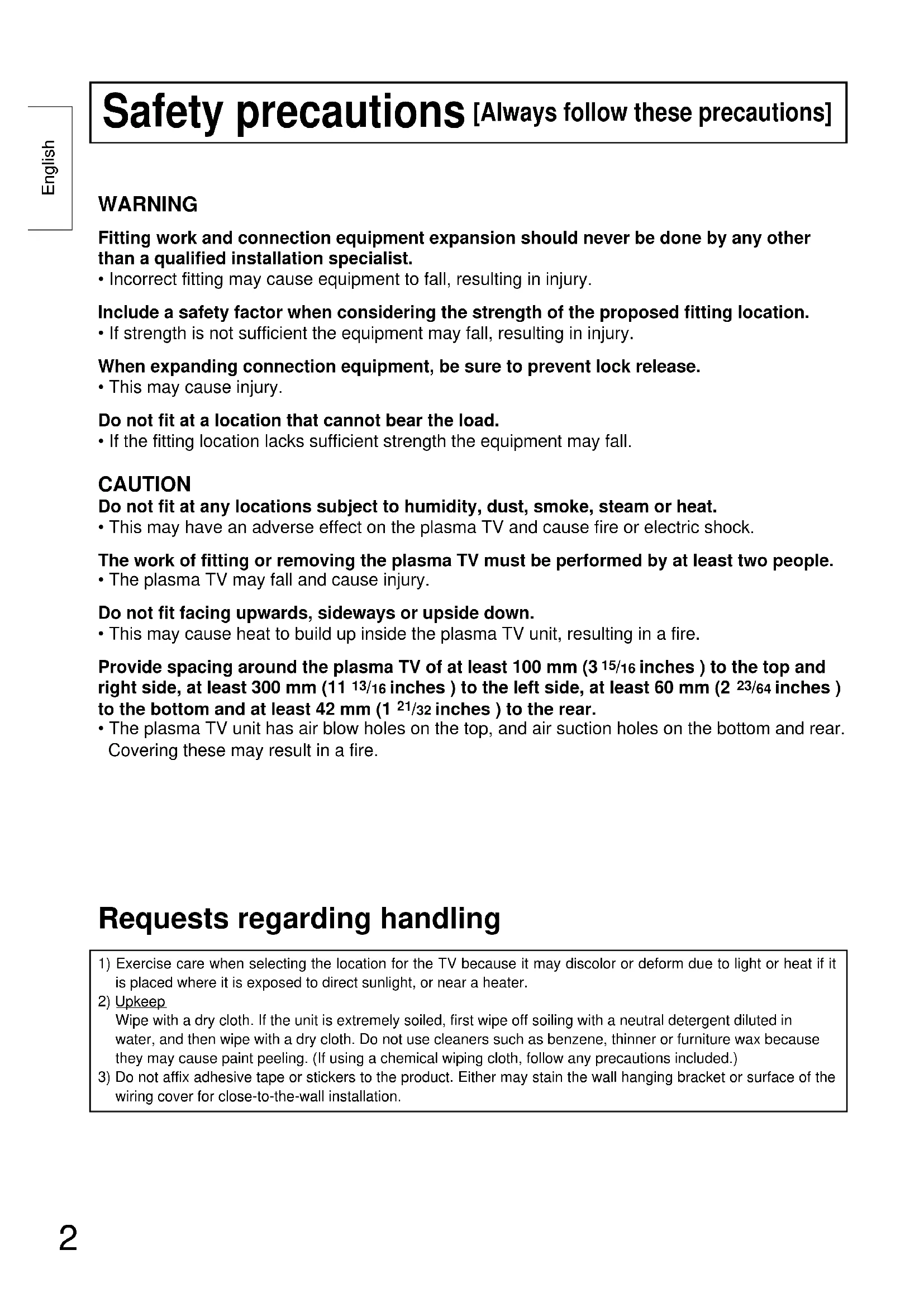

WARNING Fitting work and connection equipment expansion should never be done by any otherthan a qualified installation specialist.• Incorrect fitting may cause equipment to fall, resulting in injury.Include a safety factor when considering the strength of the proposed fitting location.• If strength is not sufficient the equipment may fall, resulting in injury.When expanding connection equipment, be sure to prevent lock release.• This may cause injury.Do not fit at a location that cannot bear the load.• If the fitting location lacks sufficient strength the equipment may fall. CAUTION Do not fit at any locations subject to humidity, dust, smoke, steam or heat.• This may have an adverse effect on the plasma TV and cause fire or electric shock.The work of fitting or removing the plasma TV must be performed by at least two people.• The plasma TV may fall and cause injury.Do not fit facing upwards, sideways or upside down.• This may cause heat to build up inside the plasma TV unit, resulting in a fire.Provide spacing around the plasma TV of at least 100 mm (3 /16 inches ) to the top andright side, at least 300 mm (11 /16 inches ) to the left side, at least 60 mm (2 /64 inches )to the bottom and at least 42 mm (1 /32 inches ) to the rear.• The plasma TV unit has air blow holes on the top, and air suction holes on the bottom and rear.Covering these may result in a fire.1) Exercise care when selecting the location for the TV because it may discolor or deform due to light or heat if itis placed where it is exposed to direct sunlight, or near a heater.2) UpkeepWipe with a dry cloth. If the unit is extremely soiled, first wipe off soiling with a neutral detergent diluted inwater, and then wipe with a dry cloth. Do not use cleaners such as benzene, thinner or furniture wax becausethey may cause paint peeling. (If using a chemical wiping cloth, follow any precautions included.)3) Do not affix adhesive tape or stickers to the product. Either may stain the wall hanging bracket or surface of thewiring cover for close-to-the-wall installation. Requests regarding handling Safety precautions [Always follow these precautions] TY-WK42PV2W03.6.33:45PMページ23 English Components Wall hanging bracket . . . x1Insulation spacers . . . x4Dished toothed washers . . . x4Allen wrench (included tool). . . x1Unit fastening screws (M5-35). . . x2Allen head countersunk screws(M8-55) . . . x4 TY-WK42PV2W Wall hanging bracket (Vertical mounting type) Precautions for wall hanging bracket fitting ♦ The wall hanging bracket is for use in attaching a plasma TV unit to a vertical wall for viewing. Do not fit to any surface other than a vertical wall. ♦ The equipment has a lock mechanism on the left side, so provide at least 300 mm (11

16 inches ) ofspace from the wall surface. ♦ To ensure correct plasma TV performance and prevent trouble, do not fit at any of the following locations.

• Near sprinklers or fire/smoke detectors• Where there is a risk of exposure to vibration or impact• Near high-voltage wires or dynamic power supplies• Locations exposed to air blown from heating equipment♦ Fit using techniques suited to the structure and materials of the fitting location. ♦ Use commercially available M6 screws suited to the wall surface material (wood, steel frame, concrete etc.) for fitting the bracket to the wall. ♦ Fit so there is no contact between the attachment screws or power cord and any metal inside the wall. ♦ For the TV power supply plug, use a power supply outlet that can be reached easily. ♦ Ensure good air flow so that the equipment ambient temperature does not exceed 40°C. Failure to do this may cause heat to build up inside the plasma TV, resulting in malfunction. TY-WK42PV2W03.6.33:45PMページ344 English Fitting procedure

1. Confirm the strength of the proposed fitting location

The weight of the wall hanging bracket is approximately 6 kg (13 Ib.). The plasma TV unit attachedto the wall hanging bracket weighs approximately 29.5 (65 Ib.) to 35 kg (77 Ib.).Check the wall strength at the 6 attachment locations by referring to the dimension drawing of thewall hanging bracket (given below), and provide adequate reinforcement if strength is not sufficient.

2. Fit wall hanging bracket to wall

• Fit so that the arrow marks on the wall hanging bracket point upward.• If the wall consists of a material such as concrete and bolts or nuts must be embedded beforehand,determine the hole positions by aligning using the actual wall hanging bracket, or calculate hole positionsbased on the dimension drawing, and then embed "M6" bolts or nuts.When embedding bolts, locate so that the bolts protrude from the wallby 10 mm

Fitting procedure (1) Fasten the screw at the top center hole first.(2) Using a level, correct any bracket inclination, and then fasten screws at the remaining 5 locations.

• There are 22 holes in the wall hanging bracket. If the wall material is wood, and adequate attachment strength cannot be ensured by fastening at the 6 points at right, use as many spare holes as necessary.However, exercise care because some wall materials may crack if screws are located too close together.The following dimensions are important. Do not fit at any location where these dimensions cannot besecured.• Use commercially available M6 screws suited to the wall surface material (wood, steel frame, concrete etc.)for fitting the bracket to the wall. Display outer profile

/64 Wall attachment holes (at 6 points)Wall hanging bracket unit Dimensions of clearance requiredaround wall hanging bracket* Provide spacing for the plasma TV of at least 100 mm (11 /16 inches ) to the top and right side, atleast 300 mm (3 /16 inches ) to the left side, at least 60 mm (2 /64 inches ) to the bottom and atleast 42 mm (1 /32 inches ) to the rear. Note Unit: mm (inches)Notes

For 37-inchFor 42-inch1070 (42

Fit the insulation spacers to the plasma TV. Place the plasma TV unit face down on a blanket or other soft cloth that is clean and free of debris, and follow the procedure below.

Fit and fasten the plasma TV unit to the wall hanging bracket Caps Flathead screwdriver (1) Using a flathead screwdriver, remove the caps (x4) from the plasma TV. (2) At the points where the caps have been removed, fit the included Allen head countersunk screws, dished toothed washers and insulation spacers (x4 each) as indicated in the diagram at left. Fasten with the included Allen wrench. Allen head countersunk screwDished toothed washerInsulation spacerAllen wrench Upper notchUpper notch Lower hole Insulation spacer (1) (3) (2) Screw securing hole for plasma TV unit fastening Screw for plasma TV unit fastening Wall hanging bracket Wall Wall Insulation spacer Plasma TV

Always fit the unit fastening screws to ensure that the plasma TV unit cannot be accidentally dislodged from the wall hanging bracket. Note

6. Removal of plasma TV unit

Removal procedure (1) Remove the screws for unit fastening (1 each on the left and right) that are fitted to the wall hanging bracket sides. (2) While lifting the bottom of the plasma TV unit, pull it towards yourself. (3) When the lower insulation spacers are freed, keep lifting upward.

• Always fit the red screws for open/close fastening to ensure that the plasma TV unit cannot be accidentally dislodged. Note Wall Wall handing bracket Fitting hole for red screw for open / close fastening Red screw for open / close fastening Insulation spacer Wall Wall (3) (2) Wall hanging bracket (1) Screw for plasma TV unit fastening (1) Screw for plasma TV unit fastening

5. Fasten wall hanging bracket

procedure (1) After wiring, remove the red screw for open/close fastening (on the left side), lift the TV unit towards yourself once, and then slowly lower it. The lock will release. (2) Securely tighten the red screws for open/close fastening (1 each on the left and right) on the sides of the wall hanging bracket. Fitting procedure (1) Locate the insulation spacers on the top of the plasma TV unit into the notch on the top of the wall hanging bracket, and slide down. (2) Lift the plasma TV unit a little, insert the bottom insulation spacers into the holes on the bottom of the wall hanging bracket, and slide the unit down. (3) Attach securely using the included unit fastening screws (1 each for left and right). TY-WK42PV2W03.6.33:45PMページ5English

Panasonic Consumer Electronics Company or Panasonic Sales Company (collectively referred to as “thewarrantor” ), will replace parts in case of defects in materials or workmanship, free of change, in the USA orPuerto Rico, for ten (10) days from the date of the original purchase. In-warranty parts in the USA can be obtained during the warranty period be contacting: Panasonic Services Company (PASC)20421 84th Avenue SouthKent, Washington 98032Tel.:1-800-833-9626Fax.:1-800-237-9080(6 am to 5 pm Monday-Friday; 6 am to 10:30 am Saturday; PST)Service in Puerto Rico can be obtained during the warranty period by calling the telephone number listed above.This warranty is extended only to the original purchaser. A purchase receipt or other proof of the originalpurchase is required for replacement parts under the warranty.This warranty only covers failures due to materials and workmanship and does not cover normal wear. Thewarranty does not cover damages which occurred in shipment or failures which result from accidents, misuse,abuse, neglect, mishandling, misapplication, faulty installation, set-up adjustments, improper maintenance,alteration, line power surge, lightning damage, modification,or commercial use, such as hotel, office,restaurant, or other business or rental use of the product, or damage that is attributable to acts of God.

LIMITS AND EXCLUSIONS

There are no express warranties except as listed above.PANASONIC SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGE RESULTINGFROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALLEXPRESS AND IMPLIED WARRANTIES. INCLUDING THE WARRANTIES OF MERCHANTABILITY, ARELIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations onhow long an implied warranty lasts, so the above exclusions or limitations may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.If a problem with this product develops during or after the warranty period, you may contact your dealer or callthe number listed above.If the problem is not handled to your satisfaction, then write to the Customer Satisfaction Center at thePanasonic Consumer Electronics Company address indicated above.Panasonic Sales Company, Division ofMatsushita Electric of Puerto Rico, Inc.AVE. 65 de Infanteria, Km 9.5San Gabriel Industrial ParkCarolina, Puerto Rico 00985 TY-WK42PV2W03.6.33:45PMページ67 English TY-WK42PV2W03.6.33:45PMページ7Deutsch
