WDM120T - Food Processor Waring Commercial - Free user manual and instructions

Product type	Food processor (professional blender)
Brand	Waring Commercial
Model	WDM120T
Motor	1 HP (approx. 745 W)
Speeds	3 (Low I, Medium II, High III) + Pulse
Cup material	Stainless steel
Power supply	120 V, 60 Hz
Plug type	Grounded (3-prong)
Timer	Yes, with manual and assisted adjustment
Pulse function	Yes, via dedicated switch
Agitators included	Standard agitator and winged agitator
Cleaning	Washing, rinsing, and sanitizing recommended after each use
Safety	Auto stop when cup removed; grounding required
Warranty	1 year parts, 3 years motor
Usage	Commercial use authorized
Weight (approx.)	Approximately 8 kg
Dimensions (approx.)	Approximately 20 × 25 × 45 cm

Frequently Asked Questions - WDM120T Waring Commercial

How do I start the appliance?

Place the cup on the upper support by inserting its edge behind the tab. The motor starts automatically when the cup pushes the switch. For use without a cup, use the PULSE function by pushing the switch forward or backward.

How do I set the timer?

Press the ▲ or ▼ button to activate the timer. For manual setting, press the button for 3 seconds, then use ▲ and ▼ to set the time. For assisted setting, start the appliance with the cup, then press the button for 3 seconds once the mix is ready to save the time.

How do I change the speed?

Use the switch located on top of the appliance: position I (low), II (medium), or III (high). For thick drinks, use high speed; for thin drinks, use low speed.

How do I clean the appliance?

Unplug the appliance. Remove the lower and upper supports. Wash, rinse, and sanitize the cup and supports. For the agitator, fill the cup with 235 ml of cleaning solution, run at high speed for 2 minutes, empty, rinse with clean water, then sanitize. Air dry.

What if the appliance does not start?

Check that the cup is correctly placed: the edge must be inserted behind the tab of the upper support and the cup must rest on the upper level. Ensure the appliance is plugged in and the outlet is functional. If the problem persists, contact an authorized service center.

Can I use ice?

Yes, but use crushed ice to avoid damaging the appliance or overloading the motor.

How do I change the agitator?

Unplug the appliance. Hold the top of the shaft and turn the agitator clockwise to loosen it. Unscrew the screw, then pull the agitator. Install the new agitator, tighten the screw, and turn counterclockwise to secure.

What is the warranty?

The warranty is one year on parts and three years on the motor, provided the appliance has been used correctly with non-abrasive foods and liquids. The warranty covers defects in material and workmanship.

Can I use a plug adapter?

A temporary adapter may be used if the tab is attached to the housing with a metal screw to ensure grounding. Caution: this adapter is prohibited in Canada. If unsure, consult an electrician.

How do I sanitize the appliance?

After cleaning, soak the removable parts in a sanitizing solution (e.g., 5 ml bleach per liter of cold water) for 2 minutes. Air dry without rinsing. For the motor base, use a sponge dampened with sanitizer.

USER MANUAL WDM120T Waring Commercial

WDM120/WDM240/WDM360 WDM120T/WDM240T/WDM360T (not shown)

For your safety and continued enjoyment of this product, always read the instruction book carefully before using.

When using electrical appliances, basic safety precautions should always be taken including the following:

1. READ ALL INSTRUCTIONS.
2. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.
4. Children should be supervised to ensure that they do not play with the appliance.
5. To protect against electrical hazards, do not put the Waring® Commercial Drink Mixer in water or other liquids.
6. Avoid contact with moving parts.
7. Do not operate the Waring® Commercial Drink Mixer or any other electrical equipment with a damaged cord or plug, or after the unit malfunctions or is dropped or damaged in any manner. Return it to the nearest authorized service facility for examination, repair, or adjustment.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Put this instruction manual in a safe place. Do not discard.

SAVE THESE INSTRUCTIONS APPROVED FOR COMMERCIAL USE

GROUNDING INSTRUCTIONS

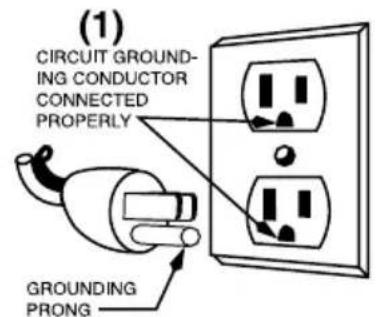

For your protection, the Waring® Commercial Drink Mixer is equipped with a 3-conductor cord set.

120-volt units are supplied with a molded 3-prong grounding-type plug, and should be used in combination with a properly connected grounding-type outlet as shown in Figure 1.

If a grounding type outlet is not available, an adapter, shown in Figure 2, may be obtained to enable a 2-slot wall outlet to be used with a 3-prong plug.

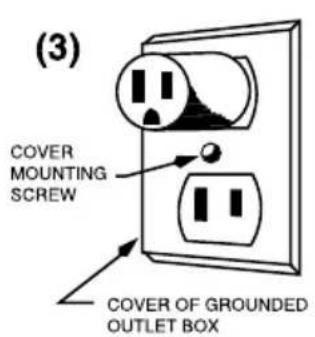

As shown in Figure 3, the adapter must be grounded by attaching its grounding lug under the screw of the outlet cover plate.

CAUTION: Before using an adapter, it must be determined that the outlet cover plate screw is properly grounded. If in doubt, consult a licensed electrician.

Never use an adapter unless you are sure it is properly grounded.

NOTE: Use of an adapter is not permitted in Canada.

HOW TO USE YOUR WARING® COMMERCIAL DRINK MIXER

Each spindle on your Waring® Commercial Drink Mixer has its own independent 1 peak HP motor. Your new Waring® Commercial Drink Mixer has an automatic ON/OFF switch (actuator) located behind the front tab of each upper cup support that starts the motor when the mixing cup is placed in the proper position on the lower cup support. The cup support has two steps. To activate the automatic ON/OFF switch, the bottom of the mixing cup must be securely resting on the upper step of the cup support and the top rim of the mixing cup must go behind the front tab of the upper cup support.

The motor will continue to operate while the mixing cup remains on the mixer, activating the actuator.

Removal of the mixing cup will shut off the motor.

The 3-speed switch on top of the Waring® Commercial Drink Mixer regulates the operating speed. Choose either LO (I), MED (II), or HI (III) speed. For mixing heavy drinks, use HI (III) speed only; for light drinks with more liquid, use LO (I) speed.

The drink mixer can be operated without engaging the ON/OFF cup actuator by using the PULSE toggle switch. The PULSE switch will operate at whatever speed the 3-speed switch is set to. The PULSE switch will operate only while pressed forward or backward. Keep a firm grip on the cup while using PULSE.

Your Waring® Commercial Drink Mixer is supplied with 2 agitators, 1 standard and 1 "butterfly" (with the movable flaps), per spindle. To switch agitators, simply hold the spindle shaft with one hand and turn the agitator in a clockwise direction. This will loosen the screw, and you can unscrew to remove. Insert replacement agitator and screw bottom screw back in. Tighten by turning the agitator in a counterclockwise direction. Use only a standard metal mixing cup with the standard agitator.

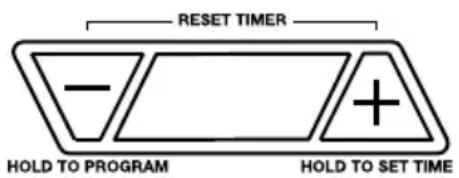

TIMER UNIT INSTRUCTIONS

To operate your drink mixer with the timer, you must follow the following instructions:

1. When plugging in the unit, the timer(s) will automatically read R0:00.
2. NOTE: To turn the timer off at any point, press the arrow three times in rapid fashion. To turn the unit back on, tap the or arrow once and the unit will display R0:00, or any previously set time.
3. You can reset your time at any point by pressing and holding the and arrows simultaneously for 3 seconds.
4. There are two ways to set the timer for your commercial drink mixer:

Setting the timer manually:

1) Press and hold the arrow for 3 seconds and the unit will enter into time-setting mode S0:00.
2) Once the timer is on and you have activated setting mode, you can set the timer using the and arrows. (HINT: holding the arrow buttons down will allow you to count up in 10-second increments.) Unit will display S (time selected).
3) When you've reached your desired time, the timer will automatically set after 3 seconds.

4) The timer will begin to count down when unit is actuated by the mixing cup. NOTE: Timer will not count down when using the PULSE function.
5) Once timer is set, hold the arrow for 3 seconds to enter back into time-setting mode and you can adjust the time starting from previous set time.
6) Time can be reset at any time by pressing both and arrows simultaneously for 3 seconds. Timer will read R0:00.

Setting the timer using assisted mode:

1) To set the timer using assisted mode, your timer must be on. If the timer is not on, tap the or arrow once to activate.
2) When the timer is on, reading R0:00, mount the mixing cup onto the drink mixer and the unit will begin to count up.
3) Once your mixture has reached its desired consistency, remove the mixing cup, press and hold the arrow for 3 seconds. This will become your set time. (NOTE: If cup is placed back on unit to re-actuate before the 10-second setting time has elapsed, the counter will continue to count up.)
4) The timer will begin to count down from the set time when unit is actuated by the mixing cup. NOTE: Timer will not count down when using the PULSE function.
5) The set time can be changed manually, if needed, by holding for 3 seconds and entering into the time-setting mode. This will allow you to adjust the time starting from the previous set time.
6) Time can be reset at any time by pressing both and simultaneously for 3 seconds. Timer will read R0:00.

1. When the set time elapses, the motor will automatically shut off, the timer will flash 0:00, and then automatically return to set time.
2. If mixing cup is removed before the set time elapses, the cup must be returned within 10 seconds to continue mixing for the time remaining. If the cup is not replaced within 10 seconds, the timer will return to the previously set time.

The drink mixer can be operated without engaging the ON/OFF cup actuator by using the PULSE toggle switch.

The PULSE switch will operate at whatever speed the 3-speed switch is set. The PULSE switch will operate only while pressed forward or backwards. Keep a firm grip on the mixing cup while using PULSE

CLEANING & MAINTENANCE INSTRUCTIONS

1. Rinse cup thoroughly under running water. Add 8 ounces of clean water to the cup. Place cup in the normal operating position on the mixer and run on HI (III) speed for two (2) minutes. Empty cup.

2. UNPLUG MIXER POWER CORD FROM ELECTRICAL OUTLET.

3. To remove the bottom cup supports (C), simply push each support up then pull out towards you.

4. To remove the upper cup supports (D), firmly hold the notches on both sides of the support, then pull directly out from the base.

5. Wash, rinse and sanitize the upper and bottom supports and cup. Sanitize these parts by immersing in sanitizing solution for two (2) minutes. Shake excess moisture off and allow all parts to air-dry.

6. Working from the top down, wash, rinse, and sanitize the portion of the mixer housing situated directly over the mixing cup and the portion of the spindle above the agitator using absorbent wiping cloths moistened with cleaning solution, rinse water and sanitizing solution.

7. ReassembleON/OFF switch actuator and mixing cup supports to mixer housing by reversing steps 3 and 4.

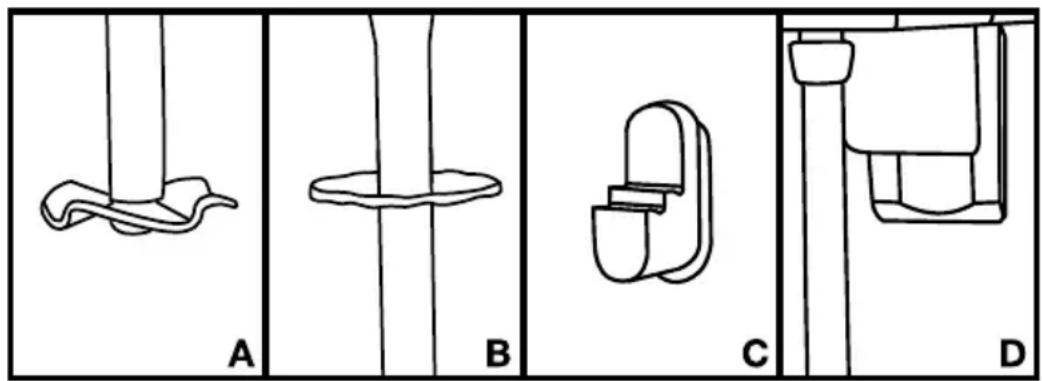

8. For each spindle, wash, rinse and sanitize the bottom of the

spindle and the agitator (illustrations A and B) as follows:

Plug the Waring Commercial Drink Mixer cord into electrical outlet.

Add 8 ounces of washing solution to mixing cup and place in normal operating position on mixer.

Run on HI (III) speed for a minimum of two (2) minutes.

Empty cup and repeat two-minute run with 8 ounces of water.

Empty cup and repeat two-minute run with 8 ounces of sanitizing solution.

Empty cup. Run motor for a few seconds with empty cup in normal operating position to spin off any excess moisture. Do not rinse cup, spindle or agitator after sanitizing is completed. Allow all parts to air-dry.

Wash, rinse, and sanitize as outlined above prior to initial use, and whenever mixer will not be used again within a period of one hour to avoid bacteria buildup.

Surfaces of the mixer housing that are outside of the food contact areas may be cleaned as required, using wiping cloths moistened with cleaning solution, rinse water and sanitizing solution.

UNPLUG POWER CORD FROM ELECTRICAL OUTLET BEFORE CLEANING HOUSING. Prevent liquid from running into housing by wringing all excess moisture from wiping cloths before using them.

Washing solutions based on non-sudsing detergents and chlorine-based sanitizing solutions having a minimum chlorine concentration of 100 PPM are recommended.

The following washing, rinsing, and sanitizing solutions, or their equivalents, may be used:

SOLUTION PRODUCT DILUTION IN WATER TEMPERATURE

Washing: Calgon® Calgolac 1 Tablespoon/Gallon Hot (115°F)

Rinsing: Plain Water Warm (95^)

Sanitizing: Clorox Institutional 1 Tablespoon/Gallon Cold (50^ - 70^) Bleach

HELPFUL HINTS

1. Always unplug the Waring® Commercial Drink Mixer before disassembling or assembling parts.
2. Be sure to keep all the instructions, parts lists, and service information in a safe and handy place.
3. If using ice, only use crushed ice or small cubes in the Waring® Commercial Drink Mixer.
4. Clean the Waring® Commercial Drink Mixer thoroughly before initial use.
5. Keep mixing cup clean. Wash, rinse and sanitize thoroughly after use.
6. Be sure that all detachable parts are fastened tightly before operating the Waring® Commercial Drink Mixer.
7. Operate the Waring® Commercial Drink Mixer only when it is fully assembled.
8. To avoid splashing drinks of thin consistency, operate on LO speed.

Any other servicing should be performed by an authorized service representative.

LIMITED ONE YEAR WARRANTY

Waring warrants every new Waring® Commercial Drink Mixer to be free from defects in material and workmanship for a period of one year from the date of purchase when used with foodstuffs, nonabrasive liquids (other than detergents) and nonabrasive semiliquids, provided it has not been subject to loads in excess of the indicated rating. In addition, the motor in this appliance has a full three-year warranty.

Under this warranty, the Waring Commercial Division will repair or replace any part that, upon our examination, is defective in materials or workmanship, provided the product is delivered prepaid to the Waring Service Center at:

314 Ella T. Grasso Ave. Torrington, CT 06790, or any Factory Approved Service Center.

This warranty does not: a) apply to any product that has become worn, defective, damaged or broken due to use or due to repairs or servicing by other than the Waring Service Center or a Factory

Approved Service Center, or due to abuse, misuse, overloading or tampering; or b) cover incidental or consequential damages of any kind.

The one-year warranty is applicable only to appliances used in the United States or Canada; this supersedes all other express product warranty or warranty statements. For Waring products sold outside of the U.S. and Canada, the warranty is the responsibility of the local importer or distributor. This warranty may vary according to local regulations.

Warning: This warranty is void if appliance is used on Direct Current (DC).

SERVICE

Should service on this product in USA or Canada be required at any time, call or write to:

Waring Service Center 314 Ella T. Grasso Ave. Torrington, CT 06790

Tel. [phone] • FAX [phone]

or Nearest Authorized Service Center

Replacement parts for Waring Out of Warranty repairs are obtainable at the above address.

Note: If your application involves the processing of biologically active materials, any items returned for service must be sterilized before being shipped. Such items must be clearly identified as having been sterilized, both by a tag on the item itself and by a statement in the accompanying correspondence. Waring will not accept delivery of any returns unless they are so identified.
