Rexx GXT 144 - Mouse TRUST - Free user manual and instructions

Product type	Gaming mouse
Brand	Trust
Model	Rexx GXT 144
Connectivity	USB Wired
Sensor	High-precision optical
Resolution (DPI)	200 to 10,000 DPI (configurable in steps)
Number of buttons	6 programmable buttons
Backlighting	Customizable RGB with effects (steady, breathing, blinking)
Configuration software	Trust GXT 144 Gaming Mouse (downloadable)
Compatible operating systems	Windows
Power supply	Via USB port
Cable length	Approximately 1.8 m (estimate)
Weight	Approximately 120 g (estimate)
Box contents	Mouse, quick start guide
Additional features	Macro, profiles, scroll speed settings, double-click, report rate
Maintenance and cleaning	Clean with a soft, dry cloth. Avoid liquids.
Warranty	2 years (Trust standard)
Repairability	Not user-serviceable. Contact support if issues occur.

Frequently Asked Questions - Rexx GXT 144 TRUST

How to install the Trust GXT 144 mouse?

Connect the mouse to a USB port on your computer. Go to www.trust.com/22991/driver, select your operating system and download the driver. Run the downloaded file and follow the installation wizard. Use the 'GXT 144 Gaming Mouse.exe' shortcut to launch the configuration software.

How to configure the mouse buttons?

Open the GXT 144 Gaming Mouse software. In the Main tab, click the button you want to reassign. Choose the desired function from the list, then click Apply to update the mouse. Make sure at least one button is set to 'Left Button'.

How to adjust sensitivity (DPI)?

In the software, select the Advanced tab. Check up to 5 boxes to enable different DPI levels. For each level, choose a value between 200 and 10,000 DPI. Click Apply to save.

How to customize the mouse colors?

In the software, click on the color you want to change. Select a custom color from the palette, then click OK. Confirm by clicking Apply.

How to create and assign a macro?

To create a macro, go to the Macro tab, click New macro, give it a name, then click Start Record to record your key sequence (max 60 actions). Stop recording and save. To assign the macro to a button, go to the Main tab, select the button, choose Macro, then select your macro and click OK then Apply.

What lighting effects are available?

The lighting effects are: Steady with brightness adjustment, Breathe with speed adjustment, Blink with frequency and duration adjustment. You can also set a fixed lighting time. In the effects tab, choose the effect, adjust the parameters, then click Apply.

How to save or load a profile?

In the software, choose the profile you want to save or load. Click the Export icon to save the current configuration, or Import to load a previously saved configuration. Give your configuration a name, then click Save/Open. Finally, click Apply.

How to restore factory settings?

In the software, select the profile to reset. Click the Restore button, then confirm by clicking OK. All settings will return to default values.

What to do if the software does not start?

Make sure the GXT 144 mouse is properly connected to a working USB port. Try restarting your computer and relaunch the software. If the problem persists, check the help page at www.trust.com/22991/faq or contact technical support.

How to clean the mouse?

Unplug the mouse. Use a soft, dry cloth to clean the exterior surfaces. Avoid any liquids or abrasive products that could damage the device. For hard-to-reach areas, a dry cotton swab can be used.

USER MANUAL Rexx GXT 144 TRUST

GXT 144 Gaming Mouse - USER'S MANUAL

Trust

Index

Language	Page
english	2
Deutsch	1
français	0
italiano	4
spanol	8
Jederlands	2
polski	6
žyszkyn	0

GXT 144 Gaming Mouse - USER'S MANUAL

Trust

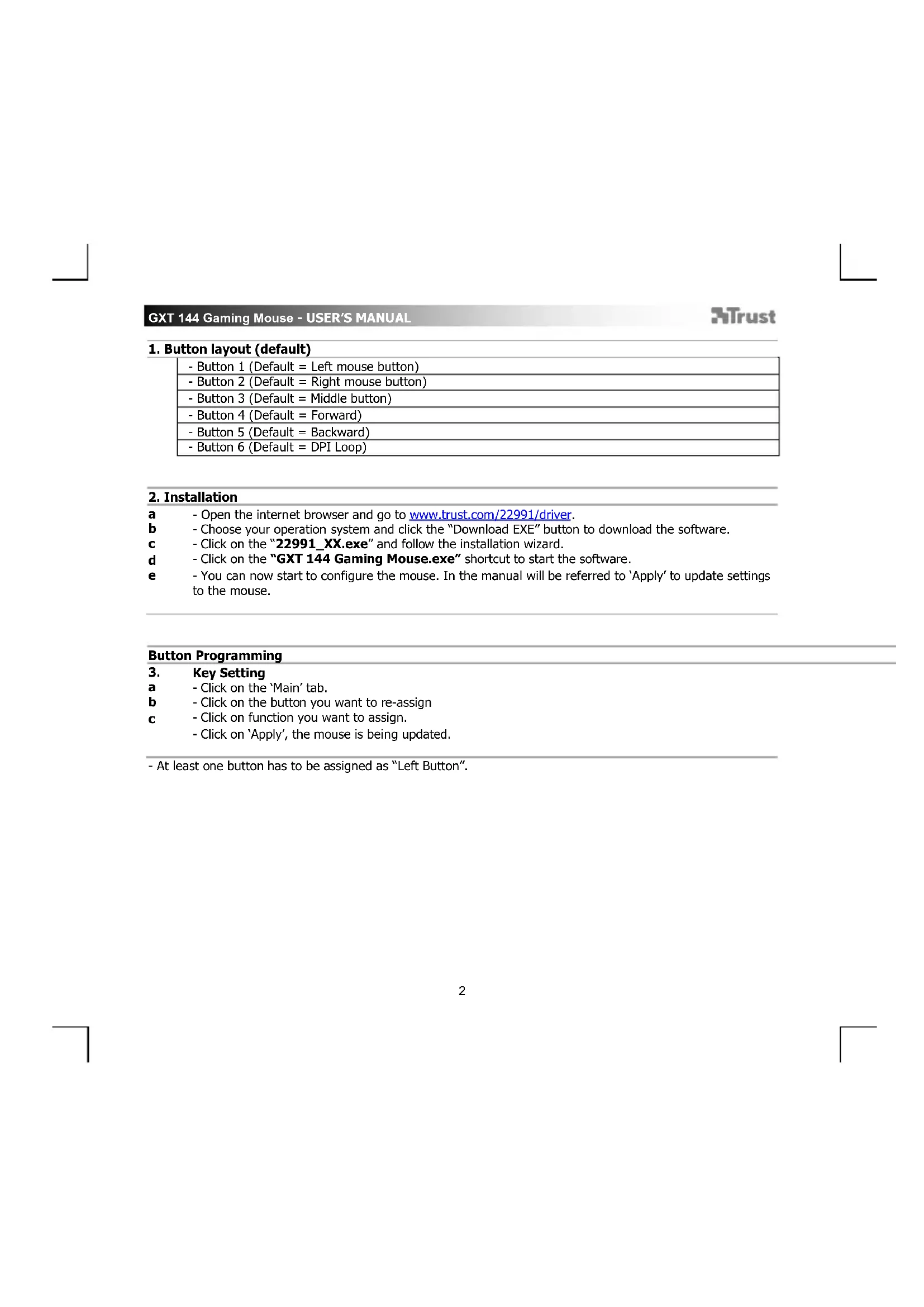

1. Button layout (default)

- Button 1 (Default = Left mouse button)

- Button 2 (Default = Right mouse button)

- Button 3 (Default = Middle button)

- Button 4 (Default = Forward)

- Button 5 (Default = Backward)

- Button 6 (Default = DPI Loop)

2. Installation

a - Open the internet browser and go to www.trust.com/22991/driver.
b - Choose your operation system and click the "Download EXE" button to download the software.
c - Click on the "22991_XX.exe" and follow the installation wizard.
d - Click on the "GXT 144 Gaming Mouse.exe" shortcut to start the software.
- You can now start to configure the mouse. In the manual will be referred to 'Apply' to update settings to the mouse.

Button Programming

1. Key Setting

a - Click on the 'Main' tab.
b - Click on the button you want to re-assign
- Click on function you want to assign.
- Click on 'Apply', the mouse is being updated.

• At least one button has to be assigned as "Left Button".

GXT 144 Gaming Mouse - USER'S MANUAL

Trust

4. Mouse settings & report rate

a - Change the mouse sensitivity
b - Change the scrolling speed
c - Change the Double-click speed
d - Change the Report Rate

• Click on 'Apply', the mouse is being updated.

5. DPI Setting

a - Click on the 'Advanced' tab
b - Assign up to 5 DPI variables (Check/uncheck boxes).
c - Choose a DPI speed for each DPI setting (min 200 / max 10.000 DPI).

• Click on 'Apply', the mouse is being updated.

6.Custom color

a - Click on the color you want to change
b - Click the desired custom color and click on OK
- Click on 'Apply', the mouse is being updated.

7. Light effects

a - Click on 'Steady' and change the brightness
b -Click on Breathe' and change the speed
c - Click on 'Blink' and change the frequency ^+ times (when switching DPI the mouse will blink)
d - Change the lighting effect and change the speed
- Click on 'Steady' and change the 'Time' (when pressing 'Apply' the mouse will light up for the selected time.
f - Change the effect and change the speed
- Click on 'Apply', the mouse is being updated.

GXT 144 Gaming Mouse - USER'S MANUAL

Trust

Macro Settings

1. Create a Macro (Store a sequence of keys in the software)
   a - Click on the 'Macro' tab
   b - Click on the 'New macro' button
   c - Enter Macro Name and click 'OK'
   d - Choose to record the button delay and choose how the macro is executed
   e - Click on 'Start record' to start recording the macro.
   f - Now enter your preferred macro sequence (max. 60 actions)
   g - Click on 'Stop Recording' to stop recording the macro
2. Click on 'Insert event' to insert a mouse action

3. Click on 'Save' to save the macro.

4. The next step shows how to assign your recorded macro.

Assign a Macro

1. Assign a Macro (Store a sequence of keys in the software)
   a - Click on the 'Main' tab
   b - Click on the button you want to assign a macro to

2. Click on the function 'Macro'
   d -Select your preferred macro.
   e -Click on OK'.

3. Click on 'Apply', the mouse is being updated.

GXT 144 Gaming Mouse - USER'S MANUAL

Trust

10. Save or Load Profiles

a - Choose the profile you want to save/load
- Click on the 'Import' icon to load a setup, click on the 'Export' icon to save a setup
c - Enter the desired name for your setup, or search the previously saved setup.
d - Click on Save/Open' to save/load your setup
- Click on 'Apply', the mouse is being updated

11. Factory reset

a - Choose the profile you want to reset
b - Click on the 'Restore' button
c - Click on the 'OK' button to restore all settings to factory default

Trouble shooting

Problem

Solution

The software is not starting.

• Make sure the GXT 144 mouse is connected and try to start the software again.

The mouse is not being detected.

• Try another USB port, restart your PC and try again.

If your problem is not solved, please contact the help desk at www.trust.com/22991/faq.

Mblb He 06hApyKnBaTcra.

Ecn HncnpaBHOCTb yctpaHNTb He ydaIOCb, 6paTneTecb B cnyk6y TexHmuecko nOndepKKn:

wwwtrust.com/22991/faq.
