Coco Curler CT5015 - Curling iron Carmen - Free user manual and instructions

Brand	Carmen
Model	Coco Curler CT5015
Product type	Professional curling iron
Power supply	Mains (230 V ~ 50 Hz)
Adjustable temperature	Yes, with + and - buttons
Heat levels	Low, Medium, High
Maximum temperature	High (not specified)
Barrel material	Metal
Rapid heating	Yes
Recommended use	Clean, dry natural hair
Suitable hair types	Fine, normal, thick
Cord length (estimated)	Approximately 1.8 m
Auto shut-off	Not mentioned
Overheat protection	Not mentioned
Indicator light	Not mentioned
Maintenance	Clean after cooling with a damp cloth, no abrasive products
Safety	Do not use near water, do not immerse, unplug after use
Warranty	2 years (excluding accessories and normal wear)
Included accessories	None
Weight (estimated)	Approximately 400 g

Frequently Asked Questions - Coco Curler CT5015 Carmen

How to use the Carmen Coco Curler CT5015 curling iron?

Plug in the device and turn it on. Set the desired temperature with the + and - buttons. Wait for the iron to heat up. Divide your hair into 5-6 cm sections, wrap each section around the barrel starting from the roots, hold for 2-3 seconds, then release. Allow to cool before brushing.

What temperatures are available?

The device offers three levels: Low for fine hair, Medium for normal hair, and High for thick or hard-to-style hair.

Can I use this curling iron on wet hair?

No, the iron should be used on clean, dry hair. Moisture can damage the hair and create a risk of electric shock.

How to clean the device?

Unplug the device and let it cool completely. Clean the barrel with a damp cloth (no abrasive products or solvents). Never immerse the device in water.

Can I use this curling iron on synthetic hair or a wig?

No, this iron is designed only for natural hair. Synthetic fibers could melt under heat.

What to do if the cord is damaged?

If the cord is damaged, the device must be discarded (the cord is not replaceable). Do not use the device and contact the supplier.

How long does it take for the device to cool down?

The device reaches very high temperatures and takes time to cool down. Place it on a heat-resistant surface, out of reach of children, and do not cover it.

Is there a warranty?

Yes, the device is guaranteed for 2 years from the date of purchase, under normal use conditions. Keep your proof of purchase.

How to store the curling iron?

Let it cool completely, then store it in a dry place at a temperature between 15°C and 25°C. Do not expose to heat or sunlight.

What to do in case of a burn?

Avoid any contact of the hot iron with the skin. In case of a burn, cool the area immediately with cold water and consult a doctor if necessary.

USER MANUAL Coco Curler CT5015 Carmen

Productname: Carmen Coco Curler

EAN giftbox: 5011832059857

Specifications:

• Ceramic coconut chopstick curler for crazy curly hair
  A thicker barrel for loose curls (10x15 mm)
• Protectivecooltip
  LCD display with 5 temperature settings 120^ - 200^
• Auto shut off after 1 hour
  Fastheat-uptime
• Heat resistant glove and soft pouch included
  2.5 m swivel cord
  2yearwarranty

This device conforms to the

Electromagnetic Compatibility Directive

2014/30/EU and the Low Voltage

Directive 2014/35/EU.

> DESCRIPTION

DELIVERY SET

Unit body -1 pc.

Instruction manual - 1 pc.

Heat resistant glove - 1 pc.

Pouch - 1 pc.

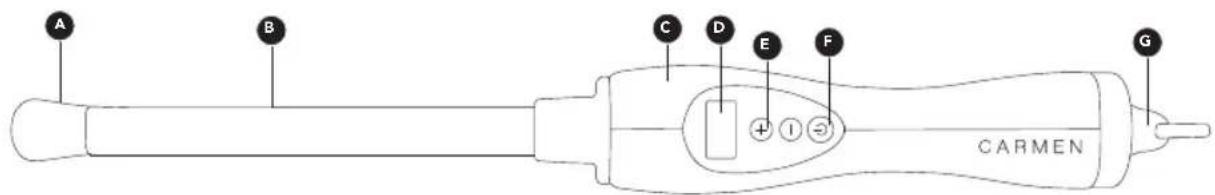

A. Protecting cool tip
B. Barrel
C. Handle
D. LCD screen
E. Temperature control switch
F. On/off button
G. Swivel cord

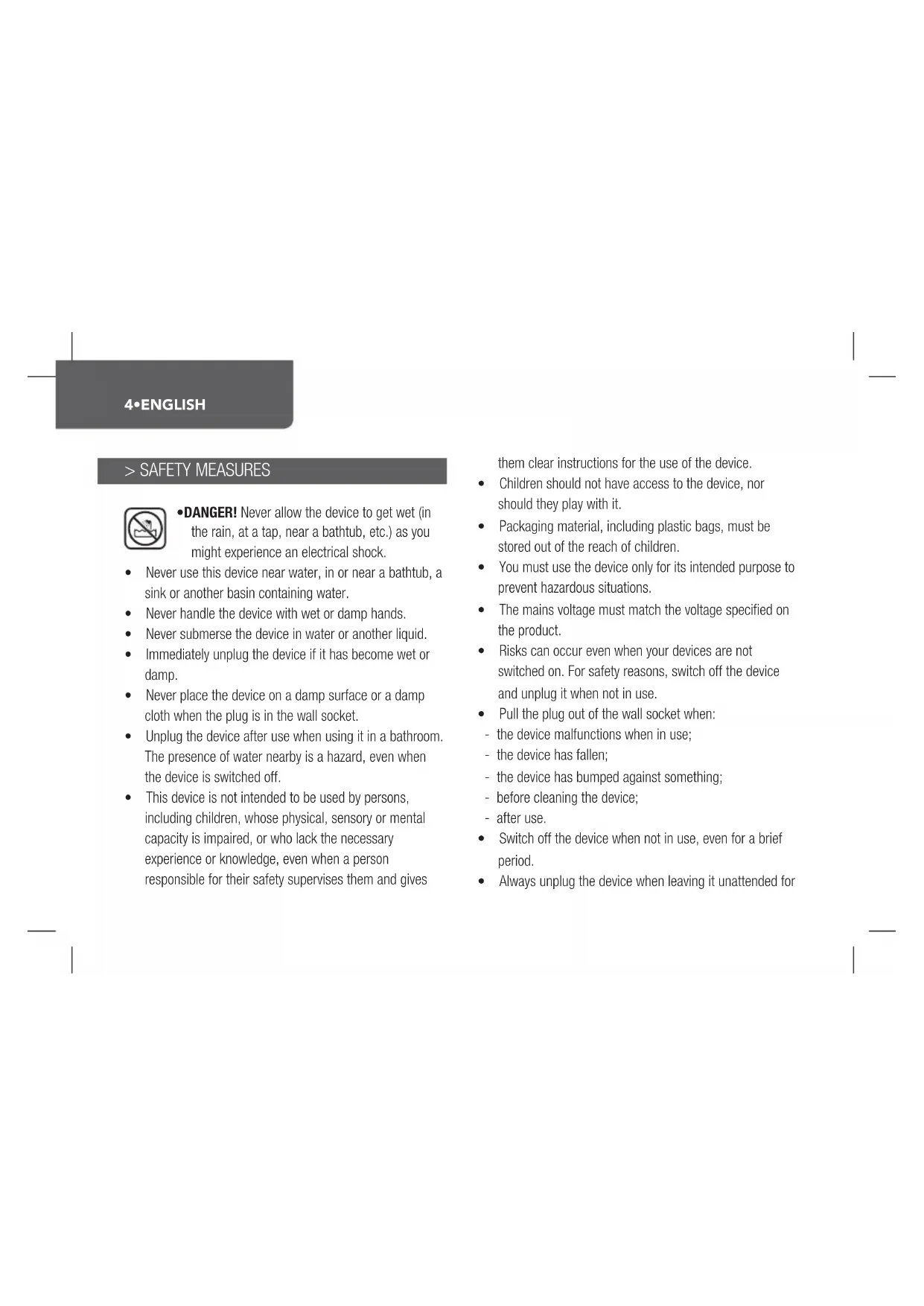

> SAFETY MEASURES

DANGER! Never allow the device to get wet (in the rain, at a tap, near a bathtub, etc.) as you might experience an electrical shock.

• Never use this device near water, in or near a bathtub, a sink or another basin containing water.
• Never handle the device with wet or damp hands.
• Never submerge the device in water or another liquid.
• Immediately unplug the device if it has become wet or damp.
• Never place the device on a damp surface or a damp cloth when the plug is in the wall socket.
• Unplug the device after use when using it in a bathroom. The presence of water nearby is a hazard, even when the device is switched off.
• This device is not intended to be used by persons, including children, whose physical, sensory or mental capacity is impaired, or who lack the necessary experience or knowledge, even when a person responsible for their safety supervises them and gives

them clear instructions for the use of the device.

Children should not have access to the device, nor should they play with it.
- Packaging material, including plastic bags, must be stored out of the reach of children.
- You must use the device only for its intended purpose to prevent hazardous situations.
- The mains voltage must match the voltage specified on the product.
- Risks can occur even when your devices are not switched on. For safety reasons, switch off the device and unplug it when not in use.
Pull the plug out of the wall socket when:

• the device malfunctions when in use;
• the device has fallen;
• the device has bumped against something;
• before cleaning the device;

• after use.

• Switch off the device when not in use, even for a brief period.

Always unplug the device when leaving it unattended for

a longer period.

• Never leave the device unattended.
• Never use the device when it is damaged. Regularly check the device and the lead for damage. The lead cannot be replaced. The device will have to be discarded if the lead is damaged. Repairs must be performed exclusively by experts. Repairs that are inexpertly performed can be very hazardous for the user.
  If the device is damaged, contact the supplier to find out if you can still use it.
• Grab the lead by the plug when unplugging it. Never pull on the lead itself.

• Do not insert the plug in the wall socket when:

• the lead is damaged;

• the device is visibly damaged;
• the device has fallen.
• Do not let the lead touch the hot parts of the device.
  Always make sure that the lead is unencumbered when you move the device around.
• Avoid tripping over the lead.

• Never cover the lead with a rug, mat, blanket etc.

• Never wrap the lead around the device.

• Check the cord of the device regularly for cable breakage to prevent short circuits.
• Let the device cool before storing or cleaning it.
• Store the device in a safe place to prevent accidental erroneous use.
  The device must be stored in a dry place at temperatures between 15^ and 25^ .
• Do not expose the device to heat (radiator, oven, etc.), direct sunlight or humidity.
• Keep the device clean and do not use abrasives or products containing solvents.
• Connect the device only to an electrical system that meets the prevailing regulations and that is equipped with a delay fuse. Make sure that the maximum current of all devices connected to this fuse does not exceed its maximum current (16A).
  We recommend equipping the group to which the bathroom is connected with a residual current operated circuit breaker of maximum 16A to increase safety. Ask your electrician for advice.

> SPECIFIC SAFETY INSTRUCTIONS

• Never cover or recover the barrel.
• The barrel and other hot elements of the device can cause burns.
• Using a hairspray can cause burns when the spray comes in contact with the barrel.
• Never hold the device by or near the barrel when the device is switched on. The barrel can cause burns. Avoid all contact with your skin and eyes.

> DIRECTION FOR USE

IMPORTANT: THIS IS A HIGH TEMPERATURE PRODUCT

1. Plug the unit and turn it on. Wait to allow the unit to reach its proper working temperature. Depending on what your hair needs, select the appropriate temperature using the "+" and "-" temperature control buttons. Note that the lower temperature is for the easy styled hair. The middle temperature is for normal hair and the high temperature is for hard styled hair.

2. Hair should be clean and dry when using the styler. While styling, section the hair into strands of 5 to 6cm wide in one row. Keep the hair strand smooth by brushing or combing through the section (from scalp to hair ends) while holding the ends taut with the other hand.

3. Take one strand at a time, place the hair over the barrel and wrap around the barrel downward. Then follow up the job by placing the hair around the barrel coming to safety tip side and after the job is finished, keep the end of hair in your hand for 2-3 seconds hair wrapped around the barrel. Easy styled hair need shorter time while fine or unbleached hair will need more time. Now gently withdraw the barrels from the center of the curl. Allow the burl to cool and try not to disturb curls while proceeding in the same manner around the whole head. Be careful the hot barrels not to touch the scalp.
4. After styling the first section, you should care not to slide the barrels along the hair and you must move (Jump) from one section to another section.
5. When you have finished and all the curls have cooled thoroughly, gently brush and style your hair into the style desired.

> HINTS AND TIPS

Hair should be completely dry to achieve best result.
- Keep the strands of hair smooth whilst you work to avoid ridges half way down.
Use the LOW Setting for fine hair and everyday curling.
Use the HIGH Setting for thick and difficult hair.
- The styler is excellent for natural hairs. Do not use on artificial hair pieces or wigs as these may melt in the heat generated from hot metallic barrel.
- Do not use on hair which has been treated with chemicals (lacquer, lotion,...) as this can stick to the barrel, reducing the working efficiency so please clean the hair thoroughly before use.
These professional styler reaches very high temperatures. Do not leave on your hair for more than a few seconds as this may damage your hair.
Always avoid barrel coming into contact with hands or skin.
- Unplug the styler from the supply socket and allow to cool fully before attempting any cleaning. This appliance

reaches very high temperatures when switched on and will take time to cool down fully. Whilst cooling place on a heat resistant surface, away from children and in a safe place. Never cover.

It's recommended to use hair serum to protect your heart from heat.
- For faster and better results, it is recommended to use hair mousse while processing the job.
- Totally after working for some while, you will take the experience of handling unit to get your required styles.
- Using fixture sprays or shine sprays can help you to make attractive and various styles.

> ENVIRONMENT AND WASTE

In accordance with the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), this device is marked with the symbol of a crossed-out wheelie bin indicating that this product cannot be disposed of as household waste. The device must be brought to the appropriate waste collection point for treatment, removal,

8·ENGLISH

and recycling of WEEE (information can be obtained at the town hall of your domicile) or brought back to a dealer based on the principle of "1 for 1 free of charge" (the dealer's take back does not create a right to a payment or rebate).

The consumer or user contributes to the preservation of the natural resources and to the protection of human health by respecting the environment in this manner.

> WARRANTY

This CARMEN device comes with a two (2)-year warranty to be counted from the date of purchase under normal conditions of use. This warranty does not cover damage directly or indirectly caused by misuse, neglect, unauthorised use, accidents, unauthorised repairs or modifications, as well as a lack of maintenance. Please save your receipt/invoice as proof of your purchase.

This device's accessories are not covered by a warranty. Exclusions from the warranty

• Modifications, dismantling or integration with another device or an assembly making the device fixed or semi-fixed,
  Normal wear and tear of the parts,
• Degradation due to improper use,
• Failure to comply with the user manual or with the maintenance and safety instructions,
• Damage resulting from poor maintenance or a lack of maintenance,
• Damage caused by external factors (lightening...),
• Abnormal use of the device,
• Improper storage,
  Shocks,
• Deformation of the tank,
  The device having been submerged,
  Expired warranty.

>VEILIGHEIDSMAATREGELEN

BELANGRIJK: DIT APPARAAT WORDT ZEER HEET
