3in1 Pro Curler CT6350 - Curling iron Carmen - Free user manual and instructions

Product type	3-in-1 Curling Iron
Brand	Carmen
Model	3in1 Pro Curler CT6350
Number of barrels	3 interchangeable barrels
Barrel diameters	19 mm, 25 mm, 32 mm
Coating	Ultra-smooth ceramic and tourmaline
Temperature range	130°C to 200°C (8 settings)
Display	LCD display
Timer	Integrated, with start button
Automatic shut-off	Yes, after 30 minutes
Lock function	Yes, lockable temperature
Protective tip	Cool tip
Included accessories	Heat-resistant glove and soft pouch
Power supply	100-240 V~ 50-60 Hz
Power	39 W (19 mm barrel), 50 W (25 mm barrel), 55 W (32 mm barrel)
Cord length	1.8 m, swivel
Warranty	2 years
Cleaning	Allow to cool, clean with a soft cloth, no abrasive products
Repairability	Non-replaceable cord; if damaged, device must be discarded

Frequently Asked Questions - 3in1 Pro Curler CT6350 Carmen

What are the available barrel diameters?

The Carmen 3in1 Pro Curler CT6350 comes with three interchangeable barrels of 19 mm, 25 mm, and 32 mm diameters, allowing you to create curls of different sizes.

How to change the barrel?

To change the barrel, make sure the device is turned off and cooled down. Align the flat edges of the barrel with the handle and insert it until it clicks into place magnetically. Never remove a hot barrel.

What temperature should I choose for my hair?

Start with the lowest temperature (130°C) and increase gradually. Fine hair requires a lower temperature, while thick or difficult hair can handle up to 200°C. Use the + and - buttons to adjust.

How to use the integrated timer?

Press the timer start button (E) to activate the function. The timer helps you control the heating time on each section to avoid overheating your hair.

Does the device shut off automatically?

Yes, the curling iron has an automatic shut-off after 30 minutes of inactivity for safety.

Can I use the iron on wet hair?

No, hair must be completely dry before use. Using the iron on wet hair can damage it and pose a burn risk.

How to clean the device?

Let the device cool completely before cleaning. Wipe it with a soft, dry cloth. Do not use abrasive products or solvents.

What to do if the cord is damaged?

The cord is not replaceable. If the cord is damaged, the device must be discarded and no longer used. Contact customer service for recycling options.

Is the iron suitable for wigs or synthetic hair?

No, the curling iron is designed for natural hair. Do not use it on wigs or synthetic hair as they may melt under heat.

What is the warranty period?

The Carmen 3in1 Pro Curler CT6350 is covered by a 2-year warranty from the date of purchase, under normal use conditions. Keep your receipt as proof of purchase.

USER MANUAL 3in1 Pro Curler CT6350 Carmen

CT6350 CARMEN 3-IN-1 PRO CURLER curling iron with three black brushes (no text or symbols on the device itself)

Productname: Carmen 3-in-1 Pro Curler

EAN giftbox: 5011832066657

Specifications:

• 3-in-1 Pro Curler for different curls
• Revolutionary curler with timer
- Ultra-smooth Ceramic and Tourmaline coating, for extra protection.
• 3 detachable barrels ∅ 19 mm, ∅ 25 mm, ∅ 32 mm
• Magnetic detaching system for safe and easy match
- Protective cool tip
• LCD display with 8 temperature settings 130 °C-200 °C
• Auto shut off after 30 minutes
• Heat resistant glove and soft pouch included
- 1.8 m swivel cord
- 2 year warranty

Technical specifications:

• 100-240 V\~ 50-60Hz, 32mm: 55W, 25mm: 50 W, 19mm: 39W

ENGLISH • 3

A B C D E F G H I J K CARMEN > DESCRIPTION DELIVERY SET Unit body = 1 pc A. Protecting cool tip B. Barrel 19 mm C. Barrel 25 mm D. Barrel 32 mm E. Timer on button F. LCD screen G. Temperature up button

DELIVERY SET

Unit body - 1 pc.

Attachments - 3 pcs.

Heat resistant glove - 1 pc.

Soft pouch - 1 pc.

Instruction manual - 1 pc.

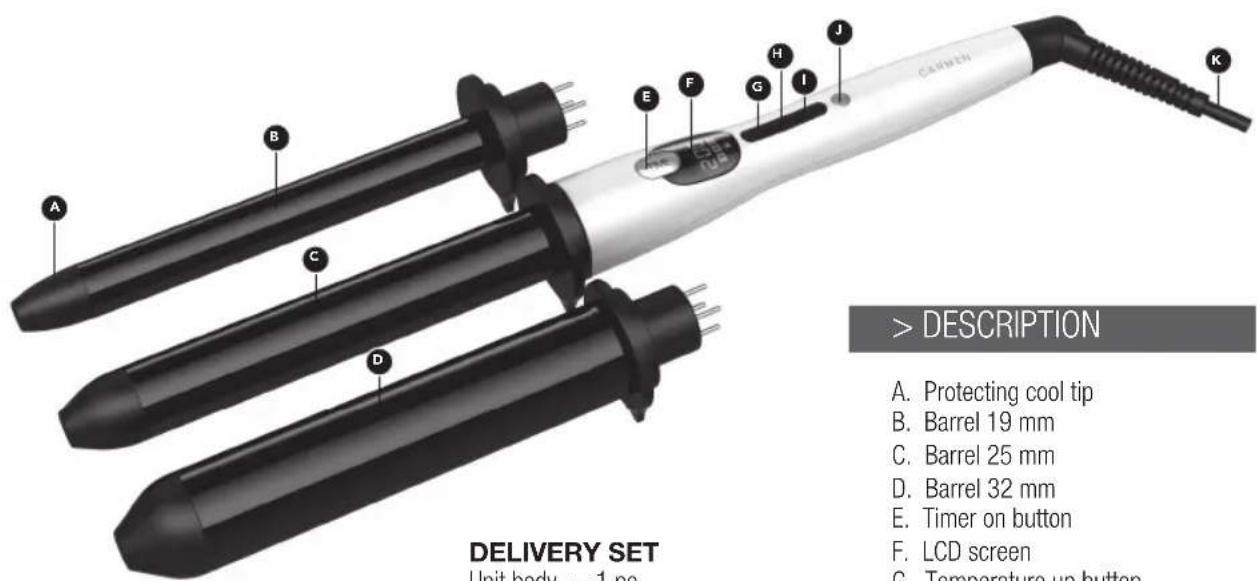

>DESCRIPTION

A. Protecting cool tip

B. Barrel 19 mm

C. Barrel 25 mm

D. Barrel 32 mm

E. Timer on button

F. LCD screen

G. Temperature up button

H. Timer/Lock button

1. Temperature down button

J. On/off button

K. Swivel cord

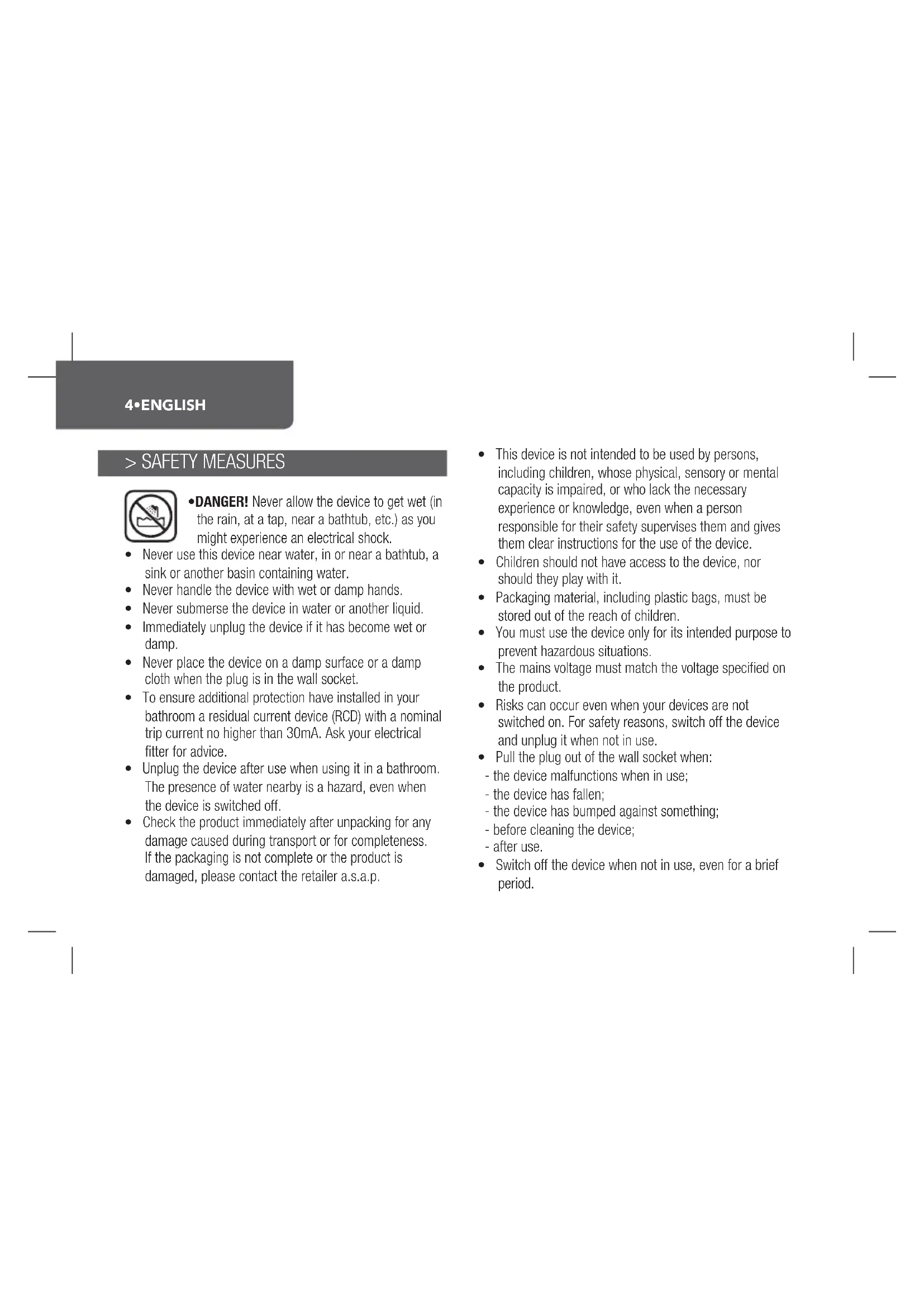

> SAFETY MEASURES

- DANGER! Never allow the device to get wet (in the rain, at a tap, near a bathtub, etc.) as you might experience an electrical shock.

• Never use this device near water, in or near a bathtub, a sink or another basin containing water.
• Never handle the device with wet or damp hands.
• Never submerse the device in water or another liquid.
• Immediately unplug the device if it has become wet or damp.
• Never place the device on a damp surface or a damp cloth when the plug is in the wall socket.
• To ensure additional protection have installed in your bathroom a residual current device (RCD) with a nominal trip current no higher than 30mA. Ask your electrical fitter for advice.
• Unplug the device after use when using it in a bathroom. The presence of water nearby is a hazard, even when the device is switched off.

• Check the product immediately after unpacking for any damage caused during transport or for completeness. If the packaging is not complete or the product is damaged, please contact the retailer a.s.a.p.

• This device is not intended to be used by persons, including children, whose physical, sensory or mental capacity is impaired, or who lack the necessary experience or knowledge, even when a person responsible for their safety supervises them and gives them clear instructions for the use of the device.

• Children should not have access to the device, nor should they play with it.
• Packaging material, including plastic bags, must be stored out of the reach of children.
• You must use the device only for its intended purpose to prevent hazardous situations.
• The mains voltage must match the voltage specified on the product.
• Risks can occur even when your devices are not switched on. For safety reasons, switch off the device and unplug it when not in use.
• Pull the plug out of the wall socket when:

- the device malfunctions when in use;

- the device has fallen;

- the device has bumped against something;

- before cleaning the device; - after use.

- Switch off the device when not in use, even for a brief period.

ENGLISH • 5

• Always unplug the device when leaving it unattended for a longer period.
  • Never leave the device unattended.
• Never use the device when it is damaged. Regularly check the device and the lead for damage. The lead cannot be replaced. The device will have to be discarded if the lead is damaged. Repairs must be performed exclusively by experts. Repairs that are inexpertly performed can be very hazardous for the user.
• If the device is damaged, contact the supplier to find out if you can still use it.
• Grab the lead by the plug when unplugging it. Never pull on the lead itself.
• Do not insert the plug in the wall socket when:

- the lead is damaged;

- the device is visibly damaged;

- the device has fallen.

• Do not let the lead touch the hot parts of the device.
• Always make sure that the lead is unencumbered when you move the device around.
• Avoid tripping over the lead.
• Never cover the lead with a rug, mat, blanket etc.
• Never wrap the lead around the device.

• Check the cord of the device regularly for cable breakage to prevent short circuits.

• Let the device cool before storing or cleaning it.

• Store the device in a safe place to prevent accidental erroneous use.
• The device must be stored in a dry place at temperatures between 15°C and 25°C.
• Do not expose the device to heat (radiator, oven, etc.), direct sunlight or humidity.
• Do not use any accessories other than those recommended by Carmen.
• Keep the device clean and do not use abrasives or products containing solvents.
• Connect the device only to an electrical system that meets the prevailing regulations and that is equipped with a delay fuse. Make sure that the maximum current of all devices connected to this fuse does not exceed its maximum current (16A).
• We recommend equipping the group to which the bathroom is connected with a residual current operated circuit breaker of maximum 16A to increase safety. Ask your electrician for advice.

> SPECIFIC SAFETY INSTRUCTIONS

• Never cover or recover the barrel.
  • The barrel can cause burns.

6·ENGLISH

• Using a hairspray can cause burns when the spray comes in contact with the barrel.
• Never hold the device by or near the barrel when the device is switched on. The barrel can cause burns. Avoid all contact with your skin, eyes and ears.
• Never unplug the barrel from the handle when it is hot.

> DIRECTION FOR USE

IMPORTANT: THIS IS A HIGH TEMPERATURE PRODUCT

1. Select the desired barrel to use.
2. Insert the barrel into handle, ensuring the flat edges line up. The barrel should lock into place by the internal magnets.
3. Plug the device in and hold the on/off button for 3 seconds to turn it on.
4. The display will be flashing. Use the + or - buttons to set the desired temperature. After a few seconds the set temperature will automatically lock; this will be evident by the lock symbol being displayed.
5. Once the set temperature has been reached, the display will stop flashing and the curler is ready to use.

6. To change the temperature again, press and hold the Timer/Lock button until the lock symbol disappears.

7. Hair should be clean and dry when using the styler. While styling, section the hair into strands of 5 to 6 cm wide in one row. Keep the hair strand smooth by brushing or combing through the section (from scalp to hair ends) while holding the ends taut with the other hand.

8. Take one strand at a time, wrap the hair around the barrel downward and wait for around 8 seconds. Now gently withdraw the barrels from the center of the curl. Allow the curl to cool and try not to disturb curls while proceeding in the same manner around the whole head. Be careful the hot barrel not to touch the scalp or ears.
9. After styling the first section, you should be careful with sliding the barrel along the and you must move from one section to another section.

> HINTS AND TIPS

• Hair should be completely dry to achieve the best result.
- Keep the strands of hair smooth whilst you work to avoid ridges half way down.
- Start at the lowest temperature till you find the appropriate temperature for you hair.
- Use the HIGH temperature for thick and difficult hair.
- The stylist is excellent for natural hairs. Do not use on artificial hair pieces or wigs as these may melt in the

ENGLISH • 7

heat generated from hot barrel.

- Do not use on hair which has been treated with chemicals (lacquer, lotion,...) as this can stick to the barrel, reducing the working efficiency so please clean the hair thoroughly before use.

- The appliance reaches very high temperatures. Do not leave on your hair for more than 8 seconds as this may damage your hair.

- Always avoid barrel coming into contact with hands or skin.

- Unplug the stylist from the supply socket and allow to cool fully before attempting any cleaning. This appliance reaches very high temperatures when switched on and it will take time to cool down fully. Whilst cooling place on a heat resistant surface, away from children and in a safe place. Never cover.

- It's recommended to use hair serum to protect your hair from heat.

- Using fixture sprays or shine sprays can help you to make attractive and various styles.

> ENVIRONMENT AND WASTE

In accordance with the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), this device is marked with the symbol of a crossed-out wheelie bin indicating that this product cannot be disposed of as household waste. The device must be brought to the appropriate waste collection point for treatment, removal, and recycling of WEEE (information can be obtained at the town hall of your domicile) or brought back to a dealer based on the principle of “1 for 1 free of charge” (the dealer’s take back does not create a right to a payment or rebate). The consumer or user contributes to the preservation of the natural resources and to the protection of human health by respecting the environment in this manner.

> WARRANTY

This CARMEN device comes with a two (2)-year warranty to be counted from the date of purchase under normal conditions of use. This warranty does not cover damage directly or indirectly caused by misuse, neglect, unauthorised use, accidents, unauthorised repairs or modifications, as well as a lack of maintenance. Please save your receipt/invoice as proof of your purchase. This device's accessories are not covered by a warranty. Exclusions from the warranty

• Modifications, dismantling or integration with another device or an assembly making the device fixed or semi-fixed,
  • Normal wear and tear of the parts,
• Degradation due to improper use,
• Failure to comply with the user manual or with the maintenance and safety instructions,

ENGLISH • 9

• Damage resulting from poor maintenance or a lack of maintenance,
• Damage caused by external factors (lightening...),
• Abnormal use of the device,
• Improper storage,
  •Shocks,
• Deformation of the tank,
• The device having been submerged,
• Expired warranty.

For warranty and service we refer you to the reseller and for more information you can consult our website www.carmen.nl.

This is a class II device with double insulation and no grounding

This device conforms to the Electromagnetic Compatibility Directive 2014/30/EU

and the Low Voltage Directive 2014/35/EU
