True Curls CT4525 - Curling iron Carmen - Free user manual and instructions

Product type	Curling iron
Brand	Carmen
Model	True Curls CT4525
Barrel diameter	25 mm
Barrel coating	Ceramic
Maximum temperature	200 °C
Temperature setting	Yes, adjustable
Heat-up time	30 seconds
Swivel cord	Yes
Cord length	1.8 m
Power supply voltage	220-240 V
Frequency	50/60 Hz
Power	50 W
Weight	300 g
Dimensions (L x W x H)	30 x 5 x 5 cm
Automatic shut-off	Yes, after 60 minutes
Indicator light	Yes
Handle	Ergonomic
Use	Home use
Package contents	Curling iron, instruction manual
Care and cleaning	Clean with a damp cloth after complete cooling
Safety	Do not use near a water source; keep out of reach of children
Warranty	2 years

Frequently Asked Questions - True Curls CT4525 Carmen

How to use the Carmen True Curls CT4525 curling iron?

Plug in the appliance, select the desired temperature (up to 200 °C), wait for the indicator light to turn off (about 30 seconds), then wrap a section of hair around the ceramic barrel and hold for 5 to 10 seconds.

Which temperature to choose for my hair?

For fine hair, use a low temperature (120-150 °C). For thick or hard-to-curl hair, a higher temperature (180-200 °C) is recommended.

Does the curling iron have an automatic shut-off?

Yes, the Carmen True Curls CT4525 automatically turns off after 60 minutes of inactivity for added safety.

How to clean the curling iron?

Unplug the appliance and let it cool completely. Wipe the barrel and body with a damp cloth. Never use abrasive products or chemical cleaners.

Can I use this appliance with a travel adapter?

The appliance operates on a voltage of 220-240 V. For use in a country with a different voltage, a voltage converter is necessary.

Is the cord swivel?

Yes, the swivel cord at the base allows freedom of movement during styling.

What to do if the appliance no longer heats up?

Check that the appliance is plugged in and the indicator light is on. If the problem persists, contact Carmen customer service.

Is there a warranty on this appliance?

Yes, the Carmen True Curls CT4525 curling iron is covered by a 2-year warranty.

Can I use styling products on the barrel?

Avoid applying products directly on the hot barrel. Apply products to your hair before curling.

Where to find the full manual?

The manual is available for free download on the notice-facile.com website in PDF format.

USER MANUAL True Curls CT4525 Carmen

Model CT4525 (110-240V, 38-40W)

Gebruiksaanwijzing

Mode d'emploi

Gebrauchsanweisung

Manual

2 • Nederlands

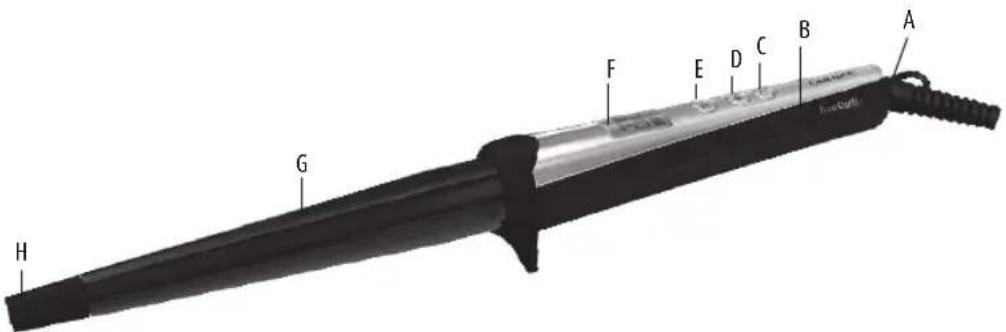

• A. Netsnoer/ Cordon d'alimentation/ Netzkabel/ Power cord
• B. Handvat/ Poignée/ Griff/ Handle
• C. Knop '-' / Bouton '-' / '-' Taste/ '-' button
• D. Knop '+' / Bouton "+" / "+" Taste/ "+" button
• E. Aan/ uit knop/ Bouton marche/arret/ EIN/AUS- Taste/ On/Off button
• F. LCD scherm/ Écran LCD/ LED- Display/ LCD- display
• G. Kegelvormige tang met keramische coating/ Pince conique/ Konischer Stab/ Conical tong
• H. Cool tip/ Embout isolant/ Kalte Spitze/ Cool tip

WAARSCHUWING: GEBRUIK DIT APPARAAT NIET IN DE BUURT VAN BADKUIP, DOUCHE, BASSIN OF ANDERE

The instructions include safety guidelines and other information important for the proper functioning of the appliance. Please read the instructions carefully and keep them in a safe place. If the appliance changes hands, be sure to give the instructions to the new owner. It is in your own interest to follow all safety guidelines.

> Safety instructions

When using electrical appliances, especially when children are present, basic safety precautions should always be followed,

CAUTION:

This appliance is not intended for use by

persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

WARNING: DO NOT USE THIS APPLIANCE NEAR BATHTUBS,

SHOWERS, BASINS OR OTHER VESSELS CONTAINING WATER

1. Take care to avoid contact between the hot surface of the barrel and the skin of the face and neck.
2. Do not place the hot curling tong on any heat sensitive surface and always allow to cool before storing away.
3. When storing the unit make sure it is unplugged and do not wind the supply

cord around the curling tong.

1. This appliance is not intended for commercial use.

2. Close supervision is necessary when any appliance is used by, on or near children or people with a disability. Store out of children's reach.

3. Do not leave the curling tong unattended when plugged in.

4. Do not use if the cord is damaged. In the event of damage discontinues use immediately. This curling iron is equipped with a swivel cord which must, when damaged, be replaced by a swivel cord of the same type; Return the appliance to your retailer who will deal with it.

5. Always ensure the voltage to be used corresponds to the voltage on the unit.

6. If the supply cord is damaged, it must be replaced by the manufacturer, its service

agent or similarly qualified persons in order to avoid a hazard.

1. Children should be supervised to ensure that they do not play with the appliance.

WARNING

The barrel will get very hot within a few seconds and should not be placed in contact with the skin after the curling tong is turned ON. Always do a test curl before using the tong to insure the proper setting for your hair type.

20·English

> Carmen True Curls

Congratulations with your purchase of the Carmen True Curls. Please read these instructions carefully before using the product and keep them in a safe place for future reference.

On www.youtube.com/carmenbenelux you will find movies with explanations about our products and how you can create different looks with them.

> The product

Name: Carmen True Curls

Model: CT4525

Voltage: 110-240V, 38-40W

CE compliance:

This appliance complies with EU EMC

Directives 2004/108/EC and Low Voltage 2006/95/EC.

> Unique elements

1. Carmen True Curls: For the creation of loose, natural curls
2. Conical curling tong, diameter 13 to 25 mm
3. Ceramic coating for soft and shiny curls
4. LCD display with temperature indication from 120 to 200°C
5. Temperature lock for retaining the heat
6. Fast heat up time: within 40 seconds, ready to use!
7. 3 m swivel cord and cool tip
8. Auto shut off function
9. Including heat resistant travel pouch
10. 2 years Warranty

> Operating instructions Carmen True Curls

Temperature range Hair type

120-140°C Fine, bleached and/or damaged hair

150-170°C Normal, colored and/or wavy hair

180-200°C Thick and/or Curly hair

Fast heat technology and 9 temperature settings (120 t/m 200B) combine to provide styling versatility for all hair textures. If you have fine hair a low temperature will provide the best results. If you have thick, wavy or coarse hair, use a higher heat setting. You can vary the temperature according to your particular need

Operating instructions Carmen True Curls

1. Plug the power cord into any household outlet (110-240V).
2. Press "ON/OFF" button, the conical iron would be start work, the LCD display will illuminate, the screen would be show the blue backlight, it would be stop illuminate when the conical iron temperature is reached.
3. The default temperature is 160°C.
4. Use "+"\"-\"buttons to raise or lower the temperature to your desired setting. Please be careful as the iron will heat up very quickly.
5. To lock the temperature control to your desired setting, press "ON/OFF button two times continuously. To unlock the temperature control, press "ON/OFF button two times continuously.
6. Never leave your curling iron on and unattended. Should you fail to turn the iron off, it will shut itself off automatically within 60 minutes.
7. Section damp or dry hair evenly, and comb through before styling. Place

conical tong midway up the hair section and wind hair evenly from the large tip of conical tong. Gently wind the hair down to the fine tip of conical tong until the hair ends is just wind over.

1. To avoid scald your fingers, don't let your fingers to touch the hot conical tong except you fingers wear the resistance hot glove.
2. To avoid crimped ends, make sure they are securely wound under the barrel in the direction of the desired curl.
3. Wind the hair up as far as you want it curled, being careful not to let the iron touch the scalp. Hold in place for 5-8 seconds depending on the texture and length of your hair. For tighter, bouncier curls, roll less hair. For loose, free-flowing curls, roll more hair.
4. Pull the iron away to remove the conical tong. To "set" the curl, do not comb or brush hair until it cools.
5. Switch off the appliance using the ON/OFF switch. The LCD display will go off.

> Cleaning and maintenance

This appliance is intended for household use. Unplug product before cleaning. The product must be cleaned only when cool.

Use a soft non-abrasive cloth that is slightly dampened with water to wipe styling barrel surface. Do not allow water or any other liquid to get into the handle of the iron. Any other servicing should be performed by a qualified service center.

The product should not be stored while hot or plugged in. When not in use, allow curling iron to cool, then simply put back in the box and store out of

reach of children in safe, dry location. Never wrap the cord around the curling iron. This could cause the cord to wear prematurely and break.

> Environmental & Disposal

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

> Guarantee

The guarantee covers this product for a period of 2 years, with the exception of individual parts, beginning on the date of original purchase. Use of the guarantee does not result in extension of the guarantee period. The guarantee covers manufacturing faults and material faults in original parts.

This guarantee does not include normal wear and tear and damage to the product by accident or misuse, abuse, alteration to the product or use inconsistent with the technical and/or safety instructions required.

22·English

If your product requires repair, you should contact an authorized service dealer.

Never dispose of your appliance with the regular household waste. Follow the waste disposal regulations for your locality or return your appliance to the retailer. Retain the retailer's receipt as proof of purchase. Carmen has a policy of continuous improvement in product quality and design. Carmen therefore reserves the right to change the specifications of its products at any time.

English • 23
