Product type	Thermoelectric cooler
Brand	Mobicool
Model	W40 ACDC
Gross capacity	40 liters
Power supply	12 V DC / 24 V DC / 230 V AC
Power consumption	47 W
Cooling	Up to 18 °C below ambient temperature
Weight	Approx. 8.4 kg
Dimensions (L × W × H)	560 × 380 × 420 mm
Cooling technology	Peltier effect with fan
Supplied parts	Divider grid, user manual
Use	Camping, vehicle, mains
Maintenance	Clean inside and outside with a damp cloth
Cleaning	Do not use abrasive detergents or immerse the device
Safety	Unplug before cleaning; do not block vents; do not expose to rain
Features	Multifunction carrying handle, two wheels, cable compartment
Certifications	CE, E4, TÜV GS
Safety instructions	Do not use if damaged; repair by qualified personnel
Note	Do not connect to mains if battery discharged; disconnect before fast charging

Frequently Asked Questions - W40 ACDC Mobicool

How to connect the Mobicool W40 ACDC cooler?

The cooler can be plugged into a 12 V DC (cigarette lighter) or 24 V DC vehicle socket, or into a 230 V AC mains outlet via the supplied cable. Ensure the ignition is on for 12 V usage.

What is the capacity of the cooler?

The gross capacity is 40 liters, ideal for transporting food and drinks for several people.

Can I connect the cooler to an external battery?

Yes, if the battery provides a voltage of 12 V or 24 V DC and the socket is compatible. Make sure not to discharge the battery excessively.

How to clean the cooler?

Unplug the device, then clean the inside and outside with a damp cloth. Do not use abrasive detergents and never immerse the cooler in water.

Can I put hot food in the cooler?

It is recommended to let hot food cool down before placing it in the cooler to avoid overloading the cooling system and save energy.

What to do if the cooler does not work?

First check that the power socket is live (ignition on for 12 V). If the connector gets hot, clean the socket. Replace the vehicle fuse (15 A) or the cable fuse if necessary. If the problem persists, contact an authorized service.

Is the cooler suitable for storing medications?

Check that the cooling capacity (up to 18 °C below ambient temperature) matches the recommended storage temperature for your medications. The device is not medical.

Can I leave the cooler plugged in when the engine is off?

No, to avoid discharging the battery, unplug or turn off the cooler when the engine is off. Otherwise, the battery may drain.

How to save energy with this cooler?

Place it in a cool, ventilated area away from sunlight. Cool food before placing it inside. Open the lid as little as possible and do not leave it open unnecessarily.

What accessories are supplied with the cooler?

The cooler is supplied with a divider grid to organize the interior and a user manual. DC and 230 V power cables are also included.

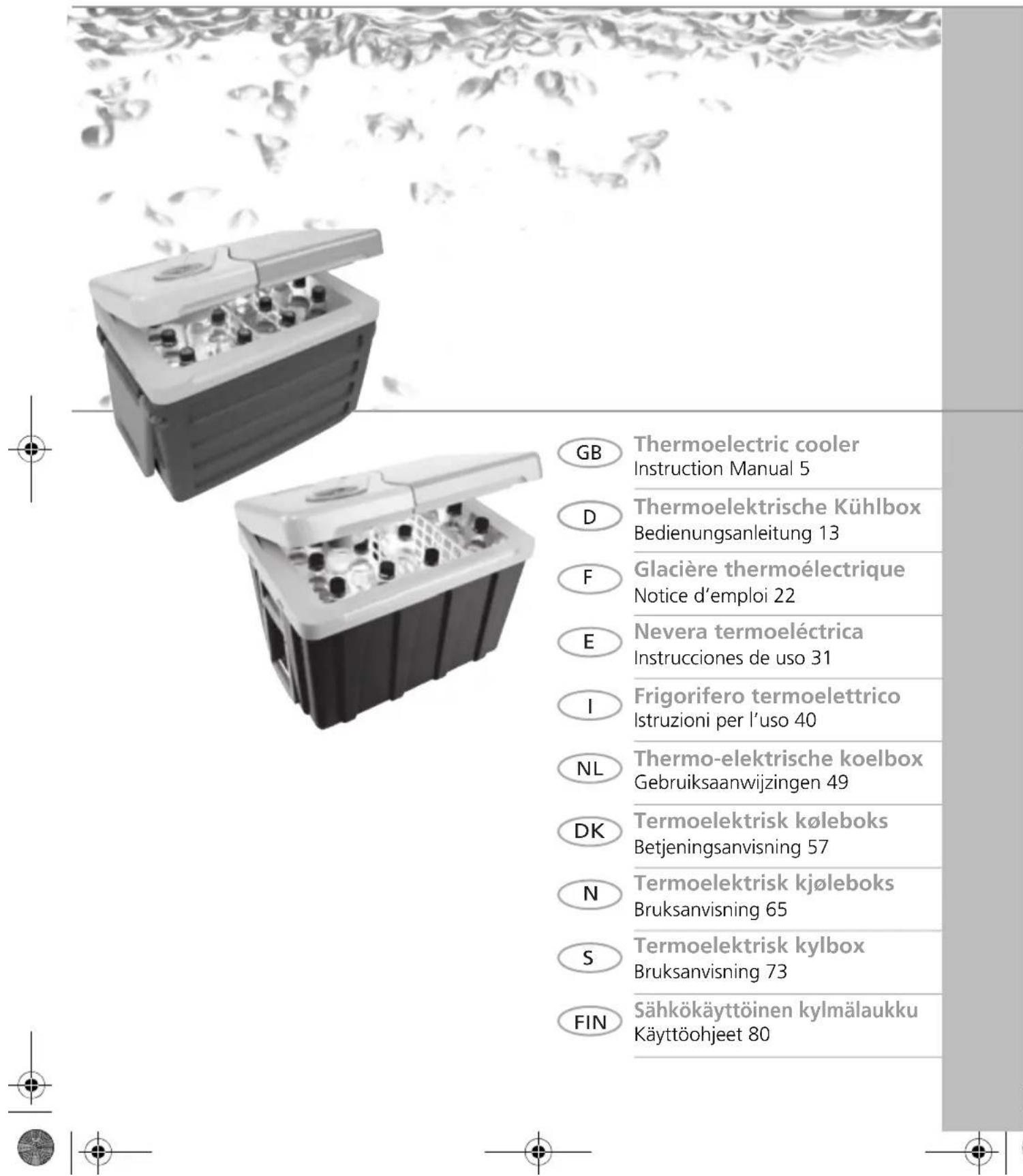

USER MANUAL W40 ACDC Mobicool

Our Name is our Mission

P40 DC/AC

W40 DC/AC

GB

Thermoelectric cooler Instruction Manual 5

D

Technical line drawing of a connector with three views: top view, side view, and close-up (no text or symbols)

P40, W40 Safety instructions

Please read this operating manual carefully before starting the device. Keep it in a safe place for future reference. If the device is resold, this operating manual must be handed over to the purchaser along with it.

Contents

1 Safety instructions 5
2 Intended use 7
3 Scope of delivery 8
4 Technical description 8
5 Operation 9
6 Cleaning and maintenance 10
7 Troubleshooting....11
8 Disposal 11
9 Technical data 12

Please observe the following safety instructions.

1 Safety instructions

1.1 General safety

• Do not operate the device if it is visibly damaged.
  ● Ensure that the ventilation slots are not covered.
• This device may only be repaired by qualified personnel. Inadequate repairs can lead to considerable hazards.
• Do not use electrical devices inside the cooler unless they are recommended by the manufacturer for the purpose.
• Persons (including children) whose physical, sensory or mental capabilities or lack of experience and knowledge prevents them from using the appliance safely should not use this appliance without initial supervision or instruction by a responsible person.
  ● Electronic devices are not toys.
  Always keep and use the device out of the reach of children.
  ● Children must be supervised to ensure that they do not play with the device.
• Food may only be stored in its original packaging or in suitable containers.

Safety instructions P40, W40

• The cooling device is not suitable for transporting caustic materials or materials containing solvents.
  ● Only connect the device as follows:

• With the DC cable (fig. 1 2, page 3) to a DC plug socket in the vehicle (e.g. cigarette lighter)

• Or with the 230 V connection cable (fig. 1 3, page 3) to the 230 V AC mains supply

● Never pull the plug out of the socket by the cable.
- If the connection cable is damaged, it must be replaced with the cable of the same type and specifications.
- Disconnect the device from the mains.

– Before cleaning and maintenance

- After use

• If the cooler is connected to the DC socket: disconnect the cooler or switch it off when you turn off the engine. Otherwise you may discharge the battery.
• On boats: if the device is powered by the mains, ensure that the power supply has a ground fault interrupter circuit. Danger of fatal injuries!
• Disconnect the cooling device and other power consuming devices from the battery before connecting the quick charging device.
• Check that the voltage specification on the type plate corresponds to that of the energy supply.

1.2 Operating the device safely

• Before starting the device, ensure that the power supply line and the plug are dry.
• Do not place the device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.).
  ● Caution! Danger of overheating!

Ensure at all times that there is sufficient ventilation so that the heat that arises during operation does not build up. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate.

• Do not fill the inner container with ice or fluid.
  ● Never immerse the device in water.
• Protect the device and the cable against heat and moisture.

P40, W40 Intended use

• A few water drops may form inside the cooler if it has been cooling for a lengthy period. This is normal because the moisture in the air condenses to water when the temperature in the cooler falls. The cooler is not defective. Wipe it out with a dry cloth if necessary.
• Do not touch exposed cables with your bare hands. This especially applies when operating the device with an AC mains power supply. Danger of fatal injuries!
• Mobicool cannot be held liable for damage resulting from improper usage or incorrect operation.

2 Intended use

The cooling device is suitable for cooling foodstuffs.

The appliance may also be used for camping use. The appliance shall not to be exposed to rain.

Caution!

If you wish to cool medicines, please check if the cooling capacity of the device is suitable for the medicine in question.

The cooling device is available in different models. The description of your model can be found on the type plate.

P40 DC/AC, W40 DC/AC (12 V, 230 V)

The device is designed for operation on:

• a 12 V---vehicle-electrics socket of a car (for example a cigarette lighter), boat or caravan
  ● on a 230 V AC mains supply

W40 DC/AC (12 V, 24 V, 230 V)

The device is designed for operation on:

• a 12 V==vehicle-electrics socket of a car (for example a cigarette lighter), boat or caravan
• a 12 -V===vehicle-electrics socket of a car (cigarette lighter), boat or caravan
  ● on a 230 V AC mains supply

Scope of delivery P40, W40

3 Scope of delivery

No. in fig. 1, page 3 Quantity Description

1 1 Cooling device
- 2 Grid divider
- 1 Instruction manual

4 Technical description

The cooler is suitable for mobile use. You can cool products to a maximum of 18^ C under the ambient temperature.

A grid divider can be used to separate foodstuffs, e.g. bottles and fruit.

The device has two wheels and a multi-function handle so that it can be pulled along. Alternatively, you can carry with two hands.

Its cooling system is a non-wearing Peltier cooling, the heat is discharged by a fan.

P40 DC/AC

The handle can be pulled out when stationary and used as a storage surface.

4.1 Description of the device

No. in fig. 2, page 4 Description

1 Handle
2 Ventilation slots
3 Cable compartment

Pure geometric diagram with concentric circles and radial lines, no text or symbols present

P40, W40 Operation

5 Operation

Note

Before starting your new cooling device for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter "Cleaning and maintenance" on page 10).

5.1 Energy saving tips

• Choose a well ventilated installation location which is protected against direct sunlight.
• Allow warm food to cool down first before placing it in the device to keep cool.
• Do not open the cooling device more often than necessary.
• Do not leave the cooler unit open for longer than necessary.

5.2 Using the cooler

Note

Like every cooling device, your cooler must be properly ventilated so that any heat created can dissipate. Otherwise proper functioning cannot be ensured.

▶Place the cooler on a firm base.
▶ Connect the DC connection cable (fig. 1 2, page 3) to the cigarette lighter or a DC plug socket in the vehicle.
or ...
▶ Connect the 230 V connection cable (fig. 1 3, page 3) to the 230 V AC mains supply.

Note

Close the box tightly by pushing down the lid.

√The cooler starts cooling the interior.

Cleaning and maintenance P40, W40

Caution!

Ensure that the objects placed in the cooler are suitable for cooling to the selected temperature.

▶If you wish to switch the cooler off, disconnect the plug.

5.3 Connecting to a cigarette lighter

Note

If you connect the device to the cigarette lighter of your vehicle, remember that the ignition must be turned on to supply the device with power.

6 Cleaning and maintenance

Caution!

Always disconnect the device from the mains before you clean and service it.

Caution!

Do not clean the cooler under running water or in dish water.

Caution!

Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the cooler.

▶Occasionally clean the device interior and exterior with a damp cloth.

Pure geometric diagram with concentric circles and crosshairs, no text or symbols present

P40, W40 Troubleshooting

7 Troubleshooting

Problem Possible cause Suggested remedy

Your device is not working (plug is inserted).	There is no voltage flowing from the DC socket (cigarette lighter) in your vehicle.	The ignition must be switched on in most vehicles to supply current to the cigarette lighter.
	No voltage present in the AC voltage socket.	Try using another plug socket.
	The inner fan or the cooling element is defective.	This can only be repaired by an authorised repair centre.
When operating from the DC socket (cigarette lighter): The ignition is on and the cooler is not working.	The fuse of the DC plug is dirty. This results in a poor electrical contact.	If the plug of your cooler becomes very warm in the DC socket fitting, either the fitting must be cleaned or the plug has not been assembled correctly.
	The fuse of the DC plug has blown.	Replace the fuse of the DC plug with one of the same rating.
	The vehicle fuse has blown.	Replace the vehicle's DC socket fuse (usually 15 A). Please refer to the operating manual of your vehicle.

8 Disposal

▶Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

Technical data P40, W40

9 Technical data

	P40 DC/AC 12-230 V
Gross capacity: 40 litres
Connection voltage: 12 V=	220–240 V~ /50 Hz
Power consumption: 47 W
Cooling capacity: Max. 18	°C under ambient temperature
Weight: ca. 8,4 kg
Dimensions: 560 x 380 x 4	20 mm
Testing/certification:

	W40 DC/AC 12-230 V W40 DC/AC 12-24-230 V
Gross capacity: 40 litres
Connection voltage: 12 V---	220–240 V~/50 Hz	12 V---24 V---220–240 V~/50 Hz
Power consumption: 47 W
Cooling capacity: Max. 18	°C under ambient temperature
Weight: ca. 8,4 kg
Dimensions: 560 x 380 x 4	20 mm
Testing/certification:

Versions, technical modifications and delivery options reserved.
