RIG 100HS - Headphones PLANTRONICS - Free user manual and instructions

Product type	Gaming audio headset
Brand	Plantronics (RIG)
Model	RIG 100HS
Compatibility	PlayStation 4, Xbox One, PC, Mac
Connectivity	3.5 mm 4-pole jack
Microphone	Adjustable microphone with boom
Controls	Volume wheel, mute button
Earpiece types	Circum-aural (over-ear)
Headband	Adjustable in 3 sizes (small, medium, large)
Weight	Approximately 250 g
Cable length	1.2 m
Speaker diameter	40 mm
Frequency response	20 Hz - 20 kHz
Impedance	32 ohms
Sensitivity	111 dB
Power	No power required (passive)
Maintenance and cleaning	Wipe with a soft dry cloth. Do not use liquid products.
Safety	Consult the provided safety guide for important information.
Spare parts and repairability	Not determined by the manufacturer. Contact NACON support.
General information	Registered trademark NACON. American and Taiwanese patents.

Frequently Asked Questions - RIG 100HS PLANTRONICS

How to assemble the Plantronics RIG 100HS headset?

Attach the earpieces to the headband by snapping them onto the notches. Adjust the size by moving the earpieces to the three positions (small, medium, large). To remove an earpiece, press on it to detach.

How to orient the microphone?

Rotate the microphone boom downward then pass it over to place it on the desired side (left or right).

How to configure the headset on PlayStation 4?

Go to Settings > Sound and Screen > Audio Output Settings > Headphone Output and select All Sounds. Then go to Settings > Devices > Audio Devices > Headset > Volume Control (Headset) to adjust.

How to configure the headset on Xbox One?

Access Display and sound > Kinect and devices > Select device and adjust settings.

How to adjust the volume?

Slide the volume wheel located on the cable or earpiece to increase or decrease the sound volume.

What is the mute button for?

The mute button activates the microphone mute mode. Slide it to see the red color appear, indicating that the mic is muted.

Is the headset compatible with a PC?

Yes, the RIG 100HS headset is compatible with PCs and Macs via a 3.5 mm jack. Simply plug it into the combined headphone/microphone jack.

How to clean the headset?

Use a soft dry cloth to wipe the plastic parts and cushions. Avoid any liquid or abrasive products.

What to do if there is no sound or poor quality?

Check the jack connection, ensure the volume is not muted (mute button), and that the audio settings on your console/PC are correct. Try on another device to test.

Where to find the safety guide?

The safety guide is included in the product packaging. You can also download it from the NACON website or notice-facile.com.

USER MANUAL RIG 100HS PLANTRONICS

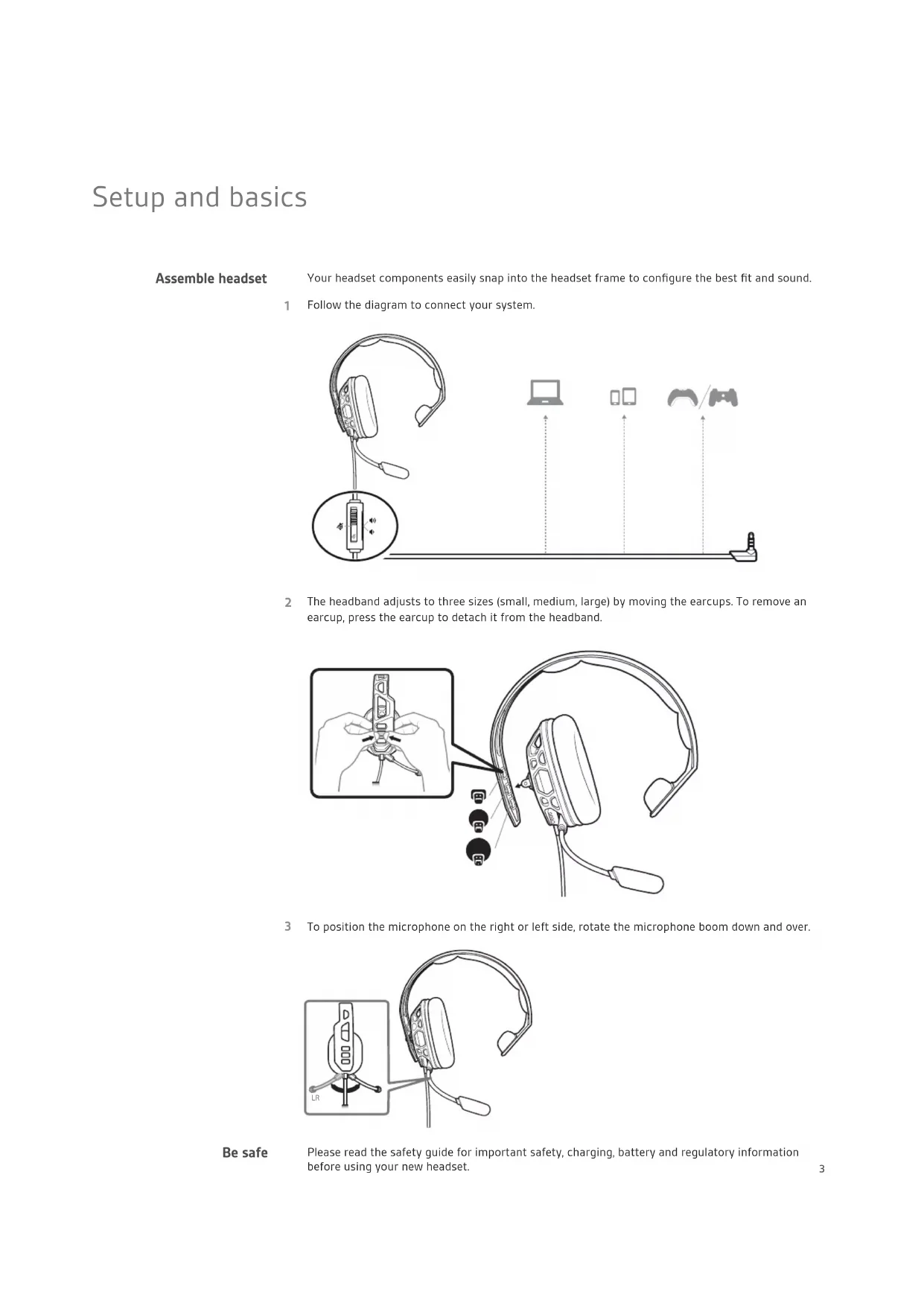

Your headset components easily snap into the headset frame to configure the best fit and sound.

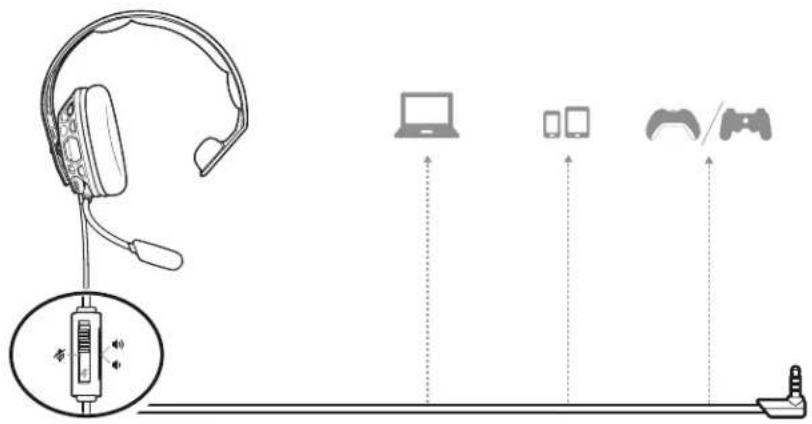

1 Follow the diagram to connect your system.

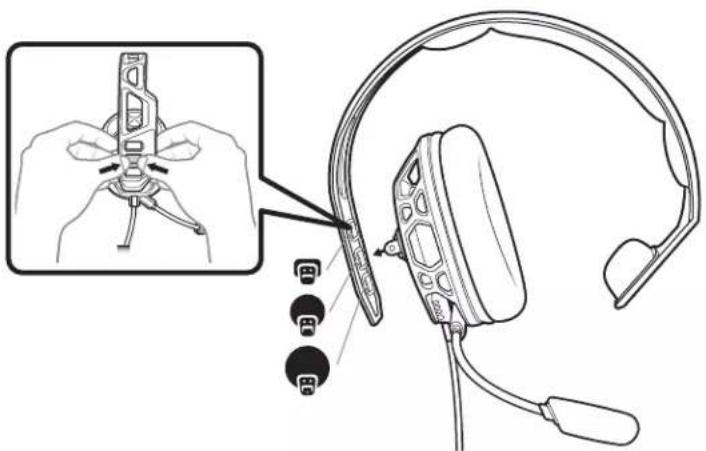

2 The headband adjusts to three sizes (small, medium, large) by moving the earcups. To remove an earcup, press the earcup to detach it from the headband.

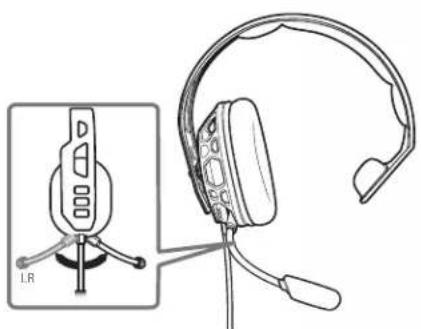

3 To position the microphone on the right or left side, rotate the microphone boom down and over.

Be safe

Please read the safety guide for important safety, charging, battery and regulatory information before using your new headset.

Setup PS4

1 To setup your headset for PS4, first go to Settings > Sound and Screen > Audio Output Settings > Output to Headphones > Select All Audio
2 Then go to Settings > Devices > Audio Devices > Headsets and Headphones > Volume Control (Headphones) >

Setup Xbox One

To setup your headset for Xbox One, go to Display and sound > Kinect and devices > Select device and adjust settings

Volume

To adjust the volume, slide the volume control.

Mute

To mute your headset, slide the mute switch to reveal the red color.

Support

NEED MORE HELP?

www.naongaming.com

nacon

NACONG GAMING, Inc

10400 NE 4^th Street, Suite 500,

Bellevue, WA 98004 USA

([phone]

Headquarter

NACON

©2020 NACON. NACON and RIG are trademarks of NACON, registered in the US and other countries. "PlayStation" and "DUALSHOCK" are registered trademarks of Sony Interactive Entertainment Inc. All rights reserved. All other trademarks are the property of their respective owners.

Patents: US 8,504,115; 8,983,081; 9,008,319; D666,993; D667,388; D747,293; IN 245078; 245079; 268129; TW D154413; D154414; D171922. 211816-06 (06.20)
