Product Type	Passive 2-way bass reflex floorstanding speaker
Drivers	2 x 165 mm (6.5 in) woofers and 1 x 22 mm (0.9 in) tweeter
Frequency Response	44 Hz - 30 kHz (+3 dB, -6 dB)
Nominal Impedance	6 ohms
Minimum Impedance	4 ohms
Sensitivity	91 dB (2.83 V @ 1 m)
Recommended Stereo Amplifier Power	25 - 180 W
Recommended AV Amplifier Power	50 - 165 W (2 channels driven)
Crossover Frequency	2.5 kHz
Internal Volume	32.4 L
Dimensions (W x H x D)	310 x 1020 x 310 mm (with grille, terminals and feet)
Cabinet Width	200 mm
Weight (per speaker)	17.8 kg
Supplied Accessories	Rear stabiliser, spikes, spike shoes, Allen key, user manual
Care & Cleaning	Clean the cabinet with a slightly damp cloth. Do not use solvents or abrasive products. Grilles can be cleaned with a soft brush.
Safety	Do not connect the terminals to a mains socket. Turn off amplifiers before connection. Do not expose to rain or moisture.

Frequently Asked Questions - 3050i Q-ACOUSTICS

How do I connect the 3050i speakers to the amplifier?

Use good quality speaker cables. Strip the wires 10 mm, twist them, then insert them into the unscrewed terminals. Connect the red terminal (+) to the amplifier's positive output and the black terminal (-) to the negative output. Observe polarity for both channels.

What is the minimum distance I should maintain between the speaker and the wall?

Place the 3050i speakers at least 200 mm from the rear wall and at least 500 mm from side walls. Greater distance improves bass accuracy.

How do I clean the 3050i speakers?

Clean the cabinet with a slightly damp cloth, without solvents or abrasive products. For the grilles, use a soft brush. Avoid touching the drivers.

What is the warranty period?

Q Acoustics passive speakers are warranted for 4 years (1 year for subwoofers) against defects in materials and workmanship. The warranty can be extended to 5 years (2 years for subwoofers) by registering the product on the Q Acoustics website.

Can I use the 3050i speakers with a television?

Yes, the 3050i speakers can operate near a television without affecting its operation. They are compatible with plasma and LCD screens.

How do I attach the supplied spikes?

Screw the spikes halfway into the locking bolts at the base of the speaker. If the floor is delicate, place a protective cap on each spike. Use the Allen key to adjust the rear spikes until the speaker is stable and level.

What if the bass is too powerful?

Insert the foam bungs into the rear ports. This reduces the bass level but improves definition and extension. Experiment with different speaker positions to optimise the result.

Can I remove the grilles?

Yes, you can remove the grilles, but be sure to put them back in the presence of children or pets to protect the drivers. Without grilles, the drivers are fragile.

What type of amplifier is recommended for the 3050i?

A stereo amplifier of 25 to 180 W or an AV receiver of 50 to 165 W per channel (2 channels driven) is recommended. The nominal impedance of 6 ohms suits most amplifiers.

Where can I buy stands or supports for the 3050i?

Q Acoustics offers dedicated stands for the 3010i and 3020i models. For the 3050i, use the supplied spikes. Contact your dealer for optional accessories.

USER MANUAL 3050i Q-ACOUSTICS

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, UK

CM23 5GZ

Zubehör

(5.9 × 10.0 × 10.0 in)

4.1 kg (9.0 lbs)

3020i

Before making any connections to your loudspeakers make sure that all active units in your system are switched off at the mains.

When switching on your sound system or changing input sources, set the main volume control at a low level. Turn up the level gradually.

NEVER play your sound system at full volume. The position of the volume control is deceptive and does not indicate the power level of the system. Using very high volume settings may damage your hearing.

1.1. Instructions

Read and understand these instructions before you use your loudspeakers. If damage is caused by failure to follow these instructions, the warranty will not apply. Please keep these instructions in a safe place.

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

DO NOT connect your loudspeaker terminals to the mains supply.

Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers that produce heat.

Only use attachments/accessories specified by the manufacturer.

Unplug this apparatus during lightning storms or when unused for long periods of time.

2. Unpacking your loudspeakers

Unpack the speakers fully. Lift the speakers from the cartons by holding the cabinets. Do not use the protective bags to lift them.

When manoeuvring loudspeakers, do not drag them across the floor as this may cause damage - lift each speaker before moving it.

Check the loudspeaker carefully. If any items are damaged or missing, report this to your retailer as soon as possible.

Retain the packaging for future transport. If you dispose of the packaging, please do so following all recycling regulations in your area.

3. Installation

• Only use the accessories supplied with the product.
• To prevent injury, this apparatus must be securely mounted onto the floor in accordance with the installation instructions.
• Do not use makeshift stands. Fit the Q Acoustics dedicated stand according to the instructions and using any fixings provided. Your dealer will advise you.
• If you play your loudspeakers without their grilles fitted, be careful to protect the drive units from damage.
• DO NOT dismantle the loudspeaker. You will invalidate the warranty.
• Do not connect your loudspeaker terminals to the mains supply.
• Do not expose your loudspeakers to excessive cold, heat, humidity or sunlight.
• The use of this apparatus is indicated for tropical and/or moderate climates.

3.1. Moisture

• To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain, moisture, dripping or splashing.
• Do not use this apparatus near water.

3.2. Servicing

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

4.0. Symbols used on this product Hazard Warning Symbol

The 'exclamation mark' calls attention to features for which you should read this manual closely to prevent operation and maintenance problems.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

Waste Electrical and Electronic Equipment Symbol

This symbol indicates that when the unit is to be discarded, it must be separated from other household-type waste and sent to separate collection facilities for recovery and recycling of electrical and electronic equipment.

Please make sure you are familiar with your local rules on the separate collection of electrical and electronic products.

Introduction

Thank you for purchasing Q Acoustics.

This manual is intended to take you through setup and installation and will help provide optimum performance from the product.

Please read the instructions, important safety information and warnings carefully before installation and use, to ensure the safe and satisfactory operation of this product.

The Q Acoustics 3000i series is a range of loudspeakers designed to meet the highest expectations of dedicated 2-channel audiophiles and discerning movie enthusiasts.

The range comprises:

3010i: Compact bookshelf speaker with a 100 mm (4.0 inches) bass driver.
3020i: Bookshelf speaker with a 125 mm (5.0 inches) bass driver.
3050i: Floorstander with 2 × 165 mm (6.5 inches) bass drivers.
3060S: 150 Watt active subwoofer with a 200mm (8.0 inches) driver.
3090Ci: Centre channel with 2 × 100 mm (4.0 inches) bass drivers.

In the carton you will find: The loudspeaker/s and this product manual.

In addition the packing for the following models contains:
3050i: Rear stabiliser, spikes and spike covers for each speaker. An Allen key to adjust the spikes once fitted.
3060S: A mains power cord or cords, spikes and spike covers.
Check the product carefully. If any items are damaged or missing, report this to your dealer as soon as possible.

We hope you enjoy the Q Acoustics experience.

Preparation

Lift the speakers from the cartons by holding the cabinets. Do not touch the driver units or use the protective bags to lift them. The 3050i and 3060S are heavy - get assistance to lift them if necessary.

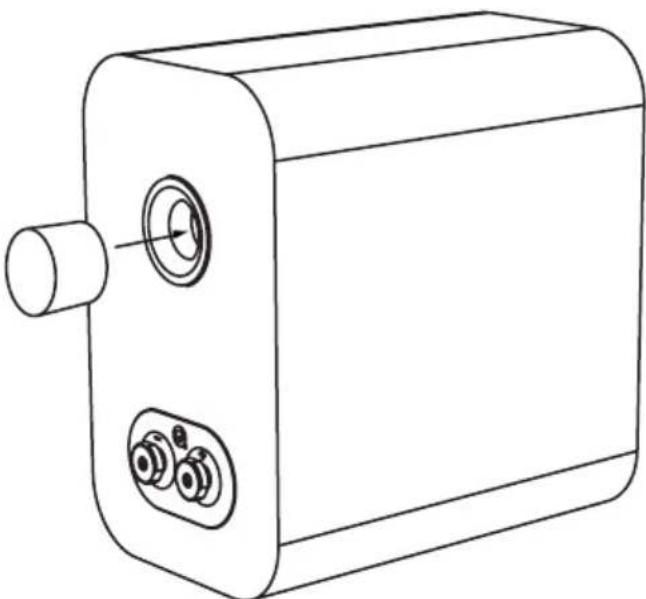

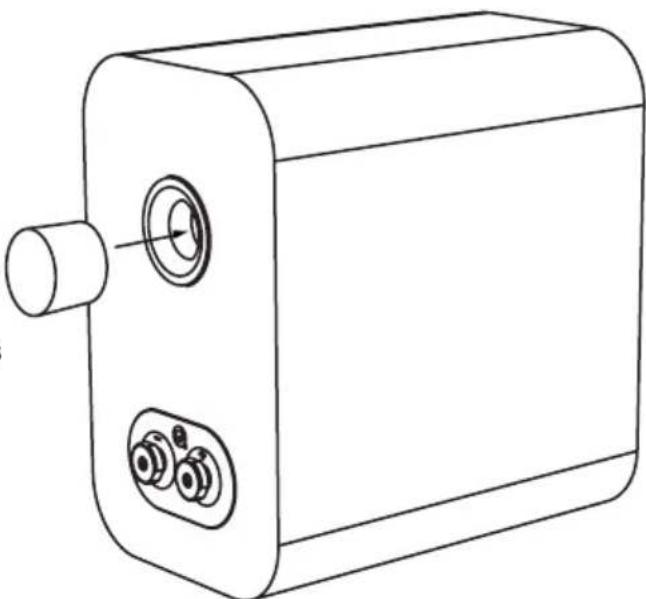

Foam Bung

The 3000i series speakers are rear ported and designed to work best with some space behind them i.e. 200mm or so away from a wall. If you position your speakers close to a wall / corner then the foam bungs should be inserted into the rear ports or there could be too much bass.

Ensure the bungs are fitted snugly into the port without inserting them too far. You will find the level of bass is reduced but definition and bass extension is increased. Experiment to see what you prefer and try making small changes to the position of the speaker to optimise the final result.

Spikes are sharp. Exercise care!

Never place a spiked loudspeaker where it can cause damage!

Always move your loudspeakers by lifting them - never drag them!

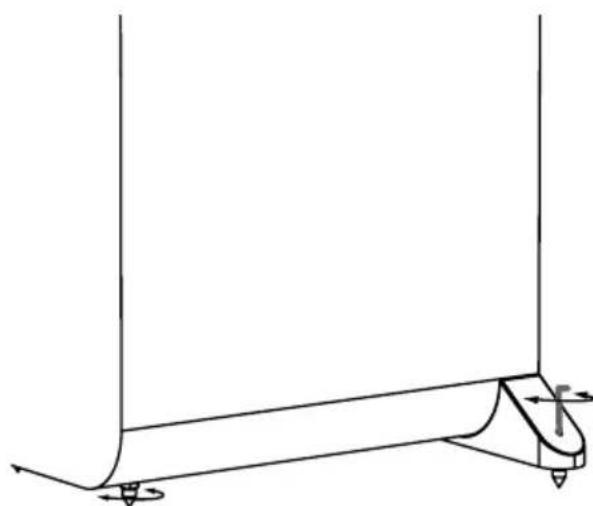

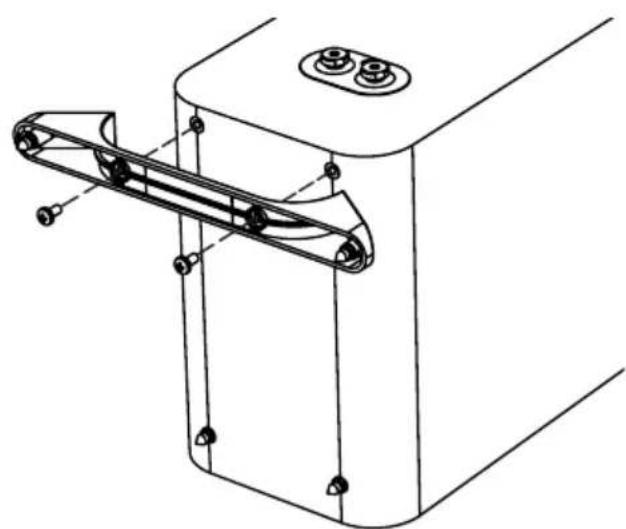

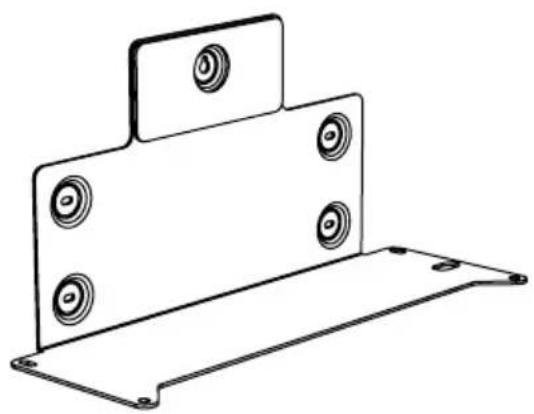

3050i - Attach the rear stabiliser

Thread the spikes fitted with locking nuts half way into the base and return the loudspeaker to the upright position. (If you have a wood or stone floor push a spike protector over each spike before turning the speaker upright) When the speaker is the right way up, insert the Allen key into each rear spike from the top and adjust all the spikes in and out until the loudspeaker is level and stable.

Use screws provided to secure feet as shown.

Positioning

All the loudspeakers may be operated close to TV monitors with no ill-effects with the exception of the 3060S which should not be operated within 500mm of TV screens monitors or other magnetically sensitive equipment. Plasma and LCD screens are unaffected.

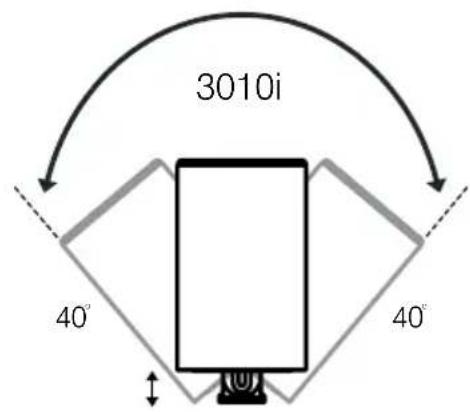

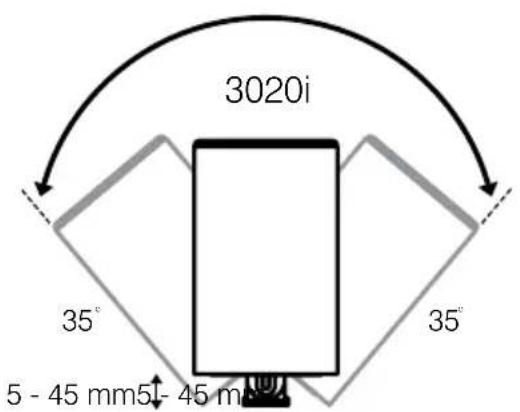

3010i and 3020i

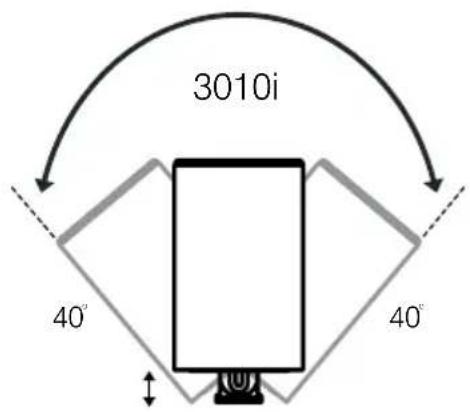

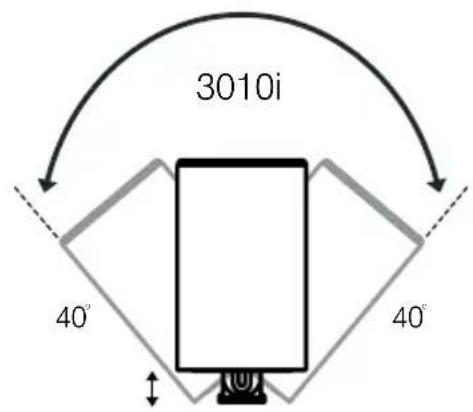

The 3010i and 3020i are ideally mounted on Q Acoustics floor stands or wall mounted. If you are stand mounting, a simple guide is that the treble unit should be at ear level to a seated listener. Wall mounted speakers may be mounted sl lighter higher with the speaker angled down. Stand mounted speakers should be treated as floorstanding speakers except that the speaker may be placed a little closer to the back wall. Shelf mounting is also possible.

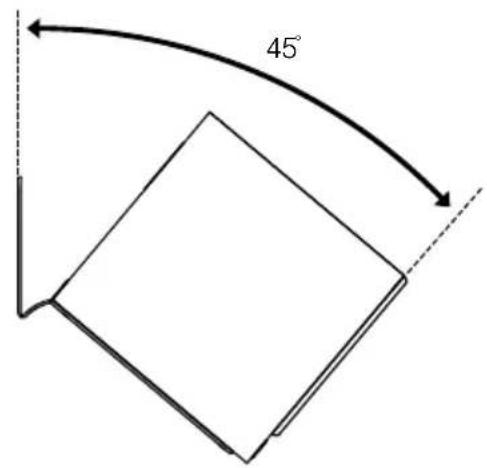

An optional bracket designed specifically to wall mount the Q Acoustics 3010i, 3020i and 3090Ci is available from your dealer. Floor stands for the 3010i and 3020i are also available. Be prepared to experiment to find the best setup for your taste in your particular listening room.

3050i

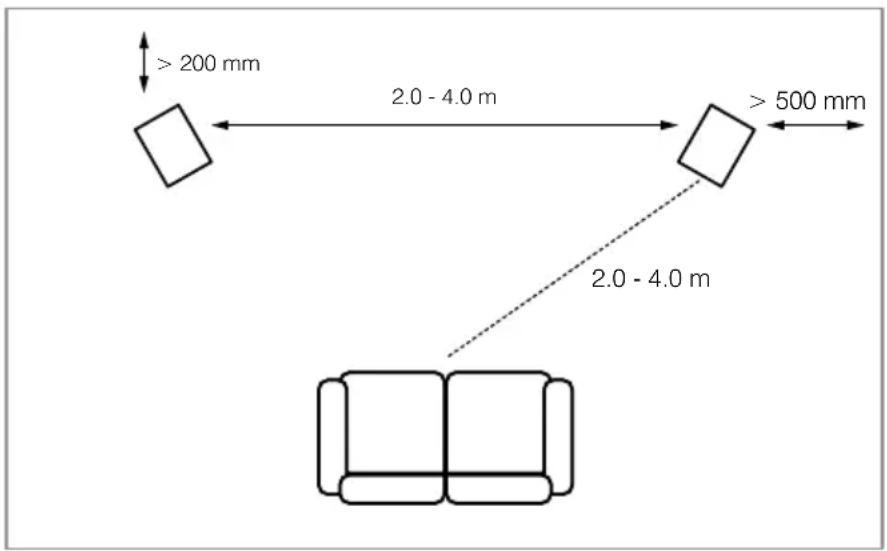

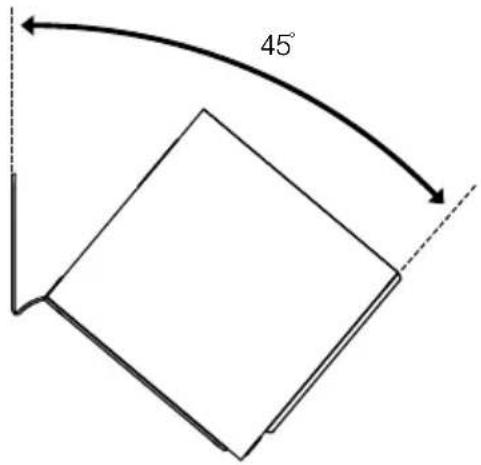

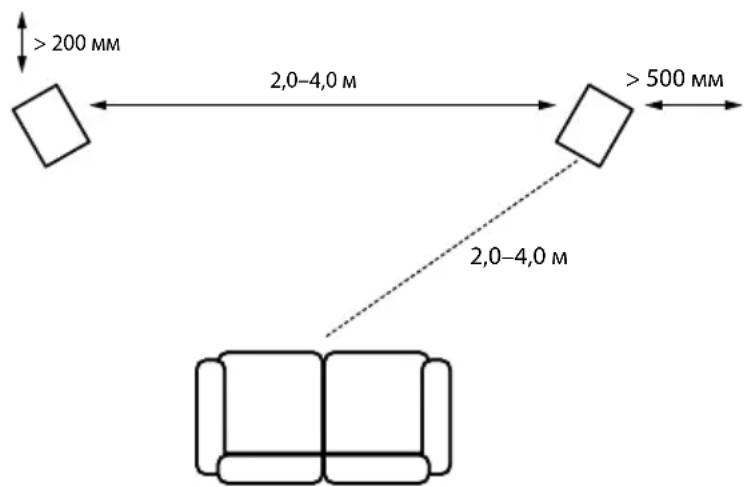

The 3050i loudspeakers should be positioned at least 200mm from a back wall and 500mm from the side walls. Placing the speakers closer to the wall will increase bass but could cause the sound to boom and lack precision and detail. The speakers should be 2m - 4m apart and central to the seated listener. Turning the speakers slightly inwards will sharpen a stereo image but may cause narrowing of the sound source.

Subwoofer

Bass frequencies are substantially omni directional. Although this means that you can position the subwoofer almost anywhere, the stereo image will still benefit by positioning the subwoofer level with the front loudspeakers and as central to the listening position as possible. This may not be feasible in a multichannel system. If you place the subwoofer close to a wall the bass will be re-enforced therefore in some locations the bass may be boomy and indistinct.

Effects loudspeakers

3090Ci

The 3090Ci is designed to be operated close to a TV screen and central to it. It should be placed immediately above or below the screen. If you have a Plasma or LCD monitor, mount the 3090Ci to the wall or other suitable surface immediately above or below the screen using the Q Acoustics Wall Bracket. If not, consider placing the TV on a cabinet with the 3090Ci on a secure shelf immediately below the TV.

Dolby and the double-D symbol are trade marks of Dolby Laboratories.

Surround Speakers

There are recommendations from Dolby labs for 5.1 effects speakers. Surround speakers should be mounted on either side of the listener, slightly behind the listening position. The speakers should be sited facing inward either mounted on the side walls of the room or if the room is large, on high stands and with their centres above ear level to a seated listener.

For overhead speakers used in multi-channel installations we recommend the Q Acoustics Install range.

Connections

Before making any connections to your loudspeakers make sure that all active units in your system are switched off at the mains. When switching on your sound system or changing input sources, set the main volume control at a low level. Turn up the level gradually.

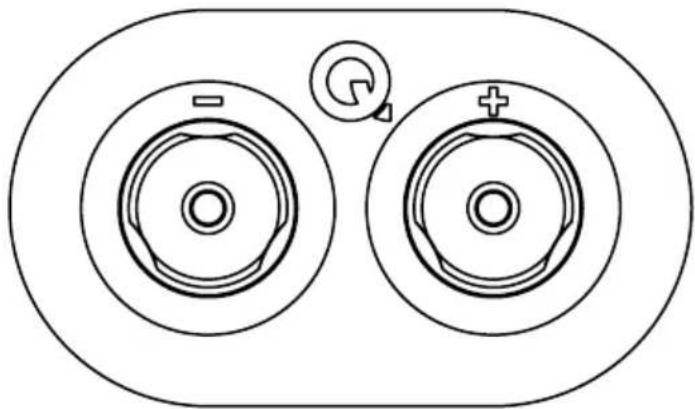

Terminals and Connectors

The 3010i, 3020i, 3050i and 3090Ci have standard two terminal crossovers.

3010i, 3020i & 3050i & 3090Ci

Loudspeaker Cables

Specialist loudspeaker cables will offer a higher standard of reproduction than general purpose 'bell' or 'zip' wire. Use cable with generous amounts of copper for the front and centre channels. Thin cables reduce the bass and restrict the dynamic range. Surround (rear) channels are less critical.

Speaker cable has a stripe or tracer along one core. By convention this is connected to the positive terminals. The cables connecting the amplifier to the front loudspeakers should ideally be the same length. Never join cables - use complete lengths.

Preparing Cables

Split the cable to a depth of about 40mm . Bare the wire to a depth of 10mm and twist the ends to gather any stray wires. Crop the cable leaving 7mm of bare wire exposed.

Connecting a Terminal

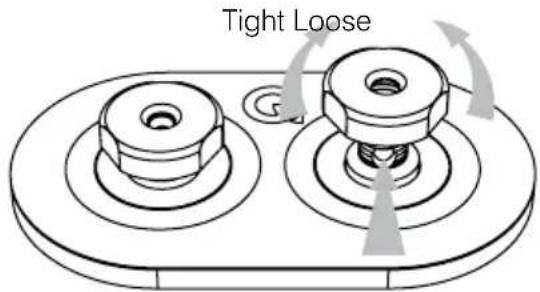

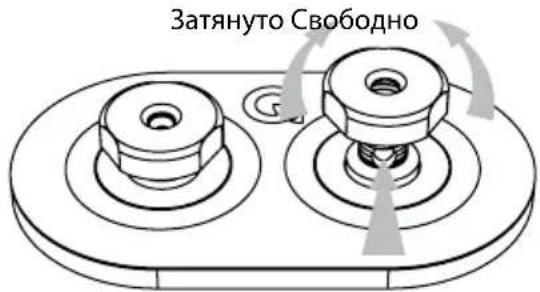

Unscrew the terminal anticlockwise to expose the mounting hole in the base of the terminal column.

Insert the bare end of the cable into the hole. Retighten the terminal fully hand tight. Make sure there are no stray wires which could touch adjacent terminals. In the EU it is against safety regulations to use 4mm loudspeaker plugs.

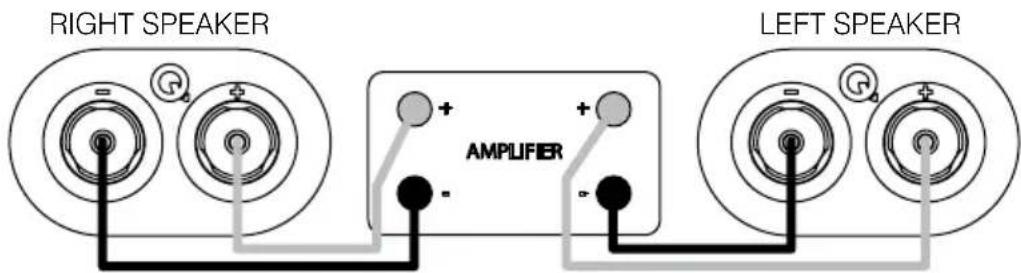

Stereo Connections

Standard Connections

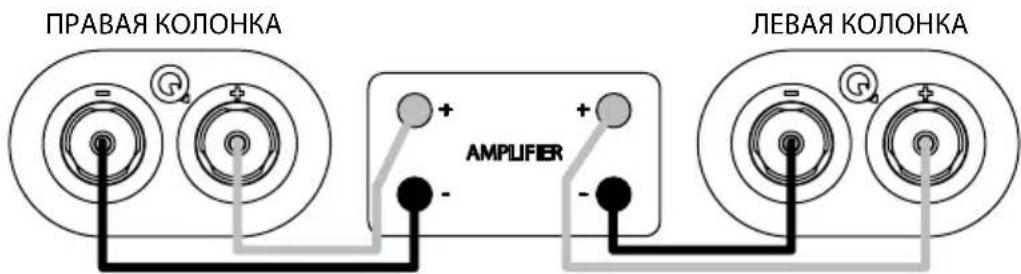

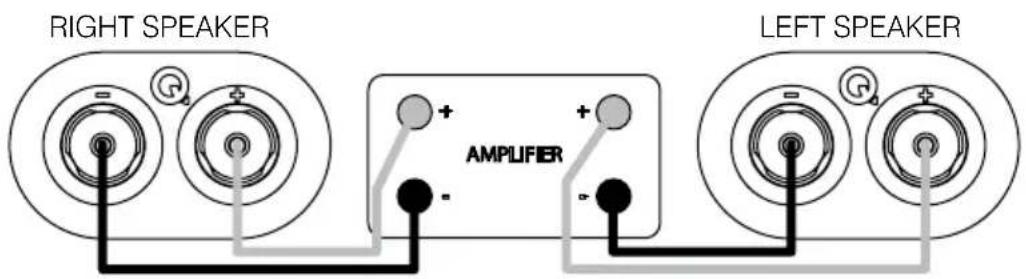

Connect the RED (+) terminal of the RIGHT loudspeaker to the RED, Positive (+) terminal on the RIGHT channel of the amplifier. Connect the BLACK (-) terminal of the loudspeaker to the matching BLACK, Negative (-) terminal of the amplifier. Repeat this procedure for the LEFT channel.

Standard Wiring:

Aftercare

Cabinet Care

Clean cabinets only with a lightly dampened cloth. Do not use solvent based cleaning materials. Never use abrasives of any kind.

The cabinet surfaces will usually only require light dusting. Should an aerosol or other cleaner be used, apply the cleaner onto the cloth first and not directly onto the product. Test a small area first, as some cleaning products may damage the finish. Avoid products that are abrasive, or contain acid or alkaline agents. Do not use any cleaning materials on the drive units and avoid touching them as damage may result.

Grilles

Grilles should only be cleaned using a soft brush when necessary.

If using the Q Acoustics speaker with the grilles removed, remember to replace them if pets or children are present.

Drive Units

Do not touch the drive units as they are easily damaged when exposed.

Warranty

Q Acoustics passive loudspeaker products are warranted free of defects in materials and workmanship for a period of 4 years (1 year for subwoofer) from the date of purchase. During the warranty period Q Acoustics will, at its option, repair or replace any product found to be faulty after inspection by the company or its appointed distributor or agent.

Misuse and fair wear and tear are not covered by warranty.

Goods for repair should in the first instance be returned to the supplying dealer. If this is not possible contact Q Acoustics or their appointed distributor for your area to determine the correct warranty procedure. If possible the original packaging should be used to return the product as damage sustained during transit to the repair centre is not covered by the warranty. The warranty does not in any way affect your legal rights.

Warranty can be extended to 5 years (2 years for subwoofer) by registering your product at www.qacoustics.co.uk/register.

For service information contact: [e-mail]

Q Acoustics

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, UK

CM23 5GZ

Accessories

Wall Bracket (Single)

3010i / 3020i / 3090Ci

Black and White

Dimensions (WxHxD): 70 x 159 x 99 mm

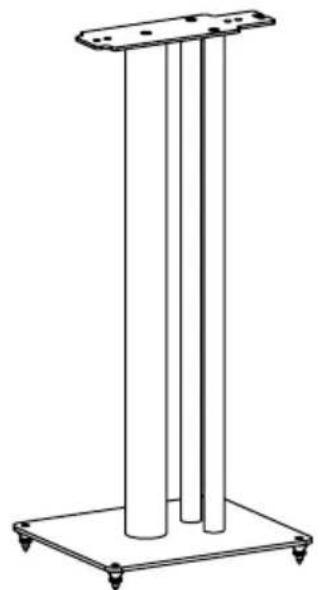

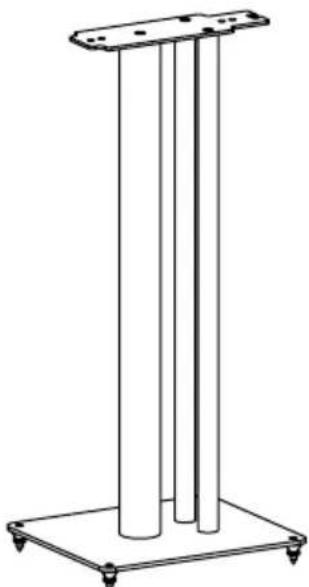

Speaker Stand (Pair)

3010i / 3020i

Black and White

Subwoofer Wall Bracket

3060S

Black

Dimensions (WxHxD): 250 x 682 x 290 mm Dimensions (WxHxD): 422 x 222 x 163 mm

Passive Loudspeakers

Enclosure type:

Bass unit:

Treble unit:

Frequency response (+3dB, - 6dB)

Average impedance:

Minimum impedance:

Sensitivity (2.83v@1m):

Stereo amplifier power:

AV receiver power (2 ch. driven):

Crossover frequency:

Effective volume:

Enclosure dimensions (WxHxD):

(inc. grille, terminal and feet)

Enclosure width:

Weight (per speaker):

3010i

2-wayreflex

100 mm (4.0 in)

22 mm (0.9 in)

65 Hz - 30 kHz

6Ω

4Ω

86 dB

15-75W

50 - 125 W

2.6 kHz

4.0 L (244 cu in)

150 × 253 × 252 mm

(5.9× 10.0× 10.0 in)

4.1 kg (9.0 lbs)

3020i

2-wayreflex

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6Ω

4Ω

88dB

25-75W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170× 278× 282mm

(6.7× 11.0× 11.1 in)

5.5 kg (12.1 lbs)

Active Subwoofer

Enclosure type:

Bass unit:

Amplifier power:

Frequency response (+3dB, - 6dB)

Crossover frequency:

Effective volume:

Enclosure dimensions (WxHxD):

Weight:

3060S

Infinite baffle

200 mm (8.0 in)

150 W Class-D

35 Hz - 250 Hz

35 Hz - 250 Hz (var.)

10.6 L (647 cu in)

480 × 300 × 150 ~mm (18.9 × 11.8 × 5.9 in)

324 mm (12.7 in) inc. spikes

8.5 kg (18.7 lbs)

3050i

2-wayreflex

2 × 165 ~mm (6.5 in)

22 mm (0.9 in)

44 Hz - 30 kHz

6Ω

4Ω

91 dB

25 - 180 W

50-165W

2.5 kHz

32.4 L (1977 cu in)

310 × 1020 × 310 ~mm

(12.2× 40.1× 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

2-wayreflex

2 × 100 ~mm (4.0 in)

22 mm (0.9 in)

75 Hz - 30 kHz

6Ω

4Ω

89 dB

25 - 100 W

50-165W

2.7 kHz

6.6 L (403 cu in)

430× 152× 216mm

(16.9× 6.0× 8.5 in)

6.0 kg (13.2 lbs)

ACOUSTICS

QACOUSTICS.CO.UK

ACOUSTICS

Q Acoustics
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, Reino Unido
CM23 5GZ

Accesorios

6.0kg (13.2 lbs)

ACOUSTICS

QACOUSTICS.CO.UK

ACOUSTICS

www.qacoustics.co.uk/register.

Stortford Hall Industrial Park

Support mural (simple)

3010i / 3020i / 3090Ci

Noir et blanc

Dimensions (L× H× P) .. 70× 159× 99mm

(5.9 x 10.0 x 10.0 in)

4.1 kg (9.0 lbs)

3020i

Reflex 2 voies

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6Ω

4Ω

88 dB

25-75W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170 × 278 × 282 ~mm

(6.7× 11.0× 11.1 in)

5.5 kg (12.1 lbs)

Q Acoustics
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, Regno Unito
CM23 5GZ

Accessor

(5.9 x 10.0 x 10.0 in)

4.1 kg (9.0 lbs)

3020i

Reflex a 2 vie

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6Ω

4Ω

88 dB

25-75W

50-125W

2.4 kHz

6.1 L (372 cu in)

170 × 278 × 282 ~mm

(6.7× 11.0× 11.1 in)

5.5 kg (12.1 lbs)

Subwoofer attivo

Tipoinvolucro:

Unità bassi (mm):

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, GB

CM23 5GZ

Accessoires

Wandbeugel (1 stuk)

3010i / 3020i / 3090Ci

Zwart en wit

Afmetingen (B× H× D) .. 70× 159× 99mm

www.qacoustics.co.uk/register.

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, Wielka Brytania

CM23 5GZ

Akcesoria

8.5kg (18.7 lbs)

3050i

6.0kg (13.2 lbs)

ACOUSTICS

QACOUSTICS.CO.UK

ACOUSTICS

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, UK

CM23 5GZ

Acessórios

Suporte de parede (unico)

3010i / 3020i / 3090Ci

Preto e bianco

Dimensoes (LxAxD): 70 × 159 × 99 ~mm

Suporte de altifalante (par)

3010i / 3020i

Preto e bianco

6.0kg (13.2 lbs)

ACOUSTICS

QACOUSTICS.CO.UK

ACOUSTICS

3000i Series

OWNER'S MANUAL

EN ENGLISH 01

DE GERMAN 19

ES ESPÁÑOL 37

FR FRENCH 55

IT ITALIAN 73

NL DUTCH 91

PL POLISH 109

PT PORTUGUESE 127

RU RUSSIAN 145

SV SWEDISH 16

ZH CHINESE 181

Important Safety Information andWarnings

1. Safety Information andWarnings

Before making any connections to your loudspeakers make sure that all active units in your system are switched off at the mains.

When switching on your sound system or changing input sources, set the main volume control at a low level. Turn up the level gradually.

NEVER play your sound system at full volume. The position of the volume control is deceptive and does not indicate the power level of the system. Using very high volume settings may damage your hearing.

1.1. Instructions

Read and understand these instructions before you use your loudspeakers. If damage is caused by failure to follow these instructions, the warranty will not apply. Please keep these instructions in a safe place.

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

DO NOT connect your loudspeaker terminals to the mains supply.

Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers that produce heat.

Only use attachments/accessories specified by the manufacturer.

Unplug this apparatus during lightning storms or when unused for long periods of time.

2. Unpacking your loudspeakers

Unpack the speakers fully. Lift the speakers from the cartons by holding the cabinets. Do not use the protective bags to lift them.

When manoeuvring loudspeakers, do not drag them across the floor as this may cause damage - lift each speaker before moving it.

Check the loudspeaker carefully. If any items are damaged or missing, report this to your retailer as soon as possible.

Retain the packaging for future transport. If you dispose of the packaging, please do so following all recycling regulations in your area.

3. Installation

• Only use the accessories supplied with the product.
• To prevent injury, this apparatus must be securely mounted onto the floor in accordance with the installation instructions.
• Do not use makeshift stands. Fit the Q Acoustics dedicated stand according to the instructions and using any fixings provided. Your dealer will advise you.
• If you play your loudspeakers without their grilles fitted, be careful to protect the drive units from damage.
• DO NOT dismantle the loudspeaker. You will invalidate the warranty.
• Do not connect your loudspeaker terminals to the mains supply.
• Do not expose your loudspeakers to excessive cold, heat, humidity or sunlight.
• The use of this apparatus is indicated for tropical and/or moderate climates.

3.1. Moisture

• To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain, moisture, dripping or splashing.
• Do not use this apparatus near water.

3.2. Servicing

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

4.0. Symbols used on this product Hazard Warning Symbol

The 'exclamation mark' calls attention to features for which you should read this manual closely to prevent operation and maintenance problems.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

Waste Electrical and Electronic Equipment Symbol

This symbol indicates that when the unit is to be discarded, it must be separated from other household-type waste and sent to separate collection facilities for recovery and recycling of electrical and electronic equipment.

Please make sure you are familiar with your local rules on the separate collection of electrical and electronic products.

Introduction

Thank you for purchasing Q Acoustics.

This manual is intended to take you through setup and installation and will help provide optimum performance from the product.

Please read the instructions, important safety information and warnings carefully before installation and use, to ensure the safe and satisfactory operation of this product.

The Q Acoustics 3000i series is a range of loudspeakers designed to meet the highest expectations of dedicated 2-channel audiophiles and discerning movie enthusiasts.

The range comprises:

3010i: Compact bookshelf speaker with a 100 mm (4.0 inches) bass driver.
3020i: Bookshelf speaker with a 125 mm (5.0 inches) bass driver.
3050i: Floorstander with 2 × 165 mm (6.5 inches) bass drivers.
3060S: 150 Watt active subwoofer with a 200mm (8.0 inches) driver.
3090Ci: Centre channel with 2 × 100 mm (4.0 inches) bass drivers.

In the carton you will find: The loudspeaker/s and this product manual.

In addition the packing for the following models contains:
3050i: Rear stabiliser, spikes and spike covers for each speaker. An Allen key to adjust the spikes once fitted.
3060S: A mains power cord or cords, spikes and spike covers.
Check the product carefully. If any items are damaged or missing, report this to your dealer as soon as possible.

We hope you enjoy the Q Acoustics experience.

Preparation

Lift the speakers from the cartons by holding the cabinets. Do not touch the driver units or use the protective bags to lift them. The 3050i and 3060S are heavy - get assistance to lift them if necessary.

Foam Bung

The 3000i series speakers are rear ported and designed to work best with some space behind them i.e. 200mm or so away from a wall. If you position your speakers close to a wall / corner then the foam bungs should be inserted into the rear ports or there could be too much bass.

Ensure the bungs are fitted snugly into the port without inserting them too far. You will find the level of bass is reduced but definition and bass extension is increased. Experiment to see what you prefer and try making small changes to the position of the speaker to optimise the final result.

Spikes are sharp. Exercise care!

Never place a spiked loudspeaker where it can cause damage!

Always move your loudspeakers by lifting them - never drag them!

3050i - Attach the rear stabiliser

Thread the spikes fitted with locking nuts half way into the base and return the loudspeaker to the upright position. (If you have a wood or stone floor push a spike protector over each spike before turning the speaker upright) When the speaker is the right way up, insert the Allen key into each rear spike from the top and adjust all the spikes in and out until the loudspeaker is level and stable.

Use screws provided to secure feet as shown.

Positioning

All the loudspeakers may be operated close to TV monitors with no ill-effects with the exception of the 3060S which should not be operated within 500mm of TV screens monitors or other magnetically sensitive equipment. Plasma and LCD screens are unaffected.

3010i and 3020i

The 3010i and 3020i are ideally mounted on Q Acoustics floor stands or wall mounted. If you are stand mounting, a simple guide is that the treble unit should be at ear level to a seated listener. Wall mounted speakers may be mounted sl lighter higher with the speaker angled down. Stand mounted speakers should be treated as floorstanding speakers except that the speaker may be placed a little closer to the back wall. Shelf mounting is also possible.

An optional bracket designed specifically to wall mount the Q Acoustics 3010i, 3020i and 3090Ci is available from your dealer. Floor stands for the 3010i and 3020i are also available. Be prepared to experiment to find the best setup for your taste in your particular listening room.

3050i

The 3050i loudspeakers should be positioned at least 200mm from a back wall and 500mm from the side walls. Placing the speakers closer to the wall will increase bass but could cause the sound to boom and lack precision and detail. The speakers should be 2m - 4m apart and central to the seated listener. Turning the speakers slightly inwards will sharpen a stereo image but may cause narrowing of the sound source.

Subwoofer

Bass frequencies are substantially omni directional. Although this means that you can position the subwoofer almost anywhere, the stereo image will still benefit by positioning the subwoofer level with the front loudspeakers and as central to the listening position as possible. This may not be feasible in a multichannel system. If you place the subwoofer close to a wall the bass will be re-enforced therefore in some locations the bass may be boomy and indistinct.

Effects loudspeakers

3090Ci

The 3090Ci is designed to be operated close to a TV screen and central to it. It should be placed immediately above or below the screen. If you have a Plasma or LCD monitor, mount the 3090Ci to the wall or other suitable surface immediately above or below the screen using the Q Acoustics Wall Bracket. If not, consider placing the TV on a cabinet with the 3090Ci on a secure shelf immediately below the TV.

Dolby and the double-D symbol are trade marks of Dolby Laboratories.

Surround Speakers

There are recommendations from Dolby labs for 5.1 effects speakers. Surround speakers should be mounted on either side of the listener, slightly behind the listening position. The speakers should be sited facing inward either mounted on the side walls of the room or if the room is large, on high stands and with their centres above ear level to a seated listener.

For overhead speakers used in multi-channel installations we recommend the Q Acoustics Install range.

Connections

Before making any connections to your loudspeakers make sure that all active units in your system are switched off at the mains. When switching on your sound system or changing input sources, set the main volume control at a low level. Turn up the level gradually.

Terminals and Connectors

The 3010i, 3020i, 3050i and 3090Ci have standard two terminal crossovers.

3010i, 3020i & 3050i & 3090Ci

Loudspeaker Cables

Specialist loudspeaker cables will offer a higher standard of reproduction than general purpose 'bell' or 'zip' wire. Use cable with generous amounts of copper for the front and centre channels. Thin cables reduce the bass and restrict the dynamic range. Surround (rear) channels are less critical.

Speaker cable has a stripe or tracer along one core. By convention this is connected to the positive terminals. The cables connecting the amplifier to the front loudspeakers should ideally be the same length. Never join cables - use complete lengths.

Preparing Cables

Split the cable to a depth of about 40mm . Bare the wire to a depth of 10mm and twist the ends to gather any stray wires. Crop the cable leaving 7mm of bare wire exposed.

Connecting a Terminal

Unscrew the terminal anticlockwise to expose the mounting hole in the base of the terminal column.

Insert the bare end of the cable into the hole. Retighten the terminal fully hand tight. Make sure there are no stray wires which could touch adjacent terminals. In the EU it is against safety regulations to use 4mm loudspeaker plugs.

Stereo Connections

Standard Connections

Connect the RED (+) terminal of the RIGHT loudspeaker to the RED, Positive (+) terminal on the RIGHT channel of the amplifier. Connect the BLACK (-) terminal of the loudspeaker to the matching BLACK, Negative (-) terminal of the amplifier. Repeat this procedure for the LEFT channel.

Standard Wiring:

Aftercare

Cabinet Care

Clean cabinets only with a lightly dampened cloth. Do not use solvent based cleaning materials. Never use abrasives of any kind.

The cabinet surfaces will usually only require light dusting. Should an aerosol or other cleaner be used, apply the cleaner onto the cloth first and not directly onto the product. Test a small area first, as some cleaning products may damage the finish. Avoid products that are abrasive, or contain acid or alkaline agents. Do not use any cleaning materials on the drive units and avoid touching them as damage may result.

Grilles

Grilles should only be cleaned using a soft brush when necessary.

If using the Q Acoustics speaker with the grilles removed, remember to replace them if pets or children are present.

Drive Units

Do not touch the drive units as they are easily damaged when exposed.

Warranty

Q Acoustics passive loudspeaker products are warranted free of defects in materials and workmanship for a period of 4 years (1 year for subwoofer) from the date of purchase. During the warranty period Q Acoustics will, at its option, repair or replace any product found to be faulty after inspection by the company or its appointed distributor or agent.

Misuse and fair wear and tear are not covered by warranty.

Goods for repair should in the first instance be returned to the supplying dealer. If this is not possible contact Q Acoustics or their appointed distributor for your area to determine the correct warranty procedure. If possible the original packaging should be used to return the product as damage sustained during transit to the repair centre is not covered by the warranty. The warranty does not in any way affect your legal rights.

Warranty can be extended to 5 years (2 years for subwoofer) by registering your product at www.qacoustics.co.uk/register.

For service information contact: [e-mail]

Q Acoustics

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, UK

CM23 5GZ

Accessories

Wall Bracket (Single)

3010i / 3020i / 3090Ci

Black and White

Dimensions (WxHxD): 70 x 159 x 99 mm

Speaker Stand (Pair)

3010i / 3020i

Black and White

Subwoofer Wall Bracket

3060S

Black

Dimensions (WxHxD): 250 x 682 x 290 mm Dimensions (WxHxD): 422 x 222 x 163 mm

Passive Loudspeakers

Enclosure type:

Bass unit:

Treble unit:

Frequency response (+3dB, - 6dB)

Average impedance:

Minimum impedance:

Sensitivity (2.83v@1m):

Stereo amplifier power:

AV receiver power (2 ch. driven):

Crossover frequency:

Effective volume:

Enclosure dimensions (WxHxD):

(inc. grille, terminal and feet)

Enclosure width:

Weight (per speaker):

3010i

2-wayreflex

100 mm (4.0 in)

22 mm (0.9 in)

65 Hz - 30 kHz

6Ω

4Ω

86 dB

15-75W

50-125W

2.6 kHz

4.0 L (244 cu in)

150 × 253 × 252 mm

(5.9× 10.0× 10.0 in)

4.1 kg (9.0 lbs)

3020i

2-wayreflex

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6Ω

4Ω

88 dB

25-75W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170 × 278 × 282 mm

(6.7× 11.0× 11.1 in)

5.5 kg (12.1 lbs)

Active Subwoofer

Enclosure type:

Bass unit:

Amplifier power:

Frequency response (+3dB, - 6dB)

Crossover frequency:

Effective volume:

Enclosure dimensions (WxHxD):

Weight:

3060S

Infinite baffle

200 mm (8.0 in)

150 W Class-D

35 Hz - 250 Hz

35 Hz - 250 Hz (var.)

10.6 L (647 cu in)

480 × 300 × 150 ~mm (18.9 × 11.8 × 5.9 in)

324 mm (12.7 in) inc. spikes

8.5 kg (18.7 lbs)

3050i

2-wayreflex

2 × 165 ~mm (6.5 in)

22 mm (0.9 in)

44 Hz - 30 kHz

6Ω

4Ω

91 dB

25 - 180 W

50-165W

2.5 kHz

32.4 L (1977 cu in)

310 × 1020 × 310 ~mm

(12.2× 40.1× 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

2-wayreflex

2 × 100 ~mm (4.0 in)

22 mm (0.9 in)

75 Hz - 30 kHz

6Ω

4Ω

89 dB

25 - 100 W

50-165W

2.7 kHz

6.6 L (403 cu in)

430× 152× 216mm

(16.9× 6.0× 8.5 in)

6.0 kg (13.2 lbs)

ACOUSTICS

QACOUSTICS.CO.UK

ACOUSTICS

EN ENGLISH 01
DE	DEUTSCH	19
ES	ESPÁÑOL	37
FR	FRENCH 55
IT	ITALIAN 73
NL	DUTCH 91
PL	POLISH 109
PT	PORTUGUESE 127
RU	RUSSIAN 145
SV	SWEDISH 16
ZH	CHINESE 181

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, UK

CM23 5GZ

Zubehör

6.0kg (13.2 lbs)

ACOUSTICS

QACOUSTICS.CO.UK

ACOUSTICS

EN ENGLISH 01
DE GERMAN 19
ES ESPANOL 37
FR FRENCH 55
IT ITALIAN 73
NL DUTCH 91
PL POLISH 109
PT PORTUGUESE 127
RU RUSSIAN 145
SV SWEDISH 16
ZH CHINESE 181

Q Acoustics
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, Reino Unido
CM23 5GZ

Accesorios

(5.9 x 10.0 x 10.0 in)

4.1 kg (9.0 lbs)

3020i

Reflejo de 2 vías

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6Ω

4Ω

88dB

25-75W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170× 278× 282mm

(6.7× 11.0× 11.1 in)

5.5 kg (12.1 lbs)

Subwoofer activo:

Tipode caja:

Unidad de graves:

6.0kg (13.2 lbs)

ACOUSTICS

QACOUSTICS.CO.UK

ACOUSTICS

FR	FRANÇAIS	0
DE	ALLEMAND	1
ES	ESPAGNOL	2
FR	FRANÇAIS	5
IT	ITALIEN	73
NL	NÉERLANDAIS	91
PL	POLONAIS	3
PT	PORTUGAIS	127
RU	RUSSE	145
SV	SUÉDOIS	163
ZH	CHINOIS	181

www.qacoustics.co.uk/register.

Stortford Hall Industrial Park

Support mural (simple)

3010i / 3020i / 3090Ci

Noir et blanc

Dimensions (L× H× P) .. 70× 159× 99mm

(5.9 x 10.0 x 10.0 in)

4.1 kg (9.0 lbs)

3020i

Reflex 2 voies

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6Ω

4Ω

88 dB

25-75W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170 × 278 × 282 ~mm

(6.7× 11.0× 11.1 in)

5.5 kg (12.1 lbs)

Q Acoustics
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, Regno Unito
CM23 5GZ

Accessor

(5.9 x 10.0 x 10.0 in)

4.1 kg (9.0 lbs)

3020i

Reflex a 2 vie

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6Ω

4Ω

88 dB

25-75W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170 × 278 × 282 ~mm

(6.7× 11.0× 11.1 in)

5.5 kg (12.1 lbs)

Subwoofer attivo

Tipoinvolucro:

Unità bassi (mm):

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, GB

CM23 5GZ

Accessoires

Wandbeugel (1 stuk)

3010i / 3020i / 3090Ci

Zwart en wit

Afmetingen (B× H× D) .. 70× 159× 99mm

(5.9 × 10.0 × 10.0 in)

4.1 kg (9.0 lbs)

3020i

2-wegsreflex

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6Ω

4Ω

88 dB

25-75W

50-125W

2.4 kHz

6.1 L (372 cu in)

170× 278× 282mm

(6.7× 11.0× 11.1 in)

5.5 kg (12.1 lbs)

Achieve subwoofer

Behuizingstype:

Baseenheid:

Versterkervermogen:

Frequentierresponds (+3dB, - 6dB)

Crossover-frequentie:

Effectief volume:

www.qacoustics.co.uk/register.

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, Wielka Brytania

CM23 5GZ

Akcesoria

(5.9 x 10.0 x 10.0 in)

4.1 kg (9.0 lbs)

3020i

6.0kg (13.2 lbs)

ACOUSTICS

QACOUSTICS.CO.UK

ACOUSTICS

EN	INGLÉS	01
DE	ALEMÃO	19
ES	ESPANHOL
FR	FRANCÉS	55
IT	ITALIANO	73
NL	HOLANDÉS
PL	POLACO	109
PT	PORTUGUES
RU	RUSSO	145
SV	SUECO	163
ZH	CHINÊS	181

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, UK

CM23 5GZ

Acessórios

Suporte de parede (unico)

3010i / 3020i / 3090Ci

Preto e bianco

Dimensoes (LxAxD): 70 × 159 × 99 ~mm

Suporte de altifalante (par)

3010i / 3020i

Preto e bianco

NL HNDEPJIAHIDCKNI 91

PL NONbCKN 109

PTIOPTUYAJIbCKH 127

RU PYCCKM 145

SV WIBEIDCKN 163

ZH KNTAUNCKN 181

BaxkhaHΦopMaIyOmepaX6e3oNaChocTINnnpedynpexKdEHH

1.Инфорmaцяо Мерх 6e3oNacHocTи npedynpeKdEHH

Ipeed noDKHueHnem KaKoro-Jn6o 60bOpyDobAHn K KOHOHKam y6eNTecb, YTO BCE pa6oOHe 6loKn BaWe nCCTEmbl OTKJIIOUeHbI OT 3JNeKTpUueCKo CETn.

Pn BKJIOUeHnn ayDIOOCNTMbl NnnepeKJIIOUeHnn nCTOUYHKOB BXODHBIX CnIHAnOB,ycTahOBnTe 06uN peyIaTOp rPOMKoCTn HaHN3Kn yPOBeHb. PObBIAaTe yPOBeHb rPOMKOCTnNoCTeNEHNO.

HINKOrIa He BkIoUaIte ayDIOscNCTeMy Ha NOHNyO rPOMKOCTb. PonoJKeHne peryIaTopa rPOMKoCTn MOKeT BBOITb B 3a6nyJKeHne n He yKa3bIbaET yPOBeHb MoUHOCTn CnIHana. NcNoIb3OBaHne OueHb BblCOKnx yPOBHeN rPOMKOCTn MOKeT IOBpeIITb BaIcLyX.

1.1.Инструкции

PpeKJe qem npntyntb K nCNoJIb3OBAHnIO dHaMnKOB, npoHTnte u npIMnTe K CBeDeHnIO daHHoe pyKOBoCTBO. TapaHTnAHHynpyeTcra, ecn IOBpeKJdeHne cNCTEmbl npOn3OuIIO no npunHe HecO6JIooHn IHNCTpyKcIy DaHHoro pyKOBoCTBa. XpaHnTe daHHoe pyKOBoCTBO B HaJeKHOM MecTe.

PpoHTaTe daHHyIO nHCTpyKcHIO.

CoxpaHnte daHHyIO uHCTpyKuHIO.

PpIMnTe K cBeDeHnIO Bce npEynpeJxDHeNIA.

CneyuTe Bcem yka3aHnma.

• He nCpOJIb3yIte 3TO O6OpUdOBaHne B6nI3N BOJbl. HE noDkIIOuAte nOIOca BaInx KOLOHOK K nITaIOSe cETn.

He yctaHaBnBaIte cnCTemy B6n3n nCTOuHKnOB TeNna, TaKnx KaK: 6aTapeu, pernctpbI OTOnJIeHnY, KxOHhbI pNTbl Nn Dpyrooe o6OpyDoBaHne (B TOM uCNe ycNInTeN), n3nyuaOoee TenNo.

IcnoJb3yIte NCKIOUHTeNbHO npucnocO6neHn/
DOnoJIHNTeNbHoe 06OpyDoBaHHe,
peKOMeHNDoBAHHbIe npON3BOdnteHm.

OTKIOUaIte O6OpyIOBaHHe OT cETN BO BpEMr rpo3bl NnB Cnyae, eCNI BbI He Co6npaTeCb IOnb3OBAbTcR Nm DInITeNbHOe BpEMr.

2.ИЗВLEЧЕНЕи3унakOBКИ

PoiHocTbIO paCnakyIte akCyTneCKyIO cnCTemy. 13BNeKaITe KOJOhKn n3

KapToHHbIX Kopo6OK, npudepXnBaa IX 3a Kopnyc. He nCnoIb3yIte 3aunTHbIe Yexbl IJra N3BneHnRA KOLOHOK.

EcnBbl 3axOTnTe nepemecNTb KOJOHKn, He BOLOHTe INx NO NOny, TaK KaK 3TO MOKeT NOBpeDnTB INX — npINoDHnMnTE KOJOHKn nepeI nepemeeHneM.

TuaTeJbHo npOBepBe KOJOnKn. Ecn KaKne-Jn6o DeTaJI NOTcyTCTByIOT INN NOBpeXKeHbI, COO6UInTe 06 3tOMy CBOemy dIepepy KaK MoKHO cKOpee.

CoxpaHnTe ynapOBky dny6dyuue B03MOxHO TpaHCnOpTnpOBKn. EcnBBypeWnte Bby6pocNTb ynapOBky, noXaanyIcTa, co6nIoJaTe deNCTBYUoee B BaSei CTpaHe 3aKOHoDaTeNbCTBO NO nepepa6OTke OTxoOob.

3.YctaHOBka

• IcnoIb3yIte ToJIbKO Te akceccyapbl, KOToPbIe NOCTaBJIOTc BMeCTe C N3dJIinem.
  -Bo n36exaHne TpaBM n NOBpeXdHn, daHHOye yCTPOINCTBO DOJXHO 6bITb HAdExHNO YcTAHO HeHa N0y B COOTBeTCTBnN C INHCTpyKqIaMn No yCTaHOBKe.
  He nCNoIb3yIte cAmOeIbHbIe NOdCTaBKn. YcTaHOBnTe CneuNaIbHyIO NOdCTaBKy npOn3BOJCTBa KOMnAHn Q Acoustics, cJeDy IHNCTpyKUIN N NCNoJIb3yI KpeNExHbIe DeTAlN, NdyUe B KOMnJIeKTe. Heo6xOIMyIO INΦOpMaUIO Bbl MoKeTe NOLyUHTb y BaWero DInIepa.
• EcIn Bbl Nolb3yeTeCb KOJIOHKaMn 6e3 3aUHTbIX CeTOK, N03a60bTecb O TOM, YTO6bl y3JIbI npNBOda He 6blnn NOBpeKdEhbl.
  HE pa36npaIte akcTnueckyIO cnCTemy. B npOTnBHom cnyae Bbl 6yTe IuWeHb npaba Ha rapaHTnHoe 6CnyKmBaHne.
  He coeHnHnTe BbIXOdbI Dnna NOkKIOUeHNn akyCTNueCKoCNCEmbl C CetBIO NITaHN.
  He noDBepraTe CNTeMy BO3DeICTBIOUpe3MepHbIX TemNepaTyp, NOBbiWeHHoBNlaXHOCTNI ININ PnMbIX COJHeuHbIX Lyuei.
  B DaHHOM pyKOBoDCTBe ONIcaHO npIMeHHeYcTPOINCTBa B TpONuYeCKOM n (nII) yMepeHHOM KJIIMate.

3.1.BlaXHocTb

He cnedyet noDBepraTb yCTpoiCTBO BO3deICTBnIO DoXJa, BlaRn, npocauBaIOSeIcra NN pa36pb3rNaIOSeIcra BObl BO n36exaHne BO3ropaHnN nn nopajEnn 3JIeKTPnuecknM

TOKOM.

• He nCnoB3yIte 3TO o6OpyOBAHnE B6n3N BOJbl.

3.2.TexHnueckoe 06cnyKuBaHne

Bce pa60tbI no TexHnueCKomy 06cnyKuBaHHIO DOJXhbl BbIINHrTbcra KBaIINΦUncpOBaHHbIM TexHnueCKm nepcoHaJOM. TexHnueCKoe 06cnyKuBaHne Heo6xOdImo B Cnyuae NOBpeKdEHHa OBOpdyOBaHH, nonadaHHa XNDKOCTNI DpyrNX PpeMeTOB BHyTp bOBOpdyOBaHH, BO3DeiCTBnI DojKJn IIn BnAri, c6oEB pa6ote ObOpdyOBaHH nI erO naEHn.

4.0.CmBBoJIbHa n3JeJIN

CmboJ npdeynpejckdneHn 06 onachoTn

CnMBOJ 《BOCKNluaTeIbHbI 3HaK》 yka3bIbaeT Ha HeKOToPbIe npaMeTpbl, ONncAHbIe B DaHHOM pykoBoDCTBe; Heo6xOIM IJI ppeOnTbpauenceH

npo6JIeM Ba6Ote N TexHnueCKOM 06CnyKnBaHN.

BHIMAHHE! Bo n36eXaHne nopaxeHHn əJIeKTPnueckn m TOKOM, y6eIntecb, yTO wnpHa IaIKN BnIKN IOxOJNT K WnPnHe rHe3d p03eTKn, IN BnIKa IONHOCTbIO BCTaBIAReTcB P03eTKy.

CnBON «OTxoDbl 3JIeKtpnueckoro n 3JIeKtpoHnHO o6OpydoBaHnra

JaHHbI CNMBOJ yKa3bIbAeT Ha TO, yTO yCTpOJIcTBO DOJXHO 6bITb yTNIN3nPOBaHO OTdEJIbHOOT 6bITOBOROMycopa N OTnpaBHeHO Ha CneuHaUN3nPOBaHHbI NyHKT c6opa dJa yTNIN3aUIM IN nepepa6OTKn OTxODOB 3JeKTPnueckoro IN 3JeKTKPOHOro 6OpyDoBaHn.

063aTeIbHo 03HaKOMbTecb C npabnIamn pa3JeIbHOyTIN3aUN 3JIeKTpUeCKNX N3JeKTPOHHbIX N3DeN, DeIcTBYIOUMN B BaWem perNoHe.

Bveedenne

Blaorodapm Bac 3a npno6peHne npodykun Q Acoustics!

Данhoe руковдъ ВО npedHa3HaueH ДЯ TOTO,ЧTOбI NOMOчь Bam OCyIeCTBnTb yCTaHOBky I NaCTpoiKу akystupecko CnCTembl. OHO nOMOKeT Bam NOJyHTb ONTImaJIbHbIe TexHnueckne xapaKTepnCTNKI npodykta.

UTo6bI o6ecneuHb 6e3OnacHyIO uYOBnTeBOpHTeNbHyIO pa6Oy cnCTembl, NOXaLyNCTa, nepeyUcTaHOBko I EKcnNyataqneB BHNMaTeNbHO npouHTaIe 3Ty INHCTpyKcuIO, BaxHyIO INHΦopMaCNUO nO TexHnke 6e3OnacNoCTn I npedynpexJdEHH.

Cepnia 3000i npoun3BODCTBa KOMnHnQ Acoustics npedctabnreT co6oJnHeKy aKycTnecknx CnCTem, pa3pa6OtaHHbIX nIra TORo, UTO6bl OnpaBdaTb CaMbIe BbICOKNe OxNJaHn IIObTeJIe NByXKaHaNbHO akCyCTNKI uAaryHn HAn6OJIee B3bICKaTeJIbHbIX KNHOMaHOB.

JaHHaIINHeKa BkIouaet Bce6cJeDyUOne MoeJI:

MoeIb 3010i: KomnakTHaNoLOOHKa KOLOHka C MOUHBIM 100-MuJIINMeTpOBbIM (4,0 IIOMa) HN3KOaCTOTHbIM DnHaMVKOM.

MoIeIb 3020i: IonoUHnA KOLOHka c MoUHbIM 125-MuJIImMeTpOBbIM (5,0 JIOMa) Hn3KOaCTOTHbIM dINHaMnKOM.

MoJIb 3050i: HanoIbHaa akCyIuecka cnCTema C dBMy MoUHbIMn 165-MuIIImeTpObIMn (6,5 IIOma) HN3KOaCTOTHbIMn DInHaMnKamn.

MoIeIb 3060S: AKTuBhI ca6Byep MoUHocTbIO 150 Bt c DByMra 200-MnJIImMeTpObIMn (8,0 IIOMa) dINHaMnKaMn.

MoIeIb 3090Ci: LcHtpaIbHbI KaHaJI c DByMa MOUHbIMn 100-MuJIImMeTpOBbIMn (4,0 dIOMa) HN3KOaCTOTHbIMn DnHaMnKaMn.

B KapToHNo yNaKOBKe Bbl HaIeTe KOIoHKn I daHHe pyKOBoDCTBO NO 3KcIyatauN.

Kpome Toro, ynapokbka cneyuoux MoJeNe coepknt:

Modelb 3050i: Cta6nna3atop dny 3aHne yactn, uuui n o6motka dny uunne Jkaoon KoONKn.

UectnirpaHbI KIOU dIy 3aKpeIeHn yCTaHOBJIeHHbIX IINJIeN.

Moenb 3060S: Hpybl nntaHn, nnu n o6mOTKn nnneJ.

BHHMaTeNbHo npOBepbTe n3dEne. B cnyae ecn KaKne-ln6o DeTaN OTCyTCTBYOT nn NIOBpeXeHbl, COO6uNTe o6 3tOMy CBOEmy dInJepy KaK MoXHO CKopee.

Haedeemc, yTo Bbl noJyUHTe ydoBOLbCTBne O T nCnoIb3ObaHn npOdyKuN Q Acoustics.

POnDrToBka

I3BleKaIte KOLOHKn I3 KapTOHbIX KOpO6K, npInepKnBaJnx 3a Kopnyc. He npKacaiTecb K npEkoHcHbIM Kackaam nn NcNOnb3yJTe 3aunTHbe yexJIbI npn nx n3BneHem. Modenn 3050i n 3060S TjKeIbe: npn Heo6xOdMocTn nonpocnte Koro-H6yDb nomoub Bam.

Ipo6ka n3 nehonlaacta

KoHKn cepN 3000i oHaueHb 3aHnMn nopTaMn I Nyuwe Bcero paOtaIOT B yCIOBnAx, KOrda 3a HmN NMeetc HekOTOpoe npocTpaHCTBO, TO eCTb OKOJIO 20 cm do cTeHb. Ecn BBpacnoJoxKe KOHOKN 6n3KO K cTeHe/yrny, Heo6xOJIMO 6yDet BCTaBntb B 3aHnne NOPtbl NeHONJaCTOBble IpO6Kn, INaue MoKeT NOBtCB CInlKOM MHOrO Hn3KnX YaCTOT.

Y6eNTecb, yTO npo6Kn NIOtHO CnT B nOpTaX He BCTabIeHbI CnIuKOM rIy6Oko. Bbl ObHApjxnte, YTO yPOBeH H3Knx YAcTOT NOHN3NtC, HO npi ATOM NOBicNTcA YeTKoCTb I CTeNeHb rIy6uHbI 6aca. 3KcnePmeHTpyuTe NdoNBaIteCb HxHoro Bam 3ByaHn. JnI DaOCTNXeHn ONTMaJIbHORO KOHeUHOr pe3yJbTata npo6ynte BHOCNTb He6oNbIe N3MeHeHn B paCNOJoxHeN KONOHOK.

UHnnn Oueh bocptbe. BydbTe octopoxKbI!

HnkOrda He cTabbTe KOLOhky Ha 7nnIax TaM, rJe OHI MoryT UTo-JIn6o NOBpeDntb!

IpepeMaTe KOJIOHKn Bcerda No BO3dyxu HnKOrJa He BOIoUHTe nx no NOBepxHocTAm!

IcnoB3ynte BnHTbI dna 3akpenneHn HOKe, Ka kya3aHO Ha KaptnHke.

BceMn AkyCTHHeKMM OACTeMaMM MOKHO NOnb3OBaTbCpaDc M TeneBVOHbIM MoHITopAM6 Be3 KaKOro-ImoBpeHOrO Bo3deJCTBaN, KpOMeMoDen 3060S,KOTpyHO HepeKMeHyETORA KOTNYATIpObaTb Ha pacToHHm Mehee 500 MM OT EkaHa TeneBVOpa MM DpyTORo MarHHTOyBCTBVTeBHoro 06OpyDobAHr. PnaMeHHbIeXKK-EkpaHbTaKaKeHe NoeppeKHeBbPeHMy Bo3deYCTBVo.

3010i n 3020i

KoONKn 3010i n 3020i ndaealbno noxodT dny yctahOBKn Ha hanoNbHbe noCTabKn Q Acoustics nn MOHTaKa Ha cTeHy. Ecn Bbl npOn3BOOIne MOHTaK Ha noCTabKn, co6JIouaIte npocToe npabnlo: 6nok, OTBeauoJn 3a nepeDaay BePxHnx qactOT,doJKeH HaxODntBcra Ha ypOBHe rOIOBbl CnJaUeO CnyuataJe. KOONKn, MoHTnpyEmble Ha cTeHy, moXHO paCNOLOXkTb HEMHoro Bblwe, ecN INx CnerKa HaKNOHTb. KOONKn, MOHTnpyEmble Ha noCTabKn, cNeDyeTpaccMaTpNBt KaK HAnOJBhle KOLOHKn, 3a NCKLIOueHne TOrO, UTO INx MOxHO paCNOLOXkTb HEMHoro 6bnke K 3aJHe n CTHe. Bo3MOxH TaKke MOHTaK Ha NOKN.

y Baawero Dnnepea HMeetcB HAnuyn OnuHaBbNo NoCTabIeMbY KPOHHTeH, CneuaNbHO pa3pa6oTaHHbI dny MoTataHa cTeHy KOLOHOK Q Acoustics 3010i, 3020i n 3090Ci. ImeOTc TaKxe HaONbHle NODCTABKn dny Modenei 3010i n 3020i. BybTe roTOBbl EKcnepmuENTnpoBaT B NOnCKe HauNyUwero Ha BaW BKyc pacnoLoXeHn KOLOHK B KOHKpeTHOM, Bb6paHHOM Bamn NOMEueHN.

3050i

KoONK 3050i cneNyet paONIOXNTb MNHmym B 20 CM OT 3aHHe CTHeBn B 50 CM OT 6OKOBbIX CTeH. Pa3MeueHne KOLOHOK 6nHexe K CTHe YcNlHT Hn3Kne qactOTbl, HO MOKe Bbl3BaTb rJI n HeueTKOCTb 3Byka. KOONK IOnXhbl HaxODntbcra B2-4 MeTpax dpyr OT dpyra N CBOHMn ceHTpamn o6paataBcra K cnJaIeMy cnUwateJIIO. He6OJbWoi NOBOPOT KOLOHOK fpoNTaJIbHBIMN CTOpOHAMN

ДргКдругсделаetчteстpeOKapTNHy, HO MOжTe «Cy3NTb»ИСТоЧнК 3ByKa.

Ca6ByΦep

Hn3Kne 3ByKOBBie qactotb B OCHOBHom OINHaKObb IO BCem HappaBHeHm. XOTa 3TO O3Haayet, YTO Bbl MOKeTe yCTaHOBtB BAI sC6Byepe npakTueckn B IIO6OM MeCTe, BCE JcE 3ByKOBA KapTHa 6ydet lyuwe, ECNI Bbl yCTaHOBtCe C6Byeep Ha yPOBHe NpepHnx DInHAMKOB n, HACKOBko BO3MOxHO, NO cHTpy OT PO3NcN CNyTaTeJ. B MHOrOkaHAbHoN CnCTeme 3TO MOKeT 6bITb HeocUeCTBmO. EcNI Bbl NoCTaBtE ca6Byeep 6nI3KO K CTeHe, TO HIXKHe 3ByKOBBie qactotb MOry TycNJITbcra N IO3TOMy B HeKOTOpbIX MecTAX 3BYK MoKeT CTAb HeueTKIM.

KoHKnIynepeaun 3ByKObblx 00

3090Ci

KoNoHka 3090Ci npedHa3HaueHa dna pa6ObI B6n3n TeEaKpaHa n pa3Meuen no ero ceHTpaBHO cn. Ee cneJyET pa3MeCTnb HenocpeDCTBeHHo HAD kpaHom nn Nn NDn. Ecnn y Bac nla3MeHHb nn KK-MoHtOp, MoHTpyNe KOOnHKy 3090Ci Ha CteHy nn Dpyryo NpOxDaYIO NOBepxHocTb HeNocpeDCTBeHHo HAD kpaHom nn Nn NDn NpN NOMuN HAcTeHHoro KpOHsteHa Q-Acoustics. B npOTNBOM cnyae NoymaTe O pa3MeueHN TeLEBn3Opa Ha CTnJaX, Ha KOToPbMoXHo 6yDet TaKke NoCTABtB n KoOnHKy 3090Ci (Ha npouHy oonky HenocpeDCTBeHHo ND TbeBn3Opom).

Cnmbolbl Dolby n DD -3To Toprobble Mapkn KOMnaHnn Dolby Laboratories.

Akyctnuecka cnctema 06bemHoro 3ByaHna

Kompanna Dolby daet cneyuounpekomeHdaunn B OTHOseHnn ayinocntembl napepaun 3ofoektob 5.1. KonoHkn dnypepaun o6bemHoro 3Byka cneuyet MOHTnpOBaTb no 6okam OT cnuwateJn HEMHORO c3aHn Hero. KonoHkn cneuyet NOBepHyb npyr Kdpyrg, npocTo pa3MeCTNB INx Ha 6OKOBbIX CTehax NOMeHnIHN, ecnn NOMEUeHne CNIWKOM BENko, Ha BBICOKNX IOdctabKax. Ppr 3tOM cneDyET paCNOJoxNTb ceHTpbI KOLOHOK Bbiwe ypOBHr rONOBbl cnJaueero cnuwateJn.

ДяnotOnoUHbIX KOJIOHOK, KOTOpbIe IcNoIb3yIOTcДЯ MHorOkaHaJIbHbIX yCTaHOBOK, Mbl peKOMeHdyem accOPTIMeHTyCTaHOBOuHORo kpenexa Q Acoustics.

CoeinnHeHn

Ipeep noKIOHnEM KAKORO-JIO6O 06OpDobAHnK KOONKaM y6eNTecb, YTO Bce pa6oue 6noKn Baew CnCTembl OTKIOUeHbI OT 3JeKTPnueckoCetn. Ppi BKIOUeHN ayIOOCCTembl Nn IpeKIOUeHm INTOOHNKB BXODhBx CNHaJIOB, YCTaHOBtE O6uim peyIaTOp rPOMKocTN Ha Hn3KNYpOBHe. NObbuaTe yPObEh rPOMKcTn NOCTeNEHO.

PonocncoeHHTeJI

KoNoHKn 3010i, 3020i, 3050i n 3090Ci oshauehbl CTaHdapTHbIMn KpoccoBepamc DByMa NOIocAmN.

3010i, 3020i, 3050i, 3090Ci

Akyctnueckne ka6einn

CneuHaun3nupoBaHHbIe akyCTnueckNe Ka6eNIO bcncpeuHbAOT 6OJe BBICOKN CTaHdAPT BOCnpOn3BeDeHn, Yem Ka6eNIO o6Uero Ha3NaueHnra Tnna "bell" (ToHKne I nPLOXo N3oJnupoBaHHbIe Ka6eN) nn "zip" (DbYxKnlbHbIe Ka6eNc pa3dennTeNbHbIM OCHOBHnEM).ДЯ nepeHrero n cHTpaNBHO rKaHaONB INcNoJIb3yIte Ka6eNc b 6OJbShIM KOnNUcEcbOM Mei. ToHKne Ka6eNc cOKpaUaOT Hn3Kne qACTOTbl N orpAnuHbAOT dInHaMnueckn dnaIa3OH. MeHbWee 3NaueHne irpaIoT KaHaJIb IOsbEmHOrO 3ByaHnra (3aHNHe).

Akyctnueckn Ka6eIb Imeet noLocKy IIN MeTKy BdoJIb OndHO Ka6eIbHO JxNbl. IIO npaBnIam erO HyXHo NpOKnIOuATb K NOLOKITeJIbHbIM NOnIOcAM. Ka6eI, NODKIIOUaIOUne ycNIteJIb K nepeHNM KOIOHKaM, B INeane DOnJHbI 6bITb OOnHaKOBOI dInHbI. HNKoRda He coeDNHrTe Ka6eJIb n3 HeCKONbKnx OTpe3KOB — BCerDa NcNoJIb3yIte cElyB Ka6eJIb.

IpoTobKa Ka6eNei

Pacuente Knlb Ka6eHa rny6nHy Okono 40 MM. OroInTe KOHeu KaKdoi Xnlb Ha rny6nHy 10 MM n cKpynte erO, TTo6bl C6paTb B CEJeoe BCE Topaune B CTOpOHb IpOBoDNk. POnpeXbTe oroneHHyU qactb Ka6eNo dnnHb7 MM.

IopknHueHne noJIOca

OTKpyTnte nonoc npotnb yacoboi ctpeNk nIra TORO,TO6bl CTaIO BNDHO MOHTaxHoe OTBepCTne BOCHOBAHNI KOLOHKn NOIocA.

BctabbTe oroIeHHbIKOHeu Ka6eJI B OTBepCTne. 3aKpyTnte noIIOc pyKo Ido otKa3a.Y6eIntecb, YTO He NMeETcH NHKaIX Topuaux NPOBOIDKOB, KOtOpblc MoryT KacaTbcra CoceHNX NOnIOcOB.B EC INCNoB3OBaHnE 4-MnllNMeTPOBbIX WTeNCEJIbHbIX AkyCTNuueckNX BNLOK IpOTNBopeuyHT HopMaM 6e30NaCH

CtepeofoHnueckne coeDnHeHn

Ctahapthbce coeHHeHH

PoiKIOHnTE KAPCHbI (+) noIOc npaBOK KOIOHKn K KPACHOMY noIOXnTeBHOmy (+) noIOcy PPABOTo KaHana ycInTeJ. PoiKIOuHTe YEPHbI (-) noIOc KOIOHKn K COOTBeTCTByIOUeMy UEPHOmy, OtpuataeHOMy (-) noIOcy ycInTeJ. PpOJaTe Tj Xe npoUeDpy B OTHOseHm JIEBOTO KaHana.

CtAnapTha cnTeMa npoBoJIoB:

PoclenpoJauKHoe o6cIyXuBaHne

Yxoid3aKopnycom

Kopnyc MoXHO uHCTNtB ToIbKO cIeRka CMOeHHo CaJIeTko. He nCNoJb3yIte YIcTae Ie CpeDCTBa Ha OCHOBe pAcTBOpHTeJe. HIKoRa He nCNoJb3yIte a6pa3uBBbl.

KaK npabnlo, NOBepxHocTb KOpnyca Tpe6yeT ToIbKO JERKO OUcCTKN OT nbll. PpN NcNoIb3OBaHIn a3po30JbHoro nn KaKOro-ln6o DpyrOro UcTJeero CpeDCTBa HAnOCHTe rO Ha cAfoTeKy, a He Ha cAmo n3dEne. IJa Hauana NoPb6yIte YnCTaIe e CpeDCTBO Ha MaJIeHbKOM yAcTKe NOBepXHOCTu 3dEInra, TaK KaK HeKOToPbIE YnCTaIe CpeDCTBa MOrTy NOBpeDITb NOKpbItne. N36eraIte NcNoIb3OBaHIn a6pa3INBOv nn CpeDCTB, CoedePkaunx KncIoTHbe nn IIn IeNoUHbIe peAreHtbl. Bo n36exKaHne NOBpeXdEnn He NcNoIb3yIte YnCTaIe CpeDCTBa IIn YnCTKn rONOBok n He TporaiTe nx.

3aHTbIe cETKn

3aunthbte cetkn npn Heo6xodmoctn CneJeT uCTntb TOnbKO MrgKo 8eTKo.

EcnBbI nCnoJIb3yeTe CnCTeMbI Q Acoustics 6e3 3aunTHbIX CeTOK, 6o3aTeJbHO yCTaHaBnBaIte INx Ha MeCTO, KOrJa B KOMHaTe HaxoJrTcJeTIn NII DomaUHHe XJBOTHbIe.

y3nbl npB0da

K y3nam npuB0da lyuhe He npkacaTbca, TaK KaK nx IerKo NOBpeDntb.

TapaHTnA

Ha npodykuni KOMnAHN Q Acoustics npedocTabIeTc rapaHTnOCTBn IeEeKTOB C TOUKN 3peHn KaueCTBa MaTePnAIOB n N3rOToBneHn Cpokom Ha 4 roda (1 roD dny ca6Byeepa) c DaTbI npno6peTeHn. B TeueHne rapaHTnHOro cpoKa KOMnAHN Q Acoustics o6a3yeTc npoIN3BeCTn peMOHT nnn 3aMeHnTB n3denn, ecIn nocJe npoBeHn npOBepKn OHa nIn ee NaHaChuEHbI dNCTp6bHOTop nIn yNoJHMOueHHb InpedctabNTel b O6hApjXaT DeeEKT B npedocTabeHHOM Ha npOBepKy n3deHN.

TapaHTnHa pacnpoctpaHReTcHa HEnpaBnIbHOe IcNoJIb3OBAHne I eCTeCTBeHHbI u3HOC.

TobapbI dIpeMOHTa DOJXHbIB NepByIO OuepeB 6bITb BO3BpaUeHbI NOCTABUBWemy INx DnIepy. EcnI eTo He npedctabJIeTcB BO3MOXHbIM, CBJINTECb C Q Acoustics nII Ha3HaueHHbIM KOMpAHneI dNCTPb6bIOTOpOM dIra BaWero pRHOHa, UTO6bl ONpeDenITb PpaBnBHyO rapaHTnHyO npoEdupy. IIO BO3MOXHOCTn cIeDyET NCNOJb3OBaTb OPUNHaJIbHyO yNAKOBYI dIra BO3BpATA N3dJIYRA, TAK KaK Ha yUeP6, npuHNHeHHbI BO BpEMr TpaHCnOPTnpOBKn B ceHTp peMOHTa, He paCnpoCTpaHReTcraPaHTn. 3Ta rapaHTn HIKoIM o6pa3OM He BnREt Ha BaUn 3aKOHHbIe npaBA.

Cpok DeiCTBnra rapaHTn moXHo npOJnTb do 5 neT (2 roJa dIra ca6Byepa), 3aperncTpnpobab n3dennne
Ha Be6-CTpaHnue
www.qacoustics.co.uk/register.

Для получени Информаци O ТЕХИЧЕСКО M OБслУЖИВАПИ OБрацайТecь NO aДпесу ΝЛeКТрОНночы [e-mail]

Q Acoustics
Stortford Hall Industrial Park
Bishop Stortford, Xapтфордшир, Великовптуни CM23 5GZ

Приноалесноctи

HaTeHHbI KPOHHTeH (OdH)

3010i/3020i/3090Ci

UepHbI n 6ebbl

Pa3MepbI (UxBxΓ): 70 x 159 x 99 mm

CtoiKa dIy KOLOHOK (napa)

3010i/3020i

UepHbI n 6ebbl

HacteHHbI KPOHHTeH dna ca6Byfepa

3060S

UepHbI

Pa3Mepbl (LxxBxΓ): 250 x 682 x 290 mm Pa3Mepbl (LxxBxΓ): 422 x 222 x 163 mm

PaccNBbIe akyCTnueckne cntEmbl

Tun kopnyca:

BLOK HIXKHX YACTOT:

BLOK BepxHnx qactoT:

AMNITyHNo-chaTOTHa

xapaKTeepuctka (+3dB, - 6dB)

MnHmMaJIbHbIy mIeJaHc:

CpeDHee conpoTnBLeHne:

UyBCTBNTeJIbHOCTb (2,83V@1M):

MoIHOCTb CTpeOycNJNTeJIa:

MoIHHoCTb AV-pecNBepa (dByxKaHaJIbHbI)

Yactota KpoccoBepa:

Pa6ochn o6bem:

Pa3mepbIkopnyca (× × )

(BkIIOUapeWeTky,pa3bEmnHOxKn)

Unpna ukaa:

Bec (Ha cπιkep):

3010i

2-noIOChbIe c

100 mm (4.0 in)

22 mm (0.9 in)

65 Hz - 30 kHz

6Ω

4Ω

86 dB

15-75W

50-125W

2.6 kHz

4.0 L (244 cu in)

150 × 253 × 252 mm

(5.9× 10.0× 10.0 in)

4.1 kg (9.0 lbs)

3020i

2-NOIOChbIe C

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6Ω

4Ω

88 dB

25-75W

50-125W

2.4 kHz

6.1 L (372 cu in)

170× 278× 282mm

(6.7× 11.0× 11.1 in)

5.5 kg (12.1 lbs)

AKTNBbI ca6Byep

Tun Kopnyca:

BJOK HIXHINX YACTOT:

MoUHOCb yCUNITeJIa:

Yachotnha xapaKTepeNCTnka(+3 dB, -6 dB):

YacToTa KpoccoBepa:

Pa6ochn o6bem:

Pa3MepbI Kopnyca (XxBxΓ):

Bec:

3060S

BeckoHeHbI 3KpaH

200 mm (8.0 in)

150 W Class-D

35 Hz - 250 Hz

35 Hz - 250 Hz (var.)

10.6 L (647 cu in)

480 × 300 × 150 ~mm (18.9 × 11.8 × 5.9 in)

324 mm (12.7 in) Bknoa ynnn

8.5 kg (18.7 lbs)

3050i

2-NOIOCHbIe C

2 × 165 ~mm (6.5 in)

22 mm (0.9 in)

44 Hz - 30 kHz

6Ω

4Ω

91 dB

25-180W

50-165W

2.5 kHz

32.4 L (1977 cu in)

310 × 1020 × 310 ~mm

(12.2 × 40.1 × 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

2-nOIOChbIe C

2 × 100 ~mm (4.0 in)

22 mm (0.9 in)

75 Hz - 30 kHz

6Ω

4Ω

89 dB

25-100W

50-165W

2.7 kHz

6.6 L (403 cu in)

430 × 152 × 216 mm

(16.9× 6.0× 8.5 in)

6.0kg (13.2 lbs)

ACOUSTICS

QACOUSTICS.CO.UK

ACOUSTICS

3000i-serial

AGARMANUAL

EN	ENGELSKA	0
DE	TYSKA	19
ESSPANSKA37
FR	FRANSKA	55
IT	ITALIENSKA
NL	HOLLANDSDKA	91
PL	POLSKA	109
PT	PORTUGISISKA	127
RU	RYSKA	145
SV	SVENSKA	16
ZH	KINESISKA	1

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, UK

CM23 5GZ

Tillbehör

Vaggfaste (enkel)

3010i/3020i/3090Ci

Svart och vitt

Matt (BxHxD mm): 70 × 159 × 99 ~mm

Kabinettets matt (BxHxD mm):

Kabinettets matt (BxHxD):

Vikt:

3060S

Sluten lada

200 mm (8.0 in)

150 W Class-D

35 Hz - 250 Hz

35 Hz - 250 Hz (var.)

10.6 L (647 cu in)

480 × 300 × 150 ~mm (18.9 × 11.8 × 5.9 in)

324 mm (12.7 in) inkl. spikes

8.5 kg (18.7 lbs)

3050i

2-vagsreflex

2 × 165 ~mm (6.5 in)

22 mm (0.9 in)

44 Hz - 30 kHz

6Ω

4Ω

91 dB

25 - 180 W

50-165W

2.5 kHz

32.4 L (1977 cu in)

310 × 1020 × 310 ~mm

(12.2× 40.1× 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

2-vagsreflex

2 × 100 ~mm (4.0 in)

22 mm (0.9 in)

75 Hz - 30 kHz

6Ω

4Ω

89 dB

25 - 100 W

50-165W

2.7 kHz

6.6 L (403 cu in)

430× 152× 216mm

(16.9× 6.0× 8.5 in)

6.0kg (13.2 lbs)

ACOUSTICS

QACOUSTICS.CO.UK

Vär policy ar en kontinuereg likkortforbättring.

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, UK

CM23 5GZ

配件

壁架（单个）

3010i / 3020i / 3090Ci

黑与白

6.0kg (13.2 lbs)

ACOUSTICS

QACOUSTICS.CO.UK

JaHHaIINHeKa BkIouaet Bce6cJeDyUOne MoeJI:

MoeIb 3010i: KompaKTHaNoLOUHaN KOLOHKa C MOuHbIM 100-MuJIIMeTpObBIM (4,0 IIOMa) Hn3KOaCTOTHbIM DnHaMVKOM.

MoIeIb 3020i: IonoUHnA KOLOHka c MoUHbIM 125-MuJIInMeTpOBoBIM (5,0 JIOIma) Hn3KOuaCTOTHbIM DnHaMnKOM.

MoJIb 3050i: HanoIbHa akyCTnuecka cnCTema C DByMa MoUHbIMN 165-MuIIImeTpObIMN (6,5 IIOma) HIN3KOaCTOTHbIMN dINHaMnKamn.

MoIeIb 3060S: AKTuBhI ca6Byep MoUHocTbIO 150 Bt c DByMra 200-MnJIImMeTpObIMn (8,0 IIOMa) dINHaMnKaMn.

MoIeIb 3090Ci: LcHtpaIbHbI KaHaJI c DByMa MOUHbIMn 100-MuJIImMeTpOBbIMn (4,0 dIOMa) HN3KOaCTOTHbIMn DnHaMnKaMn.

B KapToHNo yNaKOBKe Bbl HaIeTe KOIoHKn I daHHe pyKOBoDcTBo NO 3KcnIyatauN.

Kpome Toro, ynapokbka cneyuoux MoJeNe coepknt:

Modelb 3050i: Cta6nna3atop dny 3aHne yactn, uuui n o6motka dny uunne Jkaoon KoONKn.

UectnirpaHbI KIOU dIy 3aKpeIeHn yCTaHOBJIeHHbIX IINJIe.

Moenb 3060S: Hpybl nntaHn, nnu n o6mOTKn nnneJ.

BHHMaTeNbHo npOBepbTe n3dEne. B cnyae ecn KaKne-ln6o DeTaN OTCyTCTBYOT nn NIOBpeXeHbl, coo6uTe o6 3tOMy CBOEmy dInJepy KaK MoXHO CKopee.

Haedeemc, yTo Bbl noJyUHTe ydoBOLbCTBne O T nCnoIb3ObaHn npOdyKuN Q Acoustics.

Poirotobka

I3BleKaIte KOLOHKn I3 KapTOHbIX KOpO6K, npInepKnBaI IN 3a Kopnyc. He npInkacaiTecb K npEIOKOHeYbIM Kackaam NIN NCNoNb3yIe 3aunTHbe yexJIbI npn IN3BneHem. Modenn 3050i n 3060S TjKeIbe: npn Heo6xOdMocTn nonpocnte Koro-H6yDb NOMOy BaM.

Ipo6ka n3 nehonlaacta

KoHKn cepN 3000i oHaueHb 3aHnMn nopTaMn Inywe Bcero paOtaIOT B yCIOBnAx, KOrda 3a HmN NMeetc HekOTOpoe npocTpaHCTBO, TO eCTb OKOJIO 20 CM Do CTeHb. Ecn BBpacnoJoxKe KOHOKN 6n3KO K CTeHe/yrIy, Heo6xOJIMO 6yDet BCTaBntb B 3aHnne NOPtbl NeHONJaCTOBle IpO6Kn, INaYe MOKeT NOBtCB CInuKOM MHOrO Hn3KnX YaCTOT.

Y6eNTecb, yTO npo6Kn NIOtHO CnT B nOpTaX He BCTabIeHbI CnIuKOM rIy6Oko. Bbl ObHApJxnte, YTO yPOBeH H3KNX qACTOT NOHN3NtCra, HO npi ATOM NOBicNTcA YeTKoCTb I CTeNEb rIy6uHbI 6aca. 3KcnepeMentupyIte N IO6NuBaITecb HyxHoro Bam 3ByaHn. JINr DOCTNXeHn ONTMaJIbHORO KOHeUHOr pe3yIbTata npo6yIte BHOCNTb He6OJIbUne I3MeHeHnB paCnIOJoxKeHne KONOHOK.

UHnnn Oueh bocptbe. BydbTe octopoxKbI!

HnkOrda He cTabbTe KOLOhky Ha 7nnIax TaM, rJe OHI MoryT YTO-JIn6o NOBpeDntb!

IpepeMaTe KOJIOHKn Bcerda No BO3dyxu HnKOrJa He BOIoUHTe nx no NOBepxHocTAm!

CtepeofoHnueckne coeHHeHn

Ctahapthbe coeHHeHn

PoiKIOHnTE KAPCHbI (+) noIOc npaBOK KOIOHKn K KPACHOMY noIOXHTBHOMy (+) noIOcy PPABOTo KaHana ycINTeJI. PoiKIOUHTe YEPHbI (-) noIOc KOIOHKn K COOTBEcTByIOUeMy UEPHOMY, OtpuataeHbOMy (-) noIOcy ycINTeJI. PioJeaTe Tj Xe npoUeDpy B OTHOseHH JIEBOTO KaHana.

CtAnapTha cnCTema npoBOJIOB:

PoclenpoJauKHoe o6cIyXuBaHne

YxOa 3a KOpnycom

Kopnyc MoXHO uHCTNtB ToIbKO cIeRka CMOeHHo CaJIeTKo. He nCNoJb3yIte uHCTaIue cpeDcTBa Ha OCHObe pactBOpHTeNe. HIKoRda He nCNoJb3yIte a6pa3NBbl.

KaK npabnlo, NOBepxHocTb KOpnyca Tpe6yeT ToIbKO JERKO OUcCTKN OT nbll. PpN NcNoIb3OBaHIn a3po30JbHoro nn KaKOro-ln6o DpyrOTo cpeCTBa HAnOCHTe rO Ha caIfoTKy, a He Ha camo n3dJIe. IJa NaUaIa NoPb6yIte Uc7RtSe CpeCTBO Ha MaJeHbKOM yAcTKe NOBepXHOCTu 3dEJIe, TaK KaK HeKOToPbIE YnCTaIe CpeCTBa MOrTy NOBpeNTb NOKpbITne. N36eraTe NcNoIb3OBaHIn a6pa3INBOv nn CpeCTB, CoedeJkaunx KncIoTHbe nn IeNoUHbIe peAreHtbl. Bo n36exKaHne NobpeXdHIn He NcNoIb3yIte YnCTaIe CpeCTBa dJa NcCTKn rONOBOK n He TporaiTe nx.

3aHTbIe cETKn

3aunthbte cetkn npn Heo6xodmoctn CneJeT uCTntb TOnbKO MrgKo 8eTKO.

EcnBbI nCnoJIb3yeTe CnCTeMbI Q Acoustics 6e3 3aunTHbIX CeTOK, 6o3aTeJbHO yCTaHaBnBaIte INx Ha MeCTO, KOrJa B KOMHaTe HaxoJrTcJeTIn NII DomaUHHe XJBOTHbIe.

y3nbl npB0da

K y3nam npuB0da lyuhe He npkacaTbca, TaK KaK nx IerKo NOBpeDntb.

TapaHTnA

Ha npodykuni KOMnAHN Q Acoustics npedocTabIeTc rapaHTnOCTBnI dekeTOB c TOnKu 3peHn KaueCTBa MaTePnAIOB n N3rOToBneHn Cpokom Ha 4 roda (1 roJ dJa ca6Byepa) c DaTbI npno6peTeHn. B TeueHne rapaHTnHOro cpoKa KOMnAHN Q Acoustics o6a3yeTc npoIN3BeCTn peMOHT nn 3aMeHnTB n3dEIne, ecJn NocJI npoBeHn npOBepKn OHa nn ee Ha3NaueHHb IINCTpn6bHTOp nn yPOJHomOueHHb npedCTabNTel b O6HapykaT deEeKT B npedeOCTabHeHHOM Ha npOBepKy n3deHN.

TapaHTnHa PaCnpocTpaHReTcHa HEnpabInbHOe NcNoIb3ObaHne I ECTeCTBeHHbI u3HOC.

TobapbI dIpeMOHTa DOJXHbI B nepByIO uepeB 6bITb BO3BpaUeHbI NOCTABUBWemy INx DnIepy.EcIN ITo He npedctabJIeTcR BO3MOXHbIM, CBJXtEcB c Q Acoustics nII Ha3HaueHHbIM KOMpAHneI DnCTPn6bIOTOpOM dIra BaWero perNoHa, UTO6bl ONpeDenITb npAunlbHyO rapaHTnHyO npoceDpy. IIO BO3MOXHOCTN CNe dyET NcNOb3OBaTB opuHNHaNbHyO yNaKOBky dJIra BO3BpATA n3deJIyra, TAK KaK Ha yUep6, npuHHeHHbI BO Bpemr TpaHCnOpTnpOBKn B ceHTp peMOHTa, He paCnpocTpaHReTcra paaHTn. 3Ta rapaHTn HIKoIM o6pa3OM He BnREt Ha BaUN 3aKOHHbIe npaba.

Cpok DeiCTBnra rapaHTn moXHo npOJnTb do 5 neT (2 roJa dIra ca6Byepa), 3aperncTpnpobab n3dennne
Ha Be6-CTpaHnue
www.qacoustics.co.uk/register.

HaTeHHbI KPOHHTeH (OdNH)

3010i/3020i/3090Ci

UepHbI n 6ebbln

Pa3Mepbl (UxBxΓ): 70 x 159 x 99 mm

CToIka Jnla KonoHok (napa)

3010i/3020i

UepHbI N 6ebbl

HacTeHHbI KPOHHTeH nla ca6ByΦepa

3060S

UepHbI

Pa3Mepbl (LxBxΓ): 250 x 682 x 290 mm Pa3Mepbl (LxBxΓ): 422 x 222 x 163 mm

PaccNBbIe akyCTnueckne cntEmbl

Tun Kopnyca:

BLOK HIXKHX YACTOT:

BLOK BepxHnx qactoT:

AMNITyHNo-chaTOTHa

xapaKTeepuctka (+3dB, - 6dB)

MnHmMaJIbHbIy mIeJaHc:

CpeDHee conpoTnBLeHne:

YbCTBNTeJIbHOCTb (2,83V@1M):

MoIHOCTb CTpeOycNJNTeJIa:

MoIHHoCTb AV-pecNBepa (dByxKaHaJIbHbI)

Yactota KpoccoBepa:

Pa6ochn o6bem:

Pa3mepbIkopnyca (× × )

(BkIIOUapeWeTky,pa3bEmnHOxKn)

Unpna ukaa:

Bec (Ha cπnkep):

3010i

2-noIOOChbIe C

100 mm (4.0 in)

22 mm (0.9 in)

65 Hz - 30 kHz

6Ω

4Ω

86 dB

15-75W

50-125W

2.6 kHz

4.0 L (244 cu in)

150 × 253 × 252 mm

(5.9× 10.0× 10.0 in)

4.1 kg (9.0 lbs)

3020i

2-NOIOChbIe C

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6Ω

4Ω

88dB

25-75W

50-125W

2.4 kHz

6.1 L (372 cu in)

170 × 278 × 282 ~mm

(6.7× 11.0× 11.1 in)

5.5 kg (12.1 lbs)

AKTNBbI ca6Byep

Tun Kopnyca:

BJOK HIXHINX YACTOT:

MoUHOCb yCUNITeJIa:

Yachotnha xapaKTepeNCTnka(+3 dB, -6 dB):

YacToTa KpoccoBepa:

Pa6ochn o6bem:

Pa3MepbI Kopnyca (XxBxΓ):

Bec:

3060S

BeckoHeHbI 3KpaH

200 mm (8.0 in)

150 W Class-D

35 Hz - 250 Hz

35 Hz - 250 Hz (var.)

10.6 L (647 cu in)

480 × 300 × 150 ~mm (18.9 × 11.8 × 5.9 in)

324 mm (12.7 in) Bknoa ynnn

8.5 kg (18.7 lbs)

3050i

2-NOIOCHbIe C

2 × 165 ~mm (6.5 in)

22 mm (0.9 in)

44 Hz - 30 kHz

6Ω

4Ω

91 dB

25-180W

50-165W

2.5 kHz

32.4 L (1977 cu in)

310 × 1020 × 310 ~mm

(12.2 × 40.1 × 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

2-nOIOChbIe c

2 × 100 ~mm (4.0 in)

22 mm (0.9 in)

75 Hz - 30 kHz

6Ω

4Ω

89 dB

25-100W

50-165W

2.7 kHz

6.6 L (403 cu in)

430 × 152 × 216 mm

(16.9× 6.0× 8.5 in)

6.0kg (13.2 lbs)

ACOUSTICS

QACOUSTICS.CO.UK

ACOUSTICS

3000i-serial

AGARMANUAL

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, UK

CM23 5GZ

Tillbehör

Vaggfaste (enkel)

3010i/3020i/3090Ci

Svart och vitt

Matt (BxHxD mm): 70 × 159 × 99 ~mm

Kabinettets matt (BxHxD mm):

(5.9 x 10.0 x 10.0 in)

4.1 kg (9.0 lbs)

3020i

2-vagsreflex

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6Ω

4Ω

88 dB

25-75W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170× 278× 282mm

(6.7× 11.0× 11.1 in)

5.5 kg (12.1 lbs)

Aktiv subwoofer

Chassityp:

Basenhet :

Förstarkaeffekt:

Kabinettets matt (BxHxD):

Vikt:

3060S

Sluten lada

200 mm (8.0 in)

150 W Class-D

35 Hz - 250 Hz

35 Hz - 250 Hz (var.)

10.6 L (647 cu in)

480 × 300 × 150 ~mm (18.9 × 11.8 × 5.9 in)

324 mm (12.7 in) inkl. spikes

8.5 kg (18.7 lbs)

3050i

2-vagsreflex

2 × 165 ~mm (6.5 in)

22 mm (0.9 in)

44 Hz - 30 kHz

6Ω

4Ω

91 dB

25 - 180 W

50-165W

2.5 kHz

32.4 L (1977 cu in)

310 × 1020 × 310 ~mm

(12.2× 40.1× 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

2-vagsreflex

2 × 100 ~mm (4.0 in)

22 mm (0.9 in)

75 Hz - 30 kHz

6Ω

4Ω

89 dB

25 - 100 W

50-165W

2.7 kHz

6.6 L (403 cu in)

430 × 152 × 216 ~mm

(16.9× 6.0× 8.5 in)

6.0kg (13.2 lbs)

ACOUSTICS

QACOUSTICS.CO.UK

Vär policy ar en kontinuereg likkortforbättring.

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, UK

CM23 5GZ

配件

壁架（单个）

3010i / 3020i / 3090Ci

黑与白

6.0kg (13.2 lbs)

ACOUSTICS

QACOUSTICS.CO.UK
