3010i - Speaker Q-ACOUSTICS - Free user manual and instructions
Find the device manual for free 3010i Q-ACOUSTICS in PDF.
| Product type | Passive 2-way bookshelf speaker |
| Brand | Q-ACOUSTICS |
| Model | 3010i |
| Dimensions (W x H x D) | 150 x 253 x 252 mm |
| Woofer | 100 mm (4 inches) |
| Tweeter | 22 mm (0.9 inches) |
| Frequency response (+3 dB, -6 dB) | 65 Hz - 30 kHz |
| Average impedance | 6 Ω |
| Minimum impedance | 4 Ω |
| Sensitivity (2.83 V @ 1 m) | 86 dB |
| Recommended stereo amplifier power | 15 - 75 W |
| AV receiver power (2 channels) | 50 - 125 W |
| Crossover frequency | 2.6 kHz |
| Internal volume | 4.0 L |
| Cabinet type | 2-way reflex |
| Color | Black and white (depending on finish) |
| Warranty | 4 years (passive speakers) |
| Maintenance | Clean with a slightly damp cloth. Do not use solvents or abrasive products. |
| Safety precautions | Do not expose to water, rain, or moisture. Do not connect to mains. Use only with a suitable amplifier. |
Frequently Asked Questions - 3010i Q-ACOUSTICS
User questions about 3010i Q-ACOUSTICS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Speaker in PDF format for free! Find your manual 3010i - Q-ACOUSTICS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 3010i by Q-ACOUSTICS.
USER MANUAL 3010i Q-ACOUSTICS
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, UK
CM23 5GZ
Zubehör
Before making any connections to your loudspeakers make sure that all active units in your system are switched off at the mains.
When switching on your sound system or changing input sources, set the main volume control at a low level. Turn up the level gradually.
NEVER play your sound system at full volume. The position of the volume control is deceptive and does not indicate the power level of the system. Using very high volume settings may damage your hearing.
1.1. Instructions
Read and understand these instructions before you use your loudspeakers. If damage is caused by failure to follow these instructions, the warranty will not apply. Please keep these instructions in a safe place.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
DO NOT connect your loudspeaker terminals to the mains supply.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers that produce heat.
Only use attachments/accessories specified by the manufacturer.
Unplug this apparatus during lightning storms or when unused for long periods of time.
2. Unpacking your loudspeakers
Unpack the speakers fully. Lift the speakers from the cartons by holding the cabinets. Do not use the protective bags to lift them.
When manoeuvring loudspeakers, do not drag them across the floor as this may cause damage - lift each speaker before moving it.
Check the loudspeaker carefully. If any items are damaged or missing, report this to your retailer as soon as possible.
Retain the packaging for future transport. If you dispose of the packaging, please do so following all recycling regulations in your area.
3. Installation
- Only use the accessories supplied with the product.
- To prevent injury, this apparatus must be securely mounted onto the floor in accordance with the installation instructions.
- Do not use makeshift stands. Fit the Q Acoustics dedicated stand according to the instructions and using any fixings provided. Your dealer will advise you.
- If you play your loudspeakers without their grilles fitted, be careful to protect the drive units from damage.
- DO NOT dismantle the loudspeaker. You will invalidate the warranty.
- Do not connect your loudspeaker terminals to the mains supply.
- Do not expose your loudspeakers to excessive cold, heat, humidity or sunlight.
- The use of this apparatus is indicated for tropical and/or moderate climates.
3.1. Moisture
- To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain, moisture, dripping or splashing.
- Do not use this apparatus near water.
3.2. Servicing
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
4.0. Symbols used on this product Hazard Warning Symbol
The 'exclamation mark' calls attention to features for which you should read this manual closely to prevent operation and maintenance problems.
CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.
Waste Electrical and Electronic Equipment Symbol
This symbol indicates that when the unit is to be discarded, it must be separated from other household-type waste and sent to separate collection facilities for recovery and recycling of electrical and electronic equipment.
Please make sure you are familiar with your local rules on the separate collection of electrical and electronic products.
Introduction
Thank you for purchasing Q Acoustics.
This manual is intended to take you through setup and installation and will help provide optimum performance from the product.
Please read the instructions, important safety information and warnings carefully before installation and use, to ensure the safe and satisfactory operation of this product.
The Q Acoustics 3000i series is a range of loudspeakers designed to meet the highest expectations of dedicated 2-channel audiophiles and discerning movie enthusiasts.
The range comprises:
3010i: Compact bookshelf speaker with a 100 mm (4.0 inches) bass driver.
3020i: Bookshelf speaker with a 125 mm (5.0 inches) bass driver.
3050i: Floorstander with 2 × 165 mm (6.5 inches) bass drivers.
3060S: 150 Watt active subwoofer with a 200mm (8.0 inches) driver.
3090Ci: Centre channel with 2 × 100 mm (4.0 inches) bass drivers.
In the carton you will find: The loudspeaker/s and this product manual.
In addition the packing for the following models contains:
3050i: Rear stabiliser, spikes and spike covers for each speaker. An Allen key to adjust the spikes once fitted.
3060S: A mains power cord or cords, spikes and spike covers.
Check the product carefully. If any items are damaged or missing, report this to your dealer as soon as possible.
We hope you enjoy the Q Acoustics experience.
Preparation
Lift the speakers from the cartons by holding the cabinets. Do not touch the driver units or use the protective bags to lift them. The 3050i and 3060S are heavy - get assistance to lift them if necessary.

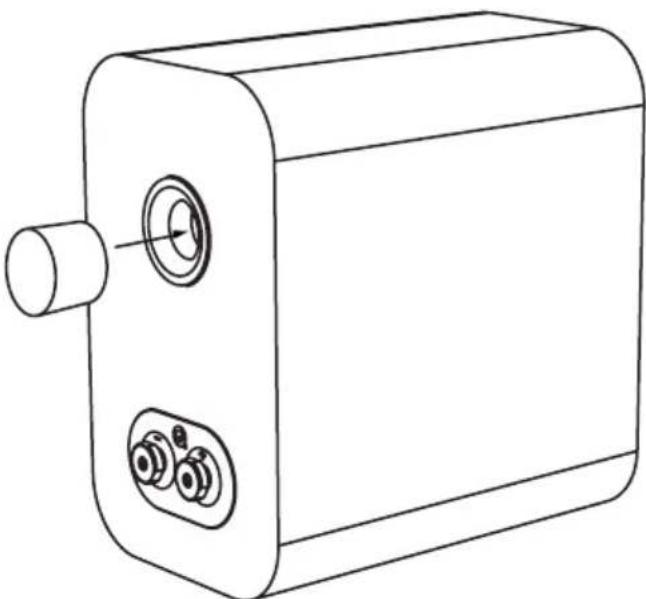

Foam Bung

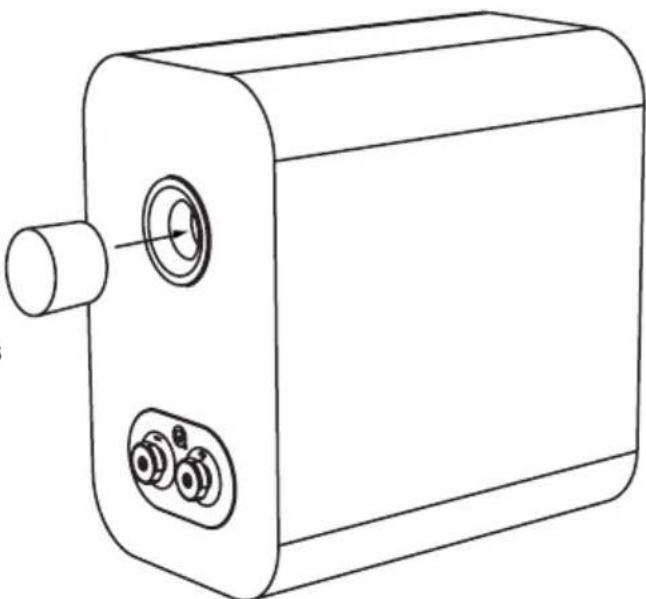

The 3000i series speakers are rear ported and designed to work best with some space behind them i.e. 200mm or so away from a wall. If you position your speakers close to a wall / corner then the foam bungs should be inserted into the rear ports or there could be too much bass.
Ensure the bungs are fitted snugly into the port without inserting them too far. You will find the level of bass is reduced but definition and bass extension is increased. Experiment to see what you prefer and try making small changes to the position of the speaker to optimise the final result.
Spikes are sharp. Exercise care!
Never place a spiked loudspeaker where it can cause damage!
Always move your loudspeakers by lifting them - never drag them!

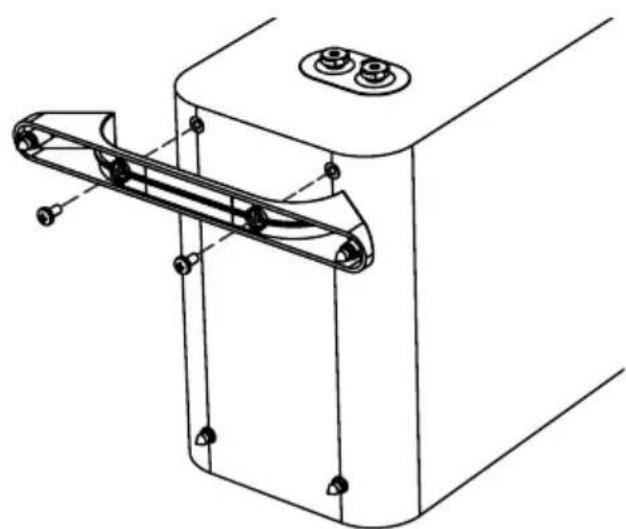

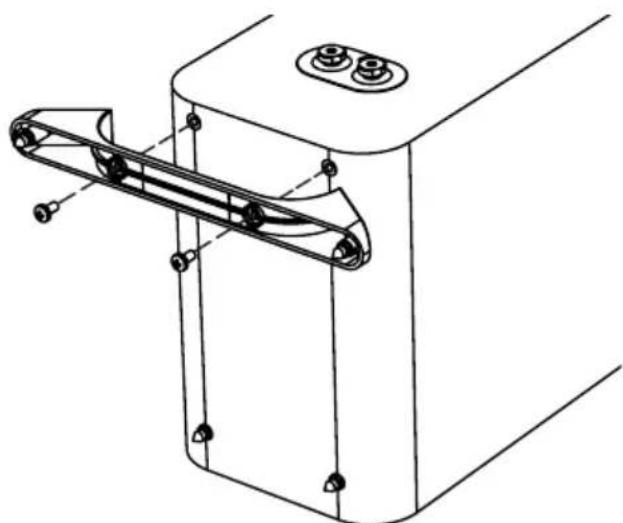

3050i - Attach the rear stabiliser

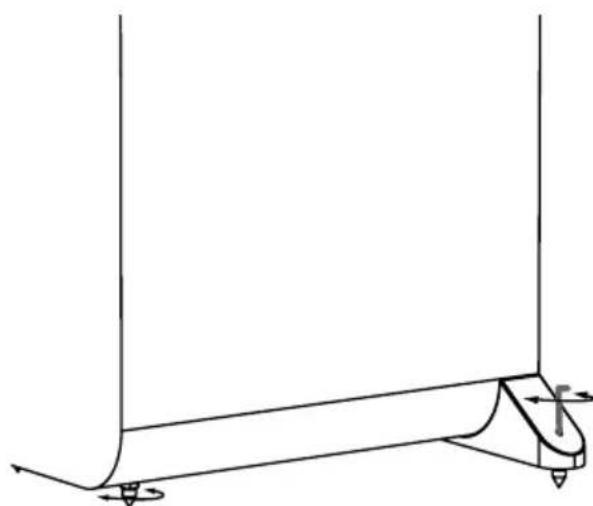

Thread the spikes fitted with locking nuts half way into the base and return the loudspeaker to the upright position. (If you have a wood or stone floor push a spike protector over each spike before turning the speaker upright) When the speaker is the right way up, insert the Allen key into each rear spike from the top and adjust all the spikes in and out until the loudspeaker is level and stable.
Use screws provided to secure feet as shown.

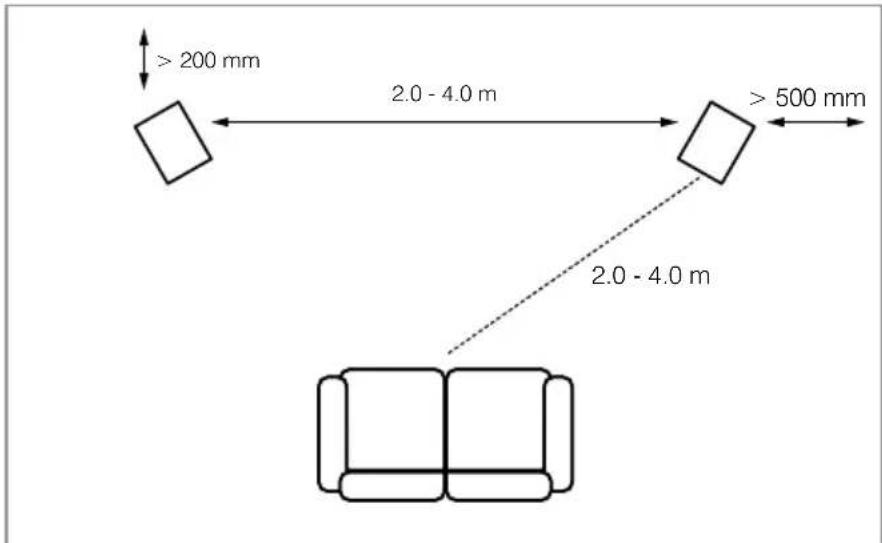

Positioning
All the loudspeakers may be operated close to TV monitors with no ill-effects with the exception of the 3060S which should not be operated within 500mm of TV screens monitors or other magnetically sensitive equipment. Plasma and LCD screens are unaffected.
3010i and 3020i

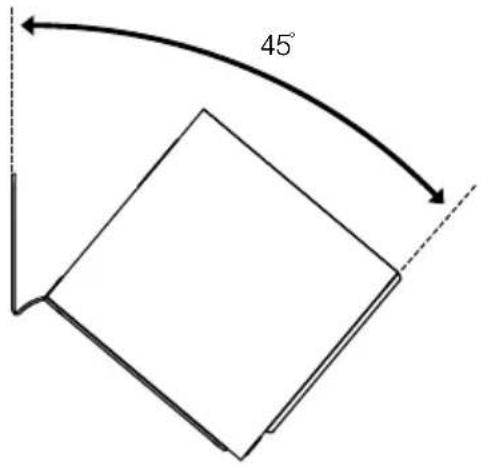

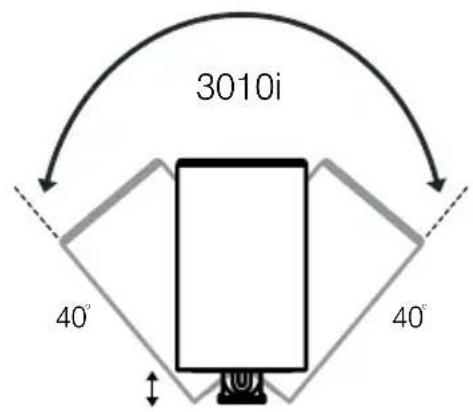

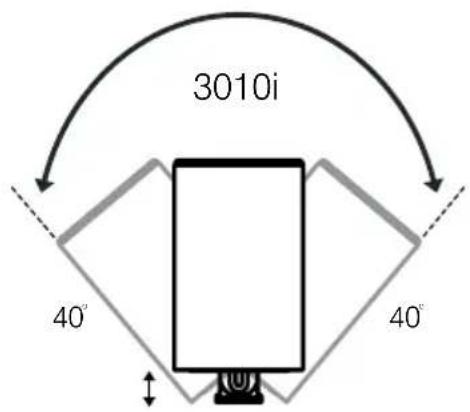

The 3010i and 3020i are ideally mounted on Q Acoustics floor stands or wall mounted. If you are stand mounting, a simple guide is that the treble unit should be at ear level to a seated listener. Wall mounted speakers may be mounted slighter higher with the speaker angled down. Stand mounted speakers should be treated as floorstanding speakers except that the speaker may be placed a little closer to the back wall. Shelf mounting is also possible.
An optional bracket designed specifically to wall mount the Q Acoustics 3010i, 3020i and 3090Ci is available from your dealer. Floor stands for the 3010i and 3020i are also available. Be prepared to experiment to find the best setup for your taste in your particular listening room.
3050i
The 3050i loudspeakers should be positioned at least 200mm from a back wall and 500mm from the side walls. Placing the speakers closer to the wall will increase bass but could cause the sound to boom and lack precision and detail. The speakers should be 2m - 4m apart and central to the seated listener. Turning the speakers slightly inwards will sharpen a stereo image but may cause narrowing of the sound source.
Subwoofer
Bass frequencies are substantially omni directional. Although this means that you can position the subwoofer almost anywhere, the stereo image will still benefit by positioning the subwoofer level with the front loudspeakers and as central to the listening position as possible. This may not be feasible in a multichannel system. If you place the subwoofer close to a wall the bass will be re-enforced therefore in some locations the bass may be boomy and indistinct.
Effects loudspeakers
3090Ci
The 3090Ci is designed to be operated close to a TV screen and central to it. It should be placed immediately above or below the screen. If you have a Plasma or LCD monitor, mount the 3090Ci to the wall or other suitable surface immediately above or below the screen using the Q Acoustics Wall Bracket. If not, consider placing the TV on a cabinet with the 3090Ci on a secure shelf immediately below the TV.
D1G
DOLBY
ITAL
Dolby and the double-D symbol are
trade marks of Dolby Laboratories.
Surround Speakers
There are recommendations from Dolby labs for 5.1 effects speakers. Surround speakers should be mounted on either side of the listener, slightly behind the listening position. The speakers should be sited facing inward either mounted on the side walls of the room or if the room is large, on high stands and with their centres above ear level to a seated listener.
For overhead speakers used in multi-channel installations we recommend the Q Acoustics Install range.
Connections
Before making any connections to your loudspeakers make sure that all active units in your system are switched off at the mains. When switching on your sound system or changing input sources, set the main volume control at a low level. Turn up the level gradually.

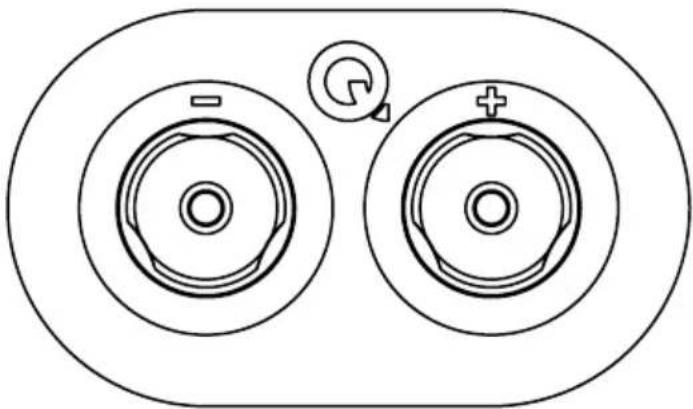

Terminals and Connectors
The 3010i, 3020i, 3050i and 3090Ci have standard two terminal crossovers.
3010i, 3020i & 3050i & 3090Ci
Loudspeaker Cables
Specialist loudspeaker cables will offer a higher standard of reproduction than general purpose 'bell' or 'zip' wire. Use cable with generous amounts of copper for the front and centre channels. Thin cables reduce the bass and restrict the dynamic range. Surround (rear) channels are less critical.
Speaker cable has a stripe or tracer along one core. By convention this is connected to the positive terminals. The cables connecting the amplifier to the front loudspeakers should ideally be the same length. Never join cables - use complete lengths.
Preparing Cables
Split the cable to a depth of about 40mm . Bare the wire to a depth of 10mm and twist the ends to gather any stray wires. Crop the cable leaving 7mm of bare wire exposed.

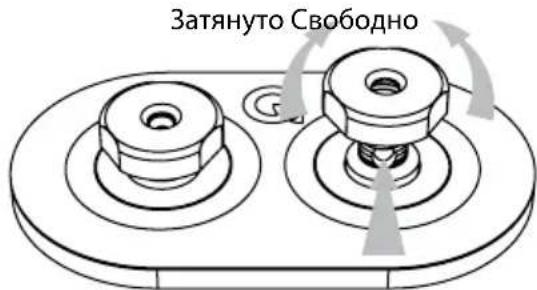

Connecting a Terminal

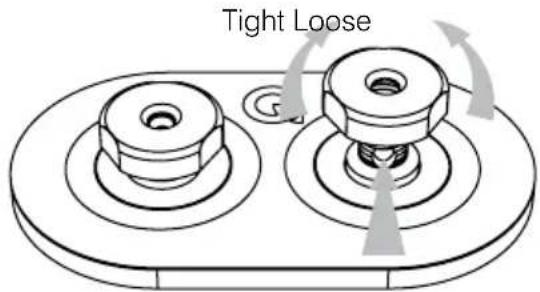

Unscrew the terminal anticlockwise to expose the mounting hole in the base of the terminal column.
Insert the bare end of the cable into the hole. Retighten the terminal fully hand tight. Make sure there are no stray wires which could touch adjacent terminals. In the EU it is against safety regulations to use 4mm loudspeaker plugs.
Stereo Connections

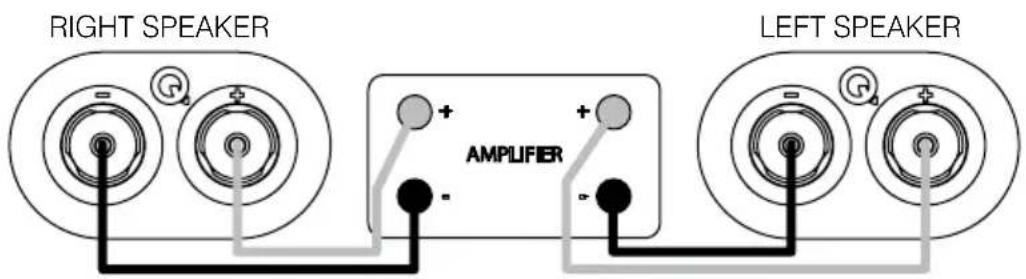

Standard Connections

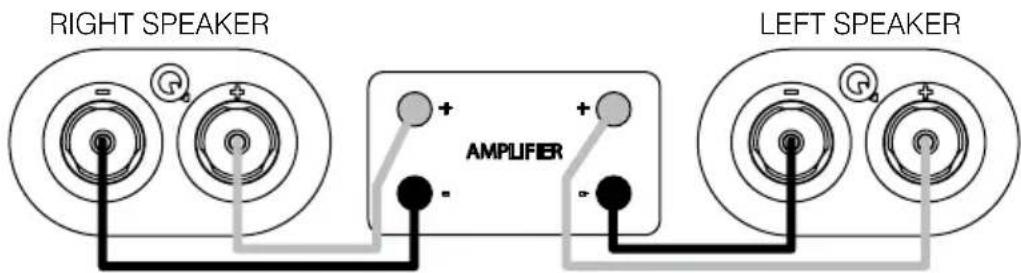

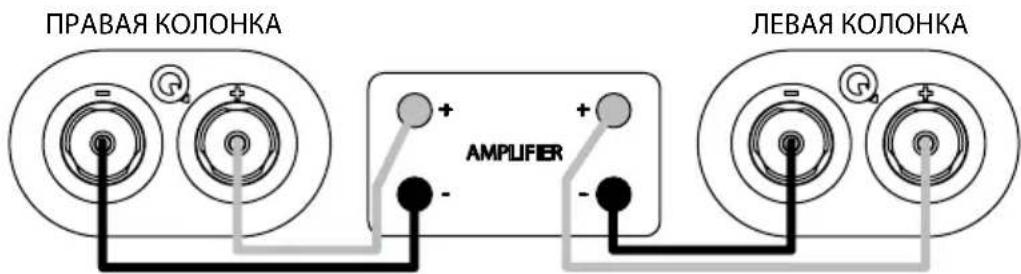

Connect the RED (+) terminal of the RIGHT loudspeaker to the RED, Positive (+) terminal on the RIGHT channel of the amplifier. Connect the BLACK (-) terminal of the loudspeaker to the matching BLACK, Negative (-) terminal of the amplifier. Repeat this procedure for the LEFT channel.
Standard Wiring:
Aftercare
Cabinet Care
Clean cabinets only with a lightly dampened cloth. Do not use solvent based cleaning materials. Never use abrasives of any kind.
The cabinet surfaces will usually only require light dusting. Should an aerosol or other cleaner be used, apply the cleaner onto the cloth first and not directly onto the product. Test a small area first, as some cleaning products may damage the finish. Avoid products that are abrasive, or contain acid or alkaline agents. Do not use any cleaning materials on the drive units and avoid touching them as damage may result.
Grilles
Grilles should only be cleaned using a soft brush when necessary.
If using the Q Acoustics speaker with the grilles removed, remember to replace them if pets or children are present.
Drive Units
Do not touch the drive units as they are easily damaged when exposed.
Warranty
Q Acoustics passive loudspeaker products are warranted free of defects in materials and workmanship for a period of 4 years (1 year for subwoofer) from the date of purchase. During the warranty period Q Acoustics will, at its option, repair or replace any product found to be faulty after inspection by the company or its appointed distributor or agent.
Misuse and fair wear and tear are not covered by warranty.
Goods for repair should in the first instance be returned to the supplying dealer. If this is not possible contact Q Acoustics or their appointed distributor for your area to determine the correct warranty procedure. If possible the original packaging should be used to return the product as damage sustained during transit to the repair centre is not covered by the warranty. The warranty does not in any way affect your legal rights.
Warranty can be extended to 5 years (2 years for subwoofer) by registering your product at www.qacoustics.co.uk/register.
For service information contact: info@qacoustics.co.uk
Q Acoustics
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, UK
CM23 5GZ
Accessories

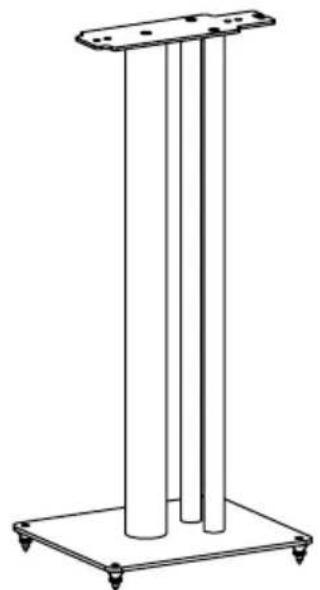

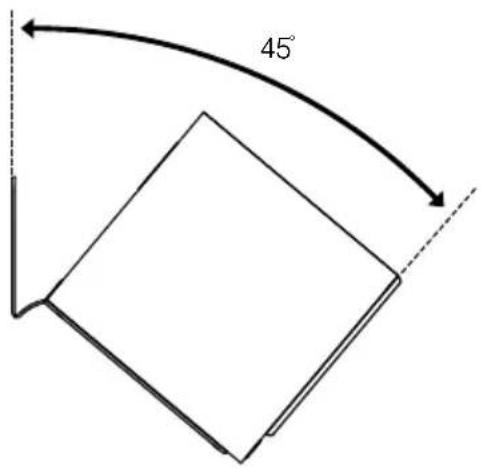

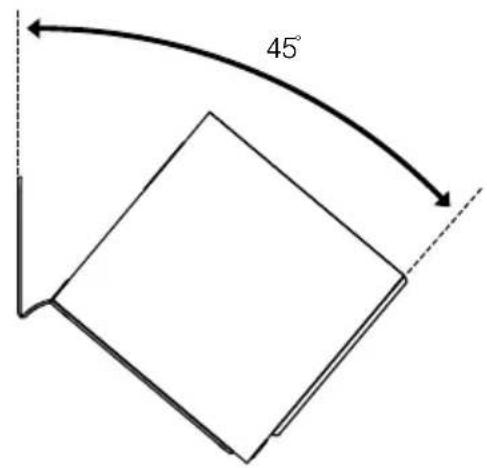

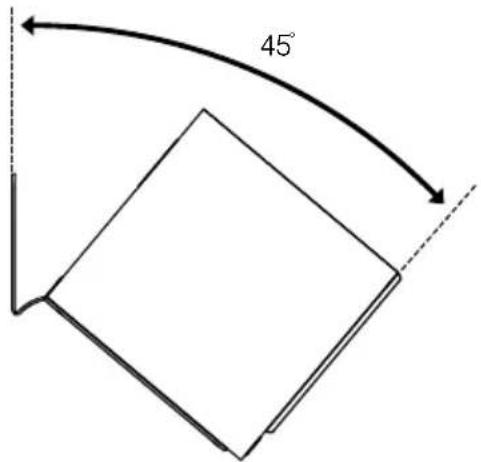

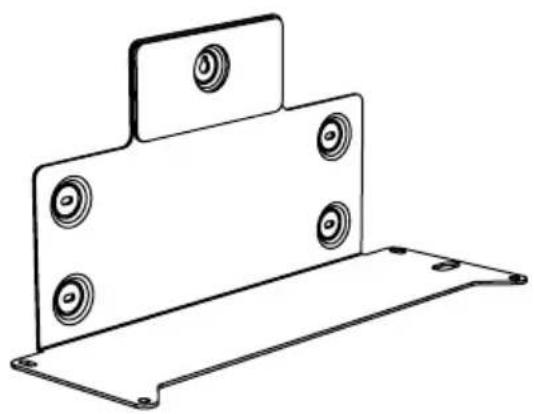

Wall Bracket (Single)
3010i / 3020i / 3090Ci
Black and White
Dimensions (WxHxD): 70 x 159 x 99 mm

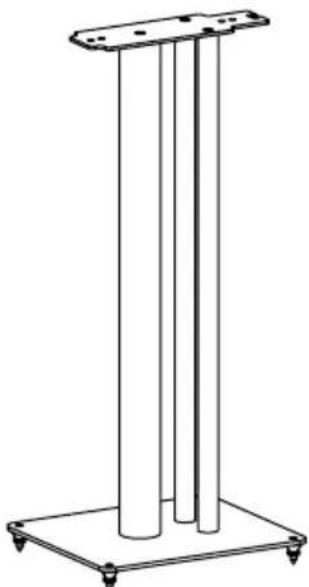

Speaker Stand (Pair)
3010i / 3020i
Black and White
Subwoofer Wall Bracket
3060S
Black
Dimensions (WxHxD): 250 x 682 x 290 mm Dimensions (WxHxD): 422 x 222 x 163 mm
Passive Loudspeakers
Enclosure type:
Bass unit:
Treble unit:
Frequency response (+3dB, - 6dB)
Average impedance:
Minimum impedance:
Sensitivity (2.83v@1m):
Stereo amplifier power:
AV receiver power (2 ch. driven):
Crossover frequency:
Effective volume:
Enclosure dimensions (WxHxD):
(inc. grille, terminal and feet)
Enclosure width:
Weight (per speaker):
3010i
2-wayreflex
100 mm (4.0 in)
22 mm (0.9 in)
65 Hz - 30 kHz
6Ω
4Ω
86 dB
15-75W
50-125W
2.6 kHz
4.0 L (244 cu in)
150 × 253 × 252 mm
(5.9× 10.0× 10.0 in)
4.1 kg (9.0 lbs)
3020i
2-wayreflex
125 mm (5.0 in)
22 mm (0.9 in)
64 Hz - 30 kHz
6Ω
4Ω
88dB
25-75W
50 - 125 W
2.4 kHz
6.1 L (372 cu in)
170 × 278 × 282 mm
(6.7× 11.0× 11.1 in)
5.5 kg (12.1 lbs)
Active Subwoofer
Enclosure type:
Bass unit:
Amplifier power:
Frequency response (+3dB, - 6dB)
Crossover frequency:
Effective volume:
Enclosure dimensions (WxHxD):
Weight:
3060S
Infinite baffle
200 mm (8.0 in)
150 W Class-D
35 Hz - 250 Hz
35 Hz - 250 Hz (var.)
10.6 L (647 cu in)
480 × 300 × 150 ~mm (18.9 × 11.8 × 5.9 in)
324 mm (12.7 in) inc. spikes
8.5 kg (18.7 lbs)
3050i
2-wayreflex
2 × 165 ~mm (6.5 in)
22 mm (0.9 in)
44 Hz - 30 kHz
6Ω
4Ω
91 dB
25 - 180 W
50-165W
2.5 kHz
32.4 L (1977 cu in)
310 × 1020 × 310 ~mm
(12.2× 40.1× 12.2 in)
200 mm (7.9 in)
17.8 kg (39.2 lbs)
3090Ci
2-wayreflex
2 × 100 ~mm (4.0 in)
22 mm (0.9 in)
75 Hz - 30 kHz
6Ω
4Ω
89 dB
25 - 100 W
50-165W
2.7 kHz
6.6 L (403 cu in)
430 × 152 × 216 ~mm
(16.9× 6.0× 8.5 in)
6.0kg (13.2 lbs)
ACOUSTICS
QACOUSTICS.CO.UK
ACOUSTICS
Q Acoustics
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, Reino Unido
CM23 5GZ
Accesorios
(5.9 x 10.0 x 10.0 in)
4.1 kg (9.0 lbs)
3020i
Reflejo de 2 vías
125 mm (5.0 in)
22 mm (0.9 in)
64 Hz - 30 kHz
6Ω
4Ω
88dB
25-75W
50 - 125 W
2.4 kHz
6.1 L (372 cu in)
170× 278× 282mm
(6.7× 11.0× 11.1 in)
5.5 kg (12.1 lbs)
Subwoofer activo:
Tipo de caja:
Unidad de graves:
6.0kg (13.2 lbs)
ACOUSTICS
QACOUSTICS.CO.UK
ACOUSTICS
www.qacoustics.co.uk/register.
Stortford Hall Industrial Park
Support mural (simple)
3010i / 3020i / 3090Ci
Noir et blanc
Dimensions (L× H× P) .. 70× 159× 99mm
(5.9 x 10.0 x 10.0 in)
4.1 kg (9.0 lbs)
3020i
Reflex 2 voies
125 mm (5.0 in)
22 mm (0.9 in)
64 Hz - 30 kHz
6Ω
4Ω
88 dB
25-75W
50-125W
2.4 kHz
6.1 L (372 cu in)
170 × 278 × 282 ~mm
(6.7× 11.0× 11.1 in)
5.5 kg (12.1 lbs)
Q Acoustics
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, Regno Unito
CM23 5GZ
Accessor
(5.9 x 10.0 x 10.0 in)
4.1 kg (9.0 lbs)
3020i
Reflex a 2 vie
125 mm (5.0 in)
22 mm (0.9 in)
64 Hz - 30 kHz
6Ω
4Ω
88 dB
25-75W
50 - 125 W
2.4 kHz
6.1 L (372 cu in)
170 × 278 × 282 ~mm
(6.7× 11.0× 11.1 in)
5.5 kg (12.1 lbs)
Subwoofer attivo
Tipoinvolucro:
Unità bassi (mm):
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, GB
CM23 5GZ
Accessoires
Wandbeugel (1 stuk)
3010i / 3020i / 3090Ci
Zwart en wit
Afmetingen (B× H× D) .. 70× 159× 99mm
www.qacoustics.co.uk/register.
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, Wielka Brytania
CM23 5GZ
Akcesoria
(5.9 x 10.0 x 10.0 in)
4.1 kg (9.0 lbs)
3020i
6.0kg (13.2 lbs)
ACOUSTICS
QACOUSTICS.CO.UK
ACOUSTICS
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, UK
CM23 5GZ
Acessórios
Suporte de parede (unico)
3010i / 3020i / 3090Ci
Preto e bianco
Dimensoes (LxAxD): 70 × 159 × 99 ~mm
Suporte de altifalante (par)
3010i / 3020i
Preto e bianco
Before making any connections to your loudspeakers make sure that all active units in your system are switched off at the mains.
When switching on your sound system or changing input sources, set the main volume control at a low level. Turn up the level gradually.
NEVER play your sound system at full volume. The position of the volume control is deceptive and does not indicate the power level of the system. Using very high volume settings may damage your hearing.
1.1. Instructions
Read and understand these instructions before you use your loudspeakers. If damage is caused by failure to follow these instructions, the warranty will not apply. Please keep these instructions in a safe place.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
DO NOT connect your loudspeaker terminals to the mains supply.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers that produce heat.
Only use attachments/accessories specified by the manufacturer.
Unplug this apparatus during lightning storms or when unused for long periods of time.
2. Unpacking your loudspeakers
Unpack the speakers fully. Lift the speakers from the cartons by holding the cabinets. Do not use the protective bags to lift them.
When manoeuvring loudspeakers, do not drag them across the floor as this may cause damage - lift each speaker before moving it.
Check the loudspeaker carefully. If any items are damaged or missing, report this to your retailer as soon as possible.
Retain the packaging for future transport. If you dispose of the packaging, please do so following all recycling regulations in your area.
3. Installation
- Only use the accessories supplied with the product.
- To prevent injury, this apparatus must be securely mounted onto the floor in accordance with the installation instructions.
- Do not use makeshift stands. Fit the Q Acoustics dedicated stand according to the instructions and using any fixings provided. Your dealer will advise you.
If you play your loudspeakers without their grilles fitted, be careful to protect the drive units from damage. - DO NOT dismantle the loudspeaker. You will invalidate the warranty.
- Do not connect your loudspeaker terminals to the mains supply.
- Do not expose your loudspeakers to excessive cold, heat, humidity or sunlight.
- The use of this apparatus is indicated for tropical and/or moderate climates.
3.1. Moisture
- To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain, moisture, dripping or splashing.
- Do not use this apparatus near water.
3.2. Servicing
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
4.0. Symbols used on this product Hazard Warning Symbol
The 'exclamation mark' calls attention to features for which you should read this manual closely to prevent operation and maintenance problems.
CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.
Waste Electrical and Electronic Equipment Symbol
This symbol indicates that when the unit is to be discarded, it must be separated from other household-type waste and sent to separate collection facilities for recovery and recycling of electrical and electronic equipment.
Please make sure you are familiar with your local rules on the separate collection of electrical and electronic products.
Introduction
Thank you for purchasing Q Acoustics.
This manual is intended to take you through setup and installation and will help provide optimum performance from the product.
Please read the instructions, important safety information and warnings carefully before installation and use, to ensure the safe and satisfactory operation of this product.
The Q Acoustics 3000i series is a range of loudspeakers designed to meet the highest expectations of dedicated 2-channel audiophiles and discerning movie enthusiasts.
The range comprises:
3010i: Compact bookshelf speaker with a 100 mm (4.0 inches) bass driver.
3020i: Bookshelf speaker with a 125 mm (5.0 inches) bass driver.
3050i: Floorstander with 2 × 165 mm (6.5 inches) bass drivers.
3060S: 150 Watt active subwoofer with a 200mm (8.0 inches) driver.
3090Ci: Centre channel with 2 × 100 mm (4.0 inches) bass drivers.
In the carton you will find: The loudspeaker/s and this product manual.
In addition the packing for the following models contains:
3050i: Rear stabiliser, spikes and spike covers for each speaker. An Allen key to adjust the spikes once fitted.
3060S: A mains power cord or cords, spikes and spike covers.
Check the product carefully. If any items are damaged or missing, report this to your dealer as soon as possible.
We hope you enjoy the Q Acoustics experience.
Preparation
Lift the speakers from the cartons by holding the cabinets. Do not touch the driver units or use the protective bags to lift them. The 3050i and 3060S are heavy - get assistance to lift them if necessary.
Foam Bung
The 3000i series speakers are rear ported and designed to work best with some space behind them i.e. 200mm or so away from a wall. If you position your speakers close to a wall / corner then the foam bungs should be inserted into the rear ports or there could be too much bass.
Ensure the bungs are fitted snugly into the port without inserting them too far. You will find the level of bass is reduced but definition and bass extension is increased. Experiment to see what you prefer and try making small changes to the position of the speaker to optimise the final result.
Spikes are sharp. Exercise care!
Never place a spiked loudspeaker where it can cause damage!
Always move your loudspeakers by lifting them - never drag them!
3050i - Attach the rear stabiliser
Thread the spikes fitted with locking nuts half way into the base and return the loudspeaker to the upright position. (If you have a wood or stone floor push a spike protector over each spike before turning the speaker upright) When the speaker is the right way up, insert the Allen key into each rear spike from the top and adjust all the spikes in and out until the loudspeaker is level and stable.
Use screws provided to secure feet as shown.
Positioning
All the loudspeakers may be operated close to TV monitors with no ill-effects with the exception of the 3060S which should not be operated within 500mm of TV screens monitors or other magnetically sensitive equipment. Plasma and LCD screens are unaffected.
3010i and 3020i
The 3010i and 3020i are ideally mounted on Q Acoustics floor stands or wall mounted. If you are stand mounting, a simple guide is that the treble unit should be at ear level to a seated listener. Wall mounted speakers may be mounted slighter higher with the speaker angled down. Stand mounted speakers should be treated as floorstanding speakers except that the speaker may be placed a little closer to the back wall. Shelf mounting is also possible.
An optional bracket designed specifically to wall mount the Q Acoustics 3010i, 3020i and 3090Ci is available from your dealer. Floor stands for the 3010i and 3020i are also available. Be prepared to experiment to find the best setup for your taste in your particular listening room.
3050i
The 3050i loudspeakers should be positioned at least 200mm from a back wall and 500mm from the side walls. Placing the speakers closer to the wall will increase bass but could cause the sound to boom and lack precision and detail. The speakers should be 2m - 4m apart and central to the seated listener. Turning the speakers slightly inwards will sharpen a stereo image but may cause narrowing of the sound source.
Subwoofer
Bass frequencies are substantially omni directional. Although this means that you can position the subwoofer almost anywhere, the stereo image will still benefit by positioning the subwoofer level with the front loudspeakers and as central to the listening position as possible. This may not be feasible in a multichannel system. If you place the subwoofer close to a wall the bass will be re-enforced therefore in some locations the bass may be boomy and indistinct.
Effects loudspeakers
3090Ci
The 3090Ci is designed to be operated close to a TV screen and central to it. It should be placed immediately above or below the screen. If you have a Plasma or LCD monitor, mount the 3090Ci to the wall or other suitable surface immediately above or below the screen using the Q Acoustics Wall Bracket. If not, consider placing the TV on a cabinet with the 3090Ci on a secure shelf immediately below the TV.
D1G
DOLBY
ITAL
Dolby and the double-D symbol are
trade marks of Dolby Laboratories.
Surround Speakers
There are recommendations from Dolby labs for 5.1 effects speakers. Surround speakers should be mounted on either side of the listener, slightly behind the listening position. The speakers should be sited facing inward either mounted on the side walls of the room or if the room is large, on high stands and with their centres above ear level to a seated listener.
For overhead speakers used in multi-channel installations we recommend the Q Acoustics Install range.
Connections
Before making any connections to your loudspeakers make sure that all active units in your system are switched off at the mains. When switching on your sound system or changing input sources, set the main volume control at a low level. Turn up the level gradually.
Terminals and Connectors

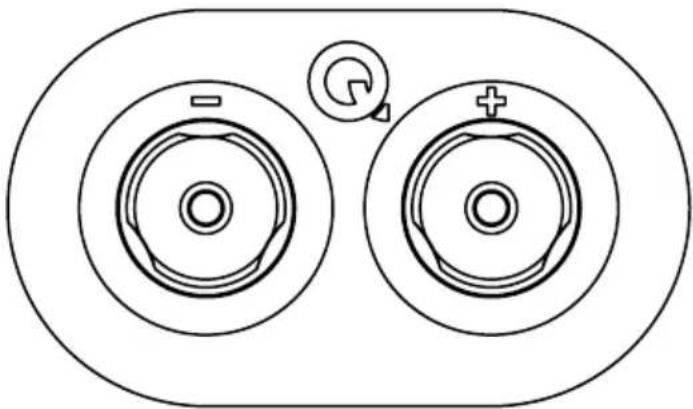

The 3010i, 3020i, 3050i and 3090Ci have standard two terminal crossovers.
3010i, 3020i & 3050i & 3090Ci
Loudspeaker Cables
Specialist loudspeaker cables will offer a higher standard of reproduction than general purpose 'bell' or 'zip' wire. Use cable with generous amounts of copper for the front and centre channels. Thin cables reduce the bass and restrict the dynamic range. Surround (rear) channels are less critical.
Speaker cable has a stripe or tracer along one core. By convention this is connected to the positive terminals. The cables connecting the amplifier to the front loudspeakers should ideally be the same length. Never join cables - use complete lengths.
Preparing Cables
Split the cable to a depth of about 40mm . Bare the wire to a depth of 10mm and twist the ends to gather any stray wires. Crop the cable leaving 7mm of bare wire exposed.
Connecting a Terminal
Unscrew the terminal anticlockwise to expose the mounting hole in the base of the terminal column.
Insert the bare end of the cable into the hole. Retighten the terminal fully hand tight. Make sure there are no stray wires which could touch adjacent terminals. In the EU it is against safety regulations to use 4mm loudspeaker plugs.
Stereo Connections
Standard Connections
Connect the RED (+) terminal of the RIGHT loudspeaker to the RED, Positive (+) terminal on the RIGHT channel of the amplifier. Connect the BLACK (-) terminal of the loudspeaker to the matching BLACK, Negative (-) terminal of the amplifier. Repeat this procedure for the LEFT channel.
Standard Wiring:
Aftercare
Cabinet Care
Clean cabinets only with a lightly dampened cloth. Do not use solvent based cleaning materials. Never use abrasives of any kind.
The cabinet surfaces will usually only require light dusting. Should an aerosol or other cleaner be used, apply the cleaner onto the cloth first and not directly onto the product. Test a small area first, as some cleaning products may damage the finish. Avoid products that are abrasive, or contain acid or alkaline agents. Do not use any cleaning materials on the drive units and avoid touching them as damage may result.
Grilles
Grilles should only be cleaned using a soft brush when necessary.
If using the Q Acoustics speaker with the grilles removed, remember to replace them if pets or children are present.
Drive Units
Do not touch the drive units as they are easily damaged when exposed.
Warranty
Q Acoustics passive loudspeaker products are warranted free of defects in materials and workmanship for a period of 4 years (1 year for subwoofer) from the date of purchase. During the warranty period Q Acoustics will, at its option, repair or replace any product found to be faulty after inspection by the company or its appointed distributor or agent.
Misuse and fair wear and tear are not covered by warranty.
Goods for repair should in the first instance be returned to the supplying dealer. If this is not possible contact Q Acoustics or their appointed distributor for your area to determine the correct warranty procedure. If possible the original packaging should be used to return the product as damage sustained during transit to the repair centre is not covered by the warranty. The warranty does not in any way affect your legal rights.
Warranty can be extended to 5 years (2 years for subwoofer) by registering your product at www.qacoustics.co.uk/register.
For service information contact: info@qacoustics.co.uk
Q Acoustics
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, UK
CM23 5GZ
Accessories
Wall Bracket (Single)
3010i / 3020i / 3090Ci
Black and White
Dimensions (WxHxD): 70 x 159 x 99 mm
Speaker Stand (Pair)
3010i / 3020i
Black and White
Subwoofer Wall Bracket
3060S
Black
Dimensions (WxHxD): 250 x 682 x 290 mm Dimensions (WxHxD): 422 x 222 x 163 mm
Passive Loudspeakers
Enclosure type:
Bass unit:
Treble unit:
Frequency response (+3dB, - 6dB)
Average impedance:
Minimum impedance:
Sensitivity (2.83v@1m):
Stereo amplifier power:
AV receiver power (2 ch. driven):
Crossover frequency:
Effective volume:
Enclosure dimensions (WxHxD):
(inc. grille, terminal and feet)
Enclosure width:
Weight (per speaker):
3010i
2-wayreflex
100 mm (4.0 in)
22 mm (0.9 in)
65 Hz - 30 kHz
6Ω
4Ω
86 dB
15-75W
50-125W
2.6 kHz
4.0 L (244 cu in)
150 × 253 × 252 mm
(5.9× 10.0× 10.0 in)
4.1 kg (9.0 lbs)
3020i
2-wayreflex
125 mm (5.0 in)
22 mm (0.9 in)
64 Hz - 30 kHz
6Ω
4Ω
88 dB
25-75W
50 - 125 W
2.4 kHz
6.1 L (372 cu in)
170× 278× 282mm
(6.7× 11.0× 11.1 in)
5.5 kg (12.1 lbs)
Active Subwoofer
Enclosure type:
Bass unit:
Amplifier power:
Frequency response (+3dB, - 6dB)
Crossover frequency:
Effective volume:
Enclosure dimensions (WxHxD):
Weight:
3060S
Infinite baffle
200 mm (8.0 in)
150 W Class-D
35 Hz - 250 Hz
35 Hz - 250 Hz (var.)
10.6 L (647 cu in)
480 × 300 × 150 ~mm (18.9 × 11.8 × 5.9 in)
324 mm (12.7 in) inc. spikes
8.5 kg (18.7 lbs)
3050i
2-wayreflex
2 × 165 ~mm (6.5 in)
22 mm (0.9 in)
44 Hz - 30 kHz
6Ω
4Ω
91 dB
25 - 180 W
50-165W
2.5 kHz
32.4 L (1977 cu in)
310 × 1020 × 310 ~mm
(12.2× 40.1× 12.2 in)
200 mm (7.9 in)
17.8 kg (39.2 lbs)
3090Ci
2-wayreflex
2 × 100 ~mm (4.0 in)
22 mm (0.9 in)
75 Hz - 30 kHz
6Ω
4Ω
89 dB
25 - 100 W
50-165W
2.7 kHz
6.6 L (403 cu in)
430× 152× 216mm
(16.9× 6.0× 8.5 in)
6.0kg (13.2 lbs)
ACOUSTICS
QACOUSTICS.CO.UK
ACOUSTICS
| EN ENGLISH 01 | ||
| DE | DEUTSCH | 19 |
| ES | ESPÁÑOL | 37 |
| FR | FRENCH 55 | |
| IT | ITALIAN 73 | |
| NL | DUTCH 91 | |
| PL | POLISH 109 | |
| PT | PORTUGUESE 127 | |
| RU | RUSSIAN 145 | |
| SV | SWEDISH 16 | |
| ZH | CHINESE 181 | |
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, UK
CM23 5GZ
Zubehör
Q Acoustics
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, Reino Unido
CM23 5GZ
Accesorios
6.0kg (13.2 lbs)
ACOUSTICS
QACOUSTICS.CO.UK
ACOUSTICS
| FR | FRANÇAIS | 0 |
| DE | ALLEMAND | 1 |
| ES | ESPAGNOL | 2 |
| FR | FRANÇAIS | 5 |
| IT | ITALIEN | 73 |
| NL | NÉERLANDAIS | 91 |
| PL | POLONAIS | 3 |
| PT | PORTUGAIS | 127 |
| RU | RUSSE | 145 |
| SV | SUÉDOIS | 163 |
| ZH | CHINOIS | 181 |
www.qacoustics.co.uk/register.
Stortford Hall Industrial Park
Support mural (simple)
3010i / 3020i / 3090Ci
Noir et blanc
Dimensions (L× H× P) .. 70× 159× 99mm
(5.9 x 10.0 x 10.0 in)
4.1 kg (9.0 lbs)
3020i
Reflex 2 voies
125 mm (5.0 in)
22 mm (0.9 in)
64 Hz - 30 kHz
6Ω
4Ω
88 dB
25-75W
50 - 125 W
2.4 kHz
6.1 L (372 cu in)
170 × 278 × 282 ~mm
(6.7× 11.0× 11.1 in)
5.5 kg (12.1 lbs)
Q Acoustics
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, Regno Unito
CM23 5GZ
Accessor
(5.9 x 10.0 x 10.0 in)
4.1 kg (9.0 lbs)
3020i
Reflex a 2 vie
125 mm (5.0 in)
22 mm (0.9 in)
64 Hz - 30 kHz
6Ω
4Ω
88 dB
25-75W
50-125W
2.4 kHz
6.1 L (372 cu in)
170 × 278 × 282 ~mm
(6.7× 11.0× 11.1 in)
5.5 kg (12.1 lbs)
Subwoofer attivo
Tipoinvolucro:
Unità bassi (mm):
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, GB
CM23 5GZ
Accessoires
Wandbeugel (1 stuk)
3010i / 3020i / 3090Ci
Zwart en wit
Afmetingen (B× H× D) .. 70× 159× 99mm
(5.9 x 10.0 x 10.0 in)
4.1 kg (9.0 lbs)
3020i
2-wegsreflex
125 mm (5.0 in)
22 mm (0.9 in)
64 Hz - 30 kHz
6Ω
4Ω
88dB
25-75W
50 - 125 W
2.4 kHz
6.1 L (372 cu in)
170 × 278 × 282 mm
(6.7× 11.0× 11.1 in)
5.5 kg (12.1 lbs)
Actieve subwoofer
Behuizingstype:
Baseenheid:
Versterkervermogen:
Frequentriespons (+3dB, - 6dB)
Crossover-frequentie:
Effectief volume:
www.qacoustics.co.uk/register.
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, Wielka Brytania
CM23 5GZ
Akcesoria
6.0kg (13.2 lbs)
ACOUSTICS
QACOUSTICS.CO.UK
ACOUSTICS
| EN | INGLÉS | 01 |
| DE | ALEMÃO | 19 |
| ES | ESPANHOL | |
| FR | FRANCÉS | 55 |
| IT | ITALIANO | 73 |
| NL | HOLANDÉS | |
| PL | POLACO | 109 |
| PT | PORTUGUES | |
| RU | RUSSO | 145 |
| SV | SUECO | 163 |
| ZH | CHINÊS | 181 |
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, UK
CM23 5GZ
Acessórios
Suporte de parede (unico)
3010i / 3020i / 3090Ci
Preto e bianco
Dimensoes (LxAxD): 70 × 159 × 99 ~mm
Suporte de altovalante (par)
3010i / 3020i
Preto e bianco
6.0kg (13.2 lbs)
ACOUSTICS
QACOUSTICS.CO.UK
ACOUSTICS
RU PYCCKNI 01
DE HEMELIKN 19
ES ICNAHCKN 37
FR ΦPAHLU3CKN 55
IT NTALbHCKN 73
NL HNDEPJIAHIDCKNI 91
PL NONbCKN 109
PTIOPTUYAJIbCKH 127
RU PYCCKM 145
SV WIBEIDCKN 163
ZH KNTAUNCKN 181
BaxkhaHΦopMaIyOmepaX6e3oNaChocTINnnpedynpexKdEHH
1.Инфорmaцио мерх 6e3oNaChocTN npedynpeXdEHH
Ipeed NOdknIOueHneM KaKoro-JIN60 6ObOpyIDobAHNA K KOJIOHKAM y6eNTecb, YTO BCE pa6oOye 6IOKN Bawen CnCTEmbl OTKJIIOUeHbl OT 3JeKTpUueCKoCetn.
Pn BKJIOUeHnn ayDIOOCNTMbl NnnepeKJIIOUeHnn nCTOUYHKOB BXODHBIX CnIHAnOB,ycTahOBnTe 06uN peyIaTOp rPOMKOCTn HaHN3Kn yPOBeHb. PObBIAaTe yPOBeHb rPOMKOCTn NOCTeNEHNO.
HINKOrIa He BkIoUaIte ayDIOscNCTeMy Ha NOJHyo rpOMKocTb. PonoJKeHne peryIaTopa rpOMKocTn MoKeT BBOuNTb B 3a6NyJxHeHne H He yKa3bIbaET yPOBeHb MOUHOCTn CnIHana. NcNoJIb3OBAHne OueHb BblCOKnx yPOBHeN rPOMKOCTn MoKeT IOBpeIITb BaIcIyX.
1.1.Инструкции
PpeKJe qem npntyntb K nCNoJIb3OBAHnIO dHaMnKOB, npoHTnte u npIMnTe K CBeDeHnIO daHHoe pyKOBoCTBO. TapaHTnAHHynpyeTcra, ecn IOBpeKJdeHne cNCTEmbl npOn3OuIIO no npunHe HecO6JIooHn IHNCTpyKcIy DaHHoro pyKOBoCTBa. XpaHnTe daHHoe pyKOBoCTBO B HaJeXHom MecTe.
PpoHTaTe daHHyIO nHCTpyKcHIO.
CoxpaHnte daHHyIO uHCTpyKuHIO.
PpIMnTe K cBeDeHnIO Bce npEynpeJxDHeNIA.
CneyuTe Bcem yka3aHnma.
- He nCpOJIb3yIte 3TO O6OpUdOBaHne B6nI3N BOJbl. HE noDkIIOuAte nOIOca BaInx KOLOHOK K nITaIOSe cETn.
He yctaHaBnBaIte cnCTemy B6n3n nCTOuHKnOB TeNna, TaKnx KaK: 6aTapeu, pernctpbI OTOnJIeHnY, KxOHhbI pNTbl Nn Dpyrooe o6OpyDoBaHne (B TOM uCNe ycNInTeN), n3nyuaoue TeNIO.
IcnoJb3yIte NCKIOUHTeNbHO npucnocO6neHn/
DOnoJIHNTeNbHoe 06OpyDoBaHne,
peKOMeHNDoBAHHbIe npON3BOdnteHm.
OTKIOUaIte O6OpyIOBaHHe OT cETN BO BpEMr rpo3bl NnB Cnyae, eCNI BbI He Co6npaTeCb IOnb3OBAbTcR Nm DInITeNbHOe BpEMr.
2.ИЗВLEЧЕНЕи3унakOBКИ
PoiHocTbIO paCnakyIte akyCTnueckyIO cnCTemy. 13BNeKaITe KOLOHKn n3
KapToHHbIX Kopo6OK, npudepXnBaa IX 3a Kopnyc. He nCnoIb3yIte 3aunTHbIe Yexbl IJra N3BneHnRA KOLOHOK.
EcnBbl 3axOTnTe nepemecNTb KOJOHKn, He BOLOHTe INx NO NOny, TaK KaK 3TO MOKeT NOBpeDnTB INX — npINoDHnMnTE KOJONKn NpeD npeMeueHneM.
TuaTeJbHo npOBepBe KOJOnKn. Ecnn KaKne-Jn6o DeTaJI NOTcyTCTByIOT nIN NOBpeXKeHbI, COO6UInTe 06 3tOMy CBOemy dIepy KaK MoKHO cKOpee.
CoxpaHnTe ynapOBky dny6dyuue B03MOxHO TpaHCnOpTnpOBKn. EcnBbpeWnte Bbl6pocNTb ynapOBky, noXaanyIcTa, co6nIoJaTe deNCTByIOoee B BaSei CTpaHe 3aKOHoDaTeNbCTBO NO nepepa6OTke OTxoOob.
3.YctaHOBka
- IcnoIb3yIte ToJIbKO Te akceccyapbl, KOToPbIe NOCTaBJIOTc BMeCTe C N3dJIinem.
-Bo n36exaHne TpaBM n NOBpeXdHn, daHHOye yCTPOIcTBO DOJXHO 6bITb HaJeXHO yCTaHO bHeHO Ha N0y B COOTBeTcTBn C INHCTpyKqIaMn No yCTaHOBKe.
He nCNoIb3yIte cAmOeIbHbIe NOdCTaBKn. YcTaHOBnTe CneuIaNbHyIO NOdCTaBKy npOn3BOJCTBa KOMnAHn Q Acoustics, cJeDy IHNCTpyKUIN N NCNoJIb3yI KpeNExHbIe DeTANI, INdyUe B KOMnJIeKTe. Heo6xOIMyIO INHΦOpMaUIO Bbl MoKeTe NOLyUHTb y BaWero DInIepa. - EcIN Bbl NOIb3yeTeCb KOJIOHKaMn 6e3 3aUHTbIX CeTOK, N03a6ObTEcB O TOM, YTO6bl Y3JIb I npNBOda He 6blnn NOBpeKdEhbl.
HE pa36npaIte akcTnueckyIO cnCTemy. B npOTNBOM cnyae Bbl 6ydeTe IuweHb npaba Ha rapaHTmHoe 6CnyKmbAHne.
He coeHnHnTe BbIXOdbI DnI NOkKIOUeHNn AkyCTNueCKoCNCEmbl C CeTbIO NITaHN.
He noDBepraTe CNTeMy BO3DeICTBIOUpe3MepHbIX TemNepaTyp, NOBbiWeHHoBNlaXHOCTNI ININ PnMbIX COJHeuHbIX Lyuei.
B DaHHOM pyKOBoIDCTBe ONIcaHO npIMeHHeNcYCTPOINCTBa B TpONiueCKOM n (nII) yMepeHHOM KJIIMate.
3.1.BlaXHocTb
He cnedyet noDBepratb yCTpoiCTBO BO3deICTBnIO DOxJa, BlaRn, npocauBaIOuSeiCra NN pa36pb3rNaIOUeienC BoDbl BO n36exaHne BO3ropaHnna Nnn nopajKeHH 3JIeKTPnueckm
TOKOM.
-He nCnoNb3yIte 3TO o6OpyuObaHnE B6n3N BOJbl.
3.2.TexHnueckoe 6cbnyKbHaHne
Bce pa60tI no TexHnueckomy 6cnyKnBaHHIO
doJXhbl BbINOJIHTbcra KBaIIuNUPoBaHHbIM
TexHnueckm nepcoHaON. TexHnueckoe
O6cnyKnBaHne Heo6xOdmo B Cnyuae
NoBpeJxDeHn O6OpyDoBaHn, NonadaHn
KNDKOCTNI DpyrIX PpeMeTOB BHyTpB
6OpuyDoBaHn, BO3dEInCTBn DOxJn IIN BnaRn,
C6oEB pa6ote 6OpuyDoBaHn nI ero naHeHn.
4.0.CmBBoJIbHa n3JeJIN
CmBON npdunpejdeHnO6 onachoTn
CnMBOJ 《BOCKNlCuAteIbHbI 3HaK》 yka3bIbaet Ha HeKOtOpble napaMeTpbl, ONncAHbIe B DaHHOM pykoBODCTBE; Heo6xOIM IJI npedOTbpaueHna
npo6lemBpa6oteuTexHnueckOMobCnyKnBaHN.
BHIMAHHE! Bo n36exaHne nopaxeHnnaJIekTpnuCeKm TOKOM, y6eIntecb, YTO uINpHaIaNKn BUNKn NOxOJNT K uINpHe rHe3d p03eTKN, INBUNKa NOLHOCTbIO BCTaBnEeTcB p03eTKy.
CnMBOJ «OTxOdbI 3JIeKtpnueckoro n 3JIeKtpoHHO o6OpydoBaHna
JaHHbI CNMBOJ yKa3bIbAeT Ha TO, yTO yCTpoiCTBO DOJXHO 6bITb yTNIN3NPOBaHO OTdJIbHO OT 6bITOBOROMycopa n OTnpaBHeHO Ha CneuAn3NpOBaHHbI NyHKT c6opa dYtINn3aun I nepepa6OTKN OTXODB 3NeKtpnueckoro N3NeKTPoHHOrO 6OpydoBaHna.
063aTeIbHO 03HaKOMbTecb C npabnIampa3dIbHOn yTnIIN3aCnn 3JIeKTpUcEcknx N3JIeKTPOHHbIX N3DeNN, DeIcTByIOUMN B BaIeM perNoHE.
Bveedenne
Blaorodapm Bac 3a npno6peHne npodykun Q Acoustics!
JaHHaIINHeKa BkIouaet Bce6cJeDyUOne MoeJI:
MoeIb 3010i: KomnakTHaNoLOOHKa KOLOHka C MOUHBIM 100-MuJIINMeTpOBbIM (4,0 IIOMa) HN3KOaCTOTHbIM DnHaMVKOM.
MoIeIb 3020i: IonoUHnA KOLOHka c MoUHbIM 125-MuJIImMeTpObBIM (5,0 JIOMa) Hn3KOaCTOTHbIM DInHaMnKOM.
MoJIb 3050i: HanoIbHaa akCyIuecka cnCTema C dBMy MoUHbIMn 165-MuIIImeTpOBbIMn (6,5 IIOma) HN3KOaCTOTHbIMn DInHaMnKamn.
MoIeIb 3060S: AKTuBhI ca6Byep MoUHocTbIO 150 Bt c dBym 200-MnJIIMeTpObblMn (8,0 IIOMa) DInHaMnKaMn.
MoIeIb 3090Ci: LcHtpaIbHbI KaHaJI c DByMa MoUHbIMn 100-MuJIImMeTpObBIMn (4,0 dIOMa) HN3KOaCTOTHbIMn DNHaMnKamn.
B KapToHNo yNaKOBKe Bbl HaIeTe KOIoHKn I daHHe pyKOBoDcTBo NO 3KcnIyatauN.
Kpome toro,ynakOBka cneyuoux MoJeNei coepknt:
Modelb 3050i: Cta6nna3atop dny 3aHne yactn, uuui n o6motka dny uunne Jkaoon KoONKn.
UectnirpaHbI KIOU dIy 3aKpeIeHn yCTaHOBJIeHHbIX IINJIeN.
Moenb 3060S: Hypbl nTaHn, nnu n o6MOTKn nnJe.
BHHMaTeNbHo npOBepbTe n3dEne. B cnyae ecn KaKne-ln6o DeTaN OTCyTCTBYOT nn NIOBpeXeHbl, COO6uNTe o6 3tOMy CBOEmy dInJepy KaK MoXHO CKopee.
Haedeemc, yTo Bbl noJyUHTe ydoBOLbCTBne O T nCnoIb3ObaHn npOdyKuN Q Acoustics.
POnDrToBka
I3BleKaIte KOLOHKn I3 KapTOHbIX KOpO6K, npInepKnBaI IN 3a Kopnyc. He npInkacaiTecb K npEIOKOHeYbIM Kackaam NIN NCNoNb3yIe 3aunTHbIe qexJIbI npn IN3BneueHm. Modenn 3050i n 3060S TjKeIbe: npn Heo6xOdMocTn nonpocnte Koro-H6yDb NOMOy BaM.
Ipo6ka n3 neHonlaacta
KoONKc cepnn 3000i ochauehbl 3aHnMn nopTaMn Inyuwe Bcero pa6otaOT ByCNOBnAx, KOrda 3a HmNnMEeTc HekOTOpoe npoctpaHCTBO, TO eCTb OKOJIO 20 cm do cTeHbl. Ecn BBi pacnoLoXnTe KOOnHKn 6n3KO K cTeHe/yrny, Heo6xOdImo 6yDet BCTaBnTB B 3aHnne NopTbI NeHONJaCTOBle npo6Kn, INaYe MOKeT NOBtCBc CInlKOM MHOro Hn3Knx YaCTOT.
Y6eHNTecb, yTO npo6Kn NIOtHO CnIaT B nOpTaX n He BCTabHeHb CnIuKOM rny6Oko. Bbl O6hApyKnte, 4TO yPOBeHb H3Knx YAcTOT NOHN3NTCra, HO npn 3TOM NOBicNTcA YeTKoCTb N CTeneHb rny6uHb b6aca. 3KcnepeImeHTnpyIte N Do6NBauTEcb HyxHoro BAM 3ByaHna. DnA DOCTNXKeHn ONTNMaJIbHORO KOHeUHOro pe3yNbTaT a npo6yIte BHOCNTb He60nbWe n3MeHeHn B paCNOJoxKeHne KOLOHOK.
UHnnnOueh bocptbe. BydbTe octopoxKbI!
HnkOrda He cTabbTe KOLOhky Ha 7nnIax TaM, rJe OHI MoryT YTO-JIn6o NOBpeDntb!
IpepeMaTe KOJIOHKn Bcerda No BO3dyxu HnKOrJa He BOIoUHTe nx no NOBepxHocTAm!
3050i.Прикpeniteзадн стбилзatop
BCTaBbTe 7HnI, o6OpyDobAHbIe CTOnOpHbIM rAikamN, DO NOJOBHbI B OCHOBaHne u BepHtE KOJONKy B BepTKaJIbHOe nOLOXKeHne. (EcI y Bac DepeBraHHbI NII KAmEHbI PON, HAdeHbTe pPOTEKTOpHa KaJdbI WnIb I 3aTeM BepHtE KOJONKy B BepTKaJIbHOe nOLOXKeHne). Korda KOJONKa HaxoITcBa I npabInbHom nOLOXKeHn, BCTaBbTe WeCTURpaHHbI KIOU CBepy B KaJdbI 3aHN J WnINb I OTperynuPyte BCE WnINb TAK, YTO6bl KOJONKa CTOnJa PnpMO n He 7aTaNacb.
IcnoB3yInTe BnHTbI DnA 3aKpenHnHOKeK, KaK yKa3aHo Ha KapTINHe.
Pa3meueHne
Bcemn AkyctHecMM OCTeMM MOKHO NOBOTBPOPAOM C TENEVBIOHbIM MOHITOPAM63 KAKORIINBOpeHOro BO3peCTBVKN,KOPEMODEN3060S,KOTopyHO HepeKOMHeDyETOHKTITAYTIPoBaTH Ha pacrToHHm Mehee 500 MM OT EkaHa TENEVBOPaNN DpyTORO MarHHTOyBCTBNTBHorO 6OpdyobAHn PImaMeHHbienXK-EkpaHbTIakKeHeNpOpeRHEbIPeHOMy BO3peCTBVIO.
3010i n 3020i
KoNoHKn 3010i n 3020i ndeaBHO noxOJr dny yctaHOBKn Ha HanoNbHbIe noCTabKn Q Acoustics nn MOHTaKa Ha cTeHy. Ecn Bbl npOn3BOJnTe MOHTaK Ha noCTabKn, co6NIOaIte npocToe npabIno: 6nok, OTBeuaUoiu 3a nepeDauy BepxHnx UactOT,doJKeH haoNTbcra Ha ypOBHe rONobBi CnJaUe Ro Cnyuatae. KONoHKn, MoHTnpyEmbIe Ha cTeHy, moXHo paCNOJoxNTb HeMHorO Bblue, eCIn INx Cnerka HaKNOHTb. KONoHKn, MoHTnpyEmbIe Ha noCTaBKn, cJeDyET paccMaTpNBaTb KaK HanoNbHbIe KONOHK, 3a NCKLIOueHneM TORO, YTO INx MoXHO paCNOJoxNTb HeMHorO 6nHexe K 3aDHeN cTeHe. Bo3MOxHe TaKke MOHTaK Ha NOkN.
Y BaWero DnIepa HMeETcB HAnuHOn OngNoHaJIbHO NocTabIeMbIn KPOHtEIN, CneuaJIbHO pa3pa6oTaHHbI dJa MOHTaKa Ha cTeHy KOLOHOK Q Acoustics 3010i, 3020i n 3090Ci. IMeIoTc TaKKe HAnOJIbHbIe NODCTaBKn dJa MoDeNe 3010i n 3020i. Bydte roTOBbl EKcnepImeHTnpoBaT B NOnCKe HAnLyUWeRo Ha BaW BKyc PaCNOJIOXeHnRA KOLOHOK B KOHKpeTHOM, Bbl6paHHOM Bamn NOMEseHn.
3050i
KoJohKn 3050i cIeNyET
paCnoJIOXnTb MNHmym B
20 cm OT 3aHHei CTehbl n
B 50 CM OT 6OKOBbIX CTEH.
Pa3MeueHne KOJOHok 6nHexe K
CTHe ycNlNT Hn3Kne yAcTObbl,
HO MoKet Bb13BaTb rYnl n
HeueTKOcTB 3Byka. KOJOHKn
doJXhbl HaxOuITbcra B 2-4
MeTpax Dpyr OT dpyra n CBOUMn
ZeHTpamn o6paatbcra
K cnJaUeMy cnUaTeJIIO.
He6oJbwoi nobOpOT KOJOHOK
fpoHTaIbHbIMn CTOPOHAMn
Dpyr K Dpyry CdeNaeT YeTHe CTepeOKapTHy, HO MOXKeT «Cy3NTb» NCTOCHNK 3ByKa.
Ca6ByΦep
Hn3Kne 3ByKObIe YAcTOTb B OCHOBOM OINHaKObI NO BCem HAnpabLeHNrM. XOTa 3TO O3Haayet, YTO Bbl MOxKeTe yCTaHOBtB BAI sCa6Byoep IpaKTnueckn B IIObOM MeCTe, BCE JxE 3ByKOba KApTHNa 6yDet LyuWe, ECIN Bbl yCTaHOBtCe Ca6Byoep Ha yPoBHe nepeDnHex DnHAMNKOB N, HAckOJIbKO BO3MOXHO, NO CEHTpy OT N03UcN CnywateJ. B MHorokAHaJIbHOH CNCTeMe 3TO MOxET 6bITb HEOCUeCTBUMO. EcIn Bbl NoCTaBtE ca6Byoep 6bn3Ko K CTeHe, TO HxKHe 3ByKObIe YAcTOTb MOryT YcNIITbcra N IO3TOMy B HeKOTOpbIX MecTaX 3BYK MOxET CTaTB HeYeTKIM.
KoHKnIynepeayn3ByKObblx 00
3090Ci
KoNoHka 3090Ci npedHa3HaueHa dna pa6ObI B6n3n Tele3KpaHa n pa3Meuen no ero ceHTpahHO cn. Ee cneJyET pa3MeCTnb HenocpeDCTBeHHo HAD kpaHom nn Nn NDn. Ecnn y Bac nla3MeHHb nn KK-MoHtOp, MoHTpyNe KOOnHKy 3090Ci Ha CTeHy nn DpyrYIO NOxODaYIO NOBepXHocTb HeNocpeDCTBeHHo HAD kpaHom nn Nn NDn NpN NOMOnu HAcTeHHoro KPOHTeHa Q-Acoustics. B npOTNBHom cnyae NoymaTe O pa3MeueHn TeteBn3Opa Ha CTnJaK, Ha KOToPbMoXHo 6ydet TaKke NoCTABtB n KoOnHKy 3090Ci (Ha npouHyIO nonky HenocpeDCTBeHHo NDt TeleBn3Opom).
Cnmbolbl Dolby n DD -3To Toprobble Mapkn KOMnaHnn Dolby Laboratories.
Akyctnuecka cnctema o6bemHoro 3ByaHna
Kompanna Dolby daet cneyuounpekomeHdaunn B OTHOseHnn ayinocntembl napepaun 3ofoektob 5.1. KonoHkn dnypepaun o6bemHoro 3Byka cneuyet MOHTnpOBaTb no 6okam OT cnuwateJn HEMHORO c3aHn Hero. KonoHkn cneuyet NOBepHyb npyr Kdpyrg, npocTo pa3MeCTNB INx Ha 6OKOBbIX CTehax NOMeHnIHN, ecnn NOMEUeHne CNIWKOM BENko, Ha BBICOKNX IOdctabKax. Ppi 3tOM cneDyET paCNOJoxNTb ceHTpbI KOLOHOK Bbiwe ypOBHr rONOBbl cnJaueero cnuwateJn.
ДяnotOnoUHbIX KOJIOHOK, KOTOpbIe IcNoJb3yOITcЯ MHorokaHaJIbHbIX yCTaHOBOK, Mbl peKOMeHdyem accOPTUmEHTyCTaHOBOuHoro Kpenexa Q Acoustics.
CoeinnHeHn
Ipeep IIOKJIIOUeHnEM KaKOrO-JIN6o OOBpyOBAHnK KOJIOHKAM yBeDntecb, YTO BCE pa6oynme 6NOKn BaIeun CnCTEmbl OTKIIIOUeHbI OT 3JIeKTPuueckoCetn. PnB KIIIOUeHm ayIOOCNTembl INI nepeKJIIOUeHnN NCTOUYHKnOB BXODHBIX CNrHaIOB, yCTaHOBITE oBcIy peYrIaTOp rpOMKoCTn Ha Hn3Km IyPoBeHb. NObblaIte YpOBeHb rpOMKoCTn IOCTeNeHNo.
PonocncoeHHTeJI
KoNoHKn 3010i, 3020i, 3050i n 3090Ci oshauehbl cTaNdapThbIMn KpoccoBepamc DBymna NIOUcAmn.
3010i, 3020i, 3050i, 3090Ci
Akyctnueckne ka6enn
CneuHaun3nupoBaHHbIe akyCTnueckNe Ka6eNIO bcncpeuHbAOT 6OJee BbICOKN CTaHdAPT BOCnpOn3BeDeHNy, cem Ka6eNIO o6Uero Ha3NaueHnra Tnna "bell" (ToHKne I nPLOXo N3oJInpoBaHHbIe Ka6eN) nn "zip" (DbYxKnlbHbIe Ka6eNc pa3dennTeNbHbIM OCHOBaHnEM). IInr nepeHero n ceHTpaNBHO rKaHaONB HcNoJIb3yIte Ka6eNc 6OJbShm KOnNUcEcbom MeIN. ToHKne Ka6eNc cokpaauot Hn3Kne qactOTbl N orpAnuHBAOT dInHaMnueckn dInaNa3OH. MeHbWee 3NaueHne irpaIoT KaHaJIb IOsbEmHOrO 3ByaHnra (3aHnne).
Akyctnueckn Ka6eIb Imeet noLocKy nIIM MeTKy BdoJIb OndHO Ka6eIbHO JINJIb. IIO npaBnIam erO HyxHNO pNDKIOUaTb K NOLOXITeJIbHbIM NOnIOcAM. Ka6eI, NODKIIoUaIOUne ycNlnteB K nepeDnM KOLOHKaM, B INeane DOnJXHbI 6bITb OOnHaKOBOI dInHbI. HNKOrDa He coeDnHrTe Ka6eIb n3 HeCKOJIbKnx OTpe3KOB — BCerda NcNoJIb3yIte cElyB Ka6eIb.
IpoTobKa Ka6eNei
Pacuente Knlb Ka6eHa rny6nHy Okono 40 MM. OroInTe KOHeu KaKdoi Xnlb Ha rny6nHy 10 MM n cKpynte erO, TTo6bl C6paTb B CEJeoe BCE Topaune B CTOpOHb IpOBoDNk. POnpeXbTe oroneHHyU qactb Ka6eNo dnnHb7 MM.
PoiKlnouHne noIIOca
OTKpyTnte NOJOC npOTNB YacOBOc TpeKN DnToro, UTO6bl CTANO BNDHO MOHTaxHoe OTBepCTne BOCHOBAHN KOJOHKn NOLoca.
BCTaBbTe oroneHHK KOHeu Ka6eJ B OTBepCTne. 3akpyntte noJIoc pyKoI Do oTKa3a. Y6eInTeCb, yTO He NMeETcH HnKaKxh Topaunx npOBODKOB, KOTOpblc MoryT kacatbcra cOceHNX nONOCOB. B EC INCNoB30BaHHe 4-MnllnMeTpPoBbIX WTeNCEJbHbIX aKyCTNuuecknx BNLOK pOTNBopeuyHT HopMaM 6e3OnaCH
CtepeofoHnueckne coeHHeHn
Ctahapthbce coeHHeHH
PoiKIOHnTE KAPCHbI (+) noIOc npaBOK KOIOHKn K KPACHOMY noIOXHTBHOMy (+) noIOcy PPABOTo KaHana ycINTeJI. PoiKIOUHTe YEPHbI (-) noIOc KOIOHKn K COOTBEcTByIOUeMy UEPHOMY, OtpuataeHbOMy (-) noIOcy ycINTeJI. PioJeaTe Tj Xe npoUeDpy B OTHOseHm JIEBOTO KaHana.
CtAnapTha cnCTema npoBOJIOB:
PoclenpoJxHoe o6cIyXuBaHne
Yxoid3aKopnycom
Kopnyc MoXHO uHCTNtB ToIbKO cIeRka CMOeHHo CaJIeTko. He nCNoJb3yIte uHCTaIne cpeDCTBa Ha OCHOBe pAcTBOpHTeNe. HIKoRa He nCNoJb3yIte a6pa3uBBbl.
Kak npabnlo, nobepxhoctb Kopnyca Tpebyet Tolbko JERKO OUHCTKN OT nbll. Ppi nCpObl3OBaHn a3po30IbHoro nn KaKOro-lno6 Dpyrro OuCTAeero CpeDCTBa HAnocnte ero Ha caNfoTKy, a He Ha cAmo n3dJIe. IJra NaUcAra nonpObyte uHCTAee CpeDCTBO Ha MaJeHbKOM yAcTKe NOBepXHOCTN 3dJIeR, TaK KaK HeKOToPbIe YnCTAeune CpeDCTBa MOrTy NOBpeDNTb NOKpbITne. N36eraTe NCpObl3OBaHn a6pa3INBOB nn CpeDCTB, CoedePkaunx KncIoTHbe nn UeNochBie peAreHTbl. Bo n36exKaHne NobpeXdEHN He NcPOnb3yIne YnCTAeune CpeDCTBa dJa NcSTKn rONOBOK n He TporaiTe nx.
3aHTbIe cETKn
3aunthbte cetkn npn Heo6xodmoctn CneJeT uCTntb TOnbKO MrgKo 8eTKO.
EcnBbI nCnoJIb3yeTe CnCTeMbI Q Acoustics 6e3 3aunTHbIX CeTOK, 6o3aTeJbHO yCTaHaBnBaIte INx Ha MeCTO, KOrJa B KOMHaTe HaxoJrTcJeTIn NII DomaUHHe XJBOTHbIe.
y3nbipnB0da
K y3nam npuB0da lyuhe He npkacaTbca, TaK KaK nx IerKo NOBpeDntb.
TapaHTnA
Ha npodykuni KOMnAHN Q Acoustics npedocTabIeTc rapaHTnOCTBnI dekeTOB c TOnKu 3peHn KaueCTBa MaTePnAIOB n N3rOToBneHn Cpokom Ha 4 roda (1 roJ dJa ca6Byepe) c DaTbI npno6peTeHn. B TeueHne rapaHTnHOro cpoKa kOMnAHN Q Acoustics o6a3yeTc npoIN3BeCTn peMOHT nn 3aMeHnTB n3dEIne, ecJn NocJI npoBeHn npOBepKn OHa nn ee Ha3NaueHHb IINCTpn6bHTOp nn yPOJHomOueHHb npedCTabNTel b O6HapykaT deeEKT B npedeOCTabHeHHOM Ha npOBepKy n3deHn.
TapaHTnHa PaCnpocTpaHReTcHa HEnpabInbHOe NcNoIb3ObaHne I ECTeCTBeHHbI u3HOC.
TobapbI dIpeMOHTa DOJXHbIB NepByIO OuepeB 6bITb BO3BpaUeHbI NOCTABUBWemy INx DnIepy.EcIN ITo He npedctabJIeTcB BO3MOXHbIM, CBJXtEcB c Q Acoustics nII Ha3HaueHHbIM KOMpAHneI DnCTPb6bIOTOpOM dIra BaWero pRHOHa, UTO6bl ONpeDenITb PpaBnBHyO rapaHTnHyO npoEdupy. IIO BO3MOXHOCTN CNeDyET NCNOJb3OBaTB OpIRnHaJIbHyO yNAKOBYI dIra BO3BpATA N3DeIInr, TAK KaK Ha yUeP6, npuHNHeHHbI BO BpEMr TpaHCnOPTnpOBKn B ceHTp peMOHTa, He paCnpoCTpaHReTcRApaHTn. 3Ta rapaHTn HIKoIM o6pa3OM He BnREt Ha BaUN 3aOKHhble npaba.
Cpok DeiCTBnra rapaHTn moXHo npOJnTb do 5 neT (2 roJa dIra ca6Byepa), 3aperncTpnpobab n3dennne
Ha Be6-CTpaHnue
www.qacoustics.co.uk/register.
Для получени Информаци O ТЕХИЧЕСКО M OБслУЖИВАПИ OБрацайТecь NO aДпесу ΝЛeКТрОНночы info@qacoustics.co.uk
Q Acoustics
Stortford Hall Industrial Park
Bishop Stortford, Xapтфордшир, Великовптуни CM23 5GZ
Приноалесноctи
HaTeHHbI KPOHHTeH (OdH)
3010i/3020i/3090Ci
UepHbI n 6ebbl
Pa3MepbI (UxBxΓ): 70 x 159 x 99 mm
CtoiKa dIy KonoHok (napa)
3010i/3020i
UepHbI n 6ebbl
HacteHHbI KpOHHTeH nla ca6ByΦepa
3060S
UepHbI
Pa3Mepbl (LxxBxΓ): 250 x 682 x 290 mm Pa3Mepbl (LxxBxΓ): 422 x 222 x 163 mm
PaccNBbIe akyCTnueckne cntEmbl
Tun Kopnyca:
BLOK HIXKHX YACTOT:
BLOK BepxHnx qactoT:
AMNITyHNo-chaTOTHa
xapaktepuctnka (+3dB, - 6dB)
MnHmMaJIbHbIy mMeJaHc:
CpeDHee conpoTnBLeHne:
YbCTBNTeJIbHOCTb (2,83V@1M):
MoIHOCTb CTpeOycNJNTeJIa:
MoIHHoCTb AV-pecNBepa (dByxKaHaJIbHbI)
Yactota KpoccoBepa:
Pa6ochn o6bem:
Pa3mepbIkopnyca (× × )
(BkIIOUapeWeTky,pa3bEmnHOxKn)
Unpna ukaa:
Bec (Ha cπιkep):
3010i
2-noIOChbIe c
100 mm (4.0 in)
22 mm (0.9 in)
65 Hz - 30 kHz
6Ω
4Ω
86 dB
15-75W
50-125W
2.6 kHz
4.0 L (244 cu in)
150 × 253 × 252 mm
(5.9× 10.0× 10.0 in)
4.1 kg (9.0 lbs)
3020i
2-NOIOChbIe C
125 mm (5.0 in)
22 mm (0.9 in)
64 Hz - 30 kHz
6Ω
4Ω
88 dB
25-75W
50-125W
2.4 kHz
6.1 L (372 cu in)
170 × 278 × 282 ~mm
(6.7× 11.0× 11.1 in)
5.5 kg (12.1 lbs)
AKTNBbI ca6Byep
Tun Kopnyca:
BJOK HIXHINX YACTOT:
MoUHOCb yCUNITeJIa:
Yachotnha xapaKTepeNCTnka(+3 dB, -6 dB):
YacToTa KpoccoBepa:
Pa6ochn o6bem:
Pa3MepbI Kopnyca (XxBxΓ):
Bec:
3060S
BeckoHeHbI 3KpaH
200 mm (8.0 in)
150 W Class-D
35 Hz - 250 Hz
35 Hz - 250 Hz (var.)
10.6 L (647 cu in)
480 × 300 × 150 ~mm (18.9 × 11.8 × 5.9 in)
324 mm (12.7 in) Bknoa ynnn
8.5 kg (18.7 lbs)
3050i
2-IOIOChbIe C
2 × 165 ~mm (6.5 in)
22 mm (0.9 in)
44 Hz - 30 kHz
6Ω
4Ω
91 dB
25-180W
50-165W
2.5 kHz
32.4 L (1977 cu in)
310 × 1020 × 310 ~mm
(12.2 × 40.1 × 12.2 in)
200 mm (7.9 in)
17.8 kg (39.2 lbs)
3090Ci
2-nOIOChbIe C
2× 100mm (4.0 in)
22 mm (0.9 in)
75 Hz - 30 kHz
6Ω
4Ω
89 dB
25-100W
50-165W
2.7 kHz
6.6 L (403 cu in)
430 × 152 × 216 mm
(16.9× 6.0× 8.5 in)
6.0kg (13.2 lbs)
ACOUSTICS
QACOUSTICS.CO.UK
ACOUSTICS
3000i-serial
AGARMANUAL
| EN | ENGELSKA | 0 |
| DE | TYSKA | 19 |
| ESSPANSKA37 | ||
| FR | FRANSKA | 55 |
| IT | ITALIENSKA | |
| NL | HOLLANDSDKA | 91 |
| PL | POLSKA | 109 |
| PT | PORTUGISISKA | 127 |
| RU | RYSKA | 145 |
| SV | SVENSKA | 16 |
| ZH | KINESISKA | 1 |
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, UK
CM23 5GZ
Tillbehör
Vaggfeste (enkel)
3010i/3020i/3090Ci
Svart och vitt
Matt (BxHxD mm): 70 x 159 x 99 mm
Kabinettets matt (BxHxD mm):
Kabinettets matt (BxHxD):
Vikt:
3060S
Sluten lada
200 mm (8.0 in)
150 W Class-D
35 Hz - 250 Hz
35 Hz - 250 Hz (var.)
10.6 L (647 cu in)
480 × 300 × 150 ~mm (18.9 × 11.8 × 5.9 in)
324 mm (12.7 in) inkl. spikes
8.5 kg (18.7 lbs)
3050i
2-vagsreflex
2 × 165 ~mm (6.5 in)
22 mm (0.9 in)
44 Hz - 30 kHz
6Ω
4Ω
91 dB
25 - 180 W
50-165W
2.5 kHz
32.4 L (1977 cu in)
310 × 1020 × 310 ~mm
(12.2× 40.1× 12.2 in)
200 mm (7.9 in)
17.8 kg (39.2 lbs)
3090Ci
2-vagsreflex
2 × 100 ~mm (4.0 in)
22 mm (0.9 in)
75 Hz - 30 kHz
6Ω
4Ω
89 dB
25 - 100 W
50-165W
2.7 kHz
6.6 L (403 cu in)
430× 152× 216mm
(16.9× 6.0× 8.5 in)
6.0 kg (13.2 lbs)
ACOUSTICS
QACOUSTICS.CO.UK
Vär policy ar en kontinuereg likkortforbättring.
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, UK
CM23 5GZ
配件
壁架（单个）
3010i / 3020i / 3090Ci
黑与白
6.0kg (13.2 lbs)
ACOUSTICS
QACOUSTICS.CO.UK
CtepeofoHnueckne coeDnHeHn
CtAnapThbIe coeHHeHn
PoiKIOHnTE KAPCHbI (+) noIOc npaBOK KOIOHK K KPACHOMY noIOXHTbHOMy (+) noIOcy PABORO KAHaJa ycINTeJI. PoiKIOHnTE YEPbI (-) noIOc KOIOHK K COOTBeTCTByIOUeMy YEPHOMY, OtpuataBelhOMy (-) noIOCy ycINTeJI. PpOeJaTe Ty Je npoceDpyB oTHoWeHH JEBOFO KaHana.
CtAnapTha cnCTema npoBOJIOB:
PoclenpoJxHoe o6cIyXuBaHne
YxOa 3a KOpnycom
Kopnyc MoXHO uHCTNtB ToIbKO cIeRka CMOeHHo CaJIeTko. He nCNoJb3yIte uHCTaIne cpeDCTBa Ha OCHOBe pAcTBOpHTeNe. HIKoRda He nCNoJb3yIte a6pa3uBBbl.
KaK npabnlo, NOBepxHocTb KOpnyca Tpe6yeT ToIbKO JERKO OUcCTKN OT nbll. PpN NcNoIb3OBaHIn a3po30JbHoro nn KaKOro-ln6o DpyrOro Ucctraeero CpeCDtBa HAnocTe erO Ha cAfoTeKy, a He Ha camo n3dEne. IJa NaUaIa NoPb6yIte YnCTaue CpeCDtBO Ha MaJeHbKOM yAcTKe NOBepXHOCTu 3dEJIa, TaK KaK HeKOTOpBie YnCTaue CpeCDtBA MOrTy NOBpeDITb NOKpbItne. N36eraIte NcNoIb3OBaHIn a6pa3INBOB nn CpeCDTB, CoedeJkaunx KncIoTHbIe nn IIn IeNoUHbIe peAreHTbl. Bo n36exKaHne NobpeXdHIn He NcNoIb3yIte YnCTaue CpeCDtBa IIn YnCTKn rONOBok n He TporaiTe nx.
3aHTbIe cETKn
3aunthbte cetkn npn Heo6xodmoctn CneJeT uCTntb TOnbKO MrgKo 8eTKoN.
Ecnn Bbl nCnoJIb3yeTe CnCTeMbI Q Acoustics 6e3 3aunTHbIX CeTOK, o6raTeNbHO yCTaHaBnBaIte INx Ha MeCTO, KOrJa B KOMHaTe HaxoJrTcJeTIn Nll DomaUHHe XuBOTHie.
y3nbl npB0da
K y3nam npuBOna lyUwe He npKacTaBcra, TaK KaK nx IerKo nobpeDntb.
TapaHTnA
Ha npodykuni KOMnAHN Q Acoustics npedocTabIeTc rapaHTnOCTBnI dekeTOB c TOnKu 3peHn KaueCTBa MaTePnAIOB n N3rOToBneHn Cpokom Ha 4 roda (1 roJ dJa ca6Byepa) c DaTbI npno6peTeHn. B TeueHne rapaHTnHOro cpoKa kOMnAHN Q Acoustics o6a3yeTc npoIN3BeCTn peMOHT nn 3aMeHnTB n3dEIne, ecJn NocJI npoBeHn npOBepKn OHa nn ee Ha3NaueHHb IINCTpn6bHTOp nn yPOJHomOueHHb npedCTabNTel b O6HapykaT deEeKT B npedeOCTabHeHHOM Ha npOBepKy n3deHN.
TapaHTnHa PaCnpocTpaHReTcHa HEnpabInbHOe NcNoIb3ObaHne I ECTeCTBeHHbI u3HOC.
TobapbI dIpeMOHTa DOJXHbIB NepByIO OuepeB 6bITb BO3BpaUeHbI NOCTABUBWemy INx DnIepy.EcIN ITo He npedctabJIeTcB BO3MOXHbIM, CBJXITcB c Q Acoustics nII Ha3HaueHHbIM KOMpAHneI DnCTPb6bIOTOpOM dIra BaWero pRHOHa, UTO6bl ONpeDenITb PpaBnBHyO rapaHTnHyO npoEdupy. IIO BO3MOXHOCTN CNeDyET NCNOJB3OBaTB OpIRnHaJIbHyO yNAKOBYI Da BO3BpATA N3DeJIyA, TAK KaK Ha yUeP6, npuHNHeHHbI BO BpEMr TpaHCnOPTnpOBKn B ceHTp peMOHTa, He paCnpoCTpaHReTcRApaHTn. 3Ta rapaHTn HIKoIM o6pa3OM He BnREt Ha BaUN 3aKOHHbIe npaBA.
Cpok DeiCTBnra rapaHTn moXHo npOJnTb do 5 neT (2 roJa dIra ca6Byepa), 3aperncTpnpobab n3dennne
Ha Be6-CTpaHnue
www.qacoustics.co.uk/register.
Для получени Информаци O ТЕХИЧЕСКО M OБслУЖИВАПИ OБрацайТecь NO aДпесу ΝЛeКТрОНночы info@qacoustics.co.uk
Q Acoustics
Stortford Hall Industrial Park
Bishop Stortford, Xapтфордшир, Великовптуни CM23 5GZ
Приноалесноctи
HaTeHHbI KPOHHTeH (OdH)
3010i/3020i/3090Ci
UepHbI n 6ebbl
Pa3MepbI (UxBxΓ): 70 x 159 x 99 mm
CtoiKa dIy KOLOHOK (napa)
3010i/3020i
UepHbI n 6ebbl
HacteHHbI KpOHHTeH nla ca6ByΦepa
3060S
UepHbI
Pa3Mepbl (LxxBxΓ): 250 x 682 x 290 mm Pa3Mepbl (LxxBxΓ): 422 x 222 x 163 mm
PaccNBbIe akyCTnueckne cntEmbl
Tun Kopnyca:
BLOK HIXKHX YACTOT:
BLOK BepxHnx qactoT:
AMNITyHNo-chaTOTHa
xapaktepuctnka (+3dB, - 6dB)
MnHmMaJIbHbIy mMeJaHc:
CpeDHee conpoTnBLeHne:
YbCTBNTeJIbHOCTb (2,83V@1M):
MoHocb cTepeoynnteJia:
MoIHHoCTb AV-pecNBepa (dByxKaHaJIbHbI)
Yactota KpoccoBepa:
Pa6ochn o6bem:
Pa3mepbIkopnyca (× × )
(BkIIOUapeWeTky,pa3bEmnHOxKn)
Unpna ukaa:
Bec (Ha cπιkep):
3010i
2-noIOOChbIe C
100 mm (4.0 in)
22 mm (0.9 in)
65 Hz - 30 kHz
6Ω
4Ω
86 dB
15-75W
50-125W
2.6 kHz
4.0 L (244 cu in)
150 × 253 × 252 mm
(5.9× 10.0× 10.0 in)
4.1 kg (9.0 lbs)
3020i
2-NOIOChbIe C
125 mm (5.0 in)
22 mm (0.9 in)
64 Hz - 30 kHz
6Ω
4Ω
88dB
25-75W
50-125W
2.4 kHz
6.1 L (372 cu in)
170 × 278 × 282 ~mm
(6.7× 11.0× 11.1 in)
5.5 kg (12.1 lbs)
AKTNBbI ca6Byep
Tun Kopnyca:
BJOK HIXHINX YACTOT:
MoUHOCb yCUNITeJIa:
Yachotnha xapaKTepeNCTnka(+3 dB, -6 dB):
YacToTa KpoccoBepa:
Pa6ochn o6bem:
Pa3MepbI Kopnyca (XxBxΓ):
Bec:
3060S
BeckoHeHbI 3KpaH
200 mm (8.0 in)
150 W Class-D
35 Hz - 250 Hz
35 Hz - 250 Hz (var.)
10.6 L (647 cu in)
480 × 300 × 150 ~mm (18.9 × 11.8 × 5.9 in)
324 mm (12.7 in) Bknoa ynnn
8.5 kg (18.7 lbs)
3050i
2-IOIOChbIe C
2 × 165 ~mm (6.5 in)
22 mm (0.9 in)
44 Hz - 30 kHz
6Ω
4Ω
91 dB
25-180W
50-165W
2.5 kHz
32.4 L (1977 cu in)
310 × 1020 × 310 ~mm
(12.2 × 40.1 × 12.2 in)
200 mm (7.9 in)
17.8 kg (39.2 lbs)
3090Ci
2-nOIOChbIe C
2× 100mm (4.0 in)
22 mm (0.9 in)
75 Hz - 30 kHz
6Ω
4Ω
89 dB
25-100W
50-165W
2.7 kHz
6.6 L (403 cu in)
430 × 152 × 216 mm
(16.9× 6.0× 8.5 in)
6.0kg (13.2 lbs)
ACOUSTICS
QACOUSTICS.CO.UK
ACOUSTICS
3000i-serial
AGARMANUAL
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, UK
CM23 5GZ
Tillbehör
Vaggfaste (enkel)
3010i/3020i/3090Ci
Svart och vitt
Matt (BxHxD mm): 70 × 159 × 99 ~mm
Kabinettets matt (BxHxD mm):
Kabinettets matt (BxHxD):
Vikt:
3060S
Sluten lada
200 mm (8.0 in)
150 W Class-D
35 Hz - 250 Hz
35 Hz - 250 Hz (var.)
10.6 L (647 cu in)
480 × 300 × 150 ~mm (18.9 × 11.8 × 5.9 in)
324 mm (12.7 in) inkl. spikes
8.5 kg (18.7 lbs)
3050i
2-vagsreflex
2 × 165 ~mm (6.5 in)
22 mm (0.9 in)
44 Hz - 30 kHz
6Ω
4Ω
91 dB
25 - 180 W
50-165W
2.5 kHz
32.4 L (1977 cu in)
310 × 1020 × 310 ~mm
(12.2× 40.1× 12.2 in)
200 mm (7.9 in)
17.8 kg (39.2 lbs)
3090Ci
2-vagsreflex
2 × 100 ~mm (4.0 in)
22 mm (0.9 in)
75 Hz - 30 kHz
6Ω
4Ω
89 dB
25 - 100 W
50-165W
2.7 kHz
6.6 L (403 cu in)
430× 152× 216mm
(16.9× 6.0× 8.5 in)
6.0 kg (13.2 lbs)
ACOUSTICS
QACOUSTICS.CO.UK
Vär policy ar en kontinuereg likkortforbättring.
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, UK
CM23 5GZ
配件
壁架（单个）
3010i / 3020i / 3090Ci
黑与白
