R4224STC - Heating QLIMA - Free user manual and instructions

Features	Details
Device type	Heater
Heating power	2400 W
Fuel type	Electric
Dimensions	600 x 400 x 200 mm
Weight	8 kg
Temperature control	Adjustable thermostat
Energy consumption	High
Indoor use	Yes
Maintenance	Regular filter cleaning
Safety	Overheat protection
Warranty	2 years
Additional information	Ideal for small rooms

Frequently Asked Questions - R4224STC QLIMA

How do I set the temperature on my QLIMA R4224STC heater?

To set the temperature, use the digital thermostat on the device. Press the 'Temp' button to select the desired temperature.

Why won\u0027t my heater start?

Check if the device is properly plugged in and if the outlet is working. Also ensure the thermostat is set to a temperature higher than the room temperature.

My heater is making a strange noise. What should I do?

A noise may come from air circulation or an object blocking the fan. Check the device for any foreign objects and clean the air vents.

How do I clean my QLIMA R4224STC heater?

Unplug the device before cleaning. Use a soft, damp cloth to clean the exterior and a vacuum cleaner to remove dust from the air vents.

Can I use the QLIMA R4224STC heater in a bathroom?

No, this model is not designed for use in humid environments like bathrooms. Use it only in dry spaces.

What is the electrical consumption of the QLIMA R4224STC heater?

Electrical consumption depends on the temperature setting and duration of use. On average, it consumes about 2000 W at maximum mode.

How do I program the heater to turn off automatically?

Use the built-in timer function. Set the desired shut-off time using the programming buttons on the control panel.

What should I do if the screen on my heater doesn\u0027t turn on?

First check the power connection. If the device is properly plugged in and the screen still doesn\u0027t turn on, contact customer service.

USER MANUAL R4224STC QLIMA

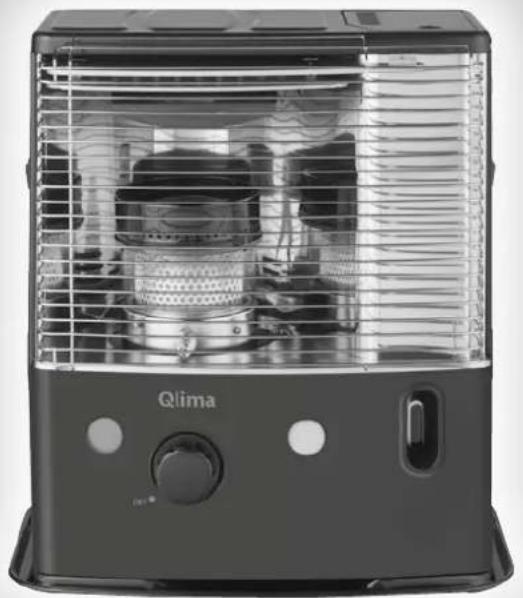

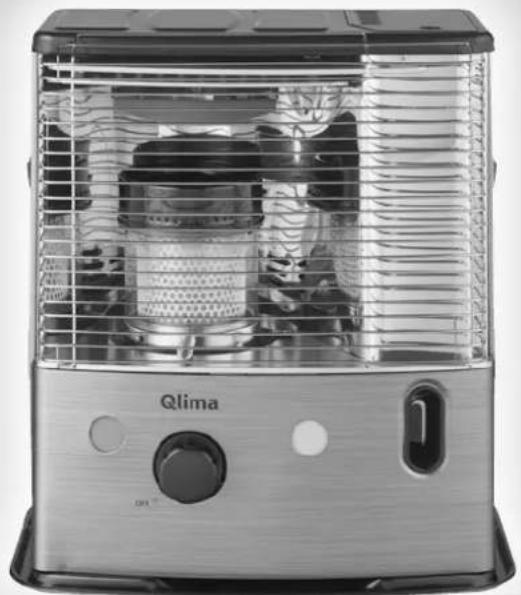

R 4224S TC - R 7227S TC

Exterior view of a Qlima heat exchanger with visible cooling fins and heat exchangers (no text or symbols on main body)

Exterior view of a Qlima portable air heater with cooling fan and heat exchanger (no visible text or symbols)

guarantee

4

YEARS

F	MANUEL D'UTILISATION	4
D	GEBRAUCHSANWEISUNG	16
DK	BRUGSANVISNING	28
E	INSTRUCCIONES DE USO	40
FIN	KÄYTTÖOHJE	52

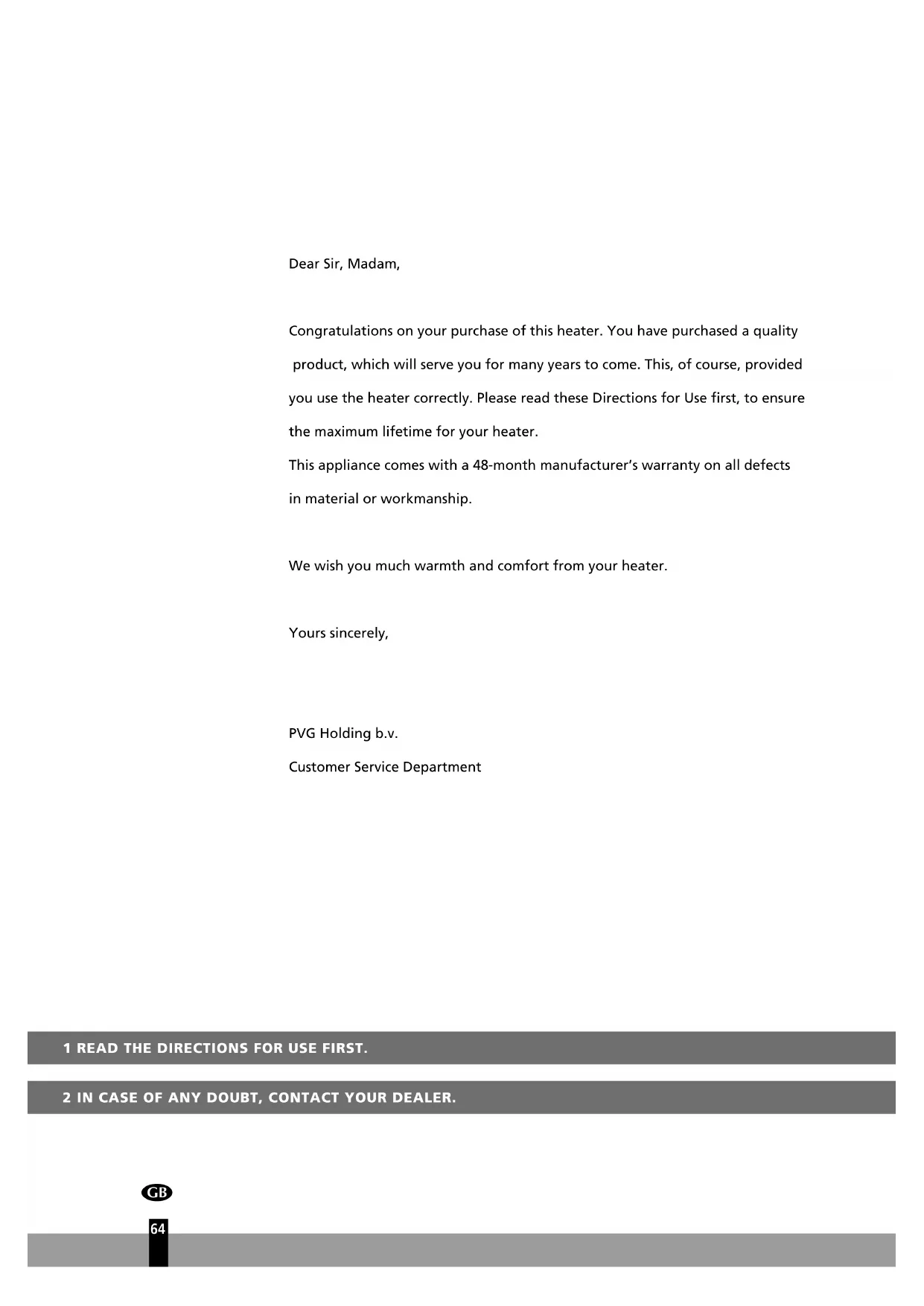

GB	OPERATING MANUAL	64
I	ISTRUZIONI D'USO	76
N	BRUKSANVISNING	88
NL	GEBRUIKSAANWIJZING	100
P	MANUAL DE INSTRUÇÕES	112
PL	INSTRUKCJI OBSŁUGI	124
S	BRUKSANVISNING	136
SLO	NAVODILA ZA UPORABO	148

ATTENTION

F Utiliser uniquement un combustible liquide conforme aux arrêtés du 18/7/2002 et du 25/06/2010 • Pour remplissage: voir manuel d'utilisation • Ne pas utiliser en continu.
D Verwenden Sie nur zugelassenes Heizpetroleum entsprechend DIN 51603-1 • Vor dem Befüllen des Brennstoffbehälters bitte die Gebrauchsanweisung lesen.
DK Benyt kun ren paraffin • Ved tankpåfyldning • Se brugervejledning.
E Utilice únicamente parafina liquida para estufas - Para el llenado: véase manual de instrucciones
FIN Käytä polttoaineena ainoastaan puhdistettua valopetrolia • Lue käyttöohje ennen täyttöä.
Only use Class C1 paraffin in accordance with BS2869 part two • Never use petrol or other fuels • Please read the operating manual prior to filling.
① Utilizzare solamente combustibile liquido per stufe portatili • Non usare benzina o altri combustibili • Prima del rifornimento, leggere attentamente il manuale d'uso.
N Bruk kun renset parafin • Vennligst les brukermanualen før fylling.
NL Gebruik alleen zuivere petroleum • Raadpleeg voor het vullen de gebruiks aanwijzing.
Utilize somente parafina líquida pura para aquecedores • Leia o manual de operação antes de encher.
PL Tylko czystego paliwa przeznaczonego do pieców. • Proszę zapoznać się z instrukcją przez napełnieniem zbiornika.
⑤ Använd endast lysfotogen för värmare • Vänligen läs manualen innan bränslefyllning.
⑤ Uporabo visiko kvalitetnega petroleja brez vsebnosti vode. Natakanje goriva: glej navodila za uporabo.
TR Sobalar için sadece temiz gazyağı kullanınız. • Doldurmak için kullanım talimatına bakınız.

Chère Madame, Cher Monsieur,

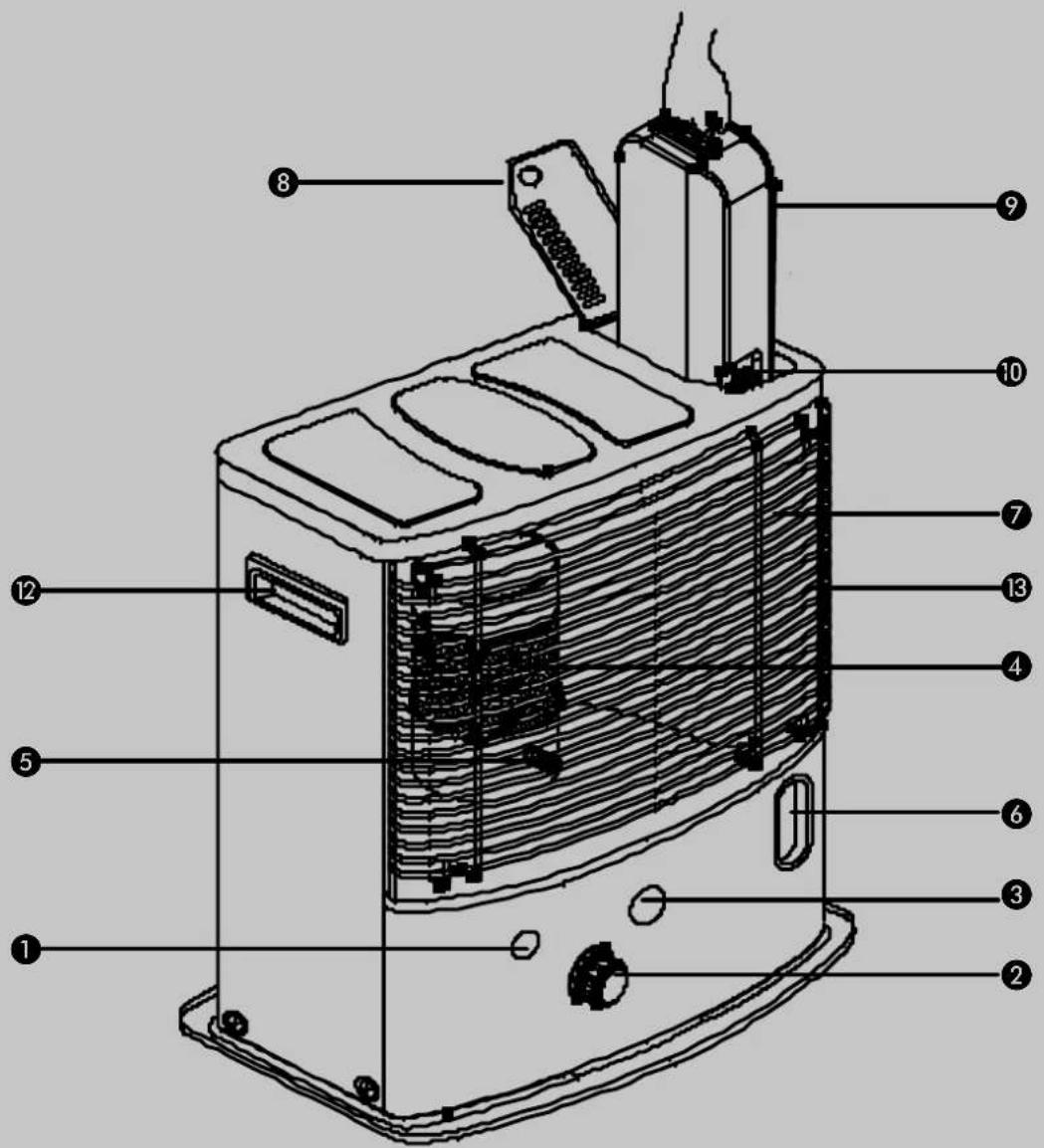

Technical diagram showing two views of a portable air heater with labeled components (B and C), no text or symbols present.

INTERDICTION

LE COMBUSTIBLE APPROPRIÉ

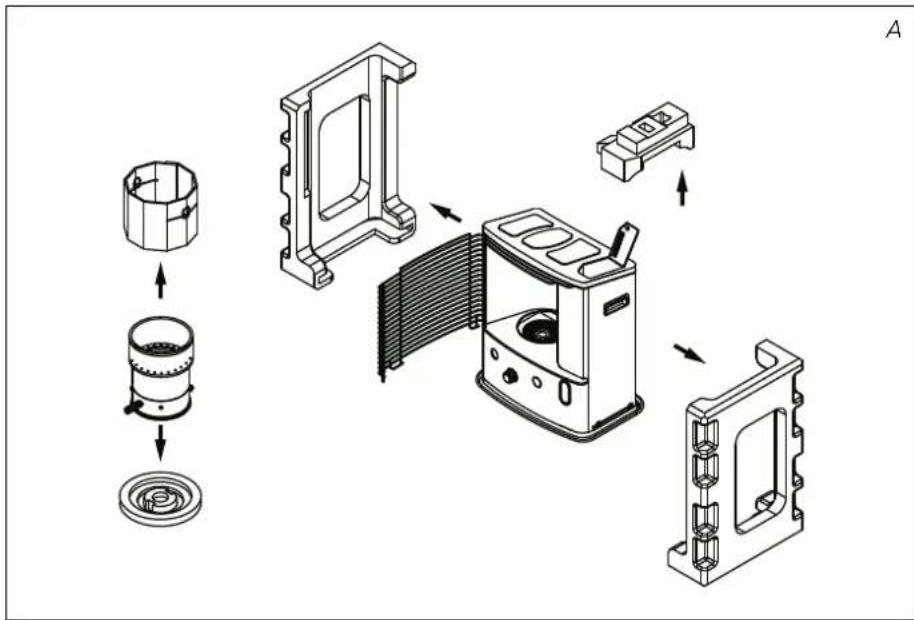

Exploded view diagram of a mechanical device with labeled components and assembly steps

MANUEL

A INSTALLATION DE L'APPAREIL

Technical line drawing of a kitchen appliance with fan, lid, and side panel (no text or symbols)

Technical line drawing of a mechanical device with a fan and internal components (no text or symbols)

Diagram of a mechanical component with force arrow and label F, no readable text or symbols present

Diagram showing a battery charging mechanism with labeled components and directional arrows indicating current flow.

Line drawing of a portable air conditioner unit with cooling fins and heat exchangers (no text or symbols)

Line drawing of a gas cylinder connected to a battery with a plastic bag, showing internal compartments and a recycling symbol (no text or labels)

Illustration of a portable electronic device with a hand pressing a button (no text or symbols visible)

Illustration of a portable air conditioner unit with a hand operating the front panel (no text or symbols visible)

Diagram of a hand holding a mechanical component with a tool, no text or symbols present

Illustration of a portable air conditioner unit with cooling fins and a handle, labeled 'M' (no text or symbols on the device itself)

Illustration of a portable air conditioner unit with a hand inserting a valve (no text or symbols visible)

CALLUMAGE DE L'APPAREIL

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force.

Simple line drawing of a mortar and pestle (no text or symbols)

K CONDITIONS DE GARANTIE

Line drawing of a portable electric heater with cooling unit and side-mounted outlets (no text or symbols)

Illustration of a portable heater with a hand operating the button (no text or symbols visible)

Technical line drawing of a device with two views: top shows front panel and bottom shows rear panel (no text or symbols)

Technical line drawing of a mechanical device with exploded view and housing (no text or symbols)

Line drawing of a device with a plug, cable, and housing (no text or symbols)

Mechanical assembly diagram showing a component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with a cylindrical component and a rectangular base (no text or symbols)

Illustration of a diver and a barrel with mechanical components (no text or symbols)

Illustration of a steaming machine with a coiled bed and fan (no text or symbols)

Diagram of a hand holding a coiled cylindrical object with a label '10' (no text or symbols on the object itself)

Illustration of a hand operating a mechanical device with a dome-shaped component (no text or symbols visible)

Mechanical component diagram showing a valve assembly with no visible text or symbols

Technical line drawing of a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing a component with a black arrow pointing to a specific part (no text or symbols present)

LE CHANGEMENT DE LA MÈCHE

L AVANT DE COMMENCER A CHANGER LA MECHE, L'APPAREIL DOIT ÊTRE ETEINT ET TOTALEMENT REFROIDI.

Mechanical component diagram showing a cylindrical assembly with attached parts (no visible text or symbols)

5/16" 16

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical component diagram showing a cylindrical assembly with attached wires and components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a device with a front-mounted unit and its internal components, showing no text or symbols.

Illustration of a toaster with a hand operating the button, showing internal components and a close-up view (no text or symbols)

Illustration of a portable air conditioner unit with a label '24' (no text or symbols on the device itself)

Illustration of a portable heater with a hand operating the button (no text or symbols visible)

Illustration of a portable air purifier with heat exchanger and hand gesture (no text or symbols)

Technical diagram of a mechanical device with directional arrows and circular components (no text or labels)

Technical line drawing of a portable air conditioner unit with cooling fan and side panel (no text or symbols)

Exploded view diagram of a microwave oven assembly with labeled components and directional arrows

GEBRAUCHSANWEISUNG

A DIE INSTALLATION DES KAMINOFENS

Technical line drawing of a mechanical device with a fan and internal components (no text or symbols)

Diagram of a hand holding a tool interacting with a cylindrical device, no text or symbols present

Technical diagram showing a mechanical component with directional arrows and a battery icon labeled '1+1+'

Diagram of a portable air conditioner unit with cooling fins and heat exchangers (no text or labels)

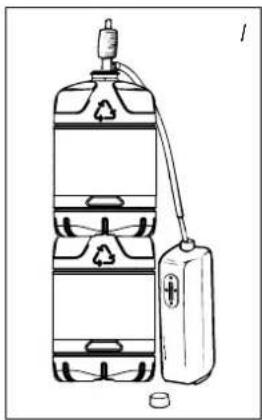

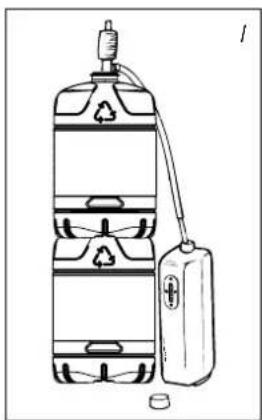

Line drawing of a water tank with a connected gas bag and a recycling symbol (no text or labels)

1 2 3

Illustration of a portable electronic device with a hand pressing a button (no text or symbols visible)

Illustration of a portable air conditioner unit with a hand operating the control panel (no text or symbols visible)

Diagram of a hand holding a tool interacting with a mechanical component, no text or symbols present

Line drawing of a portable air conditioner unit with labeled ports (no text or symbols beyond 'M')

Illustration of a portable air conditioner unit with a hand adjusting its lid (no text or symbols visible)

Technical diagram showing a mechanical device with labeled components and directional arrows indicating motion or force.

Simple line drawing of a mortar with a handle and base (no text or symbols)

Transportverschluß

Line drawing of a portable electric heater with cooling unit and side-mounted outlets (no text or symbols)

Illustration of a portable heater with a hand operating the button (no text or symbols visible)

Technical line drawing of a device with two views: top shows front panel and bottom shows rear panel (no text or symbols)

Technical line drawing of a mechanical device with exploded view and housing (no text or symbols)

Line drawing of a device with a plug, cable, and housing (no text or symbols)

Mechanical assembly diagram showing a component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with a cylindrical component and a rectangular base (no text or symbols)

Illustration of a diver and a barrel with mechanical components (no text or symbols)

Illustration of a steam locomotor with a motor and fan assembly (no text or symbols)

Diagram of a hand holding a coiled cylindrical object with a label '10' (no text or symbols on the object itself)

Illustration of a hand operating a mechanical device with a dome-shaped component (no text or symbols visible)

Mechanical component diagram showing a valve assembly with no visible text or symbols

Technical line drawing of a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing a component with a black arrow pointing to a feature (no text or symbols present)

WECHSELN DES DOCHTES

Mechanical component diagram showing a cylindrical assembly with attached parts (no text or symbols)

5/16" 16

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical component diagram showing a cylindrical assembly with attached wires and components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a device with a front-mounted unit and its internal components, showing no text or symbols.

Illustration of a toaster with a hand operating the button, showing internal components and a close-up view of the device (no text or symbols present)

Illustration of a portable air conditioner unit with a label '24' (no text or symbols on the device itself)

Illustration of a portable heater with a hand operating the button (no text or symbols visible)

HVAD MAN F∅RST SKAL VIDE

S∅RG ALTID FOR TILSTRÆKKELIG VENTILATION

Exploded view diagram of a mechanical device with labeled components and assembly steps

VEJLEDNING

Illustration of a portable air purifier with heat exchanger and hand gesture (no text or symbols)

Technical diagram of a mechanical device with internal components and directional arrows (no text or labels)

Technical line drawing of a portable air conditioner unit with cooling fan and side panel (no text or symbols)

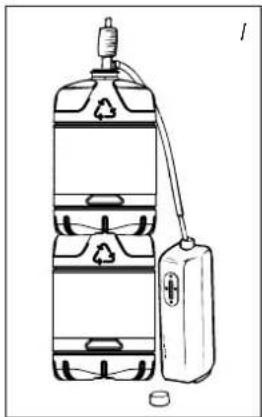

A INSTALLATION AF OVNEN

Technical line drawing of a device with a fan and internal components (no text or symbols)

Diagram of a hand holding a tool interacting with a cylindrical object, no text or symbols present

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or movement.

Technical line drawing of a portable air conditioner unit (no text or symbols visible)

Line drawing of a multi-stage water tank with a connected gas bag and a recycling symbol (no text or labels)

1 2 3

DK

Illustration of a portable air conditioner unit with a hand pressing a button (no text or symbols visible)

Illustration of a portable air conditioner unit with a hand operating the button (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a portable air conditioner unit with control panel and buttons (no text or symbols)

Illustration of a portable air conditioner unit with a hand operating the front panel (no text or symbols visible)

Sådan gør De:

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force.

Simple line drawing of a mortar or cup with a handle and spout (no text or symbols)

transportprop

I TRANSPORT

Line drawing of a portable electric heater with cooling unit and side-mounted outlets (no text or symbols)

Illustration of a portable heater with a hand operating it, showing internal components and a close-up view (no text or symbols)

Technical line drawing of a device with a front-mounted unit and internal components (no text or symbols)

Technical line drawing of a mechanical device with exploded view and housing (no text or symbols)

Line drawing of a device with a plug, cable, and housing (no text or symbols)

Mechanical assembly diagram showing a component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with a cylindrical component and a rectangular base (no text or symbols)

Illustration of a diver and a barrel with mechanical components (no text or symbols)

Illustration of a steam locomotor with a motor and fan (no text or symbols)

Diagram of a hand holding a coiled cylindrical object with a label '10' (no text or symbols on the object itself)

Illustration of a hand operating a mechanical device with a dome-shaped top and base (no text or symbols visible)

Mechanical component diagram showing a valve assembly with no visible text or symbols

Technical line drawing of a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing a component with a black arrow pointing to a feature (no text or symbols present)

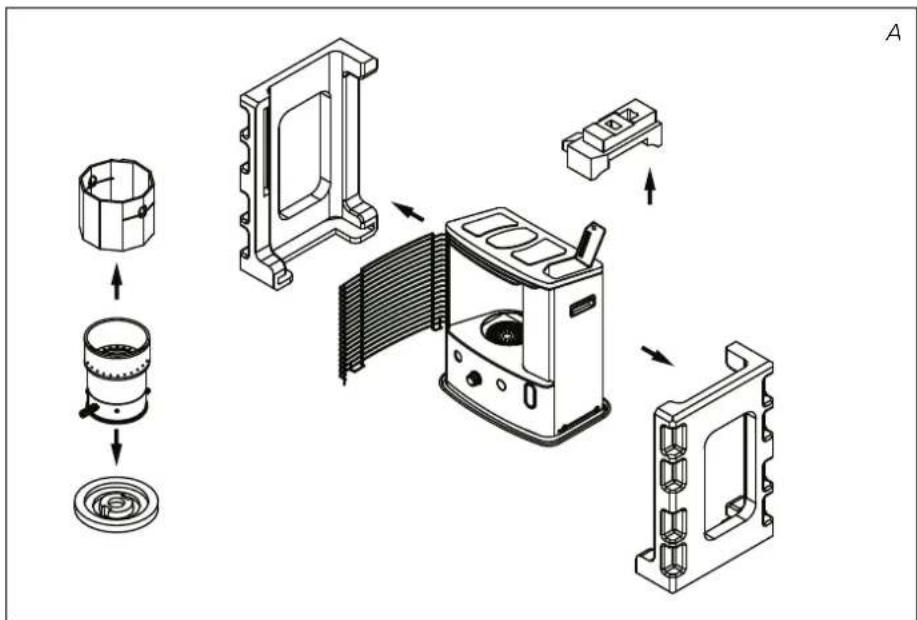

UDSKIFTNING AF VÆGEN

L INDEN DU PÅBEGYNDER UDSKIFTNINGEN AF VÄGEN, SKAL KAMINEN VÄRE SLUKKET OG HELT AFK∅LET.

Mechanical component diagram showing a cylindrical assembly with attached parts (no visible text or symbols)

5/16" 16

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical component diagram showing a cylindrical assembly with attached wires and components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a device with a front-mounted unit and its internal components, showing no text or symbols.

Illustration of a toaster with a hand operating the button, showing internal components and a close-up view (no text or symbols)

Illustration of a portable air conditioner unit with a label '24' (no text or symbols on the device itself)

Illustration of a portable heater with a hand operating the button (no text or symbols visible)

Illustration of a portable air purifier with a hand pointing to the side panel (no text or symbols visible)

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or flow.

Technical line drawing of a microwave oven with fan and lid components (no text or symbols)

Exploded view diagram of a microwave oven assembly with labeled components and directional arrows

MANUAL

A INSTALACION DE LA ESTUFA

Technical line drawing of a mechanical device with a fan and internal components (no text or symbols)

Diagram of a mechanical component with a tool and force arrow, no visible text or symbols

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or force

Illustration of a portable air conditioner unit with cooling fins and heat exchangers (no text or symbols)

Line drawing of a multi-tiered water tank with a connected gas bag and a recycling symbol (no text or labels)

1 2 3

E

Diagram of a portable electronic device with a hand pressing a button (no text or symbols visible)

Illustration of a portable air conditioner unit with a hand operating the control panel (no text or symbols visible)

Line drawing of a hand holding a cylindrical object with a tool, no text or symbols present

Line drawing of a portable air conditioner unit with labeled component M (no text or symbols on the device itself)

Illustration of a portable air conditioner unit with a hand operating the button (no text or symbols visible)

Technical diagram showing a mechanical device with labeled components and directional arrows indicating motion or force.

Simple line drawing of a mortar and cup (no text or symbols)

Tapón de transporte

Line drawing of a portable electric heater with cooling unit and side-mounted outlets (no text or symbols)

Illustration of a portable heater with a hand operating the button (no text or symbols visible)

Technical line drawing of a device with two views: top shows front panel and bottom shows rear panel (no text or symbols)

Technical line drawing of a mechanical device with exploded view and housing (no text or symbols)

Line drawing of a device with a plug, cable, and housing (no text or symbols)

Mechanical assembly diagram showing a component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with a cylindrical component and a rectangular base (no text or symbols)

Illustration of a diver and a barrel with mechanical components (no text or symbols)

Illustration of a steam locomotor with a motor and fan assembly (no text or symbols)

Diagram of a hand holding a coiled cylindrical object, labeled with number 10 (no text or symbols on the object itself)

Illustration of a hand operating a mechanical device with a dome-shaped component (no text or symbols visible)

Mechanical component diagram showing a valve assembly with no visible text or symbols

Technical line drawing of a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing a component with a black arrow pointing to a specific part (no text or symbols present)

CAMBIAR LA MECHA

L ANTES DE COMENZAR A CAMBIAR LA MECHA, LA ESTUFA TIENE QUE ESTAR APAGADA Y COMPLETA - MENTE FRÍA.

Mechanical component diagram showing a cylindrical assembly with attached parts (no text or symbols)

5/16" 16

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical component diagram showing a cylindrical assembly with attached wires and components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a device with a front-mounted unit and its internal components, showing no text or symbols.

Illustration of a toaster with a hand operating the button, showing internal components and a close-up view of the device (no text or symbols present)

Illustration of a portable air conditioner unit with a label '24' (no text or symbols on the device itself)

Illustration of a portable heater with a hand operating the button (no text or symbols visible)

Technical diagram illustrating the assembly of a microwave oven with labeled components and directional arrows.

KÄYTTÖOHJEET

A LÄMMITTIMEN ASENTAMINEN

Illustration of a portable air heater with labeled component B and hand gesture (no text or symbols on device)

Technical diagram of a mechanical device with directional arrows indicating movement or force (no text or labels)

Technical line drawing of a kitchen appliance with fan, lid, and side panel (no text or symbols)

Technical line drawing of a mechanical device with a fan and internal components (no text or symbols)

Diagram of a mechanical assembly with a cylindrical component and a tool, no text or symbols present

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force.

Line drawing of a portable air conditioner unit with cooling fan and ventilation slots (no text or symbols)

Line drawing of a multi-stage gas storage tank with a connected delivery bag and a recycling symbol (no text or labels)

C LÄMMITTIMEN SYTYTTÄMINEN

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force.

LÄMMITIN SAMMUU VÄHITELLEN

Simple line drawing of a mortar and pestle (no text or symbols)

kuljetuskorkki

H VARASTOINTI (LÄMMITYSKAUDEN PÄÄTTYESSÄ)

Line drawing of a portable electric heater with cooling unit and side-mounted outlets (no text or symbols)

Illustration of a portable heater with a hand operating the button (no text or symbols visible)

Technical line drawing of a device with a front-mounted unit and internal components (no text or symbols)

Technical line drawing of a mechanical device with exploded view and housing (no text or symbols)

Line drawing of a device with a plug, cable, and housing (no text or symbols)

Mechanical assembly diagram showing a component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with a cylindrical component and a rectangular base (no text or symbols)

Illustration of a diver and a barrel with mechanical components (no text or symbols)

Illustration of a steaming machine with a coiled bed and fan (no text or symbols)

Diagram of a hand holding a coiled cylindrical object, labeled with number 10 (no text or symbols on the object itself)

Illustration of a hand operating a mechanical device with a dome-shaped component (no text or symbols visible)

Mechanical component diagram showing a valve assembly with no visible text or symbols

Technical line drawing of a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing a component with a black arrow pointing to a specific part (no text or symbols present)

SYDÄMEN VAIHTAMINEN

L VARMISTA, ETTÄ LÄMMITIN ON SAMMUTETTU JA TÄYSIN JÄÄHTYNYT, ENNEN KUIN ALOITAT SYDÄMEN VAIHTAMISEN.

Mechanical component diagram showing a cylindrical assembly with attached parts (no text or symbols)

5/16" 16

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical component diagram showing a cylindrical assembly with attached wires and a labeled part (19), no readable text or symbols present.

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Illustration of a device with a front-mounted unit and its internal components (no text or symbols)

Illustration of a portable heater with a hand inserting a plug into it, showing internal components and a magnified view (no text or symbols)

Illustration of a portable air conditioner unit with a label '24' (no text or symbols on the device itself)

Illustration of a portable heater with a hand operating the button (no text or symbols visible)

Congratulations on your purchase of this heater. You have purchased a quality product, which will serve you for many years to come. This, of course, provided you use the heater correctly. Please read these Directions for Use first, to ensure the maximum lifetime for your heater.

This appliance comes with a 48-month manufacturer's warranty on all defects in material or workmanship.

We wish you much warmth and comfort from your heater.

Yours sincerely,

PVG Holding b.v.

Customer Service Department

1 READ THE DIRECTIONS FOR USE FIRST.

2 IN CASE OF ANY DOUBT, CONTACT YOUR DEALER.

GENERAL DIRECTIONS FOR USE

Below you will find the main steps to be taken for using your heater. For more details, please refer to the MANUAL (pages 67 ff.).

1 Remove all packaging materials (refer to Section A, Fig. A).
2 Fill the removable tank ⑨ and wait 30 minutes before you ignite the heater (refer to Section B, Fig. 1).
3 Insert the batteries into the battery holder ⑪ (refer to Section A, Fig. G).
4 Check whether the combustion chamber ④ is fully upright (refer to Section A, Fig. F).
5 Ignite the heater by turning the knurled wick adjustment knob ② as far to the right as possible and then gently push the ignition button ③ (refer to Section C, Fig. K and L).
6 After igniting the heater it will take 10 to 15 minutes before you can check if the heater burns well (refer to Section D).
7 Switch off the heater (refer to Section E).

• As a fire precaution, the tank must be filled either when the heater has been switched off or in another room than the room where the heater is installed.
• Always ensure that the tank is closed properly after filling it at a safe distance from all sources of heat and open flames (see chapter B).
• Store all fuel containers with their original caps and seals in a cool and dark place.
• Fuel ages. Use new fuel at the start of every heating season.
• The use of Qlima Premium Quality Fuels as a heating fuel assures you that you have a good quality fuel.
• Before changing brands and/or types of fuel make sure that the mobile heater first completely empties all of the remaining fuel inside the heater.

MAIN COMPONENTS

① OFF - button
② Knurled wick adjustment knob
③ Ignition button
4 Combustion chamber
⑤ Combustion chamber handle
6 Fuel indicator
7 Grill
⑧ Lid for removable tank
9 Removable tank
10 Fuel gauge removable tank
⑪ Battery holder
12 Handle
13 Cabinet

WHAT YOU NEED TO KNOW IN ADVANCE

ALWAYS MAKE SURE THAT THERE IS SUFFICIENT VENTILATION

This device is fitted with a security system that stops it when the temperature in the room is too high. When the heater has switched off (manually or automatically) it may not be restarted for 15 minutes. In order to prevent damage to the device, please do not force the ignition of the heater during this period.

Read this user manual carefully before using the appliance and keep it for future reference. Install this device only when it complies with local/national legislation, ordinances and standards. This product is intended to be used as a heater in residential houses and is only suitable for use in dry locations, in normal household conditions, indoors in living room, kitchen and garage.

This product may not be used as a main heating device.

Regardless of the model, you must always make sure that the heater is used in a room large enough to enable the heater to be used safely without extra ventilation. If the room is smaller than required, you must always open a door or window slightly (ensuring an opening of approx. 2.5 cm). It is important that every room where the heater is used has sufficient air intake and efficient air outflow (both openings must have a minimum cross section of 50 cm ^2 ). No modifications to the safety system are allowed, as that will invalidate the guarantee that the air probe will work properly. Consult your dealer in case of doubt.

SAFETY SYSTEM

When you have turned on the heater, if the room temperature is relatively low (19 to 20°C) it may automatically switch off. The cause of this is build-up of heat in the heater. This is a logical consequence of the safety mechanism. This will not occur when using the heater at lower ambient temperatures.

SAFE TOP

The heater is supplied with a safe top. This application decreases the temperature of the top plate. In this way, the risk of harmful accidents at accidentally touching the top plate is considerably decreased. However, be aware that the top plate still becomes hot.

Avoid any contact with the top plate and grille.

Especially for France: Your heater was designed to operate exclusively on fuel for liquid fuel-operated mobile heaters in accordance with the Decrees of 18-07-2002 and 25-06-2010. The use of other fuels is forbidden. Ask your dealer or check our website for the addresses of our retailers. The liquid fuel-operated mobile heater is intended as an extra heater, and not as a continuous source of heat.

Especially for United Kingdom: Only use Class C1 paraffin fuel in accordance with BS2869; Part 2, or equivalent.

The user must comply with the following instructions for proper use:

DO NOT

• use the liquid fuel-operated mobile heater in caravans, boats, and vehicle cabins;
• use the liquid fuel-operated mobile heater in insufficiently ventilated rooms (consult the table of properties for the minimum dimensions of the room to be heated), underground rooms and / or at a height of over 1500 metres;
• modify the heater safety features.

The use of this type of heating in public rooms is subject to prior regulatory permission. Obtain proper information on this in advance.

Only the use of the correct fuel will ensure safe, efficient, and comfortable use of your heater.

THE RIGHT FUEL

Your heater has been designed for use with high-quality water-free pure paraffin oil like Qlima Premium Quality Fuels. Only fuels of this kind will ensure clean and proper burning. Lower quality fuel may result in:

▶ excessive tar deposits on the glass fibre wick
▶ incomplete burning
▶ reduced heater lifetime
▶ smoke and/or smells
▶ deposits on the grid or mantle

Using the right fuel is therefore essential for safe, efficient, and comfortable use of your heater.

Damage and/or malfunctions of the heater due to the use of other than high quality water-free pure paraffin oil is not covered by the warranty.

Always refer to your local dealer for the right fuel for your heater.

Exploded view diagram of a microwave oven assembly with labeled components and directional arrows

Illustration of a portable air heater with heat exchanger and hand gesture (no text or symbols)

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or flow.

Technical line drawing of a microwave oven with cooling unit and fan (no text or symbols)

MANUAL

A INSTALLING THE HEATER

1 Carefully remove your heater from the box and check the contents. In addition to the heater you also need to have:

▶ a transportation cap
▶ these directions for use
▶ a manual fuel pump

Keep the box and the packaging materials (Fig. A) for storage and/or transportation.

2 Remove the other packaging materials:

▶ Release the right side of the grill. Lift the grill from the slot (Fig. B) and pull it forward.
▶ Pull both ends of the packaging to the sides and at the same time slightly downwards (see Fig. C).
Remove the combustion chamber from the heater and remove the packaging underneath (see Fig. D). GB

Technical line drawing of a mechanical device with a fan and internal components (no text or symbols)

Diagram of a mechanical assembly with a cylindrical component and a tool, no text or symbols present

Technical diagram showing a mechanical device with labeled components and directional arrows indicating motion or force.

Illustration of a portable electronic device with cooling fan and indicator lights (no text or symbols)

Diagram of a water tank with a connected gas bag and a recycling symbol, no text or labels present.

1 2 3

▶ Put the combustion chamber back into its place. The combustion chamber is positioned correctly when it can be smoothly moved a little to the left and to the right by its handle ⑤ (Fig. F). Close the grill: Slightly lift it to reposition it in its slot.
▶ Open the lid of the removable tank ⑧ and remove the piece of polyfoam.

3 Fill the removable tank as indicated in Section B.
4 Insert the batteries into their holder ⑪ at the back of the heater (Fig. G). Ensure that the positive and negative poles match the + and - marks indicated on the battery housing. Close the battery cover.
5 The floor should be firm and completely level. Reposition the heater, when it is not level. Do not correct the situation by placing books or other goods under the heater. Please refer to the separate instructions in the carton box for fixing of the heater.
6 Your heater is now ready for use.

B FILLING FUEL

Fill the removable tank in a suitable place since there can always be some spillage. Follow the procedure below:

1 Make sure that the heater is switched off.
2 Open the upper lid and lift the removable tank out of the heater (Fig. H). Note: Some drops may leak from the tank. Put down the removable tank (cap pointing upwards, handle on floor and screw off the fuel cap.
3 Fill the removable tank using a fuel pump (refer to fuel pump operation instructions.) Make sure that it is in a higher position than the removable tank (Fig. I). Insert the ribbed hose into the opening of the removable tank.
4 Check the removable tank fuel gauge while filling the tank (Fig. J). Stop filling once the gauge indicates that the tank is full. Never overfill the tank, especially not when the fuel is very cold (fuel expands when it heats up).
5 Let the remaining fuel in the pump flow back into the jerry can and carefully remove the pump. Carefully screw the fuel cap back on the tank. Clean off any spilled fuel.
6 Check whether the fuel cap is straight and tightened properly. Reinstall the removable tank in the heater (cap down). Close the lid.

C IGNITING THE HEATER

A new heater may give off some smells for a short while, when it is used for the first time. You should therefore provide extra ventilation or ignite the heater outside the living room.

When you use the heater for the first time, first put the filled removable tank into place, and then wait approximately 30 minutes before you ignite the heater. This allows the glass fibre wick to soak up the fuel. Follow the same procedure when you have completely burnt up all fuel from the tank, and after the glass fibre wick has been replaced.

Before igniting the heater, always check the fuel indicator ⑥ to see whether the removable tank needs filling up.

Always ignite the heater with the ignition mechanism. Never use matches or a cigarette lighter.

Follow the procedure below:

1 Turn the knurled wick adjustment knob ② clockwise to its stop (Fig. K).
2 Push in the ignition button ③ (Fig. L), but do not apply too much force. Release the ignition button as soon as a flame is visible in the combustion chamber ④.

After having ignited the heater, always check whether the combustion chamber ④ is level, by sliding it slightly to the left and the right by its handle ⑤ (Fig. F). This should be a smooth movement. If the combustion chamber is not level, this will cause smoke and soot to develop.

Illustration of a portable electronic device with a hand inserting a button (no text or symbols visible)

Illustration of a portable air conditioner unit with a hand pointing to the control panel (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a cylindrical component, with no visible text or symbols.

Line drawing of a portable air conditioner unit with control panel and indicator lights (no text or symbols)

Diagram of a portable air conditioner unit with a hand inserting a tool (no text or symbols visible)

D BURNING OF THE HEATER

After you have ignited the heater, it will take 10 to 15 minutes before you can check whether the heater is burning well. Too high a flame may cause smoke and soot, whereas too low a flame causes smells. Fig. Q shows the minimum and maximum permissible burning heights of the flame. The flame can be slightly adjusted with the knurled wick adjustment knob ② (Fig. M).

Burning that is too low may be caused by:

▶ insufficient fuel (fill the tank)
▶ poor fuel quality (contact your dealer)
▶ insufficient ventilation (put window or door ajar)
▶ wastage of the wick (contact your dealer or replace the wick, refer to section L

E SWITCHING OFF THE HEATER

Push the OFF-button ①. The flame will extinguish after a little while (Fig. N).

F MALFUNCTION, CAUSES AND SOLUTIONS

If any malfunctioning cannot be solved from the directions below, please contact your dealer.

THE HEATER DOES NOT IGNITE

▶ The batteries are not positioned correctly in the holder.
Check (Fig. G).
There is not enough power left in the batteries for the ignition.
Replace (Fig. G).
▶ You have run out of fuel from the tank or the wick has been replaced.
After having refilled and replaced the removable tank, wait for 30 minutes before igniting the heater.
▶ You are pushing the ignition button ③ with too much force.
Push it in less forcefully (Section C).

IRREGULAR FLAME AND/OR SOOT AND/OR SMELLS

▶ The combustion chamber ④ has not been positioned correctly.

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force.

Use the handle ⑤ to put it level, until you can easily slide it slightly to the left and to the right and the chamber is level.

▶ You are using fuel which is past its 'use by' date.

Start every heating season with fresh fuel.

▶ You are using the incorrect type of fuel.

Refer to THE RIGHT FUEL (See Section 'What you need to know in advance').

▶ Dust has gathered in the lower part of the heater.

Contact your dealer.

▶ The wick height is not correct.

Contact your dealer.

THE HEATER SLOWLY EXTINGUISHES

▶ The removable tank is empty.

See Section B.

▶ The lower reservoir is contaminated by moist.

Contact your dealer.

▶ The wick has hardened on the upper side.

Burn the heater until all fuel is used (Section G). Use the right fuel.

▶ You are using fuel which is past its 'use by' date.

Start every heating season with fresh fuel.

THE HEATER REMAINS BURNING LOW

▶ Wick position too low.

Contact your dealer.

▶ Before you refilled the tank, the heater had burnt up almost all the fuel.

After having refilled and replaced the removable tank, wait for 30 minutes before igniting the heater.

▶ You are using the incorrect type of fuel.

Refer to THE RIGHT FUEL (See Section 'What you need to know in advance').

▶ The room is insufficiently ventilated.

Leave a window or a door wide open for a while.

THE HEATER IS BURNING TOO HIGH

▶ You are using an incorrect, too volatile type of fuel.

Refer to THE RIGHT FUEL (See Section 'What you need to know in advance').

▶ Wick position too high.

Contact your dealer.

G MAINTENANCE

Your heater needs hardly any maintenance. It is, however, important that you remove dust and stains in time with a damp cloth, because otherwise these may cause stains that are hard to remove. Under normal conditions, only 2 components are subject to wear:

1. THE BATTERIES

You may replace the batteries yourself. Do not dispose of old batteries along with the other domestic waste. Follow the locally applicable regulations regarding the disposal of domestic chemical waste. Do not throw batteries into the fire, where they can explode or release dangerous liquids.

2. THE WICK

To extend the glass fibre wick life, you must occasionally let the heater burn until the tank is completely emptied and the heater extinguishes by itself. Do this when you notice that the flame is weakening. The burn-out will cause some smells, so it is recommended that you take the heater outside of the living room.

Do not remove any heater components yourself. Always contact your dealer for repairs.

Let the heater cool down first, before you start any maintenance or service work.

H STORAGE (END OF THE HEATING SEASON)

We recommend that you burn up all the fuel in the fuel tank at the end of the heating season and store the heater properly. Follow the procedure on the next page:

1 Ignite the heater outside the living room and let it burn until all fuel is used.
2 Let the heater cool down.
3 Clean the heater with a damp cloth and then dry it with a dry cloth.
4 Remove the batteries from the holder ⑪ and store them in a dry place.
5 Clean the fuel filter.
6 Store the heater in a dust-free place, if possible in its original packaging. Unused fuel cannot be used for the next heating season. If there is still some fuel left, do not throw it away, but dispose of it in accordance with the local regulations for the disposal of domestic chemical waste. Always start the new heating season with fresh fuel. When you start re-using the heater, follow the instructions again (starting from Section A and as specified).

TRANSPORTATION

Take the following measures to avoid fuel leakage during the transportation of the heater:

1 Let the heater cool down.
2 Remove the removable tank ⑨ from the heater and remove the fuel filter. Some drops may leak from the filter; keep a cloth at hand. Store the fuel filter and the removable tank outside the heater.
3 Place the transportation cap (Fig. O) into the position of the fuel filter. Press it tight. The transportation cap will, as much as possible, prevent oil leakage from the heater during transport.

4 Always move the heater in an upright position.

5 Make the fixed tank empty with a fuel pump before transportation or in case of wrong or dirty fuel. First remove the fuel filter and then insert the fuel pump into the empty fixed tank. Follow the same procedure if the fuel tank contains water.

Simple line drawing of a mortar or cup with a handle and spout (no text or symbols)

transportation cap

J SPECIFICATIONS

	R4224STC R7227STC
Ignition electrical
Fuel paraffin
Capacity (kW)* 2.4 2.7
Suitable space (m3)** 40-85 45-95
Fuel consumption (l/hr)* 0.250 0.281
Fuel consumption (g/hr)* 200 225
Burning time per tank (hr)* 16.8 15.0
Capacity removable tank (litres)	4.2 4.2
Weight (kg)	8.6 8.7
Dimensions (mm) (including base plate)	width 455
	depth 295
	height 495
Required batteries	3V D.C. (R20 x 2)
Wick type	O

* At maximum setting
** Specified values are indicative

K WARRANTY PROVISIONS

Your heater comes with a 48-month warranty starting on the date of purchase. Within this period all defects in material or workmanship will be repaired without any charge. The following provisions shall apply regarding this warranty:

1 We expressly dismiss all other claims for damages, including consequential damages.
2 Any repairs or replacements of components within the term of warranty will not result in an extension of the term of warranty.
3 The warranty will no longer apply, when the heater has been modified, non-original parts have been used, or when it is repaired by third parties.
4 The warranty will not apply to parts that are subject to normal wear, such as the batteries, the wick and the manual fuel pump.
5 The warranty will only apply, when you present the original, dated proof of purchase, provided no changes have been made to it.
6 The warranty will not apply to damages caused by actions not in compliance with the Directions for Use, neglect, and the use of an incorrect type of fuel, or fuel past its use-by date. The use of incorrect fuel can even be dangerous*.
7 Transportation costs and the risks involved during the transportation of the heater or heater components will always be the responsibility of the purchaser.

In order to avoid unnecessary costs, we recommend that you always read the 'Directions for Use' carefully first. In case they offer no solution, please take the heater to your dealer for repair.

14 TIPS FOR SAFE USE

100 cm 50 cm 20 cm 150 cm 50 cm

1 Children should be supervised to ensure that they do not play with the appliance.
2 Do not move the heater when it is burning or still hot. Do not refill nor service the heater when it is burning or still hot.
3 Position the front of the heater at a minimum distance of 1.5 metres from walls, curtains, and furniture.
4 Do not use the heater in dusty rooms or in very draughty places. In both cases you will not have optimum burning.
5 Switch off the heater, before you go to sleep.
6 Store and move fuel only in suitable tanks and jerrycans.
7 Make sure that the fuel is not exposed to heat or extreme temperature changes. Always store the fuel in a cool, dry and dark place (sunlight will affect the quality).
8 Never use the heater in places where harmful gasses or fumes may be present (e.g. exhaust gasses or paint fumes).
9 Be aware that the grid of the heater becomes hot. If the appliance is covered there is a risk of fire.
10 Always make sure that there is sufficient ventilation.
11 This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
12 This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
13 Children shall not play with the appliance.
14 Cleaning and user maintenance shall not be made by children without supervision.

Line drawing of a portable electric heater with cooling unit and side-mounted outlets (no text or symbols)

Illustration of a portable heater with a hand operating the button (no text or symbols visible)

Technical line drawing of a device with two views: top shows front panel and bottom shows rear panel (no text or symbols)

Technical line drawing of a mechanical device with exploded view and housing (no text or symbols)

Line drawing of a device with a plug, cable, and housing (no text or symbols)

Mechanical assembly diagram showing a component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with a cylindrical component and a rectangular base (no text or symbols)

Illustration of a diver and a barrel with mechanical components (no text or symbols)

Illustration of a steam locomotor with a motor and fan assembly (no text or symbols)

Diagram of a hand holding a coiled cylindrical object with a label '10' (no text or symbols on the object itself)

Illustration of a hand operating a mechanical device with a dome-shaped component (no text or symbols visible)

Mechanical component diagram showing a valve assembly with no visible text or symbols

Technical line drawing of a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing a component with a black arrow pointing to a specific part (no text or symbols present)

REPLACEMENT OF THE WICK

L ENSURE THAT THE HEATER IS OFF AND COMPLETELY COOL BEFORE STARTING TO REPLACE THE WICK.

1a. Open the tank cover ⑧ and remove the fuel tank ⑨.

1b. Remove the batteries to prevent possible burns.

1c. Open the front grille and remove the combustion chamber ④.

1d. Remove the wick adjuster ② by pulling it straight out.

2a. Unscrew the 5 screws, 1 from the back and 2 from the right side and 2 from the left side of the cabinet.

2b. Remove the sensor at the back side of the cabinet.

1. Remove the cabinet by pulling it straight up.

2. Remove the 1 screw on the wind cover A/B.

5a. Remove the connector (1EA) from the ignitor.

5b. Remove the tip-over safety switch by unscrewing 1 screw.

5c. Remove the 3 connectors (3EA) from the printplate.

1. Unscrew 4 wing nuts

2. Remove the wick adjuster assembly.

3. Press the pin of the wick which is assembled inside the wick case assembly. Disassemble the wick, the wick holder, the wick case assembly separately.

4. Install the new wick and insert the three pins on the new wick into the 3 holes on the wick sleeve in the upward direction (See the arrow marked "up" on the wick sleeve).

5. Push the new wick into the retainer teeth of the wick sleeve so that the wick adheres tightly around the inside of the wick sleeve, smoothing out any wrinkles.

6. Line up the pins with the slotted holes inside the wick adjuster. Then lightly press each of the three pins of the wick (now attached to the wick sleeve) towards the inside. Insert the three pins into the slanted grooves of the wick adjuster. Press on each of the three pins, inserting them securely in the holes.

7. Turn the wick adjustment knob and check to be sure that the wick moves up and down freely.

8. Slide the wick adjuster assembly down the draft tube. Position the adjuster shaft to the front of the heater.

9. Snug 4 wing nuts on the mounting stud, but do not tighten them.

Mechanical component diagram showing a cylindrical assembly with attached parts (no text or symbols)

5/16" 16

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical component diagram showing a cylindrical assembly with attached wires and components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a device with a front-mounted unit and its internal components, no visible text or symbols

Illustration of a toaster with a hand operating the button, showing internal components and a close-up view of the device (no text or symbols present)

Illustration of a portable air conditioner unit with cooling fan and indicator lights (no text or symbols)

Illustration of a portable heater with a hand operating the button (no text or symbols visible)

1. Raise the wick to its highest position and tighten the wing nuts in several steps.

2. Check the wick height. It should be 5/16 above the collar.

3. Check for the correct clearance between wick holder and draft tube. It should be the same all around.

18a. Reinstall the tip-over switch assembly by pushing the extinguish knob.

18b. Connect the 3 connectors (3EA) with the circuit board.

18c. Remove the connector (1EA) from the ignitor.

1. Check the function of the tip-over safety stop by pushing the extinguish button to upset the pendulum.

2. Reinstall the automatic ignition assembly.

3. Reinstall the wind cover A / B.

4. Reinstall the cabinet.

5. Tighten the 5 screws on the cabinet and reinstall the sensor at the back of the cabinet.

6. Reinstall the combustion chamber and the fuel tank.

7. Reinstall the wick adjusting knob. Close the front plate.

Install the batteries in the battery case and fill the fuel tank with Qlima Premium Quality Fuels. Set the tank into the heater and wait at least 60 minutes for the new wick to fully saturate with the fuel.

Egregio Signore, Gentile Signora,

Exploded view diagram of a mechanical device with labeled components and assembly steps

Illustration of a portable air purifier with heat exchanger and hand gesture (no text or symbols)

Technical diagram of a mechanical device with directional arrows and circular components (no text or labels)

Technical line drawing of a portable air conditioner unit with cooling fan and fan (no text or symbols)

MANUALE

Technical line drawing of a mechanical device with a fan and internal components (no text or symbols)

Diagram of a mechanical component with a force arrow and labeled part F (no text or symbols on the diagram itself)

Diagram showing a device with labeled components and directional arrows indicating movement or force, including a battery icon.

Line drawing of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Line drawing of a multi-stage gas storage tank with a connected bag and connector (no text or symbols)

1 2 3

1

C ACCENSIONE DELLA STUFA

Illustration of a portable air conditioner unit with control panel and indicator lights (no text or symbols)

Illustration of a portable air conditioner unit with a hand pressing the button (no text or symbols visible)

Diagram of a mechanical component with a tool and force arrow, no text or symbols present

Line drawing of a portable air conditioner unit with cooling fins and a handle (no text or symbols)

Illustration of a portable air conditioner unit with a hand operating the front panel (no text or symbols visible)

D LA COMBUSTIONE DELLA STUFA

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force.

Simple line drawing of a cup with a handle and lid, no text or symbols present

Line drawing of a portable electric heater with cooling unit and side-mounted outlets (no text or symbols)

Illustration of a portable heater with a hand operating the button (no text or symbols visible)

Technical line drawing of a device with a front-mounted unit and internal components (no text or symbols)

Technical line drawing of a mechanical device with exploded view and housing (no text or symbols)

Line drawing of a device with a plug, cable, and housing (no text or symbols)

Mechanical assembly diagram showing a component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with a cylindrical component and a rectangular base (no text or symbols)

Illustration of a diver and a barrel with mechanical components (no text or symbols)

Illustration of a steaming machine with a lid and cooling unit (no text or symbols)

Diagram of a hand holding a coiled cylindrical object with a label '10' (no text or symbols on the object itself)

Illustration of a hand operating a mechanical device with a dome-shaped component (no text or symbols visible)

Mechanical component diagram showing a valve assembly with no visible text or symbols

Technical line drawing of a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing a component with a black arrow pointing to a specific part (no text or symbols present)

Mechanical component diagram showing a cylindrical assembly with attached parts (no text or symbols)

5/16" 16

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical component diagram showing a cylindrical assembly with attached wires and components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a device with a front-mounted unit and its internal components, no visible text or symbols

Illustration of a toaster with a hand operating the button, showing internal components and a close-up view of the device (no text or symbols present)

Illustration of a portable air conditioner unit with cooling fan and indicator lights (no text or symbols)

Illustration of a portable heater with a hand operating the button (no text or symbols visible)

Exploded view diagram of a microwave oven assembly with labeled components and directional arrows

HÅNDBOK

A INSTALLERE OVNEN

Illustration of a portable air purifier with heat exchanger and hand gesture (no text or symbols)

Technical diagram of a mechanical device with internal components and directional arrows (no text or labels)

Technical line drawing of a kitchen appliance with fan, lid, and side panel (no text or symbols)

Technical line drawing of a mechanical device with a fan and internal components (no text or symbols)

Diagram of a hand holding a tool interacting with a cylindrical object, no text or symbols present

Technical diagram showing a mechanical device with labeled components and directional arrows indicating motion or force

Illustration of a portable air purifier or condenser unit with cooling fins and ventilation slots (no text or symbols)

Line drawing of a water tank with recycling symbol and connected to a battery (no text or labels)

1 2 3

N

terihuset. Lukk batteridekselet.

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force.

Se avsnitt B.

Simple line drawing of a mortar and cup (no text or symbols)

transportdeksel

Line drawing of a portable electric heater with cooling unit and side-mounted outlets (no text or symbols)

Illustration of a portable heater with a hand operating it, showing internal components and a close-up view (no text or symbols)

Technical line drawing of a device with a front-mounted unit and internal components (no text or symbols)

Technical line drawing of a mechanical device with exploded view and housing (no text or symbols)

Line drawing of a device with a plug, cable, and housing (no text or symbols)

Mechanical assembly diagram showing a component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with a cylindrical component and a rectangular base (no text or symbols)

Illustration of a diver and a barrel with mechanical components (no text or symbols)

Illustration of a steam locomotor with a motor and fan assembly (no text or symbols)

Diagram of a hand holding a coiled cylindrical object, labeled with number 10 (no text or symbols on the object itself)

Illustration of a hand operating a mechanical device with a dome-shaped component (no text or symbols visible)

Mechanical component diagram showing a valve assembly with no visible text or symbols

Technical line drawing of a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing a component with a black arrow pointing to a specific part (no text or symbols present)

SKIFTE UT VEKEN

L PASS PÅ AT OVNEN ER AV OG HELT KALD F∅R DU BEGYNNER Å BYTTE VEKEN.

Mechanical component diagram showing a cylindrical assembly with attached parts (no text or symbols)

5/16" 16

Mechanical component diagram showing a circular housing with internal blades and a handle (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical component diagram showing a cylindrical assembly with attached wires and components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a device with a front-mounted unit and its internal components, no visible text or symbols

Illustration of a toaster with a hand operating the button, showing internal components and a close-up view of the device (no text or symbols present)

Illustration of a portable air conditioner unit with a label '24' (no text or symbols on the device itself)

Illustration of a portable heater with a hand operating the button (no text or symbols visible)

WAT U VOORAF MOET WETEN

ALTIJD VOLDOENDE VENTILEREN

Exploded view diagram of a mechanical device with labeled components and directional arrows indicating assembly or assembly steps.

Illustration of a portable air purifier with heat exchanger and hand gesture (no text or symbols)

HANDLEIDING

Technical diagram of a mechanical device with directional arrows and circular components (no text or labels)

A HET INSTALLEREN VAN DE KACHEL

Technical illustration of a portable air conditioner unit with cooling fan and side panel (no text or symbols)

Technical line drawing of a mechanical device with a fan and internal components (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram of a device with a battery and directional arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a multi-stage gas storage device with a connected bag and connector (no text or symbols)

1 2 3

Illustration of a portable air conditioner unit with a hand inserting a button (no text or symbols visible)

Illustration of a portable air conditioner unit with a hand pointing to the front panel (no text or symbols visible)

Diagram of a mechanical component with a force arrow, no text or symbols present

Illustration of a portable air conditioner unit with a hand operating the front panel (no text or symbols visible)

Illustration of a portable air conditioner unit with a hand operating the front panel (no text or symbols visible)

C HET AANMAKEN VAN DE KACHEL

Diagram of a battery holder with an arrow indicating direction, no text or symbols present

F STORINGEN, OORZAKEN EN OPLOSSINGEN

Simple line drawing of a mortar or cup with a handle and base (no text or symbols)

Transportdop

Line drawing of a portable electric heater with cooling unit and side-mounted outlets (no text or symbols)

Illustration of a portable heater with a hand operating the button (no text or symbols visible)

Technical line drawing of a device with a front-mounted unit and internal components (no text or symbols)

Technical line drawing of a mechanical device with exploded view and housing (no text or symbols)

Line drawing of a device with a plug, cable, and housing (no text or symbols)

Mechanical assembly diagram showing a component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with a cylindrical component and a rectangular base (no text or symbols)

Illustration of a diver and a barrel with mechanical components (no text or symbols)

Illustration of a steam locomotor with a motor and fan assembly (no text or symbols)

Diagram of a hand holding a coiled cylindrical object with a label '10' (no text or symbols on the object itself)

Illustration of a hand operating a mechanical device with a dome-shaped component (no text or symbols visible)

Mechanical component diagram showing a valve assembly with no visible text or symbols

Technical line drawing of a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing a component with a black arrow pointing to a specific part (no text or symbols present)

HET VERVANGEN VAN DE KOUS

L VOORDAT U BEGINT MET HET VERVANGEN VAN DE KOUS, DIENT DE KACHEL UIT EN VOLLEDIG AFGEKOELD TE ZIJN.

Mechanical component diagram showing a cylindrical assembly with attached parts (no text or symbols)

5/16" 16

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical component diagram showing a cylindrical assembly with attached wires and components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a device with a front-mounted unit and its internal components, no visible text or symbols

Illustration of a toaster with a hand operating the button, showing internal components and a close-up view of the device (no text or symbols present)

Illustration of a portable air conditioner unit with a label '24' (no text or symbols on the device itself)

Illustration of a portable heater with a hand operating the button (no text or symbols visible)

Exploded view diagram of a microwave oven assembly with labeled components and directional arrows

MANUAL

Illustration of a portable air purifier with heat exchanger and hand gesture (no text or symbols)

Technical diagram of a mechanical device with directional arrows and control buttons (no text or labels)

Technical line drawing of a portable air conditioner unit with fan and control panel (no text or symbols)

Technical line drawing of a kitchen appliance with fan and door components (no text or symbols)

Illustration of a hand holding a cylindrical object with a pencil, no text or symbols present

B O ENCHIMENTO COM COMBUSTÍVEL

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force.

Illustration of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Line drawing of a multi-stage water tank with a connected gas bag and a plastic container (no text or symbols)

1 2 3

C ACENDER O AQUECEDOR

Diagram of a portable air conditioner unit with control panel and indicator lights (no text or symbols)

Illustration of a portable air conditioner unit with a hand adjusting its control panel (no text or symbols visible)

Line drawing of a hand holding a tool interacting with a mechanical component (no text or symbols)

Illustration of a portable air conditioner unit with cooling fins and a hand inserting a plug (no text or symbols)

E APAGAR O AQUECEDOR

Illustration of a portable air conditioner unit with a hand operating the front panel (no text or symbols visible)

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force.

Simple line drawing of a mortar or cup (no text or symbols)

Tampa de transporte

Line drawing of a portable electric heater with cooling unit and side-mounted outlets (no text or symbols)

Illustration of a portable heater with a hand operating the button (no text or symbols visible)

Technical line drawing of a device with two views: top shows front panel and bottom shows rear panel (no text or symbols)

Technical line drawing of a mechanical device with exploded view and housing (no text or symbols)

Line drawing of a device with a plug, cable, and housing (no text or symbols)

Mechanical assembly diagram showing a component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with a cylindrical component and a rectangular base (no text or symbols)

Illustration of a diver and a barrel with mechanical components (no text or symbols)

Illustration of a steam locomotor with a motor and fan assembly (no text or symbols)

Diagram of a hand holding a coiled cylindrical object with a label '10' (no text or symbols on the object itself)

Illustration of a hand operating a mechanical device with a dome-shaped component (no text or symbols visible)

Mechanical component diagram showing a valve assembly with no visible text or symbols

Technical line drawing of a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing a component with a black arrow pointing to a specific part (no text or symbols present)

Mechanical component diagram showing a cylindrical assembly with attached parts (no visible text or symbols)

5/16" 16

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical component diagram showing a cylindrical assembly with attached wires and components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a device with a front-mounted unit and its internal components, no text or symbols present.

Illustration of a toaster with a hand operating the button, showing internal components and a close-up view of the device (no text or symbols present)

Illustration of a portable air conditioner unit with cooling fan and indicator lights (no text or symbols)

Illustration of a portable heater with a hand pressing a button (no text or symbols)

ZAPEWNIĆ ODPOWIEDNIA WENTYLACJE,

Exploded view diagram of a microwave oven assembly with labeled components and directional arrows

INSTRUKCJA OBSŁUGI

A INSTALACJA GRZEJNIKA

Illustration of a portable air purifier with heat exchanger and hand gesture (no text or symbols)

Technical diagram of a mechanical device with internal components and directional arrows (no text or labels)

Technical line drawing of a portable air conditioner unit with cooling fan and side panel (no text or symbols)

Technical line drawing of a mechanical device with a fan and internal components (no text or symbols)

Diagram of a hand holding a cylindrical object with a tool, no text or symbols present

Technical diagram showing a mechanical device with labeled components and directional arrows indicating motion or force.

Line drawing of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Line drawing of a multi-stage water tank with a connected gas bag and a recycling symbol (no text or labels)

1 2 3

Diagram of a white industrial air conditioner unit with cooling fins and a hand operating the button (no text or symbols visible)

Illustration of a portable air conditioner unit with a hand operating the front panel (no text or symbols visible)

Illustration of a hand holding a mechanical component with a tool, no text or symbols present

Illustration of a portable air conditioner unit with labeled component M (no text or symbols on the device itself)

Illustration of a portable air conditioner unit with a hand inserting a plug (no text or symbols visible)

D REGULOWANIE PŁOMIENIA

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force.

Simple line drawing of a mortar or cup (no text or symbols)

korek transportowy

J PARAMETRY TECHNICZNE

Line drawing of a portable electric heater with cooling unit and side-mounted outlets (no text or symbols)

Illustration of a portable heater with a hand operating the button (no text or symbols visible)

Technical line drawing of a device with a front-mounted unit and internal components (no text or symbols)

Technical line drawing of a mechanical device with exploded view and housing (no text or symbols)

Line drawing of a device with a plug, cable, and housing (no text or symbols)

Mechanical assembly diagram showing a component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with a cylindrical component and a base plate (no text or symbols)

Illustration of a diver and a barrel with mechanical components (no text or symbols)

Illustration of a steam locomotor with a motor and fan (no text or symbols)

Diagram of a hand holding a coiled cylindrical object, labeled with number 10 (no text or symbols on the object itself)

Illustration of a hand operating a mechanical device with a dome-shaped component (no text or symbols visible)

Technical illustration of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing a component with a black arrow pointing to a specific part (no text or symbols present)

WYMIANA KNOTA

L ZANIM ROZPOCZNIESZ WYMIANE KNOTA UPEWNIJ SIE, ŻE GRZEJNIK JEST WYŁĄCZONY I ZIMNY.

Mechanical component diagram showing a cylindrical assembly with attached parts (no visible text or symbols)

5/16" 16

Mechanical component diagram showing a circular housing with internal blades and a handle (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical component diagram showing a cylindrical assembly with attached wires and components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a device with a front-mounted unit and its internal components, no text or symbols present

Illustration of a toaster with a hand operating the button, showing internal components and a close-up view of the device (no text or symbols present)

Illustration of a portable air conditioner unit with a label '24' (no text or symbols on the device itself)

Illustration of a portable heater with a hand operating the button (no text or symbols visible)

SE ALLTID TILL ATT DET FINNS TILLRÄCKLIG VENTILATION

Exploded view diagram of a microwave oven assembly with labeled components and directional arrows

MANUAL

A INSTALLERA VÄRMAREN

Illustration of a portable air purifier with heat exchanger and hand gesture (no text or symbols)

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or force

Technical line drawing of a kitchen appliance with fan, door, and side panel (no text or symbols)

Technical line drawing of a mechanical device with a fan and internal components (no text or symbols)

Diagram of a hand holding a cylindrical object with a tool, no text or symbols present

Technical diagram showing a mechanical device with labeled components and directional arrows indicating motion or force.

Line drawing of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Line drawing of a multi-stage water tank with a connected gas bag and recycling symbol (no text or labels)

1 2 3

Illustration of a white industrial air conditioner unit with a hand pressing a button (no text or symbols visible)

Illustration of a portable air conditioner unit with a hand operating the control panel (no text or symbols visible)

Illustration of a hand holding a cylindrical object with a tool, no text or symbols present

Line drawing of a portable air conditioner unit with handle and ventilation slots (no text or symbols)

Illustration of a portable air conditioner unit with cooling fins and a hand operating it (no text or symbols visible)

D VÄRMARENS FÖRBRÄNNING

VÄRMAREN FORTSÄTTER ATT BRINNA SVAGT

Simple line drawing of a container with a handle and spout (no text or symbols)

transportskyddet

TRANSPORT

Line drawing of a portable electric heater with cooling unit and side-mounted outlets (no text or symbols)

Illustration of a portable heater with a hand operating it, showing internal components and a close-up view (no text or symbols)

Technical line drawing of a device with a front-mounted unit and internal components (no text or symbols)

Technical line drawing of a mechanical device with exploded view and housing (no text or symbols)

Line drawing of a device with a plug, cable, and housing (no text or symbols)

Mechanical assembly diagram showing a component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with a cylindrical component and a base plate (no text or symbols)

Illustration of a diver and a barrel with mechanical components (no text or symbols)

Illustration of a steam locomotor with a motor and fan assembly (no text or symbols)

Diagram of a hand holding a coiled cylindrical object, labeled with number 10 (no text or symbols on the object itself)

Illustration of a hand operating a mechanical device with a dome-shaped component (no text or symbols visible)

Technical illustration of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing a component with a black arrow pointing to a specific part (no text or symbols present)

BYTE AV VEKEN

L KONTROLLERA ATT VÄRMAREN ÄR AVSTÄNGD OCH HELT AVSVALNAD INNAN DU BYTER VEKE.

Mechanical component diagram showing a cylindrical assembly with attached parts (no text or symbols)

5/16" 16

Mechanical component diagram showing a circular housing with internal blades and a handle (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical component diagram showing a cylindrical assembly with attached wires and components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a device with a front-mounted unit and its internal components, showing no text or symbols.

Illustration of a toaster with a hand operating the button, showing internal components and a close-up view (no text or symbols)

Illustration of a portable air conditioner unit with a label '24' (no text or symbols on the device itself)

Illustration of a portable heater with a hand pressing a button (no text or symbols)

Exploded view diagram of a kitchen appliance with labeled parts and directional arrows indicating assembly or manufacturing steps.

NAVODILA ZA UPORABO

A PRIPRAVA PEČI

Illustration of a portable air purifier with labeled component B (no text or symbols on the device itself)

Technical diagram of a mechanical device with directional arrows and labeled components (no readable text or symbols)

Technical line drawing of a portable air conditioner unit with fan and vent, showing internal components (no text or symbols)

Technical line drawing of a device with a fan or ventilation system, showing internal components and no text or symbols.

Diagram of a mechanical device with a cylindrical component and a tool, no visible text or symbols

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force.

Line drawing of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Line drawing of a multi-stage gas storage device with a connected bag and recycling symbol (no text or labels)

1 2 3

Illustration of a portable air conditioner unit with control panel and indicator lights (no text or symbols)

Illustration of a portable air conditioner unit with a hand operating the front panel (no text or symbols visible)

Diagram of a mechanical component with a force arrow and labeled part F (no text or symbols on the diagram itself)

Illustration of a portable air conditioner unit with cooling fins and a hand pointing to the side panel (no text or symbols)

Illustration of a portable air conditioner unit with cooling fins and a hand operating it (no text or symbols visible)

Diagram showing a device with labeled components and directional arrows indicating movement or flow

D DELOVANJE PEČI

Simple line drawing of a cup with a handle and lid, no text or symbols present

Transportni pokrovček

I TRANSPORT

Line drawing of a portable electric heater with cooling unit and side-mounted outlets (no text or symbols)

Illustration of a portable heater with a hand operating the button (no text or symbols visible)

Technical line drawing of a device with a front-mounted unit and internal components (no text or symbols)

Technical line drawing of a mechanical device with exploded view and housing (no text or symbols)

Line drawing of a device with a plug, cable, and housing (no text or symbols)

Mechanical assembly diagram showing a component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with a cylindrical component and a base plate (no text or symbols)

Illustration of a diver and a barrel with mechanical components (no text or symbols)

Illustration of a steam locomotor with a motor and fan assembly (no text or symbols)

Diagram of a hand holding a coiled cylindrical object with a label '10' (no text or symbols on the object itself)

Illustration of a hand operating a mechanical device with a dome-shaped component (no text or symbols visible)

Mechanical component diagram showing a valve assembly with no visible text or symbols

Technical line drawing of a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing a component with a black arrow pointing to a specific part (no text or symbols present)

MENJAVA STENJA

L PRED MENJAVO STENJA SE PREPRIČAJTE, DA JE, PEČ UGASNJENA IN HLADNA.

Mechanical component diagram showing a cylindrical assembly with attached parts (no text or symbols)

5/16" 16

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with internal components and wiring (no text or symbols)

Mechanical component diagram showing a cylindrical assembly with attached wires and components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a device with a front-mounted unit and its internal components, no visible text or symbols

Illustration of a toaster with a hand operating the button, showing internal components and a close-up view of the device (no text or symbols present)

Illustration of a portable air conditioner unit with a label '24' (no text or symbols on the device itself)

Illustration of a portable heater with a hand operating the button (no text or symbols visible)

1. Preverite, ali je med nosilcem stenja in cevjo za zrak dovolj vmesnega prostora. Vmesen prostor mora biti povsod enak.

18a. Pritisnite gumb za ugašanje ① in ponovno namestite zaščito pred padcem.

Technical line drawing of a cylindrical mechanical component with mounting holes and a spring, no text or symbols present.

0 - 0.5 cm.

Technical line drawing of a cylindrical mechanical component with a spring and mounting base (no text or symbols)

Q

Technical diagram of a device with numbered components for identification

11

Qlima www.Qlima.com

Distributed in Europe by PVG Holding B.V.

Benötigen Sie weitere Informationen oder treten Probleme auf, besuchen Sie bitte unsere Website www.qlima.com, oder setzen Sie sich mit unserem Kundendienst in Verbindung (Telefonnummer auf www.qlima.com).
For alle yderligere oplysninger eller ved eventuelle problemer med apparatet henvises til www.qlima.com eller det lokale Kundecenter (telefonnumre findes i www.qlima.com).
(ES) Si necesita información o si tiene algún problema, visite nuestra página Web www.qlima.com, o póngase en contacto con el servicio cliente (hallará el número de teléfono en www.qlima.com).
Si vous souhaitez obtenir des informations supplémentaires ou si vous rencontrez un problème, rendez-vous sur notre site Web (www.qlima.com) ou contactez notre service client (vous trouverez l'adresse et numéro de téléphone sur www.qlima.com).
FHN Jos haluat huoltoapua, lisätietoja tai laitteen kanssa tulee ongelmia, tutustu verkkosivustoon osoitteessa www.qlima.com tai kysy neuvoa PVG kuluttajapalvelukeskuksesta (www.qlima.com).
(68) If you need information or if you have a problem, please visit the our website (www.qlima.com) or contact our sales support (you find its phone number on www.qlima.com)
① Per informazioni e in caso di problemi, visitate il sito Web www.qlima.com oppure contattate il Centro Assistenza Clienti (per conoscere il numero di telefono, consultate www.qlima.com).
Hvis du trenger informasjon, eller hvis du har et problem med produktet, kan du gå til nettsidene www.qlima.com. Alternativt kan du kontakte med PVG' forbrukertjeneste (telefonnummeret i www.qlima.com).
Als u informatie nodig hebt of als u een probleem hebt, bezoek dan de onze website (www.qlima.com) of neem contact op met de afdeling sales support (adres en telefoon op www.qlima.com).
Se necessitar de informações ou se tiver problemas, visite o Web site www.qlima.com ou contacte o Centro de Assistência (número de telefone o www.qlima.com)
W przypadku problemów i w celu uzyskania szczegółowych informacji odwiedź stronę internetową Qlima dostępną pod adresem www.qlima.com lub skontaktuj się z Centrum kontaktów Qlima (www.qlima.com)
Om du behöver service eller information eller har problem med apparaten kan du besöka www.qlima.com eller kontakta Qlima kundtjänst (du hittar telefonnumret på www.qlima.com).
⑤0 Če želite dodatne informacije, obiščite spletno mesto podjetja na naslovu www.qlima.com ali pokličite na telefonsko (www.qlima.com).
Daha fazla bilgiye ihtiyaç duyarsanız veya bir sorunla karşılaşırsanız, www.qlima.com adresindeki Qlima Internet sitesini ziyaret edin veya ülkenizde bulunan Qlima müşteri merkeziyle iletişim kurun (telefon numarasını: www.qlima.com).

⑥ Dieses Produkt eignet sich nicht als Hauptheizgerät
Dette produkt er ikke egnet til brug som primær opvarmningskilde
E Este producto no es adecuado para calefacción primaria
E Ce produit ne peut pas être utilisé comme chauffage principal
Tämä tuote ei sovellu ensisijaiseksi lämmittimeksi
GB This product is not suitable for primary heating purposes
Il presente prodotto non è adatto a funzioni di riscaldamento primario
N Dette produktet er ikke egnet for primær oppvarming.
NL Dit product is niet geschikt voor gebruik als primaire verwarming
P Este produto não é adequado para fins de aquecimento principal
PL Ten produkt nie może służyć jako podstawowe źródło ogrzewania
© Denna produkt lämpar sig inte för primär uppvärmning.
⑤ Tento výrobok nie je vhodný ako hlavné vykurovacie zariadenie
③ Ta izdelek ni primeren za primarno ogrevanje
