ARM 32 - Lawn mower BOSCH - Free user manual and instructions

Features	Details
Product type	Electric lawn mower
Cutting width	32 cm
Cutting height	3 adjustable positions (20-60 mm)
Power	1200 W
Grass box capacity	31 liters
Control panel	Ergonomic handle with safety switch
Weight	6.8 kg
Usage	Ideal for small lawns up to 300 mb2
Maintenance	Clean the blade and box after each use, regular blade sharpening
Safety	Safety switch, overload protection
General information	Quiet operation, low energy consumption

Frequently Asked Questions - ARM 32 BOSCH

How do I start the BOSCH ARM 32 lawn mower?

Make sure the mower is properly assembled and the battery is charged. Press the start button while pulling the safety handle.

What should I do if the mower does not start?

Check that the battery is charged and all cables are properly connected. Also ensure the safety handle is fully pressed.

How do I adjust the cutting height?

Use the height adjustment lever located on the mower wheels. Lower or raise the lever to adjust the cutting height to your preference.

What is the cutting width of the BOSCH ARM 32?

The cutting width of the BOSCH ARM 32 mower is 32 cm.

How do I maintain my BOSCH ARM 32 mower?

Clean the blade after each use, regularly check the oil level, and replace the air filter according to the user manual recommendations.

Is the mower suitable for sloped terrain?

The BOSCH ARM 32 is designed for flat to slightly inclined terrains. For steep slopes, it is recommended to use a mower specifically designed for such terrain.

What type of grass can be mowed with the BOSCH ARM 32?

The mower is suitable for most types of grass, including fine and dense lawns.

How do I empty the collection box?

Lift the collection box by the handle and empty it into a composter or green waste area. Make sure to properly replace it before continuing to mow.

Where can I find spare parts for my mower?

You can find spare parts at hardware stores, on the official Bosch website, or from authorized dealers.

Is there a warranty on the BOSCH ARM 32 mower?

Yes, the mower is generally covered by a 2-year warranty. Check your user manual for more details.

USER MANUAL ARM 32 BOSCH

OBI DOKU-226/05-016. Im Page 1 Monday, January 18, 2016 11:40 AM

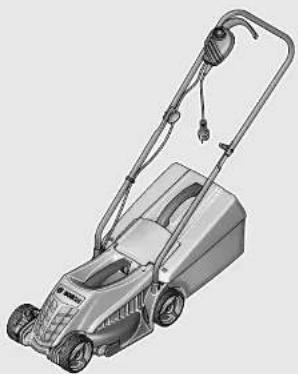

Illustration of a lawn mower with attached hoses and wheels (no text or symbols)

Robert Bosch Power Tools GmbH

70538 Stuttgart

GERMANY

www.bosch-garden.com

F 016 L81 399 (2014.12) O/187 EURO

Rotak 32

BOSCH

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montage und Betrieb

www.bosch-garden.com

Warning! Read these instructions carefully, be familiar with the controls and the proper use of the machine. Please keep the instructions safe for later use!

Explanation of symbols

General hazard safety alert.

Read instruction manual.

Pay attention that bystanders are not injured through foreign objects thrown from the machine.

Warning: Keep a safe distance from the machine when operating.

Caution: Do not touch rotating blades. Sharp blade(s). Beware of severing toes or fingers.

Switch off and remove plug from mains before adjusting, cleaning or if the cable is entangled and before leaving the garden product unattended for any period. Keep the supply flexible cord away from the cutting blades.

Not applicable.

Wait until all machine components have completely stopped before touching them. The blades continue to rotate after the machine is switched off, a rotating blade can cause injury.

10 | English

Do not use the machine in the rain or leave it outdoors when it is raining.

Beware electric shock hazard.

Keep supply flexible cord away from cutting means.

Operation

▶ Never allow children or people unfamiliar with these instructions to use the machine. Local regulations may restrict the age of the operator. When not in use store the machine out of reach of children.
This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety. Children should be supervised to ensure that they do not play with the machine.
▶ Never mow while people, especially children, or pets are nearby.
▶The operator or user is responsible for accidents or hazards occurring to other people or their property.
▶ Do not operate the machine when barefoot or wearing open sandals, always wear substantial footwear and long trousers.
▶ Thoroughly inspect the area where the machine is to be used and remove all stones, sticks, wires, bones and other foreign objects.

▶ Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance.
▶ Mow only in daylight or in good artificial light.
- Avoid mowing in bad weather conditions especially when there is a risk of lightning.
- Avoid operating the machine in wet grass, where feasible.
▶ Walk, never run.
▶ Never operate the appliance with defective guards or shields, or without safety devices, for example deflectors and/or grass catchers in place.

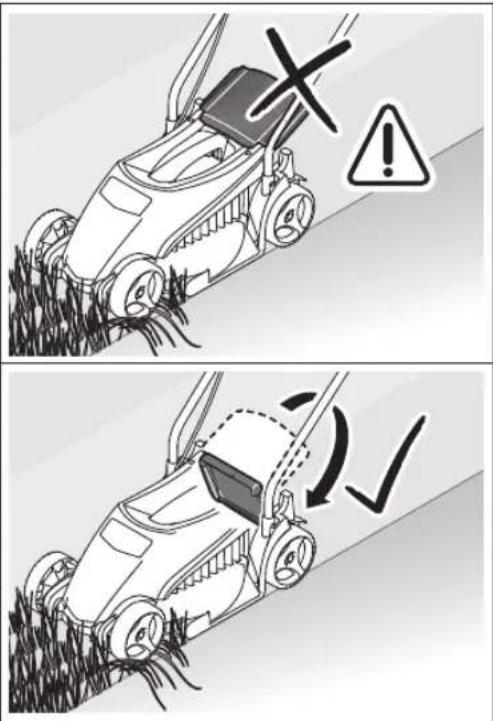

▶ Working on banks can be dangerous.
- Do not mow on excessively steep slopes.
- Always be sure of your footing on slopes or wet grass.

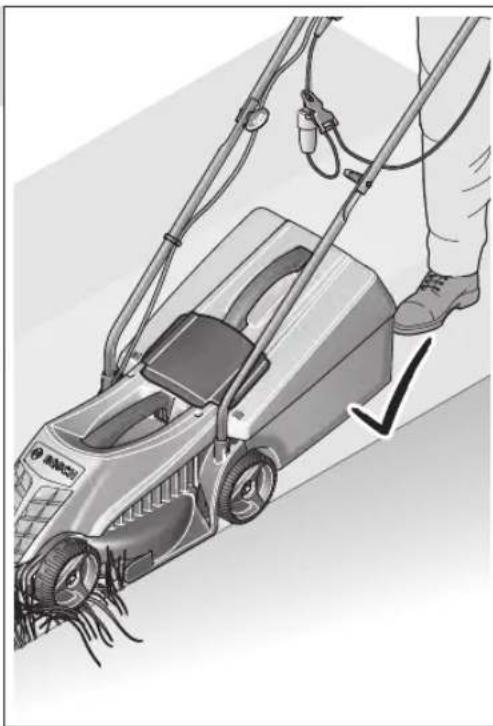

- Mow across the face of slopes - never up and down.
- Exercise extreme caution when changing direction on slopes.
▶ Use extreme caution when stepping back or pulling the machine towards you.
▶ Never mow by pulling the mower towards you.
▶Stop the blades if the machine has to be tilted for transportation when crossing surfaces other than grass and when transporting the machine to and from the area to be mowed.

English | 11

▶ Do not tilt the machine when starting or switching on the motor, except if the machine has to be tilted for starting in long grass. In this case, do not tilt it more than absolutely necessary and tilt only the part which is away from the operator. Always ensure that both hands are in the operating position before returning the machine to the ground.
▶ Switch on the motor according to the instructions with feet well away from rotating parts.
▶ Do not put hands or feet near or under rotating parts.
▶ Always stand clear of the discharge zone when operating the machine.
▶ Never pick up or carry the machine while the motor is running.
▶ Do not modify this product. Unauthorized modifications may impair the safety of your product and may result in increased noise and vibration.
▶ Regularly inspect the supply cable and any extension cables. Do not connect damaged cables to the supply or touch a damaged cable before it is disconnected from the supply. A damaged cable can lead to contact with live parts. Beware electric shock hazard.

Remove the plug from the socket:

• Whenever you leave the machine.
• before clearing a blockage,
  – before checking, cleaning or working on the machine,

– after striking a foreign object. Inspect the machine for damage and make repairs as necessary,
- if the machine starts to vibrate abnormally (check immediately).

Connecting to the mains

▶The voltage indicated on the rating plate must correspond to the voltage of the power source.
▶ We recommend that this equipment is only connected into a socket which is protected by a circuit-breaker that would be actuated by a 30 mA residual current.
▶ Only use or replace power supply cables for this unit which correspond to the types indicated by the manufacturer. See the operating instructions for the order no. and types.
▶ Never touch the mains plug with wet hands.
▶ Do not run over, crush or pull the power supply cord or extension cord, otherwise it may be damaged. Protect the cable from heat, oil and sharp edges.
▶The extension lead must have a cross section in accordance with the operating instructions and be protected against splashed water. The connection must not be in water.
▶ Always wear gardening gloves when handling or working near the sharp blades.

12 | English

Electrical Safety

▶ Warning! Switch off, remove plug from mains before adjusting, cleaning or if cable is cut, damaged or entangled.
▶The blades continue to rotate for a few seconds after the machine is switched off.
▶ Caution – do not touch the rotating blade.

Your machine is double insulated for safety and requires no earth connection. The operating voltage is 230 V AC, 50 Hz (for non-EU countries 220 V, 240 V as applicable). Only use approved extension cables. Contact your Bosch Service Centre for details. Extension cords/leads should only be used if they comply with H05VV-F, H05RN-F types or IEC type design (60227 IEC 53, 60245 IEC 57). If you want to use an extension cable when operating your product, only the following cable dimensions should be used:

• 1.0 ~mm^2 : max. length 40 ~m
• 1.5 mm ^2 : max. length 60 m
• 2.5 mm ^2 : max. length 100 m

Note: If an extension cable is used it must be earthed and connected through the plug to the earth cable of your supply network in accordance with prescribed safety regulations. If in doubt contact a qualified electrician or the nearest Bosch Service Centre.

▶WARNING! Inadequate extension cables can be dangerous. Extension cable, plug and socket must be of watertight construction and intended for outdoor use.

Cable connections should be kept dry and off the ground.

It is recommended for increased electrical safety to use a Residual Current Device (RCD) with a tripping current of not more than 30 mA. Always check your RCD every time you use it.

For products not sold in GB:

WARNING: For your safety, it is required that the plug attached to the machine is connected with the extension cord. The coupling of the extension cord must be protected against splash water, be made of rubber or coated with rubber. The extension cord must be used with a cable strain relief.

The connection lead must be inspected for signs of damage at regular intervals and may only be used if in perfect condition.

If the supply cord is damaged, it must be replaced by a Bosch Service Centre.

Products sold in GB only: Your product is fitted with a BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362).

If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent.

The replacement plug should have the same fuse rating as the original plug.

English | 13

The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.

Products sold in AUS and NZ only: Use a residual current device (RCD) with a rated residual current of 30 mA or less.

Maintenance

▶ Always wear gardening gloves when handling or working near the sharp blades.
- Keep all nuts, bolts and screws tight to be sure that the machine is in safe working condition.
▶ Check the grass catcher frequently for wear or deterioration.
▶ Examine the machine and replace worn or damaged parts for safety.
▶ Ensure replacement cutting means of the right type are used.
▶ Ensure replacement parts fitted are Bosch approved.
▶ Before storage ensure machine is clean and free from debries, if necessary clean with a soft, dry brush.

Symbols

The following symbols are important for reading and understanding the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the garden product in a better and safer manner.

Symbol Meaning

	Movement direction
	Reaction direction
	Wear protective gloves

Symbol Meaning

	Weight
I	Switching On
O	Switching Off
√	Permitted action
×	Prohibited action
	Accessories/Spare Parts

Intended Use

The garden product is intended for domestic lawnmowing.

Technical Data

Lawnmower Rotak 32

Article number 3 600 H85 B..
Rated power input	W	1
Blade width	cm 32
Height of cut	mm 20 – 60
Grassbox, capacity	l	31
Weight according to EPTA-Procedure 01:2014	kg 7.0
Protection class	☐/TT
Serial number	see type plate on the garden product

The values given are valid for a nominal voltage [U] of 230 V. For different voltages and models for specific countries, these values can vary. Please observe the article number on the type plate of your garden product. The trade names of the individual garden products may vary.

Noise/Vibration Information

Sound emission values determined according to EN 60335-2-77.

Typically the A-weighted noise levels of the product are: Sound pressure level 79 dB(A); sound power level 93 dB (A). Uncertainty K=1 dB.

Vibration total values a_h (triax vector sum) and uncertainty K determined according to EN 60335: a_h < 2.5 m/s^2 , K = 1.5 m/s^2 .

Declaration of Conformity C€

We declare under our sole responsibility that the product described under "Technical Data" is in conformity with all relevant provisions of the directives 2011/65/EU, 2014/30/EU, 2006/42/EC, 2000/14/EC including their amendments and complies with the following standards: EN 60335-1, EN 60335-2-77, EN 50581. 2000/14/EC: Guaranteed sound power level 94 dB(A). Conformity assessment procedure according to Annex VI. Equipment category: 32

14 | English

Notified body:

TÜV Rheinland Intercert Kft., Budapest, Hungary, Nr. 1008

Technical file (2006/42/EC, 2000/14/EC) at:

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Mounting and Operation

Action Figure Page
Delivery Scope 1 184
Handle Assembly	2 184

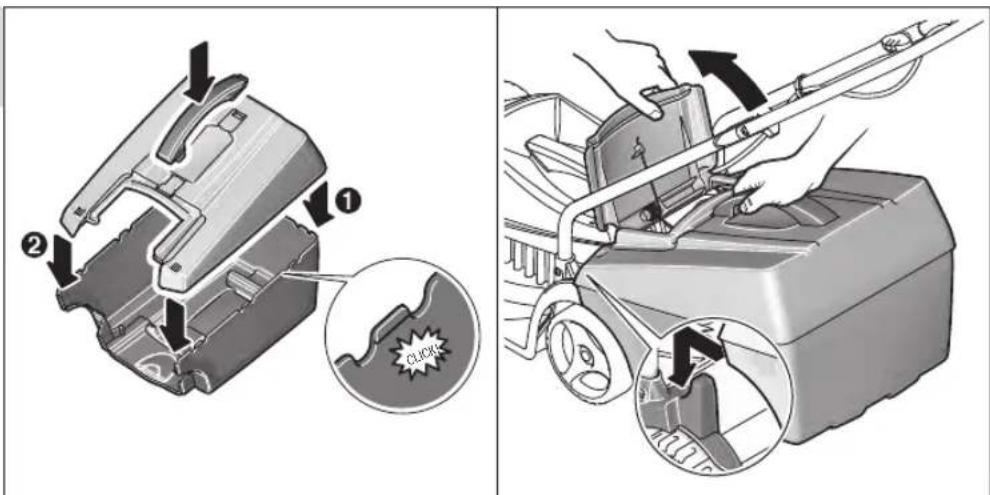

Snap together the Grassbox	3 184
Grassbox fitting/removing	3 184

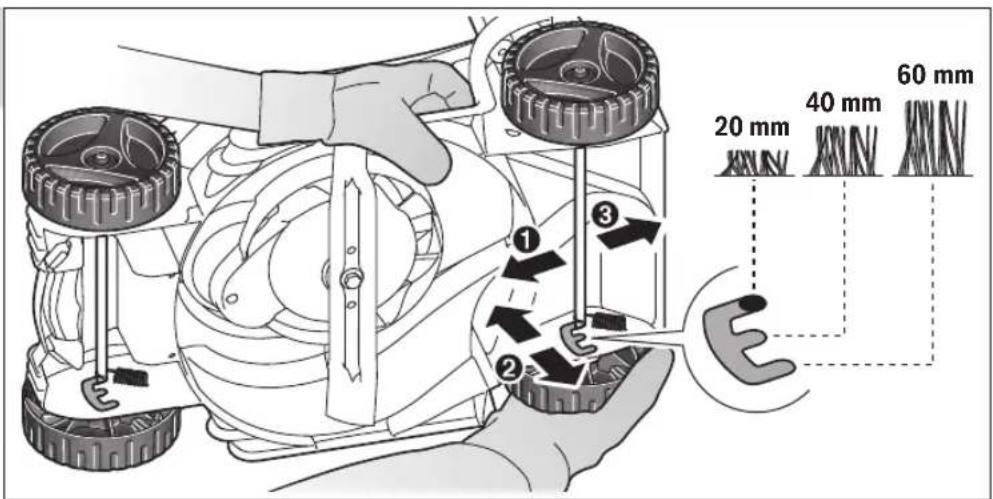

Adjusting the Cutting Height	4 185

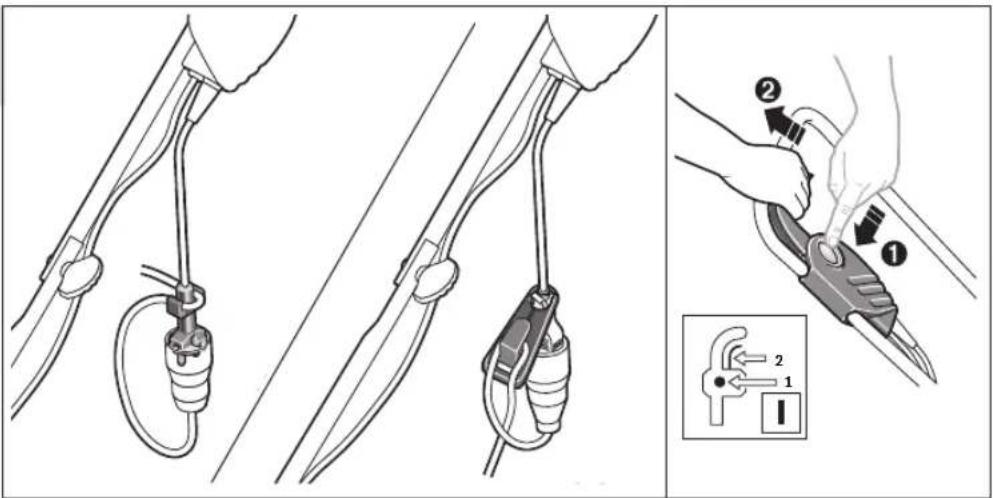

Connecting the Extension Lead	5 185
Starting	5 185
Stopping	5 185

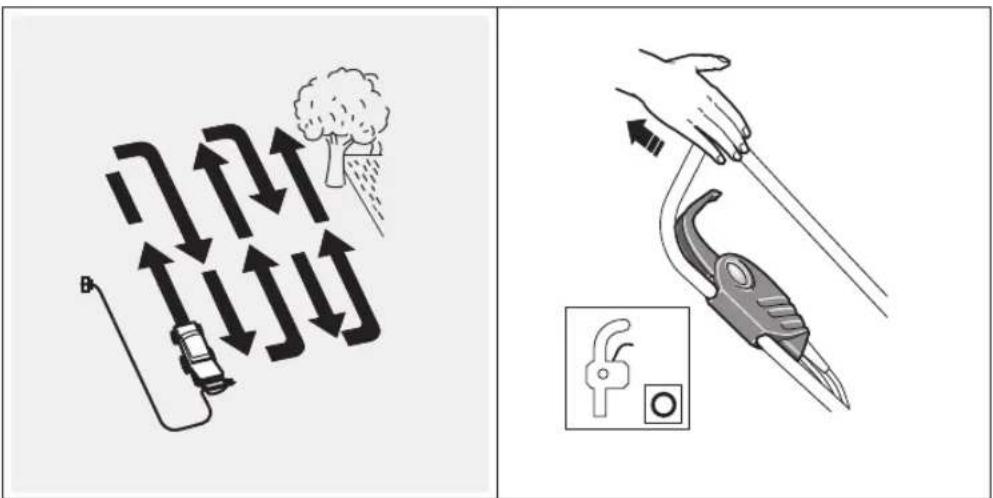

Working Advice	5 - 6 185 - 186

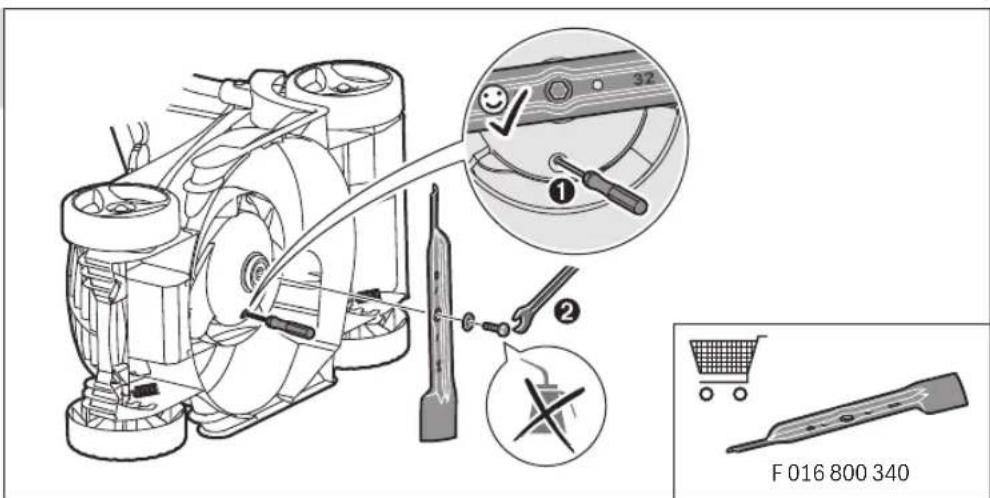

Blade Maintenance	7 186
Selecting Accessories	7 186

Troubleshooting

Problem Possible Cause Corrective Action

Motor refuses to start Power turned off Turn power on

	Mains socket faulty Use another socket
	Extension cable damaged Inspect cable, replace if damaged
	Fuse faulty/blown Replace fuse
	Possible clogging	Check underneath the garden product and clear out as necessary (always wear protective gloves)

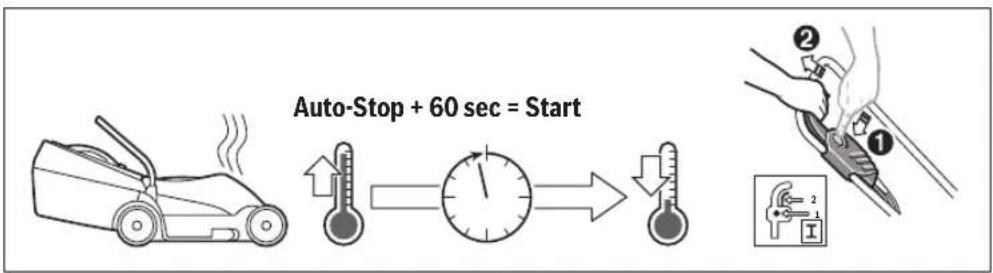

	Motor protector has activated	Allow motor to cool and increase height of cut
	Mowing too low for the conditions	Increase height of cut
Machine functions intermittently	Extension cable damaged Inspect cable, replace if damaged
	Internal wiring of machine damaged	Contact Service Agent
	Motor protector has activated	Allow motor to cool and increase height of cut
Machine leaves ragged finish and/or Motor labours	Height of cut too low	Increase height of cut
	Cutting blade blunt Replace the blade
	Possible clogging	Check underneath the garden product and clear out as necessary (always wear protective gloves)
	Blade fitted upside down	Refit blade correctly
Blade not rotating while garden product switched on	Cutting blade obstructed	Switch off garden productClear obstruction (always wear protective gloves)
	Blade nut/bolt loose	Tighten blade nut/bolt (17 Nm)
Excessive vibrations/noise	Blade nut/bolt loose	Tighten blade nut/bolt (17 Nm)
	Cutting blade damaged Replace the blade

English | 15

After-sales Service and Application Service

www.bosch-garden.com

In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the garden product.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Disposal

Do not dispose of garden products into household waste!

Only for EC countries:

According to the European directive 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national law, electrical and electronic equipment that are no longer usable must be collected separately and disposed of in an environmentally correct manner.

Subject to change without notice.

16 | Français

Français

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

www.bosch-garden.com

Robert Bosch (France) S.A.S.

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montaje y operación

www.bosch-garden.com

PRODUCTS CERTIFIED ANCE CERTIFIED PRODUCT

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

if it is i.v. k.m.

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

www.bosch-garden.com

Fascicolo tecnico (2006/42/CE, 2000/14/CE) presso: Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2, Stowmarket, Suffolk IP14 1EY, England Henk Becker Helmut Heinzelmann Executive Vice President Head of Product Certification Engineering PT/ETM9

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Montaggio ed uso

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Helmut Heinzelmann

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montage en gebruik

www.bosch-garden.com

Teknisk dossier (2006/42/EF, 2000/14/EF) ved:

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montering og drift

www.bosch-garden.com

Bosch Service Center

Telegrafvej 3

2750 Ballerup

På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.

Tlf. Service Center: 44898855

Fax: [phone]

E-Mail: [e-mail]

Bortskaffelse

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montering och drift

www.bosch-garden.com

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone] (inom Sverige)

Fax: [phone]

Avfallshantering

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Helmut Heinzelmann

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montering og drift

www.bosch-garden.com

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Asennus ja käyttö

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Helmut Heinzelmann

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montaj ve işletim

www.bosch-garden.com

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Montaż i praca

www.bosch-garden.com

Robert Bosch Sp. z o.o.

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montáž a provoz

www.bosch-garden.com

Bosch Service Center PT

K Vápence 1621/16

692 01 Mikulov

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2, Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President Engineering

Helmut Heinzelmann

Head of Product Certification PT/ETM9

if it is i.v. k.d.

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montáž a používanie

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

114|Magyar

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

www.bosch-garden.com

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

i.v. k: w

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Helmut Heinzelmann

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Helmut Heinzelmann

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

www.bosch-garden.com

Tel. service scule electrice: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Монтиране и работа

www.bosch-garden.com

Henk Becker Executive Vice President Engineering

Helmut Heinzelmann Head of Product Certification PT/ETM9

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Montaža i Rad

Cilj rukovanja Slika Strana
Obim isporuke 1	184
Montaža rama za prihvat	2	184
Sastavljanje korpe za prihvatanje trave	3	184
Ubacivanje/vadjenje korpe za prihvatanje trave	3	184
Podešavanje visine sečenja	4	185
Postavljanje produžnog kabla	5	185
Uključivanje	5	185
Isključivanje	5	185
Uputstva za rad	5 – 6	185 – 186
Održavanje noža	7	186
Biranje pribora	7	186

Srpski|151

Traženje grešaka

www.bosch-garden.com

Molimo navedie kod svih pitanja i naručivanje rezervnih delova neizostavno broj predmeta sa 10 mesta prema tipskoj tablici baštenskog uredjaja.

Srpski

Bosch-Service

Dimitrija Tucovića 59

11000 Beograd

Tel.: [phone]

Fax: [phone]

Executive Vice President

Head of Product Certification PT/ETM9

Engineering

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2, Stowmarket, Suffolk IP14 1EY, England

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Montaža i rad

Radnja Slika Stranica
Opseg isporuke	1	184
Montaža stremena ručke	2	184
Sastavljanje košare za sakupljanje trave	3	184
Umetanje/skidanje košare za sakupljanje trave	3	184
Namještanje visine rezanja	4	185
Spajanje produžnog kabela	5	185
Uključivanje	5	185
Isključivanje	5	185
Upute za rad	5 - 6	185 - 186
Održavanje noževa	7	186
Biranje pribora	7	186

Hrvatski|163

Traženje greške

www.bosch-garden.com

Kod svih upita i naručivanja rezervnih dijelova molimo neizostavno navedite 10-znamenkasti kataloški broj sa tipske pločice vrtnog uređaja.

Hrvatski

Robert Bosch d.o.o

Kneza Branimira 22

10040 Zagreb

Tel.: [phone]

Fax: [phone]

Zbrinjavanje

Vrtne uređaje ne bacajte u kućni otpad!

Samo za zemlje EU:

Prema Europskim smjernicama 2012/19/EU za električne i elektroničke stare uređaje, neuporabivi električni i elektronički uređaji moraju se odvojeno sakupljati i dovoditi na ekološki prihvatljivo recikliranje.

Tehniline toimik (2006/42/EÜ, 2000/14/EÜ) saadaval: Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2, Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Helmut Heinzelmann

Executive Vice President Engineering

Head of Product Certification PT/ETM9

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2, Stowmarket, Suffolk IP14 1EY, England

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

182 | Lietuviškai

www.bosch-garden.com

Technical diagram illustrating three steps of a mechanical assembly with labeled components and directional arrows.

3

Diagram illustrating the process of cleaning a lawn mower, showing steps to remove and clean the engine.

4

20 mm 40 mm 60 mm

5

Technical diagram showing cable installation steps with numbered instructions and a magnified inset of the tool's internal structure.

Diagram illustrating a water spray system with directional arrows and a tool, alongside a close-up of the tool's tip.

186

6

Illustration of a lawn mower being hoisted by a person using a tool, with no visible text or symbols.

Diagram showing two scenarios of a lawn mower on grass, with warning symbols indicating incorrect and correct actions.

7

32 ① ② F 016 800 340
