Technical Specifications	Steam iron, 2400 W power, 350 ml water tank
Features	Vertical steam function, ceramic soleplate, temperature control
Usage	Ideal for all types of fabrics, easy use with a swivel cord
Maintenance	Clean the soleplate with a damp cloth, regular descaling recommended
Safety	Automatic shut-off after 30 seconds in horizontal position, overheat protection
General Information	Lightweight, ergonomic design, 2-year warranty

Frequently Asked Questions - DB 6004 CB BOMANN

How do I fill the water tank of the BOMANN DB 6004 CB iron?

To fill the water tank, unplug the iron, open the tank cap, and pour water up to the maximum fill mark. Do not exceed this limit.

Why is my iron not heating up?

Check that the iron is properly plugged in and that the outlet is working. Also, make sure the thermostat is set to an appropriate temperature.

How do I clean the soleplate of the iron?

Let the iron cool down, then use a soft, slightly damp cloth to wipe the soleplate. For stubborn stains, you can use a specific soleplate cleaner.

My iron is leaking, what should I do?

Check if the tank is overfilled or if the iron is tilted. Also, ensure the temperature is set correctly. If the problem persists, contact customer service.

How do I disable the steam function?

To disable the steam function, set the steam knob to the "0" or "dry" position depending on your iron model.

What type of water should I use in my iron?

It is recommended to use distilled water to avoid limescale, especially if you have hard water in your area.

What should I do if the iron turns off automatically?

This may be due to the automatic shut-off feature. If the iron remains still for a prolonged period, it will turn off for safety reasons. Simply turn it back on.

My iron makes strange noises, is this normal?

Noises can occur if there is water in the tank or if the iron is heating up. If the noises persist or are accompanied by operational issues, contact customer service.

How do I store my BOMANN DB 6004 CB iron?

Make sure the iron is completely cooled down before storing it. Store it in a dry and safe place, preferably in its original box.

USER MANUAL DB 6004 CB BOMANN

Elimination. Page 19

ESPANOL

Indices

Overview of the Components.. 3

Instruction Manual.. Page 30

Technical Data.. 34

Disposal.. Page 34

ENGLISH

JEZYK POLSKI

Spis tresci

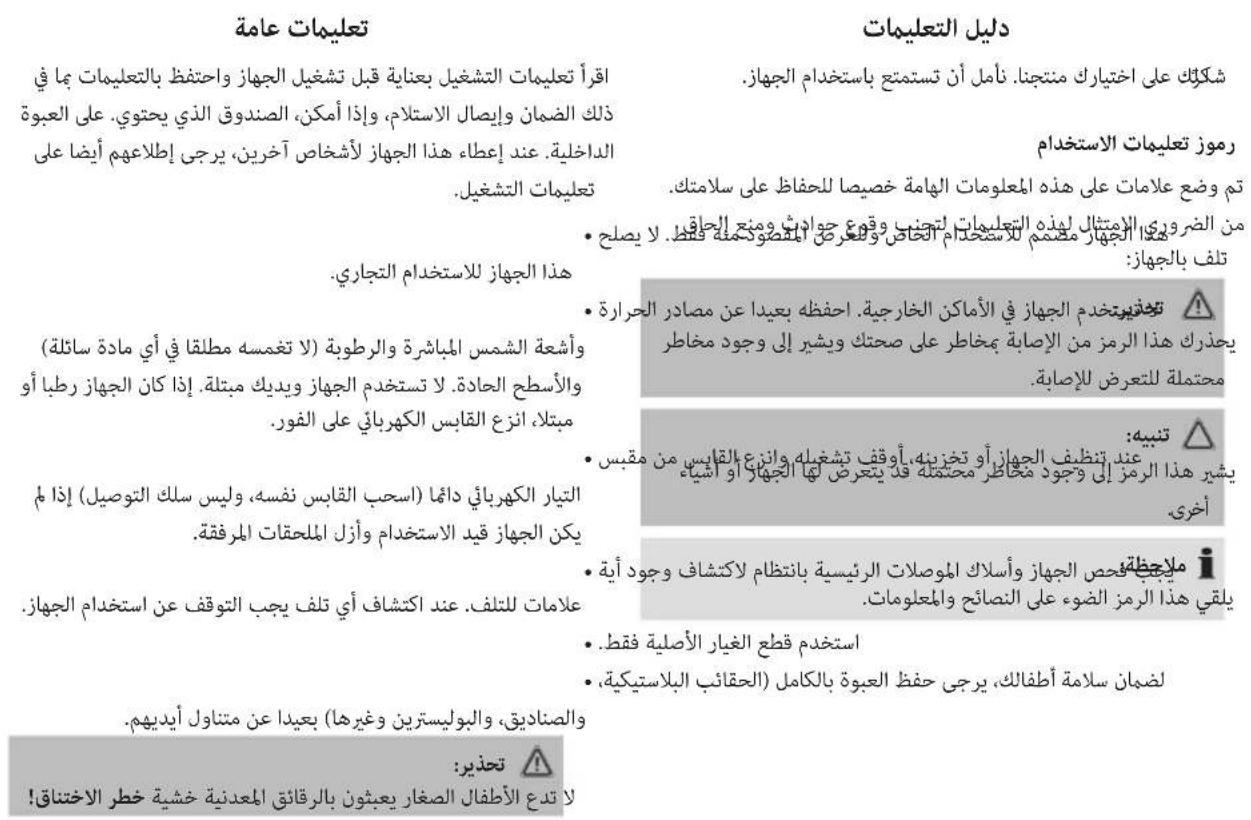

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in These Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

NOTE:

This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special Safety Instructions for This Appliance

You will find the following symbol with warning character on the product:

WARNING: Hot surface!

Danger of burns!

The temperature of accessible surfaces can be very hot during and after operation.

WARNING:

• The sole plate becomes hot quickly and requires a long time to cool down. Do not touch.
• When not in use, place the iron vertically on the stand
• Choose a safe resting surface! The surface must be stable and level. Check the resting surface again for stability.

WARNING:

• The iron must be used and rested on a stable, heat-resistant surface. The surface should be level.
• Before filling the water tank remove the mains lead.
• The iron must not be left unsupervised while it is connected to the mains.
• The iron may not be used if it has been dropped, if there is visible damage or if it leaks.
• Do not repair the appliance by yourself. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• When turning on or cooling down, the iron and its cord must be out of reach of children who are younger than 8 years.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.
• Cleaning and user maintenance shall not be performed by children.
• This appliance is not designed to be immersed in water during cleaning. Please follow the instructions that we have included for you in the chapter on "Cleaning".
• The tank should only be filled up to the maximum mark. Do not overfill! Maximum water filling quantity: approx. 250 ml .
• Please use only distilled water.

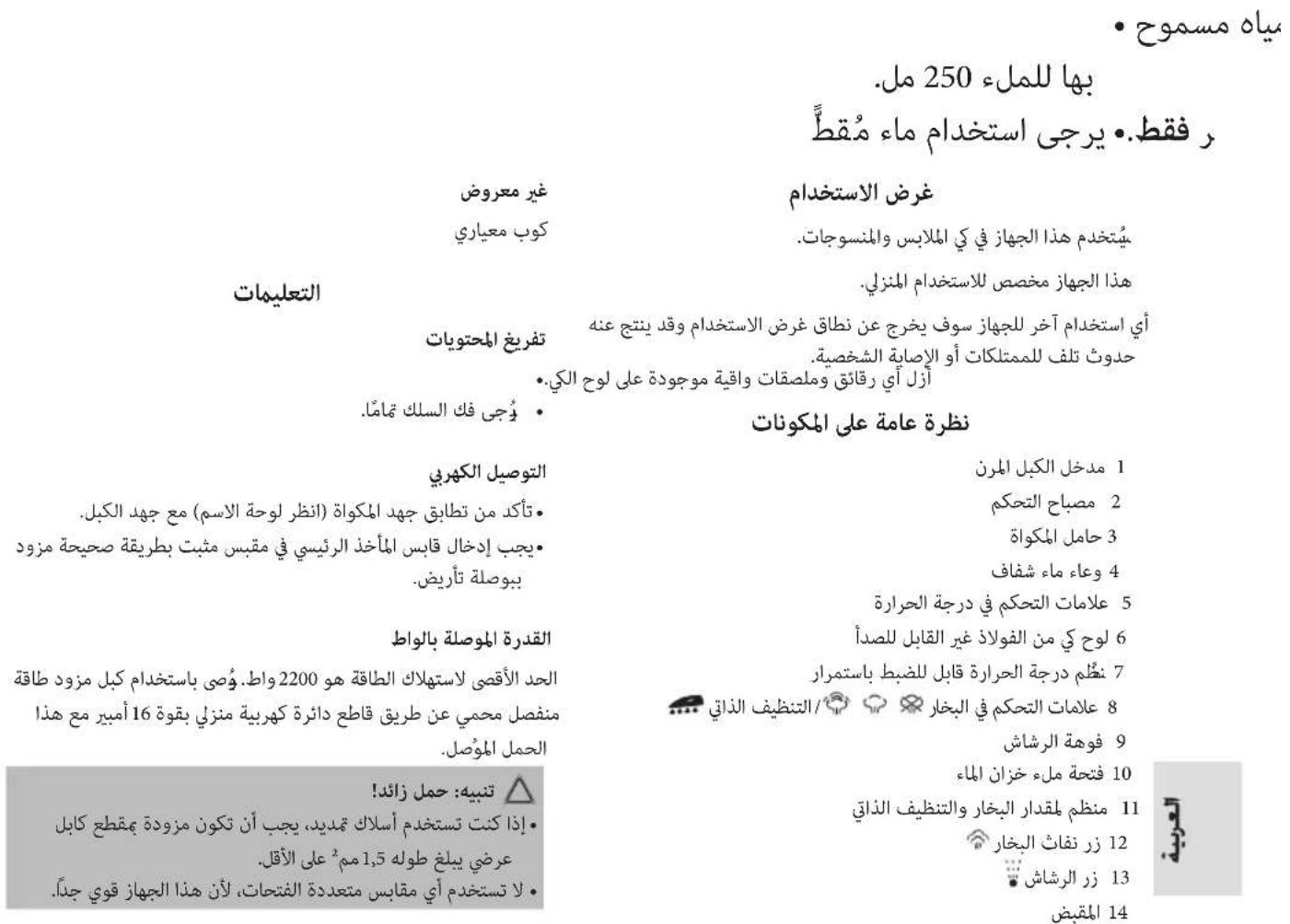

Intended Use

This appliance is used for ironing clothes and textiles.

It is intended for household use.

Any other use is regarded as not intended and may even result in damage to property or personal injury.

Overview of the Components

1 Flexible line cord entry
2 Control lamp
3 Stand
4 Transparent water tank
5 Temperature control markings
6 Stainless steel soleplate
7 Continuously adjustable temperature regulator
8 Steam control markings /Self-Cleaning
9 Spray nozzle
10 Filler opening for the water tank
11 Regulator for the steam quantity and the self-cleaning
12 Steam jet button
13 Spray button
14 Handle

Not Shown

Measuring cup

Notes on Use

Unpacking

• Remove any protective foils and stickers from the sole plate.
• Please unwind the lead completely.

Electrical Connection

Make sure that the iron voltage (see name plate) and the line voltage match.
- The mains plug should only be inserted into a correctly installed socket with earthing contact.

Connected Wattage

The maximum power consumption of the appliance is 2200 W. With this connected load a separate supply line protected by a 16 A household circuit breaker is recommended.

CAUTION: Overload!

• If you use extension leads, these should have a cable cross-section of at least 1.5mm^2
• Do not use any multiple sockets, as this appliance is too powerful.

Temperature Control on the Iron (7)

The symbols on the control correspond to the following settings:

OFF

off

家

(synthetics, rayon, silk)

low temperature

(ironing without steam)

W

(wool) medium temperature

(cotton, linen) maximum temperature

• Turn woollen clothes inside out to avoid shiny spots on the fabric due to steam ironing. In addition, lay a thin cotton cloth onto the fabric.
• Select a low temperature setting for fabrics with additional surface treatment and iron them inside out.

NOTE:

The iron heats up faster than it cools down. Start ironing with the lowest temperature setting.

Water

• Please use only distilled water.
• Do not fill battery water, water from the clothes dryer and water containing additives (such as starch, perfume, softener or other chemicals) into the water reservoir.
• This could damage the iron due to residues forming in the steam chamber. These residues may cause impurities to the fabric when dropping out of the holes in the sole plate.

Operation

Before Initial Use

• Clean the ironing base with a slightly damp cloth.
• In order to remove all residues before initial use, please pass the iron a few times over an old clean cloth.

Ironing without Steam

NOTE:

1. Sort out the garments according to their ironing temperatures.
2. Always set the temperature control to "OFF" before connecting the appliance to a power point, or before disconnecting it. Please follow the temperature control markings (5).

3. Set the steam control (11) to the " position, following the steam control markings (8).

4. Place the iron on its stand.

5. Only connect the appliance to a properly installed safety socket.

6. Set the temperature on the temperature control (7). If you have sensitive items to iron, please begin with the lowest temperature.

NOTE:

The control lamp (2) on the iron shows that it is heating up. As soon as the control lamp goes off the operating temperature has been reached. Now you can start ironing.

Steam Ironing

WARNING:

The iron expels a large quantity of hot steam. Danger of burns.

NOTE:

• For this a high temperature is needed. Turn the temperature control (7) at least to the "●" symbol.

• If the temperature is too low water may leak from the sole plate.

• Fill the water tank with distilled water. The tank volume is ca. 250ml . Fill the water tank to the max marking only.

• Place the iron with the sole plate in an upright position on a heat resistant surface.

• Open the water tank cover upwards.
• Fill the water reservoir at the refill opening (10). Use the supplied measuring cup.
• Close the water tank cover again.

Use the steam control (11) to adjust the amount of steam. Set the control to positions "a" "p".
- The steam volume regulator audibly engages in the respective position.
- Steam escapes as soon as the iron is in a horizontal position.
- Extra steam can be added with the steam jet function. Press the steam jet button (12) intermittently.

• Spray Function (

In order to moisten a section of a garment to be ironed, press the spray button (13) intermittently.

- Vertical Steam Function

This can be used to produce a jet of steam in a vertical direction.

WARNING:

Never direct the steam jet at people. Risk of burning!

1. Hang your laundry on a clothes hanger and move the iron to approximately 3 - 5 cm away.
2. Set the temperature control (7) to "●●" position.
3. Press the steam jet button (12) intermittently.

NOTE:

If the amount of steam emitted is too little, wait until the appliance heats up again.

- How Can I Replenish the Water During Operation?

1. Set the steam control to the "position.
2. Place the iron with the sole plate in an upright position on a heat resistant surface.
3. Tum the appliance off by setting the temperature control knob to the "OFF" position.
4. Remove the mains plug from the socket.
5. Open the lid of the refill inlet and carefully pour in the water.
6. Do not exceed the maximum line as marked on the water reservoir.
7. Close the lid of the tank.

When You Have Finished

1. Always turn the temperature control to "OFF" after use and remove the mains plug. The control lamp goes off.
2. Empty the water tank in order to prevent the contents of the tank leaking.
3. Allow the appliance to cool down before you put it away.

Self-Cleaning

1. Half fill the water tank with water.
2. Heat the appliance up to its maximum temperature. After the control lamp goes off remove the appliance from the mains supply.
3. Now hold the iron horizontally over a sink. Slide the regulator (11) on the symbol and hold this. The regulator does not snap into place. Now rock the appliance backwards and forwards until the tank is empty.
4. Place the appliance back on its stand and heat it up again. To clean the base now iron over a clean cotton cloth.

Cleaning

WARNING:

• Always remove the mains lead before cleaning!

WARNING:

• Wait until the appliance has cooled down completely!
• Under no circumstances should you immerse the appliance in water for cleaning purposes. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.
• Clean the casing with a slightly damp cloth.
• Clean the sole plate and the rest with a slightly damp cloth.

Technical Data

Model: DB 6004CB

Power supply: 220-240V\~,50-60Hz

Power consumption: 1800-2200 W

Protection class: I

Net weight: approx. 0.85kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the Symbol "Dustbin"

Protect our environment; electrical appliances do not belong in household waste.

Use the collection points for the disposal of electrical equipment and submit your electrical and electronic equipment to these points that you will no longer use.

You help reduce the potential impact of incorrect disposal on the environment and human health.

You contribute to recycling, and other forms of recycling of electrical and electronic equipment.

Information concerning the disposal of appliances can be obtained from your local or municipal authorities.

Instrukcja obslugi

Regulator temperature na zelezaku (7)

CTC Clatronic Sp. z 0.0

Ul. Brzeska 1

45-960 Opole

Usuwanie

OHO npedha3HaHeNo InI nCIOJIb3OBaHnB 6blity.

IIO6oe Ipyroe NcNoIb3OBaHne CHTaeTcNcNOIb3OBAHNEM He No Ha3NaueHnIO N DaKe MoKET npNBecT N NOpYeIMyUecTBa HIN JInuHOn TpaBMe.

063op detae npnbopa

1Γn6kn npDBoC ceTeBOro uHypa
2 KOnTpObHaJaAMnOuKa
3Плдстаьka
4 PpO3paHbI BODHOH6aOH
5 MTeKn TepmoperyIaTopa
6ПошвИЗнжржавецчс STAN
7 BeccTyneHnatbIy perynTOp tempeaTpybl
8 Metkn napoperynlaTopa Camaooyctka
9 Conllo paCblntela
10 OTeBepTne IaHaNoJIHeHn BODaHOrO 6aUka
11 PernylTOp KOJIInueCTBa npa n CamooUcNtKn
12 KhonkaДяdoonHHTeIbHOn nOaHn npa
13 Khonka Aəp03oJIb
14 Puyka

He noka3aHa

Мернayaч安娜

Ppimechany no nCnojB3ObaHn

PacnaKOBka

• YdaInte 3aunTHyO fonbIy n HakIeKn, ecn TaKOBblc ImeHOTc, c pa6ooye nobepxHOCTn yTOra.
• P3MaTaeIte, noKaanyIcTa, nonHocbIO Ka6eIb.

3JekTpocetb

• Y6eNTecb B TOM, UTO HAnpIKeHHe NITaHnYyTOra (CMOTPN TabNHy Ha HeM) COOTBeTCTByET HAnpIKeHIO BAWeI CETN.
  BCTaBnIte ceTeBoJ WTeKepe JINuB B MOHTnpoBaHHyO COJIaCHO IpeDnCaHmR M WTeNCEbHyO PO3ETky C 3aUHTbIM KOHTAKTOM.

Notpe6JnemMoUHocTb

MaKcImaIbHaN noTpe6IeMaM MOUHocTb COCTaBnIeT 2200 Bt. TaKyIO HaRpy3ky peKOMeHNdyETcra NODKnIOuATb uePe3 OTdeJIbHyIO 3NeKTpOPOBOkOy, OCHaUeHHyIO ATOmATOM OKIIOueHnHa 3NeKTpOTOK 16 A uYcTpoiCTBOM TOKOBOI 3aUHTbl.

BHIMAHNE: Nperpy3kal

• PnI NOJIb3OBAHmYdJIINHITeJIbHbIMN Ka6eJIaMn CJIeJNTe 3a TeM, YTO6bl nonepueyHoe ceeyHne Ka6eJIa 6bIIO MNHMym 1,5 MM2.
  He nolb3yIeTcB pa3BETBNTJIbHbIMN UTeNCJIbHbIMn pO3eTKaMn, TAK KAK 3OT npN6p NMeet CmUKOM BbICOKYIO MOUHOCTb.

PernyrTop TemnepaTyB BneKtpoyTIOre (7)

CIMBOJbI, HaxoJaIeNec Ha peryIaTope, COOTBeTCTByOT CJIeDyUOuM yCTaHOBkAM:

Yttn3aIy yCTapeBwe TeXHnN HEnCnpabhIx 3NeKTPoPnp6OpOB npOn3BOIDTCB roPOdcknx npEeMHbIX NyHKtax.

He donyckaTe He npabunbHo yTnIn3aun OTxOOB. 3TO HAnocnt Bpe OkpykaUoien CpeE N OKa3bIbAe T HeratNBHOe BO3dJeCTBne Ha 3DopOBBe IIOei.

Oka3bBaIte cOeICTBne nporpamme yTnIImaunn npyrmfopMaM nepepa0TKn 3NeKtpoHHoN n3NeKtpuYeckoN TEXHNI.

HOpMaIIO O NyHKTx yTNIM3aIIN 6bITOBOy TEXHNKMOXHO NOJYuHTB B MECThBIX OpraHAX BnactN.

jU

Aauiu 11111111

j 2

a 111 111 10 10 a 561 6j 3

Jus (11) 0bbl d> jog s ljol 3

jglajll jao. dks a jauy y pabiibd ay Jauy j

.5j01 0y jol ybjn 0j01 .jol jol jol jol jol jol jol jol

.5j0yolgiowuy 89 ogSb1 Jolo yoe 5j0yoo ayuSb1 g o .4

aaiia aiee aeae eae 1y 3 yll aaii

j0000000000000000000000000000000000000

.（山）"OFF"

aai j 4

. a1 = a1( b1 + b2)

. a|b|c|d|e|f|g|h|i|j|k| l.

S AOB = S AOC + S_ OBC

SJJ no 8000 loii

Ejgl plzssll 0FF" jde jolal aqdo sksll oos

eannnne nnnnne nnne

.1j0dUgga uag g6u 1j0g2

1. 1.

#

：

！

aie 1561

S ACD = S COD + S_ DCE

.

jglj jolj

"daolalgdoj

3aJyJyJyJyJyJyJyJyJyJyJyJyJyJyJy

aJjul cJulal al

JLJ 1a aai 1aui 1aui 1aui 1aui

.

alaiabdi aowllg aoll 151 iioi oelunbi

a aaa aaaaabb baaal aaalaa

jooJg jlll 1000g ggl 1000g

a. a. g; SJyg a. ySjy SjUdo b1 pUdo wOJ 0d

jolalil jSe gill slly aalbi ciogbdi de Jgall s

aalalalalalalalalalalalalal

:4.3

ab = 15 且 a5^3 + a6^3 + a_7^3 = 15

ab = 15g^2a_0 = 2000

.

.

A

DB 6004 CB.

60-50 240-220

2200-1800

1.

0.85

jyabil 13a aaaagai g iJg jgall

Lulu

aai gai jia aai ai ci aai CE ciLjayg jglol o

iJyIgdoaui jLs jzabibul gdl Ugogg aubuagjSly

a0 = ( a1 + 2) = 3

3

4k > 5k

sue jolg6bl jolg6bl 2) soll cuao ggy
Joue olj oJdOu oJolg6bl oSscln

S_ OBC = 12 · CO · BC = 12 × CD × 5

J

:

#

S_ OBC = 12 · CO · BC = 12 × CD × 5

4ab = 10

a0j 3 9 a0g j0j .a0j10 a0j11 o0j11 o0j0j g55 ,

JJIyI yIe "●"j00 (7) 0j00

gll 10jao aaiy d yalee aeeie oyal 00s

bab = 100dab = 100( 1 - a)

Jb MAXdoLc 250 JgA

.8J

d正方形 COBD = d正方形 ABCD = d_矩形 BDE = 2

yjbjy jyj 10) 100 100 100 100 100 100

.

S_ OBC = 12 × OB × BC = 12 × 5 × 5

a 11

gai jai aai pao poa gai.

j661g661 3Egco

gog 3 o1g5b1 gaa j2j2e jlaa

jai aabg plawu wlaol jaoaLo

zai jk (12) jai jj d

aJJIaBg

(13)

1. 1234567890

gogal jolai abg

sogosoljglaljoliljolai gblb! aabgllnlaa jSe

：

000000000000000000000000000000000000000

123 105611 1208 10561056105610561

5-3j

"●●●gds(7) 0jolll 0jor j0sall 2

1. 1200 (12) jLl lai jg le bdo.3

4ab = 5a

jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao

S木弟形 COBD = S COD + S_ BDO

Jauuul uuiu uuiu

"

pIgao 2000 100000000000000000000000000000000000000

.01

(7) g ≤ b 与 a b , a c , a d , a e , a f , a g

ailll lal y 10 sall oog jg 0g jg jg jg

Jaaaal

OFF

S(1) 4. .

(1)

a.sliu slgo

家

abwgo 8jy d（gog）

gaaill 3j,all 2j0j(jus,jbs)

all day

aibbloggnoa aabgbaoa JdaolgJy

aJol! aJus J 2

1. 知识 2. 有意识

S_ OBC = S_ COD + S_ BOC

aJ 13 Jc sUy y g Uy IuI. Luy u 2y Sd e y oSb j

.01

= 4b

bae elpulwul

5

.（sj）aaiuogolgglcglbglu

S APQ = S AQP + S_ QPQ

aalj no bwlss lois wolgl f gll lall oas

5

山

0gUgUgUgUgUgUg

aalw 2llw

1. 0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0

aaii aaiiaaiia

1

4k > y_0

11 11 11 11

JOGI J3"OFF" 15 12 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

EJI 2J. JIJI JIJI JAI JAI JAI JAI JAI JAI JAI

(5) j1 A 2j1 > 0 令 x_1 A

sall lalai gagg 11 1

.(8) 12

lgy^ u^ lb 交 g

iud cua doLw juae diSbI Jwogu 5.

151.7)0jao 60all 8oo

1. 1

jlll lloo
