612GW - Dashcam NEXT BASE - Free user manual and instructions

Product type	4K Dashcam with 3" touch screen
Brand	NEXT BASE
Model	612GW
Dimensions	97 x 59 x 42 mm
Weight	151 g
Power supply	5 V / 1.5 A via supplied 12-24 V DC cigarette lighter cable
Internal battery	Lithium-ion 3.7 V / 260 mAh, battery life of approximately 15 minutes
Recording resolution	3840 x 2160 at 30 fps (4K) + 768 x 432 at 30 fps (low resolution)
Viewing angle	150° (7G lens, aperture F1.6)
Screen	3.0-inch capacitive touch LCD, resolution 960 x 240, 16:9 format
Storage	microSD card from 32 to 128 GB (U3 type recommended, 64 GB or more for 4K)
Connectivity	Wi-Fi, built-in GPS (connected support), HD output (USB Type-C), USB port
Main functions	Loop recording, motion detection (parking mode), accelerometer (file protection), polarizing filter, automatic brightness reduction, GPS timestamp, time-lapse recording
Video formats	MP4, HI (high definition) and LO (low definition) files
Maintenance and cleaning	Clean with a soft dry cloth; lens with glasses cleaning liquid; avoid alcohol, thinners, benzene
Safety	Do not expose to moisture; install out of reach of airbags; do not obstruct driver's view; use screen saver mode to avoid distractions
Spare parts and repairability	Connected GPS mount, power cable, USB cable, window sticker; repair by qualified technician only
General information	Online manual available; firmware update via Nextbase website; Cam Viewer app for smartphone (Android/iOS)

Frequently Asked Questions - 612GW NEXT BASE

How to format the microSD card in the Nextbase 612GW?

Go to the Settings menu (screen 1), select Format SD Card. Confirm to erase all data. It is recommended to format every 2 weeks for stable performance.

What to do if the touch screen stops responding?

The screen is capacitive: use brief taps with your bare finger. It does not work with a stylus or gloves. If the problem persists, press the Reset button located at the bottom of the device.

How to activate Parking mode?

In the Settings menu screen 1, enable Parking Mode. When the ignition is turned off, the dashcam goes into standby and automatically records 30 seconds if motion is detected.

Why does my battery only last 15 minutes?

This is normal: the 260 mAh internal battery is designed only for the automatic shutdown function in case of power loss, it does not replace the car power cable.

How to connect the dashcam to my smartphone via Wi-Fi?

Press the Wi-Fi icon for 3 seconds in the main menu. On your smartphone, connect to the dashcam's Wi-Fi network (SSID and password displayed on the screen). Open the NEXTBASE Cam Viewer app to view and download files.

Why is the displayed time incorrect?

The dashcam sets the time automatically via GPS based on the selected country. Check the country in Settings screen 4. If necessary, choose Other and then manually set the time zone.

Which microSD card should I use?

Use a U3 type microSD card, capacity from 32 to 128 GB. For 4K recording, 64 GB or more is recommended. Cards from recognized brands offer the best performance.

How to protect a recording from deletion?

During recording, press the Lock button on the side of the dashcam. The accelerometer also automatically protects 30 seconds (10 before, 20 after) in case of impact. Protected files go into the Protected folder.

What to do if the suction cup does not stick to the windshield?

Remove the protective film from the suction cup, moisten it slightly, clean the windshield with a clean cloth. Lower the lever completely before applying, then push it upward to lock. Avoid textured surfaces.

How to update the dashcam firmware?

Download the latest version from www.nextbase.com. Copy the file to a microSD card formatted in FAT32. Insert the card into the dashcam while it is off, then turn it on. The update starts automatically. Keep the device plugged in during the operation.

USER MANUAL 612GW NEXT BASE

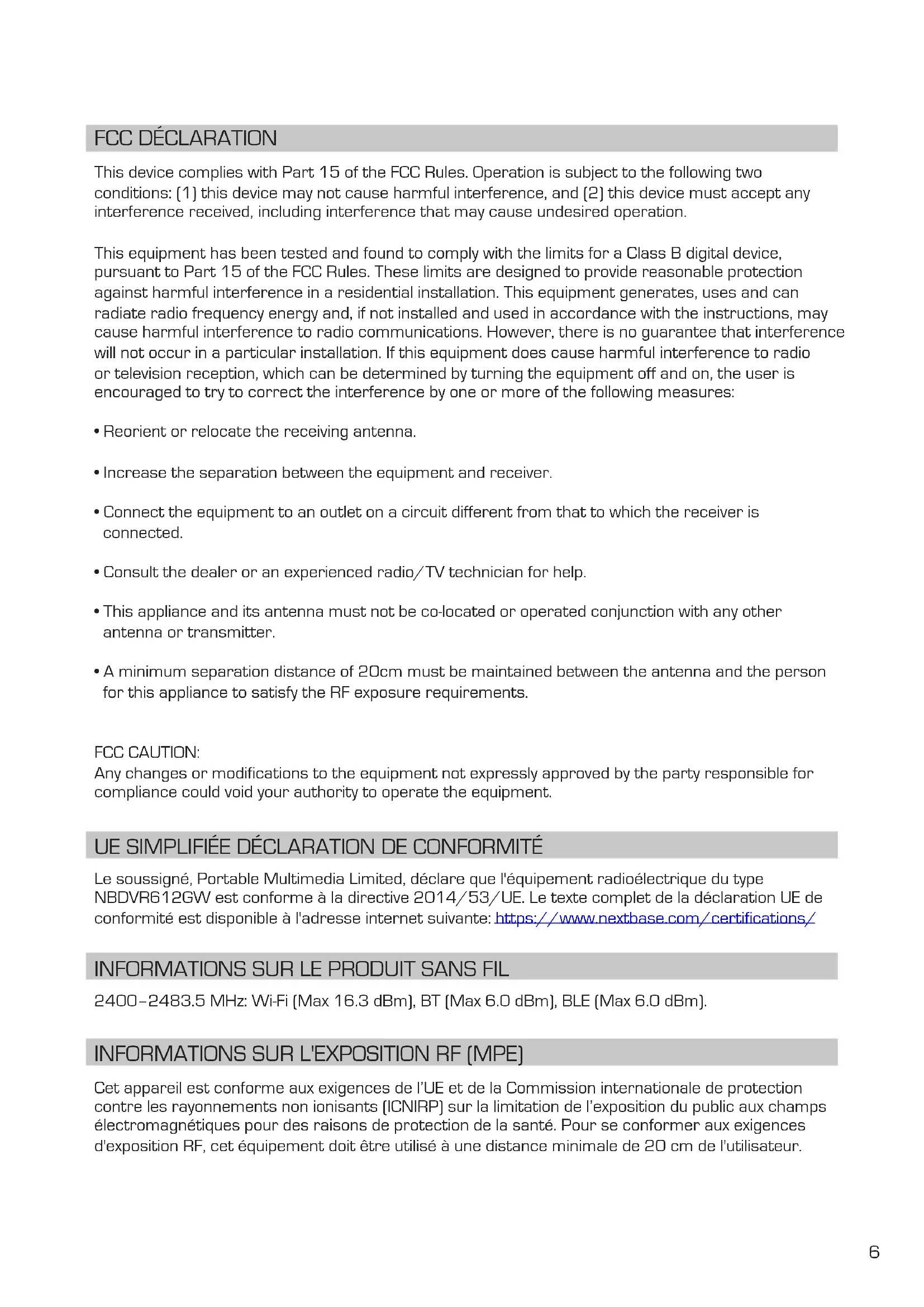

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference, and [2] this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• This appliance and its antenna must not be co-located or operated conjunction with any other antenna or transmitter.
• A minimum separation distance of 20cm must be maintained between the antenna and the person for this appliance to satisfy the RF exposure requirements.

FCC CAUTION:

Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

UE SIMPLIFIÉE DÉCLARATION DE CONFORMITE

INFORMATIONS SUR LE PRODUIT SANS FIL

2400-2483.5 MHz: Wi-Fi [Max 16.3 dBm], BT [Max 6.0 dBm], BLE [Max 6.0 dBm].

INFORMATIONS SUR L'EXPOSITION RF (MPE)

SUPPLIER'S DECLARATION OF CONFORMITY

[47 CFR Section 2.906].

We; Tank Design

Hereby, Declare that the essential requirements set out in the 47 CFR Sections 2.906 of FCC, have been fully fulfilled on our product with indication below:

1. Applicant's Info

Company Name: Portable Multimedia Ltd

Mailing Address: Unit 2, Caerphilly Business Park, Van Road, Caerphilly. CF83 3ED. UK

Contact : Graham Lambert

Tel: [phone]

Email Address: [e-mail]

2. Product Info

Product Name: Dash Cam

Model No.: NBDVR612GW

Brand Name: Nextbase

3. Applied Standard

Standards

E-CFR Title 47 Part 15 Subpart B—Unintentional Radiators: 2017

Report No. WTS18S05112835E

4. Test Firm Used to Take Measurements:

Name: Waltek Services [Shenzhen] Co., Ltd.

Address: 1/F, Fukangtai Building, West Baima Rd Songgang Street, Baoan District, Shenzhen, Guangdong, People's Republic of China, 518105

Contact Name : Philo Zhong

Tel: [phone] 802

Email: [e-mail]

Designation No.: CN1201

FRN：0027148261

FCC DÉclaration (SUITE)

SUPPLIER'S DECLARATION OF CONFORMITY CONTINUED

1. FCC Marking

1. Responsibilities and obligations

Strictly follow the FCC rules of 2.906, 2.908, 2.909.

1. Applicant's Authorization

Company Name: Portable Multimedia Ltd

Mailing Address: Unit 2, Caerphilly Business Park, Van Road, Caerphilly. CF83 3ED. UK

Contact Person: Graham Lambert

Signature: C.K. Lamblat.

Email Address: [e-mail]

Tel: [phone]

Date : 14th June 2018

1. Responsible party in US.

Company Name: Tank Design

Mailing Address: 158 Sidney Street, Cambridge, MA 02139, United States

Contact Person: Mr Scott Watts

Signature:

Email Address: [e-mail]

Tel: [phone]

Date: 14th June 2018

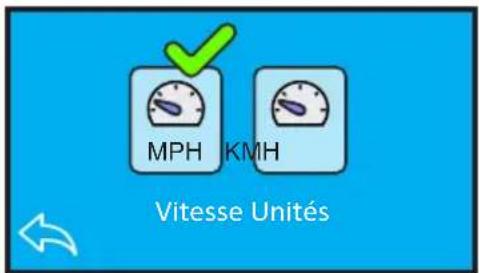

CHARACTERISTIQUES DU PRODUIT

Move to the next settings screen.

Type 1: Appui simple

Options: Active et Désactive

Options: Active et Désactive

Options: Active et Désactive

Options: Active et Désactive

Options: Active et Désactive

Activer/désactiver le microphone.

Options: Active et Désactive

Options: Active et Désactive

Options: Active et Désactive

Options: Active et Désactive

Options: Active et Désactive

Options: Active et Désactive

Options: Active et Désactive

Options: Active et Désactive
