Product type	Dashcam (onboard camera)
Brand	NEXT BASE
Model	InCar Cam 312GW Deluxe
Dimensions	92 x 57 x 37 mm
Weight	86 g
Power supply	5 V / 1.5 A via 12/24 V DC adapter cable (included)
Internal battery	Lithium-ion 3.7 V, 450 mAh (approx. 30 minutes recording)
Recording resolution	1920 x 1080 at 30 fps (default)
Sensor	3 megapixels (3,000,000 pixels)
Lens	6G, 140° angle, F1.8 aperture
Display	2.7-inch color LCD, 960 x 240 pixels
Memory card support	Micro SD, Class 10, up to 128 GB (recommended 8-128 GB SDHC, 48 MB/s)
Recording format	MOV
Built-in GPS	Yes (connected support)
Built-in Wi-Fi	Yes (smartphone/tablet connection via Cam Viewer app)
Accelerometer (G-sensor)	Yes, adjustable sensitivity (High/Medium/Low/Off)
Parking mode	Yes, motion detection, 30-second recording
Microphone and speaker	Built-in
Video/audio output	2.5 mm jack
PC connection	USB (mass storage mode, PC camera, power)
Main functions	Loop recording, file protection, screenshot, timestamp, speed and GPS stamp, license plate number
Care and cleaning	Clean with a soft dry cloth; lens with eyeglass cloth
Safety	Do not expose to water; install outside airbag zones; do not use while driving
Spare parts and repairability	AV cable (NBDVR-AV-B) available; support via www.nextbase.com
General information	CE, RoHS, REACH compliant; standard operating temperature

Frequently Asked Questions - InCar Cam 312GW Deluxe NEXT BASE

How to format the SD card in the dashcam?

To format the SD card, press the MENU button twice to access the setup menu, select Format SD Card and follow the on-screen instructions. It is recommended to format every 2 to 3 weeks after transferring important files.

The battery only lasts a few minutes, is this normal?

Yes, the 450 mAh internal battery is designed to allow automatic shutdown on power loss and for short recordings (about 30 minutes). It is not intended to replace the car's power supply.

How to set the time and time zone on the dashcam?

The time is automatically set by GPS to Greenwich Mean Time (GMT). To adjust the time zone, go to the setup menu (MENU twice), choose Time Zone / DST and select your time zone (e.g., GMT+1 for France). You can also disable automatic timestamp.

Why are my videos blurry?

Make sure the lens protection cap has been removed and the lens is clean. Also check that the windshield is clean. If the problem persists, try adjusting the exposure in the video menu (from -2 to +2) or reformat the SD card.

How to connect the dashcam to my smartphone via Wi-Fi?

Ensure the dashcam is not recording, then press the Wi-Fi button (button 7) for 3 seconds. On your smartphone, enable Wi-Fi and connect to the dashcam's network (SSID and password appear on the screen). Open the Cam Viewer app (downloadable from Google Play or App Store) to view or download files.

How to protect a video file so it is not deleted?

During recording, press the Protect button (button 7) to protect the current file. In playback mode, you can also select the Protection option in the menu to protect or unlock files. Protected files are not automatically deleted.

Parking mode does not work properly, how to disable it?

To disable parking mode, stop recording, press MENU to access the video menu, select Parking Mode and set it to Off. If recording restarts without stopping, turn off the dashcam, remove the SD card, turn it back on, then disable parking mode in settings.

The suction cup does not stay stuck to the windshield, what should I do?

Remove the protective film from the suction cup, clean the windshield with a clean dry cloth, slightly dampen the suction cup, then attach it by pushing the locking lever upward. Ensure the surface is smooth and without tint.

What does the message 'Card Error' or 'Card Full' mean?

Card Error: the SD card has become unusable. Transfer important files to your computer then format the card in the dashcam (setup menu > Format SD Card). Card Full: the card is full of protected files. Delete unnecessary files or format the card after backup.

I cannot access the SD card via my computer, what should I do?

Connect the dashcam to the computer with the supplied USB cable (plug directly into the dashcam, not the mount). Turn on the dashcam and select Mass Storage on the screen. If nothing happens, try another USB port or another cable. The dashcam is read-only, you cannot copy files to it.

USER MANUAL InCar Cam 312GW Deluxe NEXT BASE

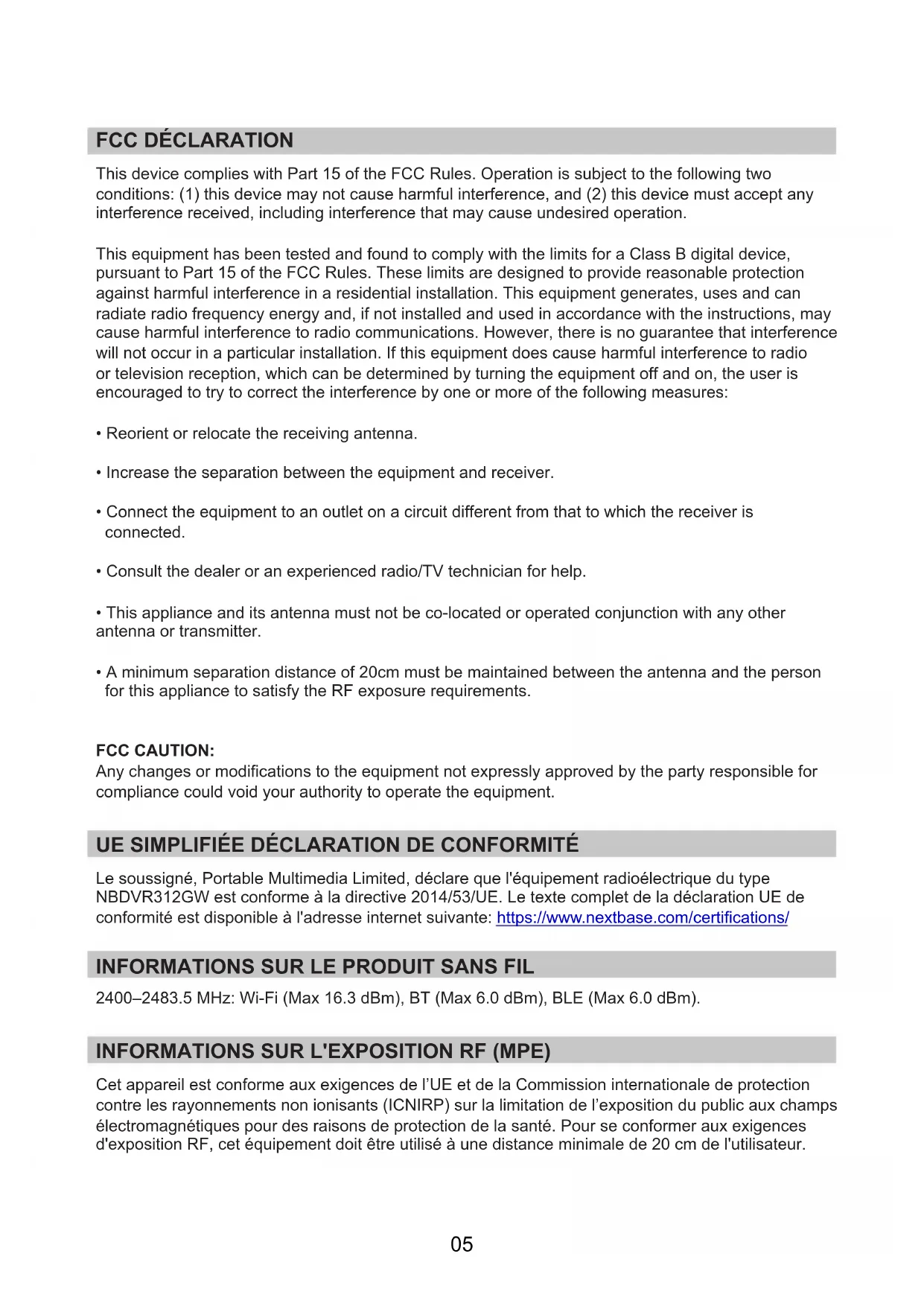

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• This appliance and its antenna must not be co-located or operated conjunction with any other antenna or transmitter.
• A minimum separation distance of 20cm must be maintained between the antenna and the person for this appliance to satisfy the RF exposure requirements.

FCC CAUTION:

Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

UE SIMPLIFIÉE DÉclaration DE CONFORMITE

INFORMATIONS SUR LE PRODUIT SANS FIL

2400-2483.5 MHz: Wi-Fi (Max 16.3 dBm), BT (Max 6.0 dBm), BLE (Max 6.0 dBm).

INFORMATIONS SUR L'EXPOSITION RF (MPE)

SUPPLIER'S DECLARATION OF CONFORMITY

(47 CFR Section 2.906).

We;Tank Design

(The responsible party, who must be located in the United States)

Hereby, Declare that the essential requirements set out in the 47 CFR Sections 2.906 of FCC, have been fully fulfilled on our product with indication below:

1. Applicant's Info

Company Name: Portable Multimedia Ltd

Mailing Address: Unit 2, Caerphilly Business Park, Van Road, Caerphilly. CF83 3ED. UK

Contact : Graham Lambert

Tel：[phone]

Email Address: [e-mail]

1. Product Info

Product Name: Dash Cam

Model No.: NBDVR312GW

Brand Name: Nextbase

1. Applied Standard

Standards

E-CFR Title 47 Part 15 Subpart B—Unintentional Radiators: 2017

Report No. TB-FCC159867

1. Test Firm Used to Take Measurements:

Name: Shenzhen Toby Technology Co., Ltd.

Address: 1 A/F., Bldg.6, Yusheng Industrial Zone, The National Road. No.107

Xixiang Section 467, Xixiang, Bao'an, Shenzhen.

People's Republic of China. 518017

Contact Name: Justin Zhang

Tel: [phone]

Email: [e-mail]

Designation No.: CN1223

FRN:0027148261

SUPPLIER'S DECLARATION OF CONFORMITY CONTINUED

1. FCC Marking

1. Responsibilities and obligations

Strictly follow the FCC rules of 2.906, 2.908, 2.909.

1. Applicant's Authorization

Company Name: Portable Multimedia Ltd

Mailing Address: Unit 2, Caerphilly Business Park, Van Road, Caerphilly. CF83 3ED. UK

Contact person: Graham Lambert

Email Address: [e-mail]

Tel：[phone]

Date: 12th June 2018

1. Responsible party in US.

Company name: Tank Design

Mailing Address: 158 Sidney Street, Cambridge, MA 02139, United States

Contact person:Mr Scott Watts

Signature:

Email address: [e-mail]

Tel: [phone]

Date: 12th June 2018

C E

Portable Multimedia Limited trading as Nextbase

Portable Multimedia Limited, Dorna House Two, 52 Guildford Road

West End, Surrey, GU24 9PW, United Kingdom

Graham Lambert, Technical Director

Portable Multimedia Limited,

Caerphilly, Wales

24^th November 2017

FICHE TECHNIQUE

CHARACTERISTIQUES DU PRODUIT

Activer/désactiver microphone :

Activer/désactiver le microphone.
