Product Type Gas Barbecue
Brand CHAR BROIL
Model 463276517
Fuel Propane (LP) – 20 lb cylinder
Number of Main Burners 6 (5 tubular + 1 searing bar)
Side Burner 1
Main Cooking Surface Approximately 2800 cm²
Cooking Grid Material Chrome-plated steel
Lid Material Porcelain-coated steel
Temperature Gauge Built into lid
Ignition Electronic (AA battery)
Gas Regulator With excess flow safety device

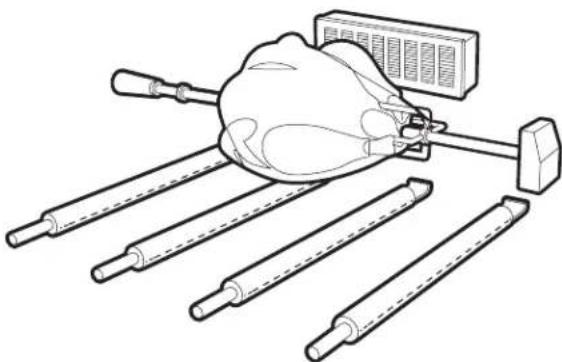

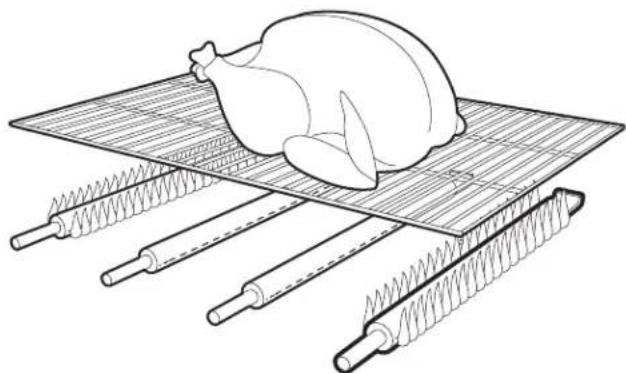

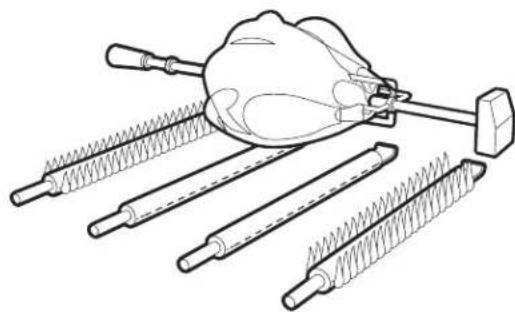

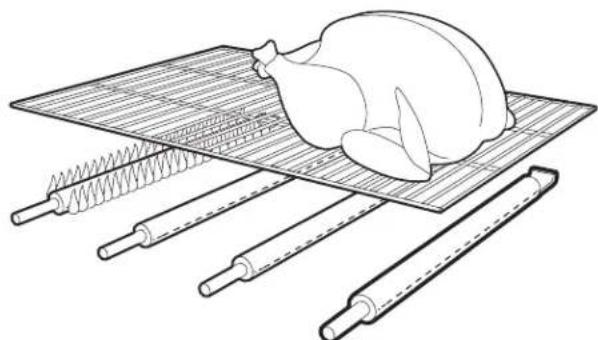

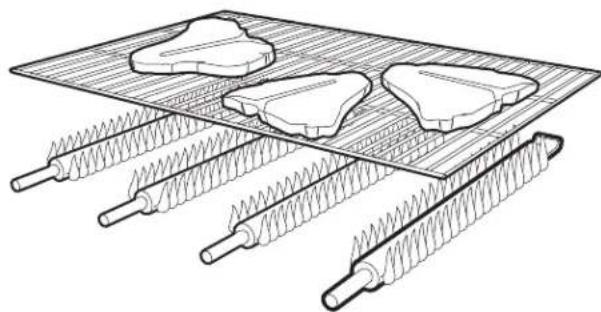

Cooking Types Direct, indirect, searing, rotisserie (optional)
Grease Tray Removable, empty after each use
Warranty Stainless steel burner 5 years, body/lid 2 years, other parts 1 year
Cart Dimensions (approx.) 152 x 61 x 114 cm
Weight (approx.) 55 kg
Spare Parts Available through manufacturer or authorized service

Frequently Asked Questions - 463276517 CHAR BROIL

How to assemble the CHAR BROIL 463276517 barbecue?
Follow the assembly instructions in the provided manual. Use an adjustable wrench and a screwdriver (not included). Wear protective gloves. Refer to the included diagrams and parts list.

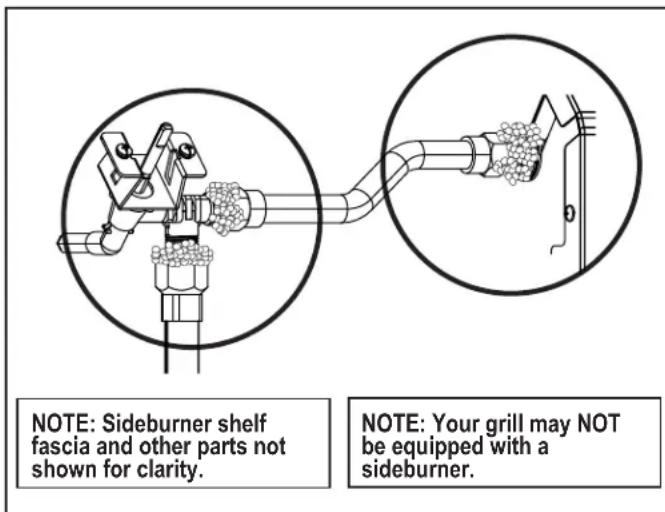

How to perform a leak test?

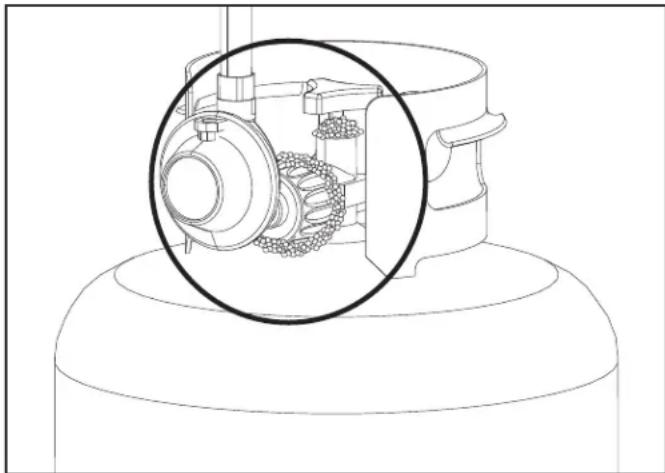

Mix equal parts water and mild soap. Apply the solution to the connections and valve. If bubbles appear, turn off the gas and tighten the connections. Do not smoke during the test. Repeat each time you change or refill the gas cylinder.
What to do if a gas odor persists?
Immediately shut off the gas supply at the tank. Extinguish any flame. Open the lid. If the odor persists, move away and call the gas supplier or fire department.
How to light the barbecue?
Open the lid. Open the gas tank valve. Push and turn the ignition burner knob to the HIGH position. Press the electronic ignition button until the burner ignites. If no ignition within 5 seconds, turn off the knob, wait 5 minutes, and try again.

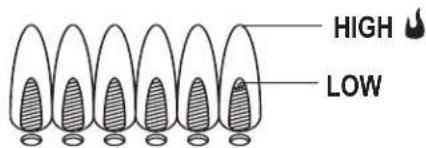

Why are my flames low?

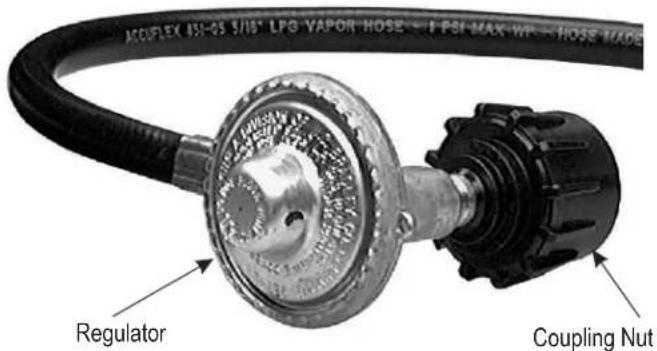

This may be due to a nearly empty tank or the excess flow safety device being triggered. Turn off all knobs and the tank valve, disconnect the regulator, wait 30 seconds, reconnect, slowly open the valve, and relight.
How to turn off the barbecue?

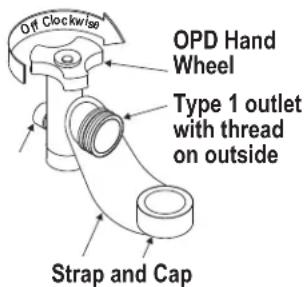

Turn all burner knobs to the OFF position. Close the LP tank by turning the hand wheel fully clockwise.

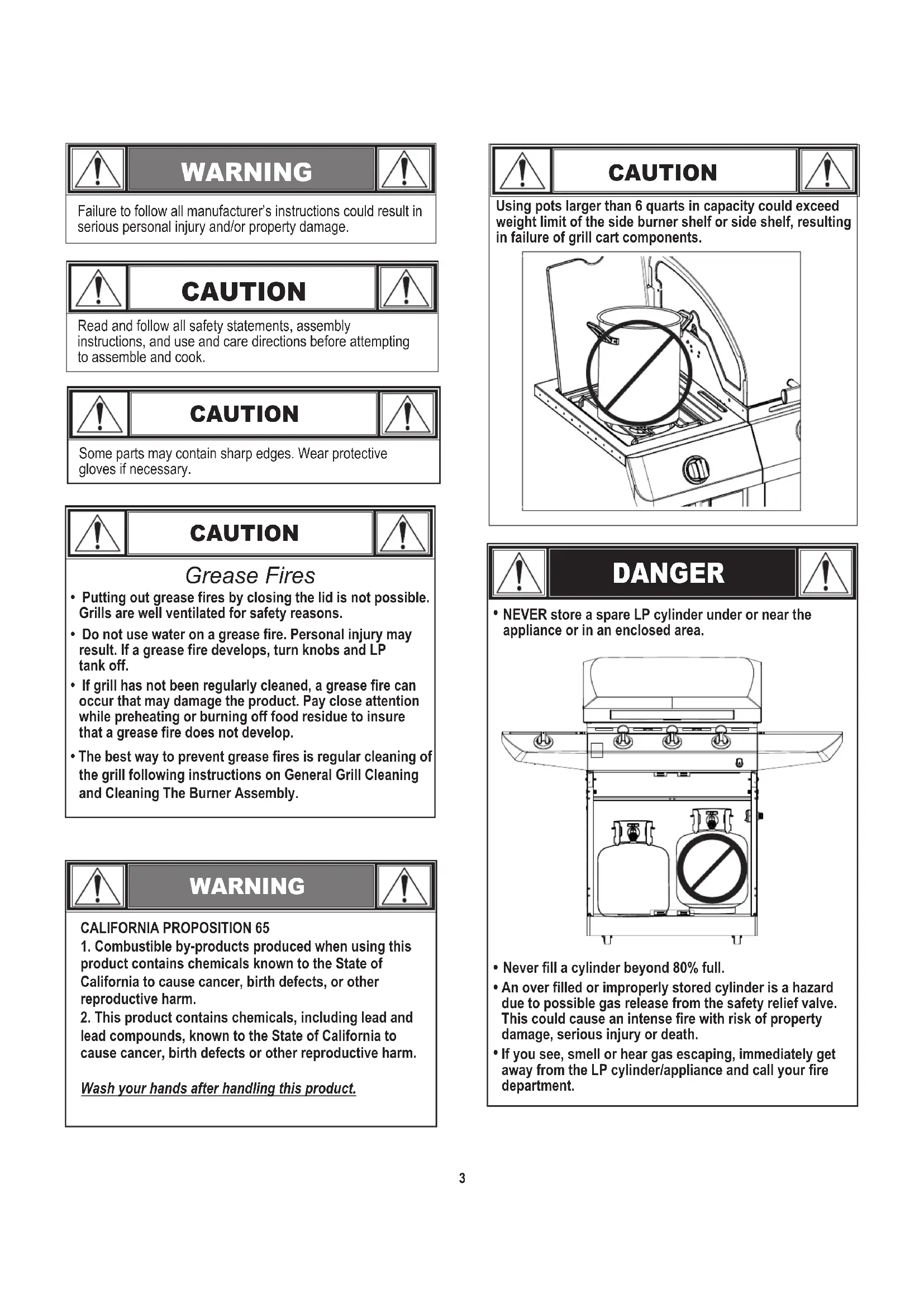

What to do in case of a grease fire?
Turn off the knobs and the gas supply. Close the lid? No: do not use water. Let the fire burn out. Once cooled, carefully clean accumulated grease.

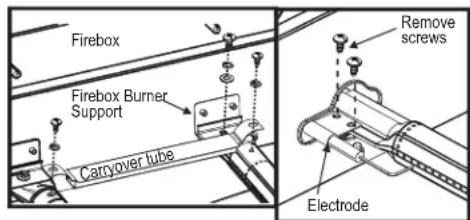

How to clean the burners?
Turn off the gas. Remove the grates and burner covers. Lift the burners. Clean the tubes with a wire hook or pipe cleaner brush. Check the orifices. Replace the burners ensuring they are properly connected to the valves. Perform a leak test after reassembly.
Can I use lava rocks or charcoal?
No, this grill is designed for gas use only. Adding lava rocks, briquettes, or charcoal voids the warranty and increases fire risk.

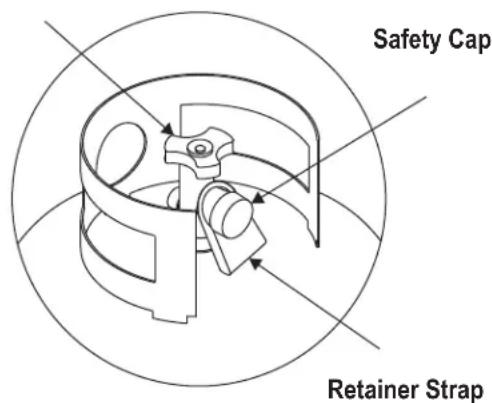

How to store the barbecue and gas cylinder?

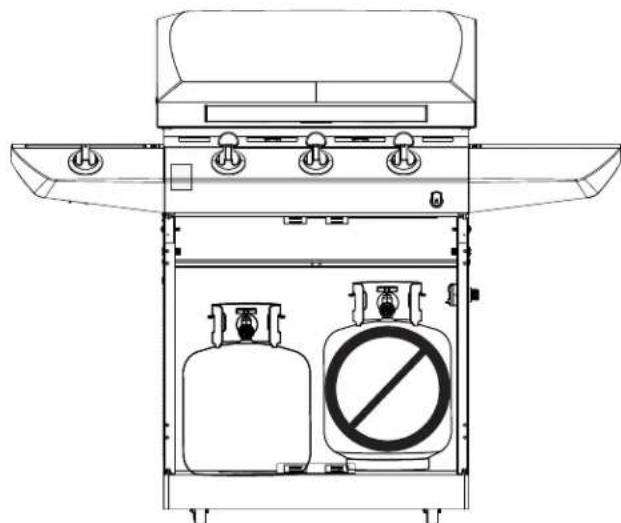

Clean the grates. Store the barbecue in a dry indoor location only if the gas cylinder is turned off, disconnected, and stored outdoors. Never store a gas cylinder in a garage or under a shelter.
