Blender B202 Frullatore - Food Processor BORETTI - Free user manual and instructions

USER MANUAL Blender B202 Frullatore BORETTI

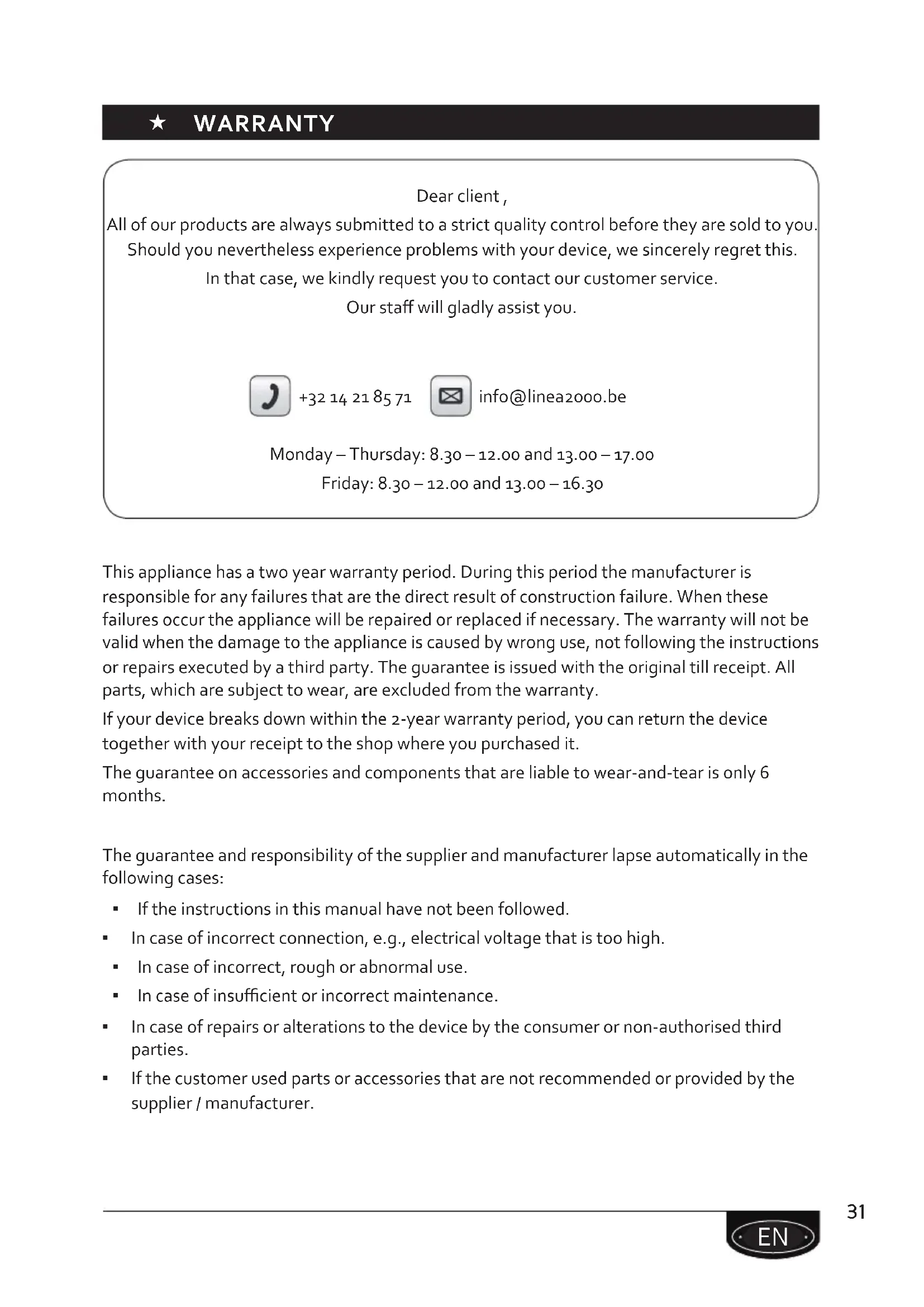

« WARRANTY Dear client , All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service. Our sta will gladly assist you. +32 14 21 85 71 info@linea2000.be Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00 Friday: 8.30 – 12.00 and 13.00 – 16.30 This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear-and-tear is only 6 months. The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.

• In case of incorrect connection, e.g., electrical voltage that is too high.

• In case of incorrect, rough or abnormal use.

• In case of insucient or incorrect maintenance.

• In case of repairs or alterations to the device by the consumer or non-authorised third parties.

• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.32 B200-B201-B202 Bernini www.boretti.com Gebruiksaanwijzing NL Mode d’emploi FR De Dollard 17, 1454 AT Watergang T + 31 (0) 20 - 436 34 39, F +31 (0) 20 - 436 13 26 W www.boretti.com E info@boretti.com T +32 (0)3 450 81 80, F +32 (0)3 458 68 47W www.boretti.beE info@boretti.be Boretti - The Netherlands Boretti - Belgium www.boretti.com BORETTI0086 Cover Gebruiksaanwijzingen_v4.indd 3-4 06-11-15 16:33 « SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.

• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the rst time.

• Make sure children cannot play with the packaging material.

• This appliance is intended to be used in household and similar applications such as: - sta kitchen areas in shops, oces and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.

• The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking o parts, and before cleaning the appliance.34 B200-B201-B202 Bernini www.boretti.com Gebruiksaanwijzing NL Mode d’emploi FR De Dollard 17, 1454 AT Watergang T + 31 (0) 20 - 436 34 39, F +31 (0) 20 - 436 13 26 W www.boretti.com E info@boretti.com T +32 (0)3 450 81 80, F +32 (0)3 458 68 47W www.boretti.beE info@boretti.be Boretti - The Netherlands Boretti - Belgiumwww.boretti.com BORETTI0086 Cover Gebruiksaanwijzingen_v4.indd 3-4 06-11-15 16:33

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

• CAUTION: In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and o by the utility.

• Exert extreme caution when touching the blades, especially when replacing them from the device.

• Never leave the appliance unattended while it is functioning.

• Do not use or store this appliance outdoors.

• Do not use this appliance for other than intended use.

• Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.

• The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.

• Only use the utensils delivered with the appliance.

• Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

• Do not operate the appliance with wet hands.

• A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. DO NOT USE WITH AN EXTENSION CORD.

• Unwrap the cord completely to prevent overheating of the cord.

• Do not allow the power cord supply to run underneath or around the unit.

• Make sure the appliance is correctly assembled, then plug the cord in the wall outlet. To disconnect, turn controls to “OFF” or “0” position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

• Do not use the appliance if there is any water in it or the parts are still wet after cleaning.

• Do not use the appliance without ingredients.

• Handle with great care when using sharp accessories like knives. Only touch the accessories when they stopped moving inside the appliance.

• Failure to maintain this appliance in a clean condition could adversely aect the life of the appliance and possibly result in a hazardous situation.

• Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

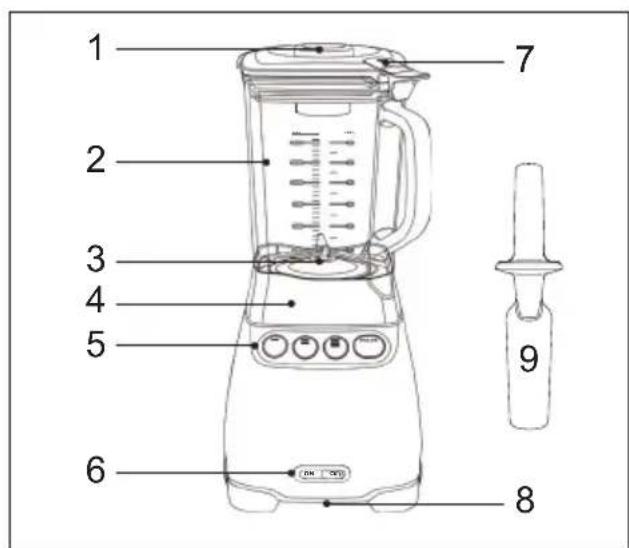

1. Feed tube with measuring cup

5. Operation: 3 speeds and pulse

1. Take apart the parts of the pitcher. Loosen the mounting nut at

the bottom of the pitcher. Tip: If this is dicult, place the pitcher on a surface with grip. Press the pitcher down and turn the pitcher counterclockwise.

2. Wash all parts, following the instructions in the ‘Cleaning’

3. When all of the parts are thoroughly dry, reassemble them.

1. Place the pitcher upside down on a smooth surface.

2. Place the seal in the bottom opening of the pitcher.

3. Place the blades on the seal.

4. When placing the transparent plastic base, make sure that the

steel safety pin touches the steel on the work pitcher.

5. Finally, position the mounting nut. Fasten it by hand by turning

1. Put the plug in the outlet.

2. Place the pitcher on the motor block with the handle facing the front, left or right.

3. Fill the pitcher with ingredients.

4. Place the lid on according to the gure below. Hook

the catch of the lid onto the pouring spout of the pitcher and push the lid down. Push on the lock icon to lock the lid. Place the measuring cup in the feed tube, positioning the thicker sections on the cup in the recesses. Lock it in by turning it clockwise.

5. Press the switch to the on position. All indication lights

6. Press the button of the desired speed and release it.

The indication light of the button selected will light up.

7. To stop blending, press the button of the selected

8. Wait until the blades have stopped turning before

removing the pitcher.

9. Remove the lid by raising the tab of the lock.

Caution: the blender is very powerful. This allows the ingredients to mix faster than with a standard blender. To prevent overheating, when using the blender for long periods (10 cycles), it is best to allow it to cool to room temperature rst One cycle is 3 minutes on and 1 minute o.

• Use the mixing spatula to remove thicker mixes from the pitcher.

• When blending larger pieces or ice cubes, we recommend using speed 1 or 2 in combination with pulse until the larger pieces have been crushed.

• The pulse function can be used to mix ingredients briey, such as, for example, cookies, onion and nuts.

• When mixing smoothies, make sure the ice cream is not too hard. Allow it to thaw for several minutes before use and scoop or cut into smaller pieces.

• Mind the level indication on the pitcher. Never ll higher than the maximum indication.

• Never operate the blender without lid. Use of the mixing spatula

• Some dishes may indicate using the mixing spatula to push the ingredients down to the blades.

• In order to use the mixing spatula, the measuring cup will have to be removed from the feed tube. Turn it counterclockwise and lift the pitcher from the opening. Place the mixing spatula in the feed tube. Note: Do not use the mixing spatula with a large amount of ingredients while the blender is working. The power of the blender makes it dicult to maintain control of the mixing spatula.

« CLEANING AND MAINTENANCE

• Always clean the blender immediately after use for easy cleaning. Do not allow food to dry up in the pitcher and on the blades, as this will make cleaning more dicult.

• Prior to cleaning, remove the plug from the outlet.

• Clean the housing of the motor block with a damp cloth and some mild detergent Never immerse the appliance in water!

• Disassemble the pitcher, following the instruction in the ‘Prior to use’ section.

• The glass pitcher is dishwasher safe.

• All other parts can be cleaned with warm water and mild detergent. Dry the blade thoroughly after use.

• Be careful: the blades are sharp.

• Do not use abrasive scouring pads or abrasive products on parts or on the nish of the appliance.38 B200-B201-B202 Bernini www.boretti.com Gebruiksaanwijzing NL Mode d’emploi FR De Dollard 17, 1454 AT Watergang T + 31 (0) 20 - 436 34 39, F +31 (0) 20 - 436 13 26 W www.boretti.com E info@boretti.com T +32 (0)3 450 81 80, F +32 (0)3 458 68 47W www.boretti.beE info@boretti.be Boretti - The Netherlands Boretti - Belgium www.boretti.com BORETTI0086 Cover Gebruiksaanwijzingen_v4.indd 3-4 06-11-15 16:33 « ENVIRONMENTAL GUIDELINES This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city oce, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically.39 Bernini www.boretti.com Gebruiksaanwijzing NL Mode d’emploi FR De Dollard 17, 1454 AT Watergang T + 31 (0) 20 - 436 34 39, F +31 (0) 20 - 436 13 26 W www.boretti.com E info@boretti.com T +32 (0)3 450 81 80, F +32 (0)3 458 68 47W www.boretti.beE info@boretti.be Boretti - The Netherlands Boretti - Belgium www.boretti.com BORETTI0086 Cover Gebruiksaanwijzingen_v4.indd 3-4 06-11-15 16:33
