Competence S40 - Exercise bike TUNTURI - Free user manual and instructions

Technical Features	Magnetic resistance, 8 resistance levels, LCD screen, heart rate sensor, maximum user weight: 120 kg
Dimensions	Dimensions: 100 x 50 x 130 cm, Weight: 30 kg
Usage	Designed for home use, ideal for cardio training and fitness.
Maintenance	Regularly check screws and bolts, clean the frame with a damp cloth, lubricate the chain if necessary.
Safety	Use on a flat surface, do not exceed maximum weight, follow usage instructions to avoid injury.
General Information	2-year warranty, assembly required, accessories included: pedals, user manual.

Frequently Asked Questions - Competence S40 TUNTURI

How do I assemble the TUNTURI Competence S40?

Follow the instruction manual provided with the bike. Make sure to securely attach all parts and tighten the screws properly.

What is the maximum weight capacity of the TUNTURI Competence S40?

The maximum weight capacity is 120 kg.

How do I adjust the saddle height?

To adjust the saddle height, loosen the adjustment lever, set the saddle to the desired height, then tighten the lever.

The bike makes a strange noise during use, what should I do?

Check that all screws and bolts are tightened properly. If the noise persists, contact customer service for further assistance.

How do I use the training programs of the TUNTURI Competence S40?

Press the 'Mode' button on the control panel to navigate between different programs. Follow the on-screen instructions to select your program.

How can I clean my exercise bike?

Use a soft, damp cloth to wipe the frame and surfaces. Avoid using harsh chemicals that could damage the bike.

The console does not turn on, what should I do?

Check that the bike is properly plugged in and that the outlet is working. Also ensure the console batteries are in good condition.

What type of maintenance is recommended for the TUNTURI Competence S40?

It is recommended to regularly check screw tightness, wipe surfaces, and lubricate moving parts if necessary.

Can I use the exercise bike on a mat?

Yes, it is recommended to use a protective mat to prevent floor damage and maintain bike stability.

Is the exercise bike foldable?

No, the TUNTURI Competence S40 is not foldable, but it is designed to be compact and can be placed in a small space.

USER MANUAL Competence S40 TUNTURI

	1		1/1
	1/1		1
	1		1
	1/1	S40 User's Manual	1/1

C
D-0

D-1

D-2

D-3

D-4

E

F-01

F-04

F-02

F-05

F-03

F-06

F-07

F-08

F-09

F-10

F-11

F-12

F-13

	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18	19	20
Beginner 1	1	1	1	1	5	5	5	5	17	17	17	17	9	9	9	9
Beginner 2	1	1	1	5	5	9	9	9	9	13	13	13	13	17	17	17	17
Beginner 3	1	1	5	1	9	9	5	5	13	13	13	9	9	17	17	9
Beginner 4	1	1	5	9	9	9	13	13	13	13	9	9	9	5	5	1

F-14

	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18	19	20
Advance 1	1	9	9	13	13	17	17	13	17	17	13	17	17	13	13	9	9	1
Advance 2	1	11	5	5	9	9	13	13	9	9	17	17	9	9	5	5	1
Advance 3	1	11	9	9	9	9	9	11	11	17	17	17	17	17	11	1
Advance 4	1	11	5	5	5	9	9	13	13	13	17	17	5	5	5	1

F-15

	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18	19	20
Sporty 1 19	17	1	9	17	1	9	1	7	19	17	1	9	17	1	7	1	1
Sporty 2 15	9	13	17	1	5	9	1	3	17	1	5	9	13	1	7	1	5	9	13	17
Sporty 3 11	9	9	1	17	1	1	9	9	1	17	1	19	9	1	1
Sporty 4 11	17	1	7	11	17	1	7	11	17	1	7	11	17	1	7	11	17	17

Index

Upright Bike 14

Safety warnings 14

Electrical safety 15

Description (fig. A) 15

Package contents (fig. B & C) 15

Assembly (fig. D) 15

Workouts 15

Use 16

Power supply (Fig. E) 17

Console (fig F) 17

Display functions 17

Key functions 17

Extra functions 18

Operation 18

Programs 18

Manual mode 18

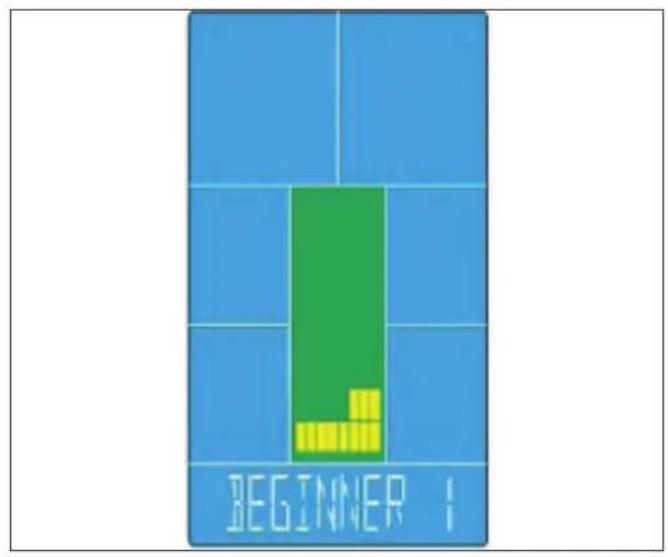

Beginner mode 18

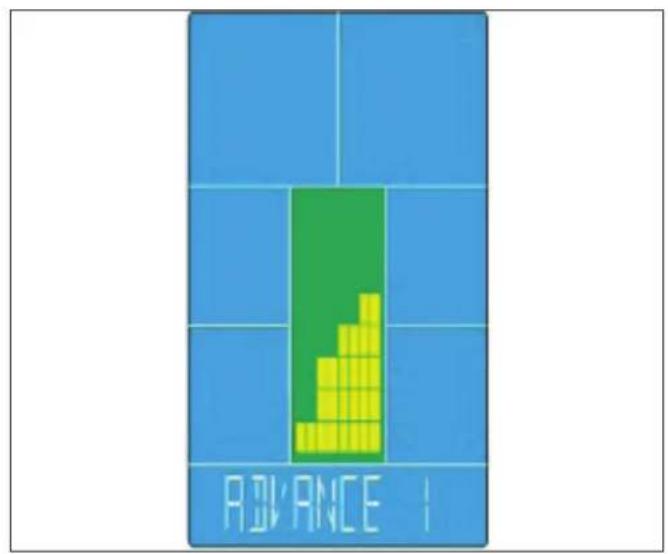

Advance mode 18

Sporty mode 19

Cardio mode 19

Recovery 19

Cleaning and maintenance. 19

Defects and malfunctions 19

Transport and storage. 20

Additional information 20

Technical data. 20

Warranty 20

Declaration of the manufacturer 21

Disclaimer 21

Upright Bike

Welcome to the world of Tunturi New Fitness!
Thank you for purchasing this piece of Tunturi equipment. Tunturi offers a wide range of home fitness equipment, including crosstrainers, treadmills, exercise bikes and rowers. The Tunturi equipment is suitable for the entire family, no matter what fitness level. For more information, please visit our website www.tunturi.com

Safety warnings

WARNING

• Read the safety warnings and the instructions. Failure to follow the safety warnings and the instructions can cause personal injury or damage to the equipment. Keep the safety warnings and the instructions for future reference.

The equipment is suitable for domestic use only. The equipment is not suitable for commercial use.
Max. usage is limited to 3 hrs a day.
- The use of this equipment by children or persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge can give cause to hazards. Persons responsible for their safety must give explicit instructions or supervise the use of the equipment.
Before starting your workout, consult a physician to check your health.
If you experience nausea, dizziness or other abnormal symptoms, immediately stop your workout and consult a physician.
- To avoid muscular pain and strain, start each workout by warming up and finish each workout by cooling down. Remember to stretch at the end of the workout.
The equipment is suitable for indoor use only. The equipment is not suitable for outdoor use.
Only use the equipment in environments with adequate ventilation. Do not use the equipment in draughty environments in order not to catch a cold.
Only use the equipment in environments with ambient temperatures between 10^ and 35^ . Only store the equipment in environments with ambient temperatures between 5^ and 45^ .
- Do not use or store the equipment in humid surroundings. The air humidity must never be more than 80% .
Only use the equipment for its intended purpose. Do not use the equipment for other purposes than described in the manual.
- Do not use the equipment if any part is damaged or defective. If a part is damaged or defective, contact your dealer.
- Keep your hands, feet and other body parts away from the moving parts.
- Keep your hair away from the moving parts.
- Wear appropriate clothing and shoes.
- Keep clothing, jewellery and other objects away from the moving parts.
Make sure that only one person uses the equipment at a time. The equipment must not be used by persons weighing more than 150kg (330 lbs).
- Do not open equipment without consulting your dealer.

Electrical safety

(Only for equipment with electric power)

• Before use, always check that the mains voltage is the same as the voltage on the rating plate of the equipment.
• Do not use an extension cable.
• Keep the mains cable away from heat, oil and sharp edges.
• Do not alter or modify the mains cable or the mains plug.
• Do not use the equipment if the mains cable or the mains plug is damaged or defective. If the mains cable or the mains plug is damaged or defective, contact your dealer.
• Always fully unwind the mains cable.
• Do not run the mains cable underneath the equipment. Do not run the mains cable underneath a carpet. Do not place any objects on the mains cable.
• Make sure that the mains cable does not hang over the edge of a table.
• Make sure that the mains cable cannot be caught accidentally or tripped over.
• Do not leave the equipment unattended when the mains plug is inserted into the wall socket.
• Do not pull the mains cable to remove the mains plug from the wall socket.
• Remove the mains plug from the wall socket when the equipment is not in use, before assembly or disassembly and before cleaning and maintenance.

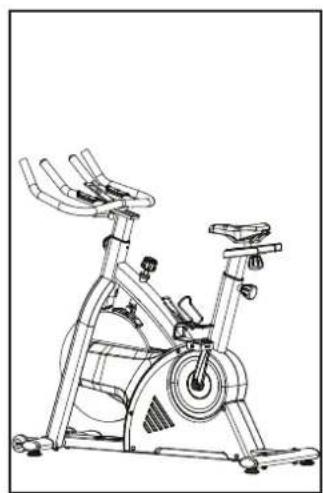

Description (fig. A)

Your upright bike is a piece of stationary fitness equipment used to simulate cycling without causing excessive pressure to the joints.

Package contents (fig. B & C)

The package contains the parts as shown in fig.B.

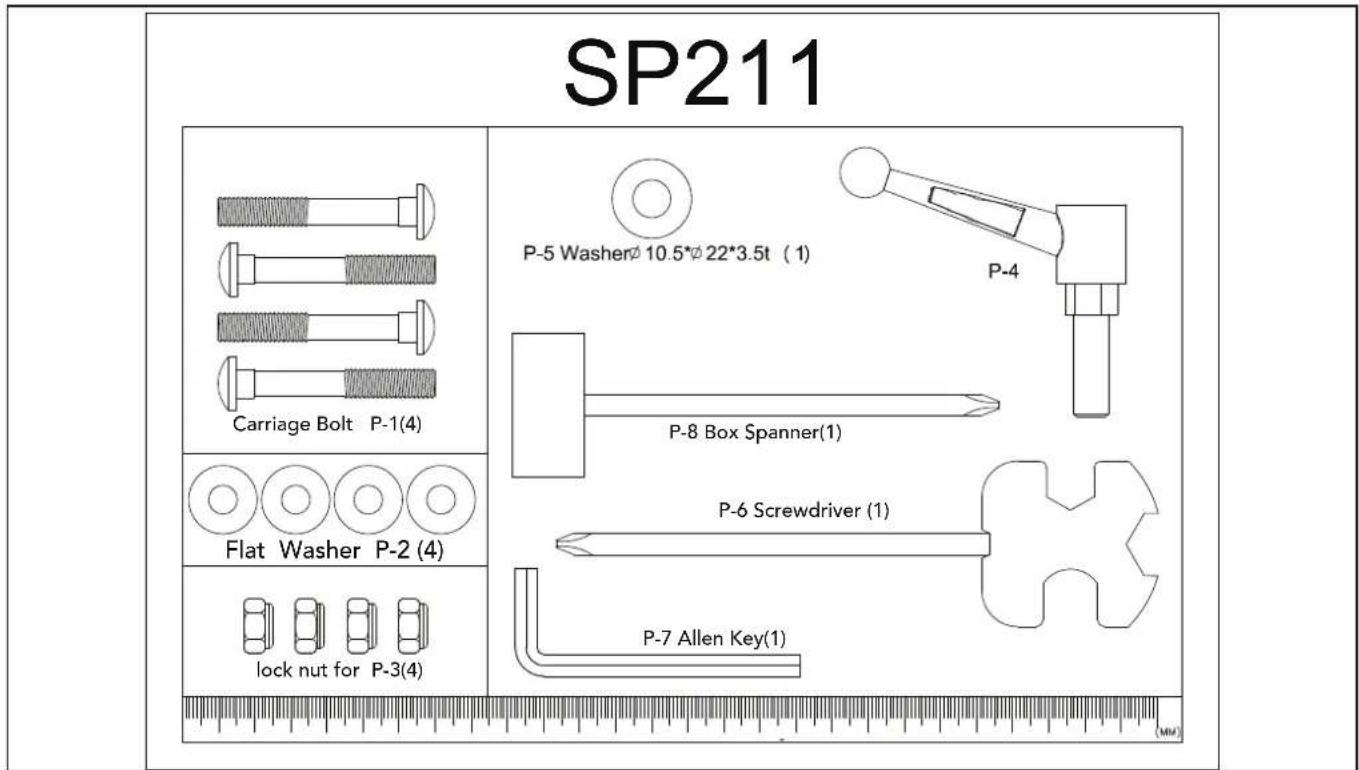

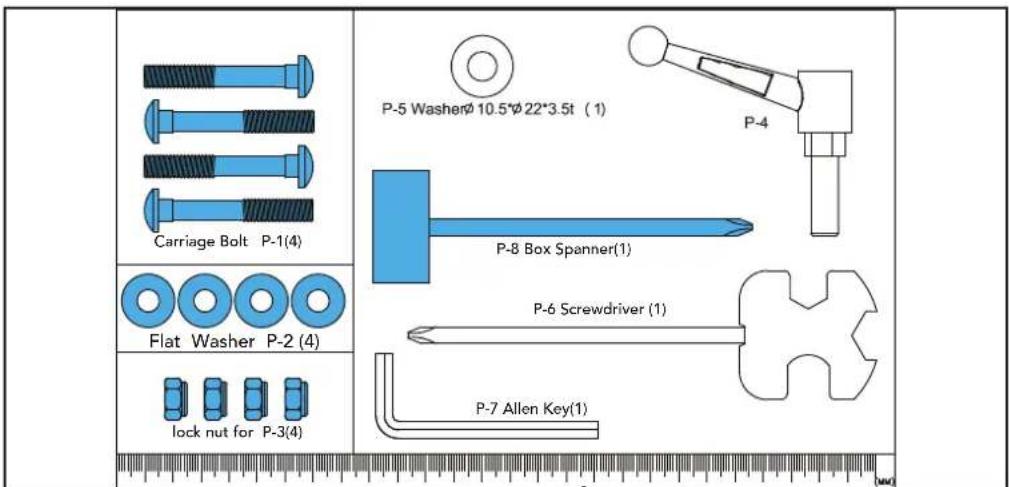

- The package contains the fasteners as shown in fig. C. Refer to the section "Description"

NOTE

If a part is missing, contact your dealer.

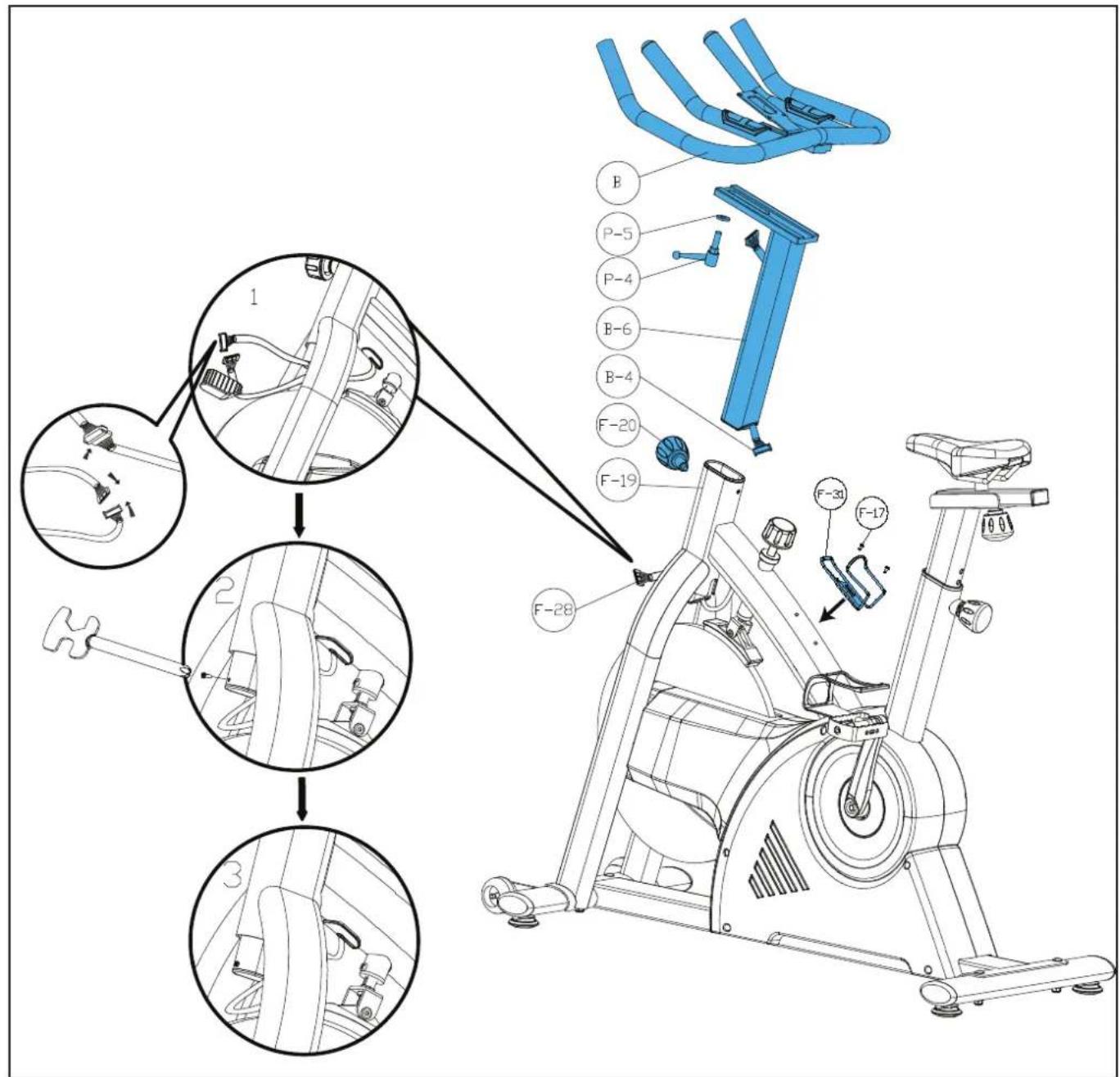

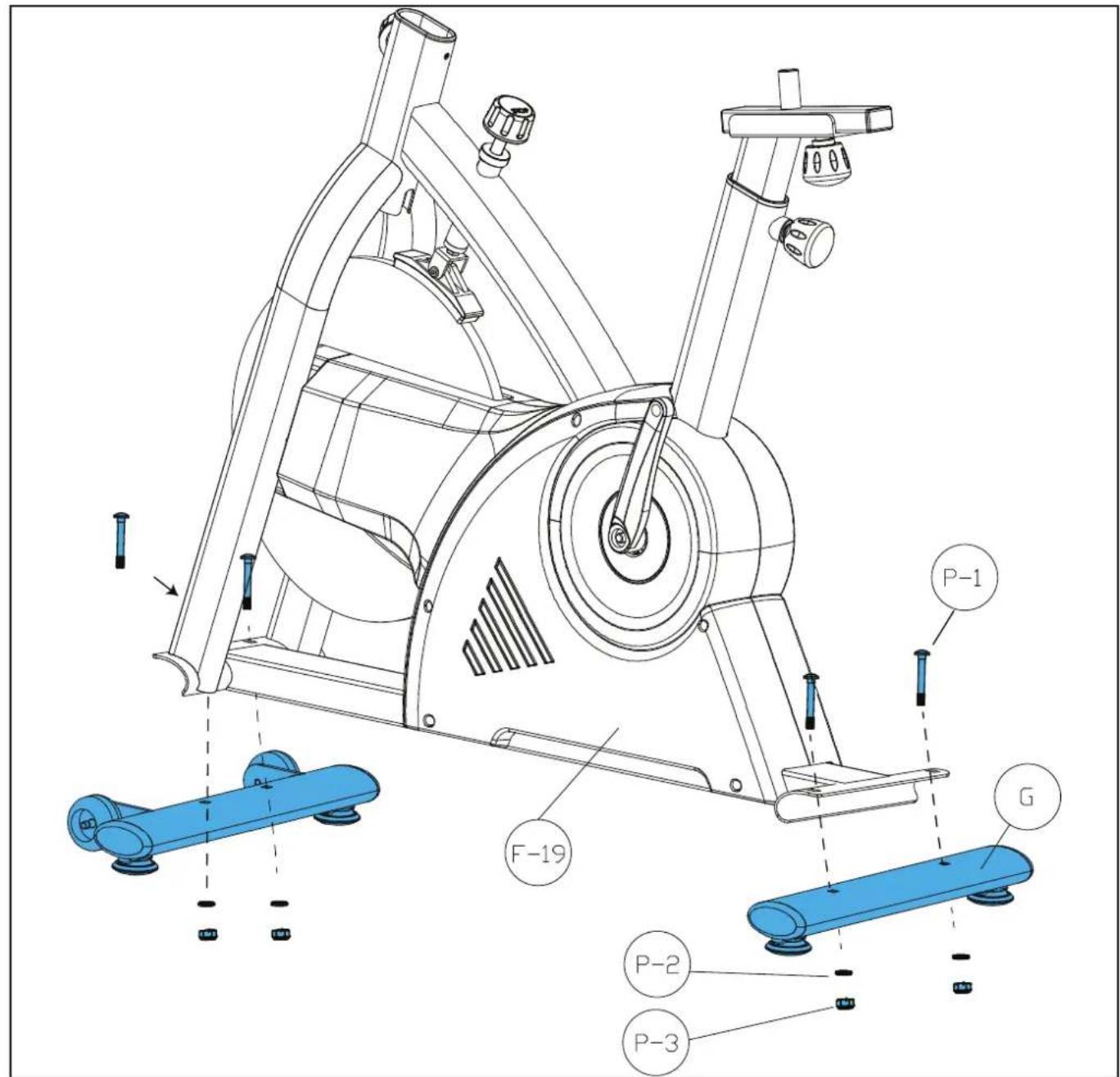

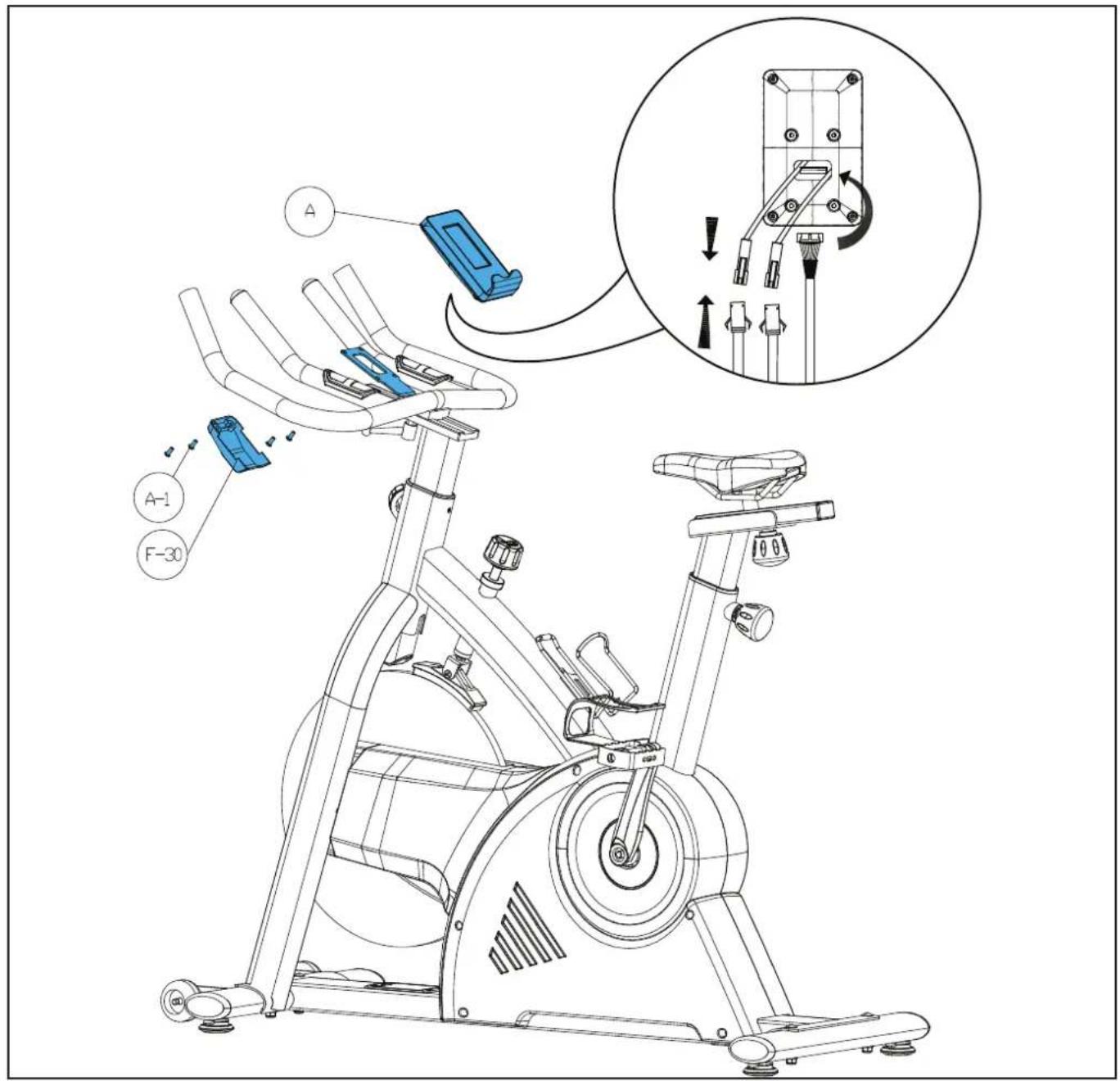

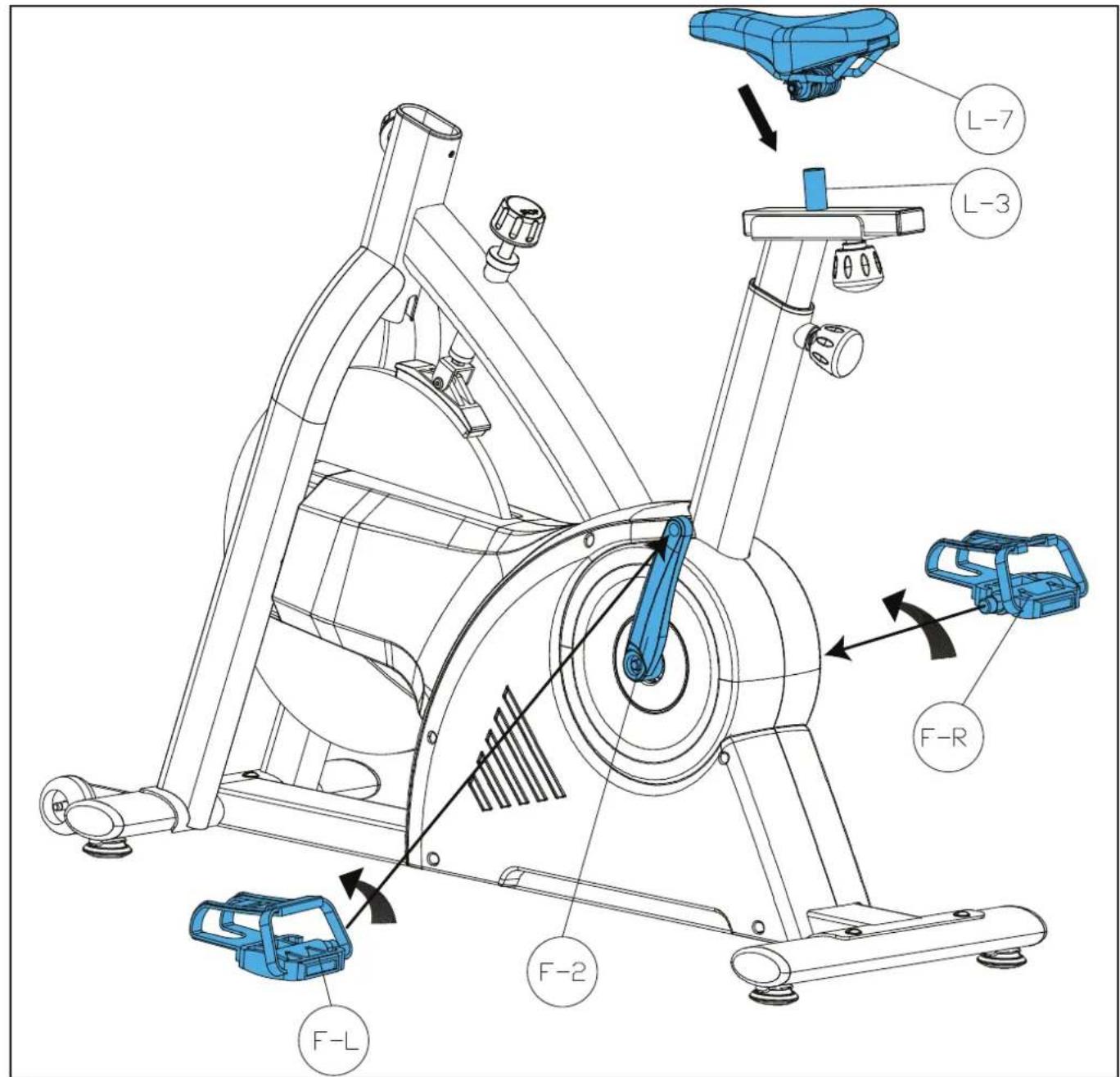

Assembly (fig. D)

WARNING

• Assemble the equipment in the given order.
• Carry and move the equipment with at least two persons.

CAUTION

• Place the equipment on a firm, level surface.
• Place the equipment on a protective base to prevent damage to the floor surface.

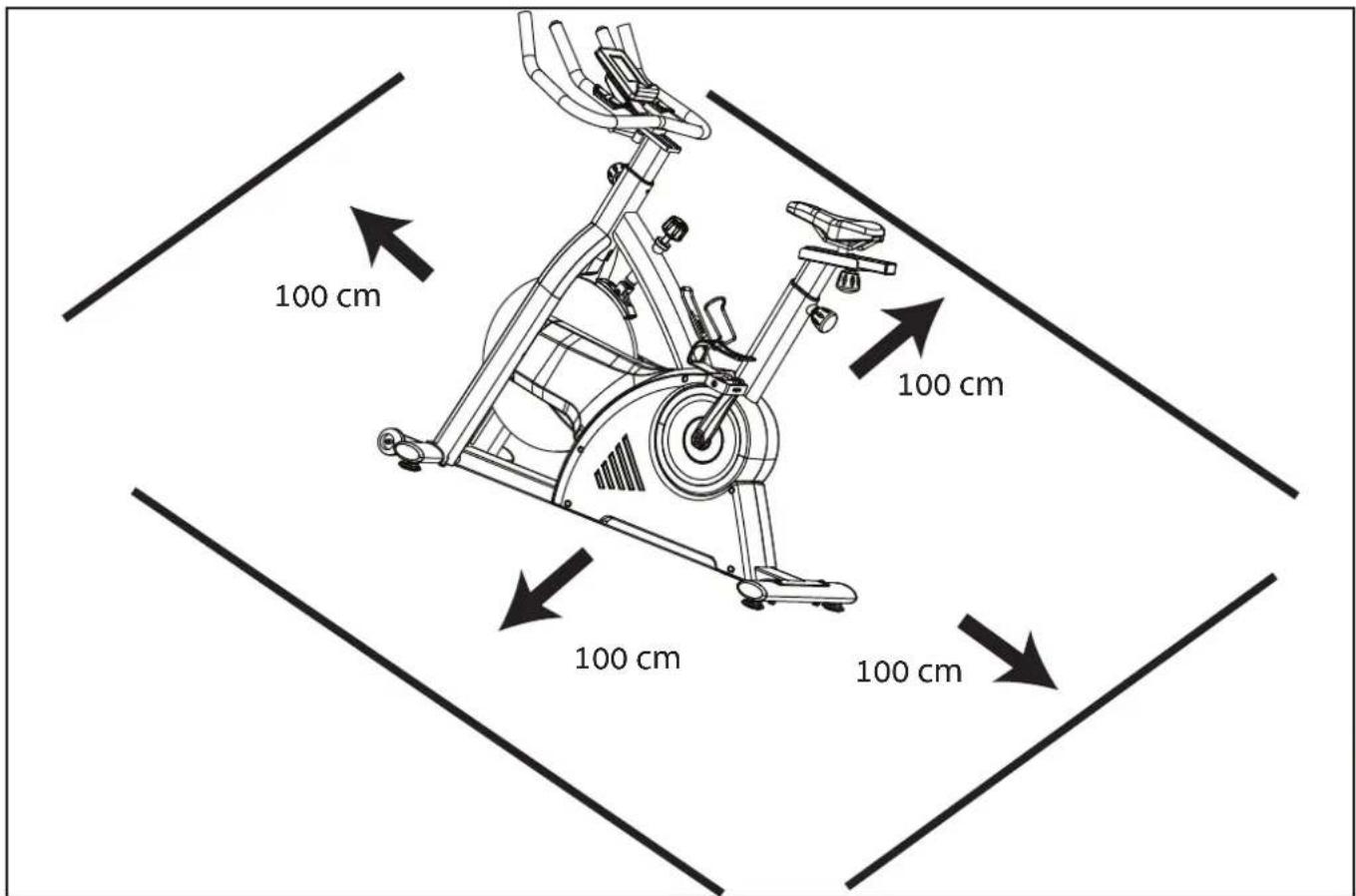

• Allow at least 100cm of clearance around the equipment.
  Refer to the illustrations for the correct assembly of the equipment.

Workouts

The workout must be suitably light, but of long duration. Aerobic exercise is based on improving the body's maximum oxygen uptake, which in turn improves endurance and fitness. You should perspire, but you should not get out of breath during the workout.

To reach and maintain a basic fitness level, exercise at least three times a week, 30 minutes at a time. Increase the number of exercise sessions to improve your fitness level. It is worthwhile to combine regular exercise with a healthy diet. A person committed to dieting should exercise daily, at first 30 minutes or less at a time, gradually increasing the daily workout time to one hour. Start your workout at low speed and low resistance to prevent the cardiovascular system from being subjected to excessive strain.

As the fitness level improves, speed and resistance can be increased gradually. The efficiency of your exercise can be measured by monitoring your heart rate and your pulse rate.

Pulse rate measurement (hand pulse sensors)

The pulse rate is measured by sensors in the handlebars when the user is touching both sensors at the same time. Accurate pulse measurement requires that the skin is slightly moist and constantly touching the hand pulse sensors. If the skin is too dry or too moist, the pulse rate measurement will become less accurate.

NOTE

• Do not use the hand pulse sensors in combination with a heart rate chest belt.
  If you set a heart rate limit for your workout, an alarm will sound when it is exceeded.

Heart rate measurement (heart rate chest belt)

The most accurate heart rate measurement is achieved with a heart rate chest belt. The heart rate is measured by a heart rate receiver in combination with a heart rate transmitter belt. Accurate heart measurement requires that the electrodes on the transmitter belt are slight moist and constantly touching the skin. If the electrodes are too dry or too moist, the heart rate measurement will become less accurate.

WARNING

• If you have a pacemaker, consult a physician before using a heartrate chest belt.

CAUTION

If there are several heart rate measurement devices next to each other, make sure that the distance between them is at least 1.5 metres.
- If there is only one heart rate receiver and several heart rate transmitters, make sure that only one person with a transmitter is within transmission range.

NOTE

• Do not use a heart rate chest belt in combination with the handpulse sensors.
  Always wear the heart rate chest belt under your clothes directly in contact with your skin. Do not wear the heart rate chest belt above your clothes. If you wear the heart rate chest belt above your clothes, there will be no signal.
  If you set a heart rate limit for your workout, an alarm will sound when it is exceeded.
• The transmitter transmits the heart rate to the console up to a distance of 1 metre. If the electrodes are not moist, the heart rate will not appear on the display.
• Some fibers in clothes (e.g. polyester, polyamide) create static electricity which can prevent accurate heart rate measurement.
• Mobile phones, televisions and other electrical appliances create an electromagnetic field which can prevent accurate heart rate measurement.

Maximum heart rate (during training)

The maximum heart rate is the highest heart rate a person can safely achieve through exercise stress. The following formula is used to calculate the average maximum heart rate: 220 - AGE. The maximum heart rate varies from person to person.

WARNING

• Make sure that you do not exceed your maximum heart rate during your workout. If you belong to a risk group, consult a physician.

Beginner 50-60% of maximum heart rate

Suitable for beginners, weight-watchers, convalescents and persons who have not exercised for a long time. Exercise at least three times a week, 30 minutes at a time.

Advanced 60-70% of maximum heart rate

Suitable for persons who want to improve and maintain fitness. Exercise at least three times a week, 30 minutes at a time.

Expert 70-80% of maximum heart rate

Suitable for the fittest of persons who are used to long-endurance workouts.

Use

Adjusting the support feet

The equipment is equipped with 4 support feet. If the equipment is not stable, the support feet can be adjusted.

• Turn the support feet as required to put the equipment in a stable position.
• Tighten the locknuts to lock the support feet.

Adjusting the horizontal seat position

The horizontal seat position can be adjusted by setting the seat to the required position.

• Loosen the seat adjustment knob.
• Move the seat to the required position.
• Tighten the seat adjustment knob.

Adjusting the vertical seat position

The vertical seat position can be adjusted by setting the seat tube to the required position. With the leg almost straight, the arch of the foot must touch the pedal at its lowermost point.

• Loosen the seat tube adjustment knob.
• Move the seat tube to the required position.
• Tighten the seat tube adjustment knob.

Adjusting the handlebar

The handlebar can be adjusted according to the height and the exercise position of the user.

• Loosen the handlebar adjustment knob.
• Move the handlebar to the required position.
• Tighten the handlebar adjustment knob.

Emergency break knob

To apply the brake, press down on the brake tension knob.

Power supply (Fig. E)

The trainer is powered by an external power supply. Refer to the illustration to locate the trainer power

NOTE

• Connect the power supply with the trainer before connecting it to the wall outlet.
  Always remove power cord when
• machine is not in use.

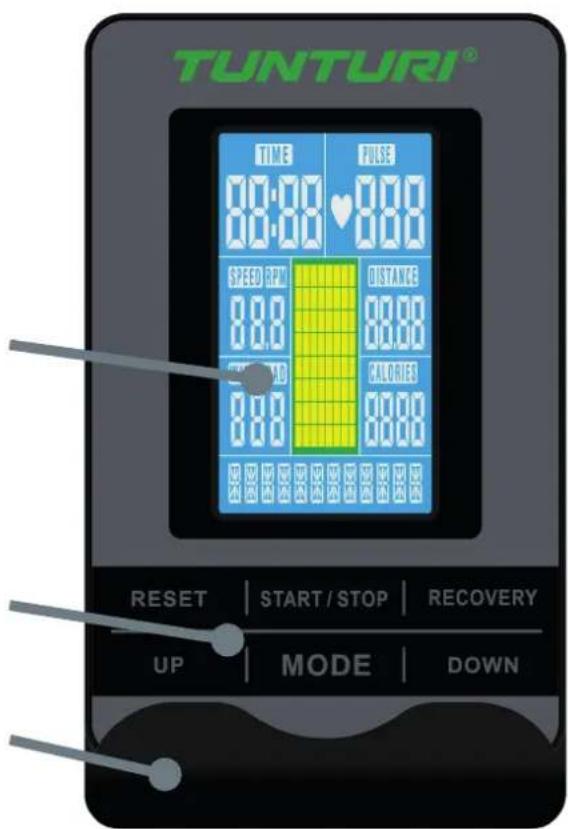

Console (fig F)

1. Display
2. Tablet/ book support
3. Buttons

CAUTION

• Keep the console away from direct sunlight.
• Dry the surface of the console when it is covered with drops of sweat.
• Do not lean on the console.
• Only touch the display with the tip of your finger. Make sure that your nails or sharp objects do not touch the display.

NOTE

• The console switches to standby mode when the equipment is not used for 4 minutes. If the console is in standby mode.

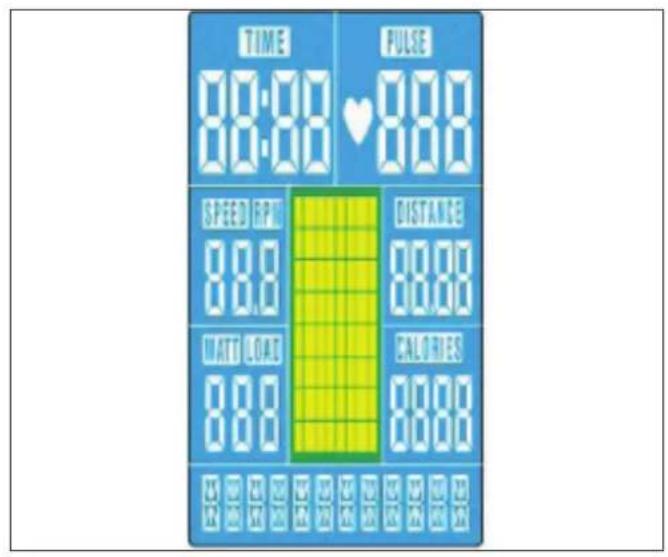

Display functions

Time window :

• Shows workout time during exercise

Range: 0:00 ~ 99:59

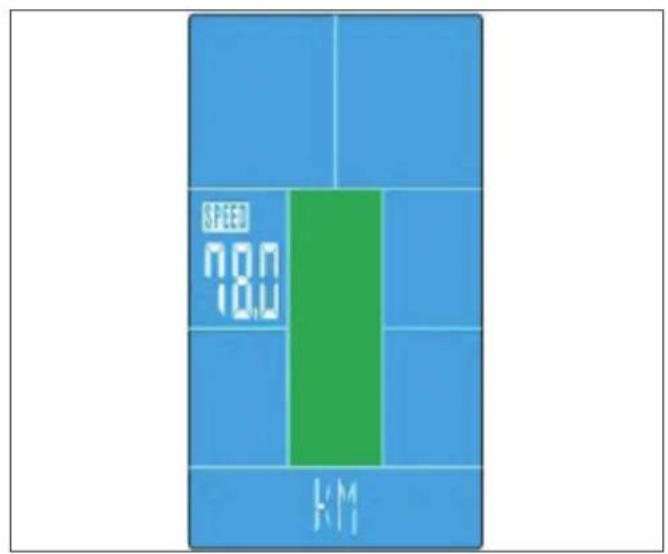

Speed window :

• Shows actual speed during exercise

Range: 0.0 99.9

RPM window :

• Shows revolutions per minute during exercise

Range: 0 999

Pulse window :

• Shows pulse in bpm during exercise

Distance window :

• Shows workout distance during exercise.

Range: 0.0 ~99.9

Calories window :

• Shows burned calories during exercise

Range: 0 999

Key functions

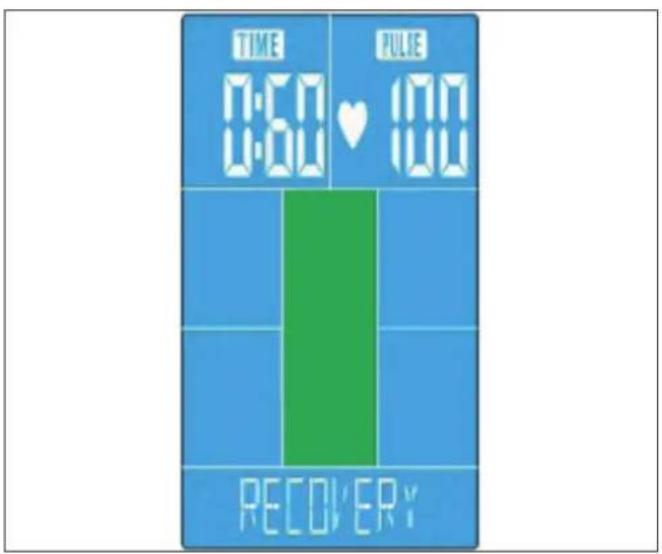

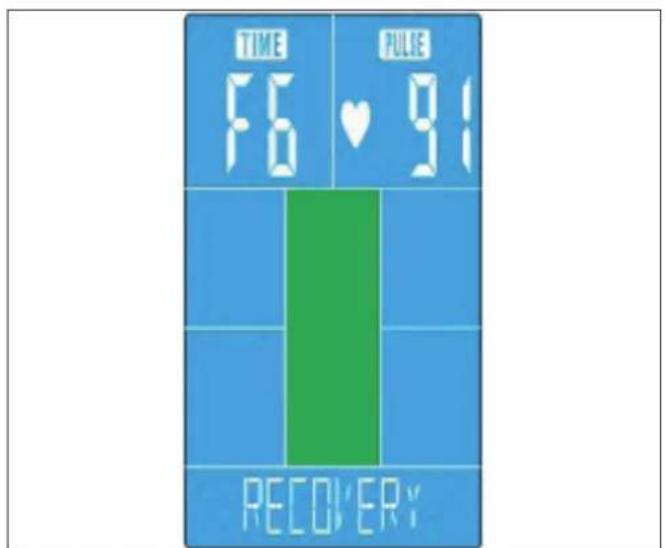

Recovery

• Test heart rate recovery status.

Down

• Decrease resistance level during workout.
• In setting selection lower value.

Mode

• Confirm setting or selection

Up

• Increase resistance level during workout.
• In setting selection upper value.

Reset

• When press and hold for 2 seconds, display will reboot and start from main menu. (all shown data will be lost)
• Reverse to main menu during presetting workout value or stop mode

Start/stop

• Start workout when in idle mode.
• Stop/ pause workout when in active mode.

Extra functions

When setting one or more targets, the target value starts to count up when reached "0"

Operation

Power on

• Press any key to power on the console when being in sleep mode..
• Start pedalling to power on the console when being in sleep mode.

Power off

Without any signal being transmitted into the monitor for 4 minutes the monitor will enter SLEEP mode automatically.

Programs

Power on the display or use reset key function to go to main menu.

Press Up key or Down Key to select workout program.

Available programs are: Quick start, Manual, beginner,

Advance, Sporty and Cardio.

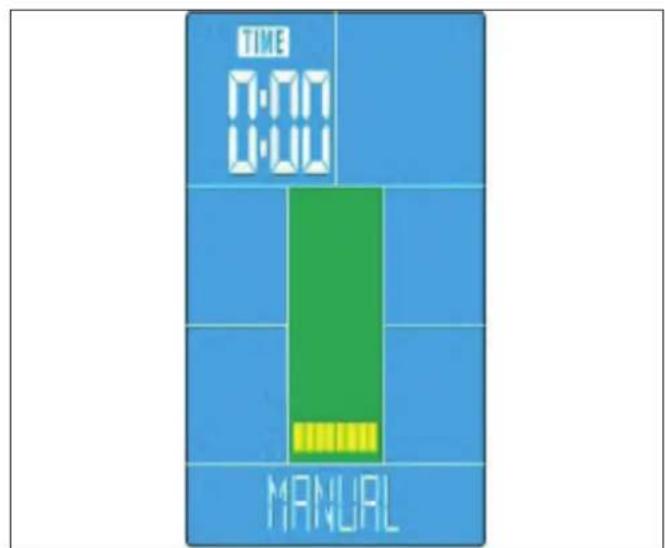

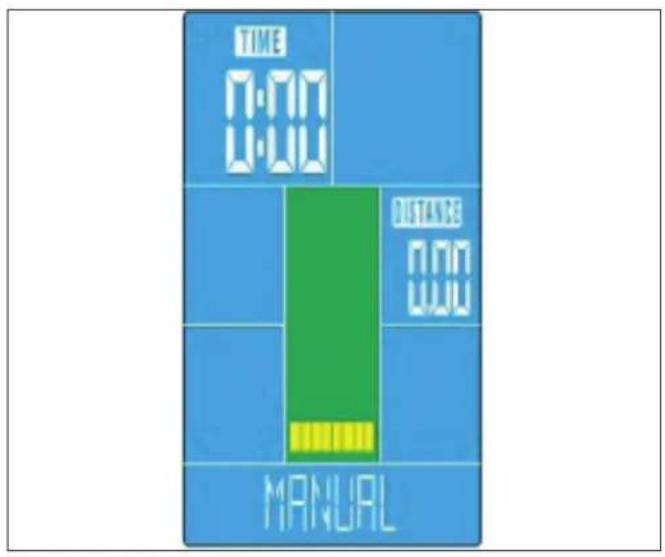

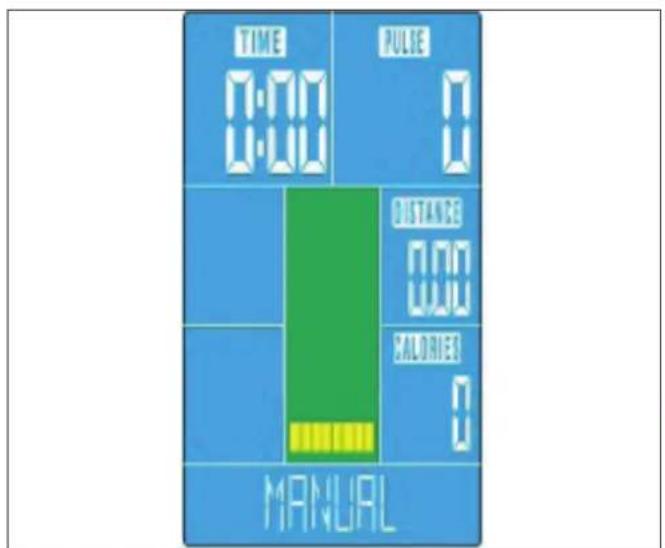

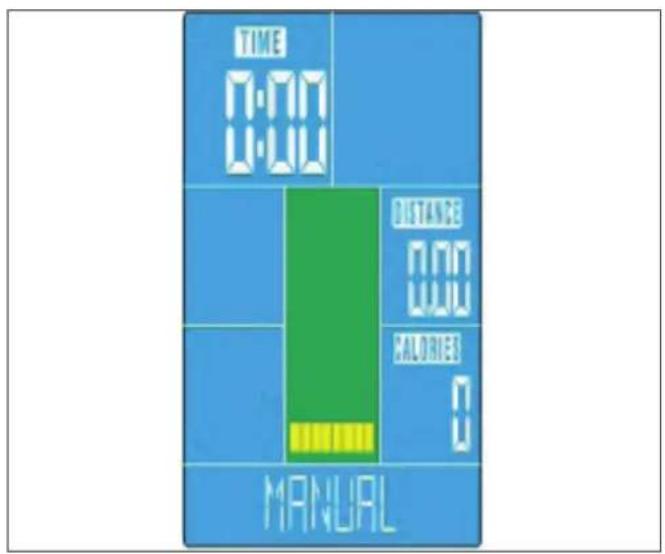

Manual mode

For Quick start you can

Press Start/ stop key to start workout without any preset setting..

During workout you can press Up/ Down key to adjust resistance level.

Quick start mode stops when, no input for longer than 4 minutes or when Start/stop key is pressed.

When settings in manual mode are required than you;

• Press Up/ Down key to select workout program, choose Manual mode and press mode key to enter next setting entry for manual mode program.
• Press Up/ Down key to preset training time, and press Mode key to confirm the setting.

NOTE

After confirm you can set also: distance, Calories, and Pulse.
- When setting more than one goal, the training will end at first achieved goal.
- Leave a goal blank and it will not be seen as a pre-set limit.

• Press Start/ Stop key to start workout
• Press Up/ Down key to adjust resistance level
• Press Start/ stop key to pause workout.
• Press Reset key to return to main menu. (active training data will be lost)

Beginner mode

• Press Up/ Down key to select workout program, choose beginner mode and press Mode key to enter next setting menu for beginner mode.
• There can be 4 beginner modes selected:
  beginner 1, beginner 2, beginner 3, and beginner 4, select one by using the Up/Down key and confirm selected by pressing Mode key.
• Press Up/ Down key to present training time, and press Mode key to confirm the setting.

NOTE

After confirm you can set also: distance, Calories, and Pulse.
- When setting more than one goal, the training will end at first achieved goal.
- Leave a goal blank and it will not be seen as a pre-set limit.

• Press Start/ Stop key to start workout
• Press Up/ Down key to adjust resistance level.
• Press Start/ stop key to pause workout.
• Press Reset key to return to main menu. (active training data will be lost)

Advance mode

• Press Up/ Down key to select workout program, choose beginner mode and press Mode key to enter next setting menu for beginner mode.
• There can be 4 beginner modes selected: Advance 1, Advance 2, Advance 3, and Advance 4, select one by using the Up/ Down key and confirm selected by pressing Mode key.
• Press Up/ Down key to present training time, and press Mode key to confirm the setting.

NOTE

After confirm you can set also: distance, Calories, and Pulse.
- When setting more than one goal, the training will end at first achieved goal.
- Leave a goal blank and it will not be seen as a pre-set limit.

• Press Start/ Stop key to start workout
• Press Up/ Down key to adjust resistance level.

• Press Start/ stop key to pause workout.

• Press Reset key to return to main menu. (active training data will be lost)

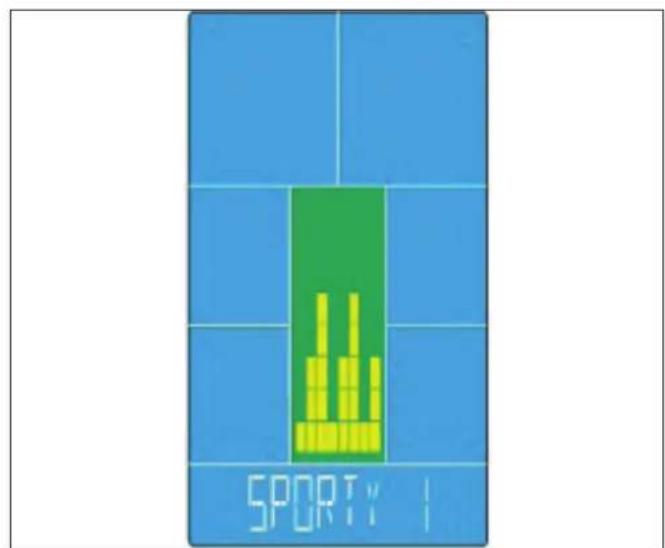

Sporty mode

• Press Up/ Down key to select workout program, choose beginner mode and press Mode key to enter next setting menu for beginner mode.
• There can be 4 beginner modes selected: Sporty 1, Sporty 2, Sporty 3, and Sporty 4, select one by using the Up/Down key and confirm selected by pressing Mode key.
• Press Up/ Down key to present training time, and press Mode key to confirm the setting.

NOTE

After confirm you can set also: distance, Calories, and Pulse.
- When setting more than one goal, the training will end at first achieved goal.
- Leave a goal blank and it will not be seen as a pre-set limit.

• Press Start/ Stop key to start workout
• Press Up/ Down key to adjust resistance level.
• Press Start/ stop key to pause workout.
• Press Reset key to return to main menu. (active training data will be lost)

Cardio mode

• Press Up/ Down key to select workout program, choose Cardio mode and press Mode key to enter next setting menu for advance mode.

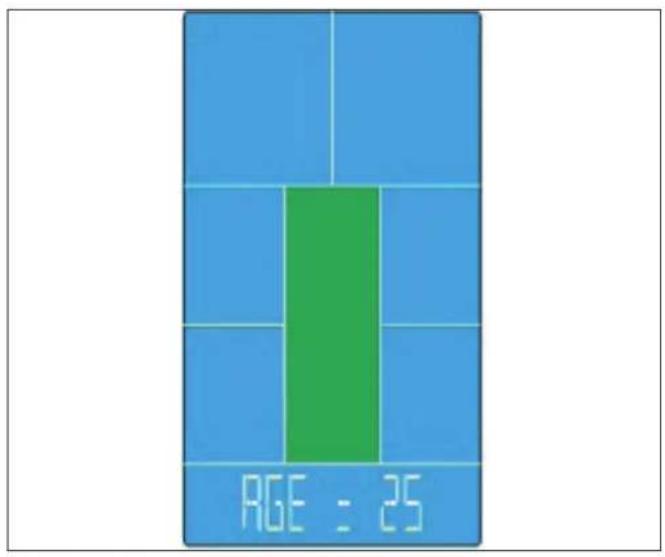

• Press Up/ Down key to set your age and confirm by pressing mode key.
• There can be 4 Cardio modes selected:
  1 55% (of maximum HR = 220 - age × 55% )
  2 75% (of maximum HR = 220 - age × 75% )
  3 90% (of maximum HR = 220 - age × 90% )
  4 TAG (Target Heart Rate, default set on 100 Use Up/ Down key to change, and confirm by pressing mode key). Select one by using the Up/ Down key and confirm selected by pressing Mode key.
• Press Up/ Down key to pre-set training time, and press Mode key to confirm the setting.
• Press Start/ stop key to pause workout.
• Press Reset key to return to main menu. (Active training data will be lost)

NOTE

After 6 seconds without pulse input, LCD will show "Pulse Input" to notify the user.

Recovery

• The RECOVERY key will only be valid if pulse is detected.
• TIME will show "0:60" (seconds) and counts down to 0.
• Computer will show F1 to F6 after the countdown to test heart rate recovery status. User can find the heart rate recovery level based on the chart below.
• Press RECOVERY key again to return to the beginning.

F1 Outstanding

F2 Excelent

F3 Good

F4 Fair

F5 Below average

F6 Poor

Cleaning and maintenance

The equipment does not require special maintenance. The equipment does not require recalibration when it is assembled, used and serviced according to the instructions.

WARNING

• Do not use solvents to clean the equipment.
• Clean the equipment with a soft, absorbent cloth after each use.
• Regularly check that all screws and nuts are tight.
• If necessary, lubricate the joints.

Defects and malfunctions

Despite continuous quality control, defects and malfunctions caused by individual parts can occur in the equipment. In most cases, it will be sufficient to replace the defective part.

• If the equipment does not function properly, immediately contact the dealer.
• Provide the model number and the serial number of the equipment to the dealer. State the nature of the problem, conditions of use and purchase date.

Trouble shooting:

• When the display of LCD is dim, it means the batteries need to be changed.
• If there is no signal when you pedal, please check if the cable is well connected.

NOTE

• When stop training for 4 minutes, the main screen will be off.
• If the computer displays abnormally, please reinstall the transformer and try again.

Transport and storage

WARNING

• Carry and move the equipment with at least two persons.
• Remain standing in front of the equipment on each side and take a sturdy grip at the handlebars. Tilt the front of the equipment so as to lift the rear of the equipment on the wheels. Move the equipment and carefully put the equipment down. Place the equipment on a protective base to prevent damage to the floor surface.
• Move the equipment carefully over uneven surfaces. Do not move the equipment upstairs using the wheels, but carry the equipment by the handlebars.
• Store the equipment in a dry place with as little temperature variation as possible.

Additional information

Packaging disposal

Government guidelines ask that we reduce the amount of waste material disposed of in land fill sites. We therefore ask that you dispose of all packaging waste responsibly at public recycling centres.

End of life disposal

We at Tunturi hope you enjoy many years of enjoyable use from your fitness trainer. However, a time will come when your fitness trainer will come to the end of its useful life. Under 'European WEEE Legislation you are responsible for the appropriate disposal of your fitness trainer to a recognised public collection facility.

Technical data

Parameter Unit of measurement		Value
Length cm	inch	110 43.3
Width cm	inch	52 20.5
Height cm	inch	126 49.6
Weight kg	Ibs	49.0 108.0
Max. user weight kg	Ibs	150 330
Adapter Voltage Current	V Ma.	9V-DC 0.5 A

Warranty

Tunturi purchaser's warranty

Warranty terms

The consumer is entitled to the applicable legal rights stated in the national legislation concerning the commerce of consumer goods. This warranty does not restrict these rights. The Purchaser's Warranty is only valid if the item is used in an environment approved by Tunturi New Fitness BV for that particular equipment. The product-specific approved environment is stated in the Owner's Manual provided with your equipment.

Warranty conditions

The warranty conditions commence from the date of purchase. Warranty conditions may vary per country, so please consult your local dealer for the warranty conditions.

Warranty coverage

Under no circumstances shall Tunturi New Fitness BV or the Tunturi Distributor be liable by virtue of this warranty or otherwise for any special, indirect, secondary or consequential damages of any nature arising out of any use or inability to use this equipment.

Warranty limitations

This warranty covers manufacturing defects in the fitness equipment as originally packed by Tunturi New Fitness BV. The warranty shall apply only under conditions of normal, recommended use of the product as described in the Owner's Manual and providing that Tunturi New Fitness BV's instructions for installation, maintenance and use have been complied with. Neither Tunturi New Fitness BV's nor the Tunturi Distributors' obligations apply to defects due to reasons beyond their control. The warranty applies only to the original purchaser and is valid only in countries where Tunturi New Fitness BV has an authorised importer. The warranty does not extend to fitness equipment or components that have been modified without the consent of Tunturi New Fitness BV. Defects resulting from normal wear, misuse, abuse, corrosion, or damage incurred during loading or transportation are not covered.

The warranty does not cover sounds or noises emitted during use where these do not substantially impede the use of the equipment and where they are not caused by a fault in the equipment. The warranty does not cover defects arising from the failure to carry periodic maintenance as outlined within the Owner's Manual for the product. Furthermore, the warranty does not cover defects arising from usage and storage within an unsuitable environment as described within the Owner's Manual which should be indoors, dry, dust and grit free and within a temperature range of +15^ to +35^ .

The warranty does not cover maintenance activities, such as cleaning, lubricating, and normal part adjustments, nor installation

procedures that customers can accomplish themselves, such as changing uncomplicated meters, pedals and other similar parts not requiring any dismantling/ reassembling of the fitness equipment. Warranty repairs carried out by other than authorised Tunturi representatives are not covered. Failure to follow the instructions given in the Owner's Manual will invalidate the product's warranty.

Declaration of the manufacturer

Tunturi New Fitness BV declares that the product is in conformity with the following standards and directives: EN 957 (HB), 89/336/EEC. The product therefore carries the CE label.

01-2017

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

The Netherlands

Disclaimer

© 2017 Tunturi New Fitness BV

All rights reserved.

The product and the manual are subject to change.

Specifications can be changed without further notice.

Index

Standfahrrad 22

Tunturi New Fitness BV
Purmerweg 1
1311 XE Almere
The Netherlands

Haftungsausschluss

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

Pays-Bas

© 2017 Tunturi New Fitness BV

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

The Netherlands

Disclaimer

© 2017 Tunturi New Fitness BV

Rango: 0.0 99.9

Whenever you are in the area of a public hospital, it is important to have a good knowledge of the procedures and the specific use of the equipment. Besides, it is important to be aware that the equipment should be properly used. It is important to understand how the equipment works and how it is used. Besides, it is important to know what type of equipment to use and how it is used.

Datasétnicos

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

The Netherlands

© 2017 Tunturi New Fitness BV

• Omrade 0.0 99.9

RPM

-Visar varv per minut
- Omrade 0 ~ 999

Distance

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

Nederländerna

Friskrivning

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

Alankomaat

Vastuuvapauslaseke

© 2017 Tunturi New Fitness BV

No	Description	Qty No
A Console	1PCS
A-1 Screw M5x10 4PCS
B Handlebar 1PCS
B-1 Limit sleeve 1PCS
B-2 Hex screw M5x12L 1PCS
B-3 Self-tap screw M3x12L 1PCS
B-4 Cable, upper 1PCS
B-5 Handlebar cap 1PCS
B-6 Handlebar post 1PCS
B-7 Wire cap 1PCS
B-8 Hand pulse sensor 2PCS
B-9 Hand pulse sensor wire 2PCS
D	Front foot	1PCS
D-1	Foot cap	2PCS
D-2	Adjust cushion pad	2PCS
D-3	Transport wheel	2PCS
D-4	Nut	2PCS
D-5	C-clip	4PCS
E	Flywheel compl. (incl. E-1~E8)	1SET
E-1	Bearing 6000RS	1PCS
E-2	Bearing 6900RS	1PCS
E-3	Flywheel axle 1PCS
E-4	Plastic bushing	1PCS
E-5	Flat washer	2PCS
E-6	Star washer	2PCS
E-7	Nut 3/8" -26x4.5t	5PCS
E-8	Bushing	1PCS
F	Pedal, pair (sport type)	1SET
F-1	Pattern nut	2PCS
F-2	Crank, L 1PCS

Description Qty
F-3	Side cover, L	1PCS
F-4	Self-tap screw M4x50L 4PCS
F-5	Self-tap screw M4x16L 4PCS
F-6	Front cover, L	1PCS
F-7	Front cover, R	1PCS
F-8	Nut M20 2PCS
F-9	Bearinbg 6004RS	2PCS
F-10	Drive pulley	1PCS
F-11	Hex screw M6x30L (code: 8.8)	2PCS
F-12	Axle	1PCS
F-13	Hex screw M8x12L 3PCS
F-14	Side cover, R	1PCS
F-15	Crank, R	1PCS
F-16	DC wire	1PCS
F-17	Screw M5x14L	4PCS
F-18	Flywheel adjust plate	2PCS
F-19	Frame	1SET
F-20	Handlebar post knob	1PCS
F-21	Sensor box + wire	1PCS
F-22	Sensor holder	1PCS
F-23	Machine screw M4x10L	1PCS
F-24	Seat post knob	1PCS
F-25	Handlebar post sleeve	1PCS
F-26	Seat post sleeve	1PCS
F-27	End cap 2PCS
F-28	Cable, lower	1PCS
F-29	Drive belt	1PCS
F-30	Cover	1PCS
G	Rear foot	1PCS
G-1	Foot cap	2PCS
No	Description	Qty
G-2 Adjust cushion pad 2PCS
J Servo motor and magnet brake set 1SET
J-1 Hex screw M6xP1.0*16L 2PCS
J-2 Spring washer 2PCS
J-3 Flat washer Ø6xØ13x1t 2PCS
J-4 Flat washer Ø8*Ø19*2T 2PCS
J-5 Bushing 1PCS
J-6 Adjustor 1PCS
J-7 Screw M8x22L 1PCS
J-8 Hex Nut M6 2PCS
K Flywheel set (incl. K1~K7) 1SET
K-1 Nut	6PCS
K-2 Bearing 6202RS	2PCS
K-3 Flywheel	1PCS
K-4 Bushing	1PCS
K-5 2-way flywheel axle	1PCS
K-6 Belt	1PCS
K-7 Flat washer Ø15xØ25x1t	2PCS
L Seat sliding tube set	1SET
L-1 Tube cap	2PCS
L-2 Screw fixing bracket	1PCS
L-3 Seat sliding tube	1PCS
L-4 Flat washer	1PCS
L-5 Seat locking knob	1PCS
L-6 Seat post	1PCS
L-7 Seat	1PCS
M	Brake assembly set	1SET
M-1	Brake knob	1PCS
M-2	Fixing nut	1PCS
M-3	Adjustment pole(lower)	1PCS

No	Description	Qty
M-4	Fixing tube	1PCS
M-5	Spring Ø15*1.6T*86L	1PCS
M-6	Hex Nut M8 2PCS
M-7	Brake bracket	1PCS
M-8	Bushing Ø9.2*18L	1PCS
M-9	Screw M5x8 2PCS
M-10	Flat washer Ø10xØ14x1t	2PCS
M-11	Teflon washer Ø13.5xØ18.5x0.5t	1PCS
M-12	Brake set	1PCS
N	Belt tightener set (incl. N-1~N-9)	1SET
N-1 Hex	nut M10 1PCS
N-2 Hex	nut M6 2PCS
N-3 Adjustor	1PCS
N-4 Bushing Ø10xØ14x4mmL	1PCS
N-5 Pulley wheel	1PCS
N-6 Pulley wheel axle	1PCS
N-7 Flat	washer Ø6xØ13x1t 1PCS
N-8 Spring	washer Ø6 1PCS
N-9 Hex	screw M6xP1.0x12L 1PCS
P	Hardware kit (incl. P-1~P-8)	1SET
P-1	Carriage bolt M8x55L	4PCS
P-2	Flat washer Ø8xØ19	8PCS
P-3	Nylon nut M8	4PCS
P-4	Quick release knob	1PCS
P-5	Copper sasher	1PCS
P-6	Harpoon wrench	1PCS
P-7	Allen wrench	1PCS
P-8	Spann wrench 1PCS
O	Switching power adaptor	1PCS
