HS70 - Headphones CORSAIR - Free user manual and instructions

Product Type	Headset with microphone
Brand	Corsair
Model	HS70
Approximate Weight	350 g
Dimensions (approx.)	200 x 200 x 100 mm
Power	Via USB port (for 7.1 surround) or 3.5mm jack (stereo mode)
Connectivity	3.5mm jack (stereo), USB 2.0+ (virtual 7.1 surround)
Main Features	Stereo sound, virtual 7.1 surround sound, foldable unidirectional microphone, EQ adjustment via CUE software
Microphone	Unidirectional, flexible arm, adjustable
Software	Corsair Utility Engine (CUE) for EQ customization, microphone volume, surround activation
Compatibility	PC (Windows 7/8/10), Mac, PlayStation 4, Xbox One, Nintendo Switch, mobile devices

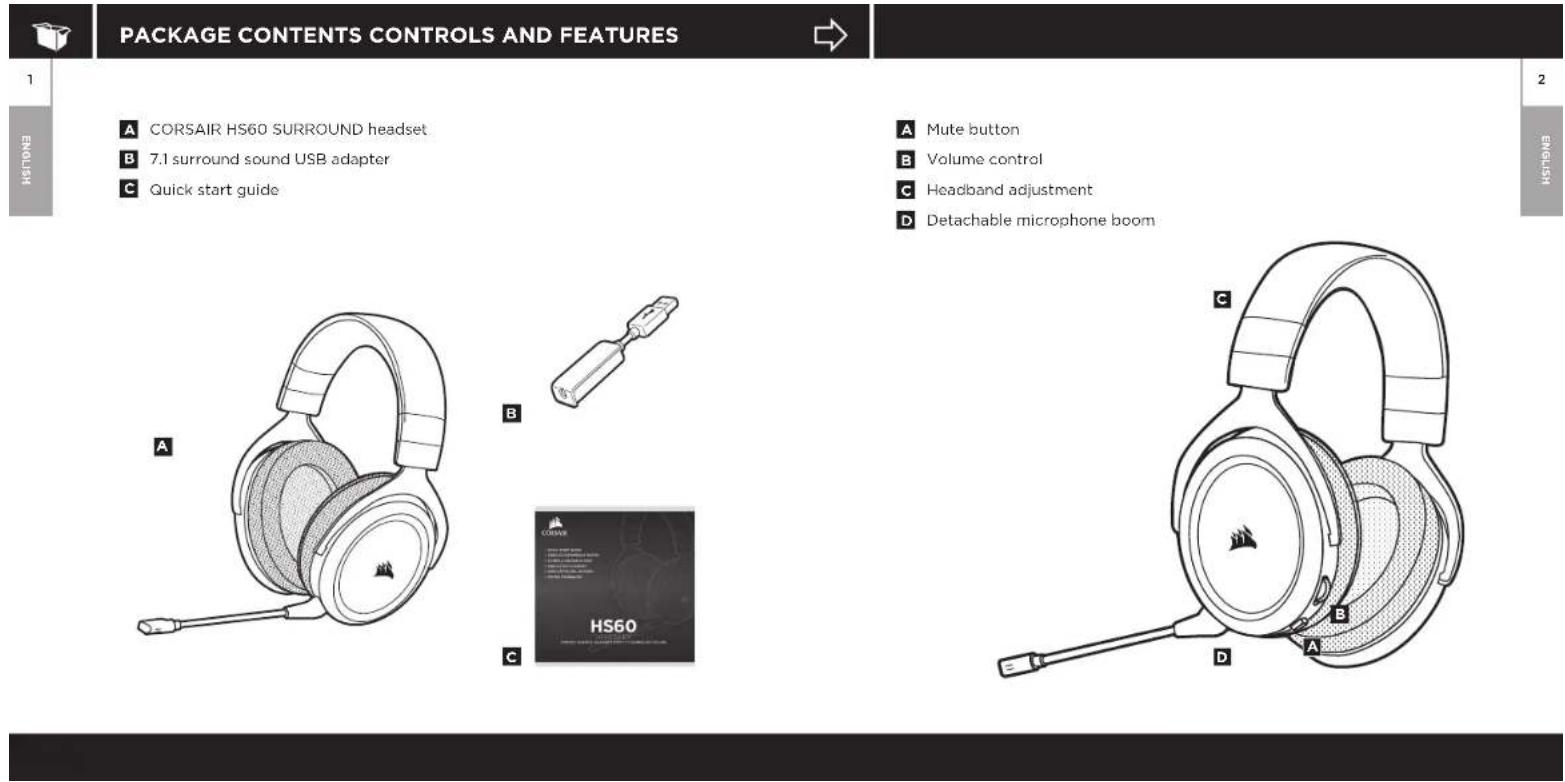

Box Contents	Headset, USB adapter for 7.1 surround, 3.5mm jack cable, user manual
Care and Cleaning	Clean with a soft, dry cloth. Do not use chemicals.
Safety	Avoid prolonged listening at high volume to protect hearing. Lower the volume before gradually increasing it.
Spare parts and repairability	Spare parts not specified; contact Corsair support for any repairs.
General Information	Usable in stereo mode without software; requires USB adapter for 7.1 surround on PC. Microphone should be positioned close to the mouth.

Frequently Asked Questions - HS70 CORSAIR

How to connect the headset in stereo mode?

Plug the headset's 3.5mm jack into your device's audio jack (PC, Mac, PS4, Xbox One, Nintendo Switch, mobile). No software required.

How to enable 7.1 Surround Sound?

Connect the included USB adapter to a USB 2.0 or higher port on your PC, then plug the headset into the adapter. Download and launch the CUE software to enable virtual 7.1 surround.

How to adjust the microphone?

Bend the flexible arm so that the microphone is positioned near the corner of your mouth, at about a 30-degree angle. Ensure the microphone is facing your mouth for optimal voice capture.

How to download the CUE software?

Visit corsair.com/support/downloads and download the Corsair Utility Engine software. Install it on a PC running Windows 7, 8, or 10, then restart your computer.

What are the equalizer settings?

In the CUE software, you can select and customize the audio equalizer (EQ) settings according to your sound preferences.

Is the headset compatible with Xbox One?

Yes, in stereo mode via the 3.5mm jack. For surround sound, a separately sold Microsoft adapter may be required.

How to clean the headset?

Use a soft, dry cloth to wipe the ear cups and headband. Avoid chemicals or immersion in water.

What to do if the microphone doesn't work?

Check that the microphone is properly connected and pointed toward your mouth. Make sure the microphone volume is adjusted in the CUE software and that the device is correctly selected as the audio input.

How to adjust the headband for optimal comfort?

Place the headset on your head and slide the headband so it rests comfortably. The memory foam ear cushions adapt for extended wear without fatigue.

What does the pictogram on the packaging mean?

The pictogram (crossed-out bin) indicates that the product should not be disposed of with household waste but should be taken to a collection point for recycling, in accordance with European Directive 2012/19/EU.

USER MANUAL HS70 CORSAIR

EMAIL:[e-mail] EBOOK: facebook.com/coscare BLOG: blog.cascar.com

2017 CORSAIR COMPONENTS, Inc. All rights reserved. CORSAIR and the sails logo are registered trademarks

In the United States and/or other countries. All other trademarks are the property of their respective owners. Product may vary slightly from those pictured 49.00168 AB

QUICK START GUIDE
GUIDE DE DEMARRAGE RAPIDE
SCHNELLSTARTANLEITUNG
GUIA DE INICIO RAPIDO
GUIA RAPIDA DEL USUARIO
KPATKOE PYKOBODCTBO

HS60

SURROUND

STEREO GAMING HEADSET WITH 7.1 SURROUND SOUND

CORSAIR

ENGLISH 1

FRANCAIS. 9

DEUTsCH 17

PORTUGUES 25

ESPANOL 33

PYCCKN 41

GETTING STARTED

CORSAIR UTILITY ENGINE

3

ENGLISH

HS60 SURROUND is a multi-platform headset that operates in two audio modes: Stereo and 7.1 surround sound. In stereo mode, you can connect the 3.5mm jack into any PC, Mac, PlayStation 4, XBOX One*, Nintendo Switch or mobile device. The included 7.1 surround sound USB adapter enables virtual 7.1 surround sound on PC.

Remember that powering the 7.1 surround sound USB adapter requires a high power (USB 2.0 or better) port. Some USB ports on older keyboards and monitors do not support high-power devices.

Place the headset on your head and adjust the headband for a comfortable fit. The plush memory foam ear pads enable the CORSAIR HS60 SURROUND headset to fit comfortably so you can play for hours without fatigue.

May require Microsoft adapter sold separately

Go to corsair.com/support/downloads to download the CORSAIR Utility Engine ('CUE') Software.

Using CUE software will enable the full feature set of the HS60 SURROUND headset.

Install the software on a PC running Windows 7, 8, or 10
After installation is complete, reboot your PC, and launch CUE

You can use it to:

• Select and customize audio equalizer (EQ) settings.
• Adjust microphone input volume.
• Set 7.1 surround sound on or off.

The software's built-in documentation explains how to use the HS60 SURROUND headset's features in greater detail.

4

ENGLISH

5

ENGL5K

GENERAL TIPS ADJUSTMENT

For the best audio performance:

Download the CORSAIR Utility Engine software from.
corsair.com/support/downloads.
- Don't be afraid to use the software equalizer to adjust the audio quality to your liking. EQ presets have been provided for popular gaming and media types.

Prolonged listening at high volumes may adversely affect your hearing. Take breaks between sessions and always begin with the volume at the lowest possible level before increasing.

As with any audio product, reduce the volume before trying it with an audio source the first time.

You can adjust the volume with:

• The volume controller on the headset at the bottom corner of your left earcup.
• The standard Windows audio controller can also be used to adjust volume.
• Once an audio source is playing, set the volume to a comfortable level.

6

ENGL5H

7

MICROPHONE ADJUSTMENT

Your new HS60 SURROUND headset features a high performance "unidirectional" microphone designed to reject noise other than your voice, but it must be pointed directly at your mouth to function correctly.

• Bend the flexible microphone boom to best fit near to the left corner of your mouth.
  We've found that about a 30 degree bend is a good place to start, but feel free to increase or decrease this if your mic is too loud or too soft.

Enjoy your CORSAIR HS60 SURROUND headset! If you have any questions or comments, see the back panel of this guide for contact information.

MISE EN ROUTE

Note on environmental protection

After the implementation of the European Directive 2012/19/EU in the national legal system, the following apolies:

• Electrical and electronic devices may not be disposed of with domestic waste.

Consumers are obligated by law to return electrical and electronic devices at the end of their service lives to the public collecting points set up for this purpose of point of sale. Details to this are defined by the national law of the respective country. This symbol on the product: the instruction manual or the package indicates that a product is supplied by the manufacturer, or by other forms of utilizing old devices, you are making an important contribution to protecting our environment.

The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user from accessing the system.

Exposure of the USB adapter to electrical shock may result in temporary mating of the microphone. If this occurs, remove and reconnect the USB adapter to reset.

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation, if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help

This device must not be co-located or operating in conjunction with any other antenna or transmitter.

Operation is subject to the following two conditions:
1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

EMAIL

supoortgorsair.com

WEB

corair.com

BLOG

corsair.com/bio

FORUM

forum.corsair.com

FACEBOOK

Facebook.com/Corser

TWITTER

Twitter.com/Corssair

YOUTUBE

youtbe.com/Corso

2017 CORSAIR COMPONENTS, Inc.

All rights reserved. CORSAIR and the sails logo are registered trademarks in the United States and/or other countries. All other trademarks are the property of their respective owners. Product may vary slightly from those pictured.

49-001619 AB
