USER MANUAL ARG 450A+ WHIRLPOOL

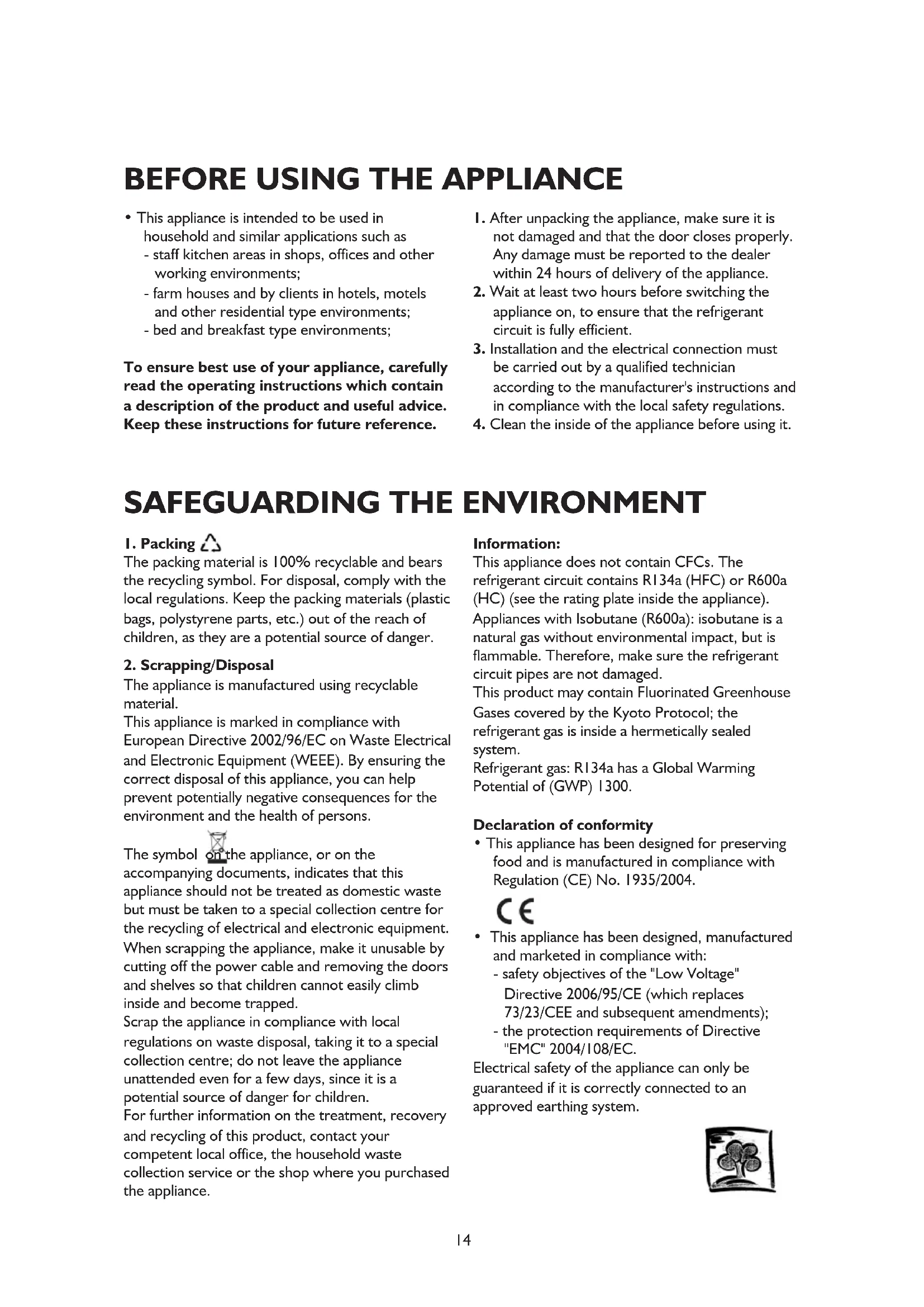

• This appliance is intended to be used in household and similar applications such as - staff kitchen areas in shops, offices and other working environments; - farm houses and by clients in hotels, motels and other residential type environments; - bed and breakfast type environments; To ensure best use of your appliance, carefully read the operating instructions which contain a description of the product and useful advice. Keep these instructions for future reference.

1. After unpacking the appliance, make sure it is

not damaged and that the door closes properly. Any damage must be reported to the dealer within 24 hours of delivery of the appliance.

2. Wait at least two hours before switching the

appliance on, to ensure that the refrigerant circuit is fully efficient.

3. Installation and the electrical connection must

be carried out by a qualified technician according to the manufacturer's instructions and in compliance with the local safety regulations.

4. Clean the inside of the appliance before using it.

The packing material is 100% recyclable and bears the recycling symbol. For disposal, comply with the local regulations. Keep the packing materials (plastic bags, polystyrene parts, etc.) out of the reach of children, as they are a potential source of danger.

2. Scrapping/Disposal

The appliance is manufactured using recyclable material. This appliance is marked in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring the correct disposal of this appliance, you can help prevent potentially negative consequences for the environment and the health of persons. The symbol on the appliance, or on the accompanying documents, indicates that this appliance should not be treated as domestic waste but must be taken to a special collection centre for the recycling of electrical and electronic equipment. When scrapping the appliance, make it unusable by cutting off the power cable and removing the doors and shelves so that children cannot easily climb inside and become trapped. Scrap the appliance in compliance with local regulations on waste disposal, taking it to a special collection centre; do not leave the appliance unattended even for a few days, since it is a potential source of danger for children. For further information on the treatment, recovery and recycling of this product, contact your competent local office, the household waste collection service or the shop where you purchased the appliance. Information: This appliance does not contain CFCs. The refrigerant circuit contains R134a (HFC) or R600a (HC) (see the rating plate inside the appliance). Appliances with Isobutane (R600a): isobutane is a natural gas without environmental impact, but is flammable. Therefore, make sure the refrigerant circuit pipes are not damaged. This product may contain Fluorinated Greenhouse Gases covered by the Kyoto Protocol; the refrigerant gas is inside a hermetically sealed system. Refrigerant gas: R134a has a Global Warming Potential of (GWP) 1300. Declaration of conformity

• This appliance has been designed for preserving food and is manufactured in compliance with Regulation (CE) No. 1935/2004.

• This appliance has been designed, manufactured and marketed in compliance with: - safety objectives of the "Low Voltage" Directive 2006/95/CE (which replaces 73/23/CEE and subsequent amendments); - the protection requirements of Directive "EMC" 2004/108/EC. Electrical safety of the appliance can only be guaranteed if it is correctly connected to an approved earthing system.

• The appliance must be handled and installed by two or more persons.

• Be careful not to damage the floors (e.g. parquet) when moving the appliance.

• During installation, make sure the appliance does not damage the power cable.

• Make sure the appliance is not near a heat source.

• To guarantee adequate ventilation, leave a space on both sides and above the appliance. The distance between the rear of the appliance and the wall behind the appliance should be 50mm. A reduction of this space will increase the Energy consumption of product.

• Keep the appliance ventilation openings free.

• Do not damage the appliance refrigerant circuit pipes.

• Install and level the appliance on a floor strong enough to take its weight and in a place suitable for its size and use.

• Install the appliance in a dry and well-ventilated place. The appliance is arranged for operation in places where the temperature comes within the following ranges, according to the climatic class given on the rating plate. The appliance may not work properly if it is left for a long time at a temperature outside the specified range.

• Make sure the voltage specified on the rating plate corresponds to that of your home.

• Do not use single/multi adapters or extension cords.

• For the water connection, use the pipe supplied with the new appliance; do not reuse that of the previous appliance.

• Power cable modification or replacement must only be carried out by qualified personnel or by After-sales Service.

• It must be possible to disconnect the appliance from the power supply by unplugging it or by means of a mains two-pole switch installed upstream of the socket. SAFETY

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• Do not store or use petrol, flammable liquids or gas in the vicinity of this or other electrical appliances. The fumes can cause fires or explosions.

• Do not use mechanical, electric or chemical means other than those recommended by the Manufacturer to speed up the defrost process.

• Do not use or place electrical devices inside the appliance compartments if they are not of the type expressly authorised by the Manufacturer.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• To avoid the risk of children becoming trapped and suffocating, do not allow them to play or hide inside the appliance.

• Do not swallow the contents (non-toxic) of the ice packs (in some models).

• Do not eat ice cubes or ice lollies immediately after taking them out of the freezer since they may cause cold burns. USE

• Before carrying out any maintenance or cleaning operation, unplug the appliance or disconnect it from the power supply.

• All appliances equipped with an automatic ice- maker and water dispenser must be connected to a water supply that only delivers drinking water (with mains water pressure of between

0.17 and 0.81 Mpa (1.7 and 8.1 bar)). Automatic

ice-makers and/or water dispensers not directly connected to the water supply must be filled with drinking water only.

• Use the refrigerator compartment only for storing fresh food and the freezer compartment only for storing frozen food, freezing fresh food and making ice cubes.

• Do not store glass containers with liquids in the freezer compartment since they may break.

• Avoid storing unwrapped food in direct contact with internal surfaces of the refrigerator or freezer compartments. The Manufacturer declines any liability if the above advice and precautions are not respected. Climatic Class Amb. T. (°C) Amb. T. (°F) SN From 10 to 32 From 50 to 90 N From 16 to 32 From 61 to 90 ST From 16 to 38 From 61 to 100 T From 16 to 43 From 61 to 110

PRECAUTIONS AND GENERAL

RECOMMENDATIONS16 Notes:

• Do not block the air outlet area (on the back wall) with food products

• If the freezer is provided with a flap, it is possible to maximize the storage volume by removing the flap (by bending it).

• All shelves, flaps and pull-out baskets are removable.

• The internal temperatures of the appliance may be affected by the ambient temperature, frequency of door opening, as well as location of the appliance. Temperature setting should take into consideration these factors.

• Unless otherwise specified the appliance accessories are not dishwasher safe.

• The bigger distance at the backside of appliance to the wall, the higher is energy-saving. Switching on the appliance Starting up the appliance The appliance features internal controls. Plug in the appliance. When the appliance is connected to the mains, the inside light switches on each time the door is opened. The thermostat, located inside the refrigerator compartment, is used to adjust the temperature of both the refrigerator compartment and low temperature compartment (if fitted). Appliance temperature adjustment: Temperature setting: The thermostat is used to automatically adjust the internal temperature of the refrigerator compartment and the compartment (if provided). The thermostat knob can be turned from position1 to 7 (coldest setting) to make the internal temperature colder. When set to 0 the appliance is switched off. To store food for a short period of time, set the thermostat between 1 (Min) and 3 (Med). - To store food for long periods of time in the compartment, set the thermostat to 3 or 4. Note: The ambient air temperature, frequency of door opening and the position of the appliance can affect internal temperatures. These factors must be taken into account when setting the thermostat. How to use the refrigerator compartment Position the food as shown in the figure. A Fish, meat B Cooked food C Fruit and vegetables D Bottles E Cheese Notes:

• The space between the shelves and the rear wall of the refrigerator compartment must be unobstructed to allow circulation of air.

• Do not place food in direct contact with the rear wall of the refrigerator compartment.

• Do not place hot food in the refrigerator.

• Store liquids in closed containers. Important Storing vegetables with high water content can cause condensation to form on the glass shelf of the crisper drawer: this will not affect the correct operation of the appliance.

Thermostat box shape depending from brand17 The low temperature compartment is

The low temperature compartment can also be used to freeze fresh food. The quantity of fresh food that can be frozen in 24 hours is shown on the rating plate. Note: In the event of a power cut, the low temperature compartment will maintain a sufficiently low temperature for food storage. However, it is advisable to avoid opening the compartment door during such periods. Freezing fresh food (only in compartments marked ) Important

• Before freezing, wrap and seal fresh food in: aluminium foil, cling film, air and water-tight plastic bags, polythene containers with lids or freezer containers suitable for freezing fresh food.

• Arrange the fresh food in the top compartment, leaving sufficient space around each pack for the air to circulate.

• For optimum freezing, turn the thermostat down by half a point when placing fresh foods in the freezer compartment.

• The food will be completely frozen in 24 hours. For appliances with compartments marked The table alongside shows the recommended maximum storage time for frozen fresh foods. When purchasing frozen food products:

• ensure that the packaging is not damaged (frozen food in damaged packaging may have deteriorated). If the package is swollen or has damp patches, it may not have been stored under optimal conditions and defrosting may have already begun.

• When shopping, leave frozen food purchases until last and transport the products in a thermally insulated cool bag.

• Place the items in the low temperature compartment as soon as you get home.

• If food has defrosted even partially, do not re- freeze it. Consume within 24 hours.

• Avoid, or reduce temperature variations to the minimum. Respect the best-before date on the package.

• Always observe the storage information on the package. Making ice cubes if ice tray available

• Fill the ice cube tray 2/3 full and place it in the low temperature compartment

• Do not use sharp or pointed instruments to detach the tray if it is stuck to the low temperature compartment bottom.

• Bend the ice tray slightly to remove the cubes.

HOW TO OPERATE THE LOW

TEMPERATURE COMPARTMENT (if available) MONTHS FOOD18 Before any cleaning or maintenance operation, unplug the appliance from the mains or disconnect the electrical power supply. Defrosting of the refrigerator compartment is completely automatic. Droplets of water on the rear wall of the refrigerator compartment indicate that the periodic automatic defrost cycle is in progress. The defrost water is automatically routed to a drain outlet and into a container from which it evaporates. Regularly clean the inside of the defrost water drain hole in order to guarantee the constant and correct flow of defrost water. Defrosting the low temperature compartment Defrost the low temperature compartment once or twice a year or when the ice formation is excessive. It is perfectly normal for ice to form. The amount of ice which forms and the rate at which it accumulates will depends on room temperature and humidity, and on the frequency with which the door is opened. Ice formation is concentrated at the top of the compartment and does not affect the efficiency of the appliance. If possible, defrost the freezer when it is nearly empty.

• Remove the food from the freezer, wrap in newspaper and group together in a cool place or in a portable cooler.

• Leave the door open to allow the frost to melt.

• Clean the interior with a sponge soaked in warm water and/ or neutral detergent. Do not use abrasive substances.

• Rinse the interior and dry thoroughly.

• Put the food back into the freezer.

• Plug in the appliance once again.

• Switch the appliance on.

• Periodically clean air vents and the condenser at the rear of the appliance with a vacuum cleaner or a brush.

• Clean the outside using a soft cloth. Prolonged disuse

1. Empty the refrigerator.

2. Disconnect the appliance from the power

4. In the event of prolonged disuse, leave the door

open to prevent the formation of mould, odours and oxidation.

5. Clean the appliance.

• Clean the inside of the low temperature compartment (where fitted) when defrosting.

• Periodically clean the inside of the refrigerator compartment with a sponge dampened in warm water and/or neutral detergent. Rinse and dry with a soft cloth. Do not use abrasive products.

• Clean the outside with a soft damp cloth. Do not use abrasive products, scourers, stain- removers (e.g. acetone, trichloroethylene) or vinegar. Replacing bulbs: When replacing the bulb, proceed as follows:

• Unplug the appliance from the mains

• Squeeze the tabs on the sides of the lamp cover and remove it.

• Replace the bulb with a new one, maximum 10W.

• Put the lamp cover back on and wait 5 minutes before plugging the appliance back into the mains.

CARE AND MAINTENANCE20

1. The appliance is not working.

• Is there a power failure?

• Is the plug properly inserted in the socket?

• Is the double-pole switch on?

• Is the power cord damaged?

• Is the thermostat set to

2. Temperature inside the compartments is

• Is the door shut properly?

• Is food obstructing proper door closure?

• Is the appliance installed near a heat source?

• Is the thermostat setting correct?

• Are the air circulation vents blocked?

3. Temperature inside the refrigerator

compartment is too low.

• Is the thermostat setting correct?

4. The appliance is excessively noisy.

• Has the appliance been installed correctly?

• Are the pipes at the back touching or vibrating?

5. Water collects at the bottom of the

refrigerator compartment.

• Is the defrost water drain blocked?

6. Excessive frost build-up in the low

temperature compartment.

• Is the door shut properly?

• Is food obstructing proper door closure? Notes:

• Gurgling and hissing noises due to expansion in the refrigerant circuit are normal. TROUBLESHOOTING GUIDE Before contacting After-Sales Service:

1. See if you can solve the problem yourself with

the help of the “Troubleshooting guide”).

2. Switch the appliance on again to see if the

problem has been solved. If it has not, disconnect the appliance from the power supply and wait for about an hour before switching on again.

3. If the problem persists after this course of

action, contact After-sales Service. Specify:

• the nature of the problem

• the Service number (the number after the word SERVICE on the rating plate on the inside of the appliance)

• your telephone number and area code. Note: The direction of door opening can be changed. If this operation is performed by After-sales Service it is not covered by the warranty. AFTER-SALES SERVICE21

• Install the appliance away from heat sources. Installation in a hot environment, direct exposure to the sun or installation near heat sources (heaters, radiators, cookers) will increase power consumption and should therefore be avoided.

• If this is not possible, the following minimum distances must be respected:

• 30 cm from coal or paraffin stoves;

• 3 cm from electric and/or gas stoves.

• The appliance is designed for built-in. Install the appliance into the kitchen units basing on the required dimensions (see figure).

• Fit the accessories. Electrical connection

• Electrical connections must be made in accordance with local regulations.

• Voltage and power consumption are indicated on the rating plate inside the appliance.

• Regulations require that the appliance is earthed. The Manufacturer declines all liabilities for injury to persons or animals or damage to property resulting from failure to observe these regulations.

• If the plug and socket are not of the same type, have the socket replaced by a qualified electrician.

• Do not use extension leads or adapters. Disconnecting the appliance It must be possible to disconnect the appliance by unplugging it or by means of a two-pole switch fitted upline of the socket. INSTALLATION22 Door Swing Reversal Reversing the door swing The refrigerator has the capability of opening the door from either the left or the right side. The unit is delivered to you with the door opening from the left side. To change the opening direction, please follow these instructions. Note: Before reversing the door swing, unplug the appliance from the mains or disconnect the electrical power supply.

1. Remove the two screws (1) holding the top

hinge (2) (right side) to the frame. Remove the hinge (2).

2. Lift the door off the bottom hinge pin and place

it on a nonscratching surface.

3. Remove the two screws (3) holding the bottom

6. While holding the door in the closed position,

reassemble the top hinge (4) on the left hand side using the two screws (3). Do not tighten the screws (1) until the top of the door is level with the counter top.

Door opening from left side fig. 1

Door opening from right side fig. 223 Reversing the Inside Compartment Door Swing

1. Remove the two plastic screws (1) on the left

2. Remove the two screw covers (2) and the door

3. Unscrew the freezer compartment door (4) and

remove it. Reverse the door and reassemble it on the left hand side.

4. Reverse the door catch (3), reassemble it on the

right hand side and refit the two screw covers (2).

5. Lastly, replace the two plastic screws (1) on the
