USER MANUAL WRT108FFDW WHIRLPOOL

DE L’INSIGNE DE LA MARQUE.............COUVERTURE ARRIÈRE2 REFRIGERATOR SAFETY You can be killed or seriously injured if you don't immediately You can be killed or seriously injured if you don'tfollow All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”These words mean:follow instructions.instructions. DANGER WARNING

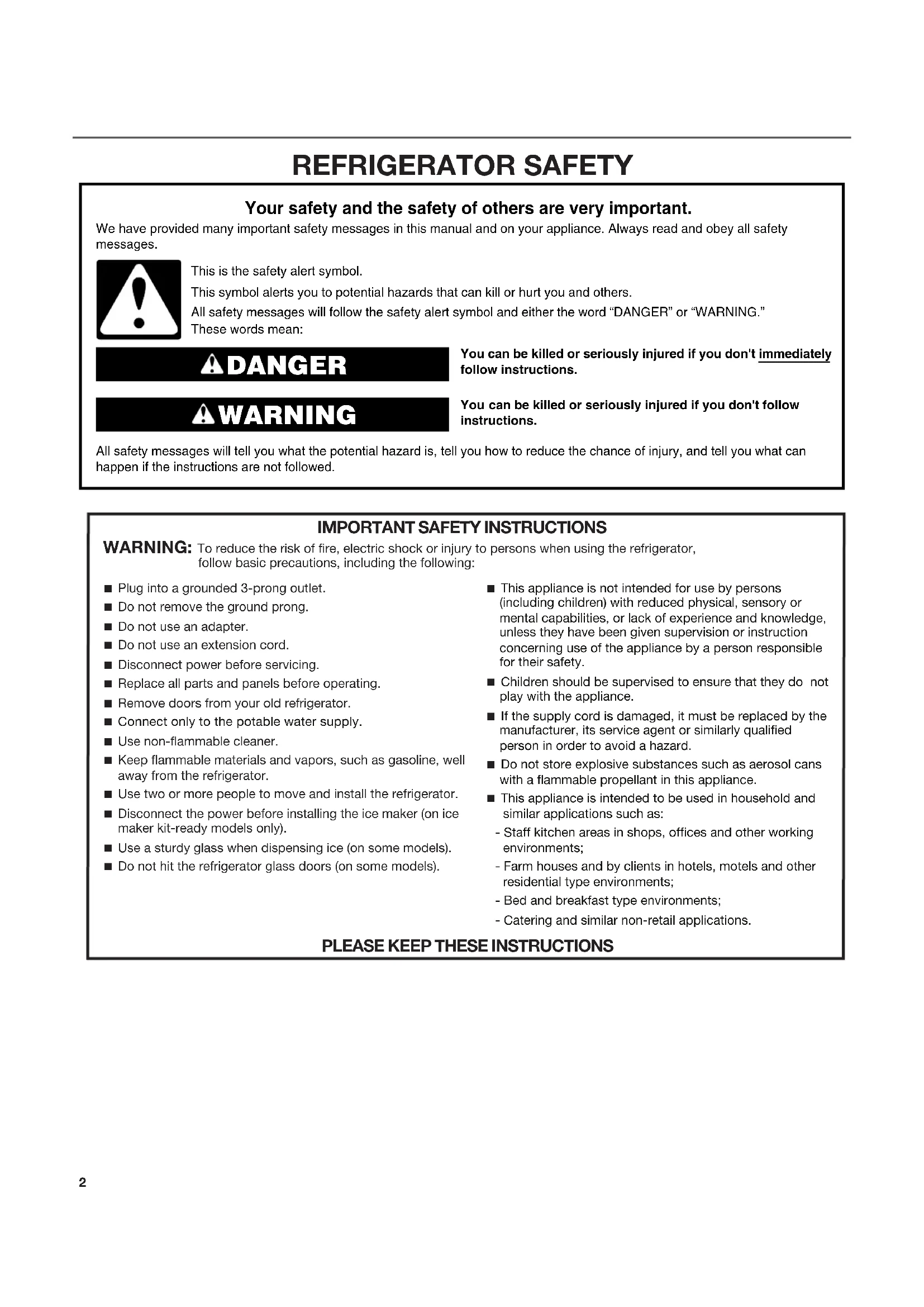

PLEASE KEEP THESE INSTRUCTIONS

Plug into a grounded 3-prong outlet. Do not remove the ground prong. Do not use an adapter. Do not use an extension cord. Disconnect power before servicing. Replace all parts and panels before operating. Remove doors from your old refrigerator. Connect only to the potable water supply. Use non-flammable cleaner. Keep flammable materials and vapors, such as gasoline, well away from the refrigerator. Use two or more people to move and install the refrigerator. Disconnect the power before installing the ice maker (on ice maker kit-ready models only). Use a sturdy glass when dispensing ice (on some models). Do not hit the refrigerator glass doors (on some models). This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. This appliance is intended to be used in household and similar applications such as: - Staff kitchen areas in shops, offices and other working environments; - Farm houses and by clients in hotels, motels and other residential type environments; - Bed and breakfast type environments; - Catering and similar non-retail applications. To reduce the risk of fire, electric shock or injury to persons when using the refrigerator, follow basic precautions, including the following:3 Proper Disposal of Your Old Refrigerator IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous – even if they will sit for “just a few days.” If you are getting rid of your old refrigerator, please follow these instructions to help prevent accidents. Before You Throw Away Your Old Refrigerator or Freezer: ■ Take off the doors. ■ Leave the shelves in place so that children may not easily climb inside. INSTALLATION INSTRUCTIONS Unpack the Refrigerator Remove the Packaging IMPORTANT: Do not remove the white foam air return insert from behind the control panel on the ceiling of the refrigerator. If the insert is removed, ice may migrate down from the freezer and cause icicles to form. ■ Remove tape and glue residue from surfaces before turning on the refrigerator. Rub a small amount of liquid dish soap over the adhesive with your ngers. Wipe with warm water and dry with a soft cloth. ■ Do not use sharp instruments, rubbing alcohol, ammable uids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator. For more information, see “Refrigerator Safety.” Clean Before Using After you remove all of the packaging materials, clean the inside of your refrigerator before using it. See the cleaning instructions in “Refrigerator Care.” WARNING Suffocation Hazard Remove doors from your old refrigerator. Failure to do so can result in death or brain damage. Important information to know about disposal of refrigerants: Dispose of refrigerator in accordance with Federal and Local regulations. Refrigerants must be evacuated by a licensed, EPA certified refrigerant technician in accordance with established procedures. WARNING Excessive Weight Hazard Use two or more people to move and install refrigerator. Failure to do so can result in back or other injury. When Moving Your Refrigerator: Your refrigerator is heavy. When moving the refrigerator for cleaning or service, be sure to cover the oor with cardboard or hardboard to avoid oor damage. Always pull the refrigerator straight out when moving it. Do not wiggle or “walk” the refrigerator when trying to move it, as oor damage could occur. Important information to know about glass shelves and covers: Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping. Tempered glass is designed to shatter into many small, pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use both hands when removing them to avoid dropping.4 Location Requirements IMPORTANT: This refrigerator is designed for indoor household use only. To ensure proper ventilation for your refrigerator, it is recommended to allow a 1/2" (1.25 cm) space on each side. Allow 1½" (3.81 cm) of space between overhead cabinets and refrigerator top. Allow at least 1" (2.54 cm) between back of cabinet and the wall (consider the condenser as back in case is present). If your refrigerator has an ice maker, allow extra space at the back for the water line connections. If you are installing your refrigerator next to a xed wall, leave enough space on the hinge side to allow the door to swing open. Level the refrigerator. See "Adjust the Doors" part of this manual. NOTE: This refrigerator is intended for use in a location where the temperature ranges from a minimum of 55°F (13°C) to a maximum of 110°F (43°C). The preferred room temperature range for optimum performance, which reduces electricity usage and provides superior cooling, is between 60°F (15°C) and 90°F (32°C). It is recommended that you do not install the refrigerator near a heat source, such as an oven or radiator. Electrical Requirements Before you move your refrigerator into its nal location, it is important to make sure you have the proper electrical connection. Recommended Grounding Method A 115 volt, 60 Hz, AC only, 15 or 20 A fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your refrigerator be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord. NOTE: Before performing any type of installation or cleaning, or removing a light bulb, turn cooling off or turn the control (Thermostat, Refrigerator, or Freezer control depending on the model) to OFF, and then disconnect the refrigerator from the electrical source. When you are nished, reconnect the refrigerator to the electrical source and turn cooling on or reset the control (Thermostat, Refrigerator, or Freezer control, depending on the model) to the desired setting. See “Using the Controls” in the User Instructions, User Guide, or Use & Care Guide. Water Supply Requirements Read all directions before you begin. IMPORTANT: ■ Connect to potable water supply only. ■ If you turn the refrigerator on before the water line is connected, turn the ice maker off. ■ All installations must meet local plumbing code requirements. ■ Use copper tubing and check for leaks. Install copper tubing only in areas where the household temperatures will remain above freezing. TOOLS NEEDED: Flat-blade screwdriver, 7/16" and 1/2" open- end wrenches or 2 adjustable wrenches, 1/4" nut driver and drill bit, cordless drill. Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed. NOTE: Your refrigerator dealer has a kit available with a 1/4" (6.35 mm) saddle-type shutoff valve, a union, and copper tubing. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes. Do not use a piercing-type or 3/16" (4.76 mm) saddle valve which reduces water ow and clogs more easily. WARNING Explosion Hazard Keep ammable materials and vapors, such as gasoline, away from refrigerator. Failure to do so can result in death, explosion, or re.

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. WARNING Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.5 Water Pressure A cold water supply with water pressure between 30 and 120 psi (207 and 827 kPa) is required to operate the ice maker. If you have questions about your water pressure, call a licensed, qualied plumber. Reverse Osmosis Water Supply If a reverse osmosis water ltration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).If the ice maker is still not operating properly: ■ Check to see whether the sediment lter in the reverse osmosis system is blocked. Replace the lter if necessary. ■ Allow the storage tank on the reverse osmosis system to rell after heavy usage.If you have questions about your water pressure, call a licensed, qualied plumber. Connect the Water Supply (on some models) Read all directions before you begin.IMPORTANT: If you turn the refrigerator on before the water line is connected, turn the ice maker off to avoid excessive noise or damage to the water valve. Connect the Water Line 1. Unplug refrigerator or disconnect power.2. Turn off main water supply. Turn on nearest faucet long enough to clear line of water.3. Locate a 1/2" to 1¹⁄ " (1.27 cm to 3.18 cm) vertical cold water pipe near the refrigerator.IMPORTANT: ■ Make sure it is a cold water pipe. ■ Horizontal pipe will work. Drill on the top side of the pipe, not the bottom. This will help keep water away from the drill and normal sediment from collecting in the valve.4. Determine the length of copper tubing you will need. Measure from the connection on lower left rear of refrigerator to the water pipe. Add 7 ft (2.1 m) to allow for cleaning. Use 1/4" (6.35 mm) O.D. (outside diameter) copper tubing. Be sure both ends of copper tubing are cut square.5. Using a cordless drill, drill a 1/4" hole in the cold water pipe you have selected.6. Fasten the shutoff valve to the cold water pipe with the pipe clamp. Be sure the outlet end is solidly in the 1/4" drilled hole in the water pipe and that the washer is under the pipe clamp. Tighten the packing nut. Tighten the pipe clamp screws slowly and evenly so washer makes a watertight seal. Do not overtighten.7. Slip the compression sleeve and compression nut on the copper tubing as shown. Insert the end of the tubing into the outlet end squarely as far as it will go. Screw compression nut onto outlet end with adjustable wrench. Do not overtighten.8. Place the free end of the tubing in a container or sink, and turn on the main water supply. Flush the tubing until water is clear. Turn off the shutoff valve on the water pipe. Coil the copper tubing. Connect to Refrigerator NOTE: On kit models, attach water valve to refrigerator according to kit instructions. Style 1 1. Unplug refrigerator or disconnect power.2. Attach the copper tube to the valve inlet using a compression nut and sleeve as shown. Tighten the compression nut. Do not overtighten.3. Use the tube clamp on the back of the refrigerator to secure the tubing to the refrigerator as shown. This will help avoid damage to the tubing when the refrigerator is pushed back against the wall.4. Turn shutoff valve ON.5. Check for leaks. Tighten any connections (including connections at the valve) or nuts that leak.6. The ice maker is equipped with a built-in water strainer. If your water conditions require a second water strainer, install it in the 1/4" (6.35 mm) water line at either tube connection. Obtain a water strainer from your nearest appliance dealer. Style 2 1. Unplug refrigerator or disconnect power.2. Disconnect the tube clamp on the back of the product and insert the copper tubing through the clamp as shown.3. Attach the copper tube to the valve inlet using a compression nut and sleeve as shown.4. Tighten the compression nut. Do not overtighten. Reattach the tube clamp and tube to the back of the cabinet.

A. Tube clampB. Copper tubingC. Compression nut6 5. Turn shutoff valve ON. Check for leaks. Tighten any connections (including connections at the valve) or nuts that leak.6. The ice maker is equipped with a built-in water strainer. If your water conditions require a second water strainer, install it in the 1/4" (6.35 mm) water line at either tube connection. Obtain a water strainer from your nearest appliance dealer. Complete the Installation 1. Plug into a grounded 3 prong outlet.NOTE: Allow 24 hours to produce the rst batch of ice. Discard the rst three batches of ice produced. Allow 3 days to completely ll ice container. Refrigerator Doors Depending on the width of your doorway, you may need to remove the doors to move the refrigerator into your home. Also, the door hinges are factory installed on the right-hand side. If you want the door to open from the other direction, you must reverse the door swing.IMPORTANT: ■ Before you begin, turn the refrigerator control off, unplug refrigerator or disconnect power. Remove food and any adjustable door or utility bins from doors. ■ Depending on your model, your refrigerator has either Style 1 - Contour Doors or Style 2 - Standard Doors. Reference the graphic specic to your model later in this section following “Final Steps.” NOTE: A Reversibility Kit, which includes a new Brand Badge and hole covers, is available.Tools Needed: 5/16" hex-head socket wrench, #2 Phillips screwdriver, at-b lade screwdriver, 5/16" open-end wrench, at 2" putty knife Remove Doors and Hinges 1. Unplug refrigerator or disconnect power.2. Using a hex-head socket wrench, remove the three 5⁄16" hex-head hinge screws from the Top Hinge and lift up to remove the hinge. See Top Hinge graphic.NOTE: Provide additional support for the doors while the hinges are being moved. Do not depend on the door magnets to hold the doors in place while you are working.3. Lift the freezer door off of the center hinge and set it aside.4. Remove the washer from the top of the Center Hinge pin.5. Using a hex-head socket wrench and an open-end wrench, remove the three screws from the Center Hinge and remove the hinge. Set aside.6. Remove the washer from the bottom of the Center Hinge pin.7. Lift the refrigerator door from the Bottom Hinge and set aside.8. Using a hex-head socket wrench, remove the four 5⁄16" hex-head hinge screws from the Bottom Hinge and pull the hinge from the bottom of the refrigerator door.Electrical Shock HazardPlug into a grounded 3 prong outlet.Do not remove ground prong.Do not use an adapter.Do not use an extension cord.Failure to follow these instructions can result in death, fire, or electrical shock. WARNING WARNING Electrical Shock HazardDisconnect power before removing doors.Failure to do so can result in death or electrical shock.5⁄16" Hex-Head Hinge Screw

A. Center hingeB. 5⁄16" hex-head hinge screws7 Reverse Doors and Hinges (optional) IMPORTANT: If you want to reverse your doors so that they open in the opposite direction, follow these steps. If you are not reversing the doors, see “Replace Doors and Hinges.” See complete graphics later in these instructions. Reverse Center Hinge

1. Remove the three dome caps and screws from the handle

side and use them to ll the holes created when the hinge screws were removed.

2. Using the three 5⁄16" hex-head hinge screws, removed in

Step 1, insert two screws halfway into the holes, leaving space to insert the Center Hinge.

3. Once the refrigerator door is in place, slide the center hinge

from the right onto the screws, insert the third screw, and then tighten all screws completely. NOTE: Make sure the washers are in place on both the top and bottom pins of the center hinge. Reverse Freezer Door

1. Remove the three cabinet hole plugs from the top of the

cabinet and place them in the hinge holes on the opposite side.

2. Remove the door handles. See the model specic graphics

later in these instructions. Door Handles installed with at-head screws and setscrews: ■ Remove the two at-head handle screws from the bottom of the freezer door handle. ■ Using the 1/8" hex key, loosen the setscrew attaching the top of the handle. ■ Pull the handle away from the door to release it from the shoulder screw. Keep all parts together. Door handles installed with at-head screws only: ■ Remove the screw cover and the three at-head handle screws. Keep all parts together.

3. Using the plastic tool (provided), remove the brand badge

from the freezer door by prying up the right-hand side and slowly peeling the badge away from the door, revealing the hole to mount the door handle. NOTES: ■ To avoid scratching the nish, do not use a sharp or metallic object to pry the brand badge from the door. ■ Rub a small amount of liquid dish soap over any adhesive residue with your ngers. Rinse the door with warm water and dry with a soft cloth.

4. Depending on your model, remove the shoulder screw and its

washer from the left-hand side of the door and fasten it into the hole that was behind the brand badge.

5. Remove the door stop from the bottom of the freezer door.

6. Move the door stop to the opposite side making sure that the

hole in the door stop plate is aligned perfectly with the hole for the center hinge pin.

7. Using the screw removed earlier, fasten the door stop to the

A. Cabinet hole plugs A. Door stop screwB. Door stop

8. Depending on your model, place the handle on the shoulder

screw and push the handle toward the door until the mounting base is ush against the door.

9. Fasten the bottom of the handle to the bottom of the freezer

10. Tighten all screws. Set aside the freezer door until the hinges

and refrigerator door are in place. Reverse Refrigerator Door

1. Remove the door stop from the bottom of the refrigerator

2. Replace the door stop on the opposite side of the refrigerator

door, making sure that the hole in the door stop plate is aligned perfectly with the hole for the Bottom Hinge pin.

3. Fasten the door stop to the door.

4. Remove the door handles. See the model-specic graphics

later in these instructions. Door Handles installed with at-head screws and setscrews: ■ Remove the screws from the top of the refrigerator door handle. ■ Remove the setscrew from the lower part of the handle. ■ Pull the handle away from the door to release it from the shoulder screw. Keep all parts together. Door handles installed with at-head screws only: ■ Remove the screw cover and the three at-head handle screws. Keep all parts together.

5. Remove the cap covering the hole on the opposite side of the

door where the refrigerator door handle will be installed and discard the cap.

6. Depending on your model, remove the shoulder screw and its

washer from the left-hand side of the door and fasten it into the hole that was behind the cap.

7. Depending on your model, place the handle on the shoulder

screw and push the handle toward the door until the mounting base is ush against the door.

8. Fasten the top of the refrigerator handle to the top of the

9. Cover the remaining hole with the cap (provided).

10. Remove door hinge hole plug from the refrigerator door. Move

11. Tighten all screws. Set aside refrigerator door until bottom

hinge is installed on the opposite side of the refrigerator.

A. Door stop screw B. Door stop

A. Flat-head handle screws9 Reverse Top Hinge - Contour door models only

1. Remove the screw attaching the hinge pin to the hinge. Turn

the hinge over so that it is pointing in the opposite direction.

2. Place the plastic spacer beneath the hinge so that it will be

between the hinge and the cabinet, making sure the holes are aligned.

3. Fasten the Top Hinge to the opposite side of the cabinet,

inserting the screws only halfway, so you will be able to replace and align the freezer door later. Replace Doors and Hinges IMPORTANT: Provide additional support for the doors while the hinges are being moved. Do not depend on the door magnets to hold the doors in place while you are working. Install Refrigerator Door

1. Insert the hinge pin into the Bottom Hinge of the refrigerator

door and fasten the hinge to the cabinet. Do not tighten completely.

4. Measure the distance from the bottom of the refrigerator door

to the oor. The distance should be approximately 1

(4.6 cm). NOTE: If necessary, loosen the Bottom Hinge, without removing the screws, adjust the door to the correct height and fully tighten the screws. Install Freezer Door

1. Place washer on the upper hinge pin of the Center Hinge.

2. Place the freezer door on the upper hinge pin of the Center

3. Insert the Top Hinge pin into the drilled hole in the top of the

freezer door. Do not tighten the screws completely.

4. Align the doors so that the bottom of the freezer door aligns

evenly with the top of the refrigerator door. Tighten all screws. NOTE: The distance between the doors should be approximately 3/4" (19 mm). Final Steps

1. Plug in the refrigerator or reconnect the power.

2. Reset the controls. See “Using the Controls.”

3. Return all removable door parts to doors and food to

A. Plastic spacer B. Hinge pin screw C. Hinge pin

A. 5⁄16" hex-head hinge screws B. Top hinge pin C. Plastic spacer A. Bottom hinge10 Style 1 – Contour Door WARNING Electrical Shock Hazard Disconnect power before removing doors. Failure to do so can result in death or electrical shock.

Door Removal & Replacement Top Hinge A. Top Hinge Cover B. 5/16" Hex-Head Hinge Screw C. Top Hinge Center Hinge Bottom Hinge A. Center Hinge B. 5/16" Hex-Head Hinge Screws A. Bottom Hinge B. Washer C. 5/16" Hex-Head Hinge Screw Door Swing Reversal (optional) A. Cabinet Hinge Hole Plugs A. 5/16" Hex-Head Hinge Screws, Dome Caps and Dome Cap Washers A. Shoulder Screw B. Setscrew C. Flat-Head Handle Screw D. Screw Cover A. Door Hinge Hole Plugs A. Door Handle Sealing Screws A. Door Stop Screw B. Door Stop Front View Side View A. Door Handle Hole Cap A. Flat-Head Handle Screw B. Screw Cover12 Reversibility Kit Instructions If your model came with a Reversibility kit, please use the Brand Badge Placement template and the following instructions to install the Brand Badge on the opposite side of the freezer door. Parts Included: Brand badge removal tool Brand badge template (on last page of User Instructions) Door handle hole cap Tools Needed: Scissors Masking tape Freezer Door

1. Using the removal tool (provided), remove the brand badge

from the freezer door by lifting up the right-hand side and peeling the badge away from the door from right to left. NOTE: To avoid scratching the door, do not use a sharp or metallic object to pry the brand badge from the door.

2. Rub a small amount of liquid dish soap over any adhesive

residue with your ngers. Rinse the door with warm water and dry with a soft cloth.

3. Cut the template along the dotted lines that match the shape

4. Align the edges of the template with the side and top of the

freezer door and tape the template to the door. NOTE: When the template is correctly aligned, the hole in the door, where the handle was, will be within the cutout of the template, as shown.

5. Using the cutout as a guide, press the brand badge onto the

freezer door making sure that the hole is completely covered.

6. Slowly remove the template.

Adjust the Doors IMPORTANT: Your refrigerator complies with American Disabilities Act (ADA) guidelines. Door Closing Your refrigerator has two front adjustable levelers - one on the right and one on the left. To avoid a hazard due to instability, if your refrigerator seems unsteady or you want the doors to close easier, adjust the refrigerator's tilt using the following instructions:

1. Turn the leveler to lower or raise that side of the refrigerator.

It may take several turns to adjust the tilt of the refrigerator. ■ To raise, turn the leveler to the right. ■ To lower, turn the leveler to the left. NOTE: Having someone push against the top of the refrigerator takes some weight off the levelers and rollers which makes it easier to adjust.

2. Open both doors again to make sure they close as easily as

you like. If not, tilt the refrigerator slightly more to the rear by turning both leveling legs to the left; it may take several more turns. NOTE: To keep the refrigerator level, you should turn both leveling legs the same amount.

3. Using a level, be sure that the refrigerator is still level side to

side. Readjust if necessary. Door Aligning If the space between your doors looks uneven, you can adjust it using the following instructions:

1. Depending on your model, remove the Top Hinge cover.

2. Loosen the top hinge screws using a 5⁄16" socket or wrench.

3. Have someone hold the door in place or put a spacer

between the doors while you tighten the top hinge screws.

4. Replace the Top Hinge cover, if removed in Step 1.13

REFRIGERATOR USE Using the Controls Your refrigerator has two controls that affect the temperature. The Temperature control located at the top front of the refrigerator compartment and the Airow control located on the back wall of the freezer compartment. IMPORTANT: ■ The recommended setting should be correct for normal household refrigerator use. The controls are set correctly when milk or juice is as cold as you like and when ice cream is rm. ■ Wait 24 hours for your refrigerator to cool completely before adding food. If you add food before the refrigerator has cooled completely, your food may spoil. NOTE: Adjusting the refrigerator and freezer temperature controls to a colder than recommended setting will not cool the compartments any faster. ■ If the temperature is too warm or too cold in the refrigerator or freezer, rst check the air vents to be sure they are not blocked before adjusting the controls. Temperature Control For your convenience, the Temperature control is preset at the factory. When you rst install your refrigerator, make sure the control is still preset as shown. Recommended Setting Cooling Off/On ■ To turn cooling off, press and hold the Setting button for 4 seconds until all lights are illuminated for 1 second. To turn cooling back on, press and hold the Setting button again for 4 seconds. NOTE: Neither compartment will cool when the control is set to OFF. Adjusting the Temperature Control If you need to adjust the temperature in either the refrigerator or freezer compartment, use the settings listed in the chart below as a guide. NOTE: Except when starting the refrigerator, do not adjust the control more than one setting at a time. Wait 24 hours between adjustments for the temperature to stabilize. ■ Press the SETTING button to toggle among the 4 LED lights which indicate the temperature setting. Reading from left to right, the LED in the rst position is the least cold. The LEDs indicate increasingly colder settings as you continue to the right until all 4 LEDs are illuminated. CONDITION/REASON: ADJUSTMENT: REFRIGERATOR too warm TEMPERATURE control one setting higher FREEZER too warm/Too little ice AIRFLOW or TEMPERATURE control one setting higher REFRIGERATOR too cold TEMPERATURE control one setting lower FREEZER too cold AIRFLOW or TEMPERATURE control one setting lower Airow Control The Airow control regulates the amount of air owing between the freezer and the refrigerator compartments. When you plug in the refrigerator for the rst time, turn the Airow control to the Recommended setting. Adjusting the Airow Control If you want to temporarily increase the cold airow to a specic compartment, adjust the control. ■ Max - Increase airow to the freezer. ■ Min - Increase airow to the refrigerator. IMPORTANT: Once the performance is achieved, return the Airow control to the Recommended setting to keep the refrigerator operating at optimum efciency. CONDITION/REASON: ADJUSTMENT: Heavy ice use Max Hot room temperature Max - to maintain ice making production rate Large quantity of groceries Min - to quickly chill food and beverages14 REFRIGERATOR FEATURES Your model may have some or all of these features. Refrigerator Shelves The shelves in your refrigerator are adjustable to match your individual storage needs. Storing similar food items together in your refrigerator and adjusting the shelves to t different heights of items will make nding the exact item you want easier. It will also reduce the amount of time the refrigerator door is open, and save energy. To remove and replace a shelf:

1. Remove items from the shelf.

2. Slide the shelf straight out to the stop.

3. Depending on your model, lift back or front of the shelf past

the stop. Slide shelf out the rest of the way.

4. Replace the shelf by sliding the back of the shelf into the track

in the wall of the cabinet.

5. Guide the front of the shelf into the shelf track. Be sure to

slide the shelf in all the way. Deli Drawer The deli drawer design allows exible positioning. Deli Drawer To reposition the deli drawer:

1. Remove deli drawer.

2. Release cover and place it between the desired crossbars.

3. Secure the rear clips onto the shelf.

1. Slide deli drawer out to the stop.

2. Lift front of deli drawer with one hand while supporting

bottom of drawer with other hand. Slide drawer out the rest of the way.

3. Replace the drawer by sliding it back in fully past the drawer

stop. Deli Drawer Cover To remove and replace the deli drawer cover: Style 1 - Wire Shelves

1. Remove the deli drawer.

2. Push the cover back to release the rear clips from the shelf.

Tilt the cover up at the front, and then pull it forward.

3. Replace the deli drawer cover by tting the notches and clips

on the cover over the rear and center crossbars on the shelf.

2. Remove items from the shelf.

3. Slide the shelf straight out to the stop.

4. Slide the deli cover to one side until free.

5. Insert the cover into the shelf tracks.

6. Slide the shelf back into the refrigerator, and then replace the

deli drawer. NOTE: The deli drawer slides sideways on the shelf to allow for exible positioning. Meat Storage Guide Store most meat in original wrapping as long as it is airtight and moisture-proof. Rewrap if necessary. See the following chart for storage times. When storing meat longer than the times given, freeze the meat. Fresh sh or shellsh.........................Use same day as purchased. Chicken, ground beef, variety meats (liver) ...................... 1-2 days Cold cuts, steaks/roasts .................................................. 3-5 days Cured meats....................................................................7-10 days Leftovers - Cover leftovers with plastic wrap, aluminum foil, or plastic containers with tight lids. Crisper Crisper Drawers To remove and replace the crisper drawer:

1. Slide the crisper drawer straight out to the stop. Lift the front

and slide the drawer out the rest of the way.

2. Replace the drawer by sliding the drawer in fully past the

stop. Crisper Cover To remove and replace the crisper cover:

1. Remove the crisper(s).

2. Pull the glass straight out.

Important information to know about glass shelves and covers: Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping. Tempered glass is designed to shatter into many small, pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use both hands when removing them to avoid dropping.15

3. Replace the glass by pushing it straight in.

Crisper Humidity Control You can control the amount of humidity in the moisture-sealed crisper. Adjust the control to any setting between LOW and HIGH. LOW (open) lets moist air out of the crisper for best storage of fruits and vegetables with skins. ■ Fruit: Wash, let dry, and store in refrigerator in plastic bag or crisper. Do not wash or hull berries until they are ready to use. Sort and keep berries in original container in crisper or store in a loosely closed paper bag on a refrigerator shelf. ■ Vegetables with skins: Place in plastic bag or plastic container and store in crisper. HIGH (closed) keeps moist air in the crisper for best storage of fresh, leafy vegetables. ■ Leafy vegetables: Wash in cold water, drain, and trim or tear off bruised and discolored areas. Place in plastic bag or plastic container and store in crisper. FREEZER FEATURES Your model may have some or all of these features. Freezer Shelf Depending on your model, the shelf may be wire or glass. To remove and replace a shelf:

1. Remove items from the shelf.

2. Slide the shelf straight out to the stop.

3. Depending on your model, lift back or front of the shelf past

the stop. Slide shelf out the rest of the way.

4. Replace the shelf by sliding the back of the shelf into the track

in the wall of the cabinet.

5. Guide the front of the shelf into the shelf track. Be sure to

slide the shelf in all the way. Frozen Food Storage Guide Storage times will vary according to the quality and type of food, the type of packaging or wrap used (should be airtight and moisture-proof), and the storage temperature. Seal the package or container securely to avoid taste and odor transfer throughout the product. Ice crystals inside a sealed package are normal. This simply means that moisture in the food and air inside the package have condensed, creating ice crystals. Put no more unfrozen food into the freezer than will freeze within 24 hours (no more than 2 to 3 lbs of food per cubic foot [907 to 1,350 g per L] of freezer space). Leave enough space in the freezer for air to circulate around packages. The freezer door must close tightly. NOTE: For more information on preparing food for freezing, check a freezer guide or reliable cookbook. DOOR FEATURES Your model may have some or all of these features. Door Rails The door rails may be removed for easier cleaning. To remove and replace the rails:

1. Depending on your model, remove the rails by pushing in

slightly on the front of the bracket while pulling out on the inside tab. Repeat these steps for the other end.

2. Replace the rails by aligning the ends of the brackets with the

buttons on the sides of the door liner. Firmly snap bracket and assembly onto the tabs above the shelf as shown. Door Bins To remove and replace the bins:

1. Remove the bin by lifting it and pulling it straight out.

2. Replace the bin by sliding it in above the desired support and

pushing it down until it stops. Important information to know about glass shelves and covers: Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping. Tempered glass is designed to shatter into many small, pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use both hands when removing them to avoid dropping.16 Utility Compartment The utility compartment may be removed for easier cleaning. To remove and replace the utility compartment:

1. Remove the utility compartment by squeezing against one

side while raising the utility compartment up and pulling it straight out.

2. Replace the utility compartment by positioning one side in the

lock and sliding in the opposite side until it stops. Ice Maker IMPORTANT: For models with a water lter, after connecting the refrigerator to a water source or replacing the water lter, ll and discard three full containers of ice to prepare the water lter for use. For products without any part of the ice dispensing circuit, ice maker and internal water circuit parts can only be installed by the Manufacturer or by its Service Agent. For Easy Connect (ice maker ready) products, ice maker can be easily installed by the user, following instruction given with the kit. In "Accessories" part of this manual you can nd the ice maker part number to be purchased. Turning the Ice Maker On/Off To turn the ice maker on, simply lower the wire shut-off arm. To manually turn the ice maker off, lift the wire shut-off arm to the Off (arm up) position and listen for the click. NOTE: Your ice maker has an automatic shutoff. As ice is made, the ice cubes will ll the ice storage bin and the ice cubes will raise the wire shut-off arm to the Off (arm up) position. Do not force the wire shut-off arm up or down. Ice Storage Bin

1. Wash the ice storage bin with mild soap and warm water.

2. Slide the ice storage bin under the ice maker and push it

toward the back as far as it will go.

3. Lower the arm on the ice maker to the On position.

NOTE: It usually takes approximately 24 hours for the ice maker to begin producing ice. You may notice the ice has an “off-taste.” If so, discard the rst three batches of ice produced. After that the “off-taste” should be gone. Ice Production Rate ■ The ice maker should produce approximately 8 to 12 batches of ice in a 24-hour period. Allow 3 days to completely ll the ice container. ■ To increase ice production, lower the freezer and refrigerator temperatures. See “Using the Controls.” Wait 24 hours between adjustments. Remember ■ The quality of your ice will be only as good as the quality of the water supplied to your ice maker. Avoid connecting the ice maker to a softened water supply. Water softener chemicals (such as salt) can damage parts of the ice maker and lead to poor quality ice. If a softened water supply cannot be avoided, make sure the water softener is operating properly and is well maintained. ■ Do not use anything sharp to break up the ice in the bin. This can cause damage to the ice storage bin and the dispenser mechanism. ■ Do not store anything on top of or in the ice maker or ice storage bin. REFRIGERATOR CARE Cleaning Both the refrigerator and freezer sections defrost automatically. However, clean both sections about once a month to avoid buildup of odors. Wipe up spills immediately. IMPORTANT: ■ Because air circulates between both sections, any odors formed in one section will transfer to the other. You must thoroughly clean both sections to eliminate odors. To avoid odor transfer and drying out of food, wrap or cover foods tightly. ■ For stainless steel models, stainless steel is corrosion resistant and not corrosion-proof. To help avoid corrosion of your stainless steel, keep your surfaces clean by using the following cleaning instructions. To Clean Your Refrigerator: NOTE: Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, ammable uids, muriatic acid, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on exterior surfaces (doors and cabinet), plastic parts, interior and door liners, or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools.

1. Unplug refrigerator or disconnect power.

2. Hand wash, rinse, and dry removable parts and interior

surfaces thoroughly. Use a clean sponge or soft cloth and a mild detergent in warm water. WARNING Explosion Hazard Use nonammable cleaner. Failure to do so can result in death, explosion, or re.17

3. Clean the exterior surfaces.

Painted metal: Wash painted metal exteriors with a clean, soft cloth or sponge and a mild detergent in warm water. Rinse surfaces with clean, warm water and dry immediately to avoid water spots. Stainless steel: Wash stainless steel surfaces with a clean, soft cloth or sponge and a mild detergent in warm water. Rinse surfaces with clean, warm water and dry immediately to avoid water spots. NOTE: When cleaning stainless steel, always wipe in the direction of the grain to avoid cross-grain scratching.

4. Plug in refrigerator or reconnect power.

Changing the Light Bulb The light bulb is located behind the Temperature control. IMPORTANT: Depending on your model, the light bulb in the your new refrigerator may use LED technology. If your model uses LED lighting and the light does not illuminate when the refrigerator door is opened, call for assistance or service. See Warranty for phone numbers.

1. Unplug refrigerator or disconnect power.

2. Remove the light shield by squeezing in on the sides and

pulling it straight down.

3. Remove the light bulb and replace it with an appliance bulb of

the same size and shape. ■ For the refrigerator compartment, to replace with an LED light bulb, order part number W10565137 (3.6 W). NOTE: Some LED replacement bulbs are not recommended for wet/damp environments. The refrigerator and freezer compartments are considered to be wet/damp environments. If using a brand of LED bulb other than the Whirlpool recommended LED bulb, before installation, read and follow all instructions on the LED packaging. ■ If an incandescent bulb is used to replace an LED bulb, use only incandescent bulbs for household appliances with a maximum of 60 W.

4. Replace the light shield.

5. Plug in refrigerator or reconnect power.

2. If your refrigerator has an automatic ice maker and is

connected to the household water supply, turn off the water supply to the refrigerator. Property damage can occur if the water supply is not turned off.

3. If you have an automatic ice maker, turn off the ice maker.

NOTE: Raise the wire shut-off arm to OFF (up) position.

1. Remove all food from the refrigerator.

2. If your refrigerator has an automatic ice maker:

■ Turn off the water supply to the ice maker at least one day ahead of time. ■ When the last load of ice drops, raise the wire shut-off arm to the Off (up) position.

3. Turn off the Temperature controls. See “Using the Controls.”

4. Clean refrigerator, wipe it, and dry well.

5. Tape rubber or wood blocks to the tops of both doors to prop

them open far enough for air to get in. This stops odor and mold from building up. Moving When you are moving your refrigerator to a new home, follow these steps to prepare it for the move.

1. If your refrigerator has an automatic ice maker:

■ Turn off the water supply to the ice maker at least one day ahead of time. ■ Disconnect the water line from the back of the refrigerator. ■ When the last load of ice drops, raise the wire shut-off arm to the Off (up) position.

2. Remove all food from the refrigerator and pack all frozen food

4. Turn off the Temperature controls. See “Using the Controls.”

5. Unplug refrigerator.

6. Clean, wipe, and dry thoroughly.

7. Take out all removable parts, wrap them well, and tape them

together so they don’t shift and rattle during the move.

8. Depending on the model, raise the front of the refrigerator so

it rolls more easily OR raise the leveling screws so they don't scrape the oor. See “Adjust the Door(s)” or “Door Closing and Door Alignment.”

9. Tape the doors closed and tape the power cord to the back of

the refrigerator. When you get to your new home, put everything back and refer to the “Installation Instructions” section for preparation instructions. Also, if your refrigerator has an automatic ice maker, remember to reconnect the water supply to the refrigerator.18 TROUBLESHOOTING First try the solutions suggested here. If you need further assistance or more recommendations that may help you avoid a service call, refer to the warranty page in this manual and scan the code with your mobile device, or visit www.whirlpool.com/product_help. In Canada, visit www.whirlpool.ca. Contact us by mail with any questions or concerns at the address below: In the U.S.A.: In Canada: Whirlpool Brand Home Appliances Customer eXperience Center 553 Benson Road Benton Harbor, MI 49022-2692 Whirlpool Brand Home Appliances Customer eXperience Centre 200 – 6750 Century Ave. Mississauga, Ontario L5N 0B7 Please include a daytime phone number in your correspondence. Refrigerator Operation The refrigerator will not operate ■ Power cord unplugged? Plug into a grounded 3 prong outlet. ■ Is outlet working? Plug in a lamp to see if the outlet is working. ■ Household fuse blown or circuit breaker tripped? Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician. ■ Controls on? Make sure the refrigerator control is ON. See “Using the Controls.” ■ New installation? Allow 24 hours following installation for the refrigerator to cool completely. NOTE: Adjusting the temperature controls to coldest setting will not cool the refrigerator more quickly. The lights do not work ■ Light bulb burned out? Replace light bulb. See “Changing the Light Bulb.” The motor seems to run too much Your new refrigerator may run longer than your old one due to its high-efciency compressor and fans. The unit may run even longer if the room is warm, a large food load is added, the door is opened often, or if the door has been left open. The refrigerator seems noisy Refrigerator noise has been reduced over the years. Due to this reduction, you may hear intermittent noises from your new refrigerator that you did not notice from your old model. Below are listed some normal sounds with explanations. ■ Buzzing - heard when the water valve opens to ll the ice maker ■ Pulsating - fans/compressor adjusting to optimize performance. ■ Hissing/Rattling - ow of refrigerant, movement of water lines, or from items placed on top of the refrigerator. ■ Sizzling/Gurgling - water dripping on the heater during Defrost cycle ■ Popping - contraction/expansion of inside walls, especially during initial cooldown ■ Water running/dripping - may be heard when ice melts during defrosting and water runs into the drain pan. ■ Creaking/Cracking - occurs as ice is being ejected from the ice maker mold The doors will not close completely or they pop open ■ Door blocked open? Move food packages away from door. ■ Bin or shelf in the way? Push bin or shelf back in the correct position. ■ Crisper cover in the way? Make sure the crisper cover is fully pushed in so that the back rests on the supports. ■ Refrigerator not tilted toward the rear? So the doors will close easier, raise the front of the refrigerator so that it tilts slightly downward toward the rear. See “Adjust the Doors.” ■ Door closed too quickly? Close the door slowly and rmly to keep the door from popping open. Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. WARNING19 The door is difcult to open ■ Gaskets dirty or sticky? Clean gaskets and contact surfaces with mild soap and warm water. Rinse and dry with soft cloth. Temperature and Moisture Temperature is too warm ■ New installation? Allow 24 hours following installation for the refrigerator to cool completely. ■ Door opened often or left open? Allows warm air to enter refrigerator. Minimize door openings and keep door fully closed. ■ Large load of food added? Allow several hours for refrigerator to return to normal temperature. ■ Controls set correctly for the surrounding conditions? Adjust the controls a setting colder. Check temperature in 24 hours. See “Using the Controls.” There is interior moisture buildup NOTE: Some moisture buildup is normal. ■ Humid room? Contributes to moisture buildup. ■ Door opened often or left open? Allows humid air to enter refrigerator. Minimize door openings and keep door fully closed. Ice and Water The ice maker is not producing ice or not enough ice ■ Refrigerator connected to a water supply and the supply shut-off valve turned on? Connect refrigerator to water supply and turn water shut-off valve fully open. ■ Kink in the water source line? A kink in the line can reduce water ow. Straighten the water source line. ■ Ice maker turned on? Make sure wire shut-off arm or switch (depending on model) is in the On position. ■ New installation? Wait 24 hours after ice maker installation for ice production to begin. Allow 3 days to completely ll the ice container. ■ Large amount of ice recently removed? Allow 24 hours for ice maker to produce more ice. ■ Ice cube jammed in the ice maker ejector arm? Remove ice from the ejector arm with a plastic utensil. ■ Reverse osmosis water ltration system connected to your cold water supply? This can decrease water pressure. See “Water Supply Requirements.” The ice cubes are hollow or small NOTE: This is an indication of low water pressure. ■ Water shut-off valve not fully open? Turn the water shut-off valve fully open. ■ Kink in the water source line? A kink in the line can reduce water ow. Straighten the water source line. ■ Reverse osmosis water ltration system connected to your cold water supply? This can decrease water pressure. See “Water Supply Requirements.” ■ Questions remain regarding water pressure? Call a licensed, qualied plumber. Off-taste, odor, or gray color in the ice ■ New plumbing connections? New plumbing connections can cause discolored or off-avored ice. ■ Ice stored too long? Discard ice. Wash ice bin. Allow 24 hours for ice maker to make new ice. ■ Odor transfer from food? Use airtight, moisture proof packaging to store food. ■ Are there minerals (such as sulfur) in the water? A water lter may need to be installed to remove the minerals. ACCESSORIES The following accessories are available for your refrigerator. To order, contact us and ask for the part number. In the U.S.A., visit our webpage www.whirlpool.com/ accessories or call 1-800-901-2042. In Canada, visit our webpage www.whirlpoolparts.ca or call 1-800-807-6777. Affresh

Stainless Steel Cleaner: In U.S.A., order Part #W10355016 In Canada, order Part #W10355016B Affresh

Stainless Steel Wipes: In U.S.A., order Part #W10355049 In Canada, order Part #W10355049B Affresh

Kitchen & Appliance Cleaner: In U.S.A., order Part #W10355010 In Canada, order Part #W10355010B Reversibility Kit: Order Part #W10395148 Ice Maker Kit for Easy Connect Products (ice maker ready): Order Part #ECKMFEZ2 Ice Maker Kit for Field Installable products: Order Part #3ECKMF87 NOTE: New hose-sets are to be used and old hose-sets should not be reused. WARNING Explosion Hazard Use nonammable cleaner. Failure to do so can result in death, explosion, or re.20 WHIRLPOOL

REFRIGERATION LIMITED WARRANTY ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE.Please have the following information available when you call the Customer eXperience Center: ■ Name, address, and telephone number ■ Model number and serial number ■ A clear, detailed description of the problem ■ Proof of purchase, including dealer or retailer name and address IF YOU NEED SERVICE: 1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting section of the Use and Care Guide or visit producthelp.whirlpool.com. 2. All warranty service is provided exclusively by our authorized Whirlpool Service Providers. IntheU.S.and Canada, direct all requests for warranty service to: Whirlpool Customer eXperience CenterIn the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6777. If outside the 50 United States or Canada, contact your authorized Whirlpool dealer to determine whether another warranty applies.

FIVE YEAR LIMITED WARRANTY

WHAT IS COVERED WHAT IS NOT COVERED ONE YEAR LIMITED WARRANTYFor one year from the date of purchase, when this major appliance is installed, operated, and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter “Whirlpool”) will pay for factory specied replacement parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased or, at its sole discretion, replace the product. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit’s warranty period.SECOND THROUGH FIFTH YEAR LIMITED WARRANTY ON CAVITY LINER AND SEALED REFRIGERATION SYSTEMIn the second through fth years from the date of purchase, when this major appliance is installed, operated, and maintained according to the instructions attached to or furnished with the product, Whirlpool brand will pay for factory specied replacement parts and repair labor for the following components to correct non-cosmetic defects in materials and workmanship in this part that prevent function of the refrigerator and that existed when this major appliance was purchased: ■ Refrigerator/freezer cavity liner if the part cracks due to defective materials or workmanship ■ Sealed Refrigeration system (includes compressor, evaporator, condenser, dryer, and connecting tubing)YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a Whirlpool designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.1. Commercial, non-residential, or multiple-family use, or use inconsistent with published user, operator, or installation instructions.2. In-home instruction on how to use your product.3. Service to correct improper product maintenance or installation, installation not in accordance with electrical or plumbing codes, or correction of household electrical or plumbing (e.g., house wiring, fuses, or water inlet hoses).4. Consumable parts (e.g., light bulbs, batteries, air or water lters, preservation solutions, etc.).

5. Defects or damage caused by the use of non-genuine Whirlpool parts

or accessories.6. Damage from accident, misuse, abuse, re, oods, acts of God, or use with products not approved by Whirlpool.

7. Repairs to parts or systems to correct product damage or defects caused

by unauthorized service, alteration, or modication of the appliance.8. Cosmetic damage, including scratches, dents, chips, and other damage to the appliance nishes, unless such damage results from defects in materials and workmanship and is reported to Whirlpool within 30 days. 9. Discoloration, rust, or oxidation of surfaces resulting from caustic or corrosive environments including, but not limited to, high salt concentrations, high moisture or humidity, or exposure to chemicals.10. Food or medicine loss due to product failure.11. Pickup or delivery. This product is intended for in-home repair.

12. Travel or transportation expenses for service in remote locations where

an authorized Whirlpool servicer is not available.

13. Removal or reinstallation of inaccessible appliances or built-in xtures

(e.g., trim, decorative panels, ooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing, removal, or replacement of the product.14. Service or parts for appliances with original model/serial numbers removed, altered, or not easily determined.The cost of repair or replacement under these excluded circumstances shall be borne by thecustomer. DISCLAIMER OF IMPLIED WARRANTIESIMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO FIVE YEARS OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or tness, so this limitation may not apply to you. This warranty gives you specic legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY
