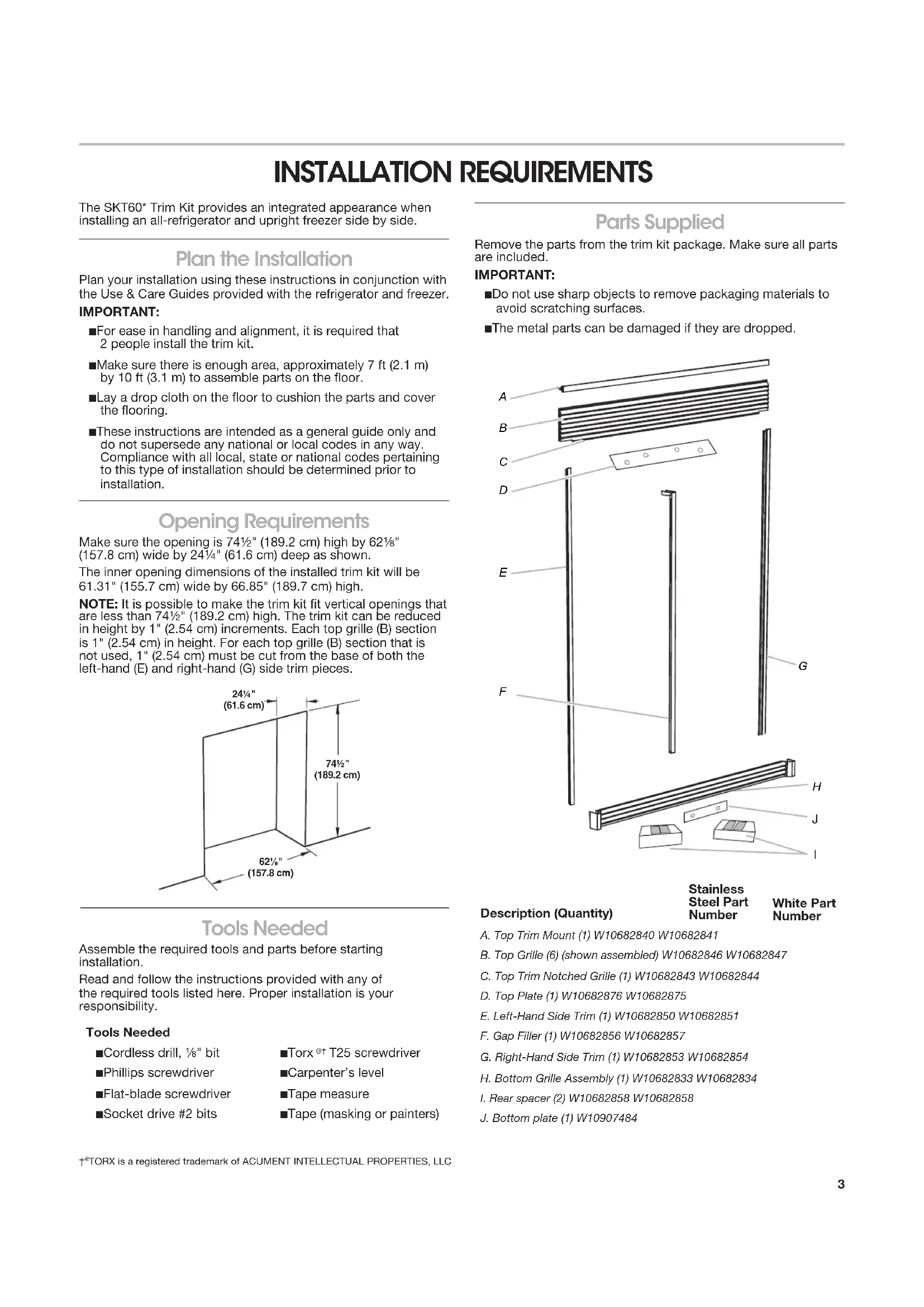

reproductive harm.3 INSTALLATION REQUIREMENTS The SKT60* Trim Kit provides an integrated appearance when installing an all-refrigerator and upright freezer side by side. Plan the Installation Plan your installation using these instructions in conjunction with the Use & Care Guides provided with the refrigerator and freezer. IMPORTANT: ■ For ease in handling and alignment, it is required that 2 people install the trim kit. ■ Make sure there is enough area, approximately 7 ft (2.1 m) by 10 ft (3.1 m) to assemble parts on the floor. ■ Lay a drop cloth on the floor to cushion the parts and cover the flooring. ■ These instructions are intended as a general guide only and do not supersede any national or local codes in any way. Compliance with all local, state or national codes pertaining to this type of installation should be determined prior to installation. Opening Requirements Make sure the opening is 74¹⁄2" (189.2 cm) high by 62¹⁄8" (157.8 cm) wide by 24¹⁄4" (61.6 cm) deep as shown. The inner opening dimensions of the installed trim kit will be 61.31" (155.7 cm) wide by 66.85" (189.7 cm) high. NOTE: It is possible to make the trim kit fit vertical openings that are less than 74¹⁄2" (189.2 cm) high. The trim kit can be reduced in height by 1" (2.54 cm) increments. Each top grille (B) section is 1" (2.54 cm) in height. For each top grille (B) section that is not used, 1" (2.54 cm) must be cut from the base of both the left-hand (E) and right-hand (G) side trim pieces. Tools Needed Assemble the required tools and parts before starting installation. Read and follow the instructions provided with any of the required tools listed here. Proper installation is your responsibility. Tools Needed ■ Cordless drill, ¹⁄8" bit ■ Phillips screwdriver ■ Flat-blade screwdriver ■ Socket drive #2 bits ■ Torx

T25 screwdriver ■ Carpenter’s level ■ Tape measure ■ Tape (masking or painters)24¼"(61.6 cm)74½"(189.2 cm)62⅛"(157.8 cm) Parts Supplied Remove the parts from the trim kit package. Make sure all parts are included. IMPORTANT: ■ Do not use sharp objects to remove packaging materials to avoid scratching surfaces. ■ The metal parts can be damaged if they are dropped. Description (Quantity) Stainless Steel Part Number White Part Number A. Top Trim Mount (1) W10682840 W10682841 B. Top Grille (6) (shown assembled) W10682846 W10682847 C. Top Trim Notched Grille (1) W10682843 W10682844 D. Top Plate (1) W10682876 W10682875 E. Left-Hand Side Trim (1) W10682850 W10682851 F. Gap Filler (1) W10682856 W10682857 G. Right-Hand Side Trim (1) W10682853 W10682854 H. Bottom Grille Assembly (1) W10682833 W10682834

Screw (4) White Kit Part Number W10383593 Stainless Steel Kit Part Number W10385275 M. Leveler Leg (4) Part Number 3-82710-001 Electrical Requirements Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. WARNING Before you move your freezer or refrigerator into its final location, it is important to make sure you have the proper electrical connection. Recommended Grounding Method A 115 Volt, 60 Hz., AC only, 15- or 20-amp fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your freezer be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord. NOTE: Before performing any type of installation, cleaning, or removing a light bulb, press and hold TEMP SETTING for 3 seconds to turn off cooling, and then disconnect the freezer r refrigerator from the electrical source. ASSEMBLY INSTRUCTIONS Assemble the Top Grille

1. Assemble the six top grille (B) sections by sliding one into the

other through the tongue and groove feature as shown.

2. Attach the top trim notched grille (C) to those already

assembled by sliding it into the bottom/lowest grille section.5

3. Install the top trim mount (A) onto the top grille assembly (B)

by sliding it onto the grille section at the top. Attach the Side Rails

1. Align the side trim pieces (E, G) with the sides of the top

grille assembly (B). NOTE: Make sure all the grille pieces are contained within the channel of the side trim pieces (E and G) and the top surface of the top grille (B) is flush with the top surface of the sides.

2. Align the hole in the side trim piece (E and G) with the groove

on the top grille (B) on each side of the grille assembly. There will be a ³⁄8" (9.5 mm) gap between side trim piece (E and G) and top grille (B).

3. Using the two countersunk Phillips screws (K) (provided),

fasten the side trim piece (E and G) to the top grille assembly (B). Insert the screw through the predrilled hole and into the groove on each side of the top grille assembly (B) as shown.

(9.5 mm) INSTALLATION INSTRUCTIONS Install the Top Grille and Trim Assembly IMPORTANT: The top grille and trim assembly, and your floor can be damaged if the assembly is dropped. Prepare the Opening

1. Place cardboard or hardboard over the floor at each side of

the rough opening where the side trim will meet the floor.

2. Place the top grille and trim assembly face down on the floor

centered in front of the rough opening.

3. Using two people, one on each side, lift the trim assembly

and position it into place above and on each side of the opening.

4. Use several pieces of tape to temporarily hold the assembly

5. Mark the trim assembly hole locations around the opening.

Remove the tape and lower the trim assembly back to the floor.

6. Using a cordless drill and ¹⁄8" diameter drill bit, drill holes

where marked. NOTE: Some cabinetry or wall materials may require predrilled holes using a

⁄8" diameter drill bit.

7. Repeat steps 3 and 4.6

Fasten the Top Trim to the Opening

1. Align the top grille assembly against the opening, so that

it is tight and flush with the front surface of the wall opening or cabinetry.

2. From below and behind the top grille assembly, insert a

panhead Phillips screw (J) through the predrilled center hole of the top grille (B) and into the wall opening or cabinetry. NOTE: Do not completely tighten the screw.

3. Using a carpenter’s level, level the top grille assembly (B),

and shim as necessary. NOTE: Shims are not provided with the trim kit.

4. Using two pan-head Phillips screws (J), fasten the top grille

assembly (B) by inserting a screw through the predrilled holes at each end. Completely tighten the screws.

5. Completely tighten the center screw.

Fasten the Side Trim to the Opening

1. Using a carpenters level, make sure the sides are plumb

and shim as necessary. NOTE: Shims are not provided with the trim kit.

2. Using four pan-head Phillips screws (J) (two on each side),

fasten both the left-hand (E) and right-hand side trim pieces (G) to the opening or cabinetry. Make sure the trim pieces do not twist. Place and Align Refrigerator and Freezer WARNING Excessive Weight Hazard Use two or more people to move and install refrigerator. Failure to do so can result in back or other injury. When Moving Your Freezer or Refrigerator: Your freezer and refrigerator are heavy. When moving the appliance for cleaning or service, be sure to cover the floor with cardboard or hardboard to avoid floor damage. Always pull the appliance straight out when moving it. Do not wiggle or “walk” the appliance when trying to move it, as floor damage could occur.

1. Place the freezer and refrigerator in front of the opening

(freezer on the left, refrigerator on the right).

2. Remove the plastic base grille from each appliance

by removing the two Phillips screws.

A. Screw locations WARNING Tip Over Hazard Refrigerator is top heavy and tips easily when not completely installed. Keep doors taped closed until refrigerator is completely installed. Use two or more people to move and install refrigerator. Failure to do so can result in death or serious injury.7 Install Leveler Legs

1. Remove the four hex-head screws on each roller assembly.

Set the roller assemblies aside.

2. Place the refrigerator/freezer on its back on top of a piece

of cardboard or other protective material.

3. Insert two plastic leveler legs (M) into each cabinet.

4. Return refrigerator/freezer to an upright position.

5. Adjust the leveler legs (M) so that each appliance is level,

plumb and at the same height as the other appliance. NOTE: Now, the freezer and refrigerator each have two front leveler legs (M) that are adjustable. The back of each cabinet rests on two fixed supports.

6. Place a leveling tool on top of the cabinet. Check the level

first side to side and then front to back. To raise a corner – Turn the leveler leg clockwise. To lower a corner – Turn the leveler leg counterclockwise.

7. Repeat Step 3 for the other appliance until both the freezer

and refrigerator are level, plumb and at the same height. Move Refrigerator and Freezer to Final Location WARNING Excessive Weight Hazard Use two or more people to move and install refrigerator. Failure to do so can result in back or other injury. When Moving Your Freezer or Refrigerator: Your freezer and refrigerator are heavy. When moving the appliance for cleaning or service, be sure to cover the floor with cardboard or hardboard to avoid floor damage. Always pull the appliance straight out when moving it. Do not wiggle or “walk” the appliance when trying to move it, as floor damage could occur. Move the First Appliance IMPORTANT: If the electrical outlets are not centered in the back wall of the opening, move the appliance on the opposite side of the outlets into the opening first.

1. Cover the floor with cardboard or hardboard to avoid floor

2. Attach a plastic foam rear spacer (I) to the rear center of both

appliances. NOTE: The rear spacers (I) ensure that the 2 appliances are positioned the correct distance from the wall to avoid cabinet damage.

3. Slide the first appliance into the opening far enough to

connect the power cord to the electrical outlet. IMPORTANT: Wait 24 hours before plugging in your refrigerator or freezer to avoid compressor failure. Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. WARNING

4. Plug into a grounded 3 prong outlet.

Move the Second Appliance IMPORTANT: If the electrical outlets are not centered in the back wall of the opening, move the appliance on the opposite side of the outlets into the opening first.

1. Slide the second appliance into the opening far enough

to connect the power cord to the electrical outlet. IMPORTANT: Wait 24 hours before plugging in your refrigerator or freezer to avoid compressor failure.

2. Plug into a grounded 3 prong outlet.

3. If needed, either door may be adjusted horizontally by

loosening the three hinge bolts, moving the hinge and retightening the bolts. NOTE: Provide additional support for the refrigerator door while the hinges are being moved. Do not depend on the door gasket magnets to hold the door in place while you are working. Install the Top Plate

1. Insert one painted pan-head Torx

screw (L) through the top plate (D) and thread it into the cabinet. Use the two rear holes in each cabinet. NOTE: Do not completely tighten the screw. WARNING Tip Over Hazard Refrigerator is top heavy and tips easily when not completely installed. Keep doors taped closed until refrigerator is completely installed. Use two or more people to move and install refrigerator. Failure to do so can result in death or serious injury.8

2. Align the top plate (D) holes with the holes in the appliances

and install the remaining three screws (L) as shown. NOTE: Do not completely tighten the screws.

3. Push the refrigerator and freezer fully into the opening.

4. Check the level of the each appliance since it may have

changed when you moved it into the opening. NOTE: Depending on the level of the floor, you may need to remove each appliance and readjust several times to achieve a satisfactory alignment.

5. Completely tighten all four screws (L) in top plate (D).

(two for each cabinet) with the edge of the rounded openings in the base of the cabinets.

A. Grille clips aligned with edge of rounded openings

2. Push and snap all the grille clips into place.

NOTE: Make sure the grille clips are fully engaged and that the base grille side caps are situated outside the hinge bracket on each appliance. Install the Gap Filler

1. Place the magnetic gap filler (F) between the refrigerator and

freezer to fill in the gap between the appliances. NOTE: The gap filler (F) should be flush with the tops of the appliance cabinets. Care and Cleaning Clean the trim and grille surfaces with a cotton cloth dampened with a solution of mild dish detergent and warm water. Do not use harsh or abrasive cleaners because they will damage the metal surface of the grille and trim.9
