BA.150 - Sharpener Beper - Free user manual and instructions
Find the device manual for free BA.150 Beper in PDF.
| Brand | Beper |
| Model | BA.150 |
| Product type | Two-position electric sharpener |
| Power supply | 220-240 V ~ 50 Hz |
| Power | 20 W |
| Main functions | Two-phase sharpening: phase 1 (precision) and phase 2 (polishing), two slot positions, rotating grinding wheels |
| Usage | Insert the blade into the slots of position 1 (C) then position 2 (D), pull slowly toward the handle, repeat 3 times, then quick pass for polishing |
| Maintenance and cleaning | Unplug before cleaning, wipe the body with a slightly damp soft cloth, do not use abrasive products, do not immerse |
| Safety | Do not use if cable is damaged, unplug before cleaning, do not touch with wet hands, do not leave children unattended |
| Warranty | 24 months from the date of purchase |
| Weight | Approximately 0.3 kg |
| Dimensions (L x W x H) | Approximately 12 x 6 x 6 cm |
| Included accessories | User guide |
Frequently Asked Questions - BA.150 Beper
User questions about BA.150 Beper
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Sharpener in PDF format for free! Find your manual BA.150 - Beper and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BA.150 by Beper.
USER MANUAL BA.150 Beper
For further information and/or for instructions for use in other languages, please visit: beper.com
Fig.A
Fig.1
AVVERTENZE GENERALI
LEGGERE QUESTE ISTRUZIONI PRIMA DI USARE L'APPARECCHIO.

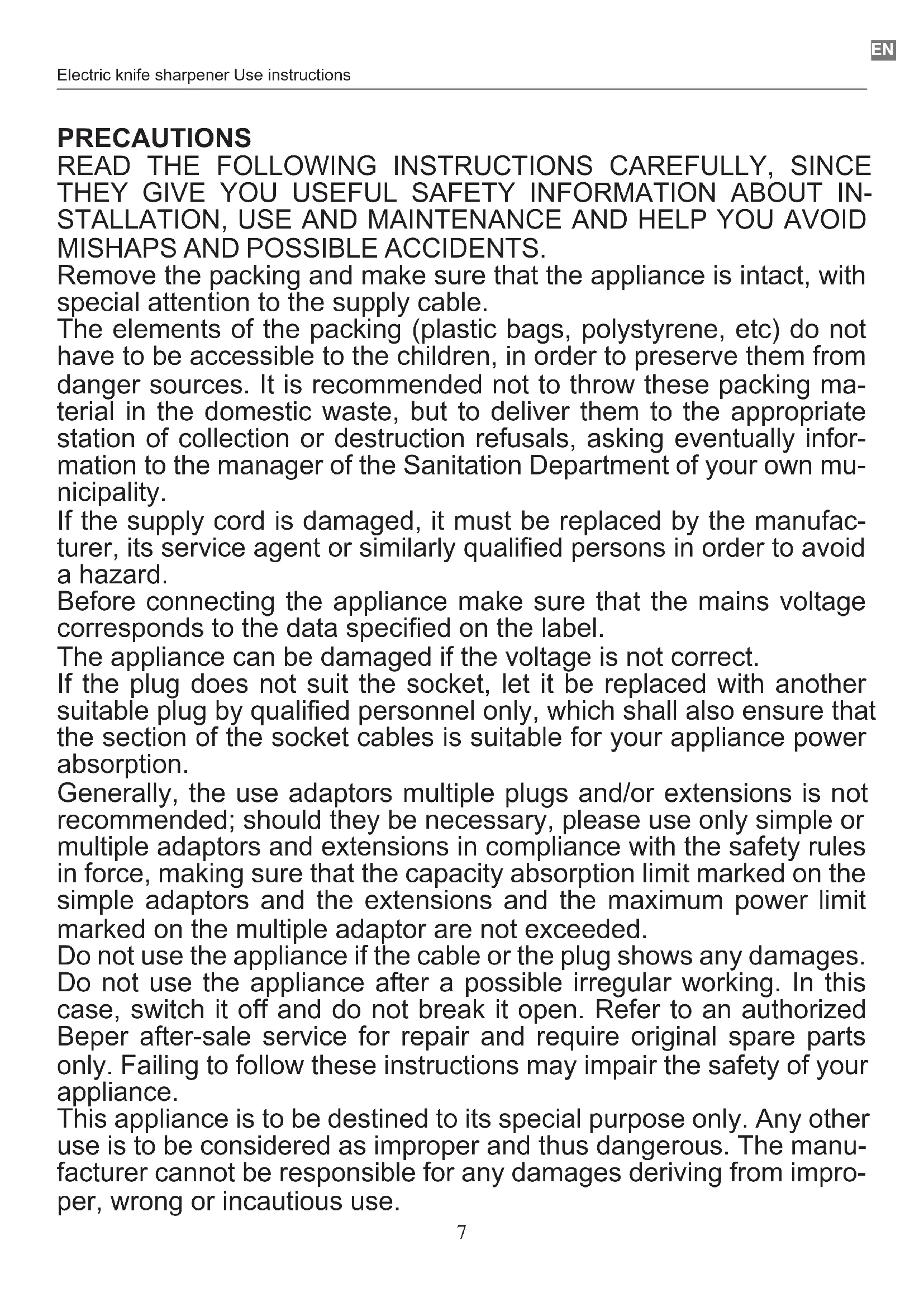

READ THE FOLLOWING INSTRUCTIONS CAREFULLY, SINCE THEY GIVE YOU USEFUL SAFETY INFORMATION ABOUT INSTALLATION, USE AND MAINTENANCE AND HELP YOU AVOID MISHAPS AND POSSIBLE ACCIDENTS.
Remove the packing and make sure that the appliance is intact, with special attention to the supply cable.
The elements of the packing (plastic bags, polystyrene, etc) do not have to be accessible to the children, in order to preserve them from danger sources. It is recommended not to throw these packing material in the domestic waste, but to deliver them to the appropriate station of collection or destruction refusals, asking eventually information to the manager of the Sanitation Department of your own municipality.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Before connecting the appliance make sure that the mains voltage corresponds to the data specified on the label.
The appliance can be damaged if the voltage is not correct.
If the plug does not suit the socket, let it be replaced with another suitable plug by qualified personnel only, which shall also ensure that the section of the socket cables is suitable for your appliance power absorption.
Generally, the use adaptors multiple plugs and/or extensions is not recommended; should they be necessary, please use only simple or multiple adaptors and extensions in compliance with the safety rules in force, making sure that the capacity absorption limit marked on the simple adaptors and the extensions and the maximum power limit marked on the multiple adaptor are not exceeded.
Do not use the appliance if the cable or the plug shows any damages. Do not use the appliance after a possible irregular working. In this case, switch it off and do not break it open. Refer to an authorized Beper after-sale service for repair and require original spare parts only. Failing to follow these instructions may impair the safety of your appliance.
This appliance is to be destined to its special purpose only. Any other use is to be considered as improper and thus dangerous. The manufacturer cannot be responsible for any damages deriving from improper, wrong or incautious use.
THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY.
To protect against electric shock, do not immerse cord, plug or any parts of the appliance into water or other fluids.
Do not use the appliance near explosives, highly flammable materials, gases or burning flames.
DO NOT ALLOW CHILDREN, DISABLED PEOPLE OR EVERY PEOPLE WITHOUT EXPERIENCE OR TECHNICAL ABILITIES TO USE THE APPLIANCE IF THEY ARE NOT PROPERLY WATCHED OVER. CLOSE SUPERVISION IS NECESSARY WHEN ANY APPLIANCE USED BY OR NEAR CHILDREN.
Do not hold the appliance with wet hands or feet.
Never use any accessories but those provided for by Beper. The use of accessory attachments not recommended by the appliance manufacturer may cause hazard or injury.
Do not use the appliance near the bath, the shower, the wash-basin or anywhere water can turn out to be a source of danger.
Do not pull the mains cable or the appliance itself when disconnecting the plug from the socket.
Do not let cord hang over edge of table, or touch hot surface.
Do not expose the appliance to atmospheric agents such as rain, wind, snow, hail. Do not use outdoors.
Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
If you decide not to use the appliance any longer, make it unserviceable by simply cutting the supply cable after disconnecting the plug from the socket. Also make any dangerous parts unserviceable, especially for children who could play whit the appliance.
Let other potential users read these instructions.
Keep these instructions

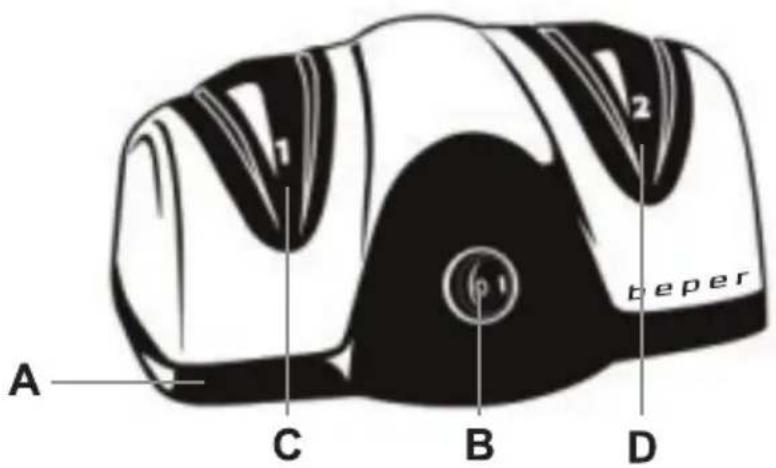

PRODUCT DESCRIPTIONS Fig.A
A. Base
B. On/off switch
C. Sharpening position 1 (2 blade guide slots)
D. Sharpening position 2 (2 blade guide slots)
USEINSTRUCTIONS
Moisten the bottom of the suction feet under the base (A) and then place the appliance on a stable surface. Connect power plug to a suitable electric socket.
The sharpening wheels that are situated under the 2 sharpening positions (C & D) will start rotating when the switch (B) is turned on.
Sharpening in 2 stages:
Stage 1: Precision sharpening

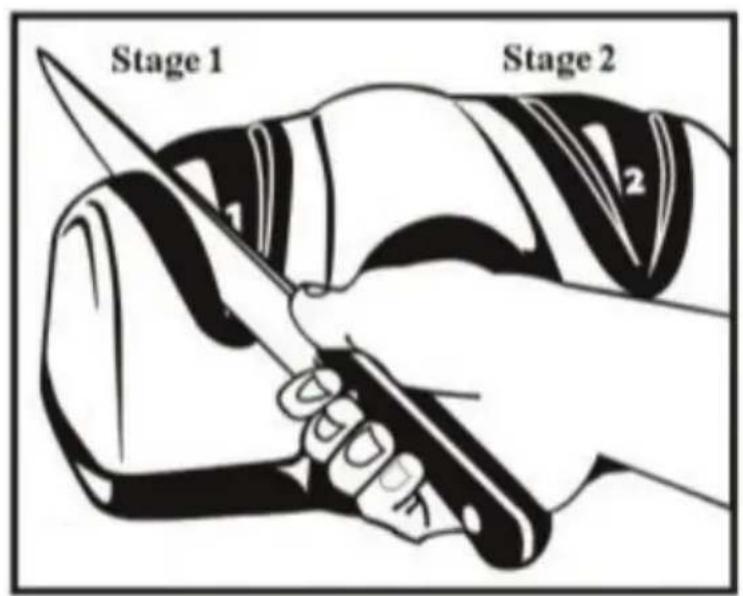

Place the knife's blade into the first blade guide slot of the sharpening position 1 (C) (Fig.1) holding it only by the handle. Pay close attention and keep the fingers away from the cutting edge.
Slowly draw the knife towards the direction of the handle and repeat 3 times.
The knife's cutting edge should be kept parallel with the surface on which the appliance is placed (Fig.1), except when sharpening the blade tip.
To sharpen the tip, lift up on the knife handle slightly as the curved portion of the blade is drawn through the blade guide slot.
The duration of each pass in each slot depends on the blade's length. It is recommended 1 second for every 4 cm of blade's length, 2 seconds for 10 cm, and 3 seconds for 15 cm, etc.
Repeat the same process in the second blade guide slot, always in the same sharpening position 1 (C).
Stage 2: Fine sharpening and polishing
Repeat the same procedure of Stage 1 on the sharpening position 2 (D).
Complete this fine sharpening and polishing process with one quick pass of approximately one second in each of the blade guide slot.
Turn off the switch (B) and unplug the appliance.
Clean the sharpened knife with a clean damp cloth before use.
CLEANING
Before cleaning the appliance make sure to turn it off and unplug it.
The appliance's body could be cleaned with a clean damp cloth. Do not clean it with detergents, abrasive products, which may damage it.
Eventual dust or metal filings could be removed by a small duster or a mini vacuum cleaner.
Do not allow water to penetrate the appliance.
Do not immerge the appliance in water or any other liquids.
TECHNICAL DATA
Power: 20W
Voltage: 220 - 240V 50Hz
For any improvement reasons, Beper reserves the right to modify or improve the product without any notice.
The European directive 2011/65/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.
GUARANTEE CERTIFICATE
This appliance has been checked in the factory. From the date of original purchase a 24 month guarantee applies to material and production defects. The purchase receipt and the guarantee certificate must be submitted together in case of claim to guarantee.
The guarantee is valid only with a guaranty certificate and proof of purchase (fiscal receipt) indicating the date of purchase and the model of the appliance
For any technical assistance, please contact directly the seller or our head office in order to preserve the appliance's efficiency and NOT TO void the guarantee. Any intervention on this appliance by non-authorized persons will automatically void the guarantee.
GUARANTEE CONDITIONS
If the appliance shows defects as a result of faulty material and/or production during the period of guarantee, we guarantee repair free of charge on condition that:
- The appliance has been used properly and for the purpose for which it has been intended.
- The appliance has not been tampered with, otherwise it is not maintainable.
- The purchase receipt shall be presented.
- The appliance showing a fair wear and tear shall not be covered by this guarantee.
Therefore, any part that could be accidentally broken or having visible signs of use in consumable products (such as lamps, batteries, heating elements...) the aesthetic parts are excluded from the guarantee, and any defect whatsoever resulting from non-respect of the rules for use, negligence in usage and/or maintenance of the appliance, carelessness, wrong or improper installation, damage during transport and any other damage not attributable the supplier.
For every defect that could not be repaired within the guarantee period, the appliance will be replaced free of charge.
In any case, if the part to be replaced for defect, breakage or malfunction is an accessory and/or a detachable part of the product, Beper reserves the right to replace only the very part in question and not the entire product
TECHNICAL ASSISTANCE
Even after the guarantee period we will always pay attention to repairs for defected appliances.
For technical assistance and/or repairs after the guarantee period you can directly contact the below address:
CONTACT YOUR DISTRIBUTOR IN YOUR COUNTRY OR ATER SALES DEPARTMENT BEPER. E-MAIL assistenza@beper.com WHICH WILL FORWARD YOUR ENQUIRIES TO YOUR DISTRIBUTOR.
