Product type	Wireless access point
Brand	LevelOne
Model	WAP8123
Dimensions (approx.)	17 x 12 x 3 cm
Weight	200 g
Power supply	PoE 802.3at or power adapter (sold separately)
Power consumption	12 V / 1 A
Network interface	1 port Ethernet RJ-45 (PoE)
Default IP address	192.168.188.253
Default username	admin
Default password	admin
Main functions	Wi-Fi access point, repeater mode, web interface control
Wireless standards	802.11 b/g/n/ac
Security	WPA2, MAC filtering
Maintenance and cleaning	Dust with a dry cloth
Spare parts and repairability	Power adapter available separately
General information	Installation on local network, management via browser

Frequently Asked Questions - WAP8123 LEVELONE

What is the default IP address of the LevelOne WAP8123?

The default IP address is 192.168.188.253.

What is the default password for the admin interface?

The default username and password are both admin.

How to power the WAP8123 access point?

You can power it via PoE 802.3at (Ethernet cable) or via a power adapter (sold separately).

How to configure the access point for the first time?

Connect the AP and your computer to the same switch, set your PC to a static IP (192.168.188.x), open a browser and enter 192.168.188.253. Log in with admin/admin.

Does the WAP8123 support repeater mode?

Yes, it supports access point and repeater modes (check the configuration interface).

How to reset the access point to factory settings?

Press and hold the Reset button for about 10 seconds until the LEDs flash.

What are the supported Wi-Fi standards?

It supports 802.11 b/g/n/ac standards.

How to secure my Wi-Fi network with this access point?

In the web interface, enable WPA2 and set a security key. You can also filter by MAC addresses.

Can I use a standard Ethernet cable for PoE?

Yes, a standard Ethernet cable (Cat5e or higher) works for PoE 802.3at.

Where to find the complete manual for the WAP8123?

The complete manual is available for free download in PDF format on the website notice-facile.com.

USER MANUAL WAP8123 LEVELONE

Quick Installation Guide

(WAP-8123)

V1.1

Content

Hardware and Operation mode Instruction 1
Interface Description. 2
English 3
Deutsch. 4
Francais. 5
Espanol. 6
Portugues. 7
Italiano 8
Figure 1. .9
Figure 2. 9
Figure 3. 10
Figure 4. 10

Package Contents

1.Screw Kit
2.RJ45 Network Cable
3.Quick Installation Guide
4.Resource CD (User Manual, QIG)

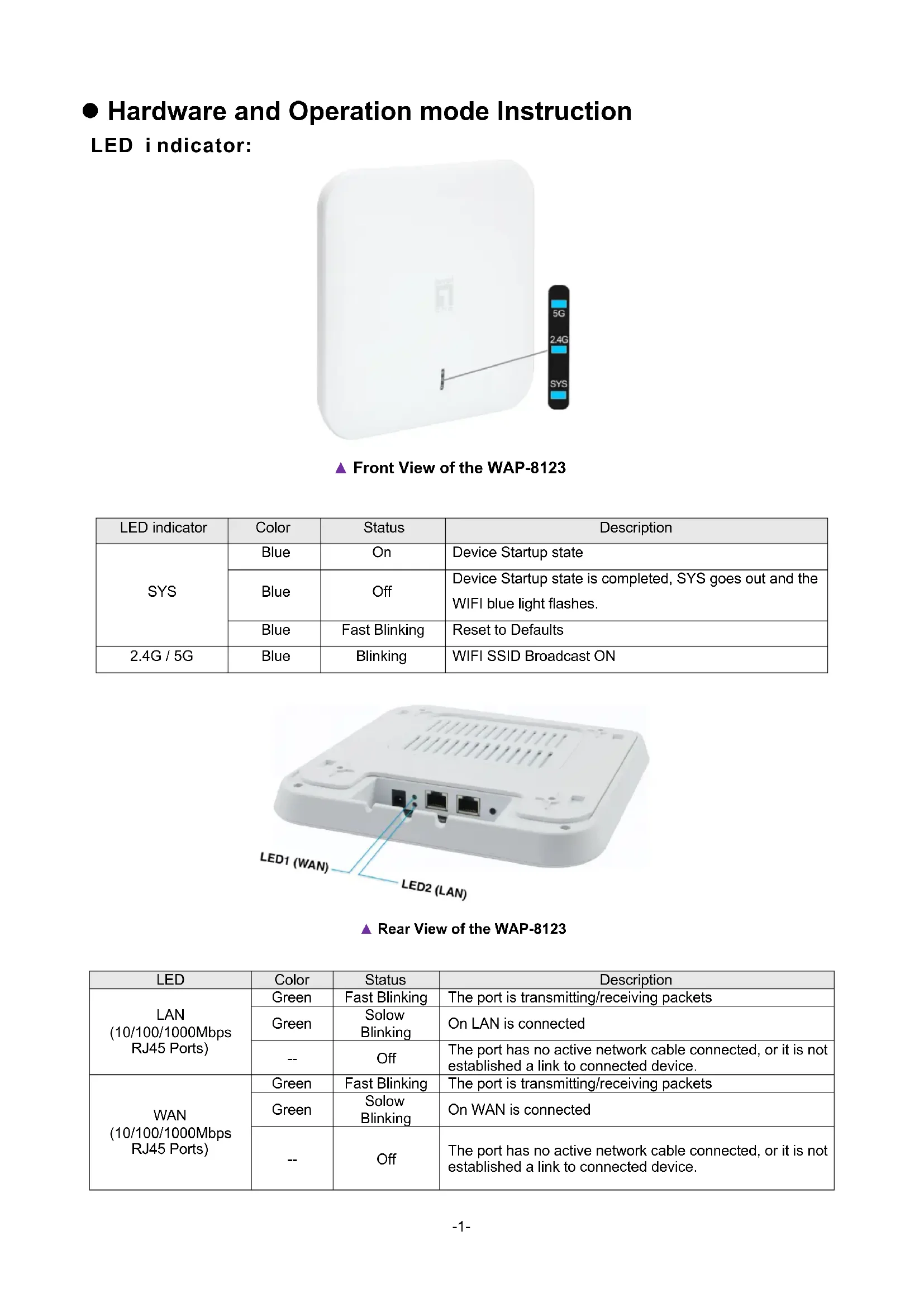

- Hardware and Operation mode Instruction

LED indicator:

Front View of the WAP-8123

LED indicator	Color	Status	Description
SYS	Blue	On	Device Startup state
	Blue	Off	Device Startup state is completed, SYS goes out and the WIFI blue light flashes.
	Blue	Fast Blinking	Reset to Defaults
2.4G / 5G	Blue	Blinking	WIFI SSD Broadcast ON

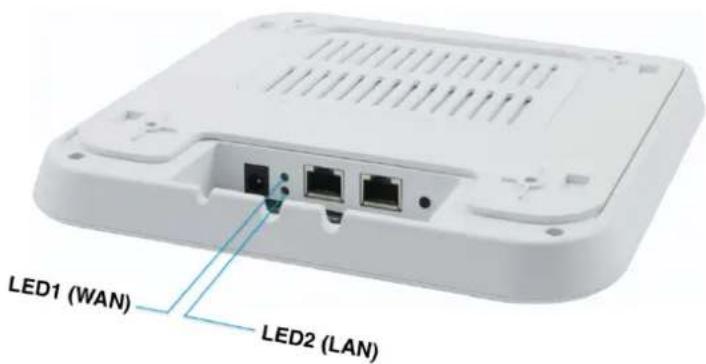

Rear View of the WAP-8123

LED	Color	Status	Description
LAN(10/100/1000Mbps RJ45 Ports)	Green	Fast Blinking	The port is transmitting/receiving packets
	Green	Solow Blinking	On LAN is connected
	--	Off	The port has no active network cable connected, or it is not established a link to connected device.
WAN(10/100/1000Mbps RJ45 Ports)	Green	Fast Blinking	The port is transmitting/receiving packets
	Green	Solow Blinking	On WAN is connected
	--	Off	The port has no active network cable connected, or it is not established a link to connected device.

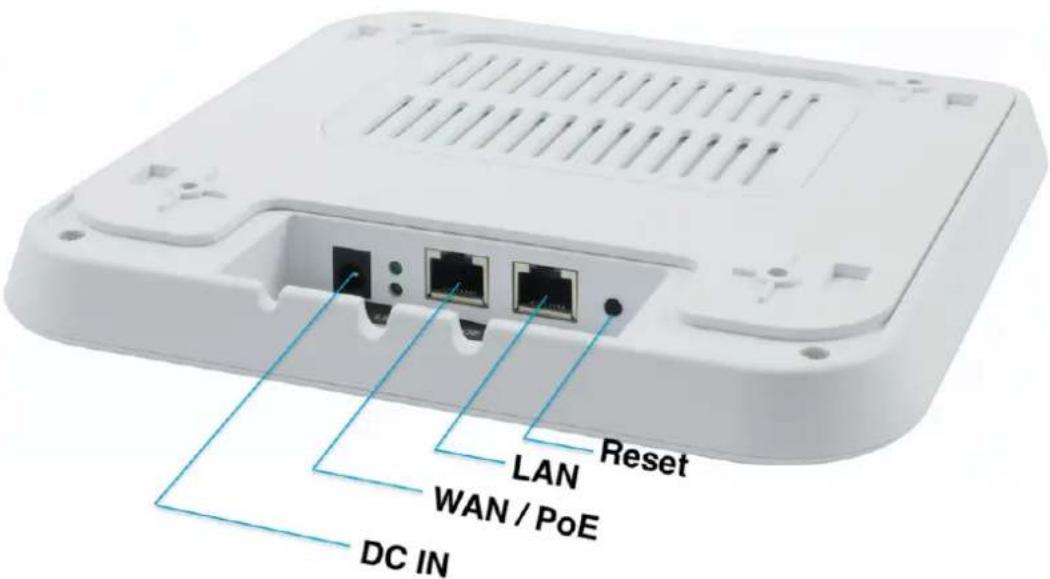

- Interface Description

Button / Interface	Description
RESET(Reset to Default)	With the AP powered on, press the Reset button for 10~14 seconds until the Signal Strength LED blink faster than ever.The AP will restart itself and reset the device to factory default settings.
LAN port(10/100/1000Mbps RJ45 port)	The LAN port is used to connect to network devices, such as a switch or PC / NB
WAN / PoE port(10/100/1000Mbps RJ45 port)	The WAN/POE port is used to connect to network devices,such as a POE switch OR POE adapter to power the device(IEEE802.3at ) 48 VDC.(PoE adapter unit is to be ordered separately)
DC IN	12V/1.5A DC input Power Adapter.(Power Adapter unit is to be ordered separately)

English

Default Settings

IP Address	192.168.188.253
Password	admin

Hardware Installation

Power on the Device.

To power on the AP, you can use one of the following methods:

1. Plug one end of your Ethernet cable into the WAN port of the AP, and the other end into a port on a PoE switch or a 802.3at PoE injector.
2. Connect the power adapter. (Power adapter unit is to be ordered separately)

Configuring the Device

To set up and manage the AP, you can use one of the following methods:

• Connect the access point and your computer to the same switch or router. Manage the access point from the computer. (Figure 1)

Software Installation

To login to the LevelOne AP, please perform the following steps:

1. Check Your Network Settings to login web UI.

Please make sure your PC can get IP address automatically, so the router can communicate with your PC during configuration.

• Select "Control Panel" > "Network Connections".
• Right click the "Local Area Connection" and choose "Properties".
• Select the TCP/IP protocol for your network card.

• Change the IP Address of PC: To configure the IP Address, click the network icon to open the Ethernet dialog to configure the IP Address. Select "Properties", choose "Internet Protocol (TCP/IP)" and select "Properties". Input the IP Address "192.168.188.2 ~ 192.168.188.250" and continue. (Figure 2)

• Launch a Web browser (Microsoft Internet Explorer 8 for example), enter the AP's default LAN IP address 192.168.188.253 in the address bar, and then press Enter, as shown in the following picture. (Figure 3)

Then enter the default user name of admin and password of admin in the User Name and Password fields, click "OK" to access the AP's Web GUI. (Figure 4)

Standardstellungen

Standard-IP-Adresse	192.168.188.253
Kennwort	admin

Hardwareinstallation

Gerä einschalten
