Technical Features	Vacuum cleaner with HEPA filter, suction power of 1200 W, 20 L tank capacity, weight 8 kg.
Usage	Designed for professional use, ideal for cleaning commercial and industrial surfaces.
Maintenance and Repair	Washable filters, replaceable dust bag, regular maintenance recommended every 6 months.
Safety	Overheat protection, 10 m power cable, compliant with electrical safety standards.
General Information	2-year warranty, after-sales service available, included accessories: brush for hard floors, brush for carpets.

Frequently Asked Questions - S 21 Cleanfix

How can I fix the loss of suction problem with my Cleanfix S 21 vacuum cleaner?

Check if the filter is clogged or dirty. Clean or replace the filter if necessary. Also ensure that the dust bag is not full and that the hoses are not blocked.

What should I do if my Cleanfix S 21 does not turn on?

Check that the vacuum cleaner is properly plugged into a working outlet. If the device still does not turn on, check the power cord for damage or consider contacting customer service.

How do I clean the filter of the Cleanfix S 21 vacuum cleaner?

Remove the filter according to the user manual. Wash it with lukewarm water without detergent and let it dry completely before putting it back in place.

My Cleanfix S 21 vacuum cleaner makes abnormal noise, what should I do?

Check for objects stuck in the hose or brush. Clean the brushes and make sure all parts are properly assembled. If the noise persists, contact a technician.

How can I replace the dust bag of my Cleanfix S 21?

Open the dust bag compartment, remove the old bag and insert a new bag making sure it is properly in place. Close the compartment before turning the vacuum cleaner back on.

What is the recommended frequency for cleaning or replacing the filter?

It is recommended to clean the filter every 3 months and replace it every 6 to 12 months, depending on the frequency of vacuum cleaner use.

My Cleanfix S 21 emits an unpleasant odor, what should I do?

This may be due to a full dust bag or a dirty filter. Change the dust bag and clean the filter. If the odor persists, check if debris is stuck in the motor.

What types of surfaces can I clean with the Cleanfix S 21?

The Cleanfix S 21 is designed to be used on various types of surfaces, including carpets, rugs, tiles, and hard floors. Make sure to use the appropriate accessories for each surface.

Where can I find spare parts for my Cleanfix S 21?

Spare parts can be ordered directly from the manufacturer or through authorized dealers. Check the official Cleanfix website for more information.

USER MANUAL S 21 Cleanfix

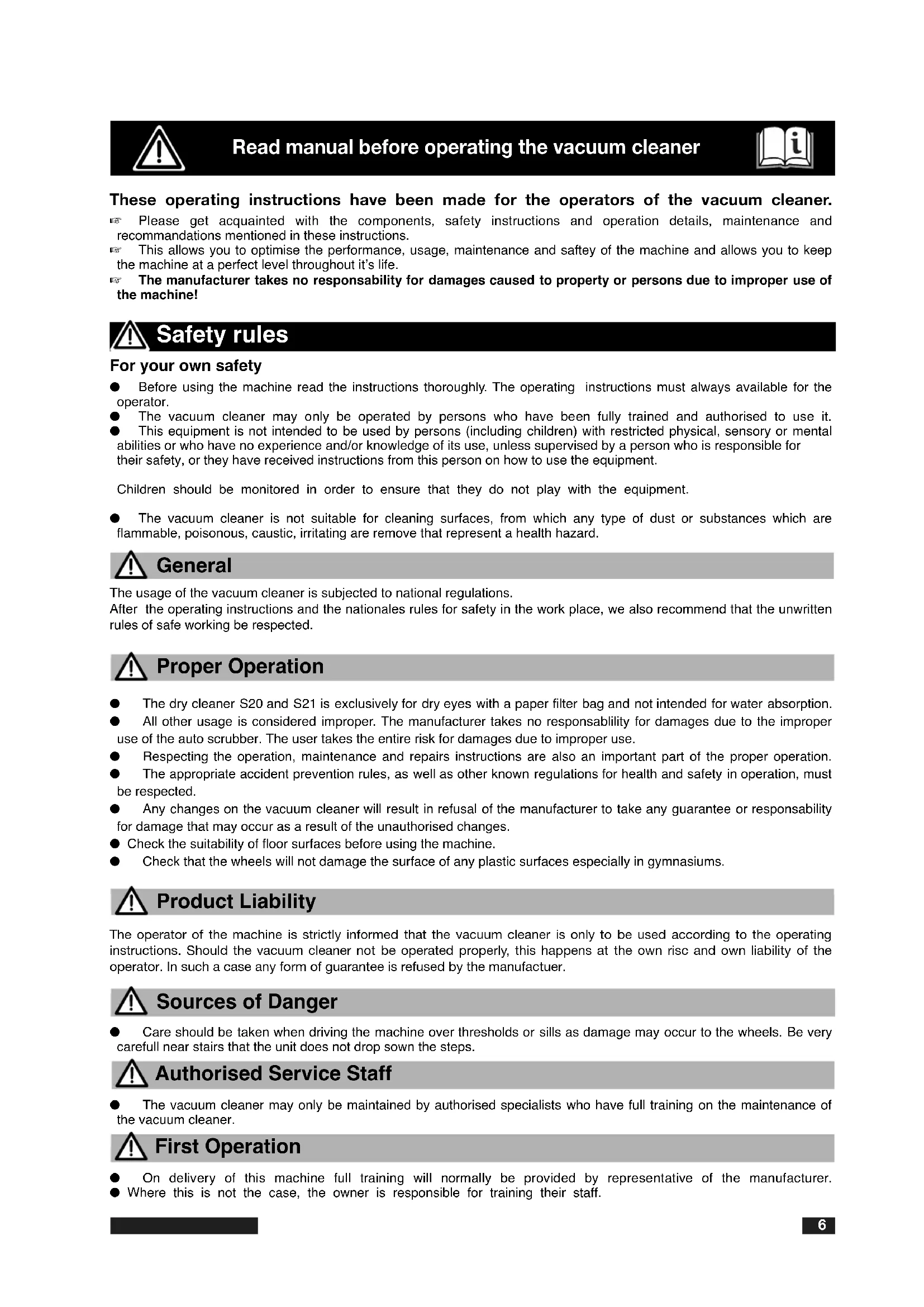

These operating instructions have been made for the operators of the vacuum cleaner.

Please get acquainted with the components, safety instructions and operation details, maintenance and recommendations mentioned in these instructions.
This allows you to optimise the performance, usage, maintenance and safety of the machine and allows you to keep the machine at a perfect level throughout it's life.
The manufacturer takes no responsibility for damages caused to property or persons due to improper use of the machine!

Safety rules

For your own safety

• Before using the machine read the instructions thoroughly. The operating instructions must always available for the operator.
  The vacuum cleaner may only be operated by persons who have been fully trained and authorised to use it.
  This equipment is not intended to be used by persons (including children) with restricted physical, sensory or mental abilities or who have no experience and/or knowledge of its use, unless supervised by a person who is responsible for their safety, or they have received instructions from this person on how to use the equipment.

Children should be monitored in order to ensure that they do not play with the equipment.

The vacuum cleaner is not suitable for cleaning surfaces, from which any type of dust or substances which are flammable, poisonous, caustic, irritating are remove that represent a health hazard.

General

The usage of the vacuum cleaner is subjected to national regulations.

After the operating instructions and the nationales rules for safety in the work place, we also recommend that the unwritten rules of safe working be respected.

Proper Operation

The dry cleaner S20 and S21 is exclusively for dry eyes with a paper filter bag and not intended for water absorption.
All other usage is considered improper. The manufacturer takes no responsibility for damages due to the improper use of the auto scrubber. The user takes the entire risk for damages due to improper use.
Respecting the operation, maintenance and repairs instructions are also an important part of the proper operation.
The appropriate accident prevention rules, as well as other known regulations for health and safety in operation, must be respected.
Any changes on the vacuum cleaner will result in refusal of the manufacturer to take any guarantee or responsibility for damage that may occur as a result of the unauthorised changes.
- Check the suitability of floor surfaces before using the machine.
- Check that the wheels will not damage the surface of any plastic surfaces especially in gymnasiums.

Product Liability

The operator of the machine is strictly informed that the vacuum cleaner is only to be used according to the operating instructions. Should the vacuum cleaner not be operated properly, this happens at the own risc and own liability of the operator. In such a case any form of guarantee is refused by the manufacturer.

Sources of Danger

Care should be taken when driving the machine over thresholds or sills as damage may occur to the wheels. Be very careful near stairs that the unit does not drop sown the steps.

Authorised Service Staff

The vacuum cleaner may only be maintained by authorised specialists who have full training on the maintenance of the vacuum cleaner.

First Operation

On delivery of this machine full training will normally be provided by representative of the manufacturer.
- Where this is not the case, the owner is responsible for training their staff.

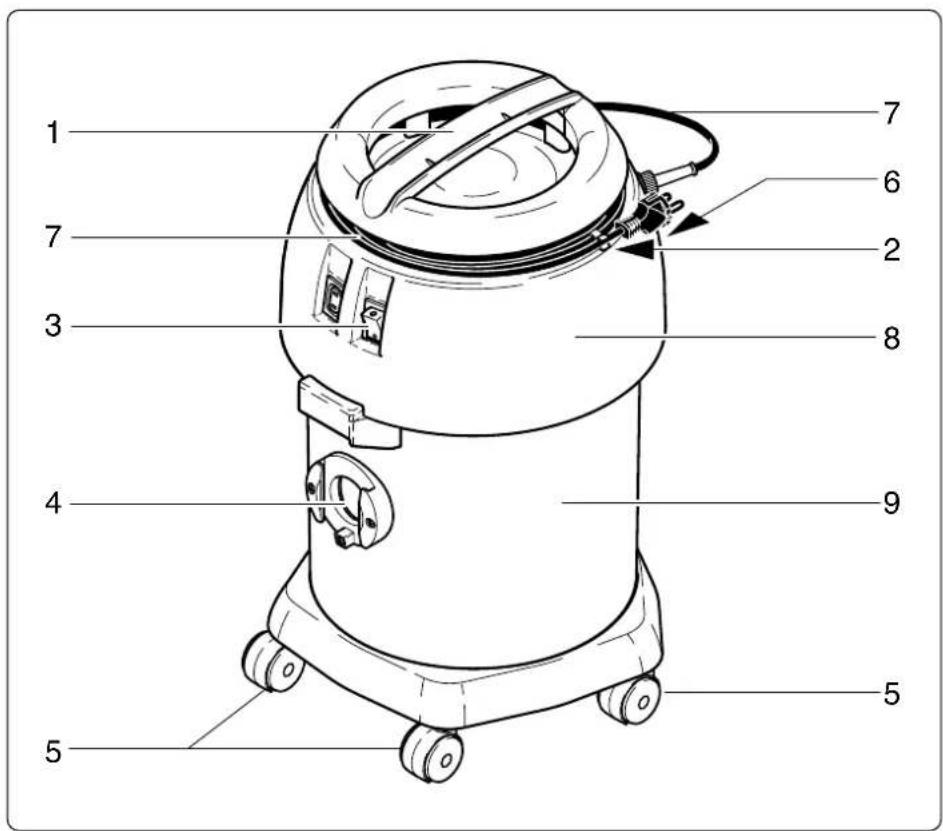

Explanation of pictures S 20

Vacuum cleaner

1 Handle
2 Cable holder
3 Main switch ON/OFF
4 Connector for hose
5 5 swivel castors
6 Latch for securing cover
7 Mains cable
8 Motor housing with noise absorption
9Bucket

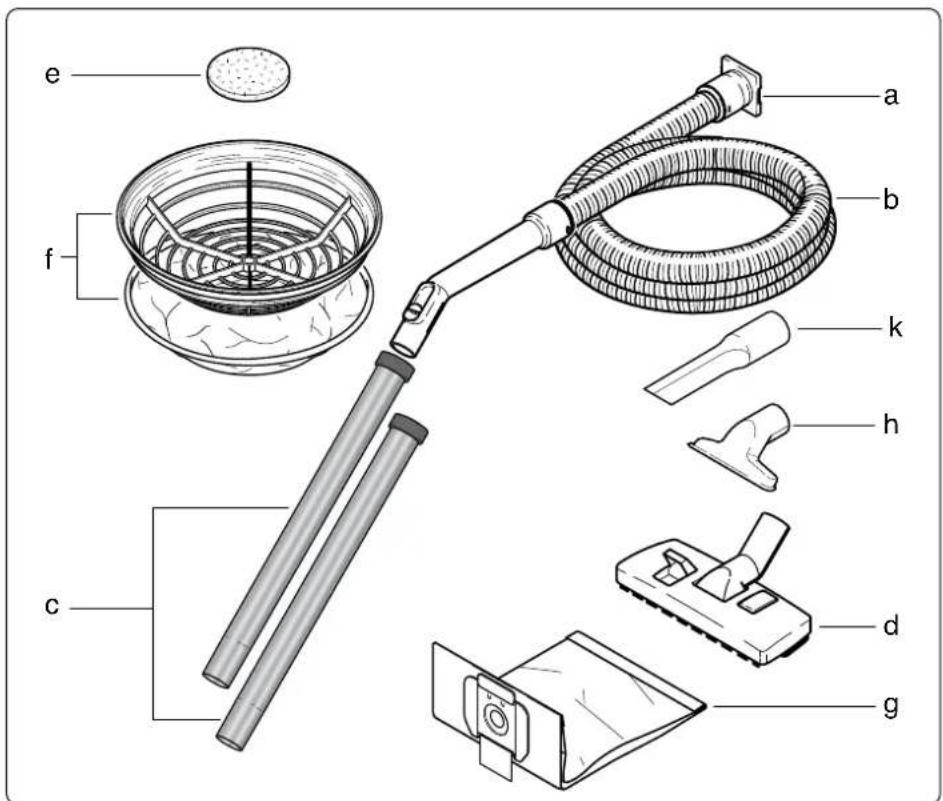

Accessories

a Hose connector
b Suction hose
c Tubes (2)
d Carpet / hardfloor tool
e Dustfilter
Filterbasket with cloth filter
g Paper bag
hUpholstery tool
k Crevice tool

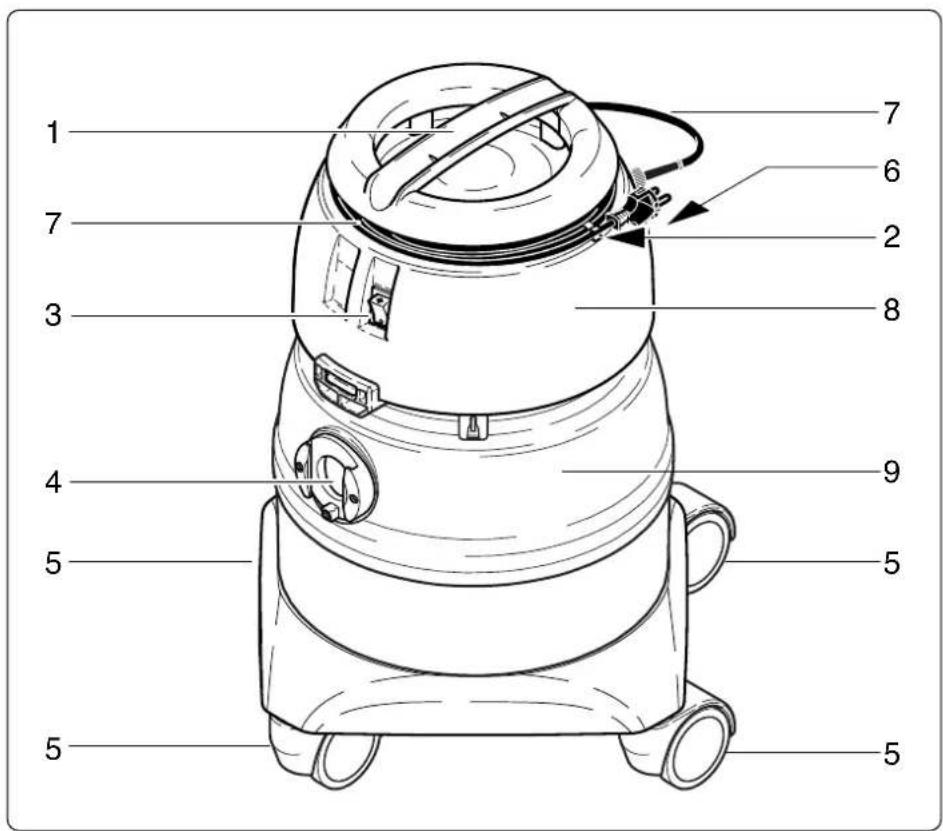

Explanation of pictures S 21

Vacuum cleaner

1 Handle
2 Cable holder
3 Main switch ON/OFF
4 Connector for hose
5 4 swivel castors
6 Latch for securing cover
7 Mains cable
8 Motor housing with noise absorption
9Bucket

Accessories

a Hose connector
b Suction hose
c Tubes (2)
d Carpet / hardfloor tool
e Dustfilter

Filterbasket with cloth filter

g Paper bag
hUpholstery tool
k Crevice tool

Commissioning / Operation

S 20 with paper filter bag

The vacuum cleaner S 20 is not suitable for cleaning surfaces, from which any type of dust or substances which are flammable, poisonous, caustic, irritating are remove that represent a health hazard.

Changing the paper dustbag

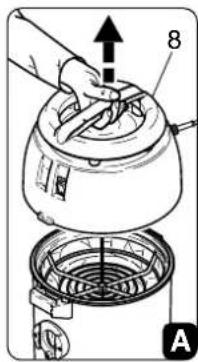

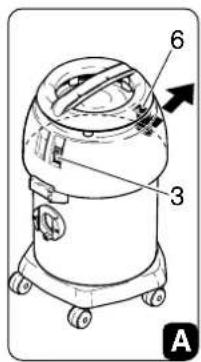

A The dry vacuum S 20 with a twopoly, unbleached double-layer Papierfilterbeutel (g) as standard. The double-ply paper filterbag guarantees a constant high suction. Sucker off (3). Locking handle (6) after press up and suction head (8) decrease.

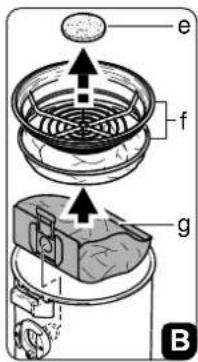

B Filter basket with cotton cloth (f) Take out. Filled paper bag (g) disposed of. Make that the motor protection filter (s) is used.

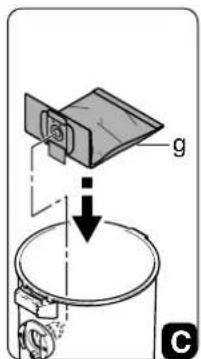

C Open the new dustbag entirely and place the rubber ring of the dustbag carefully over the inner part of the hose connector.

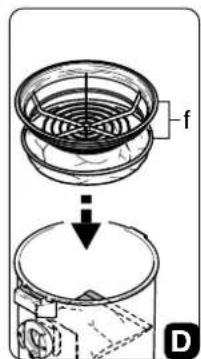

D Filter basket with cotton cloth (f) and clean if necessary. tree cotton cloth or vacuum cleaner for a thorough cleaning supply and remove the filter basket with 30^ with substance. Cotton cloth to dry and re-insert.
E Place the motor housing (8) back into position and adjust by pressing the latch (6) back into the securing position.

Unwind the mains cable (7) completely from the motor housing. Attached required accessories.

Now you may proceed with vacuum cleaning by pressing the main switch (3) on.

S 21 with paper filter bag

The vacuum cleaner S 21 is not suitable for cleaning surfaces, from which any type of dust or substances which are flammable, poisonous, caustic, irritating are remove that represent a health hazard.

Changing the paper dustbag

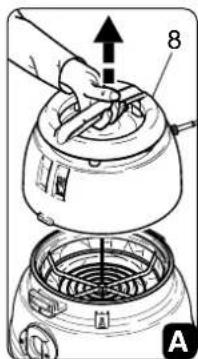

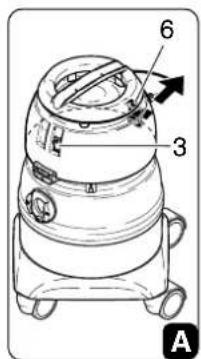

A The dry vacuum S 21 with a twopoly, unbleached double-layer Papierfilterbeutel (g) as standard. The double-ply paper filterbag guarantees a constant high suction. Sucker off (3). Locking handle (6) after press up and suction head (8) decrease.

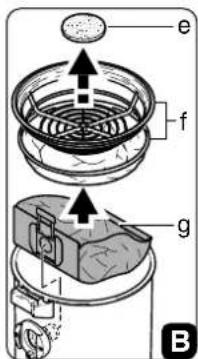

B Filter basket with cotton cloth (f) Take out. Filled paper bag (g) disposed of. Make that the motor protection filter (s) is used.

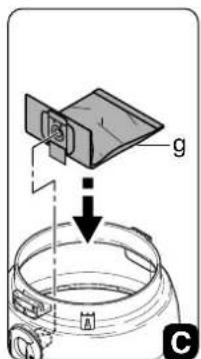

C Open the new dustbag entirely and place the rubber ring of the dustbag carefully over the inner part of the hose connector.

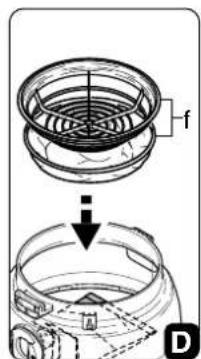

D Filter basket with cotton cloth (f) and clean if necessary. tree cotton cloth or vacuum cleaner for a thorough cleaning supply and remove the filter basket with 30^ with substance. Cotton cloth to dry and re-insert.

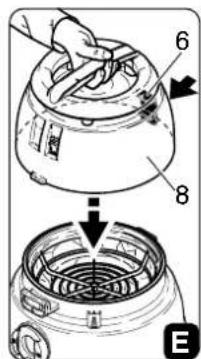

E Place the motor housing (8) back into position and adjust by pressing the latch (6) back into the securing position.

Unwind the mains cable (7) completely from the motor housing. Attached required accessories.

Now you may proceed with vacuum cleaning by pressing the main switch (3) on.

Finishing the clean job / Maintenance

• Switch-off the vacuuming cleaner.
• Un-plug the unit from the electrical supply.
• Rinse the bucket with clean water.
• Clean the entire unit with a damp cloth.
• The unit may never be cleaned with means of a high pressure cleaner.
• Only use original spare parts and accessories when repairing the unit.
• Repairs may only be made by authorised specialists who have full training on the maintenance of the vacuum cleaner.

With careful treatment dry vacuum cleaners will long remain functional.

Interference / Troubleshooting

Before working on the machine disconnect mains cable!

Only do repairs and service that are mentioned in these operating instructions.

Leave service and repairs, especially repairs on electrical components, the after sales service of an authorised service agent.

The following advise will help you detect faults and help you resolve them:

Disturbance Reason Removal
Machine does not work	Connections not plugged-in	Check connections.
Insufficient vavuuming performance	Suction hose (b), tubes (c)	Check hose, tubes,
	Tool (d,h or i) clogged or	bag and tools and
	Dustbag (g) full	remove any blockages.
	Motor cover (8) not placed properly	Fit motor cover (8) properly.
Should the vacuum cleaner not work after checking above faults, please contact authorised service agent!

Technical data	S 20 S 21
Voltage 230 V 230 V
Vacuum motor 1100 W 1100 W
Suction (vacuum)	200 mbar	200 mbar
Content dust filter bags	10 lt	16,5 lt
Boiler capacity	14,5 lt	24 lt
Cable length	10 m	10 m
Castors	5	4
Weight without accessories	10 kg	12,7 kg inkl. Zub.
Dimensions L / W / H	38 / 38 / 59 cm	42 / 42 / 65 cm
Sound pressure level	65 dB (A)	65 dB (A)

Storage

Should the machine not be used it should be placed at a dry spot under normal conditions and never und 0^

DECLARATION OF CONFORMITY

DECLARATION DE CONFORMITE

Wir

declare under our sole responsibility that the product

Dry vacuum cleaner

S 20, S 21

from serial code No. 9001 and following (name, type, serial number)

to which this declaration relates is in conformity with the following standard(s) or other normative document (s).

Safety:

EN 60335-1:2007-11-01

EN 60335-2-69+A1:2006-01-01

EN 60335-2-69:2003/A2:2008

EMC:

EN 55014-1:2007-08-01

EN 55014-2+A1:2002-09-01

EN 61000-3-2:2006-12-01

EN 61000-3-3+A1+A2:2006-08-01

EMF:

IEC 62233:05(ed.1)

(title and/or number and date of issue of the standard(s)).

Following the provisions of Directive

2006/42EC

2004/108/EC

Henau 01.09.2009

(Place and date of issue)

Roland Flück

Director of Development

Authorised Regulatory Manager

The packaging material can be recycled. Please do not throw the packaging material into household waste; please send it for recycling.

Old appliances contain valuable materials that can be recycled; these should be sent for recycling. Batteries, oil, and similar substances must not enter the environment. Please dispose of your old appliances using appropriate collection systems.
