Product type	Car radio with cassette player and FM/AM tuner
Brand	Aiwa
Model	CTZ110
Category	Car radio
Dimensions (W × H × D)	182 × 53 × 155 mm
Power supply voltage	14.4 V DC (11 to 16 V allowed), negative ground
Fuse	Replace with a fuse of the same amperage (not specified)
Max. output power	40 W × 4 channels
Load impedance	4 Ω
FM frequency ranges	87.5 MHz – 108 MHz (100 kHz or 50 kHz steps depending on setting)
AM frequency ranges	530 kHz – 1710 kHz (10 kHz steps) or 531 kHz – 1602 kHz (9 kHz steps)
FM sensitivity (usable)	12.7 dBf
Frequency response (cassette)	40 Hz – 14,000 Hz
Signal-to-noise ratio (FM)	63 dB
Stereo separation (FM)	35 dB at 1 kHz
AUX input	3.5 mm jack, sensitivity 300 mV (10 kΩ)
Radio functions	FM1, FM2, FM3, AM1, AM2, auto preset (30 stations), local/DX search, preset scan, ATRC
Cassette player	Auto play, auto reverse, fast forward/rewind, eject
Clock function	Display and setting with DISP button
Timer (My Info)	Programmable on/off in radio mode (1 program per day)
Sound settings	Bass (BASS), treble (TRE), balance (BAL), fader (FAD), volume (VOL), H-BASS (enhanced bass), loudness (LA)
Cleaning and maintenance	Clean the playback head monthly with a cleaning cassette; wipe the front panel with a soft dry cloth
Usage precautions	Use only on 12 V negative ground system; disconnect battery before installation; replace fuse with one of same amperage; do not expose cassettes to heat or moisture

Frequently Asked Questions - CTZ110 AIWA

How to set the clock on the Aiwa CTZ110?

Press PWR to turn on, then DISP to display the clock. Hold DISP for more than 2 seconds. Use TUNE ▲ then turn the Jog dial to set hours, TUNE ▼ for minutes. Press DISP to confirm.

How to auto preset radio stations?

Turn on the unit with PWR, select the band (FM1, FM2, etc.) with FUNC. Hold A.ME/PS for more than 2 seconds. The unit stores up to 6 stations per band (30 total). Preset stations appear on buttons 1 to 6.

How to use the timer function (My Info)?

With the unit off, hold INFO for more than 2 seconds. Press SEL, set the on time with TUNE ▲/▼ and the Jog dial. Press SEL, choose the band and station with FUNC and TUNE or preset buttons. Set the off time, then hold INFO to confirm. To activate, press INFO in radio mode (the MY INFO indicator lights up).

How to adjust bass, treble, balance, and fader?

Press SEL repeatedly to select BASS, TRE, BAL, FAD, or VOL in order. Turn the Jog dial to adjust the level. For H-BASS mode (enhanced bass), select it with SEL then turn the dial to enable or disable.

How to connect an MP3 player or smartphone via the AUX input?

Turn on the unit with PWR. If a cassette is inserted, eject it with ▲. Connect your device to the AUX IN jack (3.5 mm) on the front. Press FUNC repeatedly until AUX appears. The sound from your device will be played.

How to clean the cassette player's playback head?

Use a special cleaning cassette. Insert it and let it play like a normal cassette. Perform this cleaning about once a month to prevent loss of treble.

What to do if the unit does not turn on?

First check the fuse: replace it with a fuse of the same amperage (never use a higher amperage). Ensure the wiring is correct and the battery is in good condition. If the problem persists, contact a professional.

How to eject the cassette?

Press the ▲ (EJECT) button located to the right of the cassette compartment. The cassette will eject automatically. If a protection tab is present, remove it first by pressing EJECT ▲.

How to reset sound settings to factory defaults?

With the unit off, hold DISP for more than 2 seconds. The display shows LA-- and all settings (volume, bass, treble, balance, fader, H-BASS, loudness) return to default values.

How to enable or disable the beep tone when pressing buttons?

With the unit off, hold SEL for more than 2 seconds to display BEEP. Turn the Jog dial to select enable (displayed) or disable. Press SEL for more than 2 seconds to save.

USER MANUAL CTZ110 AIWA

For your convenience, record the model number and serial number (you will find them on the right side of your set) in the space provided below. Please refer to them when you contact your AIWA dealer in case of difficulty.

Model No. CT-Z110

Serial No.

The image contains no text or characters. The horizontal line is a stylistic or background element and must be ignored according to the rules.

Welcome

Thank you for your purchasing this AIWA product. To optimize the performance of this unit, please read through this manual carefully.

In addition to this operating instructions manual, be sure to refer to the separate installation and connections manuals as well.

PRECAUTIONS

• This unit is designed to be operated on a 12-volt DC negative-ground electrical system only.
  •To prevent short-circuiting, disconnect the negative car battery terminal until the unit has been mounted and connected completely.
• When replacing the fuse, be sure to use one whose amperage rating is identical. Use of a fuse of higher amperage may cause serious damage to the unit.
• Keep screwdrivers, etc. and other metallic or magnetic objects away from the playback head.
• When your car was parked in direct sunlight resulting in a considerable rise in temperature inside the car, allow the unit to cool off before operating it.
• Keep the volume at such a level that you can hear outside warning sounds (horns, sirens, etc.).

Notes on cassettes

Do NOT expose cassettes to direct sunlight, extremely high or cold temperature or moisture. Keep cassettes away from equipment with built-in magnets to avoid unwanted noise or loss of sound quality.

Do NOT touch the tape of a cassette, as any dirt or dust will contaminate the heads.

Be sure to remove any cassette from the unit if you are not using it.

NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.

CAUTION

Modifications or adjustments to this product, which are not expressly approved by the manufacturer, may void the user's right or authority to operate this product.

Caution on the transit protection pad

The unit is shipped with a transit protection pad in the cassette compartment.

Be sure to press EJECT ▲ to remove the pad before operating the unit.

Technical line drawing of a device internal component with ports and connectors (no text or symbols)

Transit protection pad

TABLE OF CONTENTS

PARTS AND CONTROLS 3

SETTING THE CLOCK 4

RADIO OPERATION 4

PRESETTING STATIONS 5

MY INFORMATION SWITCH 7

TAPE PLAYBACK 8

SOUND ADJUSTMENTS 9

CONNECTING A PORTABLE CD/MD/MP3 PLAYER OR OTHER EQUIPMENT 11

SETTING THE BEEP TONE 12

MAINTENANCE 12

SPECIFICATIONS 13

PARTS AND CONTROLS

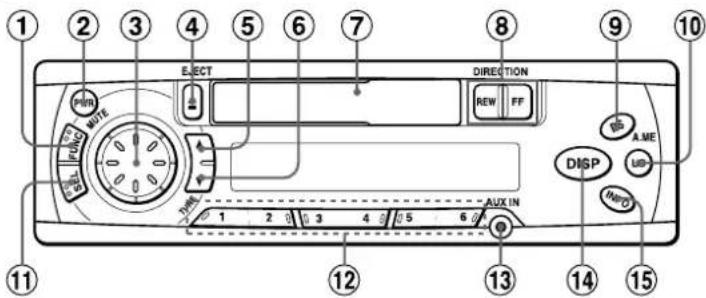

Front panel

1 2 3 4 5 6 7 8 9 10 ELECT DIRECTION PWR REF REW FF A.M.E FONC 1 2 3 4 5 6 DISP MPO 12 13 14 15

Display window

FM123 VOL BASS TRE BAL FAD MUTE MY INFO AUX AM PM ST LO CH 26 27 28 29 30 31

Rear panel

32 33 34

Front panel

①FUNC (function) button
②PWR (power on/off)/MUTE button
③Jog Dial
④ ▲ (eject) button
⑤ TUNE ▲ button
⑥TUNE ▼ button
⑦Cassette compartment
⑧ DIRECTION REW/FF button
⑨A.ME (Auto Memory)/PS (Preset Scan) button
⑩LO (local) button
⑪SEL (select) button
⑫ Preset station buttons (1 - 6)
⑬ AUX IN jack (3.5-mm dia.)
⑭DISP (display) button
⑮INFO (My Information) button

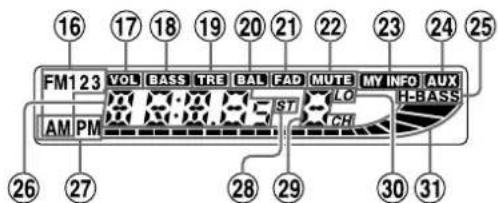

Display window

⑯Band indicator
⑰VOL (volume) indicator
⑱BASS (bass) indicator
⑲TRE (treble) indicator
⑳BAL (balance) indicator
②1FAD (fader) indicator
⑳MUTE indicator
⑳MY INFO (My Information) indicator
⑳AUX indicator
⑲H-BASS (High BASS) indicator
⑳Main display section
⑳AM/PM (clock) indicator
⑳ST (stereo) indicator
⑲Subdisplay section
③0 LO (local) indicator
③1 Beep on/off indicator

Rear panel

③2 Antenna jack

③3 Power supply/speaker connector

③4 Fuse

3 ENGLISH

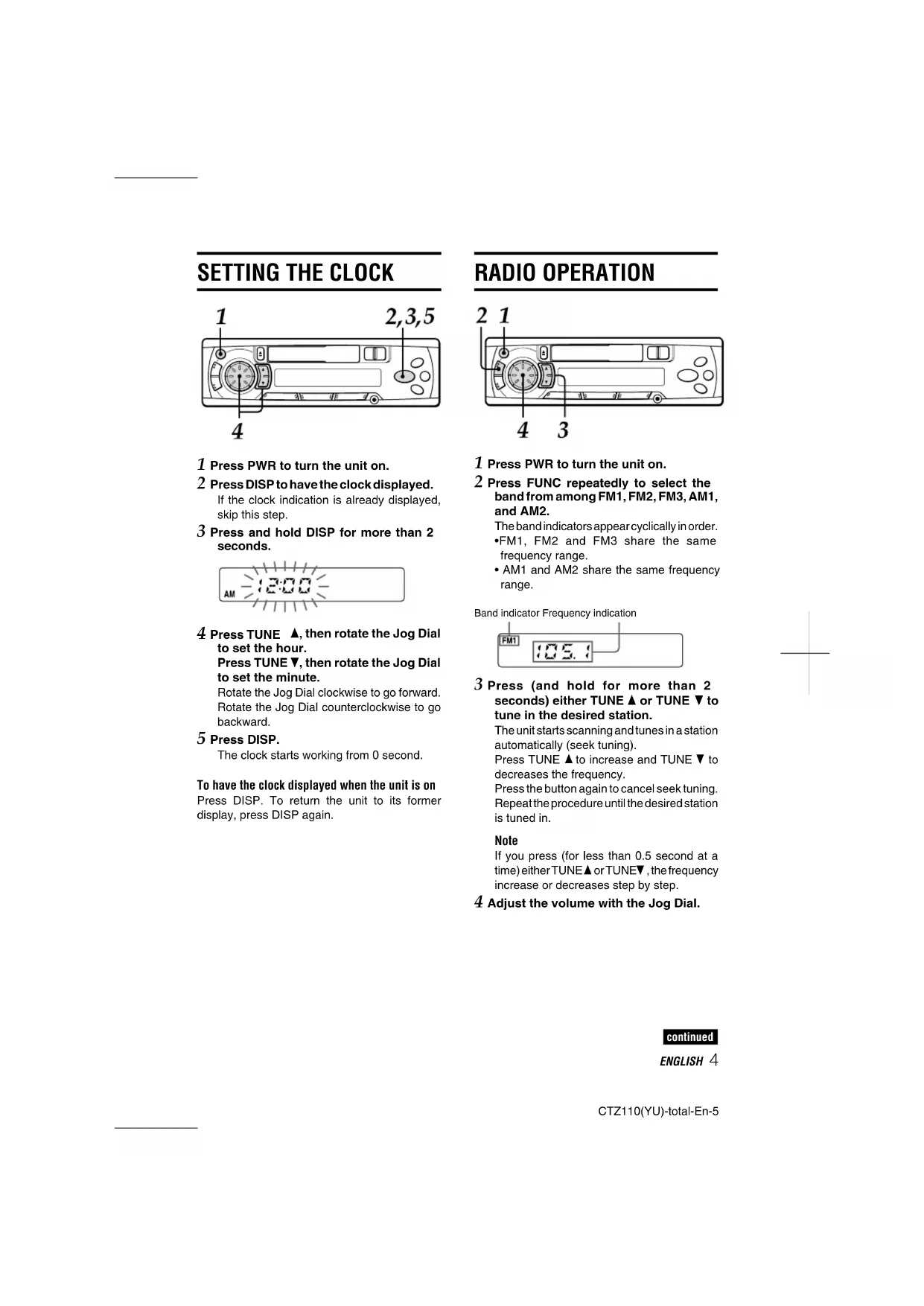

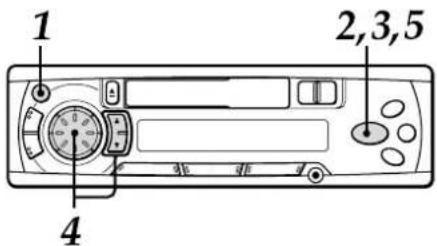

SETTING THE CLOCK

1 2,3,5 4

1 Press PWR to turn the unit on.
2 Press DISP to have the clock displayed. If the clock indication is already displayed, skip this step.
3 Press and hold DISP for more than 2 seconds.

4 Press TUNE ▲, then rotate the Jog Dial to set the hour.

Press TUNE ▼, then rotate the Jog Dial to set the minute.

Rotate the Jog Dial clockwise to go forward. Rotate the Jog Dial counterclockwise to go backward.

5 Press DISP.

The clock starts working from 0 second.

To have the clock displayed when the unit is on Press DISP. To return the unit to its former display, press DISP again.

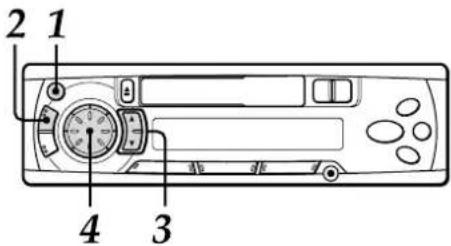

RADIO OPERATION

2 1 4 3

1 Press PWR to turn the unit on.
2 Press FUNC repeatedly to select the band from among FM1, FM2, FM3, AM1, and AM2.

The band indicators appear cyclically in order.

•FM1, FM2 and FM3 share the same frequency range.
- AM1 and AM2 share the same frequency range.

Band indicator Frequency indication

3 Press (and hold for more than 2 seconds) either TUNE ▲ or TUNE ▼ to tune in the desired station.

The unit starts scanning and tunes in a station automatically (seek tuning).

Press TUNE ▲ to increase and TUNE ▼ to decreases the frequency.
Press the button again to cancel seek tuning. Repeat the procedure until the desired station is tuned in.

Note

If you press (for less than 0.5 second at a time) either TUNE▲ or TUNE▼, the frequency increase or decreases step by step.

4 Adjust the volume with the Jog Dial.

continued

ENGLISH 4

RADIO OPERATION

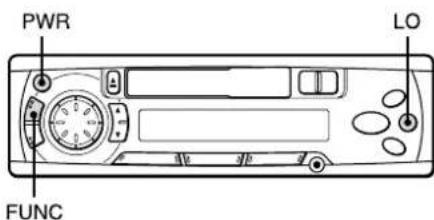

PWR LO FUNC

To turn the unit off

Press and hold PWR for more than 2 seconds. If you press this button for less than 2 seconds, it functions as MUTE.

Note

The unit turns on in the last mode selected when you turned off the unit.

LO (local/DX) button

You can use Local mode when you wish to tune in only strong stations during seek tuning. In Radio mode, press LO to select Local mode. The "LO" indicator lights up.

• Press LO to cancel Local mode and switch to DX (distance) mode.
• The "ST" (stereo) indicator lights up when the tuned-in station is broadcasting in stereo and the reception is good.

FUNC (function) button

Each time you press FUNC, the unit switches to one of the following modes, in cyclic order.

* Tape Play mode (available while a cassette is in the unit)

PRESETTING STATIONS

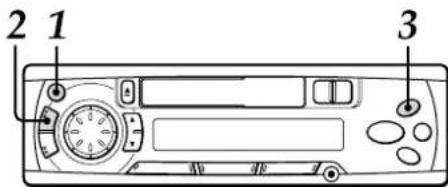

To preset stations automatically (Auto Memory)

2 1 3

1 Press PWR to turn the unit on.
2 Press FUNC repeatedly to select a desired band from among FM1, FM2, FM3, AM1, and AM2.

3 Press and hold A.ME/PS for more than 2 seconds to activate the automatic presetting function.

This unit can store up to 6 stations in memory for the preset station buttons 1 to 6 (with the "LO" (local) indicator lit). If the unit could not find strong stations, the "LO" (local) indicator goes off, and a search begins for weaker stations.

Use this function to automatically preset up to 6 stations each for FM1, FM2, FM3, AM1, and AM2 (up to a total of 30 stations).

• When the auto memory operation is completed, the station assigned to preset station button 1 is tuned in.
  • To stop the auto memory operation, press A.ME/PS again.

To check the preset stations (preset scan)

• If you wish to check the preset stations, press A.ME/PS for less than 2 seconds. The preset stations stored in memory will be tuned in for 5 seconds each in order.
• To stop this function, press A.ME/PS again or press any of the preset station buttons 1 to 6.

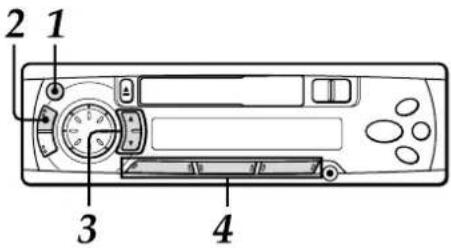

To preset stations manually

You can manually preset stations that have not been selected by an auto memory operation.

2 1 3 4

1 Press PWR to turn the unit on.
2 Press FUNC repeatedly to select the band from among FM1, FM2, FM3, AM1, and AM2.

3 Tune in the station that you wish to preset with TUNE ▲ or TUNE ▼.

4 Press and hold one of the preset station buttons 1 to 6 for approximately 2 seconds.

While the station you are presetting is being registered in memory, the unit beeps. The preset station number appears to the right of the frequency indication.

Frequency indication Preset station number FM1 105.1 3CH

Repeat these procedures to preset up to 6 stations each for FM1, FM2, FM3, AM1, and AM2.

- If you preset a station on a preset station button on which another station of the same band has already been preset, the previously preset station will be erased.

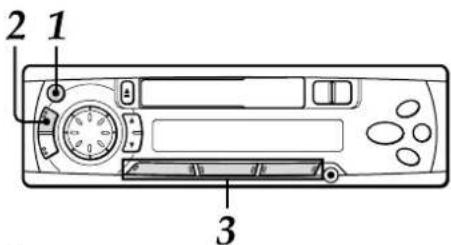

To tune in a preset station

2 1 3

1 Press PWR to turn the unit on.
2 Press FUNC repeatedly to select a desired band from among FM1, FM2, FM3, AM1, and AM2.
3 Press the desired preset station button. The preset station number appears to the right of the frequency indication.

Active tuning reception control (ATRC)

This unit automatically suppresses FM noise caused by varying signal strength resulting from movement of the car.

• The built-in automatic blending circuit mixes the left and right channel signals according to the strength of the reception. At the same time, the high-cut circuit activates to maintain sound quality.

- If the reception becomes even weaker, the unit automatically switches to Monaural mode to reduce noise.

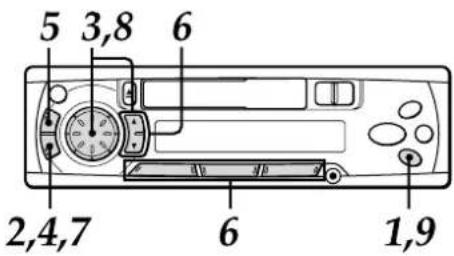

MY INFORMATION SWITCH

You can timer-activate the radio for a daily radio program. The unit turns on and off in Radio mode at the preset turn-on and turn-off times automatically.

Setting the timer

1 With the unit off, press and hold INFO for more than 2 seconds.

The "PO" indication flashes in the display window.

2 Press SEL.

The timer indication flashes.

3 Set the time you wish the unit to turn on in Radio mode.

Press TUNE ▲, then rotate the Jog Dial to set the hour.

Press TUNE ▼, then rotate the Jog Dial to set the minute.

4 Press SEL.

The radio indication flashes.

Band indicator

5 Press FUNC to select the band.

6 Tune in the desired station by pressing TUNE ▲ or TUNE ▼ or one of the preset station buttons 1 to 6.

7 Press SEL.

The timer indication flashes.

8 Set the time you wish the unit to turn off.

Press TUNE ▲, then rotate the Jog Dial to set the hour.

Press TUNE ▼, then rotate the Jog Dial to set the minute.

9 Press and hold INFO for more than 2 seconds.

Your setting is stored in memory, and the unit turns off.

- To cancel a timer setting in progress, press and hold PWR for more than 2 seconds.

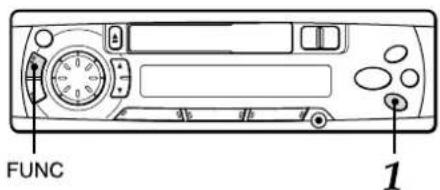

Activating the timer

FUNC 1

1 With the unit on, press INFO.

The "MY INFO" indicator lights up and the timer is activated.

The "MY INFO" indicator flashes between turn-on time and turn-off time.

To cancel the timer

Press INFO again so that the "MY INFO" indicator disappears.

To check the setting

With the unit off, press INFO.

The turn-on time, followed by the radio frequency and the turn-off time, appears in the display window, each for 1 second, then the unit turns off.

Notes

- Even if the unit is in a mode other than Radio mode, the unit switches to Radio mode and tunes in the preset radio program at the preset time automatically. When the program is over, the unit returns to the former mode automatically.

- When this function is activated, TUNE ▲▼, A.ME/PS, LO, INFO, and the preset number buttons do not work for tuning in stations.

- Even if the unit is turned off and on, this function is active until turn-off time.

- Even if you are listening to a radio program with this function, pressing FUNC switches the unit to another mode. If you switch modes with FUNC, the unit does not turn off at the turn-off time of the timer.

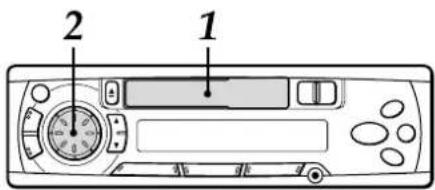

TAPE PLAYBACK

1 2

1 Insert a cassette to start playback.

Diagram of a device internal component with an arrow indicating direction (no text or symbols)

If a cassette is already inserted, press FUNC repeatedly to select Tape Play mode to start playback.

Playback starts in the direction that the unit played back previously.

2 Adjust the volume with the Jog Dial.

Press the following buttons to operate tape transport.

To do this	Press this button
Eject the cassette*
Change the playback side
Fast-forward either side of the tape
Rewind either side of the tape
Stop fast transport and resume playback

* When you eject the cassette, the unit switches to the previous mode.

When a cassette is inserted, comes up so that it can be pressed to eject the cassette.

** Do not press 📄 or all the way. Doing so may change the direction of tape transport.

continued

ENGLISH 8

TAPE PLAYBACK

Auto Reverse function

When the end of the tape is reached during playback or fast tape transport, the direction of the tape is automatically reversed, and playback starts on the other side.

Tape transport side indications

The following indications are displayed to show which side is currently playing.

Upper side Lower side

Switching modes

When the unit is in a mode other than Tape Play mode, inserting a cassette switches the unit to Tape Play mode automatically.

Before turning the ignition off

Be sure to eject any cassette.

To prevent tape problems

Before inserting a cassette into the unit, make sure that there is no slack in the tape. If necessary, take up the slack by inserting a pencil through the spindle hole and winding.

Tapes of 90 minutes or longer are extremely thin and easily deformed or damaged. They are not recommended.

Illustration of hands using a handheld device to interact with a screen (no text or symbols visible)

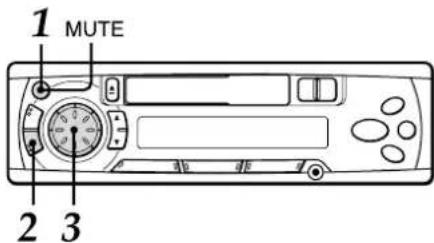

SOUND ADJUSTMENTS

1 MUTE 2 3

1 Press PWR to turn the unit on.

2 Press SEL repeatedly to select the mode that you wish to adjust from: BASS, TRE (treble), BAL (balance), FAD (fader), and VOL (volume).

Each time you press SEL, one of the following indicators appears, in cyclic order.

If you do not proceed with the following step 3 within 5 seconds, the selected mode is canceled, and the indication returns to the current source mode.

3 Rotate the Jog Dial to adjust the level. Adjust each mode referring to the audi control indications in the display window.

	Counterclockwise	Clockwise
BASS	Decreases the bass level	Increases the bass level
TRE	Decreases the treble level	Increases the treble level
BAL	Decreases the level of the right speaker(s)	Decreases the level of the left speaker(s)
FAD	Decreases the level of the front speakers	Decreases the level of the rear speakers
VOL	Decreases the volume level	Increases the volume level

Without selecting any mode with SEL, only the volume level can be adjusted by rotating the Jog Dial.

MUTE button

Press this button to temporarily lower the volume. Press it again to restore the previous volume. The "MUTE" indicator in the display window flashes while the mute function is active.

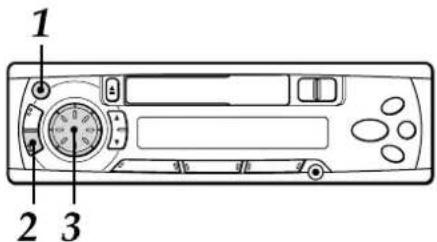

H-BASS (High BASS)

You can enjoy music with strong bass sound.

1 2 3

1 Press PWR to turn the unit on.
2 Press SEL repeatedly to select H-BASS (High BASS) mode.

3 Rotate Jog Dial to select on or off.

Select "On" to obtain powerful bass. The "H-BASS" indicator lights up. Select "OFF" to cancel H-BASS.

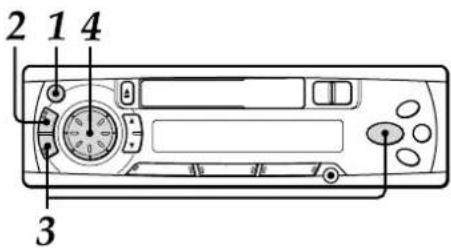

Source Level Adjuster

You can adjust the output level in each mode to equalize the volume level.

2 1 4 3

1 Press PWR to turn the unit on.
2 Press FUNC repeatedly to select the desired mode.
3 Press DISP while pressing SEL. The "LA 0" indication appears.

4 Rotate the Jog Dial to adjust the level.

Rotate clockwise to increase the output level. Rotate counterclockwise to decrease the output level. If you do not operate the Jog Dial within 5 seconds, this function is canceled, and the indication returns to the current source mode.

continued

ENGLISH 10

Returning to the factory settings

Adjusted settings of VOL, BASS, TRE, BAL, FAD, H-BASS, and source level can be returned to the factory settings with a simple operation.

1 With the unit off, press and hold DISP for more than 2 seconds.

The "LA--" indication appears, and all sound settings are returned to the factory settings.

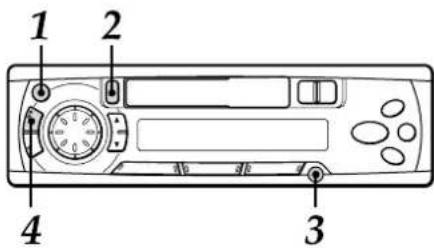

CONNECTING A PORTABLE CD/MD/MP3 PLAYER OR OTHER EQUIPMENT

1 2 3 4

1 Press PWR to turn the unit on.
2 If a cassette is inserted, remove it to prevent possible damage to the unit.
3 Connect a portable CD/MD/MP3 player, etc. via the AUX IN jack (3.5-mm dia.) of the unit.
4 Press FUNC repeatedly to select AUX IN mode to output sound received from the connected equipment. The "AUX" indicator appears. The clock display appears.

- For further information on the portable CD/MD/MP3 player, etc., refer to the operating instructions for that equipment.

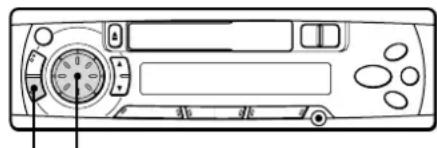

SETTING THE BEEP TONE

The unit is preset at the factory to beep each time you press any button on the front panel except ▲, REW, or FF (no beep with the Jog Dial). You can mute this beeping by following the procedure below.

Diagram of a CD-ROM front panel with dials, buttons, and status indicators

1,3 2

1 With the unit off, press and hold SEL for more than 2 seconds.

The "BEEP" indication appears.

2 Rotate the Jog Dial to select on or off.

The beep function is activated when the "BEEP" indication appears with the beep on/off indicator lit, and canceled when not displayed.

Beep on/off indicator

3 Press and hold SEL for more than 2 seconds.

The unit turns off.

MAINTENANCE

Cleaning the front panel

When the front panel is soiled, wipe the surface with a soft, dry cloth.

Cleaning the tape head

Use a cleaning cassette to clean the playback head and capstans approximately once a month. If the head is dirty, the high tones may not be reproduced properly.

SPECIFICATIONS

RADIO SECTION (FM)

Frequency Range: 87.5 MHz – 108 MHz

(100-kHz steps) ^*

87.5 MHz - 108 MHz

(50-kHz steps)

Usable Sensitivity: 12.7 dBf

50 dB Quieting Sensitivity:

17.2 dBf

IF Rejection: 80 dB

Frequency Response: 30 Hz – 15,000 Hz

S/N Ratio: 63 dB

Stereo Separation: 35 dB at 1 kHz

Alternate Channel Selectivity:

70 dB

Capture Ratio: 3 dB

(AM)

Frequency Range: 530 kHz – 1,710 kHz

(10-kHz steps)*

531 kHz - 1,602 kHz

(9-kHz steps)*

Usable Sensitivity: 30 μV (30 dB)

9k□10k

* Set the frequency increment for your area using the switch on the bottom of the unit.

(The switch is set at the factory to the 10k position [for the U.S.A.])

TAPE SECTION

Tape Speed: 4.8 cm/sec. (1 7/8 ips)

S/N Ratio: 50 dB

Frequency Response: 40 Hz – 14,000 Hz

Stereo Separation: 40 dB

FF/REW Time: 190 sec. (C-60)

AUDIO SECTION

Max. Power Output: 40 W × 4 channels

AUX IN input

Input sensitivity (load impedance)

AUX IN: 300 mV (10 kΩ)

GENERAL

Power-Supply Voltage:

14.4 V (11 to 16 V allowable),

DC, negative ground

Load Impedance: 4 Ω

Tone Control: Bass ± 10 dB at 100 Hz

Treble ± 10 dB at 10 kHz

Specifications and external appearance are subject to change without notice due to product improvement.

Bienvenidos

PWR LO FUNC

Diagram of a device internal component with an arrow indicating direction (no text or symbols)

Illustration of hands holding a cassette tape with a clip (no text or symbols)

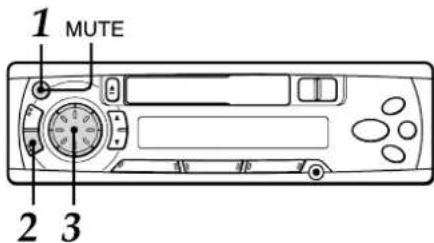

AJUSTES DEL SONIDO

1 MUTE 2 3

H-BASS (graves altos)

Agudos ± 10 dB a 10 kHz

Diagram of a device rear panel with labeled ports and connectors, numbered 32, 33, and 34.

Panneau avant

PWR LO FUNC

Touche LO (local/DX)

Diagram of a device internal structure showing a rectangular panel with ports and an arrow indicating direction (no text or symbols)

Illustration of hands using a handheld device to switch a button (no text or symbols visible)

9 FRANÇAIS

AJUSTEMENTS DU SON

1 MUTE 2 3

Front view of a vintage electronic device casing with control buttons and a dial indicator (no text or symbols)

1,3 2

4,8 cm/sec. (1 7/8 ips)

Rapport signal/bruit: 50 dB
