Product Type	Car Stereo Receiver
Brand	Aiwa
Model	CDC-X317
Dimensions (W x H x D)	178 x 50 x 160 mm (Standard DIN)
Weight	1.2 kg
Power Supply	12 V DC (Negative Ground)
Maximum Power Output	4 x 25 Watts
Continuous Power Output (RMS)	4 x 15 Watts (at 4 ohms, 1% THD)
Radio Tuner Bands	FM (87.5-108 MHz) / AM (530-1710 kHz)
FM Sensitivity	9.3 dBf (S/N 26 dB)
CD Playback	Yes (CD, CD-R, CD-RW)
CD Changer Control	Yes (Aiwa CDC series compatible)
Display	LCD (Green/White backlight)
Equalizer Presets	5 (Rock, Pop, Jazz, Classic, Vocal)
Remote Control Included	Yes (IR, wired or wireless)
Anti-Theft System	Detachable Faceplate
AUX Input	Yes (3.5 mm front or rear)
Speaker Impedance	4-8 ohms per channel
RDS Function	Yes (Radio Data System)
Clock	Yes (24-hour format)
Maintenance	Clean faceplate with soft dry cloth; use lens cleaner for CD
Safety Features	Fuse protection (15A blade fuse); auto-off after 30 min
Spare Parts Availability	Faceplate, remote, wiring harness (contact Aiwa support)
General Information	Designed for 12V vehicles; consult manual for installation

Frequently Asked Questions - CDC-X317 AIWA

How do I reset the Aiwa CDC-X317 to factory settings?

Press and hold the Reset button on the front panel using a pointed object for 2-3 seconds. This will clear all settings and clock.

Can I play MP3 CDs on this stereo?

No, the CDC-X317 supports only standard audio CDs, CD-R, and CD-RW discs. It does not play MP3 or other compressed audio formats.

What is the correct wiring for the ISO connector?

Refer to the manual for pin assignments: typically, red (ignition +12V), yellow (constant +12V), black (ground), blue (antenna/amp remote), and four pairs for speakers. Use a wiring harness adapter if needed.

How do I remove the faceplate?

Press the Release button on the front panel and pull the faceplate forward. Store it in the provided case when not in use.

The display shows 'EJECT' and won't play CDs.

This indicates a CD error. Try ejecting the disc and reinserting. If the problem persists, clean the CD with a soft cloth. Avoid using scratched or damaged discs.

How can I improve radio reception?

Ensure the antenna is fully extended and properly connected. For FM, adjust the antenna position. For AM, check for interference from nearby devices.

What does the 'RDS' button do?

RDS (Radio Data System) displays station name, song title, and other information when available. Press RDS to cycle through modes like PS (Program Service) and RT (Radio Text).

Why is there no sound from the speakers?

Check speaker connections, ensure the volume is not muted (press MUTE), and verify that the fader/balance settings are centered. Also confirm the amplifier is powered if using external amps.

Can I use this stereo in a 24V vehicle?

No, the CDC-X317 is designed for 12V negative ground systems only. Using it in a 24V system may cause permanent damage.

How do I program radio stations into presets?

Tune to the desired station, then press and hold one of the preset buttons (1-6) for about 2 seconds until the display confirms. Repeat for up to 18 FM and 12 AM presets.

USER MANUAL CDC-X317 AIWA

For your convenience, record the model number and serial number (you will find them on the bottom side of your set) in the space provided below. Please refer to them when you contact your AIWA dealer in case of difficulty.

Model No. CDC-X517M, CDC-X417, CDC-X317

Serial No.

PRECAUTIONS

• Use only in a 12-volt DC negative-ground electrical system.
• Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.
• When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.
• Do NOT attempt to disassemble the unit. Laser beams from the optical pickup are dangerous to the eyes.
• Make sure that pins or other foreign objects do not get inside the unit; they may cause malfunctions, or create safety hazards such as electrical shock or laser beam exposure.
• When your vehicle has been parked in direct sunlight resulting in a considerable rise in the temperature inside, allow the unit to cool off before operating it.
• Keep the volume at a level at which you can hear outside warning sounds (horns, sirens, etc.).

NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.

CAUTION

Modifications or adjustments to this product, which are not expressly approved by the manufacturer, may void the user's right or authority to operate this product.

In addition to ordinary CDs, CD-Rs or CD-RWs can be read by this unit. However, NEVER use a CD-R or CD-RW that contains no data or data in the wrong format, such as MP3 or other computer files.

TABLE OF CONTENTS

THEFT PROTECTION 2

BASIC OPERATION, AUDIO AND CLOCK ADJUSTMENT 2

RADIO OPERATION 3

CD CHANGER OPERATION (CDC-X517M only) .... 6

TROUBLESHOOTING 7

MAINTENANCE 7

SPECIFICATIONS 8

Notes

• These operating instructions cover the CDC-X517M, CDC-X417, and CDC-X317.
- The figures in these operating instructions show the CDC-X517M.
- Some buttons are assigned two or more functions. For detailed descriptions, refer to the related pages.

	CDC-X517M	CDC-X417, CDC-X317
CD changer (optional) control function	yes	no

CD Notes

• Playing a defective or dusty CD can cause dropouts in sound.
• Hold CDs as illustrated.
• Do NOT touch the unlabeled side.
• Do NOT attach any seal, label or data protection sheet to either side of a disc.
• Do NOT expose a CD to direct sunlight or excessive heat.
• Wipe a dirty CD from the center outward with a cleaning cloth.

Never use solvents such as benzine or alcohol.

• This unit cannot play 3-inch (8 cm) CDs.
• NEVER insert a 3-inch CD contained in the adapter or any irregularly shaped CD.

The unit may not be able to eject it, resulting in a malfunction.

THEFT PROTECTION

Take the front panel with you when leaving the car, and keep it in the supplied carrying case.

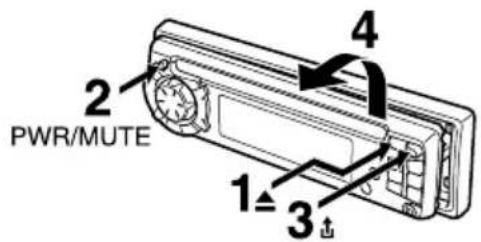

Detaching the front panel

Before detaching the front panel, remove the CD to prevent possible damage to the unit.

1 Press ▲ to remove the CD.
2 Press and hold PWR/MUTE until the unit turns off.
3 Press ↓. (Hold the panel with one hand to prevent accidentally dropping it.)
4 Remove the panel.

PWR/MUTE 1 2 3 4

Attaching the front panel

1 Engage the left side of the front panel to the left catch on the unit.
2 Push the panel forward until it locks. Be sure not to press any buttons while you are attaching the panel.

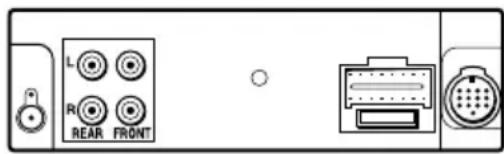

Diagram of a device rear panel with labeled components and directional arrows indicating movement or assembly.

Note

Do not touch the front panel connector. This could cause a poor or faulty connection.

Security lamp

The security lamp will continue to flash while the front panel is detached from the unit.

Line drawing of a device rear panel with indicator lights and ports (no text or symbols)

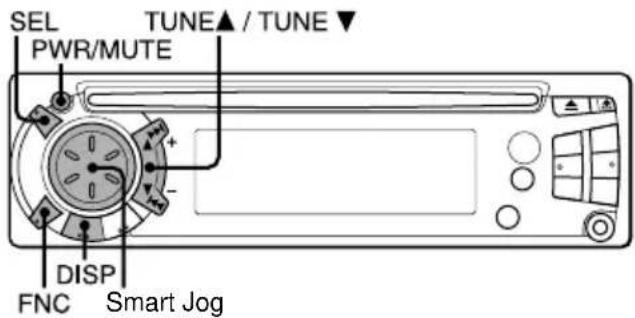

BASIC OPERATION, AUDIO AND CLOCK ADJUSTMENT

SEL PWR/MUTE TUNE▲ / TUNE▼ DISP FNC Smart Jog

Turning the unit on/off

• Press PWR/MUTE to turn on the unit. The unit also turns on when you insert a CD.
• Press and hold PWR/MUTE until the unit turns off.

Note

Most operations described in this manual require the unit to be turned on before starting the operation, unless explicitly stated otherwise.

Changing the source mode

1 Press FNC.

Pressing FNC cycles through source modes in the following order:

* "CD" does not appear in the display when there is no CD in the unit.
**CD Changer Play mode (CDC-X517M only, available when an optional CD Changer is connected)

Adjusting the volume

1 Turn the Smart Jog.

VOL (volume) indicator flashes.

Muting the sound

1 Press PWR/MUTE briefly.

To restore volume, briefly press PWR/MUTE again.

Adjusting sound

You can select the following modes for adjusting sound depending on the music you listen to: BASS (low frequencies), TRE (high frequencies), BAL (left/right), FAD (front/rear) and H-BASS (high bass)

1 Press SEL repeatedly to select the mode to be adjusted.
Pressing SEL cycles through the modes. The selected mode's indicator flashes.
2 Turn the Smart Jog to increase or decrease the level for the selected mode (except for H-BASS).
In H-BASS mode, turn the Smart Jog to select on or off.

Note

Adjust the level or select on/off within 5 seconds, or the selected mode will return to previous state.

Aligning the source levels

(Source Level Adjuster)

Volume may vary each time you change the source mode. In this case, you can align each source mode's volume to almost the same level.

1 Press FNC repeatedly to select the desired mode.
2 Press DISP while pressing SEL. "LA 0" appears in the display.
3 Turn the Smart Jog to adjust the level.

Note

Adjust the level within 5 seconds, or the selected mode will be canceled.

Restoring the factory settings

1 Turn off the unit.
2 Press and hold DISP until "LA --" appears in the display.

Note

You can restore the factory settings only for VOL, BASS, TRE, BAL, FAD, and H-BASS, and aligned source volume levels.

Muting button beep sounds

1 Turn off the unit.
2 Press and hold SEL until "bEEP" appears in the display.
3 Turn the Smart Jog to select on (level indicators appear) or off (level indicators disappear).
4 Press and hold SEL until the unit turns off.

Setting the clock

1 Press and hold DISP until the clock indicator flashes in the display.
2 Press TUNE▲ (to set hour) or TUNE▼ (to set minute) and turn the Smart Jog.
3 Press DISP.

Displaying the clock

1 Press DISP.

To return to the former display, press DISP again.

RADIO OPERATION

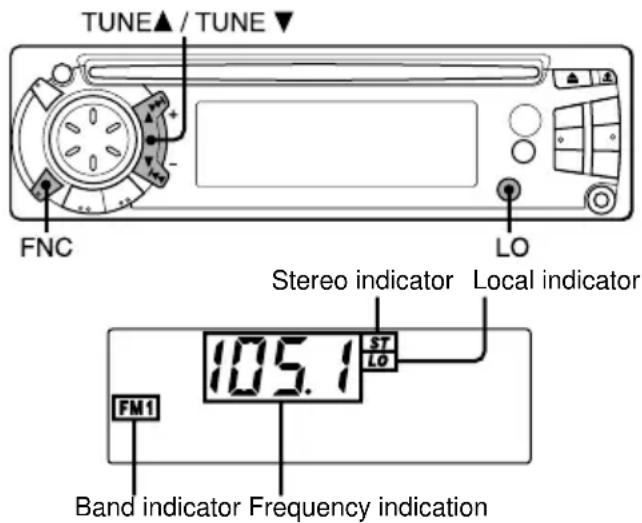

Tuning in to a station

(Seek/Manual Tuning)

TUNE▲ / TUNE ▼ FNC LO Stereo indicator Local indicator 105.1 ST LO FM1 Band indicator Frequency indication

1 Press FNC repeatedly to select the desired band (FM1, FM2, FM3, AM1 or AM2).
2* Press TUNE▲ (to move to higher frequencies) or TUNE▼ (to move to lower frequencies) to tune in to a station.

“ST” appears in the display when a station is broadcasting in stereo, and receiving conditions are good.

\*Seek Tuning and Manual Tuning

• Press and hold TUNE▲ or TUNE▼ until seek Tuning starts.
  The unit locates a station automatically (Seek Tuning).
• Press TUNE▲ or TUNE▼ repeatedly to search for a desired station while increasing or decreasing the frequency step by step (Manual Tuning).

To stop Seek Tuning, press TUNE▲ or TUNE▼ again.

Monaural mode

When signals become weak, or reception becomes poor, the unit automatically switches to Monaural mode to reduce noise.

Local mode

Local mode allows you to tune in only to strong stations during Seek Tuning.

1 Press LO before you start seek tuning.

"LO" appears in the display.

To return to Distant mode, press LO again.

"LO" disappears and the unit tunes in to all receivable stations.

Using preset stations

You must preset stations before you can tune in a station using preset station number buttons.

TUNE▲ / TUNE ▼ PS/A.ME FNC Preset station buttons 1 ~ 6

FM1 105.1 3 CH Preset station number

Presetting stations automatically

(Auto Memory)

1 Press FNC repeatedly to select the desired band (FM1, FM2, FM3, AM1 or AM2).
2 Press and hold PS/A.ME until automatic presetting starts.

The unit automatically stores up to 6 stations for each band.

After completion of automatic presetting, the unit tunes in to the station stored on preset station button 1.

To cancel automatic presetting, press PS/A.ME again.

Checking the preset stations (Preset Scan)

1 Press PS/A.ME briefly.

Each preset station will be tuned in for 5 seconds in order.

To cancel Preset Scan, press PS/A.ME again or any preset station button.

Presetting stations manually

(Manual Memory)

1 Press FNC repeatedly to select the desired band (FM1, FM2, FM3, AM1 or AM2).
2 Press TUNE▲ or TUNE▼ to tune in to a desired station (see "Tuning in to a station," page 3).
3 Press the desired preset station button until the unit beeps.

Note

A newly preset station replaces the station on the same band that was previously stored on that preset station button.

Tuning in to a preset station

1 Press FNC repeatedly to select the desired band (FM1, FM2, FM3, AM1 or AM2).
2 Press the preset station button on which the desired station is stored.

Active tuning reception control (ATRC)

The unit automatically suppresses FM noise caused by vehicle movement, and maintains sound quality.

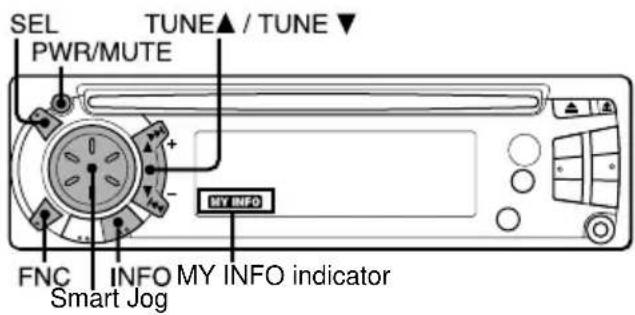

Using the timer

(My Information)

You can schedule the radio to activate for daily radio programs. The unit automatically turns on and off in Radio mode at the scheduled times.

SEL PWR/MUTE TUNE▲ / TUNE ▼ MY INFO FNC INFO MY INFO indicator Smart Jog

Setting the timer

1 Turn off the unit.
2 Press and hold INFO until "PO" flashes in the display.
3 Press SEL.
4 Set the time you wish the unit to turn on.

• Press TUNE▲ and turn the Smart Jog to set the hour.
• Press TUNE▼ and turn the Smart Jog to set the minute.
  5 Press SEL.
  6 Press FNC to select the band.
  7 Press TUNE▲, TUNE▼ or the desired preset station button to select the station.
  8 Press SEL.
  9 Set the time you wish the unit to turn off following the same procedure used in step 4.

10 Press and hold INFO until the unit turns off, and setting is completed.

When the unit is on, "MY INFO" appears in the display indicating that the unit is standby for a timer. During the timer-activated tuning, "MY INFO" continues to flash.

To cancel the timer standby, press INFO so that "MY INFO" disappears.

Note

• To discontinue the timer setting, press and hold PWR/MUTE until the unit turns off.
• To check the setting, turn off the unit, then press INFO. The unit displays the scheduled turn-on and turn-off times with the appropriate radio frequency.
• The unit automatically starts tuning at the scheduled time regardless of the current source mode. When the scheduled program is over, the unit automatically returns to the former source mode.
• Timer setting remains enabled even if you turn off the unit, and then turn it on. This is true even if you detach the front panel, and reattach it.
  • However, if you press FNC to change the source mode during timer-activated tuning, the scheduled program is canceled.

CD PLAYER OPERATION

Playing a CD

You can play CDs, CD-Rs and CD-RWs using the procedure described below.

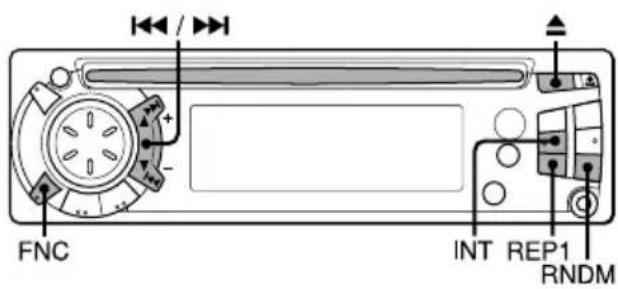

FNC INT REP1 RNDM

1 Insert a CD.

"CD" appears in the display.

CD play starts.

If a CD is already inserted, press FNC repeatedly to select CD play mode.

In normal play, when the last track finishes, the unit returns to the first track and continues to play.

Labeled-side up

CD indicator Track number

CD 00:23 01 TR

Elapsed playing time

To	Press
Eject a CD	▲
Skip to the next track	▶▶▶
Go back to the beginning of the current trackEach extra press skips backward one extra track	▶◀◀
Locate a specific point in a track	Press and hold ▶◀◀ or ▶▶▶▶ until you find the point.

Note

• When you play a CD that is already inserted, CD play starts at the point where it stopped the previous time. A newly inserted CD starts from the first track.
• A CD-R or CD-RW may take some time to start playing back, but this is not a malfunction.
• If a CD-R or CD-RW with no data or incompatible data is inserted, "E03" will appear in the display. The unit cannot play such discs.

Intro Play

You can locate a desired track by monitoring the first 10 seconds of all the tracks on a CD.

1 Press INT during CD play.

"SCAN" appears in the display.

2 Press INT again when the desired track is played.

The unit returns to normal CD play.

One track Repeat Play

You can play a track repeatedly.

1 Press REP1 during CD play.

"REPEAT1" appears in the display.

To cancel One track Repeat Play, press REP1 again.

Random Play

You can play all the tracks in random order.

1 Press RNDM during CD play.

"RANDOM" appears in the display.

To cancel Random Play, press RNDM again.

Note

During Random Play, pressing ◀◀◀ allows you to skip only to the beginning of the current track, not to the previous track.

AUXILIARY EQUIPMENT

Listening to a cassette/MD/MP3 portable

player or other equipment

You can listen to equipment connected to the unit. Refer to the operating instructions for the corresponding equipment for more detailed information.

Be sure to remove inserted CDs to prevent possible damage to the unit before connecting the equipment.

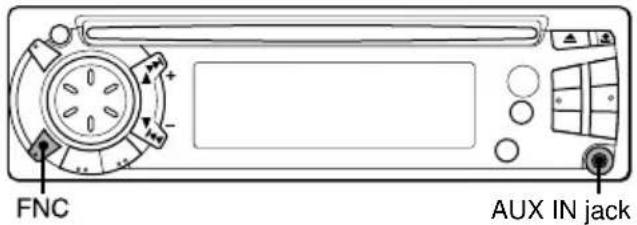

FNC AUX IN jack

1 Connect a cassette/MD/MP3 portable player or other equipment via the unit's AUX IN jack (3.5 mm).

2 Press FNC repeatedly until "AUX" appears in the display.

During AUX mode, the clock display appears.

OTHER FUNCTIONS

Front view of a vintage computer monitor with control panel and rotary dial (no text or symbols visible)

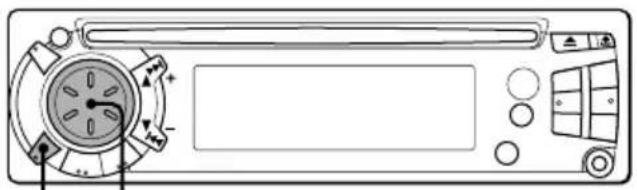

FNC Smart Jog

Changing the key illumination color

(CDC-X517M and CDC-X417)

You can choose blue or red as the key illumination color.

1 Press and hold FNC until "ILL" appears in the display.

2 Turn the Smart Jog to select 1 (for blue) or 2 (for red).

STEERING WHEEL REMOTE CONTROL

(CDC-X517M and CDC-X417)

Remote control button

1 2 3 4 5 VOLUME FUNCTION DISC/PRESE

① VOLUME + button: To increase the volume.
② VOLUME — button: To decrease the volume.
③FUNCTION button: To select Radio, CD Play, CD Changer Play (CDC-X517M only) or AUX IN mode.
④DISC/PRESET ∨ button:

(CD) To skip back to the beginning of the current track. Each extra press skips backward one extra track.

(Radio) To tune in to the next preset station, in descending order.

(CD Changer: CDC-X517M only)

Press and release to skip back to the beginning of the current track or the previous track.

Press and hold to switch to the previous CD.

⑤DISC/PRESET ∧ button:

(CD) To skip to the next track.

(Radio) To tune in to the next preset station, in ascending order.

(CD Changer: CDC-X517M only)

Press and release to skip to the next track.

Press and hold to switch to the next CD.

You can play CDs from a connected AIWA CD Changer. For detailed information on installing a CD Changer, refer to the Installation and Connection manual supplied with the CD Changer.

DISC\DISC\V FNC INT REP1 RNDM REP

CD Changer indicator Track number

CD-CH 3 17 TR CD number

1 Press FNC repeatedly to display "CD-CH." The CD Changer play starts.

To	Press
Skip to the next track	▶▶I
Skip back to the beginning of the current track or to the previous track	◀◀
Advance rapidly to locate a desired point	and hold ▶▶▶, then release it at the desired point
Reverse rapidly to locate a desired point	and hold ◀◀◀, then release it at the desired point
Start CD Changer play from the first track on the next disc	DISC^
Start CD Changer play from the first track on the previous disc	DISC √

Intro Play

You can locate a desired track by monitoring the first 10 seconds of all the tracks on the CDs in the disc magazine.

1 Press INT during CD Changer play. "SCAN" appears in the display.

2 Press INT again when the desired track is played. The unit returns to normal CD play.

One track Repeat Play

You can play a track repeatedly.

1 Press REP1 during CD Changer play. "REPEAT1" appears in the display.

To cancel Repeat Play, press REP1 again.

One disc Repeat Play

You can play all tracks on a disc repeatedly.

1 Press REP during CD Changer play. "REPEAT" appears in the display.

To cancel Repeat Play, press REP again.

Random Play

You can play all the tracks on the CDs in the disc magazine in random order.

1 Press RNDM during CD Changer play. "RANDOM" appears in the display.

To cancel Random Play, press RNDM again.

Note

Pressing ◄◀ during Random Play locates the beginning of the current track. The unit does not retrieve previous tracks during Random Play.

TROUBLESHOOTING

Error code

In the following cases the corresponding error code indication appears. Follow the suggestions below to solve such problems. If the error code indication does not disappear, consult an AIWA service center.

E01* The disc magazine is not properly inserted in the CD Changer. Reinsert the magazine. Refer to the instruction manual for the CD Changer.

E02* No CDs are loaded in the disc magazine. Insert CDs properly. Refer to the instruction manual for the CD Changer.

E03 Focus error. Check that the CD is loaded properly (right side up, etc.), and the CD contains valid data.

E04* Problem with the CD Changer. Reset the unit by pressing the Reset button. If this does not solve the problem, consult an AIWA service center.

* CDC-X517M only

Reset button

If a CD does not operate properly, press the reset button with a pointed object such as a pencil, etc. Note that all your settings will be erased if this button is pressed.

Line drawing of a device rear panel with a button and ports, no text or symbols present

Reset button

MAINTENANCE

Cleaning the front panel

Wipe the surface with a soft, dry cloth.

Cleaning the connector

The connector needs to be cleaned occasionally. Wipe the surface of the connector with a cotton swab slightly moistened with alcohol.

Back of the front panel

Diagram of a device with an internal connector and cable, showing no text or symbols

SPECIFICATIONS

RADIO SECTION

(FM)

Frequency Range: 87.5 MHz – 108 MHz (100-kHz steps)* or 87.5 MHz – 108 MHz (50-kHz steps)*

Usable Sensitivity: 12.7 dBf

50 dB Quieting Sensitivity: 17.2 dBf

IF Rejection: 80 dB

Frequency Response: 30 Hz – 15,000 Hz

S/N Ratio: 63 dB

Stereo Separation: 35 dB at 1 kHz

Alternate Channel Selectivity: 70 dB

Capture Ratio: 3 dB

(AM)

Frequency Range: 530 kHz – 1,710 kHz (10-kHz steps)* or 531 kHz – 1,602 kHz (9-kHz steps)*

Usable Sensitivity: 30 μV (30 dB)

9k□10k

* Set the frequency increment for your area using the switch on the bottom of the unit. (The switch is factory-set to the 10k position [for the U.S.A.])

CD SECTION

Frequency Response: 17 Hz - 20 kHz +0/-3 dB

Dynamic Range: More than 80 dB

Channel Separation: More than 65 dB

S/N Ratio: More than 85 dB

Wow/Flutter: Not applicable

AUDIO SECTION

Max. Power Output: 50 W · 4 channels

(CDC-X517M), 45 W · 4 channels (CDC-X417,

CDC-X317)

AUX IN input

Input sensitivity (load impedance) AUX IN: 300 mV (10 kΩ)

GENERAL

Power-Supply Voltage: 14.4 V (11 to 16 V)

allowable), DC, negative ground

Load Impedance: 4 Ω

Tone Control:

Bass ± 10 dB at 100 Hz, Treble ± 10 dB at 10 kHz

Preamp Output Voltage (load impedance): 2.2 V (10 kΩ)

Supplied Accessory: Carrying case (1)

STEERING WHEEL REMOTE CONTROL (CDC-X517M and CDC-X417)

Dimensions: approx. 67 (W) · 26 (H) · 27 (D) mm (2 ^3/4 (W) · 1 ^1/16 (H) · 1 ^1/8 (D) inches) (excluding holder)

Weight: approx. 38 g (1.33 oz.) (including holder, battery)

Supplied Accessories: Mounting kit (1 set), Lithium battery (1)

- Specifications and external appearance are subject to change without notice due to product improvement.

REAR PANEL

CDC-X517M

L R REAR FRONT

CDC-X417, CDC-X317

L R REAR FRONT
