| Product Type | Kitchen Scale |
| Brand | CASO |
| Model | 3260 (F10) |
| Power Supply | 2 AAA 1.5 V batteries (not included) |
| Display | LED |
| Functions | Weighing, tare, unit change, overload indicator |
| Measurement Units | Grams (g) and ounces (oz) |
| Tare function | Yes, via the TARE button |
| Overload indicator | Display shows 'EEEE' |
| Warranty | 24 months (Europe) |
| Care and cleaning | Clean the exterior and screen with a damp cloth or sponge and dish soap; do not immerse; do not use aggressive or abrasive products |
| Safety | Use by children over 8 years old under supervision; do not use if the device is damaged |
| Spare parts | Standard AAA batteries |
| Reparability | Repairs only by a service approved by the manufacturer |
| Manual languages | FR, DE, EN, ES, IT, NL |
| Manufacturer contact | CASO Germany / Braukmann GmbH, Raiffeisenstraße 9, D-59757 Arnsberg, Germany; email: kundenservice@caso-germany.de; phone: +49 (0) 29 32 / 80 55 4 - 99 |
| Dimensions | Not specified in the manual |
| Weight | Not specified in the manual |
Frequently Asked Questions - 3260 CASO
User questions about 3260 CASO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Kitchen scales in PDF format for free! Find your manual 3260 - CASO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 3260 by CASO.
USER MANUAL 3260 CASO
Design kitchen scales F10
Balance Design de cuisine F10

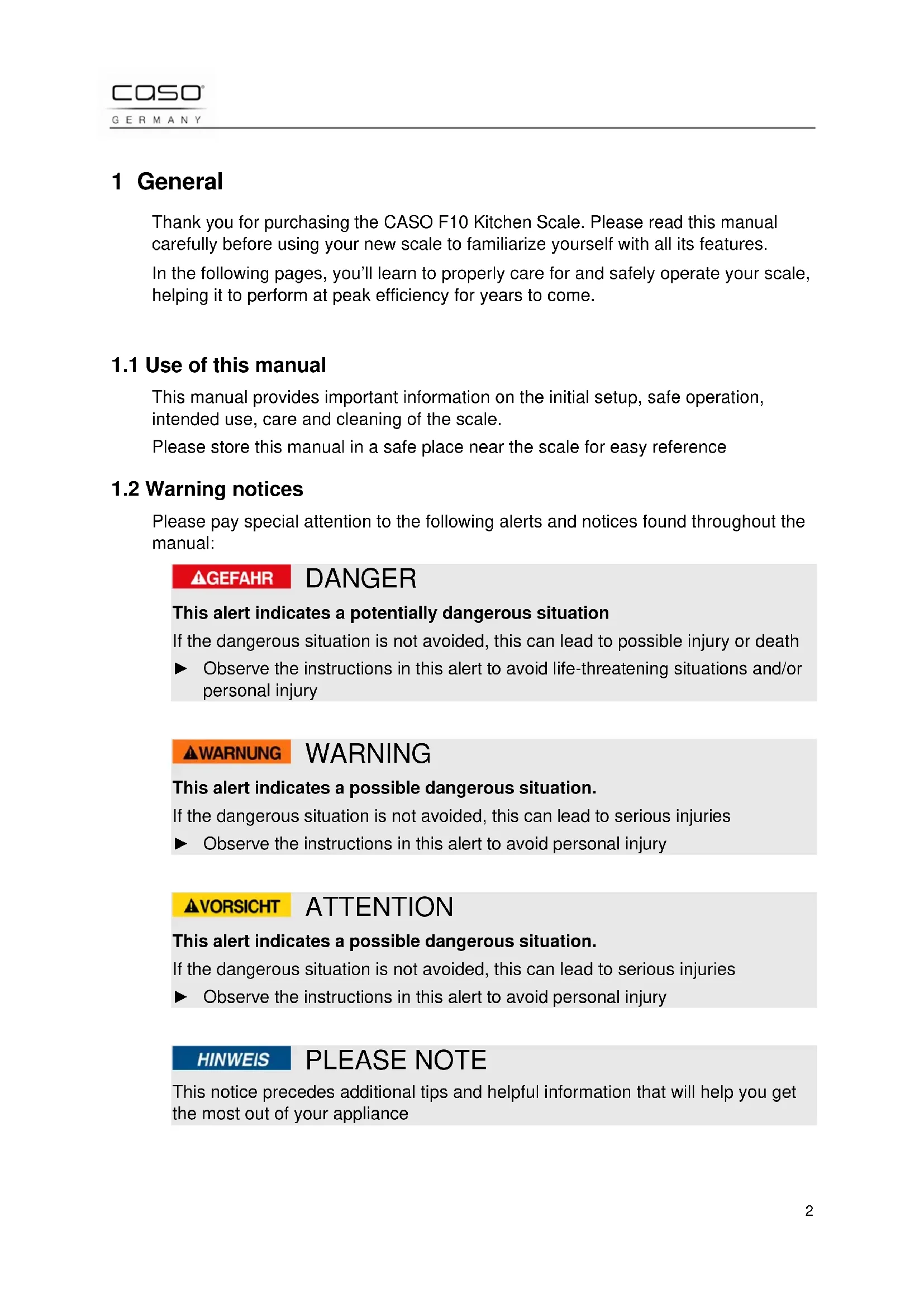

Thank you for purchasing the CASO F10 Kitchen Scale. Please read this manual carefully before using your new scale to familiarize yourself with all its features.
In the following pages, you'll learn to properly care for and safely operate your scale, helping it to perform at peak efficiency for years to come.
1.1 Use of this manual
This manual provides important information on the initial setup, safe operation, intended use, care and cleaning of the scale.
Please store this manual in a safe place near the scale for easy reference
1.2 Warning notices
Please pay special attention to the following alerts and notices found throughout the manual:
▲GEFAHR DANGER
This alert indicates a potentially dangerous situation
If the dangerous situation is not avoided, this can lead to possible injury or death
Observe the instructions in this alert to avoid life-threatening situations and/or personal injury
WARNING WARNING
This alert indicates a possible dangerous situation.
If the dangerous situation is not avoided, this can lead to serious injuries
Observe the instructions in this alert to avoid personal injury
VORSICH ATTENTION
This alert indicates a possible dangerous situation.
If the dangerous situation is not avoided, this can lead to serious injuries
Observe the instructions in this alert to avoid personal injury
HINWEIS PLEASE NOTE
This notice precedes additional tips and helpful information that will help you get the most out of your appliance
1.3 Limitation of liability
All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.
No claims can be derived from the information provided, the illustrations or descriptions in this manual.
The manufacturer does not assume any liability for damages arising as a result of the following:
Non-observation of the manual
Uses for non-intended purposes
- Improper repairs
- Technical alterations, modifications of the device
- U se of unauthorized spare parts
Modifications of the device are not recommended and are not covered by the guarantee.
All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.
1.4 Copyright protection
This document is copyright protected.
Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.
Subject to content and technical changes.
2 Safety
This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.
2.1 Intended use
This device is only intended for non-commercial use indoors, in sheltered and enclosed spaces for weighing food. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.
WARNING Warning
Danger due to unintended use!
Failure to operate this unit only as intended can be dangerous
Use the device exclusively for its intended use.
Follow all of the instructions in the instruction manual
Claims of all kinds due to damages resulting from unintended uses are excluded.
The User bears the sole risk.
2.2 General Safety information
HINWEIS Please note
Please observe the following general safety rules to prevent possible injury
Examine the device for any damages prior to using it. Do not use the unit if it appears damaged
This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
- Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages.
Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
Do not drop or jump on the scale. This will cause damages
3 Getting Started
This chapter will guide you through safely unpacking and setting up your new unit.
3.1 Packaging Safety information
WARNING Warning
Packaging materials are not toys and should be disposed of properly!
Do not allow children to play with packaging materials due to risk of suffocation
3.2 What's included
The F10 Kitchen Scale includes the following components:
F10 Kitchen Scale
- Instruction Manual
HINWEIS Please note
Examine the shipment to ensure the unit and manual are included and inspect the unit for any visible damage
- Immediately notify the carrier and/or supplier about any incomplete shipment or damages as a result of inadequate packaging or mishandling
3.3 Unpacking
Carefully remove the packaging material and unit from the carton
3.4 Disposal of the packaging
Caso believes in the importance of recycling and has selected packaging materials that not only protect your unit from damage during transit, but can be recycled to minimize ecological impact.
Recycling the packaging materials preserves raw materials and reduces waste. Take any packaging materials that are no longer required to a recycling collection point for proper disposal
HINWEIS Please note
If possible, keep the original packaging for the device for the duration of the guarantee period in the event a return is necessary
3.5 Setup
3.5.1 Setup location requirements:
In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:
- The device must be set up on a firm, flat and horizontal surface with sufficient load-bearing capacity for the scale and the maximum weight of the food that should be weighed.
- Choose the setup location where children cannot reach the scale
- Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
3.6 Rating plate
The rating plate with the performance data can be founded on the back of the device
4 Complete Overview
This chapter provides you with an overview of your scale and explains some of its key features
4.1 Batteries
Open the battery cover and put in four batteries (1,5V/ AAA),
4.2 Replacing the batteries
When the battery is low, the LED screen will show the following error "Lo", Open the battery cover and replace the existing batteries with new batteries. Pay attention to correct polarity.
4.3 Operation
4.3.1 Weighing
Press the "TARE" button on the right side of the scale to begin. The message "HELO" will appear on the display. The scale will then show zero (0)
Place the food on the scale surface and the weight of the food will appear on the display.
4.3.2 Tare Function
This scale has a Tare function, which allows items with a container to be precisely weighed. Follow the below steps:
Press the "TARE" button on the right side of the scale to begin. The message "HELO" will appear on the display. The scale will then show zero "0"
Place an empty container on the scale. The LED display will now show the weight of the container.
Press the "TARE" button on the right side of the scale and the LED shows zero "0" and clears the weight of container.
Next put the food into the container on the scale. The weight of the food only will appear on the display.
Remove the food and the container and the scale will show the negative weight. Press the "TARE" button and the LED shows zero again.
4.3.3 Changing from grams to ounces
Press the "TARE" button on the right side of the scale to begin. The message "HELO" will appear on the display. The scale will then show zero (0)
On the left side of the scale press the "MODE "button to choose between grams (g)" or ounces (oz).
4.3.4 Over Load Indicator
When the scale is overloaded the display will show the error code of "IEEE"
5 Cleaning and Maintenance
This chapter provides important information on properly cleaning and maintaining your scale
5.1 Safety information
VORSICHT Attention
Please observe the following safety notices, before cleaning the scale :
- Clean the unit after every use. Failure to clean the unit regularly can lead to potential malfunctions, as well as safety and health risks.
Never immerse the scale into water or other liquid
Do not put it in the dishwasher.
If moisture penetrates the unit's housing, it can damage the electronic components. Please ensure that no moisture enters the device.
Do not use any hard or abrasive cleaning agents
Do not attempt to scrape off stubborn grime with hard or abrasive tools
5.2 Cleaning
Housing and display
Wipe the housing and the display with a damp cloth or sponge and mild dish soap.
5.3 Disposal of the Old Device
To protect the environment, it's important to dispose of old electronic devices properly. Do not place your old unit in the non-recyclable waste under any circumstances
HINWEIS Please note
Please take your old unit to the nearest recycling center for safe disposal
Until it can be disposed of properly, store your old unit away from children
6 Warranty (USA)
We provide a 12 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults.
The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.
This device is designed for use in domestic situations and has the appropriate performance levels.
Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.
In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device.
Any pending faults must be reported within 14 days of delivery.
All further claims are excluded.
To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase):
Appliance Sales & Service
840 Folsom Street
San Francisco, CA 94107
USA
service@caso-germany.com
US-service no.: (855) 230 - 9284, OPTION 1
International service no.: +49 2932 - 54766 - 79
International fax no.: +49 2932 - 54766 - 77
7 Warranty (Europe)
We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults.
Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this.
The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.
This device is designed for use in domestic situations and has the appropriate performance levels.
Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.
In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device.
Any pending faults must be reported within 14 days of delivery.
All further claims are excluded.
To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).
caso Germany / Braukmann GmbH
Raiffeisenstraße 9
D-59757 Arnsberg
Service-Hotline International:
Tel.: +49 (0) 29 32 / 80 55 4 - 99
Fax: +49 (0) 29 32 / 80 55 4 - 77
eMail: kundenservice@caso-germany.de
Internet: www.caso-germany.de
