Product type	Handheld vacuum cleaner
Power	18 V
Tank capacity	0.5 L
Charging time	4-5 hours
Battery life	10-15 minutes
Weight	1.2 kg
Dimensions	30 x 10 x 15 cm
Filtration	Washable filter
Included accessories	Brush, flat nozzle
Usage	Ideal for quick cleaning of surfaces, furniture, and cars
Maintenance	Clean the filter regularly, empty the tank after each use
Safety	Do not use near water, do not disassemble the device
Warranty	2 years

Frequently Asked Questions - WDB215WA BLACK & DECKER

How do I charge the BLACK & DECKER WDB215WA handheld vacuum cleaner?

To charge the vacuum, plug the charger into a power outlet and connect it to the vacuum. The charging indicator will light up to show that the device is charging.

What is the charging time for the handheld vacuum cleaner?

The full charging time is about 4 to 5 hours for optimal use.

How do I empty the dust tank?

To empty the tank, remove it from the vacuum, open the lid, and empty the contents into a trash bin. Make sure to close the tank properly before putting it back in place.

The vacuum cleaner does not work, what should I do?

Check that the vacuum is properly charged. If the device still does not turn on, make sure the dust tank is correctly installed and the filter is not clogged.

How do I clean the vacuum filter?

Remove the filter from the dust tank and rinse it with lukewarm water. Let it dry completely before putting it back in place.

Is the BLACK & DECKER WDB215WA handheld vacuum cleaner cordless?

Yes, this handheld vacuum cleaner is cordless, allowing convenient and easy use throughout the home.

What types of surfaces can be cleaned with this vacuum?

The vacuum is designed to effectively clean hard surfaces, carpets, and upholstery fabrics.

What is the weight of the handheld vacuum cleaner?

The BLACK & DECKER WDB215WA handheld vacuum cleaner weighs about 1 kg, making it light and easy to handle.

Where can I find spare parts for this vacuum?

Spare parts can be found on the official BLACK & DECKER website or in hardware and appliance stores.

What is the warranty for the handheld vacuum cleaner?

The BLACK & DECKER WDB215WA vacuum is generally covered by a 2-year warranty, but it is recommended to check the specific conditions at the time of purchase.

USER MANUAL WDB215WA BLACK & DECKER

Your BLACK+DECKER™ Dustbuster® handheld vacuum cleaner has been designed for light dry vacuum cleaning purposes (NVB115W, NVB115WA). This appliance is intended for household use only.

Your BLACK+DECKER™ Dustbuster® handheld vacuum cleaner has been designed for light wet and dry vacuum cleaning purposes (WDB115W, WDB115WA, WDB215W, WDB215WA). This appliance is intended for household use only.

Safety instructions

Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury.

Warning! When using battery-powered appliances, basic safety precautions, including the following, should always be followed to reduce the risk of fire, leaking batteries, personal injury and material damage.

• Read all of this manual carefully before using the appliance.
• The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury.
• Retain this manual for future reference.

Using your appliance

• Do not use the appliance to pick up liquids or any materials that could catch fire.
• Do not use the appliance near water.
• Do not immerse the appliance in water.
• Never pull the charger lead to disconnect the charger from the socket. Keep the charger lead away from heat, oil and sharp edges.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Inspection and repairs

• Before use, check the appliance for damaged or defective parts. Check for breakage of parts, damage to switches and any other conditions that may affect its operation.

• Do not use the appliance if any part is damaged or defective.

• Have any damaged or defective parts repaired or replaced by an authorized repair agent.

• Regularly check the charger lead for damage. Replace the charger if the lead is damaged or defective.
• Never attempt to remove or replace any parts other than those specified in this manual.

Additional safety instructions

Residual risks

Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use etc.

Even with the application of the relevant safety regulations and the implementation of safety devices, certain residual risks can not be avoided. These include:

• Injuries caused by touching any moving parts.
• Injuries caused by touching any hot parts.
• Injuries caused when changing any parts or accessories.
• Injuries caused by prolonged use of the appliance. When using any appliance for prolonged periods ensure you take regular breaks.

Batteries and chargers

Batteries

• Never attempt to open for any reason.
• Do not expose the battery to water.
• Do not expose the battery to heat.
• Do not store in locations where the temperature may exceed 40^ .
• Charge only at ambient temperatures between 10^ and 40^ .
• Charge only using the charger provided with the appliance/tool. Using the wrong charger could result in an electric shock or overheating of the battery.
• When disposing of batteries, follow the instructions given in the section "Protecting the environment".
• Do not damage/deform the battery pack either by puncture or impact, as this may create a risk of injury and fire.
• Do not charge damaged batteries.
• Under extreme conditions, battery leakage may occur. When you notice liquid on the batteries carefully wipe the liquid off using a cloth. Avoid skin contact.
• In case of skin or eye contact, follow the instructions below.

Warning! The battery fluid may cause personal injury or damage to property. In case of skin contact, immediately rinse with water. If redness, pain or irritation occurs seek medical attention. In case of eye contact, rinse immediately with clean water and seek medical attention.

Chargers

Your charger has been designed for a specific voltage. Always check that the mains voltage corresponds to the voltage on the rating plate and the information in the technical data table.

Warning! Never attempt to replace the charger unit with a regular mains plug.

• Use your BLACK+DECKER charger only to charge the battery in the appliance/tool with which it was supplied. Other batteries could burst, causing personal injury and damage.
• Never attempt to charge nonrechargeable batteries.
• If the supply cord is damaged, it must be replaced by the manufacturer or an authorised BLACK+DECKER Service Centre in order to avoid a hazard.
• Do not expose the charger to water.
• Do not open the charger.
• Do not probe the charger.
• The appliance/tool/battery must be placed in a well ventilated area when charging.

Electrical safety

Your charger has been designed for a specific voltage. Always check that the mains voltage corresponds to the voltage on the rating plate. Never attempt to replace the charger unit with a regular mains plug.

Symbols on the charger

Read all of this manual carefully before using the appliance.

This tool is double insulated; therefore no earth wire is required. Always check that the power supply corresponds to the voltage on the rating plate.

The charging base is intended for indoor use only.

Labels on appliance

The following symbols appear on this appliance along with the date code:

Only use with charger S003AQ 15

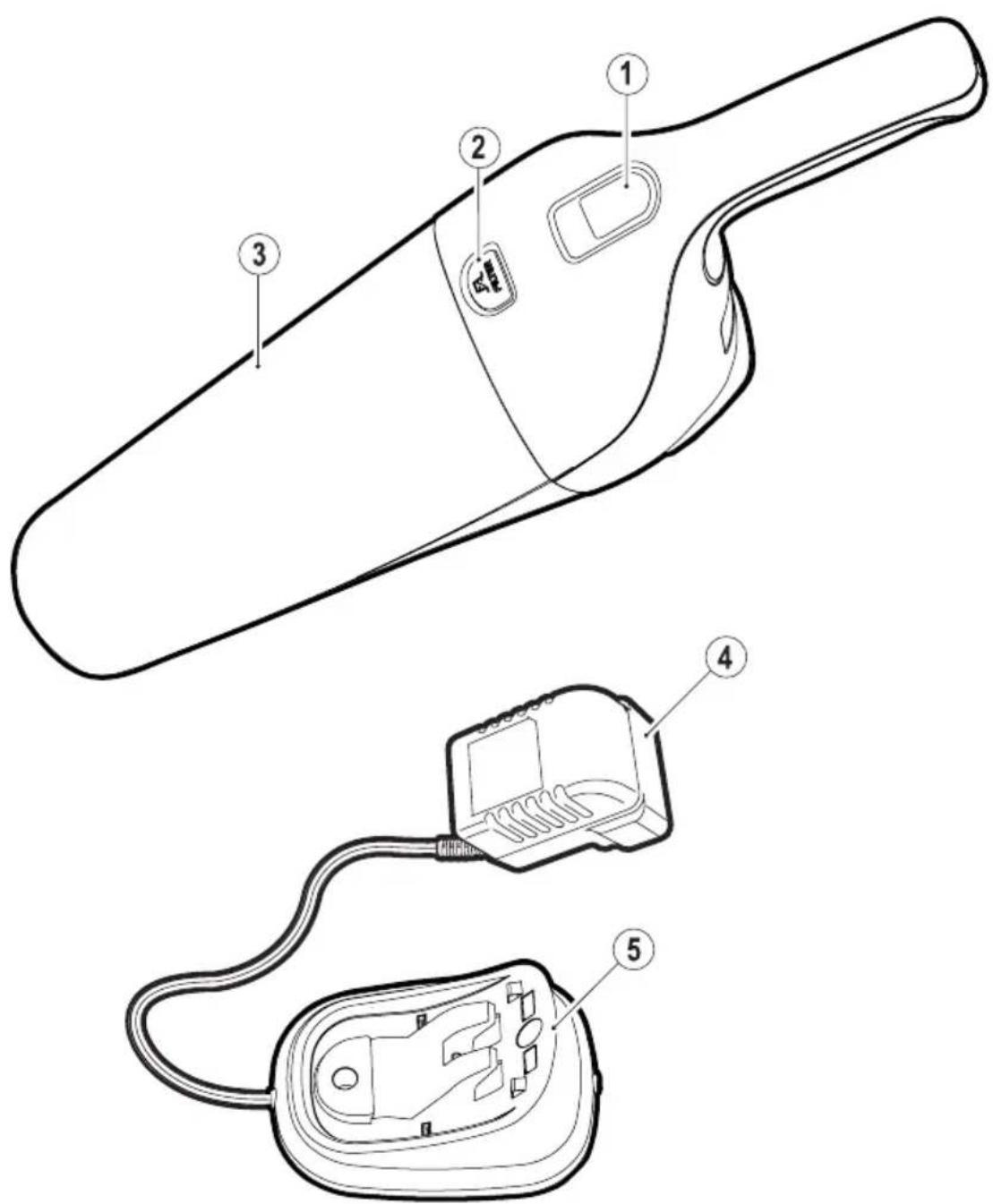

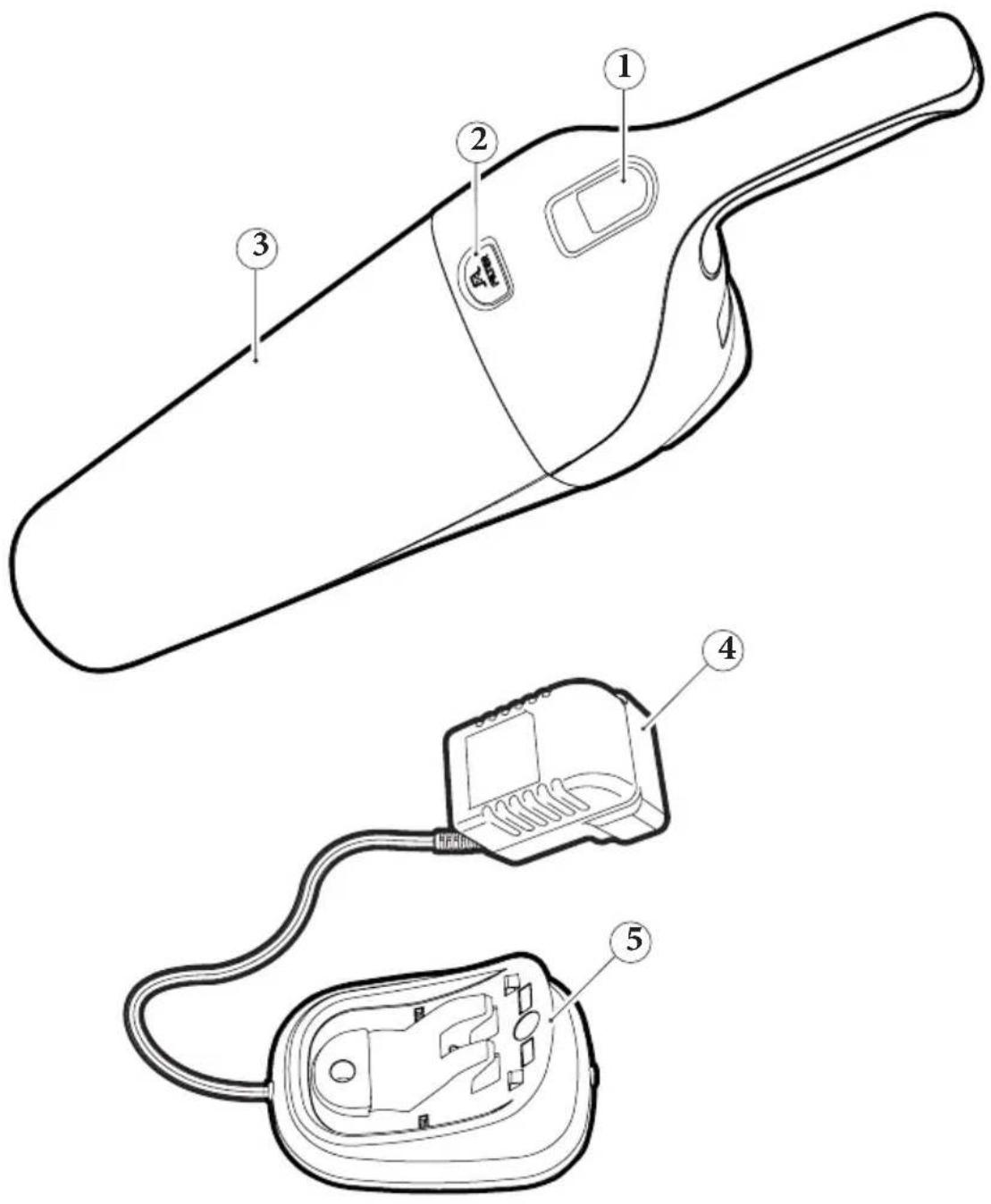

Features

This tool includes some or all of the following features.

1. On/off switch (press and hold)
2. Bowl release button
3. Dust bowl
4. Charger
5. Charging bracket

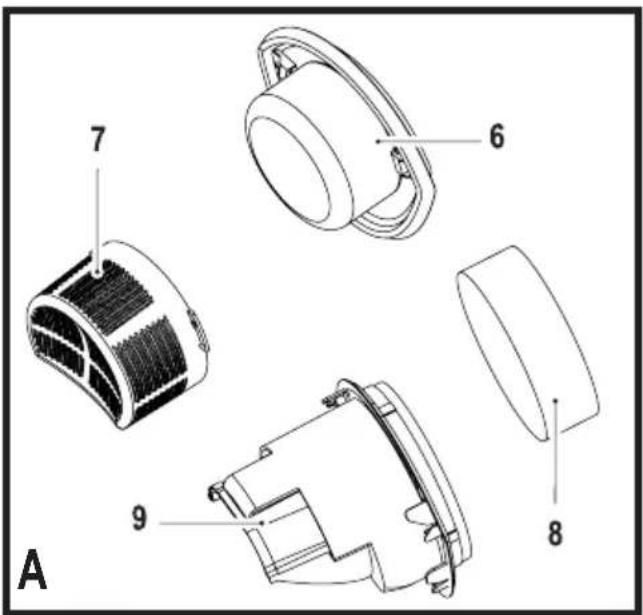

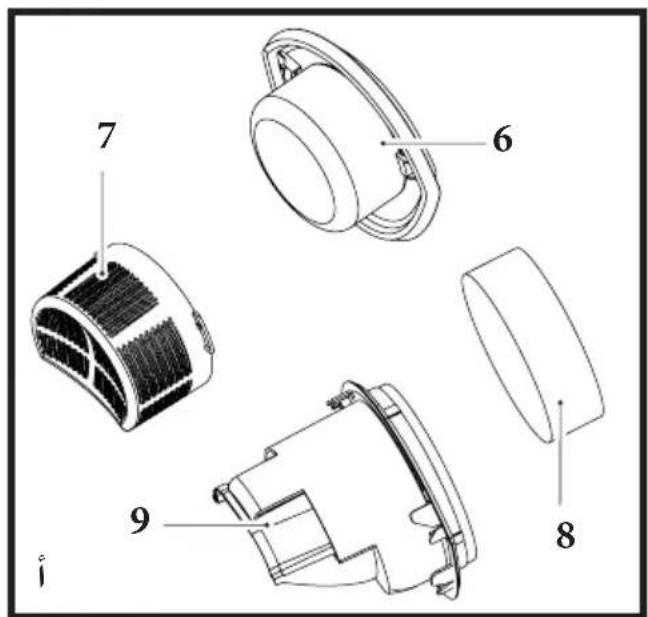

Fig. A

1. Dry pick up cloth filter (NVB units Only)
2. Pre-filter (NVB units Only)
3. Wet/Dry foam insert (WDB units Only)
4. Wet/Dry deflector (WDB units Only)

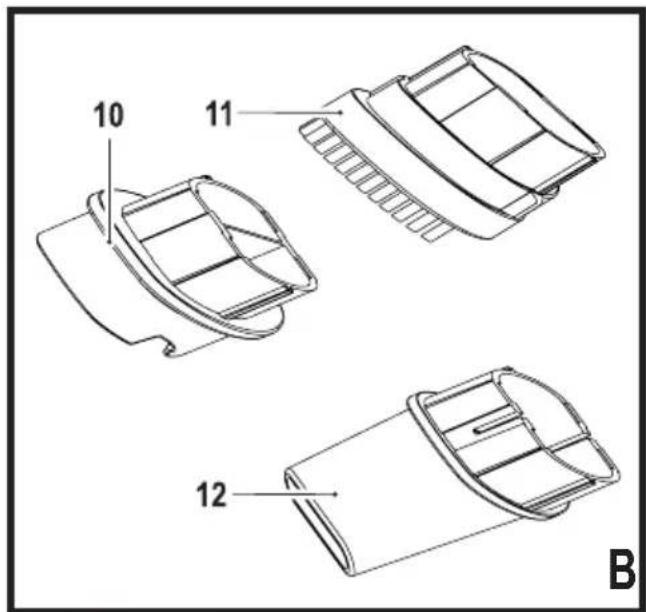

Fig. B

1. Squeegee (WDBWA units Only)
2. Brush tool (WDBWA and NVBWA units Only)
3. Crevice tool (WDBWA and NVBWA units Only)

Installation

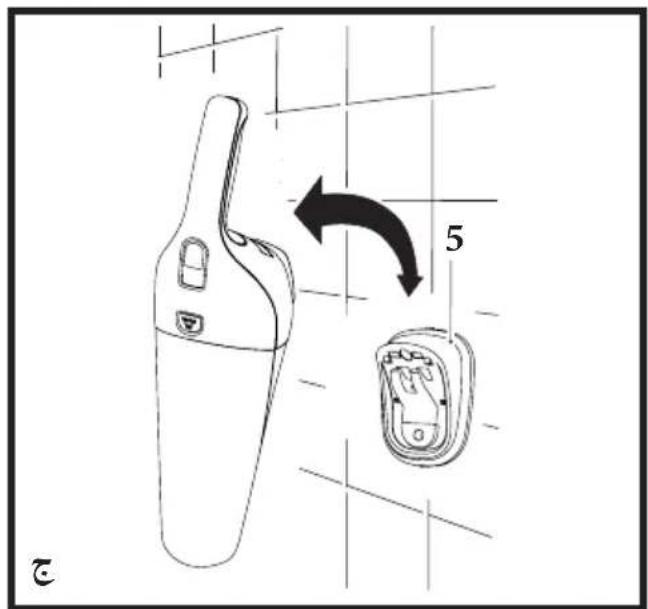

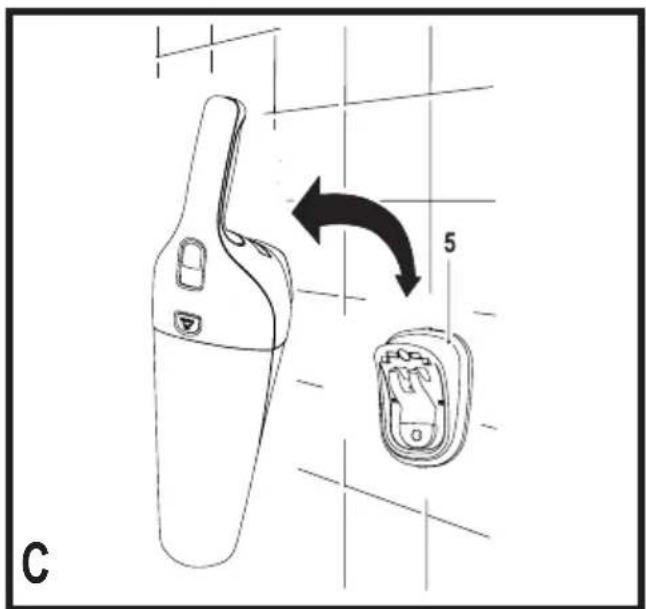

Wall Mounting (fig. C)

The product can be attached to a wall to provide a convenient storage and charging point for the appliance. When fixing to a wall, make sure that the fixing method is suitable for the wall type and is appropriate to the weight of the appliance.

• Mark the location of the screw holes (within reach of an electrical outlet for charging the vac while it is on the wall bracket).
  Fix the mounting bracket to the wall using appropriate screws and plugs for the type of wall and weight of the appliance.
• Hang the appliance on the wall by placing the opening on the base of the vac over the hooks in the wall mount charging bracket.

Assembly

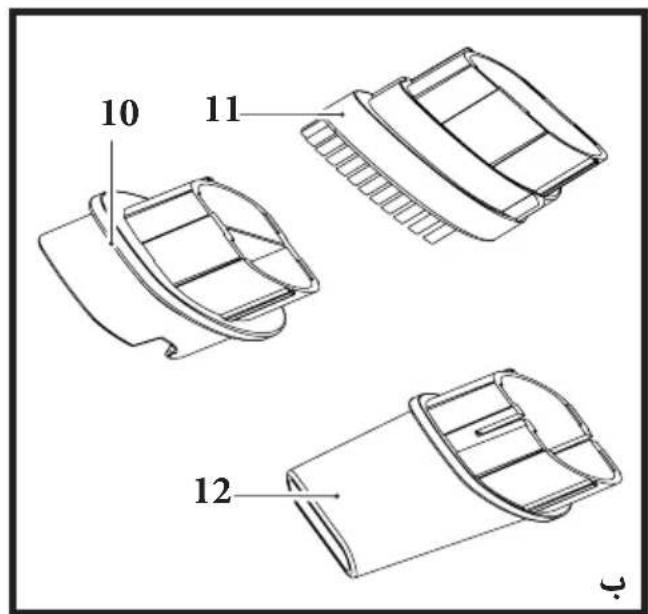

Accessories (fig .B)

These models may be supplied with some of the following accessories:

• A squeeze tool (10) for wet use on hard surfaces.
• A brush tool (11) for furniture and stairs.
• A crevice tool (12) for confined spaces.

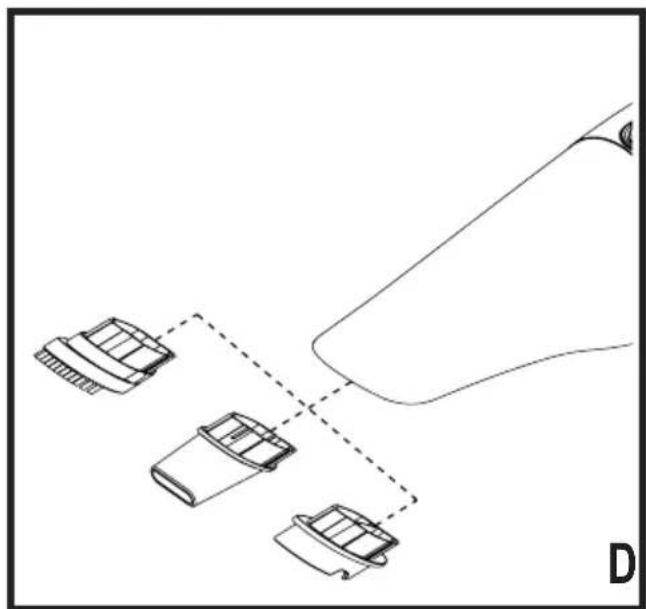

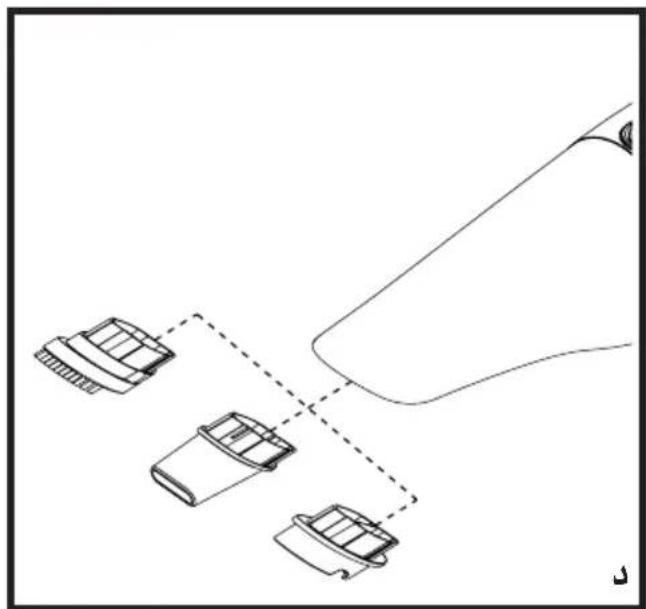

Fitting (Fig. D)

• Insert the appropriate accessory into the front of the appliance. Make sure that the accessory is pushed fully in.

Use

Before first use, the battery must be charged for at least 24 hours.
- Place the appliance on the charging bracket whenever it is not in use.

Warning! Before charging, be sure to empty all liquid contents and dry thoroughly, to avoid damage to your appliance.

Charging the battery (Fig. C)

• Make sure that the appliance is switched off. The battery will not be charged with the on/off switch (1) pressed.

(Original instructions)

ENGLISH

• Place the appliance on the charging bracket (5).
• Plug in the charger. Switch on at the mains.
• Leave the appliance to charge for at least 21 hours.

While charging, the charger may become warm. This is normal and does not indicate a problem.

The appliance can be left connected to the charger indefinitely.

Warning! Do not charge the battery at ambient temperatures below 10^ or above 40^ .

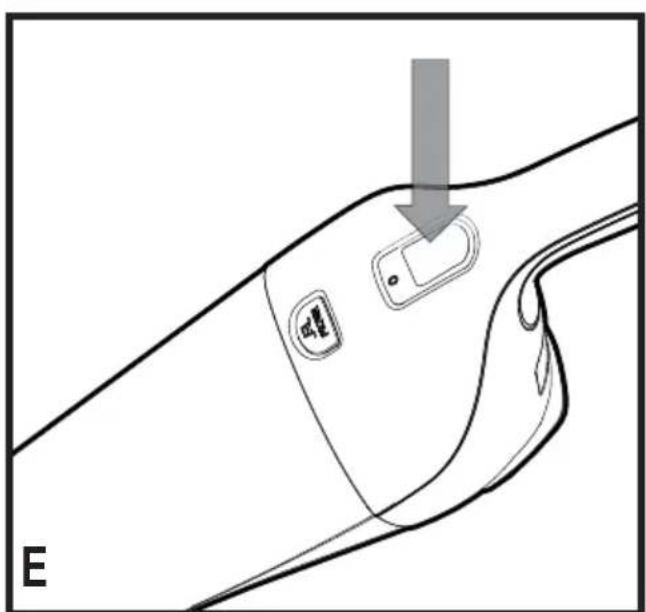

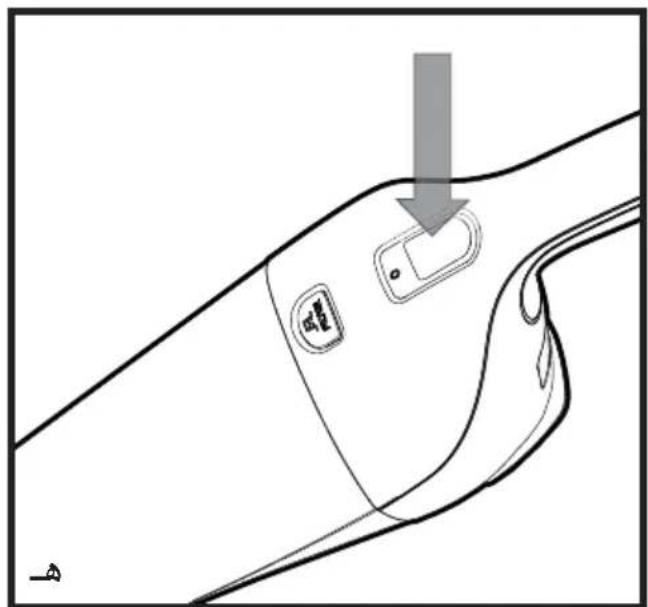

Switching on and off (fig. E)

• To switch the appliance on, press and hold the on/off switch (1).
• To switch the appliance off, release on/off switch (1).

Dry pick up (NVB units Only)

• For everyday spills of dry material.

Warning! Never pick up wet applications with these units.

Wet and dry pick up (WDB units Only)

• For everyday spills of dry material, use your appliance without the squeegee accessory.
  Warning! Your product is designed for light spills only.
• This appliance can also be used to pick up everyday liquid spills. Use the squeezegee accessory on non-absorbent, hard surfaces. On absorbent surfaces, such as carpet, your appliance will pick up wet spills better without the accessory.
• For best performance on hard surface wet pickups, insert squeezegee into the bowl nozzle opening.
• For best results when using this accessory, hold the appliance at an angle of 45^ and pull it slowly towards you.
• Do not fill the bowl beyond the end of the intake chute. If there is any liquid in the bowl, do not turn the unit upside down, sideways, point the nozzle upward, or shake the vac excessively.
  After picking up liquid substances clean the appliance and filter immediately. Mold and mildew may form if the unit is not properly cleaned after wet pickups.
• Before charging, be sure to empty all liquid contents and dry thoroughly, to avoid damage to your appliance.

Optimising the suction force

In order to keep the suction force optimised, the filters must be cleared regularly during use.

Emptying and cleaning the product.

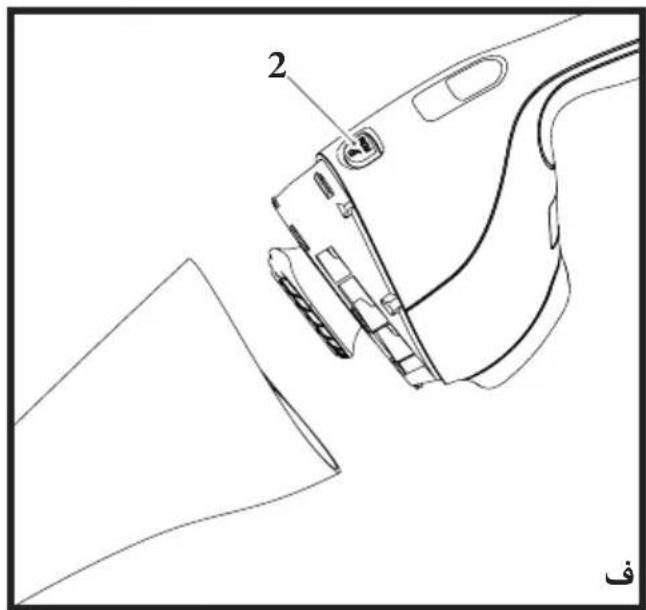

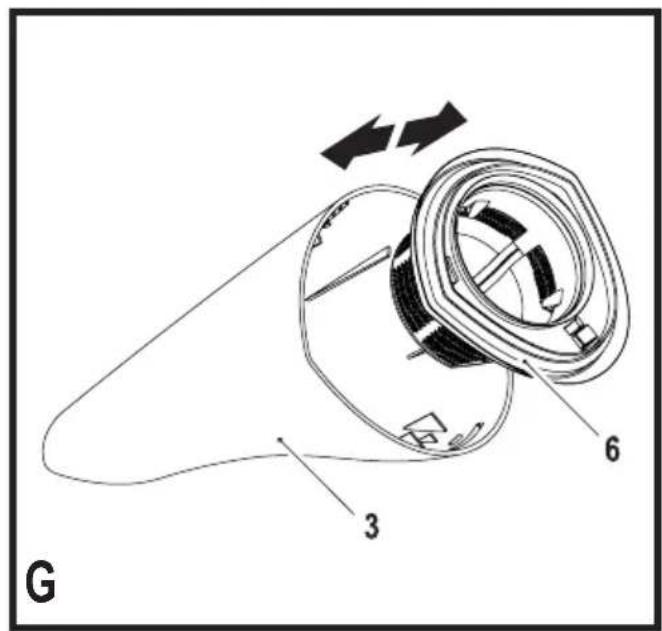

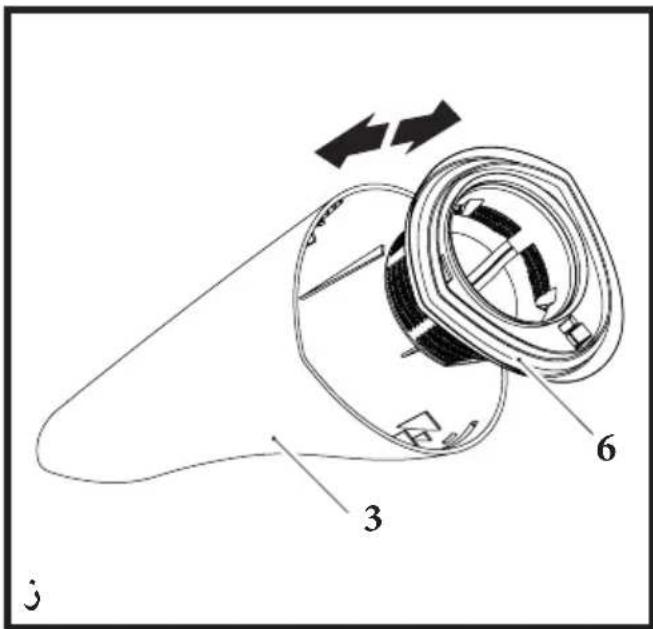

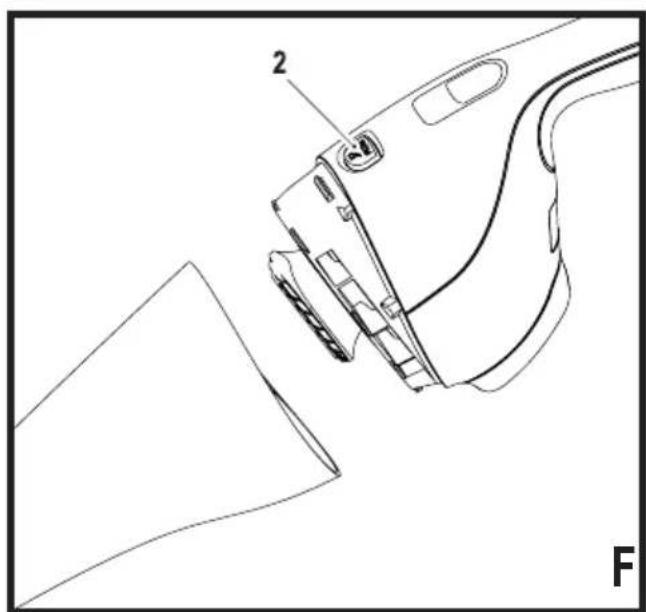

Removing the dust bowl and filters (fig. F & G).

Warning! The filters are re-usable and should be cleaned regularly.

• Press the bowl release button (2) and pull the dust bowl (3) straight off.
• While holding the dust bowl over a bin or sink, pull out the filter to empty the contents of the bowl.
• To replace the dust bowl, place it back onto the handle until it "clicks" firmly into position.

Warning! Never use the appliance without the filters. Optimum dust collection will only be achieved with clean filters.

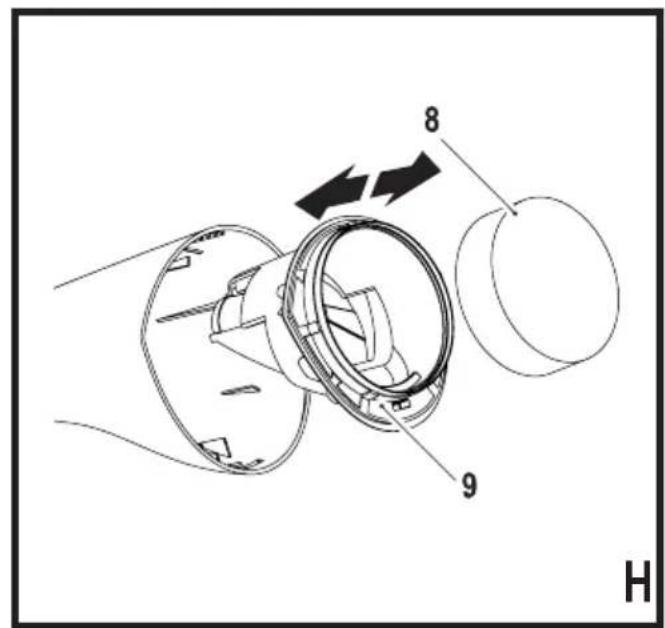

Foam insert (fig. H) (WDB units Only)

• Place the foam insert (8) into the centre of the wet/dry deflector (9).

Warning! Never use the appliance for wet applications without the water deflector and foam insert fitted.

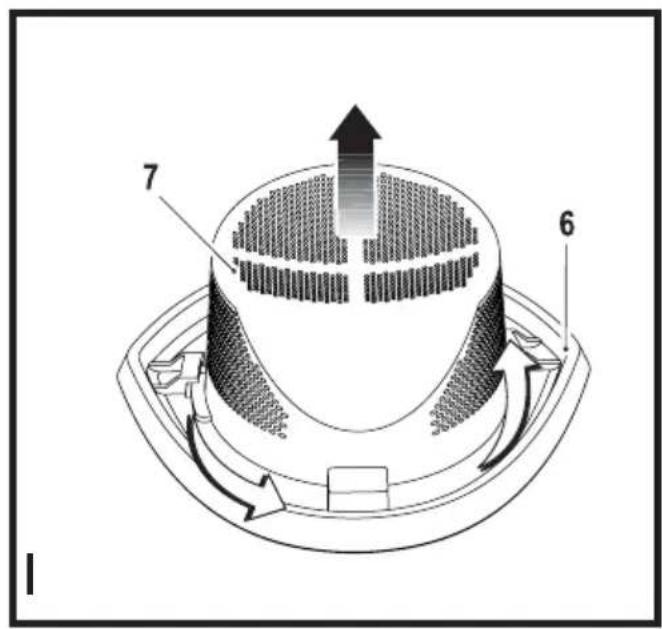

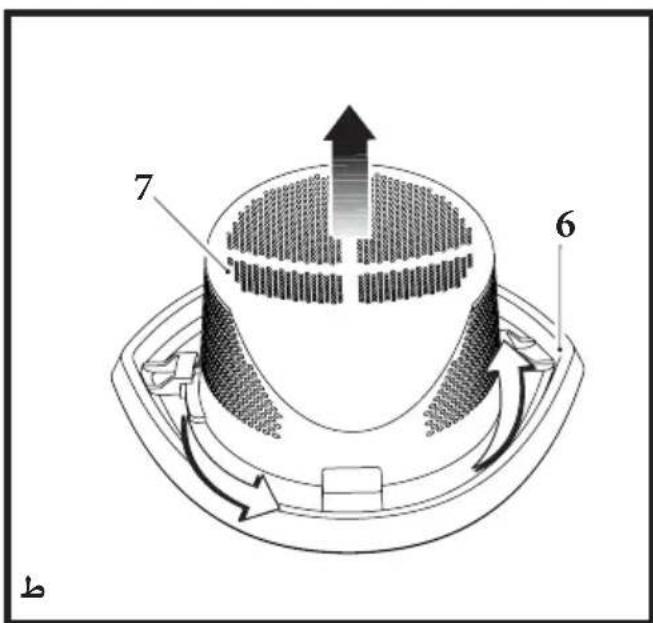

Pre-filter (fig. I) (NVB units Only)

The Filter and pre-filter can be separated to allow better cleaning.

• Twist the pre-filter (7) in an anti-clockwise direction and lift from the filter (6).

Warning! Never pick up wet applications with these units.

Cleaning the dust bowls and filters

• The dust bowls and filters can be washed in warm soapy water.
• Make sure that the filters and the dust bowl are dry before re-fitting.

Replacing the filters

The filters should be replaced every 6 to 9 months and whenever worn or damaged.

Replacement filters are available from your BLACK+DECKER dealer:

For models: NVB115W, NVB115WA use filter part number FLVD10-XJ

For models: WDB115W, WDB115WA, WDB215W, WDB215WA use filter part number FLWD10-XJ

Maintenance

Your BLACK+DECKER corded/cordless appliance/tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Warning! Before performing any maintenance on corded/ cordless power tools:

• Switch off and unplug the appliance/tool.
• Or switch off and remove the battery from the appliance/tool if the appliance/tool has a separate battery pack.

• Or run the battery down completely if it is integral and then switch off.

• Unplug the charger before cleaning it. Your charger does not require any maintenance apart from regular cleaning.

• Regularly clean the ventilation slots in your appliance/tool/charger using a soft brush or dry cloth.
• Regularly clean the motor housing using a damp cloth. Do not use any abrasive or solvent-based cleaner.

Protecting the environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your BLACK+DECKER product needs replacement, or if it is of no further use to you, do not dispose of it with other household waste. Make this product available for separate collection.

• BLACK+DECKER provides a facility for recycling BLACK+DECKER products once they have reached the end of their working life. This service is provided free of charge. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.
• You can check the location of your nearest authorised repair agent by contacting your local BLACK+DECKER office at the address indicated in this manual. Alternatively, a list of authorized BLACK+DECKER repair agents and full details of our after-sales service and contact are available on the Internet at: www.2helpU.com.

Technical data

	NBV115W, NBV115WA, WDB115W, WDB115WA	WDB215W, WDB215WA
Voltage (VDC) 3.6 7.2
Battery Li-Ion Li-Ion
Weight (Kg) 0.61 0.65
Charger N507760	N507760
Input Voltage (VAC)	220-240 220-240
Output Voltage (V)	5 15
Current (mA) 150	150
Approx charge time (h)	10 10

Warranty

BLACK+DECKER is confident of the quality of its products and offers an outstanding warranty.

This warranty statement is in addition to and in no way prejudices your statutory rights.

If a BLACK+DECKER product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, BLACK+DECKER warranty to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

The product has been used for trade, professional or hire purposes;
The product has been subjected to misuse or neglect;
The product has sustained damage through foreign objects, substances or accidents;
Repairs have been attempted by persons other than authorised repair agents or BLACK+DECKER service staff.

To claim on the warranty, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local BLACK+DECKER office at the address indicated in this manual.

Alternatively, a list of authorised BLACK+DECKER repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.

Utilisation prévue

Installation (figure D)

Aspiration d' éléments secs (NVB uniquement)

Aspiration d' éléments secs/humides (WDB uniquement)

The following symbols appear on this appliance along with the date code:

Lac 1aJg jIgJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJr

ailll lllllllllllll

JSLIIL 1sLgIgIgIgIgIgIgIgIgIgIg

:≤LwU1

1yj 1 j1/ j1j1 j1j1

j51j1j1/ j1j1j1j1j1j1j1

ii = 2

p, a 0000 cik j Iolai a Jalal al g jg jglj

a3 = 32a2,a4 = 32a3.

gssaiy gilbi y dialu adalii jajalll Jus

.

dai/dujz/diJIyIaIJIyIaIJIyIaJIyIaJIy

(NVB_ WA, WDB_ WA) 11

(NVB_ WA, WDB_ WA)

(C)

J 1

ailll laloll jjlll oia ajj

chwJxjIJIyPusss (10) aIboll aawaaal sI

111 1

aJSLsU 12

(D

Jolll Jol

1

J 24 1

a 1

scllally lalg aiaaahy aaiy jlljw wssd jdd 1oLlly hllhaw lee ralee yaaay

11 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

J

golgi no Ioiu gaiy 1000 y 100000000000000000000000000000000000000000000000000000000000000000

piai jia jia

BLACK+DECKER™ Dustbuster

ailll lllllllllllllllllllllllllllllllllllll

WDB115W.WDB115WA.)

WDB215W.WDB215WA

aXwll Llae

jll jll jll jll jll jll jll

plaiiui.ajjglallpaaipssllpliaii1

jz jzlll 1s lssol 1clso 1cdo

jolio 10000 10000000000000000000000000000000000000

a.aa

Jiaiailg 1

j4.11 p1

1

.

.

alal algalllg jllg jall

8 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100

a aee aee aee aee aee aee aee aee aee

aill jblall pajlai jil g aiaj yj

aag a j 1j 1j 1j 1j 1j

Lx

aJg g 100 100 100 100 100 100 100 100 100

A

aessalljzllluiuulglxuoloo

aallglg

Jusul. 152g pse j Sll pluill Jugall

COUNTRY NAME ADDRESS TELEPHONE NO. EMAIL

BAHRAIN	Alfouz Services Co. WLL	P.O. Box 26562, Tübl, Manama	[phone] / 17879987	[e-mail]
BAHRAIN	Kewalram & Sons Co. WLL	P.O. Box 84, Manama, Kingdom of Bahrain	[phone] 17210617	[e-mail]
EGYPT	Anasia Egypt for Trading S.A.E. (Mentread)	P.O. Box 2443, 9, Mostafa Refaat Street, Sheraton Heliopolis 11361, Cairo	[phone] Hotline19311	[e-mail] [e-mail]
JORDAN	Mega Hardware - (Sami Bashiti & Partners Co.)	93 King Abdullah II St, P.O.BOX 3005 AMMAN 11953	(009626) 5349098	[e-mail] www.mega-hardware.com
KSA	Fawaz Ebrahim Al Zayani Trading Est.	P.O. Box 76026, Al Raka : 31952	(009663) 8140914	[e-mail] www.fawazalzayanigroup.com
KSA	United Trading & Marketing Co; (U-MARK)	#15, Khamis Mushait 62411, Abha, Military city road - Near City max and Ghumain Market	(00966) 172500378	[e-mail]
KSA	United Trading & Marketing Co; (U-MARK)	#16, Prince Fahad Ibn Ibrahim Al Saud Street - Near Nawan Hotel	(00966) 11473-3258	[e-mail]
KSA	United Trading & Marketing Co; (U-MARK)	Ash Shiqah, Al Hamr, Buraydah 52371 Al Hamr Road near Jaryat Al Umran & Khub Ath Thinayan	(00966) 16-3694969	[e-mail]
KSA	United Trading & Marketing Co; (U-MARK)	King Abdulaziz St, Al Aziziyah Dammam 32424 near Dat AS Siha Medical Center	(00966) 138179319 138172654	[e-mail]
KSA	United Trading & Marketing Co; (U-MARK)	Jabal Ar-Rubabah, Misrifah,eddah 23331 Falastin Road Near Neweddah National Hospital	(00966) 126612552	[e-mail]
KSA	United Trading & Marketing Co; (U-MARK)	#356, Al Talah Medina 42322	(00966) 148423339	[e-mail]
KUWAIT	Al Omar Technical Co.	P.O. Box 4062, Safat 13041, Kuwait	[phone] / 24840039	[e-mail]
KUWAIT	The Sultan Centre	P.O. Box 26567-13126 Safat, Kuwait	[phone] En. 432	[e-mail] [e-mail]
LEBANON	Aces Service Centre (Est. F.A.Ketaneh SA)	P.O. Box 90-102, Nahr El Mot, Seaside Highway, Pharaon Building, Beirut	(009611) 898989 / 262626	[e-mail] [e-mail]
LIBYA	Homeworld Co.	Senidal St. Amr Ibn Elaas Road, Benghazi, Libya (P.O. Box 18182 Salmany)	(0021861) 9094183 ext. 103	[e-mail]
LIBYA	North Africa Trading (El Ghoul Brothers)	P.O. Box 348, 7 October Street 11, Benghazi	(00218061) 3383994	[e-mail]
LIBYA	North Africa Trading (El Ghoul Brothers)	AlBarnig Dewalt Center, Mokhazin-esukar St. EIFallah, Tripoli	(00218021) 3606430	[e-mail] [e-mail]
MAURITIUS	The Brandhouse Ltd.	Rogers Industrial Park 1, Riche Terre, Mauritius	[phone] 2071700	claims [e-mail] [e-mail]
MOROCCO	Electronia	Bd, Sidi Abdelrahman- Gr ceinture residence Rio - Ain Diab - 20050. Casa Blanca	(00212) 618532680	[e-mail]
OMAN	Oman Marketing & Service Co. (Omasco)	P.O. Box 2734,Behind Honda Showroom,Wattay,Aman	[phone] 24560255	[e-mail] [e-mail]
OMAN	Oman Marketing & Service Co. (Omasco)	Al Ohi, Sohar,Oman	[phone]	[e-mail] om
OMAN	Oman Marketing & Service Co. (Omasco)	Sanaya, Salah, Oman	[phone]	[e-mail] om
PAKISTAN	Ammar Service & Spares	Office No 6068 6th Floor Central Plaza Behind Gul Plaza Marston Road.KARACHI	(009221) 32775252	[e-mail]
QATAR	Al Mufah Service Centre	Al Wakrah Road, P.O. Box 875, Doha,Qatar	[phone] 44650110	[e-mail] [e-mail]
SRI LANKA	Delmege Forsyth & Co. Ltd	Delmege Forsyth & Co. Ltd Lifestyle Cluster 101, Vinayalankara Mawatha Colombo 10 Sri Lanka	(009477) 221111	[e-mail] [e-mail]
TUNISIA	Societe Tunisienne De Maintenance(STM)	RUE DE LA PHYSIQUE. NOUVELLE ZONE INDUSTRIELLE BEN AROUS. 2013 BEN AROUS, TUNISIA.	(0021679) 389687	[e-mail]
UAE	Light House Electrical	P.O. Box 120, Abu Dhabi	(009712) 6726131	[e-mail]
UAE	Light House Electrical	P.O. Box 120, Abu Dhabi	(009712) 5548315	[e-mail]
UAE	Black & Decker (Overseas) GmbH	P.O. Box 5420, Dubai	(009714) 8127400 / 8127406	[e-mail]
UAE	Zillion Equipment and Trading LLC	P.O. Box 10584, Ras Al Khaimah	(009717) 2277095	[e-mail]
UAE	Zillion Equipment and Spare Parts Trading LLC	P.O. Box 19740, Opp. Bin Sadal / Trimix Redymix Sanaiya, Al Ain	(009713) 7216690	[e-mail]
YEMEN	Middle East Trading Co. (METCO)	5th Flr.Hayel Saeed Anam Bldg. Al-Mugamma St. Taiz, Yemen	(009674) 213455	[e-mail] [e-mail]
YEMEN	Middle East Trading Co. (METCO)	Mualla Dakka, Aden	(009672) 222670	[e-mail] [e-mail]
YEMEN	Middle East Trading Co. (METCO)	Hayel st.,Sana'a, Yemen	(009671) 204201	[e-mail] [e-mail]

WARRANTY REGISTRATION CARD

YOUR NAME/VOTRE NOM

YOUR ADDRESS/VOTRE ADRESSE/

DATE OF PURCHASE/JOUR D'ACHAT

DEALER'S NAME & ADDRESS/ NOM ET ADRESSE DU VENTEUR/
