EFR90571OX - Basket ELECTROLUX - Free user manual and instructions

Features	Details
Type of hood	Decorative hood
Dimensions (W x D x H)	90 cm x 50 cm x 50 cm
Maximum air flow	700 mb3/h
Power levels	3 levels + intensive mode
Grease filter	Metal filter, dishwasher safe
Lighting	LED, 2 lamps
Control type	Touch control panel
Noise level	65 dB(A) in normal mode
Installation	Wall installation
Energy consumption	Energy class A
Weight	15 kg
Warranty	2 years

Frequently Asked Questions - EFR90571OX ELECTROLUX

How do I clean the filters of my ELECTROLUX EFR90571OX hood?

To clean the filters, remove them from the hood and soak them in warm soapy water for about 30 minutes. Rinse them with clean water and let them dry completely before putting them back in place.

What should I do if my hood does not turn on?

Check that the hood is properly plugged in and that the outlet is working. Also make sure that the fuse or circuit breaker has not tripped. If the problem persists, contact customer service.

How do I adjust the suction speed of my hood?

The ELECTROLUX EFR90571OX hood has several speed levels. Use the control panel to select the desired speed by pressing the corresponding buttons.

Can I use the hood without ventilation?

Yes, the hood can operate in recirculation mode with a carbon filter. Make sure to install the appropriate filter for effective operation without ventilation.

How can I replace the carbon filter of my hood?

To replace the carbon filter, open the access panel of the hood, remove the old filter, and insert the new one, ensuring it is properly in place. Close the panel.

My hood makes abnormal noise, what should I do?

Abnormal noise may indicate a problem with the motor or a blocked object. Check if debris is obstructing the fan and clean it. If the noise persists, it is advisable to contact a professional.

How often should I replace the filters of my hood?

It is recommended to replace the grease filters every 3 to 6 months and the carbon filters every 6 to 12 months, depending on the usage of the hood.

USER MANUAL EFR90571OX ELECTROLUX

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

Register your product for better service: www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

1. RECOMMENDATIONS AND SUGGESTIONS

• The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm . The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.
• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3mm .
• Do not flambé under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• "CAUTION: Accessible parts may become hot when used with cooking appliances."
• The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).

2. USE

The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
- Never use the hood for purposes other than for which it has been designed.
- Never leave high naked flames under the hood when it is in operation.
- Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
- Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. MAINTENANCE

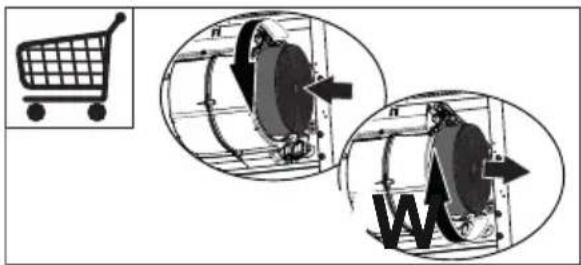

• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

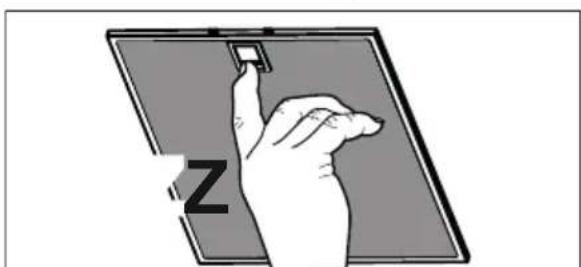

• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

• Control lights, if present.

• Clean the hood using a damp cloth and a neutral liquid detergent.

4. CONTROLS

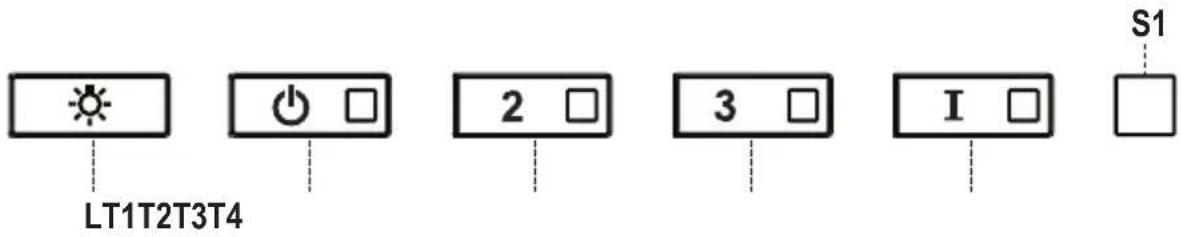

Button Function Led
L	Turns the lights on/off at maximum strength. -
	Press and hold the button for approximately 2 seconds to turn the Courtesy Lights On/Off.	-
T1 Turns the motor on/off at speed one. -
T2 Turns the Motor on at speed two. -
		Press and hold the button for approximately 5 seconds, with all the loads turned off (Motor and Lights), to turn the Activated Charcoal Filter alarm on. The relevant LED flashes twice to confirm. To turn the alarm off, press the button again and hold for at least 5 seconds. The relevant LED flashes once.	Flashing.
T3 Turns the Motor on at speed three. -
		Press and hold the button for approximately 3 seconds, with all the loads turned off (Motor and Lights), to perform a reset. The LED S1 flashes three times.	Flashing.
T4 Turns the Motor on at INTENSIVE Speed. This speed is timed to run for 6 minutes. At the end of this time, the system returns automatically to the speed that was set before. If it is activated with the motor turned off, the hood will switch to OFF at the end of the time.		-
		Press and hold for 5 seconds to enable the remote control, indicated by the LED flashing twice. Press and hold for 5 seconds to disable the remote control, indicated by the LED flashing just once.	Flashing.
S1 Signals the Metal Grease Filter saturation alarm, indicating that it is necessary to wash the filters. The alarm is triggered after the Hood has been in operation for 100 working hours.		Fixed.
		When this is activated, it signals the Activated Charcoal Filter saturation alarm, indicating that the filter must be changed; the Metal Grease Filters must also be washed. The Activated Charcoal Filter saturation alarm comes into operation after the Hood has been working for 200 hours.	Flashing. also

5. REMOTE CONTROL

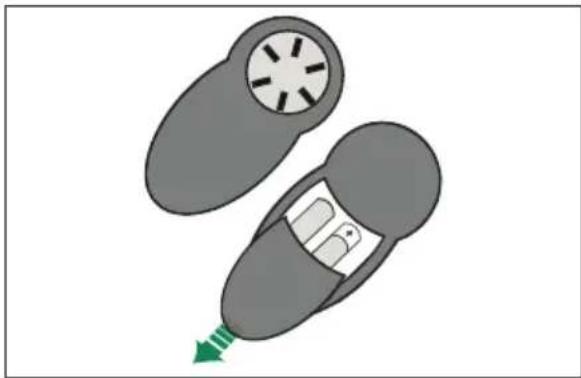

The appliance can be controlled using a remote control powered by a 1.5 V carbon-zinc alkaline batteries of the standard LR03-AAA type (not included).

• Do not place the remote control near to heat sources.
  Used batteries must be disposed of in the proper manner.

Motor Motor On / Off.
-	Decreases the working speed each time it is pressed.
+	Increases the working speed each time it is pressed.
①	Activates the Intensive function.
Light	Lights On / Off.
	Press and hold for 2sec to turn the Hood lights On/Off at reduced intensity.

6. LIGHTING

• For replacement contact technical support ("To purchase contact technical support").

INHALT

INNHOLDSFORTEGNESELL

1. ANBEFALINGER OG FORSLAG 52
   2.BRUK. 54
2. VEDLIKEHOLD 54
3. KONTROLLER 55
   5.FJERNKONTROLL. 56
   6.BELYSNING 56

DESIGNET FOR DEG

KUNDESERVICE OG VEDLIKEHOLD

Vi anbefaler kun bruk av originale reservedeler.

Sorg for Å ha følgende opplysninger for händen nár du kontakter det autoriserte servicesenteret: Modell, Produktkode (PNC), Seriennummer.

Bo3MOxHOCTb BHeceHn I3MeHeHn.

1. COBETbl N PEKOMEHaIIN

B INHCTpyKzIax NO 3KcNJIyatauIN OONCAHbI pa3JIuHbIe MoJeI np6Opa. Io3TOMy Bbl MOxTe BCTpeTNTb ONIcaHne HeKOToPbIX XapaKTepnCTNK, He OTHOcAuzXcR K npno6peTeHHOMy Bamn np6Opy.

• I3ROTOBNTeJIb He HecET OTBETCTBEHHOCt b 3a y6bITKN, BO3HnKaIOUSe B pe3yIbTaTe HEnpaBnIbHOJ yCTaHOBKn IIN 3KcPnyatau np6opa.

• Be30naphoe paccToHne mexdy BapOCHo naneIbIO n BCacbBaIOUeBbITJxKoI dOJIxHO 6bITb He MeHee 650 MM (HEKOTOpbie MOdJIIM MOxHO yCTaHaBJIIBaTb HIXKe; CM. pa3deI, NOCBaIeHHbI pa6OuHM pa3MepaM I ONEpaCnY M IO yCTaHOBKe np6Opa).

• Поберыо COOTBETCTBNE HAnpЯженя ceTи yKa3aHHOMy Ha Ta6JIuYKe, 3aKpeIJIeHHOB BHyTpN BBITJxKKN.

• Д�� пиборов Класа I поверьte, чтобы В щелктуческй сети вашю дома быларпедусMotрега COOTBEТСТВУSSА сИСTeMa 3a3eMЛЕня. СоедиНITE BbITЯЖКу сдыIMOXODOM C NOMOДБTOpy6bl MHHIMaJIbHOrO ДиamETpa120 MM. Труба Д�� OTBeDEня дыima DoJXHa 6bITb KaK MOЖHO KOPOчe.

He coeHnIte BCaBbAIOUyO BbITJxKcY C DbIMOXoJaMn, IO KOTOpbIM BbIBODNTcA DbIM, O6pa3yUoNcR B IpoceCe rOpEHHa (HaPpImep, OTOnHTeNbHbIe KOTJIb, KaMHbI n npOu.).

• EcIn BbITJXHOn aannapat nCNoJIb3YeTcB CooTeaHn C np6opamn, pa6oTaHOzIMn He OT 3JIeKTPnuyeCKOTo TOKa (HaIprImep, r3OBblE np6Opbl), NOMEuHne DOJXHO XoPo7O npOBETpNBATbcr BO n36ExaHne o6paTHoro nOTOKa OTXODaXn Xra3OB. IJa npITOKa B NOMEuHne CBexKeBO3dUxHa KuxHe DOLXHO 6bITb PpeDyCMOTpeHO BblXODaee Ha yLIuCy OKHO. PnIOJB3OBaHn KxOHHO BbITJXKO B COUeTAHn C np6opamn, pa6oTaHOzIMn He OT 3JIeKTPnuyeCKOTo TOKa, OTPuataelbHoe daBJeHne B NOMEuHn He DOJXHO npEBblaTb O,04 M6ap c Tem, YTO6bl DbIM He BCaCbIBaJIsc R BbITJXKO J O6paTHo B NOMEuHne.

Bo n36eXaHne onaCHOCTn B clyuae NOBpeXdEHHa Ka6eJI NITaHn, OH dOJxeh 6bITb 3aMeHeH N3rOToBNTeJeM IJI NcNeuaJIncTAMN OTDeJa TexHnueCKoro O6cIyXnBaHn.

• Ecni B INHCTpyKcIyX NO yCTaHOBKe r3OBOJ PJIITbI cKa3aHO, YTO pAcCToRHe IIO BbITgKKn DOJXHo 6bITb 6OJbIe yKa3aHHOrO BblSe, CneDyET pNIDepKINBaTbcr IpeDNiSCaHHbIX pa3MepOB. CoJIIOJaTe BCE HOpMaTnBHbIe Tpe6oBaHnI IO OTBeDEHnIO OTPa6OTaHHOrO BO3dUxa.
• Исторы Толбков ВиHTы И метины, пождные ля устовки ВьITEЖки.

IpeDynpexdHne: NcNoJb3OBaHne BnHTOB n 3aXIMhblx UCTPOINCTB, He COOTBeTCTByUOx yKa3aHnA M daHHbIX INCTpyKzni, MoKeT pInBecTN K BO3HnKHOBeHNIO ONaCHbIX CNTyaCNI n K 3JIeKTPnueckm ydaPam.

CoeHnTe BbITgKky C CeTbIO NHTaHnC NOMOuIO DByX-POJIHOCHO BbIKIQUaTeJc MUNHMaJIbHbIM pa3BeJeHNEM KOHTaKTOB 3 MM.
He roTOBbTe 6JIoDa fIaM6e IOd BbITJxKoI: ONaCHOCTb BO3HnKHOBeHnI NOXapa.
- Ппбором могут пользоватся DeTи CTapшe 8 Лет И Лица C орразнчehнblIM NCSNXUeCKMn, ФиЗИчeCKMn IN ceHCOPHBIMCNoCo6HocTЯМN, a TAKKe He IMeJOUne DOCTaTOUHO ONBtA I 3HaHn, HO TOJbKO IOd PnICMOTpOM OTBETCTBEHHbIX Лиц I Prn YcNoBnN, UTO OHN O6yHebI 6e3OpanachOH eKcPnyatauIN prn6opa n 3HaIoT O CBra3aHbIX C eRO HeIrpabNlbHbIM NcNoJIb3OBaHHeM ONaCHOCtAx. CJIeIte, ChTo6bl DeTn He irpaJI N c prn6oporom. OuncTKy I yXoD 3a prn6oporom DoJIxKeH obecneuVBaTB POnJIb3OBaTeJIb, TaKNe DeIeCTBnA MOrTu BblONHЯТь I DeTn, HO ToJIbKO IOd NaI3OpOM B3pOcJIbIX.
BHIMAHNE: OCTynhIe yactN BbITJxKn MOryT CNJIbHO HArpeBaTbcr BO Bpemra60TbI ra3OBbIX npu6OpOB.
CnmboJ Ha n3deJIIN nIi Ha ynaKOBKe yka3bIBaET, YTO np6op HeIb3B Bbl6paCbIBaTb, KaK ObIyHbI 6bITOBOM mycop. Pnp6op, NpIeJXaUm yHnTuXeHNIO, HeO6xOIMOCdA Tb B CneuaJIbHbI C6OpHbI NyHKT dJa NOBTOPO HcNoIb3OBAHNr 3JeKTPnueCKNX I 3JeKTPoHHbIX KOMNOHeHTOB. POnb3OBaTeJIb, npabInbHO cdaIOUm np6op Ha nepepa6OTKy, NOMoraET ppeODTbPaTNTb NToEHuaJIbHbIe HeratNBhIE NocPeIDCTBnA DnI OKpyKaIOUe CpeDbI N dJa 3DOpOBBy JIODeI, BO3HnKaIOUme B Cnyuae HnPaBnBHorO erO yHnTuXeHNr. 3a 6OJee NpDoBoHoi INΦopMaUnei

O BTOPNUHOM IcnoIb3OBaHnnp6opa o6paauTecsB V TROPODKoI COBeT, B MeCTHyIO cnyx6y no nepepa6OTKe OTXODOB INN B MaRa3IN, rJe np6op 6bl npno6peTeH.

• Пераьылолнем Любов ореташи по очирке и ухODу ВыIKПОЧИТе ИПИ OTСоЕДИНITE ппбор OT ЗлЕкТрическо сети.
• Oчицайт e n/nл n 3amehаite ΦиьТрbl NO nCTeueHn yka3aHHoroперноа ВрemeHn (ОпаСHOCTb BO3нКHOBE-HnЯ пожара).

2. 3KcπIyATAUЯ

BcacbBaIOUaBbITgKKa npedHa3HaueHa TOnbKO dIpyPmHeHnB 6bIy dIy ydaJIeHn I3 KxHn3anaxOB OT rOTOBKn.
HnkOrda He NOJb3yIteCb BblTgKoB INhblx cIeJx, OTJIuHbIX OT Tex, DnKOTOpblX OHa npedHa3HaueHa.
HnkOrda He octabJnTe BbICOKoe nnamr NOB BbITXKoN, HaxOJaueiCraBpa6ote.
Perynpyte cnny nIamehn taKIM o6pa30m, yTO6bl OHO OCTaBaJIOCb NOI dHOM eMKoCTN dIy rOTOBKN I He BblbIAJIOCb 3a erO npedeJIbI.
- Pn roTOBKe BO cPHTOpHnIe noCToRHHO CNeIInTe 3a ee pa6Toi: CNbHO HArpeToe MacNo MoKet BOCnJaMeHHTbcr.

3.yXOД

-ФильТРHaakTNBnPoBAHHOM yIe HeIb3ЯMbITbИBOCCTaHaBJIINBaTb, erO cIeIyEt MeHЯTb npIMepHo pa3В4Meca pa6OtblIIN YaIe B Clyuae OueHb INHTeHCNBHO NcNoIb3OBaHna np6Opa (W).

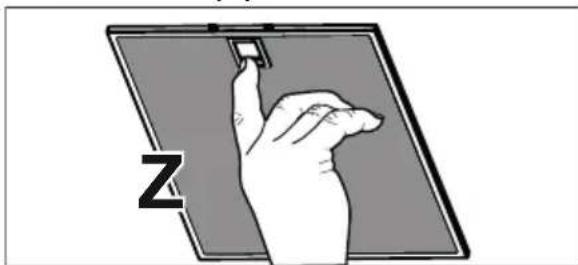

-ЖирOBbieФиьТрbl Heo6xOДmo OuHuaTb pa3B 2 Mecya pa60-TbI Hn YuAaSe B Cnyaae OyeHb INHTeHCNBHO NcNoJIb3OBaHnЯ np6opa;ЖирOBbieФиьТрbl MOxHO MbITb B NocyDOMoeHOn MaunHe (Z).

-Индikatopbl (rde ectb) yctpoiCTB ynpablenen.

OuHuaTe BbITaKky BnaXHOI TpAnKO,CMoUeHHoB HEnTpaJIbHOM XnDKOM MOIOSeM BeIeCTBe.

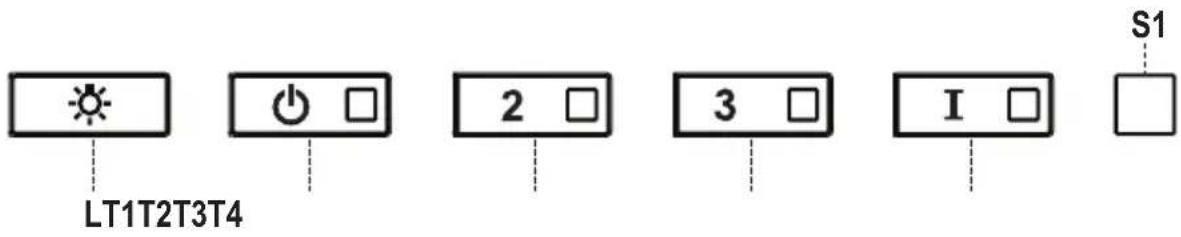

4. OPGAHbI UYPABJIEHnI

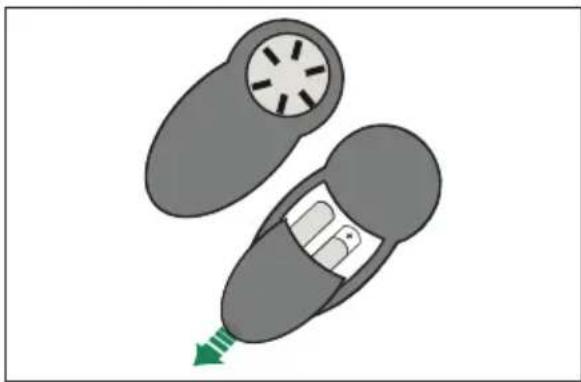

LIMnpictpoemMOxHaKepyBaTn3aDOnOMOTOIOuCTaHcHOrOKepyBaHH3KINBJIeHHM BIDByrIeCEBO-CUNHKOBHX LyXHNX6aTapei cTaNapTHoro TNY LR03-AAA 3 Hanpyro101,5 B(HeBXODaTb Do KOMNKeKy).

He 3aIIwaIte npIbT dIcTaHcHOro KepyBaHHaBnHa6iJaKepeJ BucOKoi TeMnepaTpyn.
BukopncTaHi 6aTapei NOBHHI 6yTu yTuNi3oBaHi HAnExKHUM YHOM.
