USER MANUAL iMow MI 632 P VIKING

Mahmesser: 6309702010

Akku AAI 130 (MI 632): 63094006510

Akku AAI 200 (MI 632 P): 6309 400 6500

Fixiernagel AFN 051: 6309 007 1000

2002/96/EC, 2004/108/EC, 2006/42/EC,

2006/66/EC, 2011/65/EC

Thank you for choosing a VKING quality product.

This product has been produced using state-of-the-art production methods and extensive quality assurance procedures, because our goal is only achieved if you, the customer, are satisfied with your machine.

If you have any questions concerning your machine, please contact your dealer or our sales agency directly.

I hope that your VKING machine will give you great enjoyment.

Dr. Peter Pretzsch

Management

1. Table of contents

Notes on the instruction manual 74

General 74

Country-specific versions 74

Instructions for reading the instruction manual 74

Machine overview 76

Robotic mower 76

Docking station 77

Control panel 78

How the robotic mower works 79

Operating principle 79

Manual mowing 80

Safety devices

STOP button 80

Disabling device 80

Protective covers 80

Two-hand operation 81

Impact sensor 81

Lifting protection 81

Tilt sensor 81

Display illumination 81

Anti-theft alarm 81

For your safety

General 81

Clothing and equipment 82

Warning - dangers caused by electrical current 83

Battery 83

Transporting the machine 84

Before initial operation 84

Programming 85

During operation 85

Maintenance and repairs 86

Storage for prolonged periods without operation 87

Disposal 87

Description of symbols 87

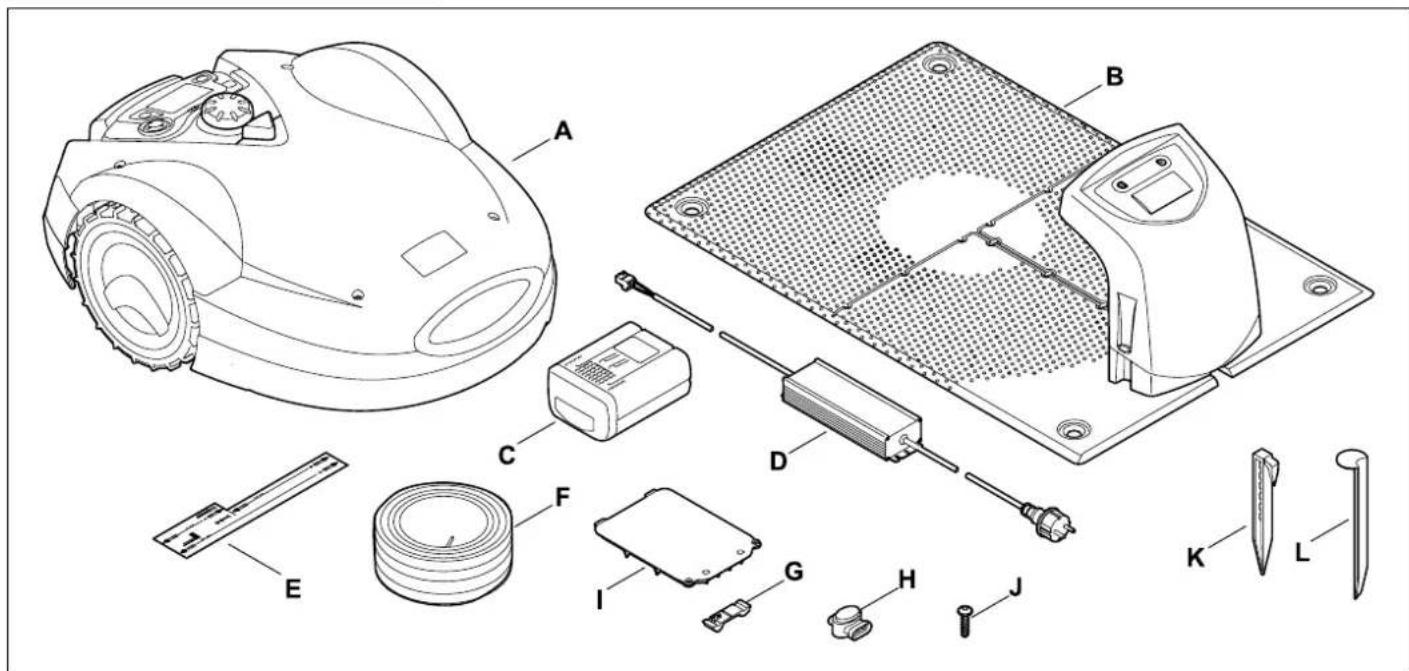

Standard equipment 88

Initial installation 89

Notes on initial installation 89

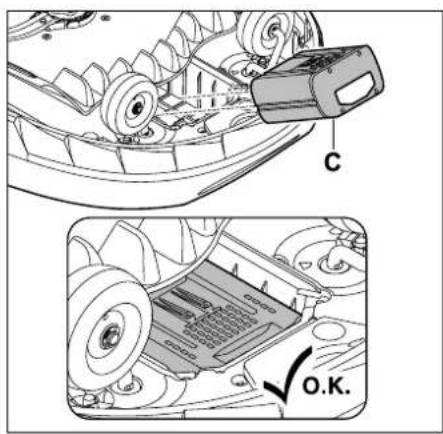

Installing the battery 89

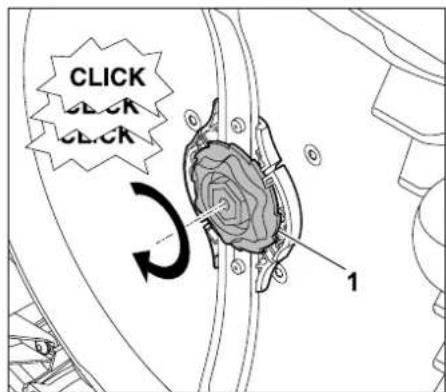

Adjusting the cutting height 90

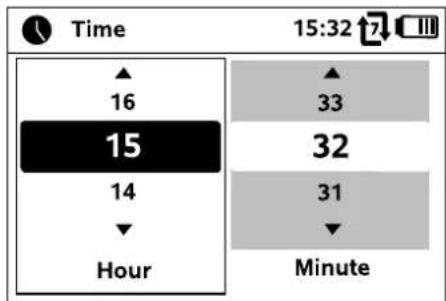

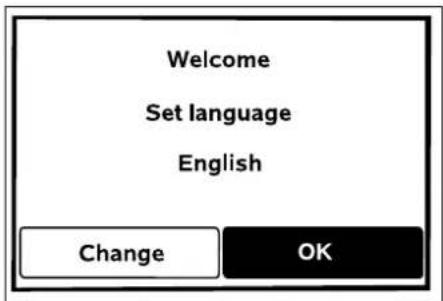

Setting the language, date and time 90

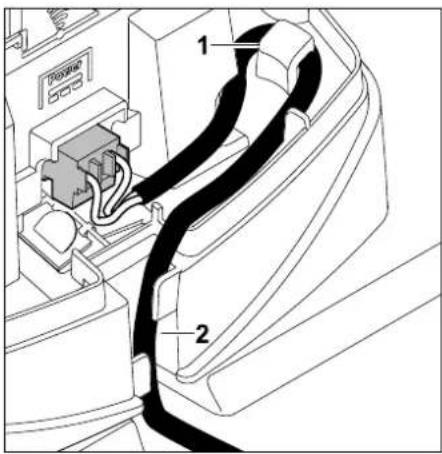

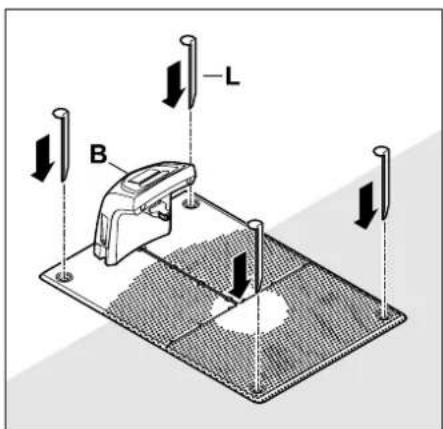

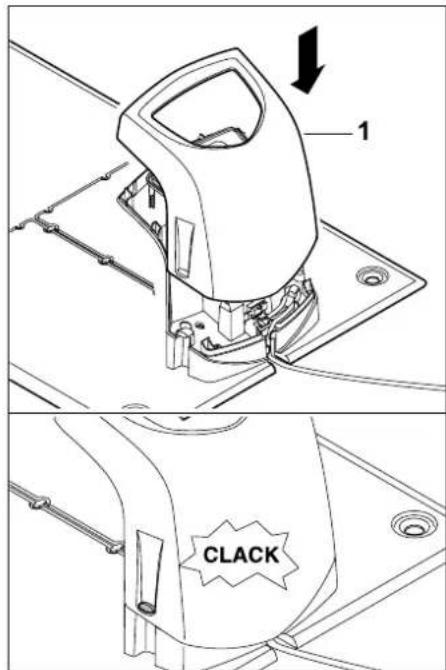

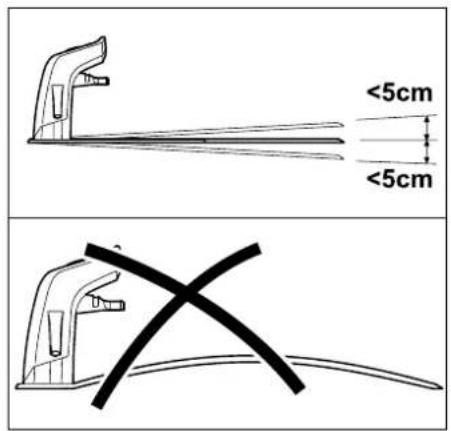

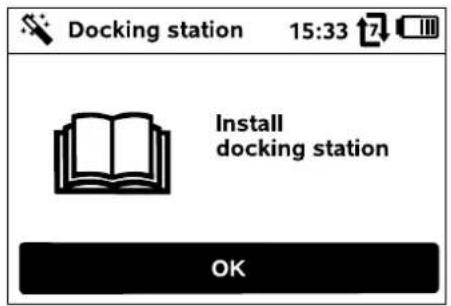

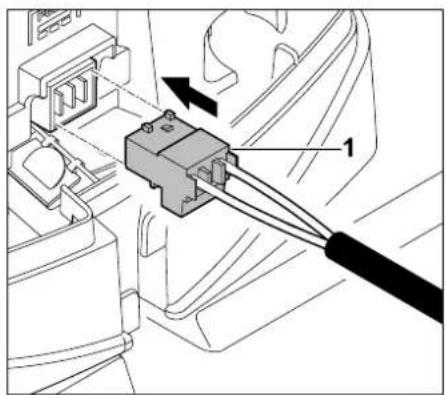

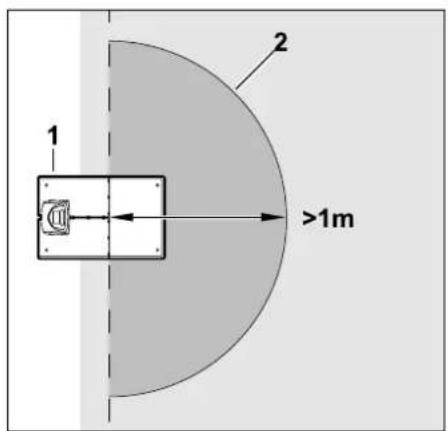

Installing the docking station 90

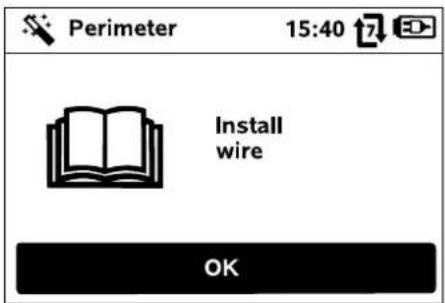

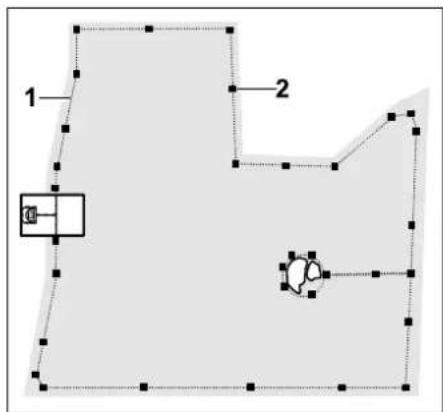

Routing the perimeter wire 93

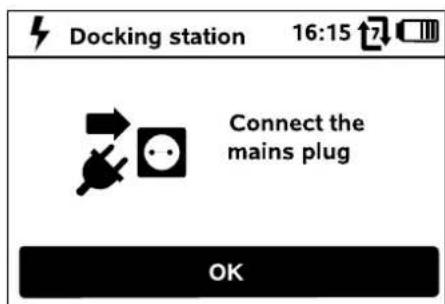

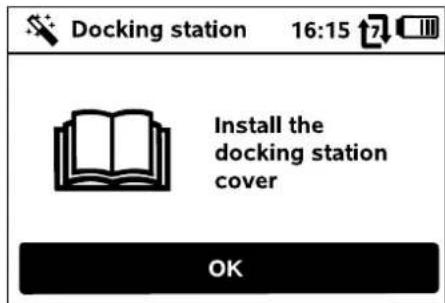

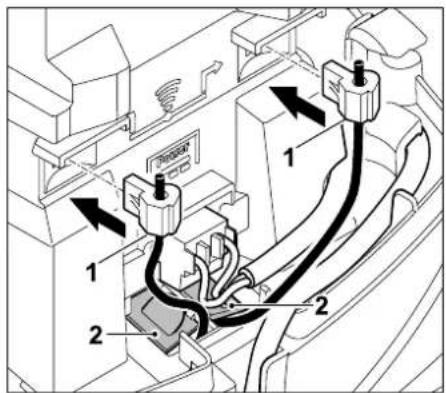

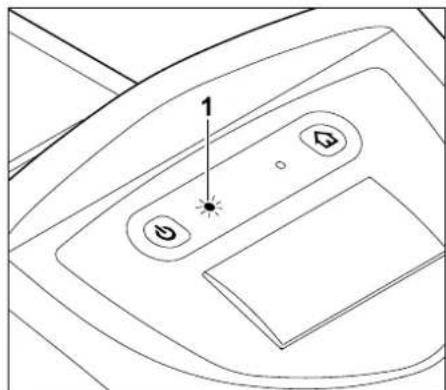

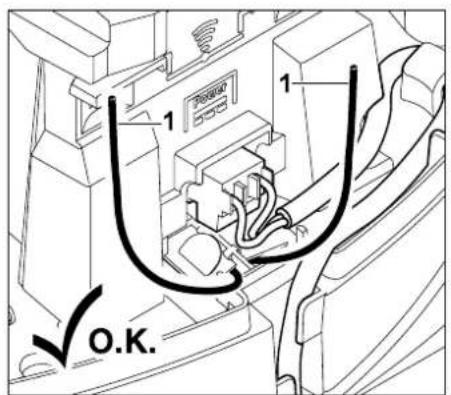

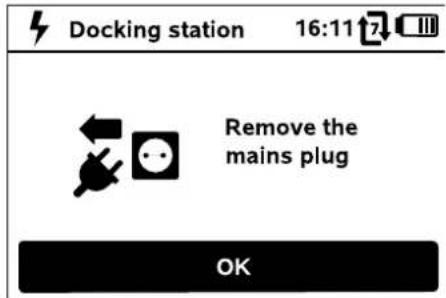

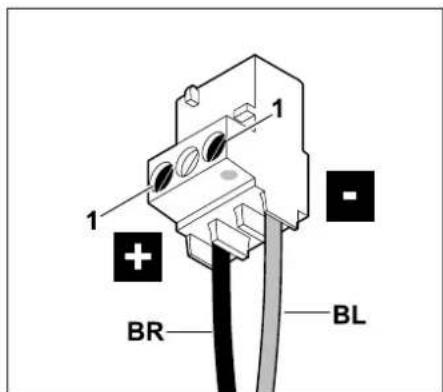

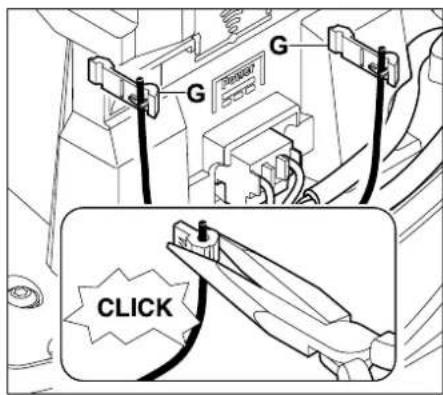

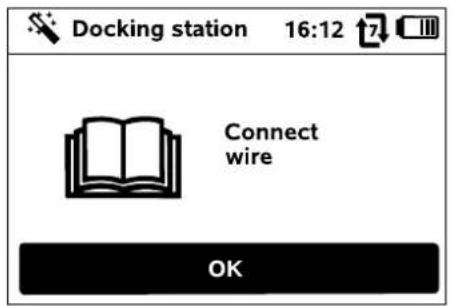

Connecting the perimeter wire 94

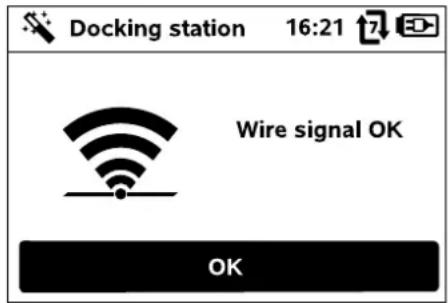

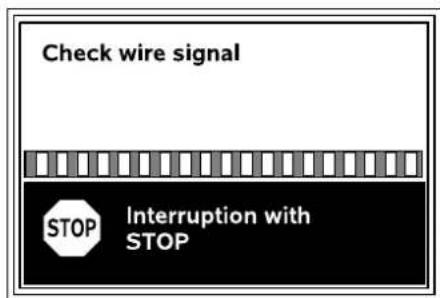

Linking the robotic mower and docking station 96

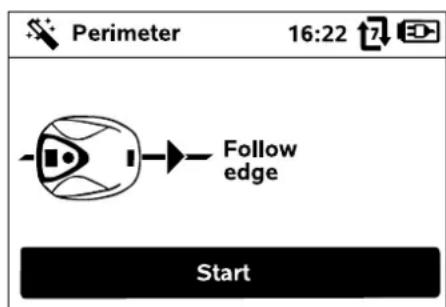

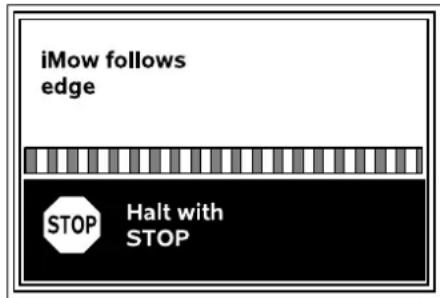

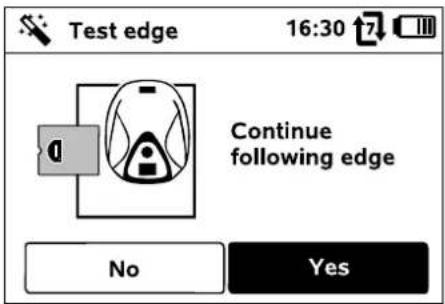

Checking installation 97

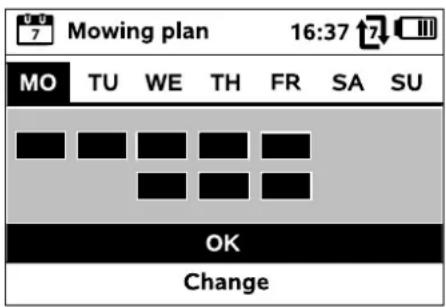

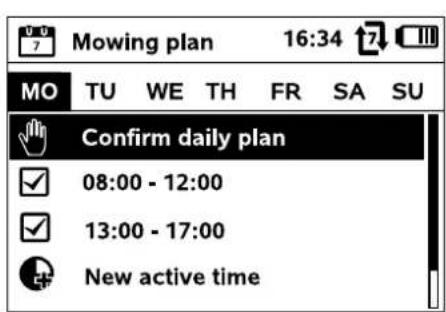

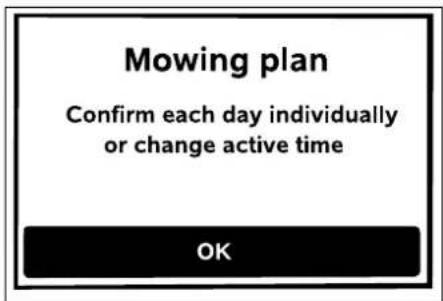

Programming the robotic mower 98

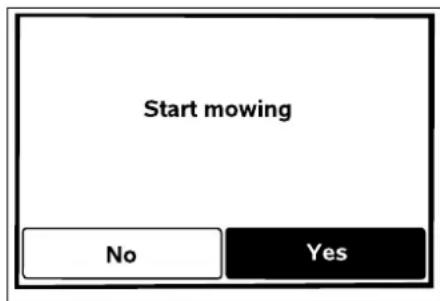

Completing initial installation 99

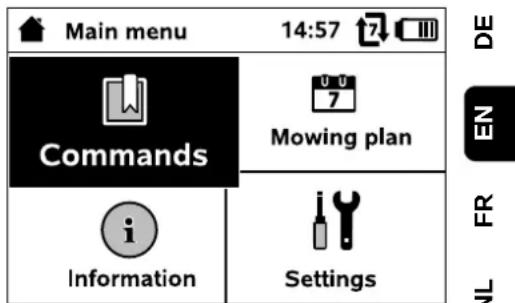

Menu 99

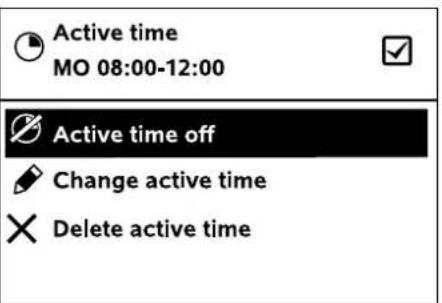

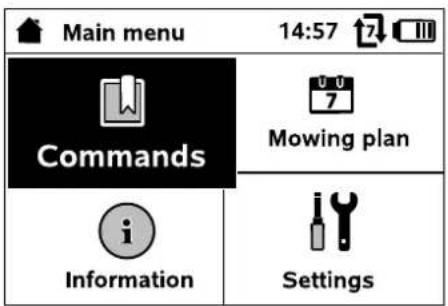

Operating instructions 99

Status screen 101

Main menu 101

Commands 102

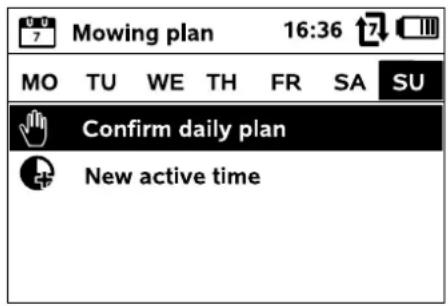

Mowing plan 102

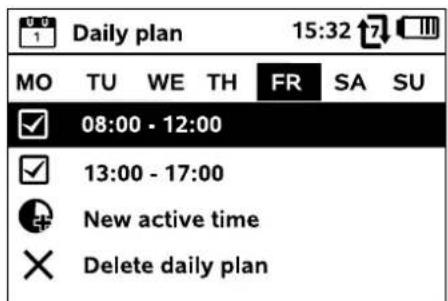

Daily plan 103

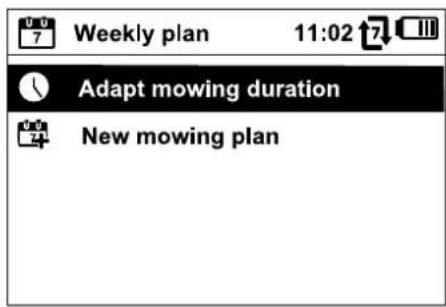

Weekly plan 103

Information 104

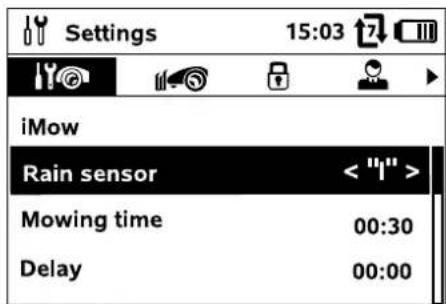

Settings 104

iMow - machine settings 105

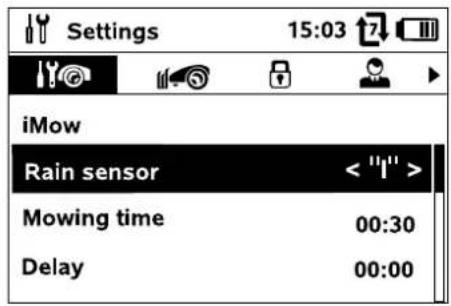

Setting the rain sensor 105

Setting the status screen 105

Installation 105

Setting starting points 106

Safety 106

Service 107

Perimeter wire 108

Planning routing of the perimeter wire 108

Making a sketch of the mowing area 108

iRuler 109

Confined areas 110

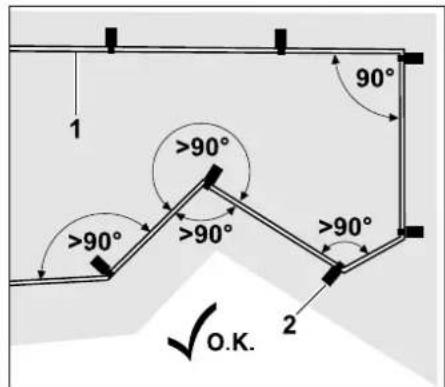

Routing the perimeter wire 110

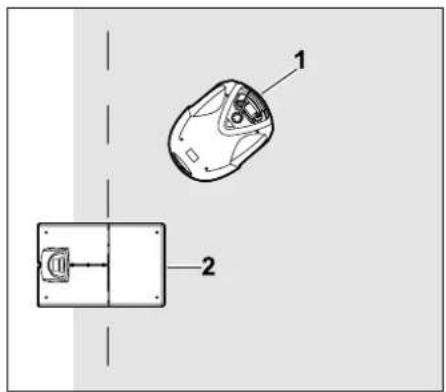

Connecting the perimeter wire 110

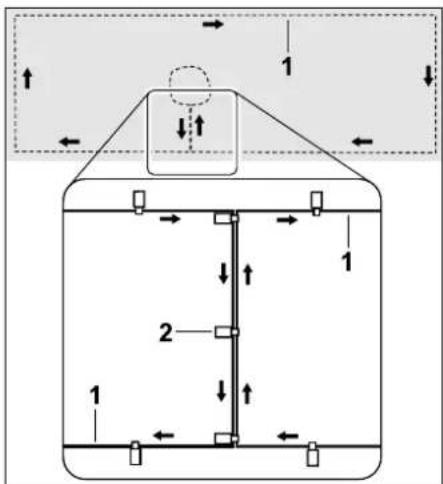

Installing linking sections 111

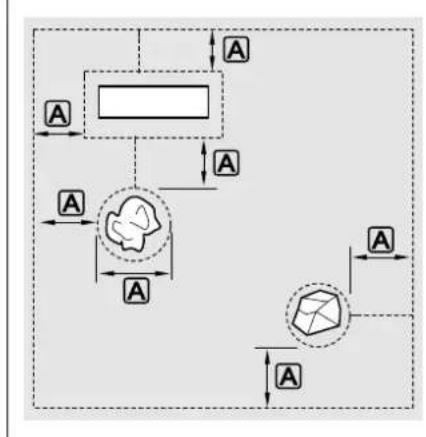

Installing no-go areas 111

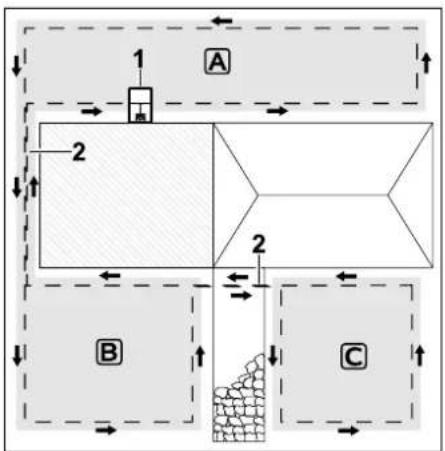

Secondary areas 112

Corridors 112

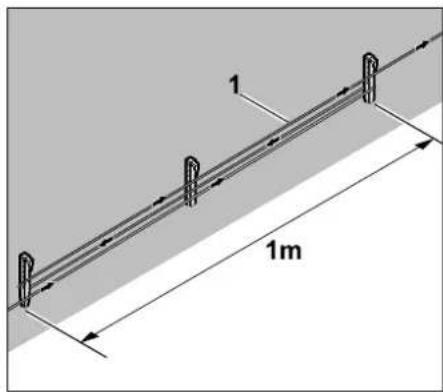

Installing reserve wire 113

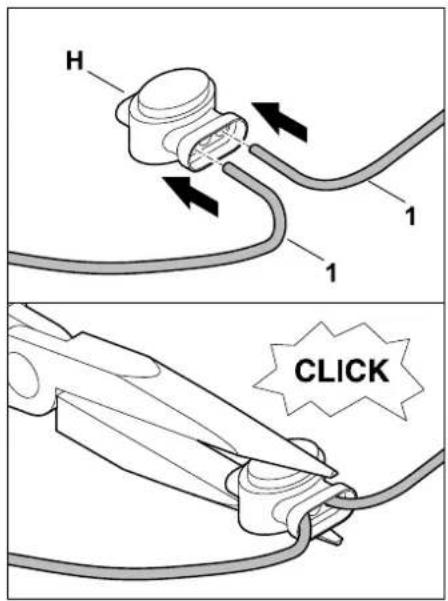

Using wire connectors 113

Docking station 114

Docking station controls 114

Notes on mowing 115

General 115

Mulching 115

Active times 115

Mowing duration 115

Manual mowing 115

Operating the machine 115

Preparation 115

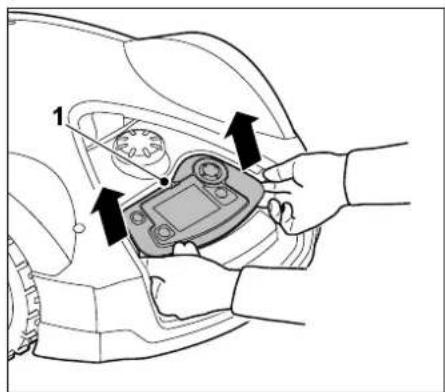

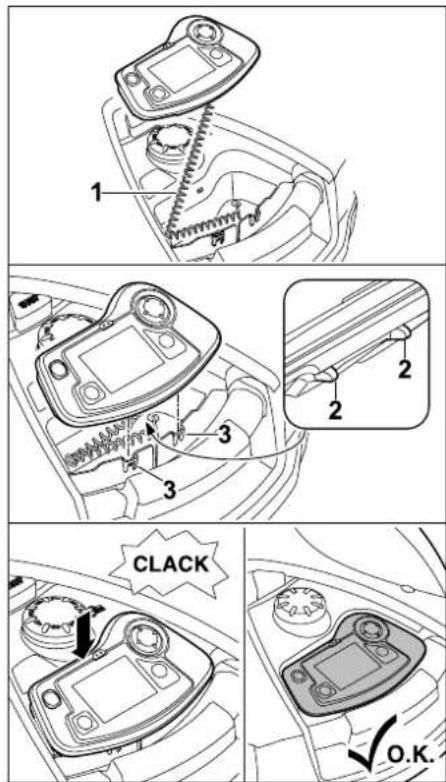

Removing and installing the control panel 116

Adapting the programming 116

Automatic mowing 117

Mowing independently of active times 117

Manual mowing 117

Docking the robotic mower 118

Charging the battery 118

Maintenance 119

Maintenance schedule 119

Cleaning the machine 119

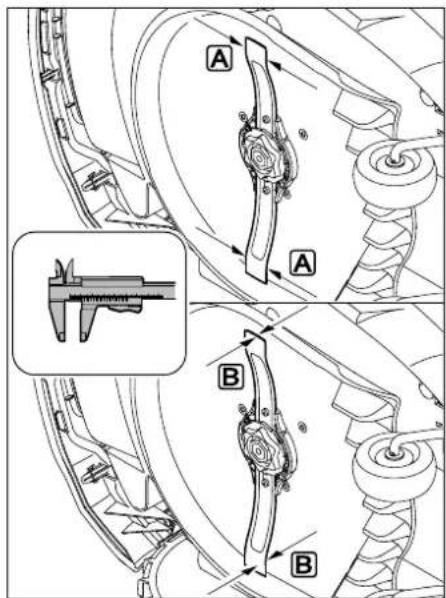

Checking the mowing blade wear limits 120

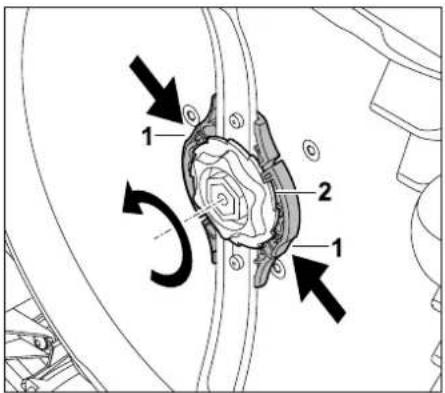

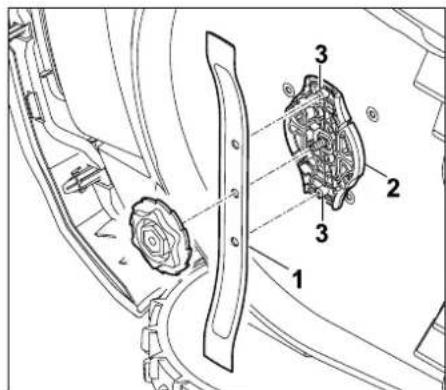

Removing and installing the mowing blade 120

Sharpening the mowing blade 121

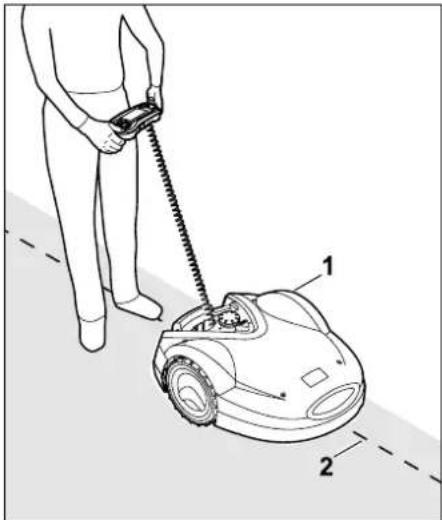

Finding wire break 121

Power supply unit plug 122

Storage and winter break 122

Standard spare parts 123

Accessories 123

Minimising wear and preventing damage 124

Environmental protection 124

Removing the battery 124

Transport 125

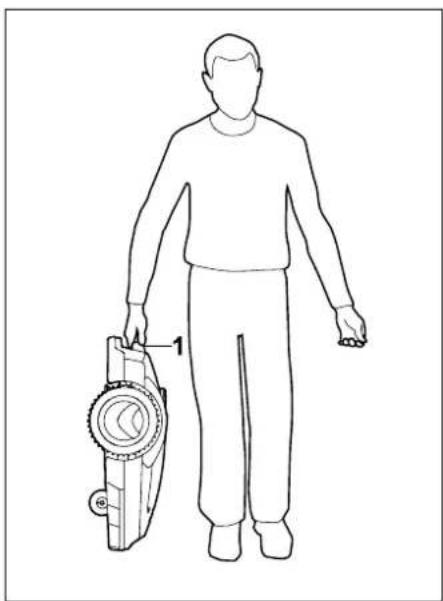

Lifting or carrying the machine 125

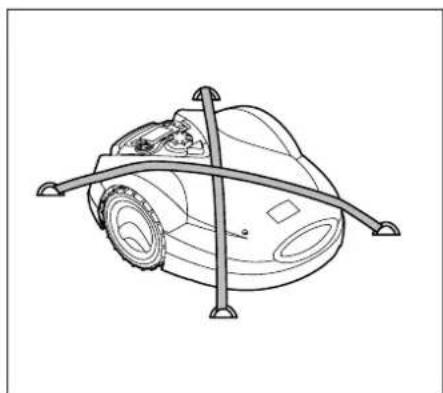

Securing the machine (lashing) 125

CE - manufacturer's declaration of conformity 125

Technical specifications 126

Messages 127

Troubleshooting 131

Service schedule 134

Handover confirmation 134

Service confirmation 134

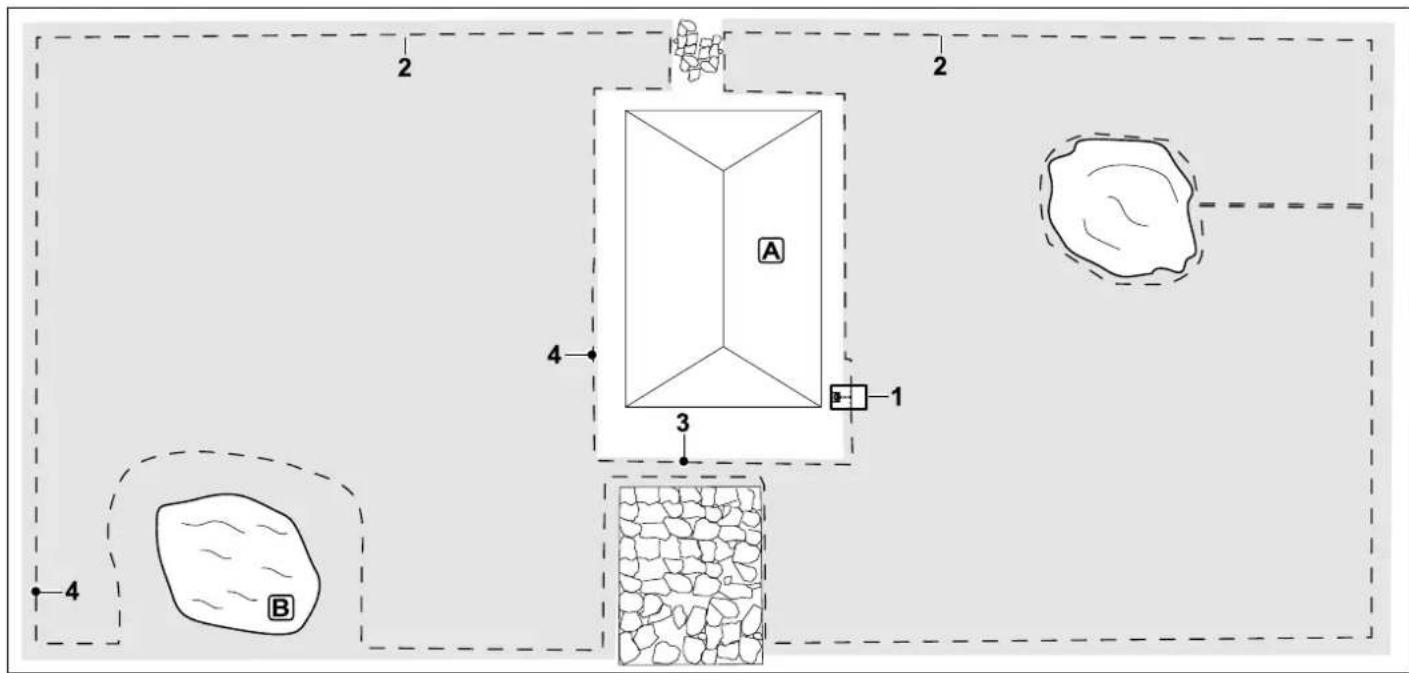

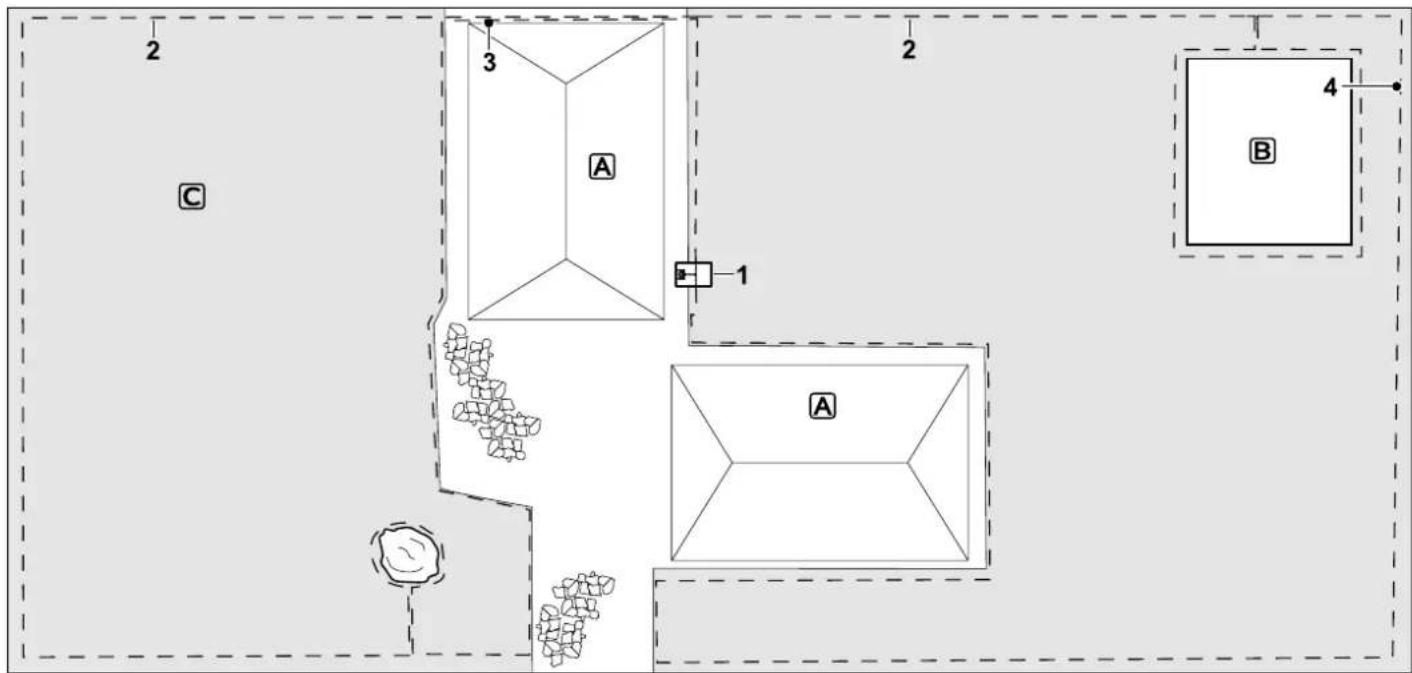

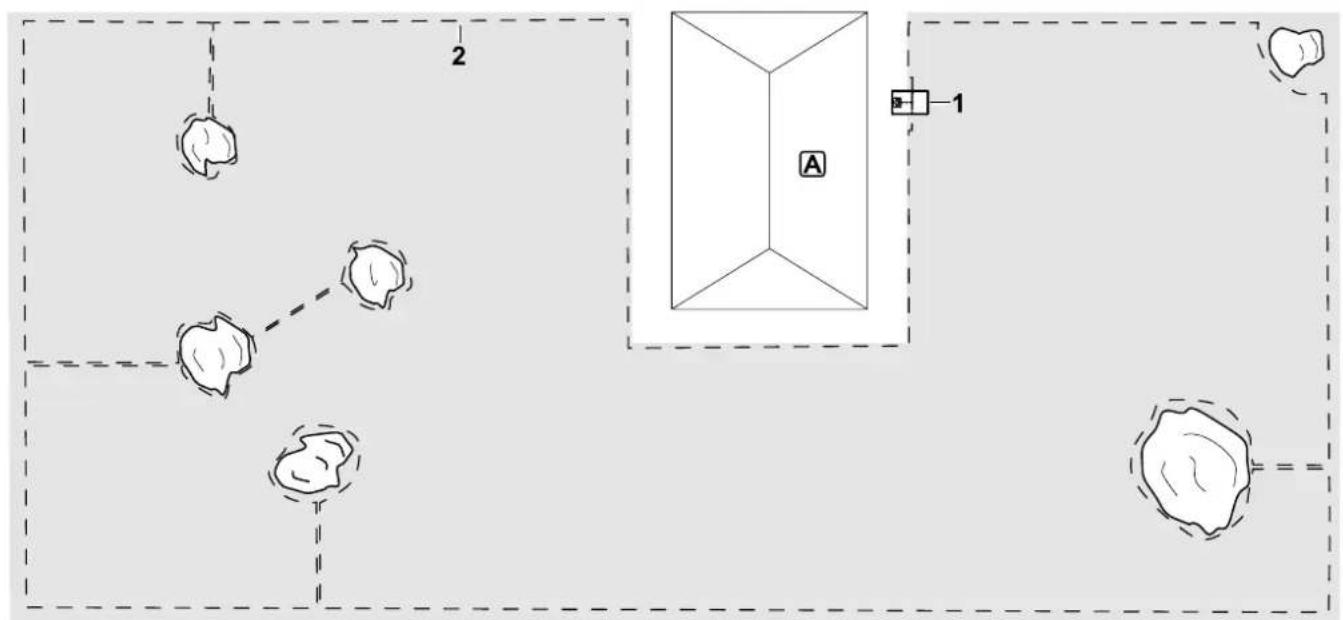

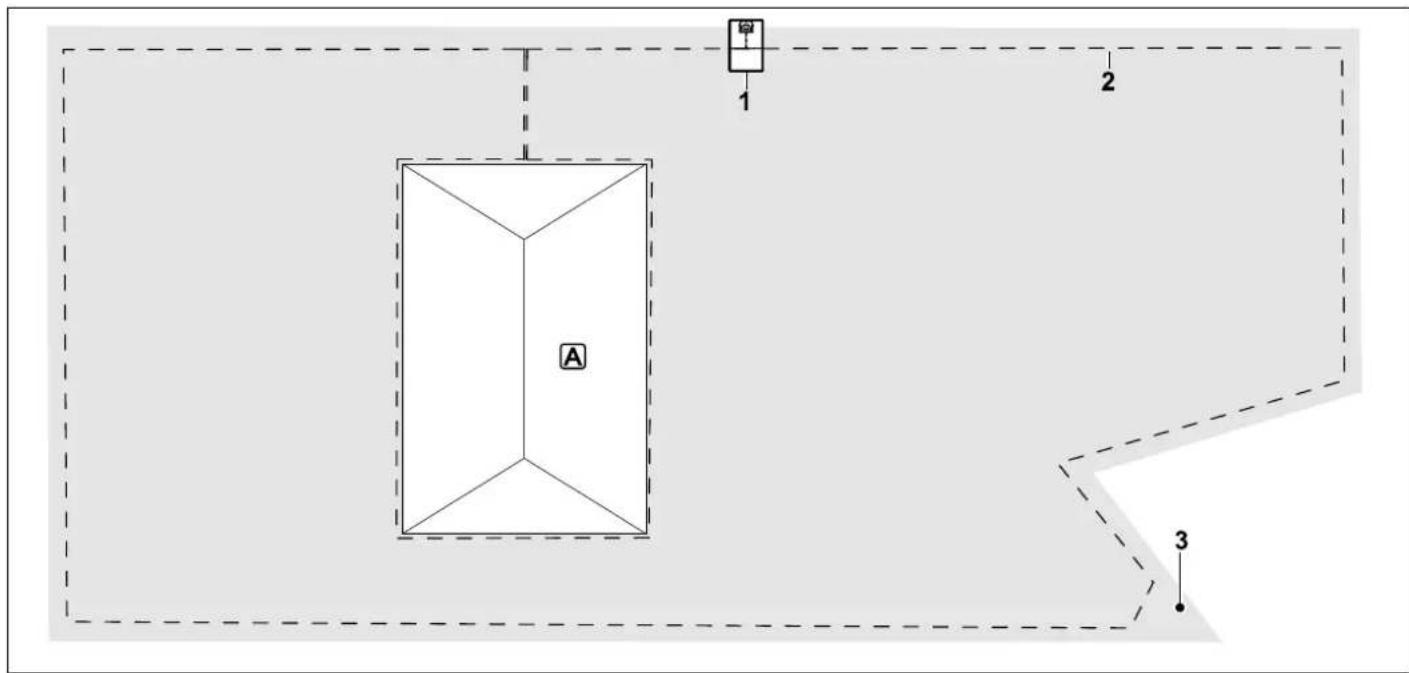

Installation examples 135

2. Notes on the instruction manual

2.1 General

This instruction manual constitutes original manufacturer's instructions in the sense of EC Directive 2006/42/EC.

VIKING is continually striving to further develop its range of products; we therefore reserve the right to make alterations to the form, technical specifications and equipment level of our standard equipment.

For this reason, the information and illustrations in this manual are subject to alterations.

This instruction manual is protected by copyright. All rights reserved, especially the right of reproduction, translation and processing using electronic systems.

2.2 Country-specific versions

VIKING supplies machines with different plugs and switches, depending on the country of sale.

Machines with European plugs are shown in the illustrations. Machines with other types of plug are connected to the mains in a similar way.

2.3 Instructions for reading the instruction manual

Illustrations and texts describe specific operating steps.

All symbols which are affixed to the machine are explained in this instruction manual.

Viewing direction:

Viewing direction when "left" and "right" are used in the instruction manual: the user is standing behind the machine and is looking forwards in the direction of travel.

Section reference:

References to relevant sections and subsections for further descriptions are made using arrows. The following example shows a reference to a section: ( 2.1)

Designation of text passages:

The instructions described can be identified as in the following examples.

Operating steps which require intervention on the part of the user:

• Release bolt (1) using a screwdriver, operate lever (2)...

General lists:

• Use of the product for sporting or competitive events

Texts with added significance:

Text passages with added significance are identified using the symbols described below in order to especially emphasise them in the instruction manual:

Danger

Risk of accident and severe injury to persons. A certain type of behaviour is necessary or must be avoided.

Warning

Risk of injury to persons. A certain type of behaviour prevents possible or probable injuries.

Cau Mind

Minor injuries or material damage can be prevented by a certain type of behaviour.

i

Note

Information for better use of the machine and in order to avoid possible operating errors.

Texts relating to illustrations:

Some Illustrations which are necessary for use of the machine can be found at the front of this instruction manual.

The camera symbol serves to link the figures on the illustration pages with the corresponding text passages in the instruction manual.

Illustrations with text passages:

Operating steps relating directly to the illustration can be found immediately after the illustration, with a corresponding reference to the item numbers.

Example:

The control pad (1) serves for navigation in the menus. Settings are confirmed and menus opened using the OK button (2). Menus can be left again using the Back button (3).

3. Machine overview

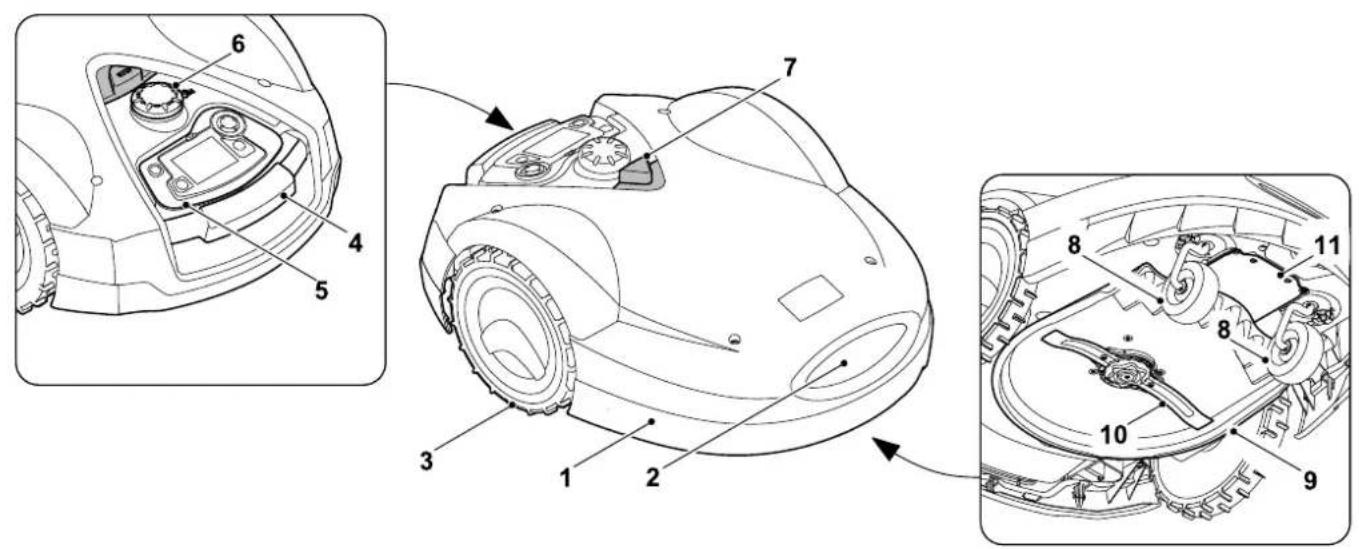

3.1 Robotic mower

1 Movably mounted hood ( 5.5) ( 5.6)
2 Charging contacts: connecting contacts to docking station
3 Rear wheel
4 Carrying handle (20.1)
5 Removable control panel ( 3.3) ( 14.2)
6 Rotary handle for cutting height adjustment ( 9.3)

7 STOP button ( 5.1)
8 Front wheel
9 Mowing deck
10 Dual-ground mowing blade ( 15.4)
11 Battery compartment

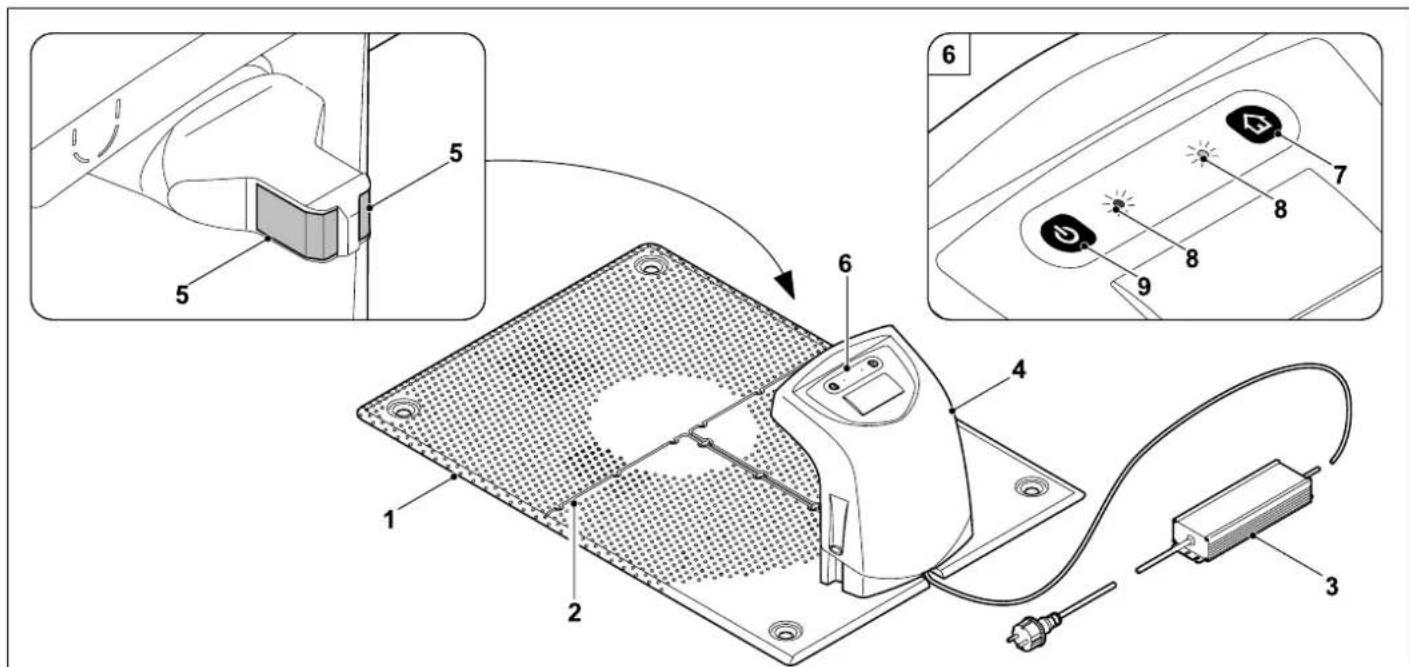

3.2 Docking station

1 Floor plate
2 Cable guides for retaining the perimeter wire ( 9.7)
3 Power supply unit
4 Removable cover (⇒ 9.5)
5 Charging contacts: connecting contacts to robotic mower

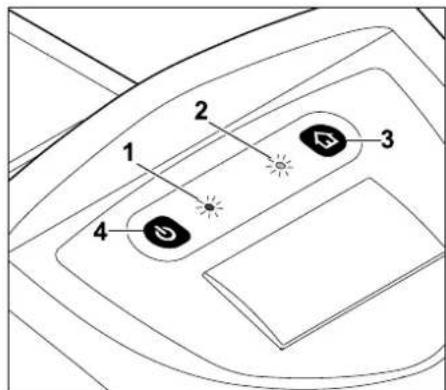

6 Control panel with 2 buttons and 2 LEDs ( 12.1)
7 Home button
8 LED display
9 ON/OFF button

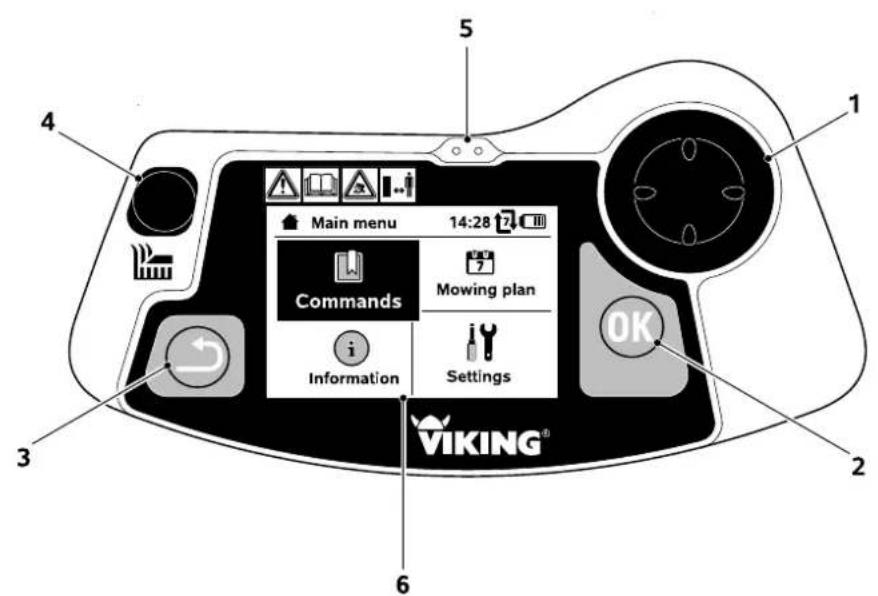

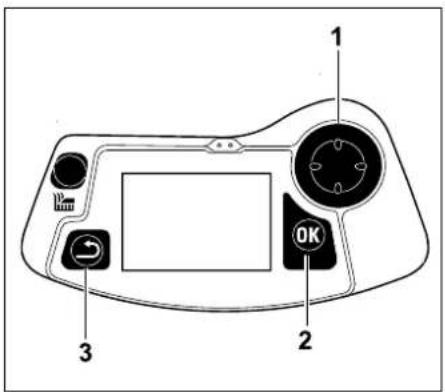

3.3 Control panel

1 Control pad: Steering the robotic mower ( 4.2) Navigating in menus ( 10.1)
2 OK button:
Manual mowing ( 4.2) Navigating in menus ( 10.1)
3 Back button: Navigating in menus ( 10.1)
4 Mow button: Manual mowing ( 4.2) Mowing independently of active times ( 14.5)
5 Rain sensor ( 10.11)
6 Graphical display

4. How the robotic mower works

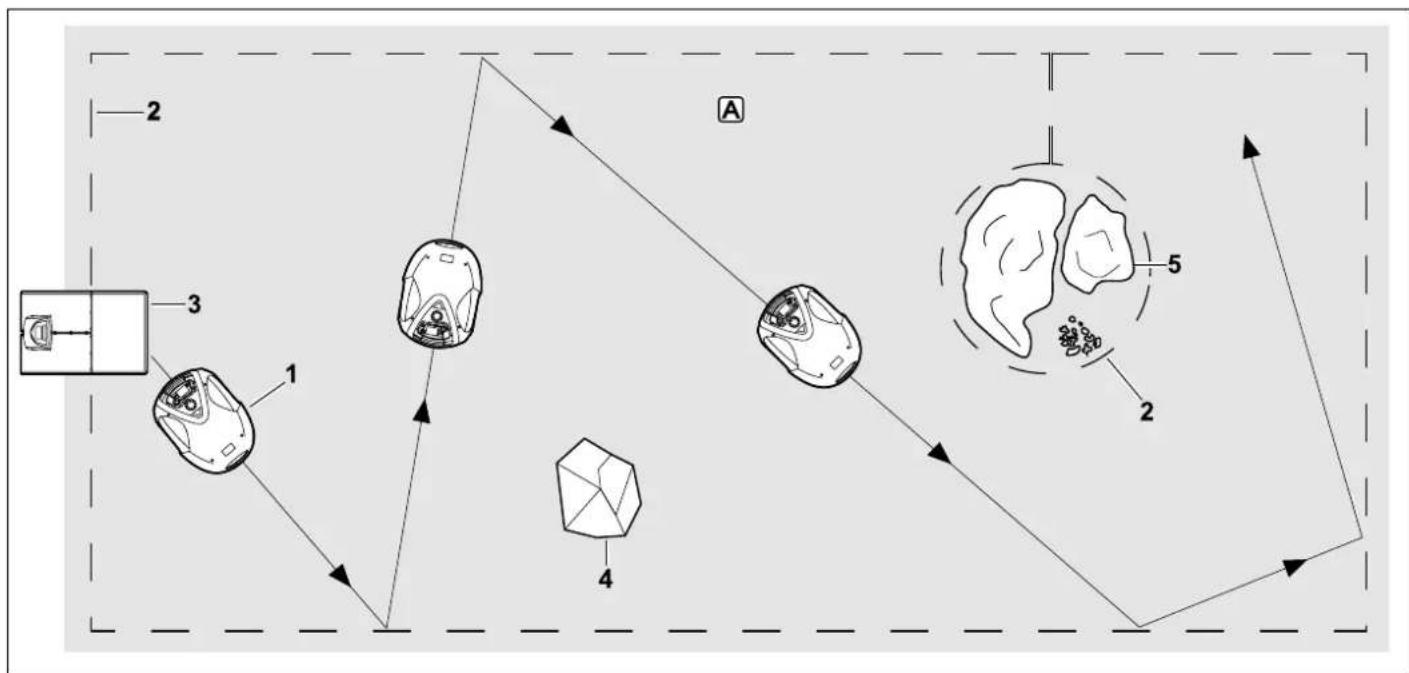

4.1 Operating principle

The robotic mower (1) is designed for the automatic mowing of lawns. It mows the lawn in randomly chosen paths.

In order for the robotic mower to detect the borders of the mowing area A, a perimeter wire (2) must be laid around that area. A wire signal generated by the docking station (3) flows through this perimeter wire.

Solid obstacles (4) in the mowing area are reliably detected by the robotic mower by means of an impact sensor. Areas (5) that

the robotic mower is not to enter and obstacles that need to be avoided must be separated from the remaining mowing area using the perimeter wire.

When automatic mowing is switched on the robotic mower independently leaves the docking station and mows the lawn during the active times ( 13.3) . The robotic mower automatically travels to the docking station to recharge the battery. The number and duration of the mowing and charging operations within the active

times are adapted fully automatically. This guarantees that the required weekly mowing duration is always achieved.

When automatic mowing is switched off and for mowing operations independent of the active times a mowing operation can be activated using the Mow button or with the command "Start mowing" or "Start time-delayed mowing". ( 10.4)

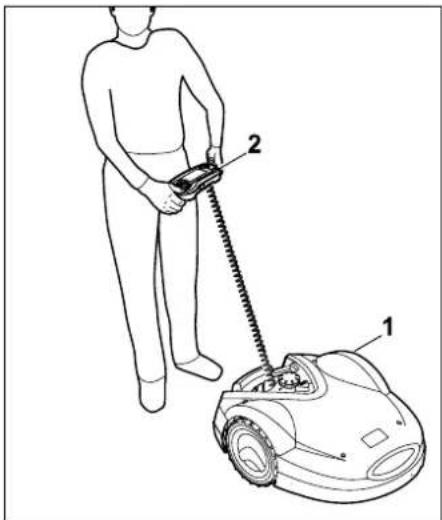

4.2 Manual mowing

With the robotic mower (1), it is also possible to mow the lawn as with a manually operated lawn mower. For this purpose, remove the control panel (2), select the "Hand control" option in the "Commands" menu, activate the mowing blade and self-propulsion and walk behind the robotic mower. ( 14.6)

The impact sensor and edge limitation are disabled during manual mowing.

5. Safety devices

The machine is equipped with several safety devices for safe operation and for the prevention of improper use.

Risk of injury!

If a safety device is found to be defective, the machine must not be operated. Consult a specialist dealer; VKING recommends VKING specialist dealers.

5.1 STOP button

When the red STOP button on the top of the robotic mower is pressed, operation of the machine is stopped immediately. The mowing blade comes to a standstill within a few seconds and the message "STOP button pressed" appears in the display. The robotic mower cannot be operated and is safe while the message is active. ( 23.)

When automatic mowing is switched on, following confirmation of the message with OK, the system enquires whether automatic operation is to continued.

If the response is Yes, the robotic mower continues to mow the lawn in accordance with the mowing plan. If the response is No, the robotic mower remains stationary in the mowing area and automatic mowing is switched off. ( 10.4)

Pressing and holding the STOP button also activates the disabling device. ( 5.2)

5.2 Disabling device

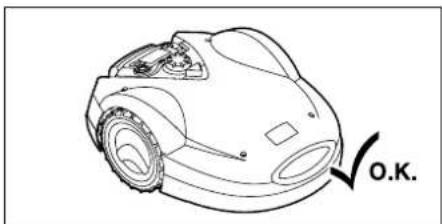

The robotic mower must be disabled prior to any maintenance or cleaning work, prior to transportation and prior

to inspection.

The robotic mower cannot be operated when the disabling device is activated.

Activating the disabling device:

• Press and hold the STOP button

• in the Commands menu

• in the Safety menu.

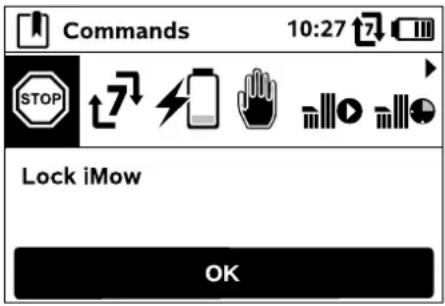

Activating the disabling device via the Commands menu:

• In the "Commands" menu, select the "Lock iMow" entry and confirm with the OK button. (⇒ 10.4)

Activating the disabling device via the Safety menu:

• Open the "Safety" submenu in the "Settings" menu. (⇒ 10.15)
• Select the "Lock iMow" entry and confirm with the OK button.

Deactivating the disabling device:

• When required, wake up the machine by pressing any button.

• Unlock the robotic mower using the illustrated button combination. For this purpose, press the Mow button and the OK button in the sequence illustrate

5.3 Protective covers

The robotic mower is equipped with protective covers that prevent inadvertent contact with the mowing blade and the clippings.

These include, in particular, the hood.

5.4 Two-hand operation

During manual mowing, the mowing blade can only be activated if the OK button is pressed and held with the right thumb and the Mow button is then pressed with the left thumb.

Once activated, only the Mow button must remain pressed in order to continue mowing.

5.5 Impact sensor

During automatic operation, the robotic mower immediately comes to a standstill if it contacts a solid obstacle exceeding 10cm in height that is firmly attached to the ground. It then turns to face another direction and continues mowing. If the impact sensor is triggered too frequently, the mowing blade is also stopped.

Impacts against obstacles occur with a certain force. Sensitive obstacles, e.g. light objects such as small flower pots, can therefore be knocked over or damaged.

VIKING recommends removing obstacles or blocking them off by means of no-go areas. ( 11.8)

5.6 Lifting protection

If the robotic mower is lifted by the hood or at the carrying handle, mowing is stopped immediately. The mowing blade comes to a standstill within a few seconds.

5.7 Tilt sensor

If the permissible slope inclination is exceeded during operation, the robotic mower immediately changes its direction of travel. In the event of a rollover, the wheel drive and mowing motors are switched off.

5.8 Display illumination

The display illumination is activated during operation. Thanks to this illumination, the robotic mower is easily recognisable, even in darkness.

5.9 Anti-theft alarm

When the anti-theft alarm is activated, an alarm signal sounds when the robotic mower is lifted unless the PIN code is entered within one minute. ( 10.15)

The robotic mower can only be operated in conjunction with the docking station supplied. A further docking station must be linked with the robotic mower. ( 10.15)

VIKING recommends that the "Low", "Medium" or "High" safety levels be set. This ensures that unauthorised persons cannot operate the robotic mower using other docking stations and are unable to change settings or the programming.

6. For your safety

6.1 General

These safety regulations must be observed when working with the machine.

Read the entire instruction manual before using the machine for the first time. Keep the instruction manual in a safe

place for future reference.

These safety precautions are essential for your safety, however the list is not exhaustive. Always use the machine in a reasonable and responsible manner and be aware that the user is responsible for accidents involving third parties or their property.

The term "use" covers all work on the robotic mower, the docking station and the perimeter wire.

Correspondingly, a "user" is a person who, for example, performs work on the robotic mower, activates or operates the machine, or installs the perimeter wire or docking station.

The machine must only be operated by persons who are well rested and in good physical and mental condition. If your health is impaired, you should consult your doctor to determine whether working with the machine is possible. The machine should not be operated after the consumption of alcohol, drugs or medications which impair reactions.

Make sure that you are familiar with the controls and use of the machine.

The machine must only be used by persons who have read the instruction manual and are familiar with operation of the machine. The user should seek expert and practical instruction prior to initial operation. The user must receive instruction on safe use of the machine from the vendor or another expert.

During this instruction, the user should be made aware that the utmost care and concentration are required for working with the machine.

Risk of death from suffocation! Packaging material is not a toy - danger of suffocation! Keep packaging material away from children.

Only give or lend the machine to persons who are familiar with this model and how to operate it. The instruction manual forms part of the machine and must always be provided to persons operating it.

Children, persons with impaired physical, sensory or mental faculties or those lacking the appropriate experience, or persons who are not familiar with the instructions, must never be allowed to use the machine.

Never allow children under the age of 16 to use the machine. Local regulations may specify a minimum age for users.

For safety reasons, any modification to the machine, except the proper installation of accessories or attachments approved by VKING is forbidden and results in voiding of the warranty cover. Information regarding approved accessories and attachments can be obtained from your VKING specialist dealer.

In particular, any tampering with the machine which increases the power output or speed of the motors is forbidden.

It is not permissible to make any modifications to the machine that could lead to increased noise emissions.

For safety reasons, the machine software must never be modified or tampered with.

Particular care is required during use in public green spaces, parks, sports fields, along roads and in agricultural and forestry businesses.

It is not permitted to transport objects, animals or persons, particularly children, on the machine.

Never allow persons, particularly children, to ride or sit on the robotic mower.

Caution - risk of accident:

The robotic mower is intended for automatic lawn care and for manual lawn mowing. Its use for other purposes is not permitted and may be dangerous or result in damage to the machine.

Due to the physical danger to the user, the machine must not be used for the following applications (incomplete list):

• for trimming bushes, hedges and shrubs,
• for cutting creepers,
• for the care of lawn roofs and balcony boxes,
• for shredding or chipping tree or hedge cuttings,
• for clearing paths (vacuuming, blowing),
• for levelling earth mounds, e.g. mole hills.

6.2 Clothing and equipment

Wear sturdy footwear with high-grip soles and never work barefoot or when wearing e.g.

sandals,

• when moving the robotic mower from one place to another using the control panel,
• when approaching the robotic mower during operation,
• when mowing the lawn manually.
  (⇒ 4.2)

Wear suitable work clothes during installation, maintenance operations and all other work on the machine and docking

station.

Never wear loose clothes which may become caught on moving parts - do not wear jewellery, ties or scarves.

In particular, wear long trousers:

• when approaching the robotic mower during operation,
• when mowing the lawn manually.

Always wear thick gloves during maintenance and cleaning operations, when laying wires and when securing the docking

station.

In particular, protect the hands when working on the mowing blade and when driving in the fixing pins or the docking station pegs.

Long hair must always be tied up and secured (headscarf, cap, etc.) when working on the machine.

Suitable safety glasses must be worn when driving in the fixing pins and the docking station pegs.

6.3 Warning - dangers caused by electrical current

Warning: Risk of electric shock!

Particularly important for electrical safety are an intact power cable and

mains plug on the power supply unit. Damaged cables, connectors and plugs, or elect cables that do not conform to regulations must not be used, prevent any risk of electric sh

Therefore, check the electric cable regularly for signs of damage or ageing (brittleness).

Only use an original power supply unit.

The power supply unit must not be used:

-if it is damaged or worn,
- if the cables are damaged or worn.

Check the power cable in particular for damage and ageing.

Maintenance and repair work on power cables and power supply units must only be performed by specially qualified technicians.

Danger of electric shock!

Do not connect a damaged cable to the mains and only touch a damaged cable once it has been disconnected from the mains.

The electric cable on the power supply unit must not be modified (e.g. shortened). The cable between the power supply unit and docking station must not be extended.

Danger of electric shock!

Damaged cables, connectors and plugs, or electric cables which do not conform with regulations may not be used.

Always ensure that the power cables used are adequately protected by a fuse.

Detach electric cables at the plug and socket and not by pulling on the electric cable.

Only connect the machine to a power supply that is protected by means of a residual current-operated protective device with a release current of a maximum of 30mA . Your electrician can provide further information.

If the power supply unit is connected to the mains supply outside a building, the socket must be approved for outdoor use. Your electrician can provide further information about country-specific legislation.

It must be noted that current fluctuations can damage the machine when it is connected to a power generator.

6.4 Battery

Only use original batteries.

The battery is intended exclusively for fixed installation in a VIKING robotic mower. There, it is optimally protected and is charged when the robotic mower is in the docking station. No other charger must be used. The use of an unsuitable charger can result in danger due to electric shock, overheating or escaping corrosive battery fluid.

Never open the battery.

Do not drop the battery.

Never use a defective or deformed battery.

Store the battery out of the reach of children.

Explosive hazard! Protect the battery against direct sunlight, heat and fire - never throw it into a fire.

Only use or store the battery at temperatures from -10^ to max. +50^ .

Protect the battery against rain and moisture - do not immerse in liquids.

Do not subject the battery to microwaves or high pressure.

Never connect the battery terminals with metallic objects (short-circuit). The battery can be damaged through short circuits.

Keep the unused battery away from metallic objects (e.g. nails, coins, jewellery). Do not use metallic transport containers - Explosive and fire hazard!

Fluid may escape from the battery due to improper use - Avoid contact! In the case of inadvertent contact, rinse with water. Seek medical attention if the fluid contacts the eyes. Escaping battery fluid can cause skin irritation and burns.

Do not insert any objects in the ventilation slots of the battery.

For further safety instructions, see www.viking-garden.com/safety-datasheets

6.5 Transporting the machine

Before transporting, and especially before lifting the robotic mower, activate the disabling device. ( 5.2)

Allow the machine to cool down before transporting.

Avoid contact with the mowing blade when lifting and carrying the machine. The robotic mower must only be lifted at the carrying handle. Never reach under the machine.

Take the weight of the machine into account and use suitable loading aids (lifters) if required.

Secure the machine and other machine parts being transported (e.g. docking station) on the load floor using fastening materials (straps, ropes, etc.) of an adequate size at the fastening points described in this instruction manual. ( 20)

When transporting the machine, always observe regional legislation, especially regarding load security and the transport of objects on load floors.

Do not leave the battery inside a vehicle and never expose it to direct sunlight.

Lithium-ion batteries must be treated with special care during transport. In particular, short-circuit protection must be ensured. Transport the battery either in the original packaging or in the robotic mower.

6.6 Before initial operation

It must be ensured that all persons who use the machine are familiar with the instruction manual.

Carefully follow the instructions for installing the docking station ( 12.) and perimeter wire ( 11.)

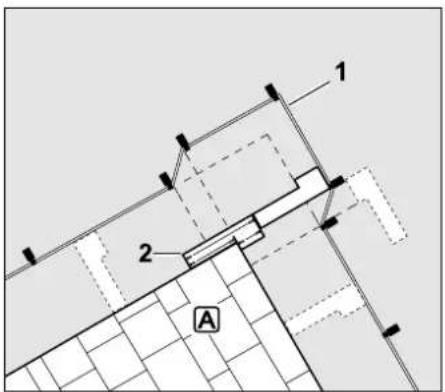

The perimeter wire and the power cable must be securely fastened to the ground so that they do not present a tripping hazard. Avoid routing the perimeter wire and power cable over edges (e.g. edges of pathways or paving stones). When routing the perimeter wire and power cable on ground into which the supplied fixing pins cannot be driven (e.g. paving stones, pathways), a cable duct must be used.

Correct routing of the perimeter wire and power cable must be regularly checked.

To prevent the risk of stumbling, always drive in the fixing pins all the way.

Do not install the docking station in a place where it is difficult to see and could become a tripping hazard (e.g. around the corner of a house).

If possible, install the docking station out of the reach of pests such as ants or slugs - in particular avoid the area around anthills and composting units.

Areas in which the robotic mower should not operate, or cannot operate safely (e.g. due to danger of falling) or which are not covered with grass (e.g. gravel paths), must be blocked off through appropriate routing of the perimeter wire.

The robotic mower does not detect any sudden drops such as edges, steps, swimming pools or ponds. If the perimeter wire is routed along potential sudden drops, a clearance of at least 1m must be maintained between the perimeter wire and the danger area for safety reasons.

Regularly inspect the area on which the machine is to be used and remove any sticks, stones, wires, bones and all other

foreign objects that could be thrown up by the machine.

After installing the perimeter wire, particularly remove all tools from the mowing area. Broken or damaged fixing pins must be removed from the lawn and disposed of.

Regularly check the area to be mown for uneven areas and level them out.

Never use the machine with damaged safety devices or with safety devices removed.

The switch and safety devices installed in the machine must not be removed or bypassed.

All worn or damaged parts must be replaced before use of the machine. Replace any illegible or damaged danger signs and warnings on the machine. Your VKING specialist has a supply of replacement stickers and all the other spare parts.

Before initial operation, it must be checked:

• that the machine is in a safe operating condition. This means that the covers and guards must be in place and in good condition.
• that the power supply unit has been connected to a properly installed socket.
  that the insulation of the electric cable and the mains plug on the power supply unit is in good condition.
  that the entire machine (housing, hood, fastening elements, mowing blade, blade shaft, etc.) is neither worn nor damaged.

that the mowing blade and the blade fastening are in a proper condition (secure seating, damage, wear). ( 15.3)
that all screws, nuts and other fastening elements are in place and are properly tightened. Tighten any loose screws and nuts prior to initial operation (observe tightening torques).

Perform all necessary work or consult a specialist dealer. VKING recommends VKING specialist dealers.

6.7 Programming

Observe local regulations regarding permitted operating times for gardening power tools with motors and programme the active times accordingly. ( 13.3)

In particular, programming must also be adapted so that no children, spectators or animals are in the area to be mown during operation.

The robotic mower must not operate at the same time as a sprinkler system. Adapt the programming accordingly.

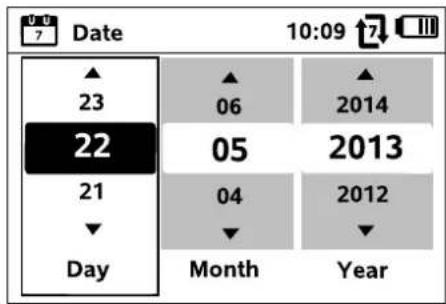

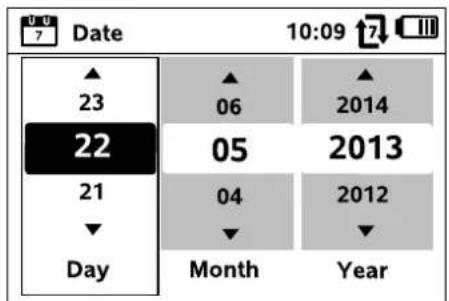

Ensure that the correct date and the correct time are set on the robotic mower. Correct the settings if necessary. Incorrect values may cause the robotic mower to start up unintentionally.

6.8 During operation

Keep other persons, especially children and animals, out of the danger area.

Never allow children to approach or play with the robotic mower during operation.

Never allow the robotic mower to operate unattended if you know that animals or persons, particularly children, are in the vicinity.

Caution - risk of injury! Never put hands or feet on or underneath rotating parts. Never touch the rotating blade.

Before thunderstorms, or if there is a danger of lightning strikes, disconnect the power supply unit from the mains. The robotic mower must not be operated.

The robotic mower must never be tilted or lifted when a motor is running.

Never attempt to change settings on the machine when one of the motors is running.

For safety reasons, the machine must not be used on slopes with an inclination of more than 19.3^ (35%) . Risk of injury! A slope inclination of 19.3^ corresponds to a vertical height increase of 35~cm for a 100~cm horizontal distance.

Beware of the cutting tool running on for several seconds before coming to a standstill. Press the STOP button ( 5.1) during running operation:

• before making or changing settings in the menu,
  before adapting the programming,

before removing the control panel.
Activate the disabling device ( 5.2) :
before lifting or carrying the machine,
before transporting the machine,
before removing blockages,
before carrying out any work on the mowing blade,
- before checking or cleaning the machine,
- after hitting a foreign object or if the robotic mower begins to vibrate excessively. In these cases, check the machine, in particular the cutting unit (blade, blade shaft, blade fastening) for damage and carry out the necessary repairs before restarting and working with the machine.

Risk of injury!

Strong vibration is normally an indication of a fault.

In particular, the robotic mower must not be operated with a damaged or bent blade shaft or mowing blade.

If you do not have the appropriate expertise, have the necessary repairs carried out by a specialist dealer (VIKING recommends VKING specialist dealers).

Before leaving the machine unattended, the safety settings of the robotic mower must be adapted so that it cannot be operated by unauthorised persons. ( 10.15)

Manual mowing:

Exercise care when starting the machine and observe the instructions in the "Manual mowing" section. ( 14.6)

Only work during the day or with good artificial light.

Never mechanically fix buttons on the machine, especially the Mow button.

The user must always remain behind the machine. Always keep your feet a safe distance from the blade.

To prevent the risk of injury due to slipping, stumbling, etc., never run when mowing.

Be particularly careful when turning the robotic mower around or pulling it towards you backwards.

The risk of accidents is higher if the ground is damp due to increased danger of slipping.

Particular caution should be exercised during working in order to prevent slipping. If possible, avoid manual mowing when the ground is damp.

Always ensure good stability on slopes and avoid mowing on excessively steep slopes.

Only mow at right-angles to the slope and never up or down the slope and ensure that you always stand over the robotic mower, in order to avoid being run over in the case of loss of control of the machine.

Objects hidden in the turf (lawn sprinkler systems, posts, water valves, foundations, electrical wires, etc.) must be avoided. Never run over any such foreign objects.

Never steer against obstacles intentionally. The impact sensor is disabled during manual mowing.

6.9 Maintenance and repairs

Before starting cleaning, repair or maintenance operations, activate the disabling device and park the robotic mower on firm and level ground.

Disconnect the mains plug of the power supply unit before performing any work on the docking station and the perimeter wire.

Allow the robotic mower to cool down for approx. 5 minutes before performing any maintenance operations.

The power cable must only be repaired or replaced by authorised electricians.

Following any work on the machine, check and, if necessary, correct the programming of the robotic mower before putting it back into operation. In particular, the date and time must be set.

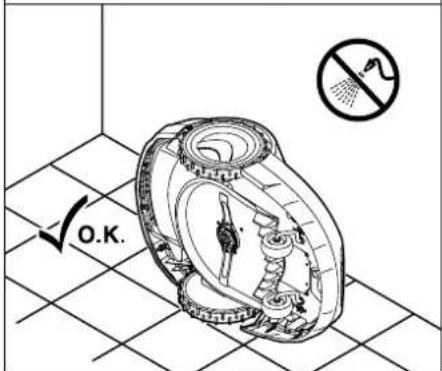

Cleaning:

The complete machine must be cleaned carefully at regular intervals. ( 15.2)

Never spray water (particularly high pressure cleaners) onto motor components, seals,

electric components or bearing points. This may result in damage and expensive repairs.

Do not clean the machine under running water (e.g. using a garden hose).

Do not use aggressive cleaning agents. These can damage plastics and metals, impairing the safe operation of your VIKING machine.

Maintenance operations:

Only maintenance operations described in this instruction manual may be carried out. Have all other work performed by a specialist dealer.

If you do not have the necessary expertise or auxiliary equipment, please always contact a specialist dealer.

VIKING recommends that you have maintenance operations and repairs performed exclusively by a VKING specialist dealer.

VIKING specialist dealers regularly attend training courses and are provided with technical information.

Only use tools, accessories or attachments approved for this machine by VKING or technically identical parts. Otherwise, there may be a risk of accidents resulting in personal injury or damage to the machine. If you have any questions, please consult a specialist dealer.

The characteristics of original VKING tools, accessories and spare parts are optimally adapted to the machine and the user's requirements. Genuine VKING spare parts can be recognised by the VKING spare parts number, by the VKING lettering and, if present, by the VKING spare parts symbol. On smaller parts, only the symbol may be present.

Always keep warning and information stickers clean and readable. Damaged or missing stickers must be replaced by new, original plates from your VIKING specialist dealer. If a component is replaced with a new component, ensure that the new component is provided with the same stickers.

Only perform work on the cutting unit when wearing thick work gloves and exercising extreme care.

Ensure that all screws and nuts, especially all screws and fastening elements of the cutting unit, are securely tightened, so that the machine is in a safe operating condition.

Check the entire machine for wear or damage on a regular basis, particularly before extended periods when the machine is not in use (e.g. over winter). For safety reasons, worn or damaged parts must be replaced immediately to ensure that the machine is always in a safe operating condition.

Components or guards that are removed for maintenance operations must be properly reinstalled immediately.

6.10 Storage for prolonged periods without operation

Set the highest safety level before putting into storage. ( 10.15) In addition, activate the disabling device.

Ensure that the machine is protected from unauthorised use (e.g. by children).

Store the machine in good operational condition.

Thoroughly clean the machine before storage (e.g. winter break).

Allow the machine to cool for approx. 5 minutes before storing it in an enclosed space.

The storage room must be dry, frost-free and lockable.

Never store the machine close to naked flames or powerful heat sources (e.g. oven).

During prolonged periods without operation (e.g. winter break), remove the docking station and store safely together with the robotic mower. ( 15.8)

6.11 Disposal

Waste products can be harmful to people, animals and the environment. They must consequently be disposed of properly.

Consult your recycling centre or your specialist dealer for information on the proper disposal of waste products. VIKING recommends VIKING specialist dealers.

Ensure that old machines are properly disposed of. Render the machine unusable prior to disposal. In particular, remove the power cable of the power supply unit, as well as the battery and control panel of the robotic mower in order to prevent accidents.

Risk of injury due to the mowing blade! Always store an old lawn mower in a safe place prior to scrapping. Ensure that the machine and particularly the mowing blade are kept out of the reach of children.

The battery must be disposed of separately from the machine. Ensure that batteries are disposed of safely and in an environmentally friendly manner.

7.Description of symbols

Warning:

Read the instruction manual before initial use.

Warning:

Keep a safe distance from the machine during operation.

Keep other persons out of the danger area.

Warning:

Disable the machine before lifting it and before working on it.

Warning:

Do not climb onto or sit on the machine.

Warning:

Never touch the rotating blade.

8. Standard equipment

Item Designation Qty.

A Robotic mower 1

B Docking station 1

C Battery 1

D Power supply unit 1

E iRuler 2

F Perimeter wire on reel (150m)

MI 6321

MI 632 P 2

G Press-fit connector for perimeter wire

H Wire connector 3

Battery compartment cover 1

Item Designation Qty.

J Screw 2

K Fixing pin for perimeter wire:

MI 632 200

MI 632 P 300

L Peg for 4 docking station

• Instruction manual 1

9. Initial installation

9.1 Notes on initial installation

An installation assistant is available for installation of the robotic mower. This program guides you through the entire initial installation process:

• Setting the language, date and time
• Installing the docking station
• Routing the perimeter wire
• Connecting the perimeter wire
• Linking the robotic mower and docking station
• Checking installation
• Programming the robotic mower
• Completing initial installation

The installation assistant must be worked through in its entirety. Only then is the robotic mower ready for operation.

An installation video is available at the www.viking-garden.com homepage.

Your VKING specialist dealer also has further information on installing the robotic mower.

The installation assistant is re-activated following a reset (reset to factory defaults). ( 10.16)

Preparatory measures:

• Mow the lawn using a conventional lawn mower prior to initial installation (ideal grass height of 3 to 4 cm).

• In the case of a hard and dry surface, water the mowing area lightly in order to make it easier to drive in the fixing pins.

When navigating through the menus, follow the instructions in the section entitled "Operating instructions". ( 10.1)

You can select options, menu items and buttons using the control pad.

You can open submenus and confirm selections using the OK button.

Use the Back button to leave the active menu or jump one step back in the installation assistant.

If errors or faults occur during initial installation, a corresponding message appears in the display. ( 23.)

9.2 Installing the battery

Lithium-ion batteries must be treated with particular care. VKING recommends that you have the battery installed by a VKING specialist dealer. A defective battery must only be replaced by a VKING specialist dealer.

The battery remains permanently installed in the robotic mower, removal is only necessary prior to disposal of the machine. ( 19.1)

• Set the lowest cutting height (level 1).
  (⇒ 9.3)
• Place the robotic mower on its back on a suitable surface.

Insert the battery (C) as illustrated and allow it to engage.

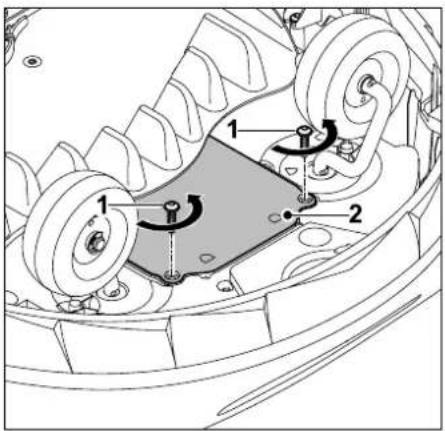

Fit the cover (I) and tighten the screws (J). Observe a maximum tightening torque of 1 - 2Nm

• Set the robotic mower on its wheels.

9.3 Adjusting the cutting height

Cutting heights between 20 mm and 60 mm can be set.

Level 1 Lowest cutting height

Level 8 Highest cutting height

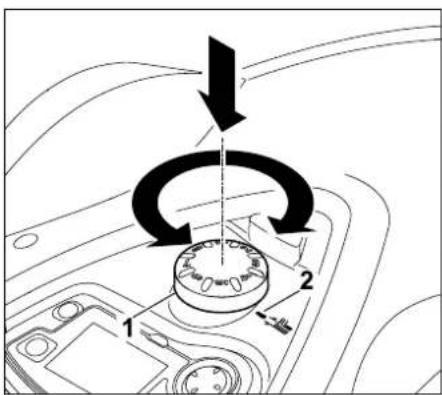

Press and turn the rotary knob (1). It engages again when released. The marking (2) indicates the set cutting height.

The rotary knob can be removed upwards from the adjustment element. This design is implemented for safety reasons: it ensures that the machine cannot be lifted and carried by the rotary knob.

9.4 Setting the language, date and time

• Pressing any button on the control panel activates the machine and thus the installation assistant.

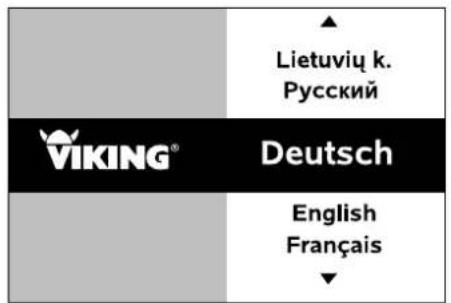

Select the required display language and confirm with the OK button.

Confirm your language selection with the OK button or select "Change" and repeat the language selection.

If necessary, enter the 9-digit serial number of the robotic mower. This number is printed on the identification plate (sticker in compartment under control panel)

Set the current date using the control pad and confirm with the OK button.

Set the current time using the control pad and confirm with the OK button.

9.5 Installing the docking station

Study the installation examples in this instruction manual. ( 26.)

A canopy top available as an accessory can be mounted on the docking station. This provides better protection for the robotic mower against the weather.

Install the docking station in a protected, shady location. Direct sunlight can lead to increased temperatures in the machine and longer battery charging times.

The docking station should be easily visible in its chosen location to prevent the risk of tripping over it.

A mains connection is necessary for operation of the docking station. This must be located at a distance of no more than 15m

There must be a free, level area (2) with a radius of at least 1m in front of the docking station (1). Remove any bumps or depressions.

The ground at the chosen location should be horizontal; a maximum height difference of 5cm must be observed. Never bend the floor plate. Any unevenness must be removed under the floor plate so that it fully contacts the ground.

Fix the docking station (B) into position at the chosen location using four pegs (L).

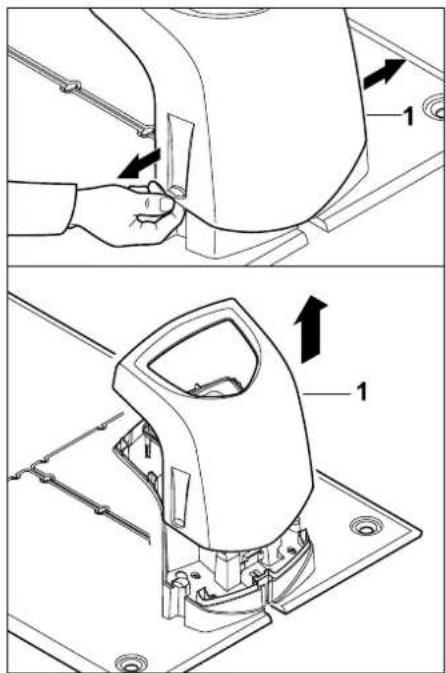

Pull the cover (1) apart slightly on the left and right as illustrated and remove upwards.

Connect the connector of the power supply unit (1) to the circuit board of the docking station.

If necessary, the connector can be removed (e.g. in order to route the power cable through a hole in a wall).

Make sure that the polarity is correct when attaching the connector to the power cable. ( 15.7)

Guide the power cable as illustrated through the strain relief (1), through the cable duct (2) and to the power supply unit.

Install the power supply unit outside the mowing area, protected from direct sunlight, humidity and wetness - fasten to a wall if necessary.
- Route all power cables outside the mowing area, in particular out of reach of the mowing blade, and fasten them to the ground or accommodate in a cable duct.

• Unreel power cables in the vicinity of the docking station in order to avoid interference with the wire signal.

Correct operation of the power supply unit is only ensured at an operating temperature between 0^ and 60^ .

Fit the cover (1) onto the docking station and allow it to engage - do not pinch any cables. Then connect the mains plug.

The red LED on the docking station flashes as long as no perimeter wire is connected. ( 12.1)

After completing this installation work, press the OK button on the control panel.

Charge

15:40

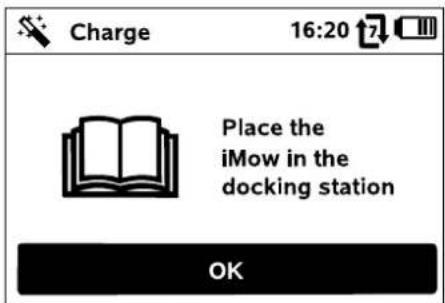

Place the iMow in the docking station

OK

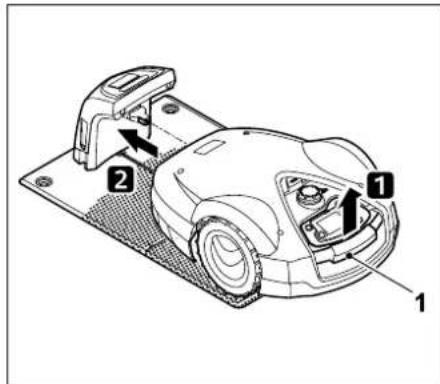

Lift the robotic mower slightly by the carrying handle (1) and unload the drive wheels. Push the machine, resting on its front wheels, into the docking station.

No LED must illuminate on the docking station after docking. ( 12.1)

Then press the OK button on the control panel.

If the battery is discharged, a plug symbol appears instead of the battery symbol at the top right corner of the display docking. ( 14.8) The batte automatically charged as req

9.6 Routing the perimeter wire

Please read and observe the entire "Perimeter wire" section before performing wire routing. ( 11)

In particular, plan the routing, observe the wire clearances and install no-go areas, reserve wire, linking sections, secondary areas and corridors during wire routing.

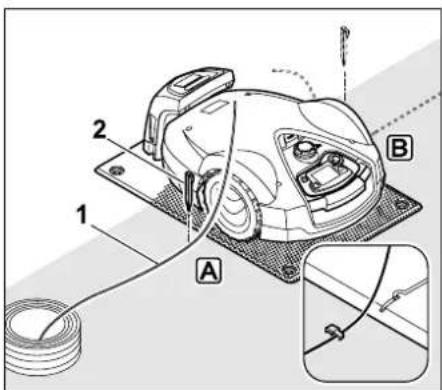

Fasten the perimeter wire (1) to the ground on the left A or right B as appropriate, next to the floor plate, directly next to a wire outlet, using a fixing pin (2).

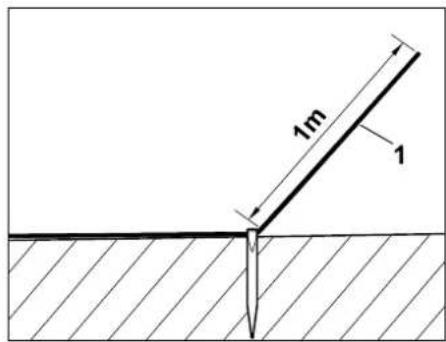

Provide a free wire end (1) with a length of approx. 1m .

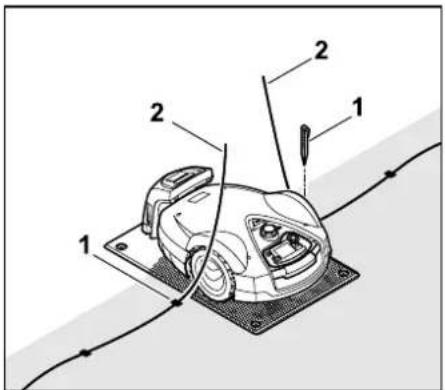

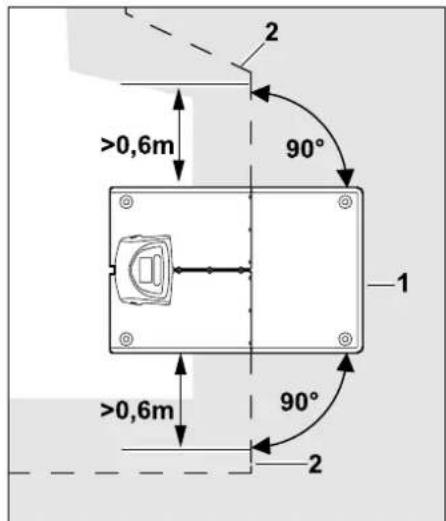

Route the perimeter wire (2) in front of and behind the docking station (1) for 0.6m in a straight line and at right angles to the floor plate. Then follow the edge of the mowing area with the perimeter wire.

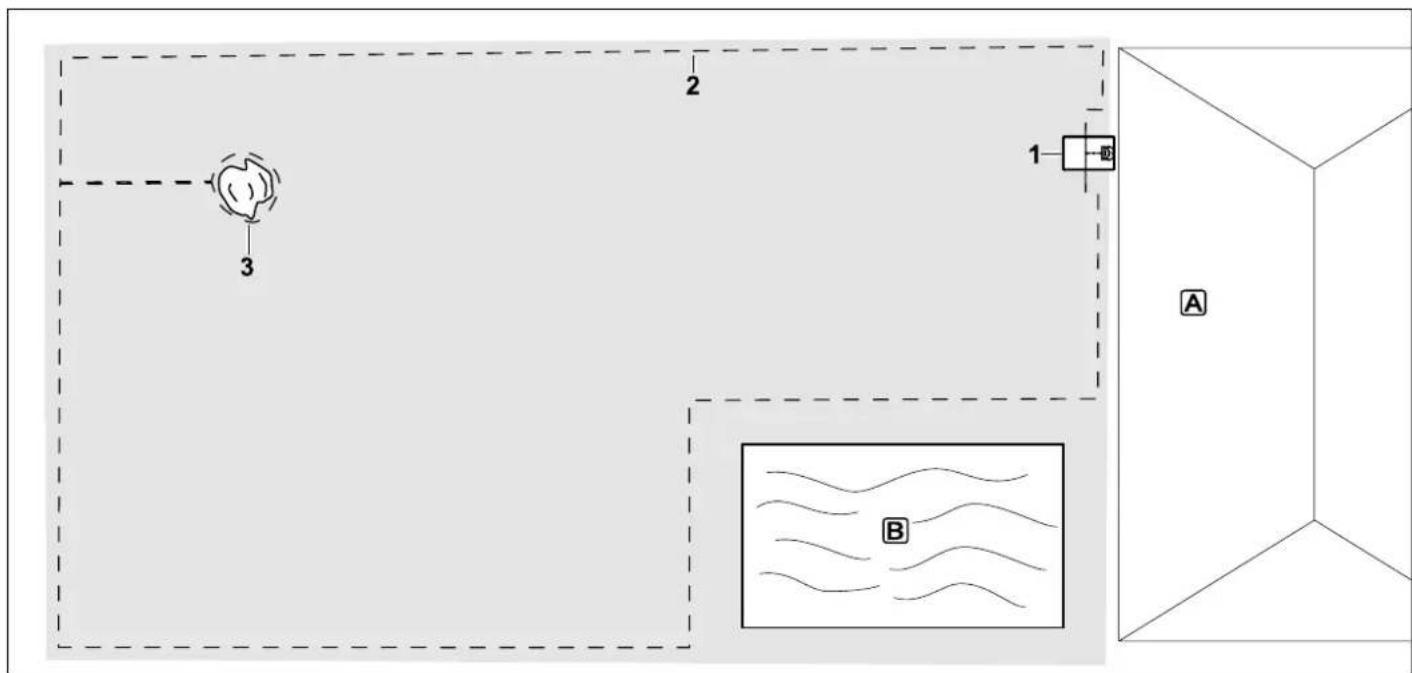

Route the perimeter wire (1) around the mowing area and around any obstacles ( 11.8) and fasten it to the ground using fixing pins (2). Check the clearances using the iRuler. ( 11.3)

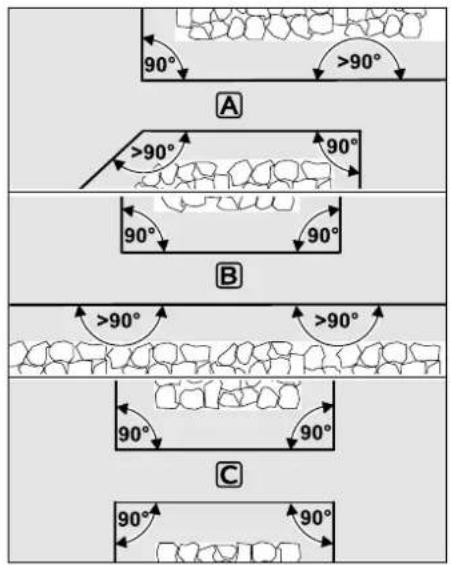

Avoid routing at acute angles (less than 90^ ). In acutely angled lawn corners, fasten the perimeter wire (1) to the ground with fixing pins (2) as illustrated.

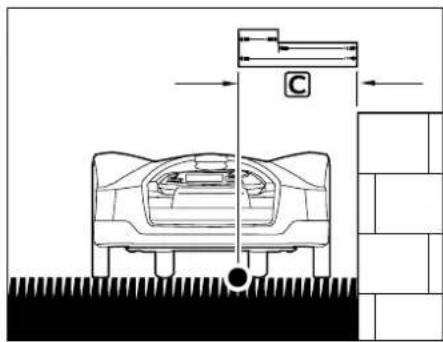

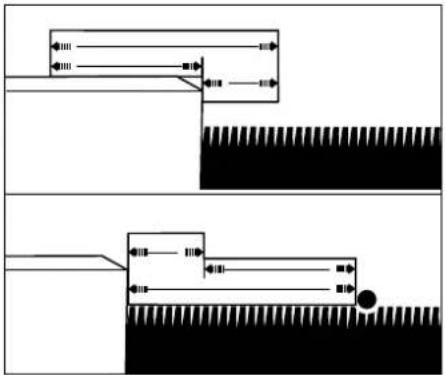

When routing around high obstacles such as wall corners or high flowerbeds A, a greater wire clearance must be maintained at the corners to prevent the robotic mower from scraping against the obstacle. Route the perimeter wire (1) with the aid of the iRuler (2) as illustrated.

If necessary, extend the perimeter wire using the wire connectors supplied. ( 11.12)

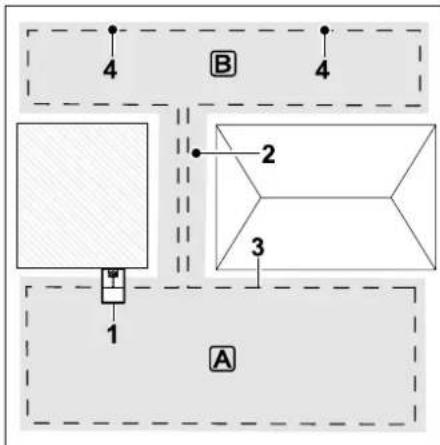

In the case of several adjacent mowing areas, install secondary areas ( 11.9) or join the mowing areas with corridors. ( 11.10)

Drive in the last fixing pin (1) on the left or right next to the floor plate, directly next to the wire outlet. Cut off the perimeter wire (2). Provide free wire ends with a length of approx. 1 m.

• Check the fastening of the perimeter wire to the ground. One fixing pin per meter is sufficient as a rough guide. The perimeter wire must always lie on the lawn. Drive the fixing pins fully into the ground.
  After completing this installation work, press the OK button on the control panel.

If the battery is not sufficiently charged to work through the remaining steps of the installation assistant, an appropriate message is displayed. In this case, leave the robotic mower in the docking station to continue charging the battery.

Jumping to the next step of the installation assistant with the OK button is only possible once the necessary battery voltage is available.

9.7 Connecting the perimeter wire

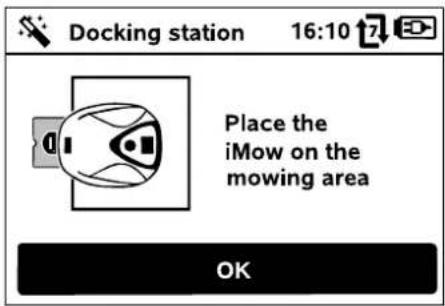

Place the robotic mower (1) within the mowing area, behind the docking station (2) as illustrated, then press the OK button.

Disconnect the power supply unit plug from the mains, then press the OK button.

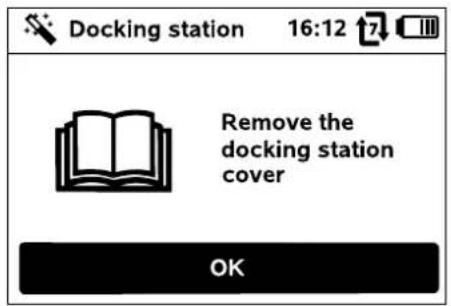

Remove the cover as described in the "Installing the docking station" section. ( 9.5)

Then press the OK button on the control panel.

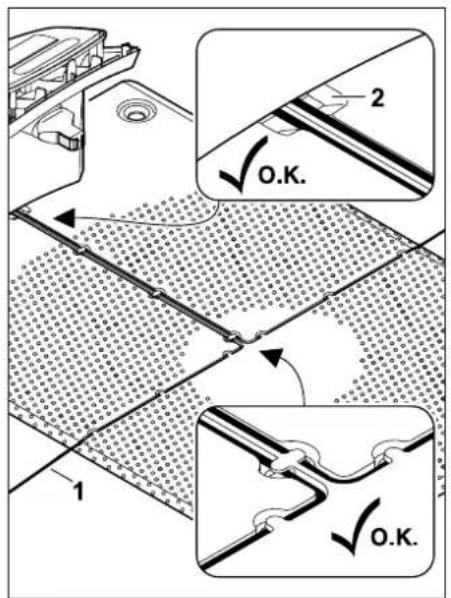

Insert the perimeter wire (1) into the cable guides in the floor plate and guide it through the socket (2).

Cut the ends of the perimeter wire (1) to a free length of approx. 10cm .

Precisely observe the free length and do not roll up protruding wire ends. Excessively long free ends can interfere with correct operation of the robotic mower.

Fasten the press fit connectors (G) onto the cable ends using suitable pliers - ensure correct engagement.

The press-fit connectors are intended for one-time use and must not be reused following removal. Additional press-fit connectors are available from a VKING specialist dealer. ( 16)

Attach the connector (1) as illustrated. Ensure correct connection of the left and right perimeter wire ends - do not interchange the wire ends. Close the cover of the cable duct (2).

After completing this installation work, press the OK button on the control panel.

Fit the cover as described in the "Installing the docking station" section. ( 9.5)

Then press the OK button on the control panel.

Connect the power supply unit plug to the mains, then press the OK button.

When the perimeter wire is correctly installed and the docking station is connected to the mains power supply, the red LED (1) illuminates.

Observe the "Docking station controls" section, particularly if the LED does not illuminate as described. ( 12.1)

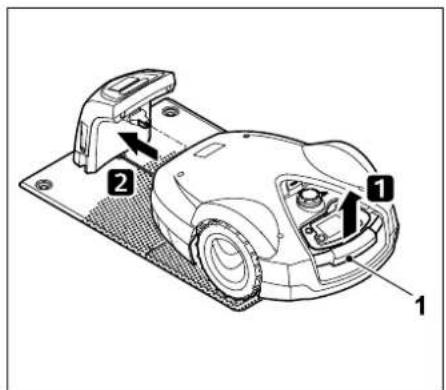

Lift the robotic mower slightly by the carrying handle (1) and unload the drive wheels. Push the machine, resting on its front wheels, into the docking station.

No LED must illuminate on the docking station after docking. (⇒ 12.1)

Then press the OK button on the control panel.

OK

9.8 Linking the robotic mower and docking station

The robotic mower can only be operated if it correctly receives the wire signal emitted by the docking station. ( 10.15)

Checking the wire signal may take several minutes. Linking is terminated with the red STOP button on the top of the machine, the previous installation assistant step is called up.

Wire signal OK:

The text "Wire signal OK" appears on the display. The robotic mower and the docking station are correctly linked.

Continue initial installation by pressing the OK button.

No wire signal:

The text "No wire signal" appears on the display. The robotic mower is not receiving a wire signal.

Connect the docking station to the mains power supply/connect the perimeter wire to the docking station and check the LED display on the docking station. ( 12.1)

Linking is repeated after pressing the OK button.

Incorrect wire signal polarity:

The text "Connections swapped or iMow outside" appears on the display. The robotic mower is receiving a reversed-polarity wire signal. Place the robotic mower in the docking station/connect the ends of the perimeter wire correctly at the docking station.

Linking is repeated after pressing the OK button.

Check wire signal:

The text "Check wire signal" appears on the display. The robotic mower is receiving a faulty wire signal.

Possible causes are live underground cables, reinforced concrete or disruptive metals in the ground under the docking station. A coiled power cable in the vicinity of the docking station or extraneous signals (e.g. signal from another docking station) can also interfere with the wire signal.

Eliminate the source of the interference if possible, otherwise move the installation location of the docking station.

Linking is repeated after pressing the OK button.

If reception of a correct wire signal is not possible and the measures described do not resolve the problem, contact a VKING specialist dealer.

9.9 Checking installation

Start the test run for checking correct wire routing by pressing the OK button.

As the robotic mower follows the edge, walk behind it and ensure:

that the robotic mower follows the edge of the mowing area as planned,
that the distances to obstacles and the borders of the mowing area are correct,
that docking in and out takes place correctly.

The mowing blade is not activated during the test run.

The test run can be repeated following initial installation if necessary. ( 10.13)

The following of edges is automatically interrupted by obstacles, during operation on excessively steep slopes or by pressing the red STOP button on the top of the machine.

• If the test run has been interrupted automatically, correct the position of the perimeter wire and remove any obstacles.
• Check the position of the robotic mower before continuing edge following. The machine must either be located on the perimeter wire or within the mowing area with the front facing the perimeter wire.

Continuation following interruption:

After an interruption, continue edge following with Yes.

No ends following of the perimeter wire and the next step of the installation assistant is called up.

In the case of an interrupted test run, possible problems when following the edge of the mowing area may not be recognised.

Completion of the test run:

The next step of the installation assistant is called up when the robotic mower docks following a complete circuit.

9.10 Programming the robotic mower

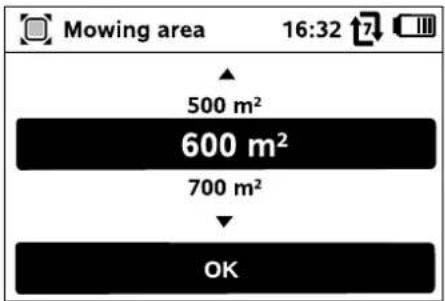

Enter the size of the lawn and confirm with OK.

i Installed no-go areas and secondary areas must not be included when calculating the size of the mowing area.

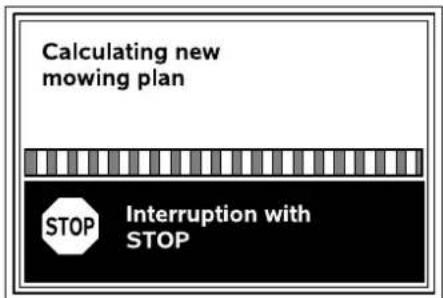

A new mowing plan is being calculated. The procedure can be aborted using the red STOP button on the top of the machine.

Confirm the message "Confirm each day individually or change active time" by pressing the OK button.

OK

The daily plan for Monday is displayed and the menu item Confirm daily plan is activated.

All the active times of the day displayed are confirmed with OK and the next daily plan is displayed.

In the case of small mowing areas, not all the week days are used for mowing. In this case, no active times are displayed and the menu item "Delete daily plan" is omitted. Daily plans without active times must also be confirmed with OK.

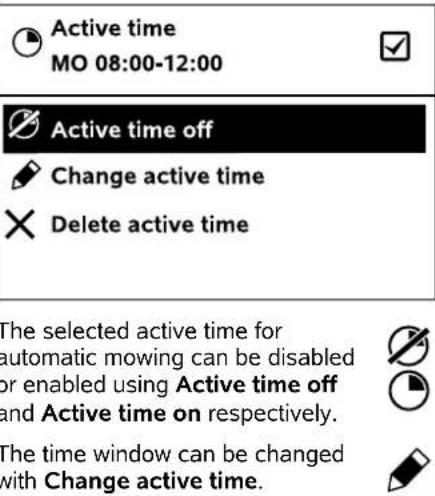

The displayed active times can be changed. For this purpose, select the required time interval using the control pad and open with OK. ( 10.6)

If additional active times are required, select the menu item

New active time and open with OK.

Specify the start and end times of the new active time in the selection window and confirm with OK. Up to three active times per day are possible.

If all the displayed active times are to be deleted, select the menu item Delete daily plan and confirm with OK.

The mowing plan is displayed after the daily plan for Sunday is confirmed.

The displayed mowing plan is confirmed with OK and the final step of the installation assistant is called up.

If changes are necessary, select Change and individually adapt active times.

During the active times, third parties must keep out of the danger area. The active times should be adapted accordingly. Moreover, the applicable local regulations on the use of robotic mowers as well as the information in the "For your safety" ( 6.) section must be observed and the active times changed accordingly in the "Mowing plan" menu as required, either immediately or after completion of initial installation. ( 10.5) In particular, you should check the times of the day and night at which it is permissible to use the machine with the responsible authorities.

9.11 Completing initial installation

Remove all foreign bodies (e.g. toys, tools) from the mowing area.

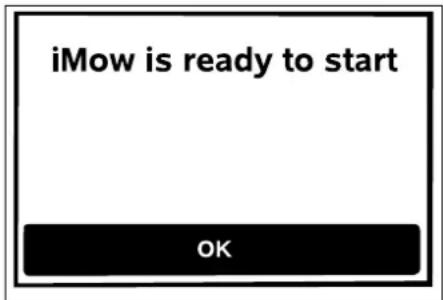

Complete initial installation by pressing the OK button. The robotic mower is now ready. If completion of initial installation occurs during an active time, the robotic mower will begin to mow the mowing area immediately.

If completion of the initial installation occurs outside the active time, a mowing operation can be started by pressing the OK button. If you do not wish the robotic mower to mow, select "No".

After initial installation, the safety level "None" is activated. VIKING recommends that the "Low", "Medium" or "High" safety levels be selected. This ensures that unauthorised persons cannot change any settings or operate the robotic mower using other docking stations. ( 10.15)

10. Menu

10.1 Operating instructions

• Remove the control panel if necessary.
  (⇒ 14.2)

The control pad (1) serves for navigation in the menus, settings are confirmed and menus opened using the OK button (2). Menus can be left again using the Back button (3).

The main menu comprises 4 submenus, displayed as buttons. The selected submenu has a black background and is opened using the OK button.

In the second menu level, the various submenus are shown as tabs.

The tabs can be selected by pressing the control pad to the left or right, submenus by pressing the control pad downwards or upwards.

Active tabs and menu entries have a black background.

The scroll bar at the right edge of the display indicates that further entries can be displayed by pressing the control pad downwards or upwards.

Submenus are opened by pressing the OK button.

Options are listed in the submenus. Active list entries have a black background. Pressing the OK button opens a selection or a dialog window.

Selection window:

Settings can be changed by pressing the control pad. The current value is highlighted in black. The OK button confirms all the values.

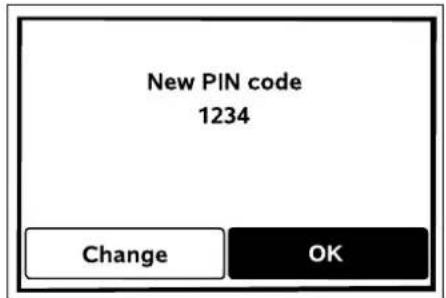

Dialog window:

If changes have to be saved or messages confirmed, a dialog window appears in the display. The active button has a black background.

In the case of selection options, the relevant button can be activated by pressing the control pad to the left or right.

The selected option is confirmed and the subordinate menu called up using the OK button.

10.2 Status screen

The status screen appears:

• when standby mode of the robotic mower is ended by pressing a button,
• when the Back button is pressed in the main menu,
• during running operation.

Start time MO 10:00

Charge state 95%

iMow ready for op. Automatic switched on

There are two configurable fields in the top display area. Various information regarding the robotic mower and the mowing operations can be displayed here. ( 10.12)

No running activity:

Messages and the automatic mowing status are displayed in the bottom area of the screen. ( 10.4)

iMow ready for operation:

If recommendations are active, these appear alternately with the text "iMow ready for op."

Active faults / errors:

The relevant message is displayed together with the message code. If several messages are active, they appear alternately.

During running activities:

Information on the currently active process is indicated in the bottom area of the status screen by means of a symbol and a corresponding text.

Start of mowing operation:

The text "Attention - iMow starting", flashing of the display illumination and a signal tone indicate the impending start of the mowing motor. The mowing blade is then automatically activated a few seconds after the robotic mower has been set into motion.

Running mowing operation:

The text "iMow mowing lawn" is displayed.

Edge mowing:

While the robotic mower mows the edges of the mowing area, the text "Mowing edge" is displayed.

Travel to the docking station:

When the robotic mower returns to the docking station, the relevant reason is indicated in the display (e.g. Battery discharged, Mowing completed).

Battery charging:

The text "Charging battery" appears during charging of the battery.

10.3 Main menu

The main menu is displayed,

• when the status screen ( 10.2) is left by pressing the OK button,

• when the Back button is pressed in the second menu level.

Four submenus can be selected in the main menu.

1. Commands (⇒ 10.4)

Lock iMow

Switch automatic on and off

Drive to docking station

Hand control

Start mowing

Start time-delayed mowing

Skip next active time

Edge mowing

1. Mowing plan ( 10.5)

Daily plan

Weekly plan

1. Information (⇒ 10.8)

Messages

Events

iMow status

Lawn status

1. Settings ( 10.9)

iMow

Installation

Safety

Service

Dealer area

10.4 Commands

Select the required command using the control pad and execute with OK.

1.Lock iMow
2. Switch on automatic mowing/Switch off automatic mowing
3. Drive to docking station
4. Hand control
5. Start mowing
6. Start time-delayed mowing
7. Skip next active time
8. Edge mowing

1. Lock iMow:

Activate disabling device.

Press the illustrated button combination to unlock. (⇒ 5.2)

1. Switch on automatic mowing/

Switch off automatic mowing: When automatic mowing is

switched on, the text "Automatic switched on" appears in the status screen and the automatic symbol is displayed next to the battery symbol in the menus. The robotic mower mows the mowing area fully automatically.

When automatic mowing is switched off, the text "Automatic switched off" appears in the status screen and the active times are shown as inactive (greyed out) in the mowing plan. The mowing area is not mown automatically. Mowing operations can be initiated via the commands "Start mowing" or "Start time-delayed mowing".

1. Drive to docking station:

The robotic mower travels back to the docking station and charges the battery. If automatic mowing is switched on, the robotic mower will mow the mowing area again at the next possible active time.

1. Hand control:

Manual lawn mowing. For safety reasons, the mowing blade can only be activated if the OK button is pressed and held a Mow button is then pressed. Step performed using the control pad

1. Start mowing:

The robotic mower starts the mowing operation automatically following activation. The end of the mowing operation must be specified. The standard setting for the duration of the mowing operation can be modified under "Mowing time" in the machine settings. ( 10.10)

In the main menu ( 10.3) the command "Start mowing" can also be activated by pressing the Mow button.

1. Start time-delayed mowing:

The robotic mower starts the mowing operation automatically, but with a time delay, following activation. The start and end times of the mowing operation must be specified. The standard settings for the duration of

the mowing operation and for the delay can be changed in the machine settings under "Mowing time" and "Delay". ( 10.10)

1. Skip next active time:

This command can be used if the robotic mower is not to be operated during the next active time (e.g. in the case of a garden party). Following confirmation, no mowing will take place during the next active time. Active times which have been cancelled in this manner are shown greyed out in the mowing plan. They can be released for mowing again in the "Daily plan" menu. ( 10.6) If the command is performed several times in succession, the next active time is always skipped. If no active times remain for the current week, the message "No mowing will take place next week" appears.

1. Edge mowing:

Following activation, the robotic mower mows the edge of the mowing area. After completing one circuit, it travels back to the docking station and charges the battery.

10.5 Mowing plan

Mowing plan

17:30

MO

TU WE

FR SA

SU

一

一

Daily plan

Weekly plan

The stored mowing plan can be called up via the "Mowing plan" menu in the main menu. The rectangular blocks beneath the respective days represent the saved active times. Active times marked in black are mown, grey blocks represent active times without mowing operations - e.g. in the case of a disabled active time or following the command "Skip active time". ( 10.4)

When automatic mowing is switched off, the entire mowing plan is disabled and all active times are shown in grey.

The Daily plan ( 10.6) or Weekly plan ( 10.8) submenus can be selected by pressing the control pad upwards or downwards, and opened with the OK button.

If the active times for an individual day need to be edited, the day must be activated via the control pad (press to the left or right) and the Daily plan submenu must be opened.

10.6 Daily plan

During ticked active times, mowing is permitted, these times are marked in black in the mowing plan.

During unticked active times, mowing is not permitted, these times are marked in grey in the mowing plan.

Follow the instructions in the "Active times" section. ( 13.3) In particular, third parties must keep out of the danger area during the active times.

The stored active times can be individually selected and edited.

The New active time menu item can be selected, provided less than 3 active times per day have been saved. An additional active time must not overlap with other active times.

If the robotic mower is not to mow on the selected day, the menu item Delete daily plan should be selected.

Editing active times:

If the selected active time is no longer required, the menu item Delete active time should be selected.

If the time windows for the necessary mowing and charging operations are not sufficient, active times must be extended or added, or the mowing duration must be reduced. A corresponding display message appears.

10.7 Weekly plan

The weekly mowing time can be set under Adapt mowing duration.

The set value is adapted to the size of the mowing area. ( 13.4)

Follow the instructions in the "Adapting the programming" section. ( 14.3)

The command New mowing plan deletes all the stored active times.

The step "Program the robotic mower" of the installation assistant is called up. ( 9.10)

If completion of the reprogramming occurs during an active time, the robotic mower begins an automatic mowing operation after the individual daily plans have been confirmed.

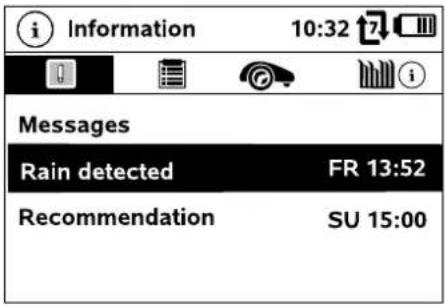

10.8 Information

1. Messages:

All active errors, faults and recommendations are listed together with the times of occurrence in the Messages menu. During error-free operation, the text "No messages" appears. The message details are displayed by pressing the OK button. ( 23.)

2. Events:

The last activities of the robotic mower are listed in the Events menu.

Details of the events (additional text, time and code) can be displayed by pressing the OK button.

If certain activities occur unusually frequently, your VKING specialist dealer has further details. Errors during normal operation are documented in the messages.

3. iMow status:

Details of the robotic mower can be found in the iMow status menu.

• Charge state:

Battery charge in percent

-Rem. time:

The remaining mowing duration during the current week in hours and minutes

Time and date

• Start time:

Start of the next planned mowing operation

Total number of completed mowing operations

• Mowing hours:

Duration of all completed mowing operations in hours

-Distance:

Total distance covered in metres

• S er . N o . :

Serial number of the robotic mower.

This is also to be found on the identification plate in the compartment beneath the control panel.

-Ba t t e r y:

Serial number of the battery

• S o f t w a r e :

Installed machine software

4. Lawn status:

Details regarding the lawn are listed in the Lawn status menu.

• Mowing area in square metres:

This value is entered during initial installation or new installation ( 9.4)

• Round time:

Duration of one circuit around the mowing area in minutes and seconds

-Starting points 1-4:

Distance of the relevant starting point from the docking station in metres, measured in a clockwise direction ( 10.13)

-Circumference:

Circumference of the mowing area in metres

• Edge mowing:

Frequency of edge mowing per week ( 10.13)

10.9 Settings

1. iMow:

Adapt machine settings ( 10.10)

1. Installation:

Adapt and test the installation ( 10.13)

3. Safety:

Adapt the safety settings ( 10.15)

4. Service:

Maintenance and service ( 10.16)

5. Dealer area:

This menu is protected by the dealer code. Your VKING

specialist dealer performs a variety of maintenance and service operations with the aid of this menu.

10.10 iMow - machine settings

1. Rain sensor:

The rain sensor can be set so that mowing is interrupted or does not start when it is raining.

• Setting the rain sensor ( 10.11)

2. Mowing time:

Set the default for the duration of a mowing operation after activation of the "Start mowing" command. ( 10.4)

3. Delay:

Setting the default for the delay following activation of the "Start time-delayed mowing" command. ( 10.4)

4. Status screen:

Select the information that is to appear in the status screen. ( 10.2)

• Setting the status screen ( 10.12)

5. Time:

Set the current time. The set time must correspond to the actual time in order to prevent inadvertent mowing by the robotic mower.

6. Date:

Set the current date. The set date must correspond to the actual calendar date in order to prevent inadvertent mowing by the robotic mower.

7. Date format:

Set the required date format.

8. Track offset:

The robotic mower travels along the perimeter wire at a 6 cm inward offset to the wire as standard. This offset ensures optimum docking. The iRuler is also designed with a track offset of 6 cm.

VIKING recommends that the default setting of 6 cm not be changed.

Only if necessary, open the selection window with OK and set the required value (3 cm to 9 cm).

9. Language:

Set the required display language. The language selected during initial installation is set as the default.

10. Contrast:

The display contrast can be adjusted as required.

10.11 Setting the rain sensor

In order to set the 5-stage sensor, press the control pad to <""|"> the left or right. The current value is displayed in the "Settings" menu by means of a line diagram. The sensitivity of the rain sensor can be adapted to the local conditions and requirements. In particular, it is possible to adjust how long the robotic mower waits for the mowing area to dry following rain.

In the case of medium sensitivity, the robotic mower is ready for operation under normal ambient conditions.

Move the bar further to the left for mowing at a higher humidity. If the bar is moved all the way to the left, the robotic mower will mow even in wet external conditions and will not interrupt the mowing operation if rain drops land on the sensor.

Move the bar further to the right for mowing at a lower humidity. If the bar is moved all the way to the right, the robotic mower will only mow if the rain sensor is completely

10.12 Setting the status screen

In order to configure the status screen, select the left or right screen with the control pad and confirm with OK.

Charge state:

Display of the battery symbol with the charge state in percent

Rem. time:

The remaining mowing duration during the current week in hours and minutes

Time and Date:

Current date and current time

Start time:

Start of the next planned mowing operation

Mowing ops:

Total number of mowing operations performed

Mowing hours:

Total duration of all mowing operations performed

Distance:

Total distance covered

10.13 Installation

1. New installation:

During a new installation, the installation assistant is started again, the existing mowing plan is deleted. ( 9.4)

2. Starting points:

The robotic mower always starts the mowing operations at the docking station or at one of the defined starting points.

If certain partial areas are insufficiently mowed, these can be travelled to in a targeted manner.

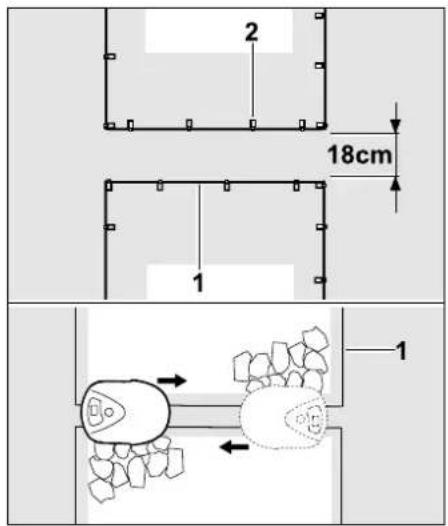

In areas that the robotic mower can only reach by means of a corridor, at least one starting point must be defined.

• Setting starting points (⇒ 10.14)

3. Edge testing:

After activation, the robotic mower starts a test run for checking correct wire routing.

The "Check installation" step of the installation assistant is started. ( 9.9)

To check correct wire routing around no-go areas, position the robotic mower in the mowing area with the front facing the no-go area and start the test run.

4. Edge mowing:

The Edge mowing menu is used to determine how often the robotic mower is to mow the edges of the mowing area:

Never - default setting.

Once - the edges are mown once per week.

Twice - the edges are mown twice per week.

10.14 Setting starting points

To set, either

• teach in starting points
  or
• select the required starting point and define it manually.

Teaching in starting points:

All the existing starting points are deleted and the robotic mower travels one circuit around the mowing area along the perimeter wire.

During travel, up to 4 starting points can be specified by pressing the OK button. The robotic mower then docks back into the docking station. If necessary, the teach-in procedure can be aborted using the STOP button. In the case of obstacles at the edge of the mowing area, travel is also interrupted.

After docking or after the interruption, the new starting points are saved following confirmation with OK. The stored points are assigned a starting frequency of 15% .

• Change the starting frequency as required after teach-in.
• If the teach-in procedure has been aborted prematurely, send the robotic mower back the to docking station via a command. ( 10.4)

Setting starting point 1 to 4 manually:

Determine the distance of the starting point from the docking station and define the starting frequency.

The distance corresponds to that covered from the docking station to the starting point in meters, measured in a clockwise direction.

The starting frequency can be between 0% and 25% and defines how often a mowing operation is to begin from this starting point.

The docking station is defined as Starting point 0;

the mowing operations are started from here as standard. The starting frequency represents the calculated residual value to 100% .

10.15 Safety

1. Disabling device
2. Level
3. Change PIN code
4. Alarm signal
5. Menu signal
6. Keylock
7. Link iMow and dock

1. Disabling device:

The disabling device is activated with OK; the robotic mower can no longer be operated.

The robotic mower must be disabled prior to any maintenance or cleaning work, prior to transportation and prior to inspection. ( 5.2)

To deactivate the disabling device, press the illustrated button combination (Mow button and OK button).

2. Level:

Four safety levels can be set; various locks and safety devices are activated, depending on the level.

None:

The robotic mower is unprotected. Low:

PIN code entry for linking the robotic mower and docking station, as well as for resetting the machine to the default

settings; time lock is active.

Medium:

Same as for "Low", however, settings can also only be changed following entry of the PIN code.

High:

Same as for "Medium", but an anti-theft alarm is enabled as well as the PIN code query.

VIKING recommends that the "Low", "Medium" or "High" safety levels be set.

• Select the required level and confirm with OK; enter the 4-digit PIN code if necessary.

Reset lock:

PIN code query prior to resetting the machine to the factory defaults.

Connection lock:

PIN code query prior to linking of the robotic mower and docking station.

Time lock:

PIN code query for changing a setting if no PIN code has been entered for more than one month.

Setting prot:

PIN code query when settings are changed.

Anti-th. alarm:

If the mower is lifted by the handle for longer than 10 seconds, the PIN query appears. If the PIN code is not entered within one minute, an alarm sounds and automatic operation is switched off.

3. Change PIN code:

The 4-digit PIN code can be changed if required.

• Then enter the new 4-digit PIN code and confirm with OK.

VIKING recommends making a note of the changed PIN code. If the PIN code is entered incorrectly 5 times, a 4-digit Master code is required, otherwise automatic operation is switched off. For creation of the master code, you must provide your VIKING specialist dealer with the 9-digit serial number and the 4-digit date, which are displayed in the selection window.

4. Alarm signal:

For switching on and off the acoustic signal that sounds when the robotic mower hits an obstacle.

5. Menu signal:

For switching on and off the acoustic click that sounds when a menu is opened and a selection is confirmed with OK.

6. Keylock:

When the keylock is switched on, the buttons on the control panel can only be operated if the Back button is pressed and held and the control pad is then pressed forwards.

The keylock is activated 2 minutes after the last button has been pressed.

7. Link iMow and dock:

Following initial operation, the robotic mower can only be operated in conjunction with the docking station supplied.

Following a replacement of the docking station or of electronic components in the robotic mower or for operation of the robotic mower on an additional mowing

area using a different docking station, the robotic mower and docking station must be linked.

• Install the docking station and connect the perimeter wire. ( 9.5) , ( 9.7)

Lift the robotic mower slightly by the carrying handle (1) and relieve the weight on the drive wheels. Push the machine, resting on its front wheels, into the docking station.

After pressing the OK button, enter the PIN code. The robotic mower will then search for the wire signal and save it automatically. This process takes several minutes. ( 9.8)

No PIN code is required in the safety level "None".

10.16 Service

1. Blade change:

Installation of a new mowing blade is confirmed with OK.

The "Change PIN code" menu item is only displayed in the safety levels "Low", "Medium" or "High".

• First enter the old PIN code and confirm with OK.

If the blade has been in use for more than 200 hours, the message "Replace mowing blade" appears. ( 15.4)

2. Find wire break:

If the red LED on the docking station flashes, there is a break in the perimeter wire. ( 12.1) The assistant to find the break is activated with OK.

• Finding wire break (⇒ 15.6)

3. Reset settings:

The robotic mower is reset to the factory defaults with OK, the installation assistant is restarted. ( 9.4)

• Enter the PIN code after pressing the OK button.

No PIN code is required in the safety level "None".

11. Perimeter wire

Before routing the perimeter wire, particularly prior to initial installation, read the entire section and plan the wire routing in detail.

Perform initial installation using the installation assistant. ( 9.)

Should you require support, your VKING specialist dealer will be pleased to assist you with preparation of the mowing area and installation of the perimeter wire.

Check the installation of the perimeter wire before it is finally secured in place. ( 9.9) Adjustments to the wire routing are generally necessary in the vicinity of corridors, confined areas or no-go areas.

Deviations can occur if

• the technical limits of the robotic mower are reached, for example with very long corridors or when routing the perimeter wire in the vicinity of metal objects or above metal under the lawn,

-if the mowing area is structurally altered for using the robotic mower.

11.1 Planning routing of the perimeter wire

Study the installation examples at the end of this instruction manual. ( 26.) Include no-go areas, corridors, secondary areas and reserve wire during routing of the perimeter wire, in order to prevent subsequent corrections.

• Determine the location of the docking station. ( 9.5)
• Either remove obstacles from the mowing area, or include no-go areas. ( 11.8)
• The perimeter wire must be routed in a continuous loop around the entire mowing area – maximum length 500 m.

• Corridors and secondary areas: For automatic mowing, join all parts of the mowing area by means of corridors. ( 11.10) If there is insufficient space to do so, secondary areas must be installed. ( 11.9)

• Observe the specified clearances when routing the perimeter wire ( 11.3) :

9 cm for obstacles that can be travelled on (e.g. paths)

18 cm for corridors

27 cm for high obstacles (e.g. walls, trees)

54 cm minimum wire clearance in confined areas

100 cm for water features and potential sudden drops (edges, steps)

- Corners:

Avoid routing at acute angles (less than 90^

- Reserve wire:

Reserve wire should be installed at several points to make it easier to subsequently change the routing of the perimeter wire. ( 11.11)

11.2 Making a sketch of the mowing area

During installation of the robotic mower and the docking station, it is recommendable to make a sketch of the mowing area. A page has been provided at the start of this Instruction Manual for this purpose.

The sketch should be modified in the event of subsequent changes.

Content of the sketch:

Contour of the mowing area including important obstacles, borders and any no-go areas which the robotic mower must not mow. ( 26.)

• Position of the docking station ( 9.5)

Position of perimeter wire

After a short while, the perimeter wire is overgrown and is no longer visible.
Make a note of the routing of the wire around obstacles in particular. (⇒ 9.6)

Position of the wire connectors

After a short while, the wire connectors used are no longer visible. Their position should be noted in order to replace them as required. (⇒ 11.12)

11.3 iRuler

Measuring distance:

To ensure the correct clearance from the perimeter wire to the edge of the lawn and to obstacles, the iRuler should be used for measuring the distances.

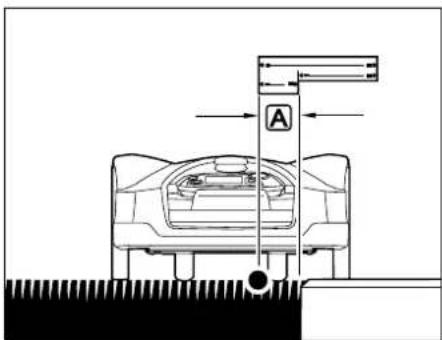

A-9cm

Distance between the edge of the mowing area and the perimeter wire.

The robotic mower may run with one rear wheel outside the mowing area, the grass is cut to the lawn edge.

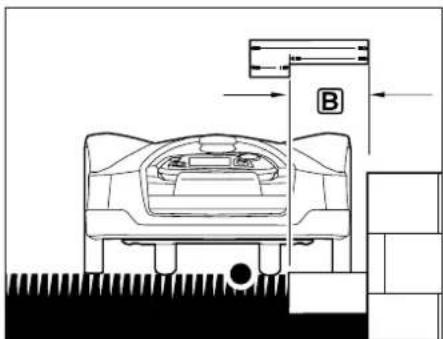

B-18cm

Wire clearance in corridors.

(⇒ 11.10)

Corridors serve to connect several mowing areas or for bridging confined areas. Minimum width of edging stones that can be travelled on.

Edging stones that can be travelled on must be at least 18 cm wide.

Lay the perimeter wire around outside corners at a greater distance from the edging stone ( 9.6)

Use wider edging stones if necessary.

C-27cm

Distance between an obstacle and the perimeter wire.

The robotic mower must run completely within the mowing area and must not touch the obstacle.

The double distance (54 cm, corresponding to 2 iRuler lengths or the machine width) is the minimum clearance between wires in confined areas. ( 11.4)

Measuring the height of obstacles:

The robotic mower can cross obstacles such as paths if the height of the stepped area is less than 3cm . The step in the iRuler corresponds precisely to this height.

Obstacle is lower than 3cm Route the perimeter wire at distance A (9 cm).

Obstacle is higher than 3 cm:
Route the perimeter wire at distance C (27 cm).

11.4 Confined areas

The robotic mower travels automatically in all confined areas, provided the minimum wire clearance is maintained. Narrower areas of the mowing area must be blocked off through appropriate routing of the perimeter wire.

If two mowing areas are linked via a narrow passage that can be travelled on, a corridor can be installed. ( 11.10)

The minimum wire clearance is 54 cm, which corresponds to 2 iRuler lengths or the machine width.

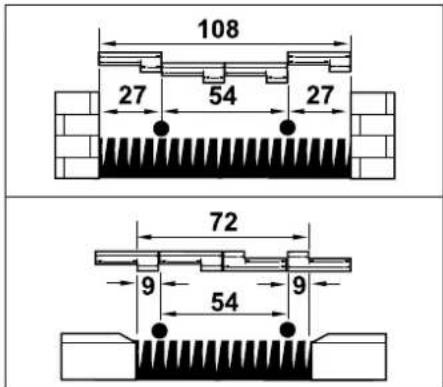

This results in the following space requirements in confined areas:

• between high obstacles with a height exceeding 3cm such as walls, 108 cm,

between obstacles that can be travelled on, with a height under 3cm such as paths, 72~cm

11.5 Routing the perimeter wire

Only use original fixing pins and original perimeter wire.

The routing direction (clockwise or anti-clockwise) is freely selectable according to requirements.

Never pull out fixing pins using the perimeter wire - always use a suitable tool (e.g universal pliers).

Make a sketch of the perimeter wire routing. ( 11.2)

The perimeter wire can also be buried in a cable channel with a maximum depth of 10cm

Install the docking station. ( 9.5)
- Route the perimeter wire around the mowing area and any obstacles beginning at the docking station ( 11.8) and fasten it to the ground using fixing pins. Check the clearances using the iRuler. ( 11.3) Follow the instructions in the "Initial installation" section. ( 9.6)
- Connect the perimeter wire. ( 11.6)

11.6 Connecting the perimeter wire

• Disconnect the mains plug and then remove the docking station cover.

• Insert the perimeter wire into the cable guides of the floor plate, guide it through the socket, attach the connector and connect to the docking station.

Follow the instructions in the "Initial installation" section. (9.7)

Install the docking station cover and then connect the mains plug.

Check the wire signal. ( 12.1)
- Check docking. ( 14.7) If necessary, correct the position of the perimeter wire in the area of the docking station.

11.7 Installing linking sections

The robotic mower ignores the perimeter wire signal if the wires are routed parallel and close together. Linking sections must be installed:

where secondary areas are to be installed. ( 11.9)
where no-go areas are necessary. ( 11.8)

VIKING recommends laying linking sections together with the relevant no-go areas or secondary areas during wire routing.

In the case of retrospective installation, the wire loop must be cut and linking sections must then be integrated using the wire connectors supplied. ( 11.12)

In linking sections, the perimeter wire (1) must be routed parallel, the wires must not cross and must be close to one another. Attach the linking section to the ground with a sufficient number of fixing pins (2).

11.8 Installing no-go areas

In order to prevent the robotic mower from hitting obstacles that it must not contact, which are lower than 10cm or are not sufficiently strong to withstand impacts, no-go areas must be installed.

VIKING recommends

• blocking off obstacles by means of no-go areas or removing them.
• checking no-go areas after initial installation or after changes to the wire installation using the "Test edge" command. (⇒ 10.13)

No-go areas must have a minimum diameter of 54 cm and the distance to the edge loop A must also exceed 54 cm.

54 cm corresponds to 2 iRuler lengths.

Route the perimeter wire (1) from the edge to the obstacle at the correct distance (use iRuler) around the obstacle (2) and attach it to the ground with a sufficient number of fixing pins (3). Then route the perimeter wire back to the edge again.

The perimeter wire must be routed parallel and without crossover in the linking sections. ( 11.7)

11.9 Secondary areas

Secondary areas are parts of the mowing area that cannot be mown fully automatically by the robotic mower because access is not possible. In this manner, several separate mowing areas can be surrounded with a single perimeter wire. The robotic mower must be brought manually from one mowing area to another. The mowing operation can be initiated via the commands "Start mowing" ( 10.4) or "Start time-delayed mowing" ( 10.4) .

The docking station (1) is installed in the mowing area A, which is mown fully automatically in accordance with the mowing plan. The secondary areas B and C are connected to the mowing area A via the linking sections (2). The perimeter wire must be routed in the same direction in all areas - do not cross perimeter wires in the linking areas.

11.10 Corridors

If several mowing areas have to be mown (e.g. mowing areas in front of and behind the house), these can be linked by installing a corridor. This allows all the mowing areas to be mown automatically.

In corridors, the lawn is only mown along the path of the perimeter wire. If necessary, activate automatic edge mowing or mow the corridor area manually on a regular basis. ( 10.4) ( 10.13)

Requirements:

Minimum width is 72 cm between solid obstacles in the corridor area and 36 cm between paths that can be travelled on.
- The corridor can be travelled on freely.
- At least 1 starting point must be defined in the area of the second mowing area. (⇒ 10.14)

The docking station (1) is installed in mowing area A. Mowing area B is linked to mowing area A by means of a corridor (2). The perimeter wire (3) can be continuously followed by the robotic mower. In order to mow mowing area B, starting points (4) must be defined. ( 10.14)

Individual mowing operations can then be started at the starting points, depending on the setting (starting frequency).

The clearance between wires in corridors must always be 18 cm.

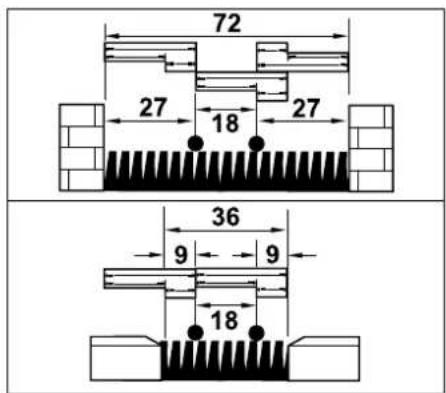

This results in the following space requirements:

• between high obstacles with a height exceeding 3 cm, such as walls, 72 cm
• between routes / obstacles that can be travelled on, lower than 3 cm, such as paths, 36 cm

In corridors, the perimeter wire (1) must be routed parallel, maintaining an 18 cm distance, and must be attached to the ground with a sufficient number of fixing pins (2).

A.B.C-examples of corridors.
Do not route the perimeter wire at acute angles (less than 90^

11.11 Installing reserve wire

Reserve wire installed at regular intervals makes it easier to make any necessary corrections such as subsequently changing the position of the docking station or the routing of the perimeter wire. In particular, reserve wire should be installed near difficult passages.

Route perimeter wire (1) as illustrated between 2 fixing pins spaced approx. 1m apart. Attach the reserve wire to the ground in the centre using a further fixing pin.

11.12 Using wire connectors

In order to extend the perimeter wire or to connect loose wire ends, only the gel-filled wire connectors supplied may be used. They prevent premature wear (e.g. corrosion of the wire ends) and ensure optimal connections.

Make a note of the positions of the wire connectors on the sketch of the mowing area. ( 11.2)

Insert loose wire ends (1) to the stop in the wire connector (H). Press the wire connector together using suitable pliers - ensure correct engagement.

12. Docking station

12.1 Docking station controls

A red LED (1) and a green LED (2) provide information on the status of the docking station and the wire signal. With the Home button (3), the robotic mower can be brought back to the docking station during a mowing operation. The docking station and consequently the wire signal can be switched on and off using the ON/OFF button (4).

Red LED illuminates

Red LED flashes

Green LED illuminates

GreenLEDflashes

LED is switched off

Activity Red Green

Standby	○	○
Wire signal OK	●	○
Charging	○	○
Homecall	●
Wire break		○
Wire break search		○
Fault

Home button:

During a mowing operation, pressing the Home button activates Homecall.

The robotic mower ends the running mowing operation, searches for the perimeter wire and returns to the docking station to recharge the battery. No further mowing operation takes place in the current active time.

Homecall remains active until the robotic mower is docked or until the Home button is pressed again.

ON/OFF button:

Pressing the ON/OFF button is not necessary for automatic mowing of the mowing area. The wire signal is switched on and off automatically.

If the robotic mower is not docked, pressing the ON/OFF button activates the docking station. The wire signal remains active for 48 hours if the robotic mower has not previously docked.

During running operation, the wire signal is switched off by pressing and holding the button for 3 seconds and the robotic

mower remains in the mowing area. A corresponding message appears in the display of the robotic mower.

13. Notes on mowing

13.1 General

The robotic mower is designed for the automatic mowing of lawns. The grass is kept short through continuous mowing. The result is a perfect, thick lawn.

Lawnns that have not previously been mown using a conventional lawn mower will only be mown neatly following several mowing operations. Especially in the case of high grass, a good cutting pattern is only achieved after a few mowing operations.

In hot, dry conditions, the lawn should not be kept too short as it will otherwise be burnt by the sun and become unsightly.

The cutting pattern will be better with a sharp blade than with a blunt one; the blade should therefore be replaced regularly.

13.2 Mulching

The robotic mower is a mulching mower. During mulching, the grass clippings are further shredded in the mowing deck housing after cutting. They then fall back into the turf, where they remain and decompose.

The finely shredded clippings return organic nutrients to the lawn, serving as a natural fertiliser. Fertiliser requirements are thereby reduced significantly.

13.3 Active times

During the active times, the robotic mower is allowed to leave the docking station and mow the lawn. During these times, mowing operations, charging operations and rest periods take place. The robotic mower automatically distributes the mowing and charging operations between the available time windows.

During installation, active times are automatically distributed over the entire week. Time reserves are taken into account - this ensures perfect lawn care, even if individual mowing operations cannot take place, (e.g. due to rain).

During the active times, third parties must keep out of the danger area. The active times should be adapted accordingly. Moreover, the applicable local regulations on the use of robotic mowers as well as the information in the "For your safety" section ( 6.) must be observed and the active times changed accordingly in the "Mowing plan" menu as required. ( 10.6) In particular, you should check the times of the day and night at which it is permissible to use the machine with the responsible authorities.

13.4 Mowing duration

The mowing duration specifies how many hours per week the lawn is to be mown. It can be extended or reduced in the weekly settings ( 10.7) .

The mowing duration corresponds to the time during which the robotic mower mows the lawn. Times during which the battery is charged are not part of the mowing duration.

During initial installation, the robotic mower automatically calculates the mowing duration based on the specified size of the mowing area. This reference value is based on a normal lawn under dry conditions.

Mowing performance:

MI 632: 60 minutes for 100m^2 MI 632 P: 45 minutes for 100m^2

13.5 Manual mowing

Do not activate the mowing blade or set the lowest cutting height in high grass.

The robotic mower load must never cause the mowing motor speed to drop significantly. If the speed drops or the robotic mower slows down, select a higher cutting height setting.

14. Operating the machine

14.1 Preparation

An installation assistant is available for initial installation. ( 9)

Install the docking station ( 9.5)
- Route the perimeter wire ( 9.6) and connect ( 9.7)
- Remove foreign bodies (e.g. toys, tools) from the mowing area.
Charge the battery ( 14.8)
- Set the time and date (⇒ 10.10)

• Check the mowing plan and adapt if necessary - in particular it must be ensured that third parties keep away from the danger area during active times. (⇒ 10.5)
  Mow very high grass until it is short using a conventional lawn mower prior to use of the robotic mower (e.g following a lengthy break).

14.2 Removing and installing the control panel

The control panel can be removed from the robotic mower as required in order to perform manual mowing or to e.g. change the programming.

Automatic operation of the robotic mower is only possible when the control panel is inserted.

Removing the control panel:

• In running operation, press the STOP button before removing the control panel.

Lift the rear of the control panel (1) with a slight tug and remove it from the robotic mower. It remains connected to the machine via a spiral cable.

Inserting the control panel:

Stow the spiral cable (1) in the housing compartment. Tilt the control panel backwards slightly, insert the retainers (2) in the recesses in the housing (3), then press down the control panel at the front and allow to engage.

14.3 Adapting the programming

The current programming can be seen in the Mowing plan. ( 10.5)

The mowing plan is calculated based on the size of the mowing area during installation or during creation of a new mowing plan.

The active times and the mowing duration can be changed individually, the required mowing operations themselves are automatically distributed over the possible active times. If required, several mowing or charging operations can run during an active time. If required, the edge of the mowing area is mown automatically at regular intervals. ( 10.13)

Up to three different active times per day are possible. ( 10.5)

If the robotic mower is to go to particular areas in the mowing area, specific starting points must be defined. (10.14)

Under certain circumstances (e.g. warm weather or generous time window), not all the active times may be necessary for optimal lawn care.

Changing the active times: ( 10.6)

Additional active times for further mowing operations.
Adapting the time window in order to e.g. prevent mowing during the morning or during the night.
- Omitting individual active times because the mowing area is e.g. being used for a party.

Extending the mowing duration: ( 10.7)

• There are areas which are not mown sufficiently, e.g because the mowing area has lots of corners.
• Intensive grass growth during the growing period.
• Particularly dense lawn.

Reduction of the mowing duration: ( 10.7)
- Reduced grass growth owing to heat, cold or dryness.

Creation of a new mowing plan: ( 10.7)
- The size of the mowing area has been changed.

New installation: ( 10.13)

• New location of the docking station.
• Initial operation on a new mowing area.

14.4 Automatic mowing

• Switch on automatic mowing:
  When automatic mowing is switched on, the Automatic symbol appears next to the battery symbol in the display. ( 10.4)
  Starting mowing operation:

The mowing operations are automatically distributed between the available active times. ( 13.3)

Ending mowing operation:
When the battery is discharged, the robotic mower automatically travels back to the docking station. ( 14.7) A running mowing operation can be ended manually at any time using the STOP button. ( 5.1)
A running mowing operation can also be ended immediately using the Home button on the docking station. ( 12.1)

Mowing areas that the robotic mower reaches via a corridor are only mown if starting points have been defined in the relevant area.

14.5 Mowing independently of active times

Mowing areas with docking station:

• In order to mow a part of the mowing area that can only be reached via a corridor, carry or steer the robotic mower there.
• Immediate mowing: Call up the Start mowing command ( 10.4) or press the Mow button. The mowing operation starts immediately and continues until the selected time.
• Time-delayed mowing: Call up the Start time-delayed mowing command. ( 10.4) The mowing operation starts at the selected start time and continues until the selected end time.
• Ending mowing manually:
  A running mowing operation can be ended at any time using the STOP button. ( 5.1) A running mowing operation can also be ended immediately using the Home button on the docking station. ( 12.1)

If necessary, the robotic mower charges the battery in the interim and then continues the mowing operation until the selected end time.

Secondary areas:

• Carry or steer the robotic mower to the secondary area.

• Immediate mowing: Call up the Start mowing command ( 10.4) or press the Mow button. The mowing operation starts immediately and continues until the selected time.

• Time-delayed mowing: Call up the Start time-delayed mowing command. ( 10.4) The mowing operation starts at the selected start time and continues until the selected end time.
• Ending mowing:
  When the selected end time is reached, the robotic mower stops in the secondary area with an appropriate message. Return the machine to the docking station to recharge the battery and confirm the displayed message. ( 23.) A running mowing operation can be ended manually at any time using the STOP button. ( 5.1)

If the battery runs flat before the selected end time, the mowing operation is shortened accordingly.

14.6 Manual mowing

The impact sensor and edge limitation are disabled during manual mowing.

Charge the battery if necessary ( 14.8)
- Remove the control panel ( 14.2)
Activate the Hand control command ( 10.4)

• Move and steer the robotic mower using the control pad. Two forward speeds are available:
• Slow – press button lightly
• Fast – press button firmly

Always ensure sufficient distance between the mowing deck and your feet before activating the mowing blade - always walk behind the robotic mower. ( 4.2)

To activate the mowing blade, press and hold the OK button with your right thumb, then press the Mow button with your left thumb. The mowing blade rotates for as long as the Mow button is pressed.

• During manual mowing, keep the Mow button pressed down with your left hand and operate the control pad with your right hand.
  To deactivate the mowing blade, release the Mow button.
• Charge the battery after manual mowing. (⇒ 14.8)

14.7 Docking the robotic mower

Docking during automatic operation:

The robotic mower automatically travels to the docking station when the active time ends or when the battery is discharged.

Forcing docking:

If necessary, insert the control panel ( 14.2)
If necessary, switch on the docking station ( 12.1)

• Activate the command Drive to docking station. ( 10.4) During a mowing operation, the Home button on the docking station can be pressed as an alternative.
  No LED must illuminate on the docking station after docking. ( 12.1)

After docking, no further mowing operation takes place in the current active time.

Manual docking:

• Steer the robotic mower to the docking station using the control panel - remove the control panel for this purpose ( 14.2) and activate the Hand control ( 10.4) command.

or
- Push the robotic mower into the docking station by hand.

Lift the robotic mower slightly by the carrying handle (1) and unload the drive wheels. Push the machine, resting on its front wheels, into the docking station.

• Insert the control panel ( 14.2)

No LED must illuminate on the docking station after docking. ( 12.1)

14.8 Charging the battery

Only charge the battery via the docking station.

Never remove the battery and charge it using an external charger.

Automatic charging:

During mowing, charging occurs automatically when the robotic mower docks into the docking station at the end of the mowing operation.

No LED must illuminate on the docking station after docking. ( 12.1)

Starting charging manually:

• Following use in secondary areas, bring the robotic mower to the mowing area and dock it. (⇒ 14.7)
• Dock the robotic mower following interruption of a mowing operation. ( 14.7)
• If necessary, end standby mode of the robotic mower by pressing a button. Charging starts automatically.

Charging:

During charging, the text "Charging battery" is displayed in the status screen.

A plug symbol appears instead of the battery symbol in the upper right corner of the display in all the other menus.

The charging time varies and is automatically adapted to the subsequent period of use.

In the event of charging problems, a corresponding message appears in the display. ( 10.8)

The battery is only charged when the voltage falls below a certain value.

Charge state:

The momentary charge state can be seen in the status screen when the relevant display is selected. ( 10.12)

In all other menus, the battery symbol in the upper right corner of the display serves to indicate the charge state.

No bars - battery discharged

1 to 5 bars - battery partially discharged

6 bars - battery fully charged

15. Maintenance

Risk of injury!

Carefully read the section "For your safety" ( 6.) , particularly the subsection "Maintenance and repairs" ( 6.9) ,and follow all safety instructions exactly before performing any maintenance or cleaning operations on the machine.

Activate the disabling device prior to any maintenance or cleaning work. ( 5.2)

Disconnect the mains plug before performing any maintenance operations on the docking station.

Always wear gloves when carrying out any maintenance work, particularly when working on the mowing blade.

15.1 Maintenance schedule

The maintenance intervals are based on the operating hours among other factors. The relevant "Mowing hours" counter can be called up in the "Information" menu. ( 10.8)

The specified maintenance intervals must be strictly observed.

Maintenance operations on days with active times:

• Visually inspect the general condition of the machine and the docking station.

• Check the display - check current time and the start of the next mowing operation.

• Check the mowing area and remove foreign bodies, etc. as required.
• Check that the battery is being charged.
  (⇒ 14.8)

Weekly maintenance operations:

Clean the machine. ( 15.2)
- Visually inspect the mowing blade, blade fastening and mowing deck for damage (notches, cracks, fractures, etc.) and wear. ( 15.3)

Every 200 hours:

• Replace the mowing blade. A corresponding reminder appears in the display. ( 15.4)

Annual maintenance operations:

• VKING recommends an annual inspection by a VKING specialist dealer during the winter months. Here, maintenance of the battery, electronics and software in particular is performed.

In order for your specialist dealer to perform all the maintenance operations correctly, set the safety level to "None" or give your specialist dealer the appropriate PIN code.

15.2 Cleaning the machine

Care of the machine will protect it against damage and extend its service life.

Cleaning and maintenance position:

Place the machine on a firm, level and flat surface for cleaning the upper side the machine (hood, remote control). To clean the underside of the machine (mowing blade, mowing deck), tilt the robotic mower onto its left side as illustrated and lean it against a wall.

• Clean off dirt with a brush or a cloth. In particular, also clean the mowing blade and the docking station.
• First, remove accumulated clipping deposits in the housing and in the mowing deck using a stick.
  If necessary, use a special cleaner (e.g. STIHL special cleaner).

15.3 Checking the mowing blade wear limits

Risk of injury!

A worn mowing blade may break off and cause serious injuries. The instructions for blade maintenance must therefore always be observed. Mowing blades are subject to differing degrees of wear depending on the location and duration of use. If you use the machine on sandy ground or use it frequently under dry conditions, the mowing blade will be subjected to greater loads and will wear more quickly than normal.

The mowing blade must be replaced at least every 200 operating hours, resharpening must be carried out by a VKING specialist dealer. ( 15.5)

• Activate the disabling device. ( 5.2)
• Tilt the robotic mower onto its side and lean it securely against a stable wall. Carefully clean the mowing deck and mowing blade. (⇒ 15.2)

Check the blade width A and blade thickness B using a slide calliper.

If the blade width is less than 25mm or the blade thickness is less than 1.3mm at any point, the mowing blade must be replaced.

15.4 Removing and installing the mowing blade

The mowing blade is designed for a service life of 200 hours. After this period, a corresponding message appears in the display.

Activate the disabling device ( 5.2) and wear gloves.

Tilt the robotic mower onto its side and lean it securely against a stable wall. Carefully clean the mowing deck and mowing blade. ( 15.2)

Removing the blade:

Push in both tabs (1) on the blade holder with one hand and hold. Remove the fastening nut (2) with your other hand. Remove the mowing blade together with the fastening nut.

Installing the mowing blade:

Risk of injury!

Check the blade for damage before installing. The blade must be replaced if notches or cracks are identified or if its width is less than 25mm or its thickness is less than 1.3mm at any point. ( 15.3)

The blade holder and the fastening nut must also be replaced if damaged (e.g. broken, worn). The fastening nut in particular must engage cleanly in the blade holder.

• Clean the blade, blade holder and fastening nut prior to installation.

Fit the mowing blade (1) onto the blade holder (2) as illustrated. Ensure correct position of the retainers (3) in the mowing blade.

Screw on the fastening nut (1) as far as possible. Several clicks are audible during tightening. Ensure secure seating of the mowing blade by shaking carefully.

Following installation of a new mowing blade, confirm the blade replacement in the "Service" menu. ( 10.16)

15.5 Sharpening the mowing blade

VIKING recommends replacing a blunt blade with a new one. Resharpening a blunt mowing blade should only be carried out by a VKING specialist dealer as he has the necessary expertise and special tools.

Correct operation of the machine can only be ensured with a very precisely balanced mowing blade.

An incorrectly sharpened blade (e.g. imbalance, incorrect sharpening angle) increases noise emissions and can result in damage to the machine.

15.6 Finding wire break

In the event of a wire break, the red LED on the docking station flashes. ( 12.1) A corresponding message appears in the display of the robotic mower.

The wire break search can be performed either with the control panel removed or inserted. The control panel should be inserted for the fine search.

If a wire break cannot be found as described, contact your VKING specialist dealer.

• Press and hold the Home button on the docking station while simultaneously pressing the

ON/OFF button twice. The green LED illuminates and the red LED flashes. ( 12.1)

• Remove the control panel if necessary. (14.2)

In the "Service" menu, select the "Find wire break" entry and confirm OK. ( 10.16)

Searching with control panel removed:

Starting at the docking station, follow the edge of the mowing area clockwise with the robotic mower (1). Steer the machine using the control pad for this purpose and ensure that the perimeter wire (2) runs under the wire sensor. The wire sensors are installed in a protected position on the left and right at the front of the robotic mower.

During the wire break search, the signal strength is indicated in the display; the wire sensors are in the ideal position above the perimeter wire when this value is at its highest.

The Wire signal OK symbol appears in the display when the wire sensors are correctly receiving the wire signal.

In the area of the wire break, the signal strength drops and the Check wire signal symbol appears in the display.

• Bridge the break with the aid of a wire connector ( 11.12) . If necessary, reroute the perimeter wire in the area of the break.
• Press the ON/OFF button on the docking station. Once the wire break has been correctly rectified, the red LED illuminates. ( 12.1)

Fine search with control panel inserted:

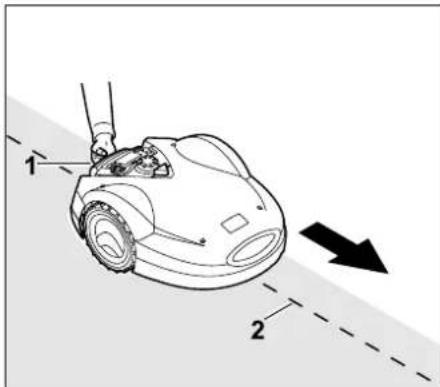

Lift the robotic mower slightly by the carrying handle (1) and unload the drive wheels. Push the machine, resting on its front wheels and follow the perimeter wire (2).

The further procedure corresponds to the search with the control panel removed.

15.7 Power supply unit plug

The power supply unit is equipped with a removable plug.

This plug can be removed if the power

supply unit is installed inside a building and therefore the power cable must be routed through a hole in the wall.

Risk of injury!

Disconnect the mains plug and unplug the power supply unit from the docking station before performing any work on the power supply unit.

Read the instructions in the section "Warning - dangers caused by electrical current". (⇒ 6.3)

Install the blue cable (BL) and the brown cable (BR) in the plug as illustrated. Tighten screws (1).

15.8 Storage and winter break

Note the following points when storing the robotic mower for long periods (e.g. winter break):

Charge the battery ( 14.8)
- Switch off automatic mowing ( 10.4)
Activate the highest safety level (anti-theft alarm) ( 10.15)
- Activate the disabling device (⇒ 5.2)

• Disconnect the power supply unit plug from the mains
• Remove the docking station cover ( 9.5)

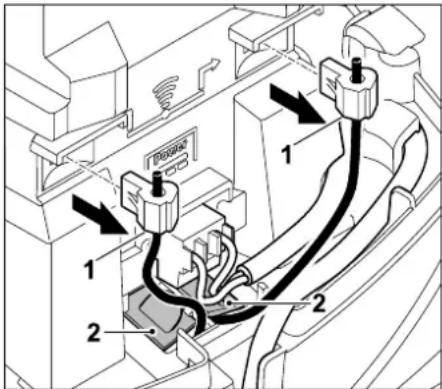

Disconnect the perimeter wire (1). Open the cover of the cable duct (2) and guide the perimeter wire together with the press-fit connectors out of the docking station socket.

Do not remove the press-fit connectors from the perimeter wire; they are intended for one-time use. Additional press-fit connectors are available from a VKING specialist dealer. ( 16)

Do not remove the perimeter wire from the mowing area.

• Disconnect the power cable from the docking station.
  Install the docking station cover. ( 9.5)
• Remove the docking station.

• Protect the terminals (connectors) of the perimeter wire from environmental influences (e.g. wrap with suitable insulating tape).

• Carefully clean all external parts of the robotic mower and the docking station.

• Store the robotic mower together with the docking station and the power supply unit in the normal position and in a dry and locked place that is generally free of dust. Dock the robotic mower in the docking station. Make sure that the machine is kept out of the reach of children.
  Always store the robotic mower in good operational condition.
• Keep all screws tightly fastened, replace danger signs and warnings on the machine that have become illegible, check the entire machine for wear and damage. Replace all worn or damaged parts.
• Any machine faults must be completely remedied prior to storage.

Never place or store objects on the robotic mower or on the docking station.

Resuming operation of the robotic mower following prolonged immobilisation:

Prepare the mowing area: Remove foreign objects and cut high grass short using a conventional lawn mower.
- Install the docking station ( 9.5) and connect the perimeter wire. ( 9.7)
Charge the battery ( 14.8)
- Check the time and date and set if necessary (⇒ 10.10)
- Check the mowing plan and change as necessary. ( 10.5)
- Switch on automatic mowing ( 10.4)

16. Standard spare parts

Mowing blade: 6309 702 0100

Battery AAI 130 (MI 632): 63094006510

Battery AAI 200 (MI 632 P): 6309 400 6500

Fixing pins AFN 051: 6309 007 1000

Perimeter wire ARB 150: 0000 400 8610

Wire connector ADV 010: 6909 007 1090

Press-fit connector AKS 010: 6909 007 1095

17. Accessories

Additional accessories are available for the machine. Further information is available from your VKING specialist dealer, on the internet (www.viking-garden.com) or in the VKING catalogue.

For safety reasons, only accessories approved by VKING may be used with the machine.

18. Minimising wear and preventing damage

Important information on maintenance and care of the product group

Robotic mower, battery powered

VIKING assumes no liability for material or personal damage caused by the non-observance of information contained in the operating instructions, in particular with regard to safety, operation and maintenance, or which arise through the use of unauthorised attachment or spare parts.

Please always observe the following important information for the prevention of damage or excessive wear to your VIKING machine:

1. Wearing parts

Some parts of the VIKING machine are subject to normal wear even when used properly and must be replaced in due time depending on type and duration of use.

These include:

• Mowing blade

-Ba t t e r y

2. Compliance with the information in this instruction manual

The VKING machine must be used, maintained and stored with the care described in this instruction manual. Any damage caused by non-compliance with the safety, operating and maintenance instructions is the sole responsibility of the user.

This applies in particular to:

• incorrect handling of the battery (charging, storage),

• incorrect electrical connection (voltage),

• product modifications not approved by VKING,
• use of tools or accessories which are not approved or suitable for the machine, or are of inferior quality,
  -improper use of the product,
  -use of the product for sporting or competitive events,
  resultant damage due to continued use of the product with defective components.

3. Maintenance operations

All operations listed in the section "Maintenance" must be performed regularly.

If these maintenance operations cannot be carried out by the user, a specialist dealer must be commissioned to perform them.

VIKING recommends that you have maintenance operations and repairs performed exclusively by a VKING specialist dealer.

VIKING specialist dealers regularly attend training courses and are provided with technical information.

If these operations are neglected, faults may arise which are the responsibility of the user.

These include:

damage to the machine as a result of inadequate or incorrect cleaning.
corrosive and other resultant damage caused by incorrect storage,
damage to the machine through the use of inferior-quality spare parts,

• damage due to untimely or inadequate maintenance or damage due to maintenance or repair work not performed in the workshops of specialist dealers.

19. Environmental protection

The machine, its packaging and accessories are all produced from recyclable materials and must be disposed of accordingly.

By disposing of materials separately, and in an environmentally friendly manner, valuable resources can be re-used. For this reason, the machine should be disposed of for recycling at the end of its useful life. Pay particular attention to the information in the "Disposal" section during disposal. ( 6.11)

Waste products such as batteries must always be disposed of properly. Observe local regulations.

Do not dispose of lithium-ion batteries with domestic waste. Please hand them in to a specialist dealer or at a hazardous waste collection

point.

19.1 Removing the battery

• Activate the disabling device. ( 5.2)
• Set the lowest cutting height. ( 9.3)
• Place the robotic mower on its back.

Remove the screws (1) and remove the cover (2).

• Remove the battery from the battery compartment (⇒ 9.2), fit the cover again and install the screws.

Risk of injury!

Prevent damage to the battery.

20. Transport

Risk of injury!

Before transporting, carefully read the section "For your safety" ( 6.) particularly the subsection "Transporting the machine" ( 6.5) and follow all safety instructions - always activate the disabling device. ( 5.2)

20.1 Lifting or carrying the machine

Lift and carry the lawn mower by the carrying handing (1). Always ensure sufficient distance between the mowing blade and your body, particularly your feet and legs.

20.2 Securing the machine (lashing)

Secure the ride-on the mower on the load floor. Fasten the machine as illustrated using suitable fastening materials (straps, ropes) for this purpose.

Secure any other machine components being transported (e.g. docking station, small components) against slipping.

21. CE - manufacturer's declaration of conformity

We,

VIKING GmbH

Hans Peter Stihl-Strasse 5

declare that the machine,

lawn mower, automatic and battery-powered (MI)

manufacturer's brand:

VIKING

type:MI 632.0

MI 632.0 P

serial number 6309

with

docking station

manufacturer's VIKING brand:

type: ADO 600

serial number 6309

conforms to the following EU directives: 2002/96/EC, 2004/108/EC, 2006/42/EC, 2006/66/EC, 2011/65/EC

The products have been developed in conformance with the following standards: EN 60335-1, EN 50636-2-107

Compilation and storage of technical documentation:

The year of manufacture and serial number appear on the identification plate of the machine.

Langkampfen,

2015-01-02 (YYYY-MM-DD)

VIKING GmbH

Sven Zimmermann

Head of Design

22. Technical specifications

MI 632.0 / MI 632.0 P:

Serial number 6309

Mowing system Mulching mow-ing deck

Cutting utilities Cutter bar

Cutting width 30 cm

Speed of cutting

utilities 3150 rpm

Battery type Lithium-ion

Battery voltage V_DC 29 V

Cutting height 20 - 60 mm

Protection class III

Type of protection IPX1

In accordance with Directive 2006/42/EC

and the EN 50636-2-107 standard:

Measured sound

Uncertainty K_pA 2 dB (A)

L/W/H 73/54/27 cm

Weight (without

battery) 12 kg

MI 632.0:

Suitable for lawns up to 3000m^2

Power 120W

Power supply unit HLG-120H

2.9 A

Battery designation AAI 130

Battery power 130 Wh

Battery capacity 4.5 Ah

Battery weight 1.10 kg

MI 632.0 P:

Suitable for lawns up to 4000m^2

Power 185W

Power supply unit HLG-185H

4.4A

Battery designation AAI 200

Battery power 194 Wh

Battery capacity 6.8 Ah

Battery weight 1.40 kg

Docking station ADO 600:

Voltage VDC 42V

Protection class III

Type of protection IPX1

Weight 3 kg

Power supply unit:

Voltage VAC 100 - 240 V

Frequency 50/60 Hz

Voltage VDC 42V

Protection class II

Type of protection IP67

Transport of VKING batteries:

VIKING batteries meet the requirements specified in UN manual ST/SG/AC.10/11/Rev.5 Part III, subsection 38.3.

The user may carry VIKING batteries to the place of use of the machine without further restrictions during road transport.

Country-specific legislation must be observed in the case of air or sea transport.

For further transport instructions, see www.viking-garden.com/safety-datasheets

REACH:

REACH is an EC Directive for the registration, evaluation, authorisation and restriction of chemicals. For information on compliance with the REACH Directive (EC) No. 1907/2006, see www.stihl.com/reach

23. Messages

Messages provide information on active errors, faults and recommendations. They are displayed in a dialog window and can be called up after pressing the OK button in the "Messages" menu. ( 10.8)

Recommendations and active messages also appear in the status screen. ( 10.2)

The message code, the time of occurrence, the priority and the frequency of occurrence can be called up in the message details.

• Recommendations are awarded the priority "Low" or "Info", they appear in the status screen alternately with the text "iMow ready for op." The robotic mower can still be operated, automatic operation continues.
  -Faults are awarded the priority Medium" and require action on the part of the user. The robotic mower can only be operated again once the fault has been rectified.

In the cases of Errors awarded the priority "High" the text "Contact your specialist dealer" appears in the display. The robotic mower can only be operated again once the fault has been rectified by a VIKING specialist dealer.

If a message is still active despite the proposed remedial action, please contact your VKING specialist dealer.

Faults that can only be rectified by a VIKING specialist dealer are not listed in the following. Should a fault of this kind occur, please communicate the 4-digit fault code and the fault text to your specialist dealer.

Message:

0001 - Data loss

Press OK to release

Possible cause:

• The machine software has been updated
  Voltage loss
• Software or hardware error

Remedy:

• After the OK button is pressed, the robotic mower operates with the default settings - check and correct the settings (date, time, mowing plan)

Message:

0100-Battery discharged

Charge battery

Possible cause:

Battery voltage too low

Remedy:

• Place the robotic mower in the docking station to recharge the battery (⇒ 14.8)

Message:

0180 - Temperature low
Temperature range not reached

Possible cause:

• Temperature inside the robotic mower too low

Remedy:

Warm up the robotic mower

Message:

0181 - Temperature high

Temperature range exceeded

Possible cause:

• Temperature inside the robotic mower too high

Remedy:

• Allow the robotic mower to cool down

Message:

0183 - Temperature high

see message 0181

Message:

0185 - Temperature high

see message 0181

Message:

0186 - Temperature low

see message 0180

Message:

0187 - Temperature high

see message 0181

Message:

0302 - Drive motor fault

Temperature range exceeded

Possible cause:

• Temperature in left drive motor too high

Remedy:

• Allow the robotic mower to cool down

Message:

0305 - Drive motor fault

Left wheel is stuck

Possible cause:

Overload at left drive wheel

Remedy:

Clean the robotic mower ( 15.2)

Level out any uneven areas (holes, depressions) in the mowing area

Message:

0402 - Drive motor fault

Temperature range exceeded

Possible cause:

• Temperature in right drive motor too high

Remedy:

• Allow the robotic mower to cool down

Message:

0405 - Drive motor fault

Right wheel is stuck

Possible cause:

Overload at right drive wheel

Remedy:

Clean the robotic mower ( 15.2)

• Level out any uneven areas (holes, depressions) in the mowing area

Message:

0502 - Mowing motor fault

Temperature range exceeded

Possible cause:

• Temperature in mowing motor too high

Remedy:

• Allow the robotic mower to cool down

Message:

0505 - Mowing motor fault

Mowing blade blocked

Possible cause:

• Mowing motor cannot be switched on

• Mowing motor overloaded

Remedy:

• Clean mowing blade and mowing deck ( 15.2)
• Set higher cutting height (⇒ 9.3)
  Level out any uneven areas (holes, depressions) in the mowing area

Message:

0701 - Battery fault

Outside temperature range

Possible cause:

• Temperature in battery too low or too high

Remedy:

• Allow the robotic mower to warm up or cool down - observe permissible temperature range of battery ( 6.4)

Message:

0703 - Battery discharged see message 0100

Message:

0704 - Battery discharged see message 0100

Message:

1000 - Rollover

Allowed inclination exceeded

Possible cause:

• Tilt sensor has detected a rollover

Remedy:

• Place the robotic mower on its wheels, check for damage and confirm the message with OK

Message:

1010 - iMow raised

Press OK to release

Possible cause:

• Robotic mower has been lifted by the hood

Remedy:

• Check movement of the hood and confirm the message with OK

Message:

1020 - STOP button pressed

Press OK to release

Possible cause:

• STOP button has been pressed

Remedy:

• Confirm message with OK

Message:

1030-Hood fault

Check hood

Then press OK

Possible cause:

• No hood detected

Remedy:

• Check hood (movement, firm seating) and confirm the message with OK

Message:

1100 - Control panel

Control panel removed during travelling

Possible cause:

Control panel has been removed during automatic operation

Remedy:

• Confirm the message with OK - automatic operation resumes once the control panel has been inserted

Message:

1120-Hood blocked

Check hood

Then press OK

Possible cause:

• Permanent collision detected

Remedy:

Free the robotic mower, remove the obstacle or change routing of perimeter wire if necessary - then confirm the message with OK

• Check movement of the hood and confirm the message with OK

Message:

1125 - Remove obstacle

Check wire routing

Possible cause:

• Perimeter wire routed inaccurately

Remedy:

• Check the routing of the perimeter wire; check the clearances with the iRuler ( 11.3)

Message:

1130 - Stuck

Free iMow

Then press OK

Possible cause:

• Robotic mower has become stuck

• Drive wheels are spinning

Remedy:

Free the robotic mower, level out the mowing area or change routing of perimeter wire if necessary - then confirm the message with OK

Clean the drive wheels, if necessary prevent operation during rain - then confirm the message with OK ( 10.11)

Message:

1135-Outside

Place iMow in mowing area

Possible cause:

• The robotic mower is located outside the mowing area

Remedy:

• Return the robotic mower to the mowing area

Message:

1140 - Too steep

Check wire routing

Possible cause:

• Tilt sensor has detected slope inclination exceeding 19^

Remedy:

• Change routing of perimeter wire, block off lawns with slope inclinations exceeding 19^

Message:

1160- Handle actuated

Press OK to release

Possible cause:

• The robotic mower has been lifted by the carry handle

Remedy:

• Confirm message with OK

Message:

1170 - No signal

Check wire signal

Possible cause:

• No reception of wire signal during operation

• The robotic mower is located outside the mowing area

• Docking station or electronic components were replaced

Remedy:

• Check the power supply to the docking station

• Check the LED on the docking station - the red LED must be permanently illuminated during operation ( 12.1)

• Return the robotic mower to the mowing area

• Link the robotic mower and docking station ( 10.15)

Message:

1180 - Dock iMow

Automatic docking

not possible

Possible cause:

• The robotic mower has searched for the docking station in a secondary area

• The docking station was not found

Remedy:

-Return the robotic mower to the mowing area and dock it (⇒ 14.7)
- Check the LED on the docking station, switch on the docking station if necessary ( 12.1)
- Check docking ( 14.7)

Message:

1190 - Docking error

Docking station occupied

Possible cause:

Docking station occupied by a second robotic mower

Remedy:

Dock the robotic mower once the docking station is unoccupied again

Message:

1200 - Mowing motor fault see message 0505

Message:

1210 - Drive motor fault Wheel stuck

Possible cause:

• Overload at a drive wheel

Remedy:

Clean the robotic mower ( 15.2)
Level out any uneven areas (holes, depressions) in the mowing area

Message:

1220 - Rain detected

Mowing interrupted

Possible cause:

• Mowing operation has been interrupted or not started due to rain

Remedy:

• No action necessary; adjust rain sensor if required ( 10.11)

Message:

2000 - Signal problem

Dock iMow

Possible cause:

Wire signal faulty, fine tuning necessary

Remedy:

• Place the robotic mower in the docking station - then press OK

Message:

2010 - Replace mowing blade

Allowed operating time reached

Possible cause:

• Mowing blade has been in use for more than 200 hours, replacement is necessary

Remedy:

• Replace the mowing blade, then confirm the blade replacement in the "Service" menu (⇒ 15.4)

Message:

2020 - Recommendation

Annual service by spec. dealer required

Possible cause:

Machine service recommended

Remedy:

• Have the annual service carried out by a VKING specialist dealer

Message:

2030-Battery

Allowed operating time reached

Possible cause:

Battery replacement necessary

Remedy:

• Have the battery replaced by a VIKING specialist dealer

Message:

2032 - Battery fault during charging see message 0701

Message:

2040 - Battery fault when starting mowing see message 0701

Message:

2050 - Adapt mowing plan Extend active times

Possible cause:

Active times have been shortened/deleted or the mowing duration has been extended - the stored active times are insufficient for the necessary mowing operations.

Remedy:

• Extend the active times ( 10.6) or shorten the mowing duration ( 10.7)

Message:

4001 - Internal fault

Outside temperature range

Possible cause:

Temperature in battery or inside the machine too low or too high

Remedy:

• Allow the robotic mower to warm up or cool down - observe permissible temperature range of battery ( 6.4)

Message:

4002 - Rollover

see message 1000

Message:

4003 - Hood lifted

Check hood

Then press OK

Possible cause:

Hood has been lifted

Remedy:

• Check the hood and confirm the message with OK

Message:

4004 - Internal fault

Press OK to release

Possible cause:

• Error in the programme sequence
• Power failure during automatic operation
• Robotic mower is located outside the mowing area

Remedy:

• Confirm message with OK

• Check power supply to the docking station - the red LED must be illuminated permanently during operation; then press the OK button ( 12.1)

• Return the robotic mower to the mowing area, then press the OK button

Message:

4005 - Internal fault

see message 4004

Message:

4006 - Internal fault see message 4004

Message:

4008 - Internal fault

see message 4004

24. Troubleshooting

If necessary, contact a specialist dealer; VIKING recommends VIKING specialist dealers.

Fault:

The robotic mower operates at the wrong times.

Possible cause:

• Date and time incorrectly set
  Active times incorrectly set
  Machine has been operated by unauthorised persons

Remedy:

• Set the time and date ( 10.10)
• Set the active times ( 10.5)
• Set the safety level to "Medium" or "High" (⇒ 10.15)

Fault:

The robotic mower fails to operate during an active time

Possible cause:

Battery is charging
Automatic mowing switched off
Active time switched off
Rain detected
- Weekly mowing duration has been reached, no further mowing operations required that week
Message is active
Control panel not correctly inserted
Docking station not connected to power supply

Remedy:

• Allow the battery to finish charging ( 14.8)
• Switch on automatic mowing (⇒ 10.4)
• Release the active time (⇒ 10.6)
• Set the rain sensor ( 10.11)
• No further action necessary, mowing operations are automatically distributed over the week - if necessary, start the mowing operation with the "Mowing" command ( 10.4)
• Rectify displayed fault and confirm the message with OK (⇒ 10.8)
• Insert the control panel ( 14.2)
• Check power supply to the docking station ( 9.5)

Fault:

The robotic mower fails to mow after the commands "Start mowing" or "Start timedelayed mowing" have been called up

Possible cause:

Insufficient battery charge
- Rain detected
Control panel not correctly inserted
- Message is active

• The Home button on the docking station has been pressed - Homecall is active

Remedy:

• Charge the battery ( 14.8)
• Set the rain sensor (⇒ 10.11)
• Insert the control panel ( 14.2)
• Rectify displayed fault and confirm the message with OK ( 10.8)
• Press the Home button to switch off Homecall or repeat command following docking

Fault:

The robotic mower is not working and nothing is shown in the display

Possible cause:

Machine is in standby
Battery defective

Remedy:

• Press any button to wake up the robotic mower - the status screen appears ( 10.2)
  -Replace the battery (x)

Fault:

The robotic mower is noisy and vibrates

Possible cause:

• Mowing blade is damaged
• Mowing deck is very dirty

Remedy:

-Replace the mowing blade -remove any obstacles from the lawn ( 15.4) (x)
Clean the mowing deck ( 15.2)

Fault:

Poor mulching or mowing result

Possible cause:

• Grass is too high in relation to the cutting height

Lawn is extremely wet
- Mowing blade is blunt or worn
Active times insufficient, mowing duration too short
- Size of mowing area set incorrectly
- Mowing area with very high grass
- Long periods of rain

Remedy:

• Adjust the cutting height ( 9.3)
• Set the rain sensor ( 10.11) Change the active times ( 10.6)
  -Replace the mowing blade ( 15.4), (X)
• Extend or add active times ( 10.6) Extend the mowing duration ( 10.7)
  -Create a new mowing plan ( 10.7)
• For neat mowing results, the robotic mower needs up to 2 weeks, depending on the size of the lawn.
• Allow mowing during rain (⇒ 10.11)
  Extend the active times (⇒ 10.6)

Fault:

Display in a foreign language

Possible cause:

• Language setting has been changed

Remedy:

• Set the language (⇒ 10.10)

Fault:

Brown (earthy) patches appear in the mowing area

Possible cause:

• Mowing duration is too long in relation to the mowing area
• Perimeter wire has been routed with excessively tight radii
• Size of mowing area set incorrectly

Remedy:

• Reduce the mowing duration (⇒ 10.7)

• Correct the routing of the perimeter wire ( 9.6)
  -Create a new mowing plan ( 10.7)

Fault:

Mowing operations are significantly shorter than usual

Possible cause:

• Grass is very high or too wet
  Machine (mowing deck, drive wheels) is very dirty
  Battery has reached end of service life

Remedy:

• Adjust the cutting height ( 9.3) Set the rain sensor ( 10.11) Change the active times ( 10
  Clean the machine ( 15.2)
  -Replace the battery - observe corresponding recommendation in the display (x) ( 10.8)

Fault:

The robotic mower is docked, the battery is not charging

Possible cause:

• The battery does not need to be charged
  Docking station not connected to power supply
• Incorrect docking
• Charging contacts corroded

Remedy:

• No action necessary - battery charging occurs automatically below a certain voltage
• Check power supply to the docking station ( 9.5)
• Place the robotic mower in the mowing area and send it back to the docking station ( 10.4) , check for correct docking - if necessary, correct the position of the docking station ( 9.5)

-Replace the charging contacts (x)

Fault:

Docking not working

Possible cause:

Uneven entry area to docking station
- Dirty drive wheels or dirty floor plate
- Perimeter wire incorrectly routed in area of docking station
- Ends of perimeter wire not cut

Remedy:

• Level out the entry area to the docking station ( 9.5)
  Clean the drive wheels and the floor plate of the docking station ( 15.2)
• Re-route the perimeter wire - ensure correct routing in the area of the docking station ( 9.6)
  Cut the perimeter wire as described and route it without excess length - do not roll up protruding ends ( 9.7)

Fault:

The robotic mower has crossed the perimeter wire

Possible cause:

• Perimeter wire incorrectly routed, clearances are not correct
• Slope inclination of mowing area too steep
  -Interference affecting the robotic mower

Remedy:

• Check the routing of the perimeter wire ( 10.13) ; check the clearances with the iRuler ( 11.3)
• Check the routing of the perimeter wire; block off areas with excessively steep slope inclinations ( 10.13)
• Contact a VIKING specialist dealer (X)

Fault:

The robotic mower frequently becomes stuck

Possible cause:

• Cutting height too low
• Drive wheels dirty
  Depressions or obstacles in the mowing area

Remedy:

• Increase the cutting height ( 9.3)
  Clean the drive wheels ( 15.2)
  -Fill up holes in the mowing area, install no-go areas around obstacles such as exposed roots, remove obstacles ( 9.6)

Fault:

The impact sensor is not activated when the robotic mower hits an obstacle

Possible cause:

• Low obstacle (height less than 10cm )
• The obstacle is not firmly attached to the ground - e.g. fallen fruit or tennis ball

Remedy:

• Remove the obstacle or block it off with a no-go area (⇒ 11.8)
• Remove the obstacle

Fault:

Driving tracks at edge of mowing area

Possible cause:

• Excessively frequent edge mowing
• Starting points in use
  Battery is charged very frequently towards the end of its service life

Remedy:

• Switch off edge mowing or reduce it to once per week ( 10.13)

• Start all mowing operations at the docking station in suitable mowing areas (10.14)
  -Replace the battery - observe corresponding recommendation in the display (长) ( 23)

• Break in perimeter wire - red LED flashes

• Robotic mower and docking station are not linked

• Electronics fault

Remedy:

• Switch on the docking station (⇒ 12.1)
• Check power supply to the docking station ( 9.5)

• Connect the perimeter wire to the docking station ( 9.7)

• Search for wire break ( 15.6) , then repair perimeter wire using wire connectors ( 11.12)
  -Link robotic mower and docking station ( 10.15)

• Contact a VIKING specialist dealer (x)

25. Service schedule

25.1 Handover confirmation

25.2 Service confirmation

Please hand this instruction manual to your VKING specialist dealer in the case of maintenance work. He will confirm the service operations performed in the pre-printed boxes.

Service performed on

Next service date

26. Installation examples

Rectangular mowing area with one tree and swimming pool.

Docking station:

Location (1) directly next to the house A.

No-go area:

Installation around the free-standing tree (3), based on a linking section installed at right angles to the edge.

Swimming pool:

For safety reasons (specified wire clearance) the perimeter wire (2) is routed around the pool [B].

Wire clearances: ( 11.3)

27 cm or 9 cm distance from the edge.

27 cm around the tree.

100 cm distance from the water surface.

Programming:

No further adaptation is necessary following definition of the size of the mowing area.

Particularities:

Unmown areas around the swimming pool must be mown manually on a regular basis or cut using a suitable lawn trimmer.

U-shaped mowing area with several freestanding trees.

Docking station:

Location (1) directly next to the house A.

No-go areas:

Installation around the free-standing trees, based on linking sections installed at right angles to the edge (2), two no-go areas are connected via a linking section.

Wire clearances: ( 11.3)

27 cm or 9 cm distance from the edge.

27 cm around the trees.

Programming:

No further adaptation is necessary following definition of the size of the mowing area.

Particularities:

Tree in the corner of the mowing area - mow the area behind the blocked-off tree regularly using a suitable lawn trimmer or leave as a patch of high-grass.

Divided mowing area with a pond and a free-standing tree.

Docking station:

Location (1) directly next to the house A.

No-go area:

Installation around the free-standing tree, based on a linking section installed at right angles to the edge.

Pond:

For safety reasons (specified wire clearance) the perimeter wire (2) is routed around the pond B.

Wire clearances: ( 11.3)

27 cm or 9 cm distance from the edge and patios.

27 cm around the tree.

100 cm distance from the pond.

Confined area:

Installation of a corridor (3) with a wire clearance of 18 cm. ( 11.10)

Programming:

Define the total size of the mowing area, program two starting points (4) close to the docking station and in the contorted corner near the pond)-starting frequency 20% to 25% in each case. ( 10.14)

Particularities:

Unmown areas, e.g. around the pond must be mown manually on a regular basis or cut using a suitable lawn trimmer.

Divided mowing area - the robotic mower cannot travel independently from one mowing area to the other.

Docking station:

Location (1) directly next to the houses A.

No-go areas:

Installation around the free-standing tree and around the vegetable patch based on a linking section installed at right angles to the edge.

Wire clearances: ( 11.3)

27 cm or 9 cm distance from the edge (2) and from the patios.

27 cm around the tree and around the vegetable patch.

Observe a 54 cm minimum wire clearance in the confined areas behind the vegetable patch.

Secondary area:

Installation of a secondary area [C]; linking section (3) on the patio accommodated in a cable duct.

Programming:

Define the size of the mowing area (without secondary area), program one starting point (4) in the confined area - starting frequency 20% to 25% . ( 10.14)

Particularities:

Bring the robotic mower to the secondary area several times per week and activate the command "Start mowing". ( 14.5) Take the mowing performance into account. ( 13.4) If necessary, install two separate mowing areas with 2 docking stations.

Mowing area around a free-standing building.

Docking station:

Location (1) at the edge of the mowing area.

The house A is blocked off with a no-go area. The docking station cannot therefore be set up in the immediate vicinity of the house.

Route the power cable from the house to the docking station in a suitable cable duct.

No-go area:

Installation around the house, based on a linking section installed at right angles to the edge.

Wire clearances: ( 11.3)

27 cm or 9 cm distance from the edge (2).

Programming:

No further adaptation is necessary following definition of the size of the mowing area.

Particularities:

In the area of the acutely angled lawn corner (3), route the perimeter wire as illustrated - avoid angles of less than 90^ ( 9.6)

Cut the area in the lawn corner regularly using a suitable grass trimmer.

Chere cliente, cher client,

Premiere installation 158

Station base occupée

Causes possibles :

Rode led knippert
Groene led brandt
Groene led knippert
led is uitgeschakeld

Accu-type Lithium-ion

Accu-spanning U_DC 29 V

Voeding HLG-185H 4,4A

Transport van VIKING accu's:

• accu door VKING vakhandelaar lately

vervangen

Melding:

• storing in programmaverloop

Rientra alla docking station

Comando manuale

2002/96/EC, 2004/108/EC, 2006/42/EC

2006/66/EC, 2011/65/EC

Responsible repertoire

misurata LwA 61,0 dB(A)

Fattore

Docking station ADO 600:

Docking station occupata

Possible causa:
