USER MANUAL AVD35 AIWA

STEREO RECEIVER RECEPTOR ESTEREO AMPLI-TUNER STEREO

AV-D35

OPERATING INSTRUCTIONS MANUAL DE INSTRUCCIONES MODE D'EMPLOI

En

(English)

E

(Espanol)

F

(Français)

For assistance and information

call toll free 1-800-BUY-AIWA

(United States and Puerto Rico)

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

"CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL."

Explanation of Graphical Symbols

The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to person.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instruction in the literature accompanying the appliance.

Owner's record

For your convenience, record the model number and serial number (you will find them on the rear of your unit) in the space provided below. Please refer to them when you contact your Aiwa dealer in case of difficulty.

Model No.	Serial No. (Lot No.)
AV-D35

PRECAUTIONS

Read the Operating Instructions carefully and completely before operating the unit. Be sure to keep the Operating Instructions for future reference. All warnings and cautions in the Operating Instructions and on the unit should be strictly followed, as well as the safety suggestions below.

Installation

1 Water and moisture — Do not use this unit near water, such as near a bathtub, washbowl, swimming pool, or the like.
2 Heat — Do not use this unit near heat sources, including heating vents, stoves, or other appliances that generate heat. It also should not be placed in temperatures less than 5°C (41°F) or higher than 35°C (95°F).
3 Mounting surface — Place the unit on a flat, even surface.
4 Ventilation — The unit should be situated with adequate space around it so that proper heat ventilation is assured. Allow 10 cm (4 in.) clearance from the rear and the top of the unit, and 5 cm (2 in.) from each side.

- Do not place the unit on a bed, rug, or similar surface that may block the ventilation openings.

- Do not install the unit in a bookcase, cabinet, or airtight rack where ventilation may be impeded.

5 Objects and liquid entry — Take care that objects or liquids do not get inside the unit through the ventilation openings.
6 Carts and stands — When placed or mounted on a stand or cart, the unit should be moved with care.

Quick stops, excessive force, and uneven surfaces may cause the unit or cart to overturn or fall.

7 Wall or ceiling mounting — The unit should not be mounted on a wall or ceiling, unless specified in the Operating Instructions.

Electric Power

1 Power sources — Connect this unit only to power sources specified in the Operating Instructions, and as marked on the unit.
2 Polarization — As a safety feature, some units are equipped with polarized AC power plugs which can only be inserted one way into a power outlet. If it is difficult or impossible to insert the AC power plug into an outlet, turn the plug over and try again. If it is not still inserted easily into the outlet, please call a qualified service technician to service or replace the outlet. To avoid defeating the safety feature of the polarized plug, do not force it into a power outlet.

3 AC power cord

• When disconnecting the AC power cord, pull it out by the AC power plug. Do not pull the cord itself.
• Never handle the AC power plug with wet hands, as this could result in fire or shock.
• Power cords should be firmly secured to avoid being severely bent, pinched, or walked upon. Pay particular attention to the cord from the unit to the power socket.
• Avoid overloading AC power plugs and extension cords beyond their capacity, as this could result in fire or shock.

4 Extension cord — To help prevent electric shock, do not use a polarized AC power plug with an extension cord, receptacle, or other outlet unless the polarized plug can be completely inserted to prevent exposure of the blades of the plug.
5 When not in use — Unplug the AC power cord from the AC power outlet if the unit will not be used for several months or more. When the cord is plugged in, a small amount of current continues to flow to the unit, even when the power is turned off.

Outdoor Antenna

1 Power lines — When connecting an outdoor antenna, make sure it is located away from power lines.
2 Outdoor antenna grounding — Be sure the antenna system is properly grounded to provide protection against unexpected voltage surges or static electricity build-up. Article 810 of the National Electrical Code, ANSI/NFPA70, provides information on proper grounding of the mast, supporting structure, and the lead-in wire to the antenna discharge unit, as well as the size of the grounding unit, connection to grounding terminals, and requirements for grounding terminals themselves.

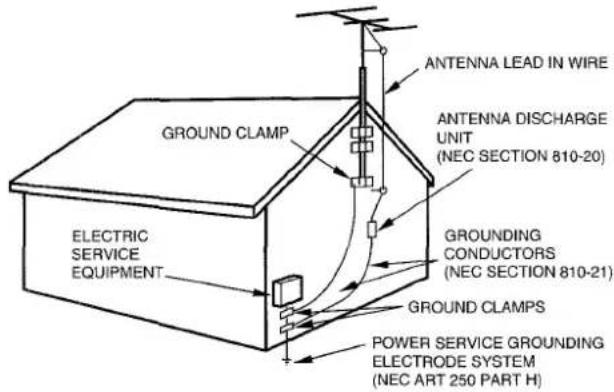

Antenna Grounding According to the National Electrical Code

ANTENNA LEAD IN WIRE ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUND CLAMP GROUNDED CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS ELECTRIC SERVICE EQUIPMENT POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250 PART H)

NEC-NATIONAL ELECTRICAL CODE

Maintenance

Clean the unit only as recommended in the Operating Instructions.

Damage Requiring Service

Have the unit serviced by a qualified service technician if:
- The AC power cord or plug has been damaged - Foreign objects or liquid have gotten inside the unit
- The unit has been exposed to rain or water
- The unit does not seem to operate normally
- The unit exhibits a marked change in performance
- The unit has been dropped, or the cabinet has been damaged DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.

TABLE OF CONTENTS

PRECAUTIONS 1

PREPARATIONS

CONNECTIONS 3

BEFORE OPERATION 7

SOUND

CUSTOM AUDIO ADJUSTMENT 8

ELECTRONIC GRAPHIC EQUALIZER 9

DSP SURROUND 10

BASIC OPERATIONS

SELECTION OF AUDIO/VIDEO SOURCE .... 11

RECORDING AN AUDIO SOURCE 12

RADIO RECEPTION

MANUAL TUNING 13

PRESETTING STATIONS 14

DOLBY SURROUND

SELECTING DOLBY PRO LOGIC 15

Check your unit and accessories
AV-D35 Stereo receiver

Remote control

FM antenna

AM antenna

Operating Instructions, etc.

CONNECTIONS

Before connecting the AC cord

The rated voltage of your unit shown on the rear panel is 120 V AC. Check that the rated voltage matches your local voltage.

IMPORTANT

Connect the speakers, antennas, and all other external equipment first. Then connect the AC cord at the end.

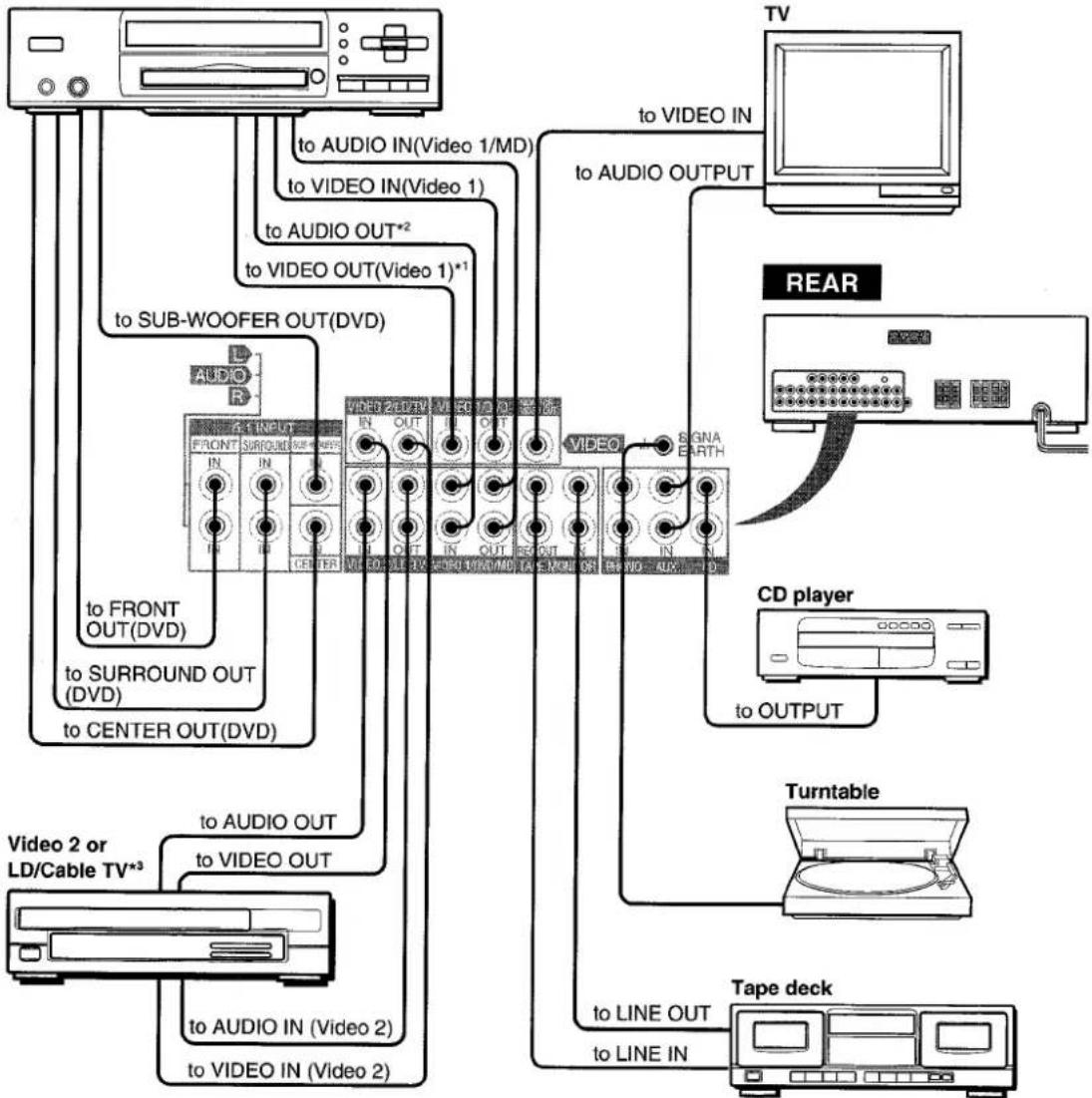

CONNECTING EQUIPMENT

Jacks and plugs of the connecting cord are color-coded as follows:

Red jacks and plugs : For the right channel of audio signals

White jacks and plugs: For the left channel of audio signals

Yellow jacks and plugs: For video signals.

NOTE

Insert the plugs fully into the jacks. Loose connections may produce a humming sound or other noise interference.

*1 Be sure to connect the VIDEO OUT terminal of a DVD player directly to a TV set, not through this unit. Otherwise, the picture noise may appear when playing the DVDs copy protected.
*2 Input sound through the 5.1 INPUT terminals cannot be recorded. When recording the sound from the DVD player, connect the AUDIO OUT (DOWN MIXING) terminals of the DVD player to the VIDEO 1/DVD/MD AUDIO IN terminals of the unit.
*3 When connecting a monaural video, use a stereo-mono connecting cord (not supplied).

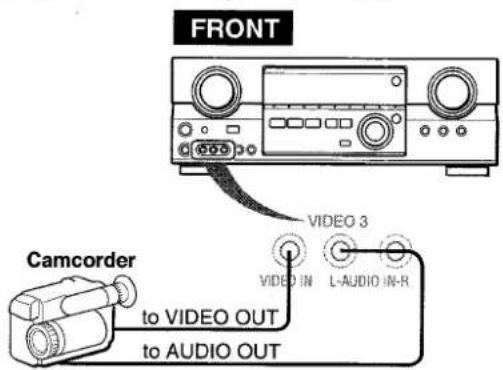

FRONT CAMCORDER to VIDEO OUT to AUDIO OUT VIDEO 3 VIDEO IN L-AUDIO IN-R

DVD or Video 1/MD player*3
    toVIDEOOUT["to VIDEO OUT"]
    toAUDIOIN["to AUDIO IN (Video 2)"]
    toVIDEOIN["to VIDEO IN (Video 2)"]
    toAUDIOOUT --> toSUBWOOFEROUT
    toSUBWOOFEROUT --> toVOUTOUTD
    toVIDEOOUT --> toLINEOUT["to LINE OUT"]
    toVIDEOOUT --> toLINEIN["to LINE IN"]
    toLINEOUT --> toAudioOUT["to Audio OUT"]
    toAudioOUT --> toSUBWOOFEROUT
    toAudioOUT --> toSUBWOOFEROUT
    toAudioOUT --> toSUBWOOFEROUT
    toAudioOUT --> toSUBWOOFEROUT
    toAudioOUT --> toSUBWOOFEROUT
    toAudioOUT --> toSUBWOOFEROUT
    toSubWOOFEROUT --> toSUBWOOFEROUT
    toSubWOOFEROUT --> toAudioOUT
    toSubWOOFEROUT --> toAudioIN
    toSubWOOFEROUT --> toAudioINOut
    toSubWOOFEROUT --> toAudioINOut
    toSubWOOFEROUT --> toAudioINOut
    toSubWOOFEROUT --> toAudioINOut
    toSubWOOFEROUT --> toAudioINOut
    toSubWOOFEROUT --> toAudioINOut
    toSubWOOFEROUT --> toAudioINOut
    toSubWOOFEROUT --> toAudioINOut
    toSubWOOFEROUT
    toSubWOOFEROUT --> toAudioINOut
    toSubWOOFEROUT --> toAudioINOut
    toSubWOOFEROUT --> toAudioINOut
    toSubWOOFEROUT --> toAudioINOut
    toSubWOOFEROUT --> toAudioINOut

① and ② in the illustration correspond to the following details.


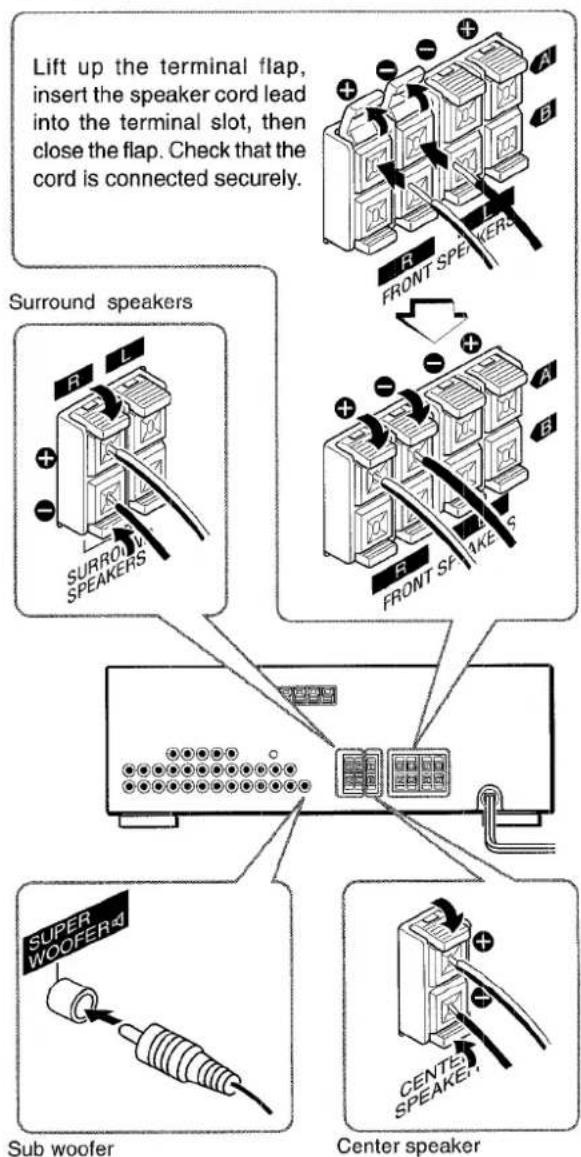

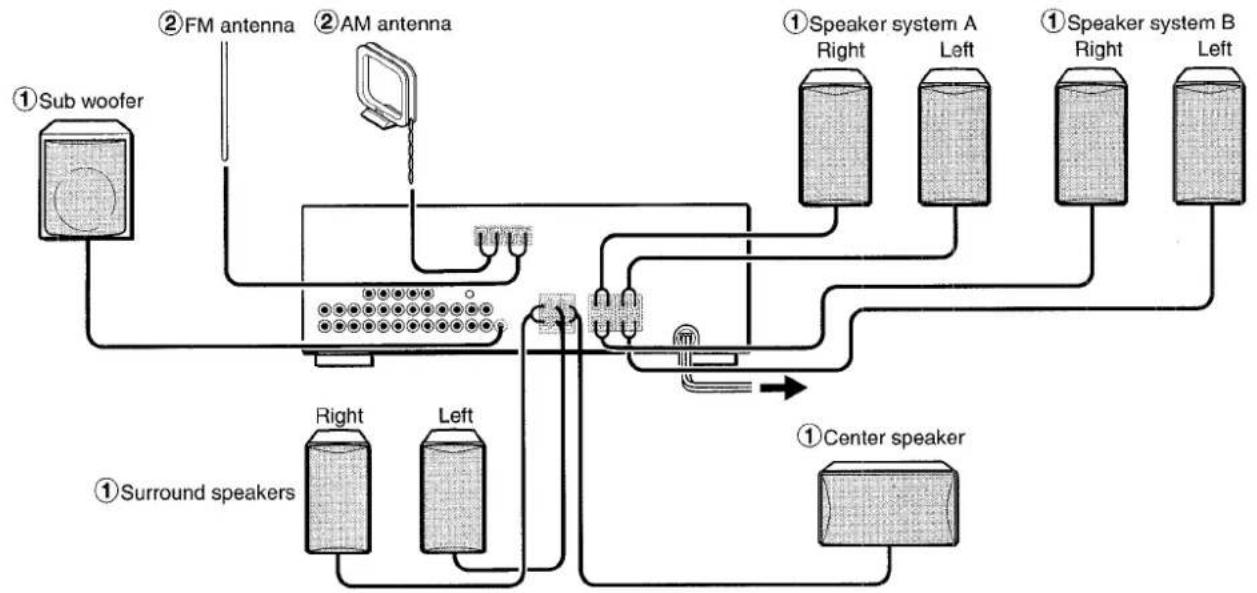

CONNECTING SPEAKERS ①

Speaker terminals

Connect front speakers (system A and/or B), a center speaker, surround speakers and sub woofer to the corresponding speaker terminals on the unit:

• the front speaker cords to the FRONT SPEAKERS terminals
• the center speaker cord to the CENTER SPEAKER terminals
• the surround speaker cords to the SURROUND SPEAKERS terminals.
• for more powerful bass, the sub woofer (with a built-in amplifier) cord to the SUPER WOOFER ▶ jack

Speaker impedance

For all speakers, use speakers of 8 ohms or more.

Connecting + to +, - to - terminals

To get the proper sound effect, the speaker terminals on the unit and the speaker should be connected with proper polarity; the + terminal on the unit should be connected to the + terminal on the speaker (and - to -).

NOTE

• Be sure to connect the speaker cords correctly as shown in the illustration on the right column. Improper connections can cause short circuits in the SPEAKER(S) terminals.
• Do not leave objects generating magnetism near the speakers.

Front speakers


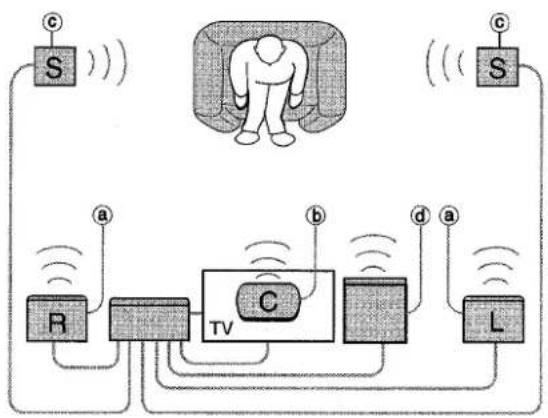

Position the speakers to make the most of the Dolby Digital Surround (5.1 CH), Dolby Pro Logic or DSP effect.

① Front speakers
⑥ Center speaker

Position in the center of the two front speakers. In addition, position on or below the TV set, if connecting a TV set to the unit.

© Surround speakers

Place the surround speakers directly to the side of or slightly behind the listening area. Align them horizontally, about 1 meter (3.2 feet) above ear height.

d Sub woofer

Place the sub woofer in any place between the two front speakers.

NOTE

Sound from the surround speakers or center speaker depends on the setting of the DSP, Dolby Pro Logic and 5.1 CH function.


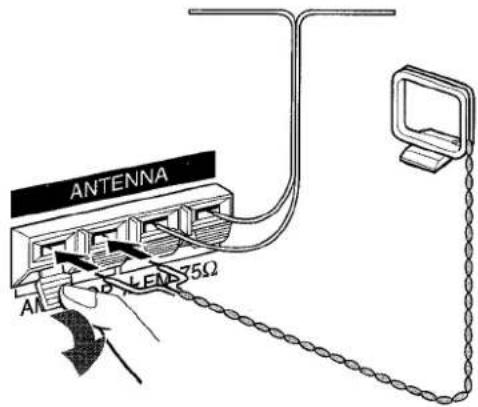

CONNECTING THE SUPPLIED ANTENNAS ②

Connect the FM antenna to the FM 75 Ω terminals and the AM antenna to the AM LOOP terminals.

ANTENNA AM LEM 35Ω

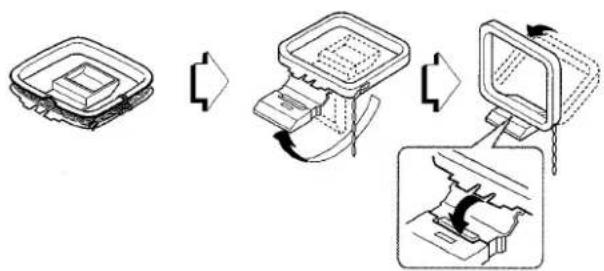

To stand the AM loop antenna on a surface

Fix the claw to the slot as shown in the illustration.

To position the antennas

FM feeder antenna:

Extend this antenna horizontally in a T shape and fix its ends to the wall.

AM loop antenna:

Position for the best reception.

NOTE

• Do not bring the FM antenna near metal objects or curtain rails.
• Do not bring the AM antenna near other external equipment, the unit itself, the AC power cord or speaker cords, as noise will be picked up.
• Do not unwind the AM loop antenna wire.

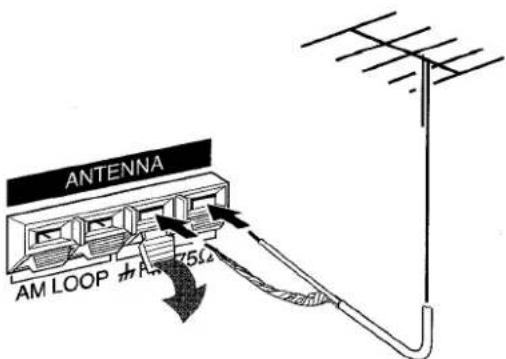

CONNECTING AN OUTDOOR ANTENNA

For better FM reception, use of an outdoor antenna is recommended. Connect the outdoor antenna to the FM 75 Ω terminals.

ANTENNA AM LOOP 75Ω

ABOUT THE REMOTE CONTROL

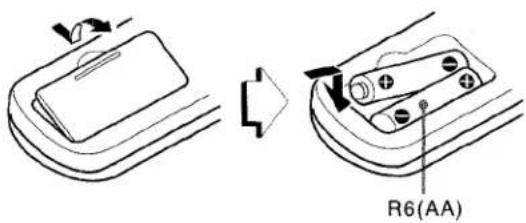

Inserting batteries

Detach the battery cover on the rear of the remote control and insert two R6 (size AA) batteries.

R6(AA)

When to replace the batteries

The maximum operational distance between the remote control and the sensor on the unit should be approximately 5 meters (16 feet). When this distance decreases, replace the batteries with new ones.

Using the remote control

The instructions in this manual refer mainly to the buttons on the main unit. Buttons on the remote control with the same names as those on the main unit can be used as well.

The SET button functions in the same way as the ENTER button on the main unit.

NOTE

• If the unit is not going to be used for an extended period of time, remove the batteries to prevent possible electrolyte leakage.
• The remote control may not operate correctly when:

- The line of sight between the remote control and the remote sensor in the display window is exposed to intense light, such as direct sunlight.

- Other remote controls are used nearby (those of television, etc.)

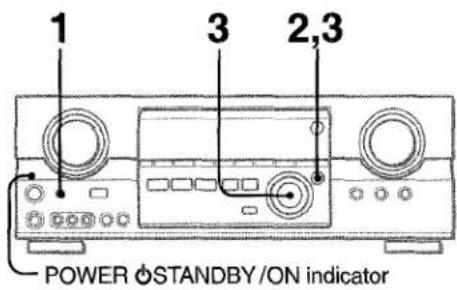

POWER ECONOMIZING (ECO) MODE

1 3 2,3 POWER ⬤STANDBY/ON indicator

Setting this unit to the ECO mode reduces power consumption as below.

Initial setting of the ECO mode is ON.

• When the current time is set, the clock display disappears immediately.
• While the power is off, all the display lights turn off, and only the POWER ⓍSTANDBY/ON indicator lights in red.

To cancel the ECO mode

1 Press the ECO button to display ECO MODE while the unit is turned on.
2 Within 4 seconds, press the ENTER button.
3 Within 4 seconds, turn the MULTI JOG to select ECO OFF. The mode will be automatically set after 4 seconds. It will also be set if the ENTER button is pressed within 4 seconds after step 3.

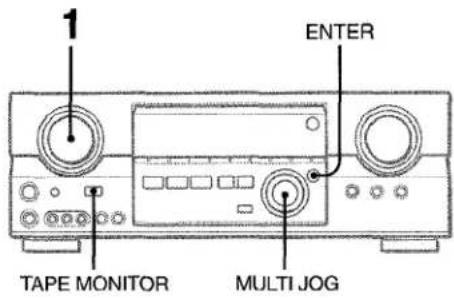

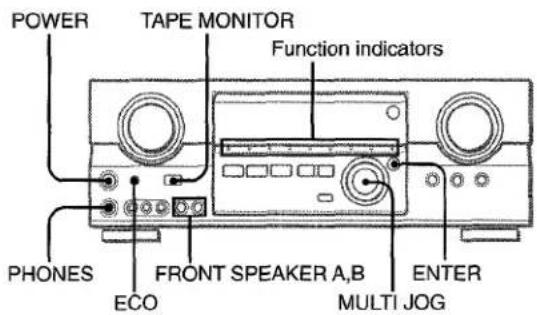

BEFORE OPERATION

POWER TAPE MONITOR Function indicators PHONES FRONT SPEAKER A,B ECO MULTI JOG ENTER

To turn the unit on

Press the POWER button.

Operation is possible after four seconds. When the POWER button is pressed to turn on, the VOL (volume) level or function name is displayed one after the other.

The selected function indicator lights up in red and the others in green.

To change the brightness level of the display

1 Press ECO so that "ECO MODE" is displayed.
2 Within 4 seconds, turn the MULTI JOG to display DIM MODE, and then press the ENTER button within 4 seconds.
3 Within 4 seconds, turn the MULTI JOG to select the dimmer mode as below.
The mode will be automatically set after 4 seconds. It will also be set if the ENTER button is pressed within 4 seconds after step 3.

DIM-OFF: The normal display.

DIMMER 1: The illumination of the display is dimmer than usual.

DIMMER 2: The illumination of the display is dimmer than DIMMER 1.

DIMMER 3: The illumination of the display is dimmer than DIMMER 2. The function indicators light off.

To select the front speaker system

To use speaker system A: Set the FRONT SPEAKERS A button to ON.

To use speaker system B: Set the FRONT SPEAKERS B button to ON.

To use both speaker systems: Set both the buttons to ON. Set the button(s) to OFF to turn off the speaker system(s).

NOTE

As the front speaker systems A and B are connected in series:

• The sound will be slightly decreased when using both speaker systems
• No sound can be heard if the FRONT SPEAKERS A and B buttons are set to ON when only one speaker system is connected

Using the headphones

Connect headphones to the PHONES jack with a standard stereo plug (ø6.3 mm, 1/4 inch). Be sure to set the FRONT SPEAKERS A and B buttons to ▲OFF. Otherwise sound is output from the speakers.

NOTE

The 5.1 CH function, Dolby Pro Logic or DSP system is automatically canceled when the headphones are plugged in.

To turn the unit off, press the POWER button.

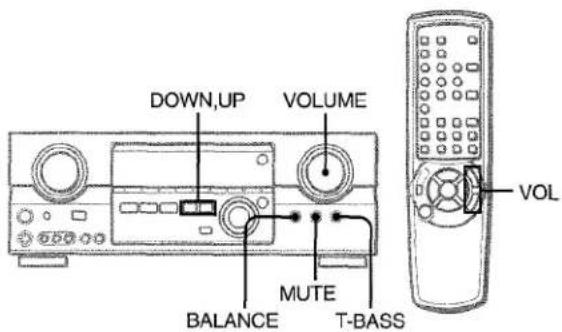

CUSTOM AUDIO ADJUSTMENT

DOWN,UP VOLUME MUTE BALANCE T-BASS VOL

VOLUME CONTROL

Turn the VOLUME control on the unit, or press the VOL buttons on the remote control.

The volume level is shown on the display for four seconds. It can be adjusted between 0 and MAX (50). It flashes when being set over the level 44.

The volume level remains memorized even after the power is turned off. However, if the power is turned off when the volume is set to more than 21, it is automatically set to 20 the next time the power is turned on.

To adjust the left/right balance of the front speakers

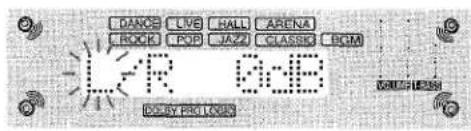

Press the BALANCE button to display "L/R 0dB". Then press the DOWN or UP button repeatedly within four seconds.

Note that the front speakers balance of the 5.1 CH and Dolby Pro Logic modes is also changed.

To mute the sound temporarily

Press the MUTING button (-20 dB).

"MUTE ON" appears on the display for four seconds. While muting the sound, the selected function indicator flashes. Press the MUTING button again to restore the sound.

SUPER T-BASS SYSTEM

The T-BASS system enhances the realism of low-frequency sound.

Press the T-BASS button.

Each time it is pressed, the level changes. Select one of the three levels, or the off position to suit your preference.

NOTE

Low-frequency sound may be distorted when the T-BASS system is used for a disc or tape in which low-frequency sound is originally emphasized. In this case, cancel the T-BASS system.

SOUND ADJUSTMENT DURING RECORDING

The output volume and tone of the speakers or headphones may be freely varied without affecting the level of the recording.

ELECTRONIC GRAPHIC EQUALIZER

GEQ MULTI JOG GEQ

This unit provides the following five different equalization modes.

ROCK: Powerful sound emphasizing treble and bass

POP: More presence in the vocals and midrange

JAZZ: Accented lower frequencies for jazz-type music

CLASSIC: Enriched sound with heavy bass and fine treble

BGM: Calm tone with suppressed bass and treble

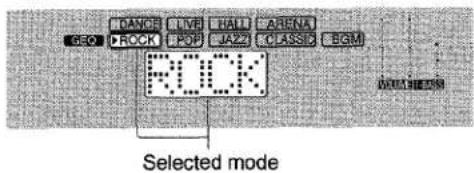

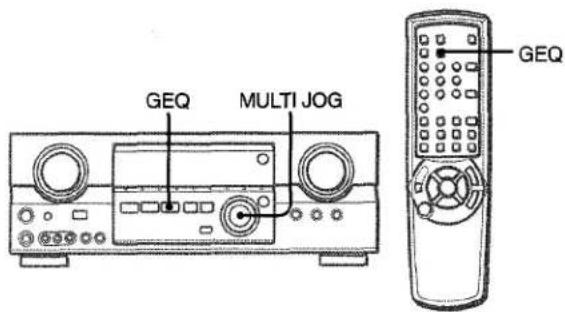

Press the GEQ (Graphic Equalizer) button, and turn the MULTI JOG until the desired equalization mode is displayed.

The GEQ modes are displayed cyclically as follows.

The selected mode name is displayed for four seconds, and the indicator appears on the left side of the selected mode name.

GEO RANGE LIVE HALL ARENA BROCK POP JAZ2 CLASS EGM DO NOT DO NOT Selected mode

To cancel the selected mode

Press the GEQ button again. "GEQ OFF" appears on the display.

To select with the remote control

Press the GEQ button repeatedly until the desired equalization mode is displayed.

Five preset modes, the manual modes M1 to M4 and "GEQ OFF" can be selected.

NOTE

• The GEQ system is automatically canceled:
- when the Dolby Pro Logic is turned on
- when the 5.1CH function is selected
- The GEQ system cannot be turned on while the 5.1CH function is selected.

SETTING NEW EQUALIZATION CURVES

Up to 4 equalization curves can be stored as the manual modes M1 to M4.

1 3,6 2 1,5,7

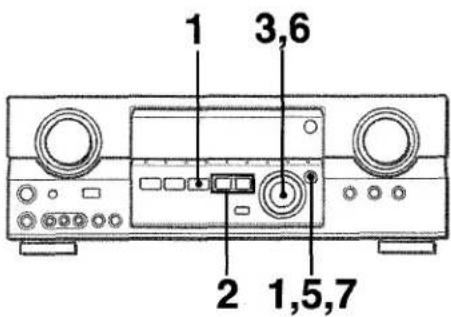

1 Press the GEQ button and press the ENTER button within 4 seconds.

DANCE LIVE CHAT ARENA HOCK POP JAZZ CLASSIC MGM BENEFIXERS

2 Press the DOWN or UP button to select a frequency.

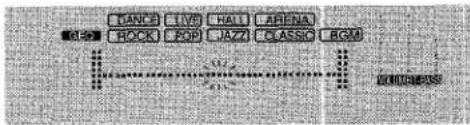

The level indicator of the selected frequency flashes.
3 Turn the MULTI JOG to adjust the level of the selected frequency.
4 Repeat steps 2 and 3 to make the desired equalization curve.

In steps 2 and 3, the unit returns to normal mode when no operation is made for about 8 seconds.

5 Within 8 seconds, press the ENTER button.
"GEQ M1" appears on the display.
6 Turn the MULTI JOG to select a preset number from M1 to M4.
7 Press the ENTER button.

The equalization curve is stored.

The selected preset number and the equalization curve are displayed for a few seconds for each.

To adjust the GEQ curve temporarily

Follow the steps from 1 to 4 above. The adjusted GEQ curve still remains before changing or canceling the GEQ mode.

To select the manual preset curve

Press the GEQ button, and turn the MULTI JOG until the desired manual preset number is displayed.

DSP SURROUND

DSP MULTI JOG DOWN,UP DSP MANUAL SELECT

The DSP (Digital Signal Processor) surround circuits can recreate the effect of sounds reflected from walls or ceilings, to obtain the sound presence of real environments. There are four modes with matching graphic equalization modes. Equalization modes are selected automatically and can also be selected or turned off to suit your preference.

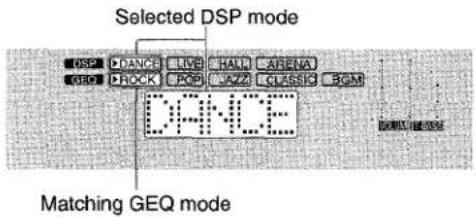

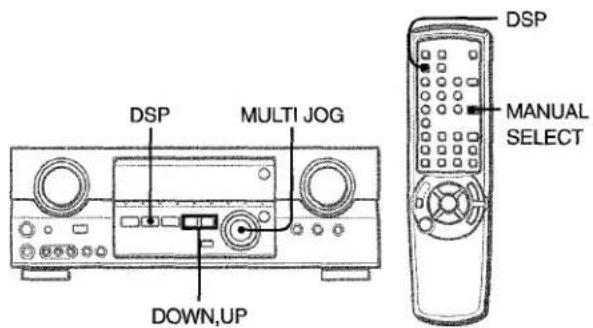

Press the DSP button, and turn the MULTI JOG until the desired DSP mode is displayed.

The selected mode name is displayed for four seconds, and the indicators ▶ appears on the left sides of the selected DSP name and matching GEQ mode name.

Selected DSP mode DSP DANCE LIVE HALL ARENA GEO ROCK POP Jazz CLASS BCM DANCE Matching GEQ mode

When the music source is monaural

Select LIVE to obtain a simulated stereo effect. When DANCE, HALL or ARENA is selected, no sound will be heard from the surround speakers.

To cancel the selected mode

Press the DSP button again. "DSP OFF" appears on the display. Even if canceling the selected DSP mode, the matching or selected GEQ mode still remains.

To select with the remote control

Press the DSP button repeatedly until the desired DSP mode is displayed.

Four DSP modes and "DSP OFF" can be selected.

To adjust the volume and balance of the surround speakers

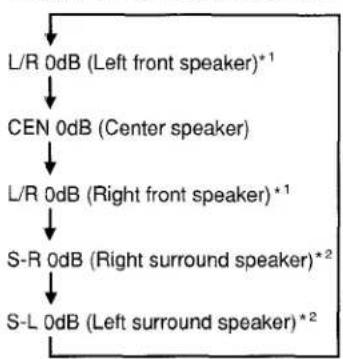

Press the MANUAL SELECT button on the remote control twice or three times, while the DSP system is turned on, to display "S-R 0dB" (for right surround speaker) or "S-L 0dB" (for left surround speaker). Then press the DOWN or UP button repeatedly within four seconds.

Note that the surround speakers volume and balance of the 5.1 CH and Dolby Pro Logic modes are also changed.

NOTE

• The DSP system is automatically canceled:
- when the Dolby Pro Logic is turned on
- when the 5.1 CH function is selected
• The DSP system cannot be turned on:
- while the 5.1 CH function is selected
- while headphones are plugged in

SELECTION OF AUDIO/VIDEO SOURCE

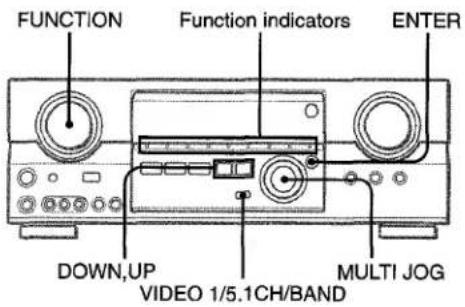

FUNCTION Function indicators ENTER DOWN,UP VIDEO 1/5.1CH/BAND MULTI JOG

1 Select the program source.

Turn the FUNCTION selector or press the TAPE MONITOR button. The selected function indicator flashes in red.

To listen to or watch	The flashing indicator
Tape	TAPE MONITOR
Radio	TUNER
Record	PHONO
Compact disc	CD
Television, etc.	AUX
Video	VIDEO 1/DVD/MD,VIDEO 2/LD/TV,VIDEO 3
LD or Cable TV	VIDEO 2
MD or DVD	VIDEO 1/DVD/MD

To select a function on the remote control

Press the desired function button directly.

The function to be selected (except PHONO) depend on the equipment connected to the input terminals on the rear panel of the unit.

NOTE

When using a turntable with a built-in equalizer amplifier, set the switch of the equalizer amplifier to off. See the instructions of the turntable for further information.

2 Start the selected program source.

3 Adjust the sound.

About the video source to the monitor or TV

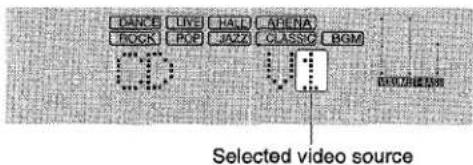

DANCE LIVE HALL APENA ROCK POP Jazz CLASSIC BGM Selected video source

V1: VIDEO1, V2: VIDEO2, V3: VIDEO3

The selected video source is indicated on the display and the video signal through the MONITOR VIDEO OUT jack is output on the TV.

To select the video source

1 Select one of the functions except TUNER.
2 Press the ENTER button to display VIDEO 1.
3 Turn the MULTI JOG to select VIDEO 2 or VIDEO 3.

To change a displayed name for the VIDEO 1 and VIDEO 2

When the VIDEO 1 is selected, VIDEO 1 is displayed initially. It can be changed to DVD or MD.

Press the VIDEO 1/5.1CH/BAND button while pressing the ENTER button.

To use the 5.1CH function, press the VIDEO 1/5.1CH/BAND button. The function name will change to "5.1 ch IN" and the source connected to the 5.1 INPUT terminals is selected.

To resume, press the button again so that the selected function name is displayed.

The displayed name for VIDEO 2 button can be changed to VIDEO 2, LD or TV; while the VIDEO 2 function is selected, press the VIDEO 1/5.1CH/BAND button while pressing the ENTER button.

To adjust the sound level of the connected source

The input sensitivity level of each function (except the TUNER function) can be adjusted.

When the sound level of the connected source is higher or lower than that of the TUNER, adjust it as follows.

1 Select the function to be adjusted.

Turn the MULTI JOG accordingly and play the source.

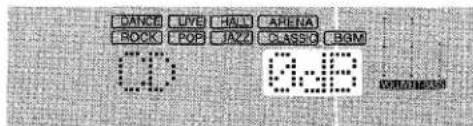

2 Press the UP or DOWN button repeatedly.

DANCE LIVE CALL APENA ROCK POP Jazz CLASSO MGM CD 0dB COMMERCE

The level can be adjusted between -6dB (MIN) and +8dB (MAX) in 2dB steps. Adjust the level so that the sound is output at the same level as the TUNER.

NOTE

• The input sensitivity level of the TUNER function cannot be adjusted.
• That of the TAPE MONITOR cannot be adjusted either. Even if the TAPE MONITOR is selected and the TAPE MONITOR indicator turns red, pressing the UP or DOWN button will change the level of the function displayed on the window.

TO PLAY A DVD RECORDED IN DOLBY DIGITAL SURROUND

This receiver has the 5.1 INPUT connectors supporting Dolby Digital decoder with the 5.1 ch output terminals. When a DVD player that contains a Dolby Digital decoder is connected to the receiver, you can enjoy theater-quality audio right in your home when playing discs recorded in Dolby Digital Surround.

1 Turn the FUNCTION selector to select the VIDEO 1/DVD/MD function.

2 Press the VIDEO 1/5.1CH/BAND button.

DANCE LIVE HALL ARENA ROCK POP JAZZ CLASSIC BOM 5.14h IN WHITE BEAS

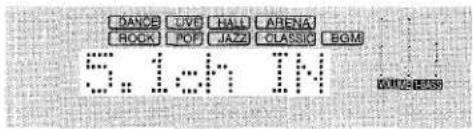

"5.1 ch IN" appears on the display and the DVD player connected to the 5.1 INPUT terminals is selected as a source.

3 Start playing the DVD recorded in Dolby Digital Surround.

NOTE

• The 5.1 CH function is automatically canceled and the VIDEO 1, DVD or MD function is selected:
• when the Dolby Pro Logic is turned on
• when headphones are plugged in
• The 5.1 CH function cannot be selected while headphones are plugged in.

RECORDING AN AUDIO SOURCE

1 ENTER TAPE MONITOR MULTI JOG

1 Select the program source to be recorded. Turn the FUNCTION selector.
2 Set the tape deck or MD recorder to the recording mode.
3 Start the selected program source.

To monitor recorded sound during recording (when the connected tape deck is a three-head system)

Press the TAPE MONITOR button. "TAPE ON" appears on the display for four seconds, and then the source name selected in step 1 comes back on. To cancel the tape monitor, press it again so that "TAPE OFF" appears.

NOTE

• Any sound control system has no effect on recording (see page 8).
• Input sound through the 5.1 INPUT terminals cannot be recorded. When recording the sound from the DVD player, connect the AUDIO OUT (DOWN MIXING) terminals of the DVD player to the VIDEO 1/DVD/MD AUDIO IN terminals of the unit.
• When recording sources by the MD recorder connected to the VIDEO 1/DVD/MD AUDIO OUT terminals, first press the ENTER button to display VIDEO 1, and turn the MULTI JOG to select VIDEO 2 or VIDEO 3. Then select the source (V2 or V3 should be displayed).

Recording cannot be done while the V1 indication is displayed on the window.

- Input sound from the tape deck connected to the TAPE MONITOR IN terminals cannot be recorded.

MANUAL TUNING

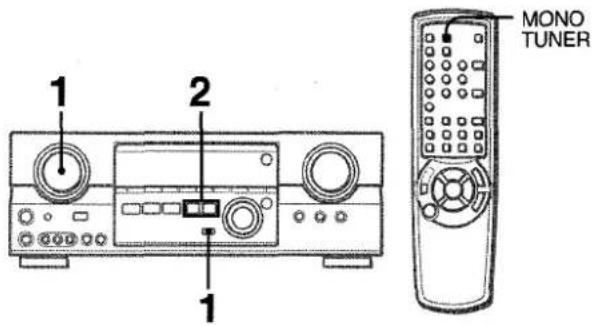

1 2 1 MONO TUNER

1 Turn the FUNCTION selector to select the TUNER function, and press the VIDEO 1/5.1CH/BAND button repeatedly to select the desired band.

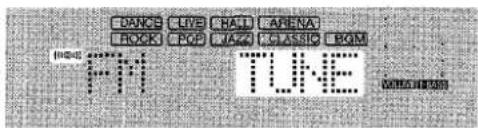

The display changes to frequency indications after indicating band and video source (V1, V2 or V3) for two seconds.

2 Press the UP or DOWN button to select a station.

Each time the button is pressed, the frequency changes. When a station is received, "TUNE" is displayed for two seconds. During FM stereo reception, (10) is displayed.

DANCE LIVE CALL ARENA ROCK POP FAZO CLASSIC BOM [FIND] TUNE WHAT IS WHAT IS

To search for a station quickly (Auto Search)

Keep the UP or DOWN button pressed until the tuner starts searching for a station. After tuning in to a station, the search stops.

To stop the Auto Search manually, press the UP or DOWN button.

• The Auto Search may not stop at stations with very weak signals.

When an FM stereo broadcast contains noise

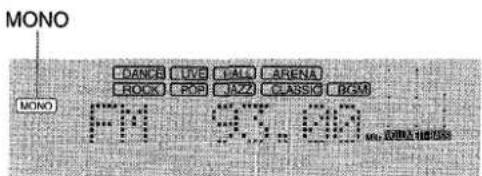

Press the MONO TUNER button on the remote control so that "MONO" appears on the display.

Noise is reduced, although reception is monaural.

MONO DANCE LIVE CALL ARENA ROCK FOS Jazz CLASSIC BCM MONO FM 93.00

To restore stereo reception, press the button so that "STEREO" appears.

To change the AM tuning interval

The default setting of the AM tuning interval is 10 kHz/step. If you use this unit in an area where the frequency allocation system is 9 kHz/step, change the tuning interval.

Hold down the VIDEO 1/5.1CH/BAND button and press the POWER button.

To reset the interval, repeat this procedure.

PRESETTING STATIONS

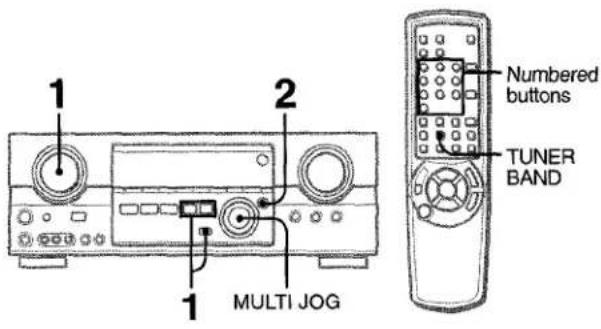

1 2 1 MULTI JOG Numbered buttons TUNER BAND

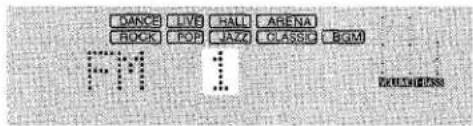

The unit can store a total of 32 preset stations. When a station is stored, a preset number is assigned to the station. Use the preset number to tune in to a preset station directly.

1 Turn the FUNCTION selector to select the TUNER function, and press the VIDEO 1/5.1CH/BAND button repeatedly to select the desired band. Then press the UP or DOWN button to select a station.
2 Press the ENTER button to store the station.

A preset number assigned to the station, beginning from 1 in consecutive order for each band, is displayed for two seconds.

3 Repeat steps 1 and 2.

No more stations will be stored if a total of 32 stations have already been stored for all the bands.

NOTE

When the AM tuning interval is changed, all preset stations are cleared. The preset stations have to be set again.

PRESET NUMBER TUNING

1 Turn the FUNCTION selector to select the TUNER function, and press the VIDEO 1/5.1CH/BAND button repeatedly to select a band.
2 Turn the MULTI JOG to select a preset number.

To clear a preset station

Select the preset number of the station to be cleared. Then, press the ENTER button, and press the ENTER button again within four seconds.

The preset numbers of all other stations in the band with higher numbers are decreased by one.

When using the remote control

Press the TUNER BAND button to select a band, then press the numbered buttons to select a preset number.

Example:

To select preset number 25, press 2 and 5.

To select preset number 7, press 0 and 7.

DOLBY SURROUND

This unit is equipped with the Dolby Pro Logic decoder and also supports the Dolby Digital decoder with the 5.1 ch output terminals.

The unit and the center and surround speakers (standard) assure full-scale home theater sound. When playing back discs or video software that have been recorded in Dolby Pro Logic or Dolby Digital Surround, astonishingly realistic sound surrounds the listener to create a new level of audio/visual entertainment.

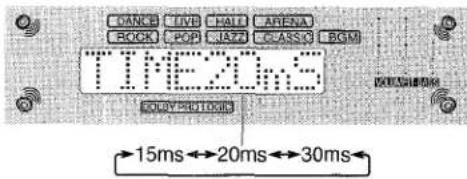

Independent control of the five channels allows the listener to enjoy the same type of sound reproduction experienced in movie theaters. Voices are reproduced in the front and center sound field, while ambient sounds like cars and crowds are reproduced on all sides of the listener for an incredibly lifelike audio/video experience. Please read the following carefully to "tune" the system's output to match the characteristics of your listening space.

Check the following:

• Before enjoying the DOLBY SURROUND sound, adjust the proper balance of the speaker sound levels (see page 16).
• Make sure the speakers are properly connected and positioned (see pages 3, 4 and 5).
• Make sure the TV set and video unit are properly connected (see page 3).
  • Make sure the disc and video tape, etc., support Dolby Pro Logic or Dolby Digital Surround.

SELECTING DOLBY PRO LOGIC

The optimal Dolby Pro Logic mode depends on the type and placement of the speakers. It is recommended that the optional Aiwa speakers should be used for all channels, for example, the SX-R1700 for surround speakers, the SX-C1700 for a center speaker and the SX-AV1700 for front speakers. Check your current type and placement of the speakers and select the recommended Dolby Pro Logic mode accordingly.

The recommended mode

	Center speaker
	Larger-size	Smaller-size	No speaker
Surround speaker (Rear speaker)	DOLBY PRO LOGIC-WIDE	DOLBY PRO LOGIC-NORMAL	PHANTOM
No surround speaker	3 STEREO-WIDE	3 STEREO-NORMAL	-

PHANTOM mode: Select this mode when the center speaker is not connected. All center channel signals are redistributed to the left and right channel speakers.

3 STEREO mode: Select this mode when the surround speakers are not connected.

1 Press the DOLBY SURROUND button, and turn the MULTI JOG to select the appropriate mode.

The mode names are displayed in the order as shown below.

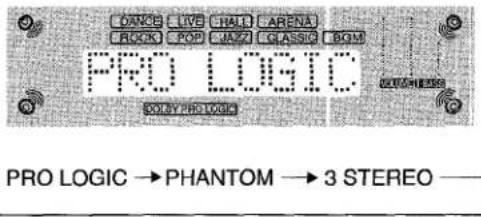

DANCE LIVE CHAIN ARENA ROCK POP JAZI GLASSIO BGM PRO LOGIC WHY DRUGIC PRO LOGIC → PHANTOM → 3 STEREO

2 Press the DOLBY SURROUND button again and hold it down until the center speaker mode to be selected appears. (Except the PHANTOM mode.)

“NORMAL” and “WIDE” appear one after the other.

NOTE

• Depending on the sound source or listening condition, surround effect may not be obtained even when the Dolby Pro Logic is set to on.

• The full Dolby Pro Logic effect cannot be obtained when using the software without ☐☐(DOLBY SURROUND) mark. In this case, use the DSP surround system instead (see page 10).
  • The Dolby Pro Logic system is automatically canceled:

• when the DSP system is turned on

• when the GEQ system is turned on
• when the 5.1 CH function is selected
• when headphones are plugged in
• The Dolby Pro Logic cannot be set to on while headphones are plugged in.

The unit is equipped with a built-in test signal generator called a noise sequencer for easy balance adjustment of all five channels. The sequencer outputs a noise signal that "travels" from channel to channel, enabling the simple adjustment of sound level to achieve the same apparent loudness, at your listening position, from each channel.

1 Select the Dolby Pro Logic mode according to your current type and placement of the speakers. (See page 15.)
2 Press the MANUAL SELECT button on the remote control and hold it down for about two seconds until "L" of "L/R 0dB" starts to flash.

DANCE LIVE HALL ARENA LOCK CPOJ JAZI CLASSIC BCM L/R 0dB BARRY PROTTUCE

A noise signal is sent to each channel in turn as follows:

DOLBY PRO LOGIC NORMAL or WIDE mode

*1 "L" or "R" flashes to indicate one of the front speakers from which the noise signal is output.

*2 The noise signal is output from the L and R surround speakers at the same time.

3 Adjust the sound level of the center and surround speakers.

While "CEN", "S-L" or "S-R" flashes in the display, press the UP or DOWN button on the remote control so that the sound level of the center or surround speakers matches that of the front speakers.

DANE LIVE RALL ARENA BOX3 POP Jazz CLASSIO BOM EN- OEE EXTRAPEE 2000

The balance of the front speakers can be adjusted as well while "L/R" is displayed.

4 Press the MANUAL SELECT button again to stop the noise signal.

NOTE

When adjusting the speakers level balance of the Dolby Pro Logic, those of the DSP and 5.1 CH modes are also changed.

About the channels

The left and right speakers create the stereo effect.

The center speaker helps achieve precise sound positioning over a broad sound field.

The rear-mounted surround speakers enhance the "depth" of the sound field.

To change the surround speakers delay time of the Dolby Pro Logic mode

The surround speakers reproduce sounds a split second after the front speakers. The delay is initially set to 20 ms (milliseconds).

To change this standard delay time, press the MANUAL SELECT button on the remote control repeatedly so that "TIME20mS" is displayed. Then, press the UP or DOWN button. Each time one of the buttons is pressed, the delay time changes as shown below.

DANCE LIVE HALL ARENA ROCK POP Jazz CLASS BGM TIME:20ms SOUY-61BOX 15ms ↔ 20ms ↔ 30ms

To adjust the speakers level balance while listening to the source (Dolby Pro Logic and 5.1 CH modes)

The speakers level balance can be changed after adjusting it with the noise sequencer. The balance can be changed whenever the Dolby Pro Logic system is turned on or the 5.1 CH function is selected.

1 Play a disc or video software recorded in Dolby Pro Logic or Dolby Digital Surround.

2 Press the MANUAL SELECT button on the remote control repeatedly so that "L/R", "CEN", "S-L", "S-R" or "S-W" (for sub woofer in 5.1 CH mode) appears on the display.

3 Press the UP or DOWN button while the speaker name to be adjusted is displayed.

SETTING THE CLOCK

2 1,3 VIDEO 1/5.1CH/BAND CLOCK

When the AC cord is connected for the first time, the clock on the display flashes.

Set the time as follows while the power is off.

1 Press the ENTER button.

The display becomes a little brighter.

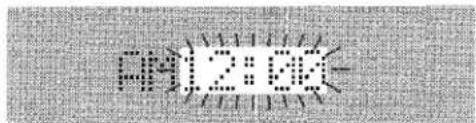

A9:12:00

2 Turn the MULTI JOG to designate the hour and the minute.

The time advances by turning it to right, and decreases by turning it to left.

3 Press the ENTER button.

The clock starts from 00 second.

Note

When the clock is set for the first time after purchase

Everything on the display will clear.

This is because the power economizing mode of the unit is activated, and is not a malfunction.

The power economizing mode can be canceled. See page 6 for details.

To correct the current time

Press the POWER button to turn the unit off. Press the ENTER button and carry out steps 1 to 5 above.

To display the current time

Press the CLOCK button on the remote control. The clock is displayed for 4 seconds.

To switch to the 24-hour standard

Press the VIDEO 1/5.1CH/BAND button while the current time is displayed.

Repeat the same procedure to restore the 12-hour standard.

If the clock display flashes while the power is off

This is caused by a power interruption. The current time needs to be reset.

If power is interrupted for more than approximately 24 hours, all settings stored in memory after purchase need to be reset.

SETTING THE SLEEP TIMER

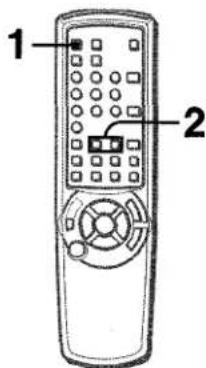

1 2

The receiver can be automatically turned off at a specified time.

Use the remote control.

1 Press the SLEEP button.

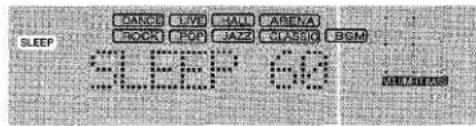

SLEEP GACE C LIVI GALL ARENA ROCK FOR JAZ2 CLASSO BGM SLEEP 6.0

2 Press the UP or DOWN button within four seconds to specify the time until the power is turned off.

Each time the button is pressed, the time changes between 5 and 240 minutes in 5-minute steps.

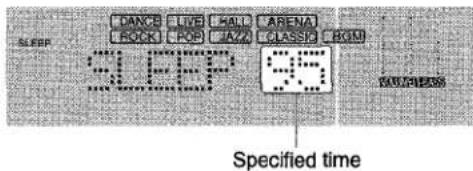

SLEEP DANCE LIVE MALL ARENA ROCK POP AYA CLASSIC ROM SLEEP Specified time

The time can also be selected by the MULTI JOG on the main unit.

To check the time remaining until the power is turned off. Press the SLEEP button once. The remaining time is displayed for four seconds.

To cancel the sleep timer

Press the SLEEP button twice so that "SLEEPoFF" on the display appears.

CARE AND MAINTENANCE

Occasional care and maintenance of the unit is needed to optimize the performance of your unit.

To clean the cabinet

Use a soft dry cloth.

If the surfaces are extremely dirty, use a soft cloth lightly moistened with mild detergent solution. Do not use strong solvents, such as alcohol, benzine or thinner as these could damage the finish of the unit.

SPECIFICATIONS

FM tuner section

Tuning range	87.5 MHz to 108 MHz
Usable sensitivity (IHF)	13.2 dBf
Antenna terminals	75 ohms (unbalanced)

AM tuner section

Tuning range	530 kHz to 1710 kHz (10 kHz step), 531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity	350 μV/m
Antenna	Loop antenna

Amplifier section

Power output	[Stereo Mode]Front100 watts per channel, Min. RMS at 8 ohms, from 40 Hz to 20 kHz, with no more than 0.9% Total Harmonic Distortion[Dolby Pro Logic or 5.1 CH Mode]Front60 watts per channel, Min. RMS at 8 ohms, from 40 Hz to 20 kHz, with no more than 0.9% Total Harmonic DistortionRear (Surround)60 watts per channel, Min. RMS at 8 ohms, 1 kHz, with no more than 0.9%Total Harmonic DistortionCenter60 watts, Min. RMS at 8 ohms, 1 kHz, with no more than 0.9% Total Harmonic Distortion
Total harmonic distortion	0.08 % (40 W, 1 kHz, 8 ohms, Front)
Inputs	AUDIO INPHONO: 2.5 mV, adjustable (47 kohms)CD, VIDEO 1/DVD/MD, VIDEO 2/LD/TV, VIDEO 3: 250 mV, adjustable (47 kohms)TAPE MONITOR: 350 mV (47 kohms)AUX: 200 mV, adjustable (47 kohms)5.1 INPUTFRONT, CENTER: 400 mV, adjustable (47 kohms)SURROUND: 400 mV, adjustable (47 kohms)SUB-WOOFER: 400 mV, adjustable (47 kohms)VIDEO IN: 1 Vp-p (75 ohms)
Outputs	AUDIO OUT (REC OUT): 200 mV (1 kohm)VIDEO OUT (MONITOR): 1 Vp-p (75 ohms)SUPER WOOFER: 1.2 VFRONT SPEAKERS IMP: 8 (front speakers A and B): acceptsspeakers of 8 ohms or more.SURROUND SPEAKERS IMP: 8 (surround speakers): acceptsspeakers of 8 ohms or moreCENTER SPEAKER IMP: 8 : acceptsa speaker of 8 ohms or more.PHONES (stereo jack): acceptshheadphones of 32 ohms or more
Muting	-20 dB

General

Power requirements	120 V AC, 60 Hz
Power consumption	125 W
Dimensions(W × H × D)	430 × 155 × 351 mm(17 × 6 ^1 /8 × 13 ^7 /8 in.)
Weight	10 kg (22 lb 1 oz.)

Specifications and external appearance are subject to change without notice.

DOLBY PRO LOGIC

Manufactured under license from Dolby Laboratories Licensing Corporation.

"DOLBY" the double-D symbol ☐ and "PRO LOGIC" are trademarks of Dolby Laboratories Licensing Corporation.

TROUBLESHOOTING GUIDE

If the unit fails to perform as described in these Operating Instructions, check the following guide.

GENERAL

There is no sound.

• Is the AC cord connected properly?
- Is there an incorrect connection? (→ page 3)
• There may be a short circuit in the speaker terminals.
→ Disconnect the AC cord, then correct the speaker connections.
- Was an incorrect function button pressed?
- Was the TAPE MONITOR button pressed?
- Are the FRONT SPEAKERS A and B buttons set correctly? ( page 6)

Sound is emitted from one speaker only.

• Is the BALANCE set appropriately?

• Is the other speaker disconnected?

Sound is heard at a very low volume.

- Has the MUTING button been pressed?

An erroneous display or a malfunction occurs.

→ Reset the unit as stated below.

TUNER SECTION

There is constant, wave-like static.

- Is the antenna connected properly? (→ page 5)

• Is the FM signal weak?

→ Connect an outdoor antenna.

The reception contains noise interference or the sound is distorted.

• Is the system picking up external noise or multipath distortion?
  → Change the orientation of the antenna.
  → Move the unit away from other electrical appliances.

To reset

If an unusual condition in the display window or malfunction occurs, reset the unit as follows.

1 Press the POWER button to turn off the power.
2 Press the POWER button while pressing the ENTER button.
Everything stored in memory after purchase is canceled.
If the power cannot be turned off in step 1 because of a malfunction, reset by disconnecting the AC cord and carry out step 2.

Instructions about each part on the unit or remote control are indicated on the pages listed below.

(in alphabetical order)

Parts	Pages
AUX	11
BALANCE	8
CD	11
CLOCK	17
DOLBY SURROUND	15
DOWN	10, 11, 13, 14, 16, 17
DSP	10
ECO	6, 7
ENTER	6, 7, 11, 12, 14, 17
FRONT SPEAKERS A, B	7
GEQ	9
MANUAL SELECT (TEST)	10, 16
MONO TUNER	13
MULTI JOG	6, 7, 9-12, 14, 15, 17
MULTI SELECTOR	11-14
MUTING	8
PHONES	7
PHONO	11
POWER	7, 13, 17
SET	6
SLEEP	17
TAPE MONITOR	7, 11, 12
T-BASS	8
TUNER BAND	11, 14
UP	10, 11, 13, 14, 16, 17
VIDEO 1/5.1 CH/BAND	11, 13, 14, 17
VIDEO 1/DVD/MD	11
VIDEO 2/LD/TV	11
VIDEO 3	11
VOLUME , VOL(√, ∧)	8

ADVERTENCIA

PARA REDUCIR EL RIESGO DE INCENDIOS O SACUDIDAS ELECTRICAS, NO EXPONGA ESTE APARATO A LA LLUVIA NI A LA HUMEDAD.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

ANTENNA AM LOOP 75Ω

DOWN,UP VOLUME MUTE BALANCE T-BASS VOL

CONTROL DEL VOLUMEN

ANTENNA AM LOOP 5Ω

A PROPOS DE LA TELECOMMANDE

DOWN,UP VOLUME MUTE BALANCE T-BASS VOL

REGLAGE DE VOLUME
