USER MANUAL EWA7300 AEG

Exterior view of a modern stainless steel AEG water heater with handle and control panel (no text or symbols on body)

WATERKETTLE EWA7300

GB Instruction book......13–17

Before using the appliance for the first time, please read the safety advice on page 14 carefully.

B C D E F G A H I I

DG

Teile

Exterior view of a modern electric kettle and a wall-mounted electrical outlet (no text or symbols visible)

Close-up of a circular device connected to a wall socket with an attached plug (no text or symbols visible)

Modern stainless steel kettle with handle and spout, no visible text or symbols

D

Illustration of a modern electric kettle with a circular inset showing its lid and handle (no text or symbols)

1. Die Abdeckung schließen und sicherstellen, dass sie einrastet. Andernfalls funktioniert die automatische Abschaltung nicht zuverlässig. Den Wasserkocher auf die Basis setzen. Den EIN/AUS-Schalter herunterdrücken; die Anzeige leuchtet auf und der Wasserkocher beginnt mit dem Erhitzen.
2. Κλείστε το καπάκι και βεβαιωθείτε ότι κλειδώνει κανονικά. Διαφορετικά, η λειτουργία αυτόματης απενεργοποίησης δεν θα λειτουργεί κανονικά. Τοποθετήστε το βραστήρα στη βάση. Πιέστε τον διακόπτη ΟΝ/ΟFF (ΕΝΕΡΓΟΠΟΙΗΣΗ/ΑΠΕΝΕΡΓΟΠΟΙΗΣΗ). Η ενδεικτική λυχνία θα ανάψει και ο βραστήρας θα αρχίσει να ζεσταίνεται.
3. Sluit de klep zodat deze goed vastklikt. Anders werkt de functie voor automatisch uitschakelen niet goed. Plaats de waterkoker op de voet. Druk de AAN/UIT-schakelaar naar beneden; het indicatielampje gaat branden en de waterkoker wordt opgewarmd.
4. Fermez le couvercle et assurez-vous qu'il soit fermé correctement. Si le couvercle est mal enclenché, l'arrêt automatique ne fonctionnera pas correctement. Placez la bouilloire sur son socle. Appuyez sur l'interrupteur marche/arrêt ; le voyant s'allume et la bouilloire commence à chauffer.

Close-up of a kitchen blender with a magnified view showing a 3D cube and upward arrow (no text or symbols)

Electric kettle and electrical outlet wall with a grid-patterned cover (no text or symbols visible)

D

Illustration of a metallic kettle with a lid and open lid, showing a drop in the lid (no text or symbols)

Modern stainless steel kettle with a curved handle and water drop, next to a small plastic bottle (no text or symbols visible)

1. Für ein optimales Ergebnis wird eine Entkalkung alle drei Monate empfohlen. Den Wasserkocher der Produktanleitung entsprechend mit Wasser und Entkalker füllen. Die Lösung nicht kochen lassen, da sie überschäumen könnte. Danach den Wasserkocher gründlich mit frischem Wasser ausspülen.

2. Συνιστάται η αφαίρεση των αλάτων κάθε τρεις μήνες για καλύτερη απόδοση. Γεμίστε το βραστήρα με νερό και αποσκληρυντικό σύμφωνα με τις οδηγίες χρήσης του αποσκληρυντικού. Μη βράζετε το διάλυμα γιατί μπορεί να ξεχειλίσει. Στη συνέχειαξεπλύνετε καλά το βραστήρα με τρεχούμενο νερό.

3. Voor de beste resultaten raden we u aan om het apparaat driemaandelijks te ontkalken. Vul de waterkoker met water en ontkalker, volgens de gebruiksaanwijzing van het ontkalkingsproduct. Laat de oplossing niet koken, aangezien deze kan gaan schuimen. Naderhandspoelt u de waterkoker grondig na met schoon water.

4. Pour obtenir des performances optimales, il est recommandé de détartrer la bouilloire tous les trois mois. Remplissez la bouilloire d'eau et de détartrant en respectant les consignes d'utilisation du produit détartrant. Ne laissez pas bouillir la solution, car la mousse formée pourrait déborder. Puis, rincez soigneusement l'intérieur de la bouilloire à l'eau claire.

B C D E F G A H I I

GB

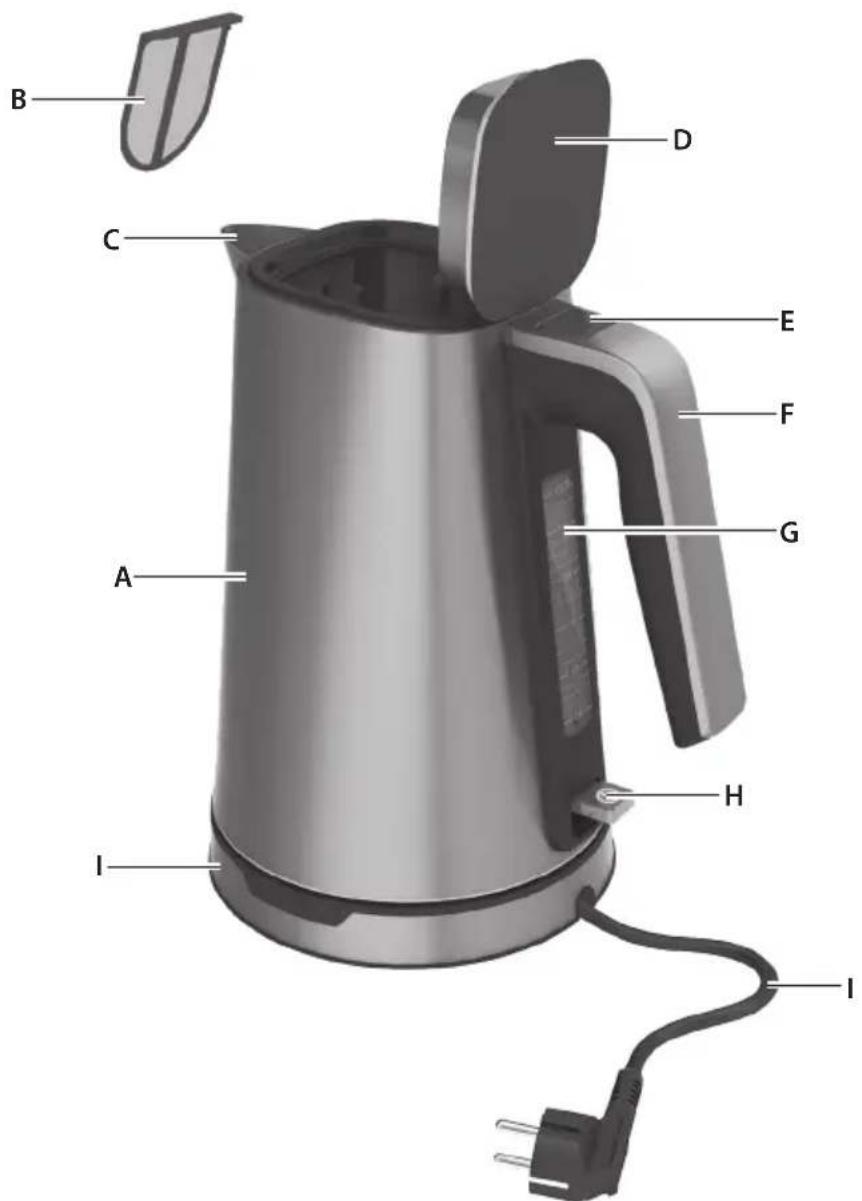

Components

A. Jug
B. Removable mesh filter
C. Spout
D. Lid
E. Open lid button
F. Handle
G. Water level indicator
H. ON/OFF switch with indicator light
I. Separate base and mains cable

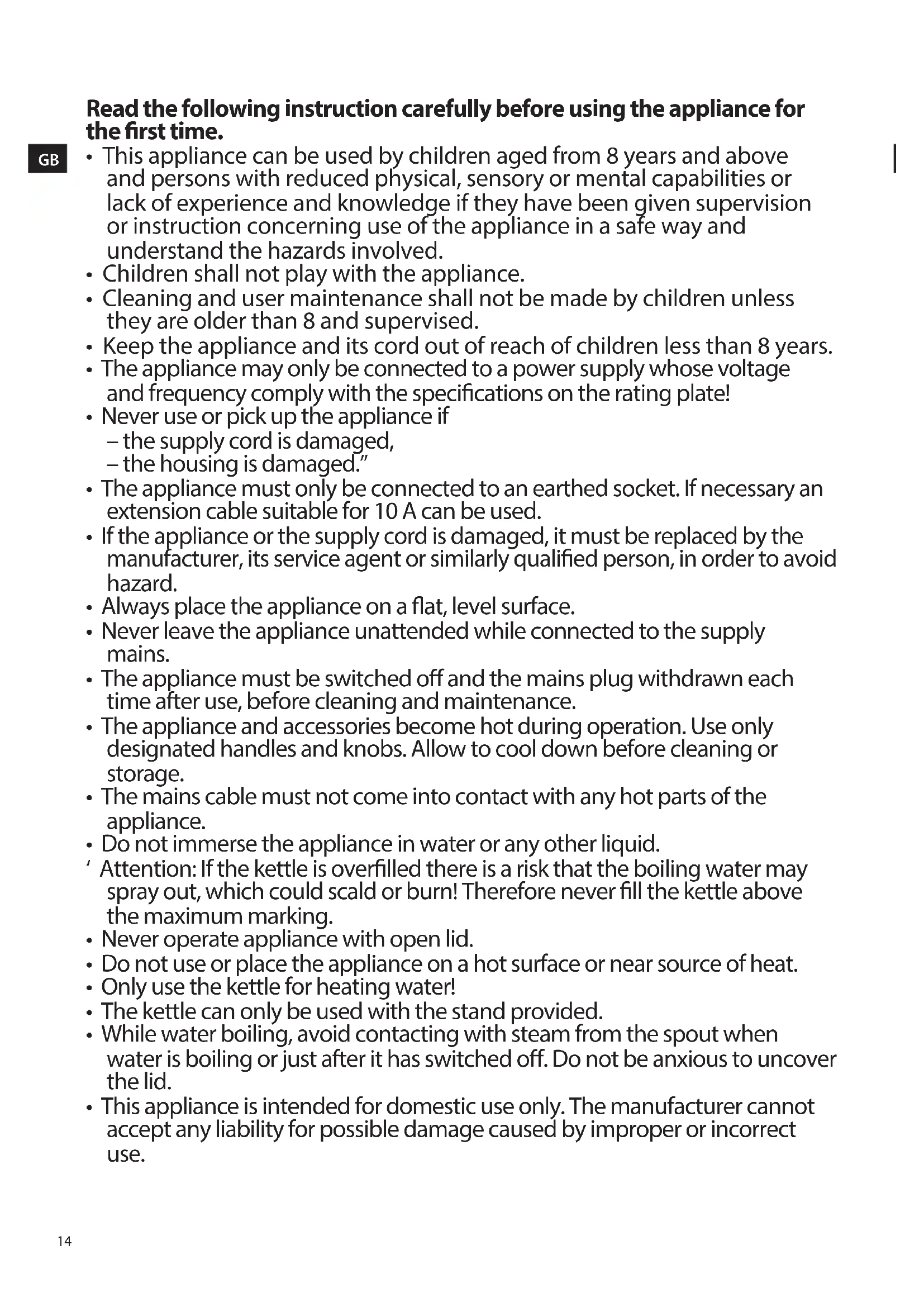

Read the following instruction carefully before using the appliance for the first time.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!
• Never use or pick up the appliance if – the supply cord is damaged, – the housing is damaged."
• The appliance must only be connected to an earthed socket. If necessary an extension cable suitable for 10 A can be used.
• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.
  • Always place the appliance on a flat, level surface.
• Never leave the appliance unattended while connected to the supply mains.
• The appliance must be switched off and the mains plug withdrawn each time after use, before cleaning and maintenance.
• The appliance and accessories become hot during operation. Use only designated handles and knobs. Allow to cool down before cleaning or storage.
• The mains cable must not come into contact with any hot parts of the appliance.
• Do not immerse the appliance in water or any other liquid.
  ' Attention: If the kettle is overfilled there is a risk that the boiling water may spray out, which could scald or burn! Therefore never fill the kettle above the maximum marking.
• Never operate appliance with open lid.
• Do not use or place the appliance on a hot surface or near source of heat.
• Only use the kettle for heating water!
• The kettle can only be used with the stand provided.
• While water boiling, avoid contacting with steam from the spout when water is boiling or just after it has switched off. Do not be anxious to uncover the lid.
• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.

GB

Electric kettle and wall-mounted electrical outlet with a grid-patterned cover (no text or symbols visible)

1. Before first use: Boil water in the kettle and pour it out. Repeat for 2 or 3 times. This will remove any remaning dust or residues. (See the following steps on how to use the kettle). Wipe the outside of the kettle with a damp cloth.

Electric shock absorber with attached plug socket and cable (no text or symbols visible)

1. Place the base unit on a firm and flat surface. Plug the mains plug into a wall socket. Redundant cord can be wound up at the bottom of base unit.

3D rendered image of a stainless steel kettle with handle and spout (no text or symbols visible)

1. Press the Open lid button to open the lid. Fill the kettle with fresh tap water to the desired level (Min. 0.5L - Max.1.5L).

Illustration of a modern stainless steel kettle with an inset showing its internal structure (no text or symbols)

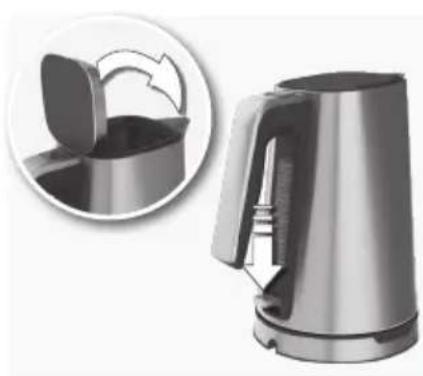

1. Close the lid and make sure it snaps in correctly. Otherwise the auto switch off function will not work reliably. Place the kettle onto the base. Press down the ON/OFF switch; the indicator light will illuminate and the kettle will start to heat up.

Close-up of a kitchen blender with a magnified view showing a handle and upward arrow (no text or symbols visible)

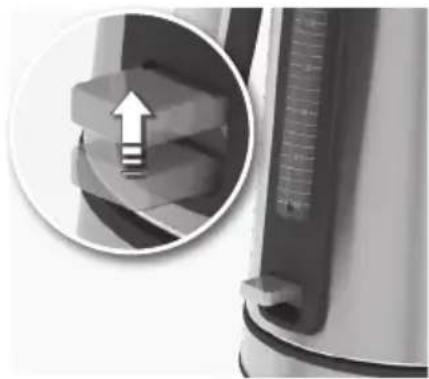

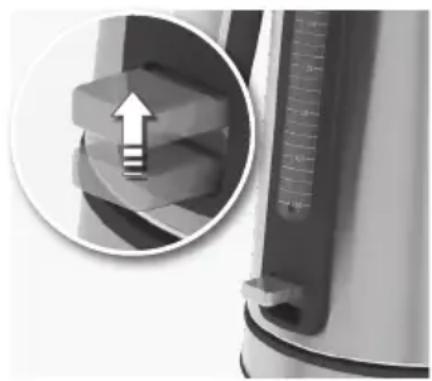

1. The automatic switch off function. When the water has boiled or the kettle is moved from the base, it will switch off automatically. If you wish to stop the heating process before the water is boiling, simply lift up the ON/OFF switch to the OFF position.

Cleaning

Electric kettle and electrical outlet wall with a grid-patterned cover (no text or symbols visible)

1. Before cleaning, always unplug the appliance. Wipe the outside of the kettle with a damp cloth. Occasionally rinse out the kettle with clean water.

Warning! Never immerse the housing, plug, and cord in water or any other fluid.

Illustration of a modern kettle with a lid and open lid, showing a drop in the lid (no text or symbols)

1. To clean the mesh filter, grab the mesh filter and lift it out. Rinse under clean, running water, and insert it back into the kettle in the correct orientation.

Cleaning the base plate – a stainless steel cleaning product may be used to clean the metal of the base plate.

Modern stainless steel kettle with a curved handle and a small bottle beside it (no text or symbols visible)

1. Decalcifying is recommended every three months for best performance.

Fill the kettle with water and decalcifier according to decalcifier product instructions. Do not boil the solution as it could foam over. Afterwards, rinse kettle thoroughly with fresh water.

Troubleshooting

Problem Possible cause Solution
The appliance switches off before boiling. Too much lime scale at the base of the kettle. Run the decalcifying procedure.
The appliance does not switch off. Close lid until it locks.
		Instert the strainer correctly.
The appliance cannot be switched on. After operating with little or no water, the appliance has not cooled down sufficiently.		Allow to cool a short time and try again.

Disposal

GB

Recycle the materials with the symbol

. Put the packaging in applicable trainers to recycle it.

Help protect the environment and human health and to recycle waste of electrical and electronic appliances.

Do not dispose appliances marked with

the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
