USER MANUAL Deli 4 K414ST AEG

Line drawing of a simple ceramic kettle with handle and spout (no text or symbols)

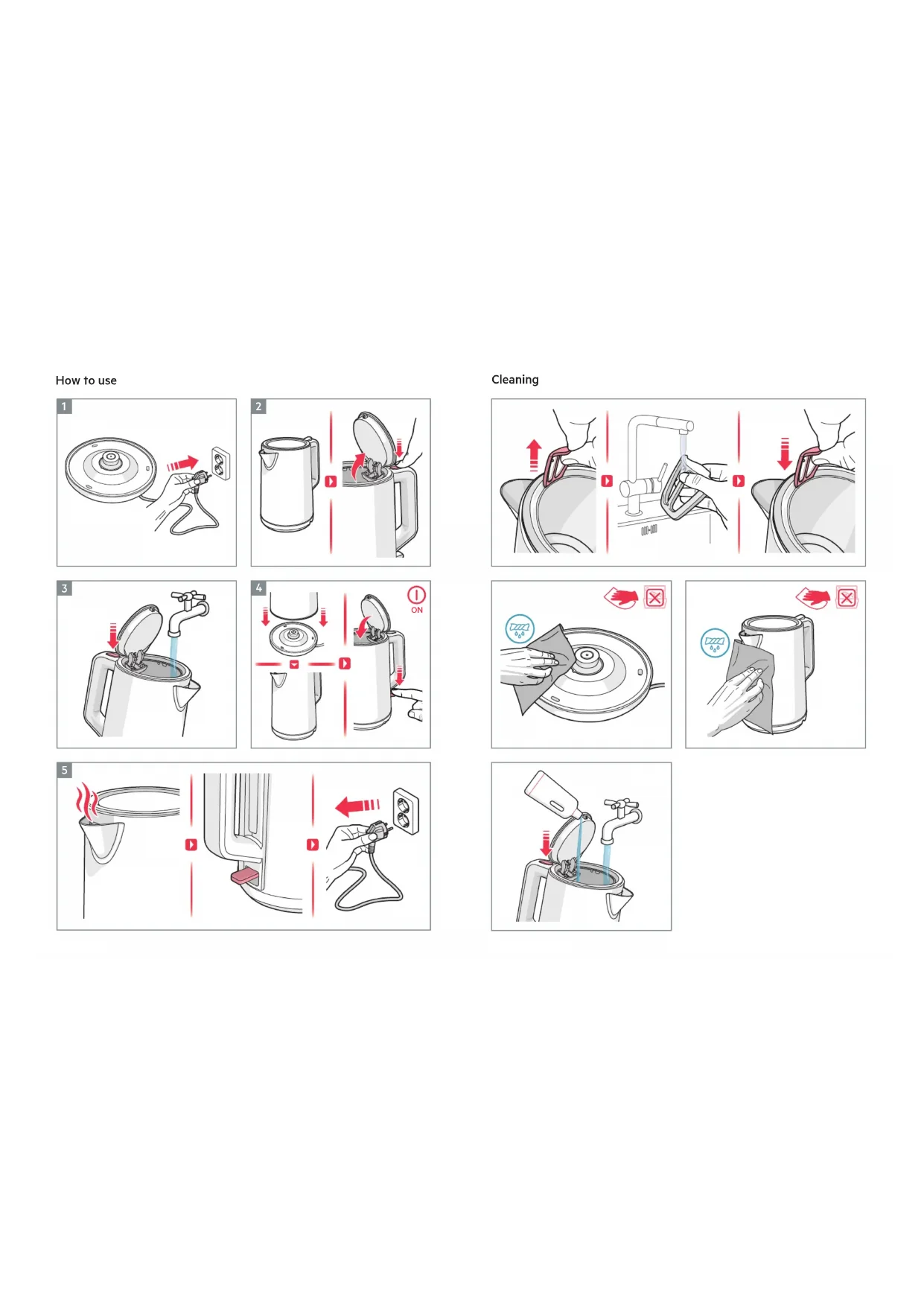

How to use

Illustration of a hand connecting a pulley to an electrical outlet with a cable (no text or symbols)

Illustration of a kettle being opened with a lid, showing the process (no text or symbols)

Illustration of a kitchen sink with a faucet and water drop, showing liquid transfer from the lid to the drain (no text or symbols)

4 ON

5 ▶ ▶ ←

Cleaning

Illustration showing three-step instructions for using a tool to lift a seat, with red arrows indicating direction of movement.

Diagram illustrating a hand using a power filter to clean a circular component, with warning symbols and red prohibition signs.

Illustration showing a hand cleaning a cloth with a magnified inset showing a 'BUTY' label and a red warning symbol.

Illustration of a kitchen sink with a water tap and pouring liquid, showing a red arrow indicating flow direction (no text or symbols)

Thank you for choosing an AEG product. In order to ensure the best results, always use original AEG accessories and spare parts. They have been designed especially for your product. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information:

www.aeg.com/webselfservice

Register your product for better service:

www.registeraeg.com

Buy Accessories and Consumables for your appliance:

www.aeg.com/shop

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate.

Model, PNC, Serial Number.

Warning / Caution-Safety information

General information and tips

Environmental information

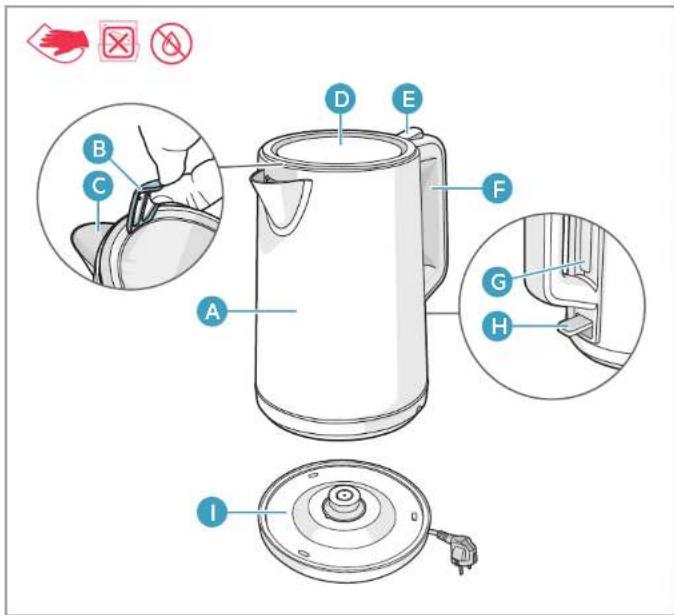

COMPONENTS

Diagram of a kettle with labeled parts and safety icons for cleaning or repair.

A Jug
B Removable mesh filter
C Spout
D Lid
E Opening lid button
F Handle
G Water level indicator
H ON/OFF switch with indicator light
I Separate base and mains cable

GETTING STARTED

1 Before first use, wipe the inside and outside of the kettle with a damp cloth.

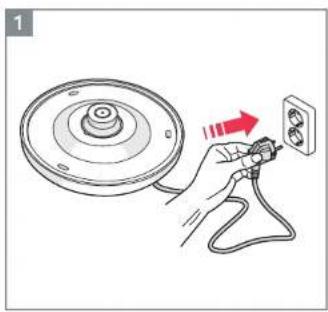

2 Place the base unit on a firm and flat surface. Plug the mains plug into a wall socket. Redundant cord can be wound into the bottom of base unit.

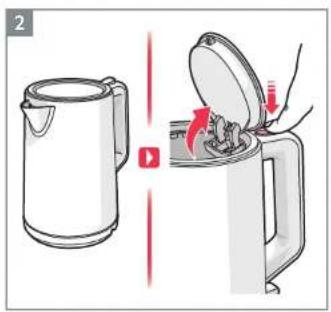

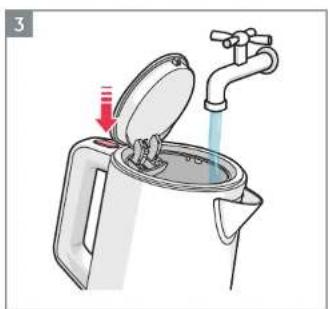

3 Press the button to open the lid, pour water into the kettle. Make sure water level is visible in the water level indicator, but not exceeding the Max. mark. (Min. 0.75L - Max. 1.7L).

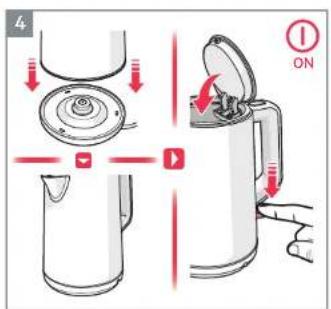

4 Close the lid and make sure it snaps in correctly. Otherwise the auto switch off function will not work reliably. Place the kettle onto the base. Press down the ON/OFF switch; the indicator light will illuminate and the kettle will start to heat up.

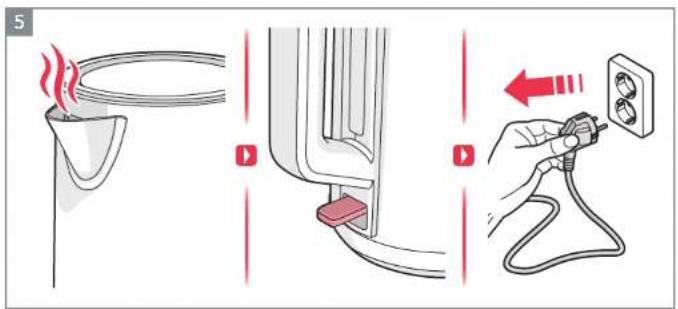

5 The automatic switch off function. When the water has boiled or the kettle is moved from the base, it will switch off automatically. If you wish to stop the heating process before the water is boiling, simply lift up the ON/OFF switch to the OFF position.

CLEANING AND CARE

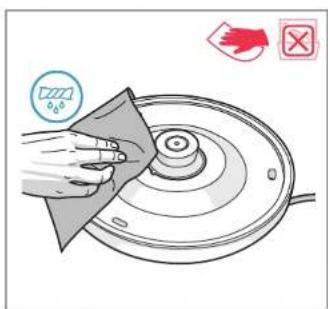

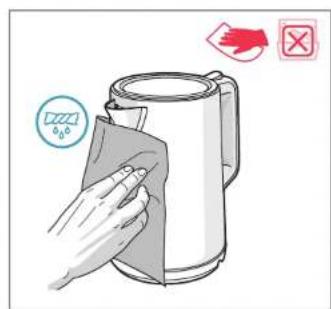

1 Before cleaning, always unplug the appliance. Never rinse or immerse the kettle or base unit in water. Just wipe with a damp cloth, using no abrasive detergents. Occasionally rinse out the kettle with clean water.

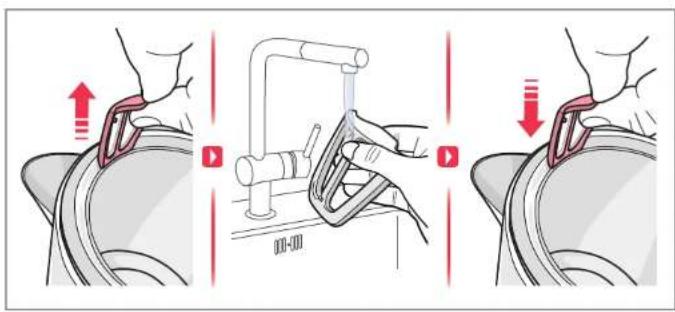

2 To clean the mesh filter, grab the strainer insert and lift out. Cleaning the heating plate – superficial spots of rust may appear on the base unit. Remove with a stainless steel cleaning agent.

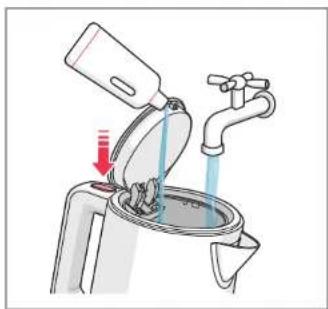

3 Decalcifying is recommended regularly, depending on water hardness. Fill the kettle with water and decalcifier according to decalcifier product instructions. Do not boil the solution as it may foam over. Afterwards, rinse kettle thoroughly with fresh water.

SAFETY ADVICE

This appliance can be used by children aged from 8 years and above a if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 years old and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years old.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This appliance is intended to be used in household and similar applications such as:
– staff kitchen areas in shops, offices and other working environments;
- farm houses;
– by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.

Do not immerse the appliance in water or any other liquid.

Attention: If the kettle is overfilled there is a risk that the boiling water may spray out, which could scald or burn! Therefore never fill the kettle above the maximum marking.

Never operate appliance with open lid.

The appliance is only to be used with the stand provided.

Warning: Avoid spillage on the connector.

Attention: The heating element surface is subject to residual heat after use.

The appliance must be switched off and the mains plug withdrawn each time after use, before cleaning and maintenance.

No action is needed to adapt the product to 50 or 60Hz.

The product will adjust itself.

DISPOSAL

This symbol on the product or on its packaging indicates that the product may not be treated as household waste. To recycle your product, please take it to an official collection point or to an AEG service center that can remove and recycle the battery and electric parts in a safe and professional way.

Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

AEG reserves the right to change products, information and specifications without notice.

TROUBLESHOOTING

Problem Cause		Solution
The appliance switches off before boiling.	Too much lime scale at the base of the kettle.	Run the decalcifying procedure.
The appliance does not switch off.		Close lid until it locks.
		Insert the strainer correctly.
The appliance cannot be switched on.	After operating with little or no water, the appliance has not cooled down sufficiently.	Allow to cool a short time and try again.
