TM1987 - Kettle Tomado - Free user manual and instructions

Product type	Electric kettle
Brand	Tomado
Model	TM1987
Dimensions (L × W × H)	238 × 151 × 218 mm
Net weight	0.96 kg
Power supply	220-240 V ~ 50/60 Hz, 1850-2200 W
Capacity	Not specified in the manual (common estimate: 1.5 to 1.7 L)
Material	Plastic and stainless steel (based on appearance)
Base type	360° swivel base (cordless)
Main functions	Automatic boil, keep warm (2 h at 85°C), temperature selection (60/70/80/90°C), color LED indicator
Safety	Automatic shut-off, dry boil protection, overflow protection
Descaling filter	Yes, removable
Water gauge	Yes, transparent
Lid opening	Push-button
Maintenance and cleaning	Clean the exterior with a damp cloth. Descale regularly (at least once a month) with white vinegar or citric acid
Repairability and spare parts	Repairs by an authorized service center. 2-year warranty (excluding improper use)
General information	Indoor use only. Stable, flat surface. Keep out of reach of children

Frequently Asked Questions - TM1987 Tomado

How to descale my Tomado TM1987 kettle?

Descale at least once a month. Use either 0.5 L of 8% white vinegar (let it sit for 1 hour at cold), or 0.5 L of boiling water with 25 g of citric acid (let it sit for 15 minutes). Rinse thoroughly 5 to 6 times.

What is the capacity of the kettle?

The manual does not specify the exact capacity, but kettles in this category generally hold between 1.5 and 1.7 L. Fill between the min and max marks.

How to set the water temperature?

Turn the thermostat (on/off button) to select the temperature: 60°C (green), 70°C (blue), 80°C (yellow), 90°C (purple). The kettle stops automatically at the target temperature.

What to do if the kettle does not turn on?

Check that the lid is properly closed and that the power button is not blocked. Ensure the base is plugged in and the kettle is correctly placed on the base. If the problem persists, contact customer service.

Does the kettle keep water hot automatically?

Yes, a keep warm function is available. Press the on/off button: the indicator light blinks. After boiling, the kettle keeps water at about 85°C for 2 hours.

Can I plug the kettle into an extension cord?

Yes, provided you use an extension cord rated at 10 A minimum. Lower rated cords may overheat. Position the extension cord to avoid any risk of pulling or snagging.

How to clean the exterior of the kettle?

Always unplug the appliance. Clean the exterior with a damp cloth and non-toxic cleaner. Never immerse the kettle, cord, or base in water.

What accessories are included?

The kettle comes with its base. No other accessories are mentioned in the manual.

The kettle turns off before the water boils, what should I do?

This may be due to insufficient water (fill above the min mark) or a poorly closed lid. If the dry boil protection activated, wait for the kettle to cool down, then fill it with cold water.

Where to find Tomado after-sales service?

Contact your retailer first. For any information, write to Tomado Consumenservice, Antwoordnummer 19016, NL-1000VC Amsterdam (Netherlands). The warranty is 2 years.

USER MANUAL TM1987 Tomado

Congratulations on your purchase of this high-quality product. Read these instructions carefully, so that you can make the best use of this Water kettle, these instructions give you all the necessary directions and advice for using, cleaning and maintaining the appliance. If you follow these instructions, you will always get the best result from the appliance.

We hope that you will enjoy using this Water kettle.

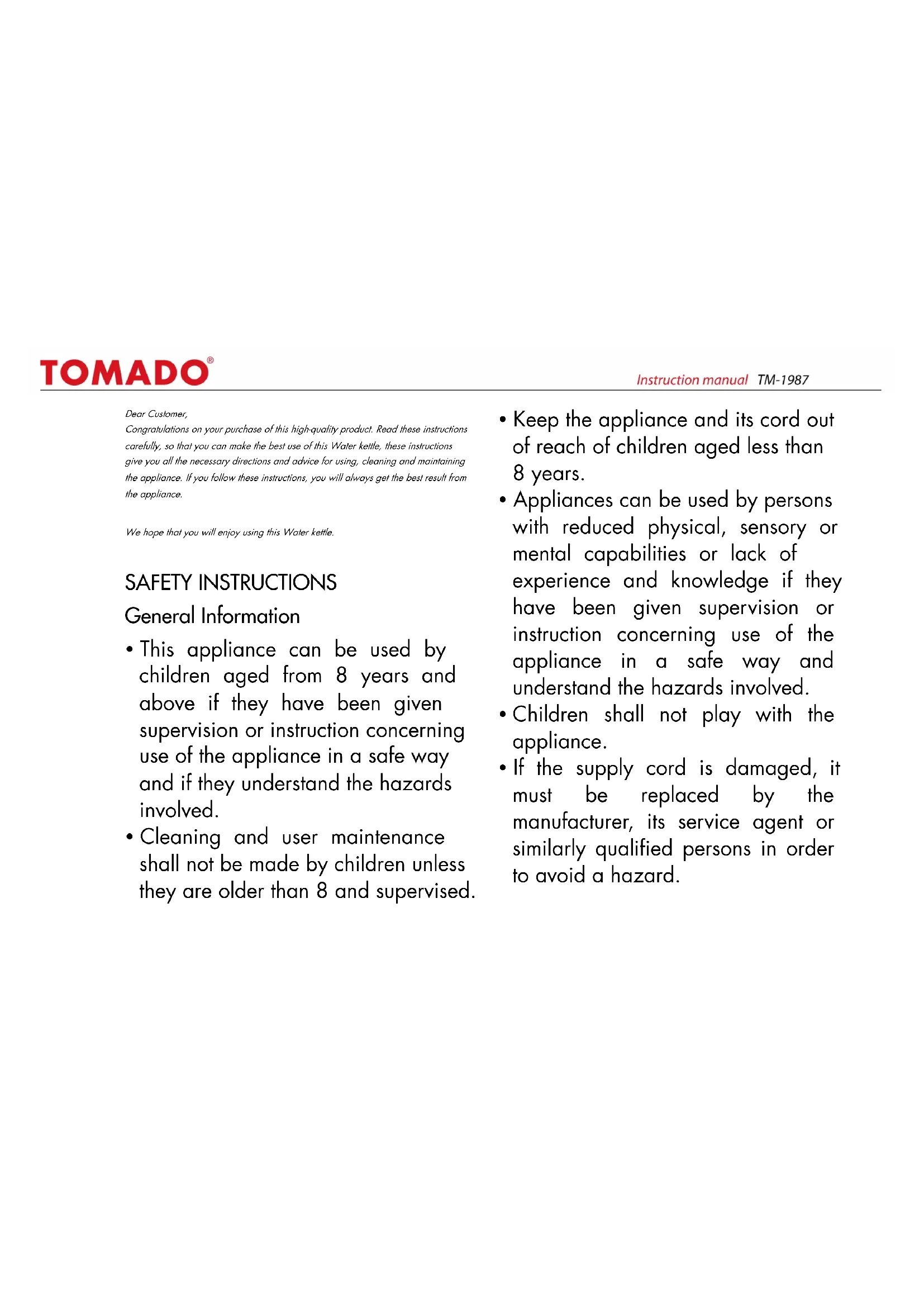

SAFETY INSTRUCTIONS

General Information

• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Keep the appliance and its cord out of reach of children aged less than 8 years.

• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• If the kettle is overfilled, boiling water may be ejected.

• Regarding the instructions for cleaning the surfaces which come in contact with food, please refer to the paragraph "MAINTENANCE AND CLEANING" of the manual.
• Warning: Avoid spillage on the connector.
• There is a potential risk of injuries from misuse.
• The heating element surface is subject to residual heat after use.

• This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shop, offices and other working environment;

o Farm houses;

• By clients in hotels, motels and other residential type environments;
  o Bed and breakfast type environments.
• Read these instructions carefully and keep them in a safe place.
• Only use the appliance as described in this manual.
• In case of damage caused by failure of not living up to this manual the warranty will decay immediately. The manufacturer/importer accepts no liability for damages caused by failure to not living up the manual, a negligent use or use not in accordance with the requirements of this manual.
• Always remove the power cord and let it cool:

Before moving the unit;
Before the unit is stored;
o Before you go mounting or dismantle parts;
o Before cleaning or maintenance work;
O After use.

• Only have the appliance repaired by a qualified service centre (^*) .

(*)Qualified service center: after-sales service of the manufacturer/importer, which is qualified to carry out repair to avoid any kind of danger. In case of problems please return the appliance to this service.

Electricity and heat

• Before use, check that the mains power supply voltage is the same as the voltage indicated on the appliance.
• Always plug the appliance into an earthed plug socket.
• Regularly check the power cord for damage.

• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to manufacturer or the nearest authorized service agent for examination, repair or electrical or mechanical adjustment.

• To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

• Make sure the power cord does not come into contact with hot surfaces or steam.
• Always remove the plug from the plug socket before you move the appliance.
• The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.
• If an extension cord is absolutely necessary, a 10-ampere cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord

so that it cannot be pulled or tripped over.

• To avoid a circuit overload, do not operate another high voltage appliance on the same circuit.
• To protect against electric shock do not immerse cord, plugs, or housing in water or other liquid.
• Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and do not use it again.
• Do not use the appliance close to hot objects such as a stove or oven.

Using the appliance

• The use of accessory attachment not recommended by the appliance manufacturer may cause injuries.
• Only use the appliance indoors, in dry areas away from water.
• Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
• To reduce the risk of electric shock, do not use the appliance outdoors or on wet surfaces.
• Place the appliance on a stable, level surface from which it cannot fall off.

• Use the appliance on a flat, dry and heat resistance surface, not on varnished furniture.

• Place the appliance at least 5cm off the wall or flammable objects (such as curtains, candles or towels).

• Place the appliance on a stable, level surface and not close to hot objects or open flames (e.g. hotplates).
• Disconnect the mains plug: after each time operating; if there is any interference with operation; before cleaning.
• Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
• Do not use the appliance if the mains cable or plug show signs of damage, if the appliance has fallen on the floor or has other parts been

damage. In such cases take the appliance to a specialist for checking and repair if necessary.

Children are unable to recognize the hazards associated with incorrect handling of electrical appliances. Therefore, children should never use electric household appliances unsupervised.

• Close supervision is necessary for any appliance being used by or near children.

• Never leave the appliance unattended during use.

• Do not remove the lid while the water is boiling.

• Ensure that the kettle is switched off before removing it from its stand.

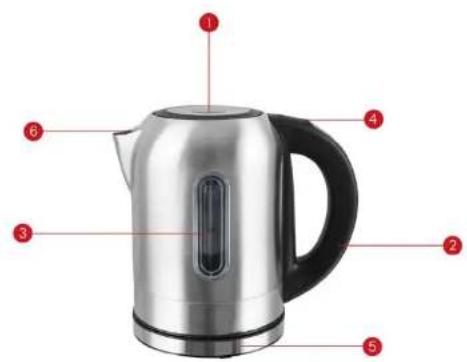

PARTS DESCRIPTION

1. Lid opening button
2. Handle
3. Water Gauge
4. On/Off Switch and adjustable temperature control
5. Power Base
6. Anti-calc filter

FIRSTUSE

• Remove all packaging from the appliance.
• Boil at first twice a full jug of water.
  Discard the boiled water. If you fill the kettle again with water, it cools off the boil-dry protection so you can normally use the kettle again.

USE

The kettle can be used only with the supplied base.
- Remove the kettle from the base, so that during the filling no water will be spilled on the base.
- Open the cover by pressing the button [1] to open the lid.
- Fill the kettle with a volume of water between the minimum and maximum-filling marks. Too little water will cause the kettle to shut off too early, too much water will cause spilling boiling water.

Note: This water kettle is equipped with an overfill safety feature. This will make sure that in case of overfilling the kettle the water will not come in contact with electrical components of the kettle ensuring no unsafe situations can occur. In case of overfill the water will be lead through the inner side of the kettle and will exit the kettle at the bottom, away from the electrical element.

• Close the cover securely.
  Put the kettle on the base (5).
• Insert the plug into the socket
• Switch on the power button [4]. The indicator light will illuminate. Once the water boils, the kettle switches off automatically. Note: Make sure that the switch is not blocked and that the lid is properly closed. The kettle will not turn off when the switch is blocked or if the lid is not closed properly.
• Boil the water, if desired, one more time. But wait at least 30 seconds after the kettle has been automatically switched off.
• Take the kettle from the base and pour the water slowly and carefully without tilting too quickly. If the kettle is accidentally switched on without water, the boil-dry protection switches it off automatically. If this happens, let the kettle to cool and fill it with cold water and resume.
• Ensure that the lid is closed and do not open it while the water boils. When you open the lid during the cooking cycle the steam can cause burns.
• Be careful when opening the lid when the kettle is hot.

• If you want to stop the kettle before the water has boiled, then turn off the kettle before you remove the kettle from the base.

• Ensure that the kettle has been switched off before taking it from the base.
  After use, remove the plug from the socket.

Advanced operation:

• Keep warm function:

Press the On/Off Switch for 3 seconds; the kettle will be shining with red light on and off. After the water boils, the kettle will keep it warm for 2 hours and go on heating when the temperature drops below 85^ .

• Temperature showing by LED display:

Use the adjustable temperature control to choose the desired water temperature. When the desired temperature reaches, the kettle will stop heating.

60^ :Greenlight.

70^ : Blue light.

80^ Yellow light.

90^ : Purple light.

CAUTION!

• If the kettle is overfilled, boiling water may splash.

MAINTENANCE AND CLEANING

Always disconnect the appliance from the power outlet before cleaning.
- Never immerse the kettle area or cord in water, or allow moisture to contact with these parts.
- Wipe the appearance of body with a mild and damp cloth or cleaner, never use a poisonous cleaner.
- Descale regularly, preferably at least once a month and more frequently if your water is very hard.

To descale your kettle, use:

• white vinegar

• fill the kettle with half a litre of vinegar

• leave to stand for 1 hour without heating
• citric acid:
• boil half a litre of water
• add 25g of citric acid and leave to stand for 15 minutes.

• a specific descending agent for plastic or stainless steel kettles:

• follow the manufacturer's instructions.

Empty your kettle and rinse it 5 or 6 times.

TECHNICAL DATA

Type nr: TM - 1987

Power: 1850-2200W

Supply voltage: 220-240V ~ 50/60Hz

Dimensions:

Product measurements: 238 × 151 × 218 ~mm

Net weight: 0.96kg

TOMADO

Warranty regulations

We would like to congratulate you on buying an appliance from the TOMADO product range.

Warranty regulations

TOMADO provides a 2-year warranty for all defects caused by hidden deficiencies which render the appliance useless for normal operation.
The warranty runs from the date of purchase; we advise you to carefully save your receipt.
- Within the warranty period any defects in production or material will be resolved free of charge, by means of reparation, replacement of parts or replacement of the appliance as a whole.
- The warranty certificate has to be filled in by the sales person at the moment of purchase.
- Repairs will only be made under warranty in case it can proven (by means of a filled in warranty card and the receipt) that the day the complaint is filed falls into the warranty period.
- The warranty does not apply when defects or damages result from an accident, misuse, negligence (e.g. incorrect cleansing), or when repairs of alterations have been executed outside the authorized TOMADO service centre (excl. disassembling, as stated in the instruction manual).
The warranty does not cover any defects arising when the appliance is connected to the wrong outlet voltage, not following the guidelines in the instruction manual and usual wear and tear.
- The warranty does not cover any defects arising from the lack of frequent descaling of appliances, whatever type of water has been used (especially for steam irons, coffee machines and water boilers).
TOMADO cannot be held responsible for any material damage or personal accident resulting from connecting

the appliance in breach of the locally applicable safety regulations and technical standards (for instance an inferior AC outlet). The warranty under no circumstances grants the right for any compensation.

All other claims, including damages, are excluded unless the Law states otherwise.
- Other warranty regulations than the warranty regulations stated above are not applicable.

Service

For more information you can write to the following address (postage paid):

TOMADO Consumenservice

Antwoordnummer 19016

NL-1000VC Amsterdam

The Netherlands

What do you do in case your appliance does not work?

When your appliance shows defects, you can refer to your salesperson. Your salesperson will make sure any defect will be repaired as soon as possible.

Repairs outside the warranty period

You can always hand in your appliance to have it repaired outside the warranty period. This will of course not be free of charge.

Guidelines for protection of the environment

This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of at a central point for recycling of electric and electronic domestic

appliances. This symbol on appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection..
