USER MANUAL S74011CMX2 AEG

WARNING: Keep ventilation openings, in the appliance enclo-

sure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to

accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food

storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid a hazard due to the instability of the ap-

pliance, it must be fixed in accordance with the instructions.

• If your appliance uses R600a as a refrigerant – you can learn this information from the label on the cooler- you should be careful during shipment and installation to prevent your appliance’s cooler elements from being damaged. Although R600a is an environmentally friendly and natural gas. As it is explosive, in the event of a leak due to damage to the cooler elements, move your fridge from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.

• While carrying and positioning the fridge, do not damage the cooler gas circuit.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• This appliance is intended to be used in household and similar applications such as; - staff kitchen areas in shops, offices and other working envi- ronments

PART- 1. BEFORE USING THE APPLIANCEEN - 3 -

- farm houses and by clients in hotels, motels and other residential type environments - bed and breakfast type environments; - catering and similar non-retail applications

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have it installed by an authorized electrician.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance, shall not be made by children without supervision.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.EN - 4 - Safety warnings

• Do not use multiple receptacles or extension cord.

• Do not plug in damaged, torn or old plugs.

• Do not pull, bend or damage the cord.

• This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.

• Do not plug-in or out the plug from the receptacle with wet hands to prevent electrocution!

• Do not place glass bottles or beverage cans in the freezer depart- ment. Bottles or cans may explode.

• Do not place explosive or flammable material in your fridge for your safety. Place drinks with higher alcohol amount vertically and by closing their necks tightly in the fridge department.

• When taking ice made in the freezer department, do not touch it, ice may cause ice burns and/or cuts.

• Do not touch frozen goods with wet hands! Do not eat ice-cream and ice cubes immediately after you have taken them out of the freezer department! Old and out-of-order fridges

• If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.

• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discard- ing your old fridges. Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle and recovery purposes. Notes:

• Please read the instruction manual carefully before installing and using your appli- ance. We are not responsible for the damage occurred due to misuse.

• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.

• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.EN - 5 -

• Do not re-freeze frozen goods after they have melted. This may cause health issues like food poisoning.

• Do not cover the body or top of fridge with lace. This affects the perfor- mance of your fridge.

• Fix the accessories in the fridge during transportation to prevent damage to accesso- ries. Installing and operating your fridge Before starting to use your fridge, you should pay attention to the following points:

• Operating voltage for your fridge is 220-240 V at 50Hz.

• We do not take the responsibility of the damages that occur due to ungrounded usage.

• Place your fridge in a place that it would not be exposed to direct sunlight.

• Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores, and should be at least 5 cm away from electrical ovens.

• Your fridge should never be used outdoors or left under the rain.

• When your fridge is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity on the outer surface.

• Do not place anything on your fridge, and install your fridge in a suitable place so that at least 15 cm is available on the upper side.

• The adjustable front legs should be adjusted to make sure your appliance is level and stable. You can adjust the legs by turning them clockwise (or in the opposite direction). This should be done before placing food in the fridge.

• Before using your fridge, wipe all parts back with warm water added with a tea spoonful of sodium bicarbonate, and then rinse with clean water and dry. Place all parts after cleaning.

• Install the plastic distance guide (the part with black vanes at the rear) by turning it 90° as shown in the figure to prevent the condenser from touching the wall.

• Refrigerator should be placed against a wall with a free distance not exceeding 75 mm. Before Using your Fridge

• When it is operated for the first time or after transportation, keep your fridge in the upright position for 3 hours and plug it on to allow efficient operation. Otherwise, you may damage the com- pressor.

• Your fridge may have a smell when it is operated for the first time; the smell will fade away when your fridge starts to cool.EN - 6 - Information on No-Frost technology No-frost refrigerators differ from other static refrigerators in their operating principle. In normal fridges, the humidity entering the fridge due to door openings and the humidity inherent in the food causes freezing in the freezer department. To defrost the frost and ice in the freezer compartment, you are periodically required to turn off the fridge, place the food that needs to be kept frozen in a separately cooled container, and remove the ice gathered in the freezer department. The situation is completely different in no-frost fridges. Dry and cold air is blown into the fridge and freezer compartments homogeneously and evenly from several points via a blower fan. Cold air dispersed homogeneously and evenly between the shelves cools all of your food equally and uniformly, thus preventing humidity and freezing. Therefore your no-frost fridge allows you ease of use, in addition to its huge capacity and stylish appearance.EN - 7 - PART- 2. USAGE INFORMATION Display and control panel

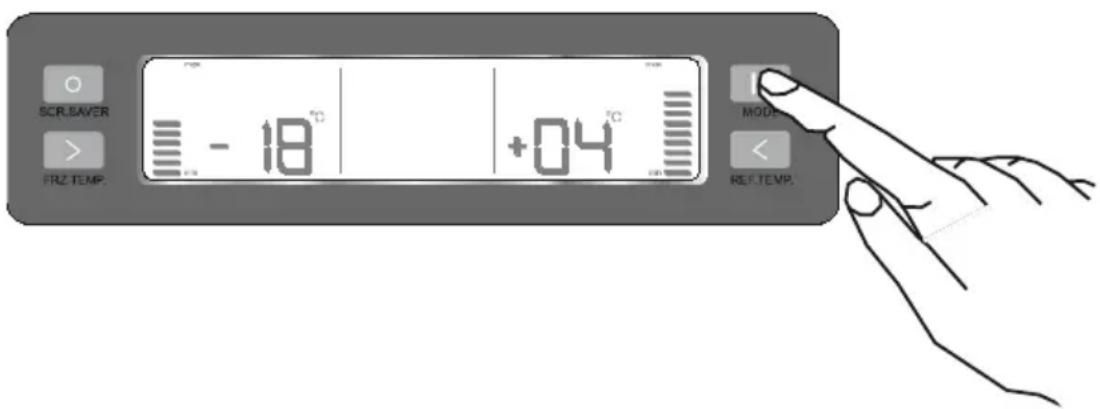

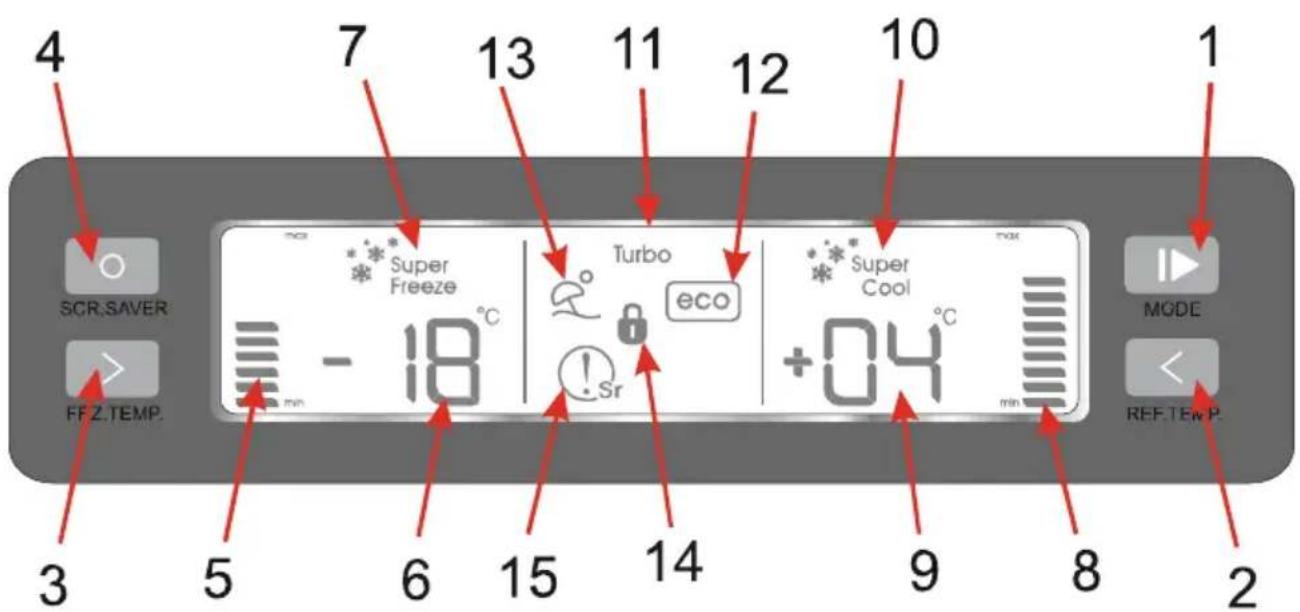

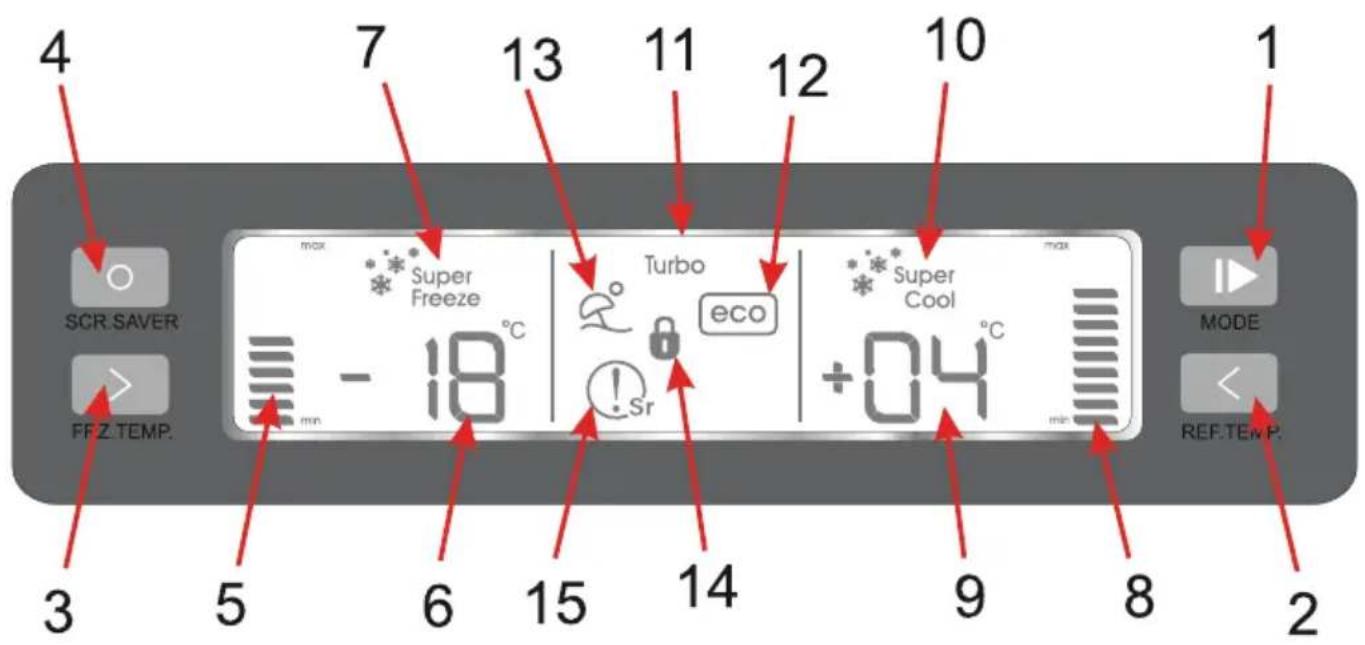

Thanks to this button you can select the different modes: Economy, Super Freezing, Turbo, Super Cooling, Holiday.

2. REF. TEMP. button

Set the cooler compartment temperature.

Set the feezer compartment temperature.

All lights on the screen are turned off when you hold this button pressed for 5 seconds. Screen lights are turned on again when you press any button.

5. Freezer compartment temperature bar graphic

Shows the temperature value set for the freezer compartment. 3 bars at -16

C. The highest number of bars is displayed at the coolest setting.

6. Freezer compartment adjusted temperature indicator

Shows the temperature value set for the freezer compartment.

7. Symbol of Super Freezing Mode

It is super Freeze mode symbol.

8. Cooler compartment temperature bar graphic

Shows the temperature value set for the cooling compartment. 3 bars at 8

C. The highest number of bars is displayed at the coolest setting.EN - 8 - Operating your fridge After the appliance is plugged, all symbols will appear for 2 seconds, and then the startup values will appear as -18°C on freezer setting indicator and +4°C on cooler setting indicator. All buttons on the control panel are touch-operated. (Only press to activate the button you want to operate.)

9. Cooler compartment adjusted temperature indicator

Shows the temperature value set for the cooling compartment.

10. Symbol of Super Cooling Mode

It is Super Cooling Mode symbol.

11. Symbol of Turbo Mode

It is Turbo Mode symbol.

12. Symbol of Economy Mode

It is Economy Mode symbol.

13. Symbol of Holiday Mode

It is Holiday Mode symbol.

14. Symbol of Child Lock Function

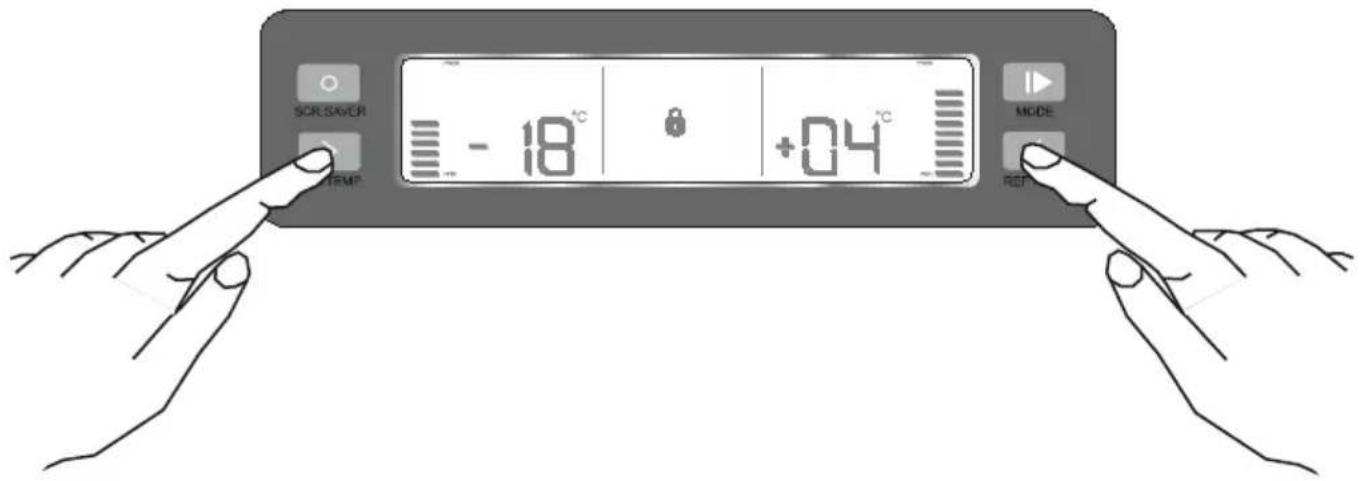

To lock or unlock the control panel, hold down at the same time the buttons of freezer compartment (3) and cooler compartment (2). When the function is engaged, the lock symbol is displayed.

15. Indicates a failure.

Will light together with the SR sign. Information: When you function is selected, the corresponding symbol lights. MODE button

• The functions are selected by pressing on the “Mode” button until the desired function starts to blink.

• The function selection sequence is always the same: Super Freezing, Holiday, Economy, Super Cooling. After the 5th pushing, no function is selected and no symbols lights. Information: When convenient symbol starts to light, symbol will blink 3 times and a beep of confirmation will sound if user does not push any button within 2 seconds.EN - 9 - Super freezing mode When will apply;

• To freeze lots of food that cannot fit into “Fast Freezing Shelf”.

• To freeze prepared foods

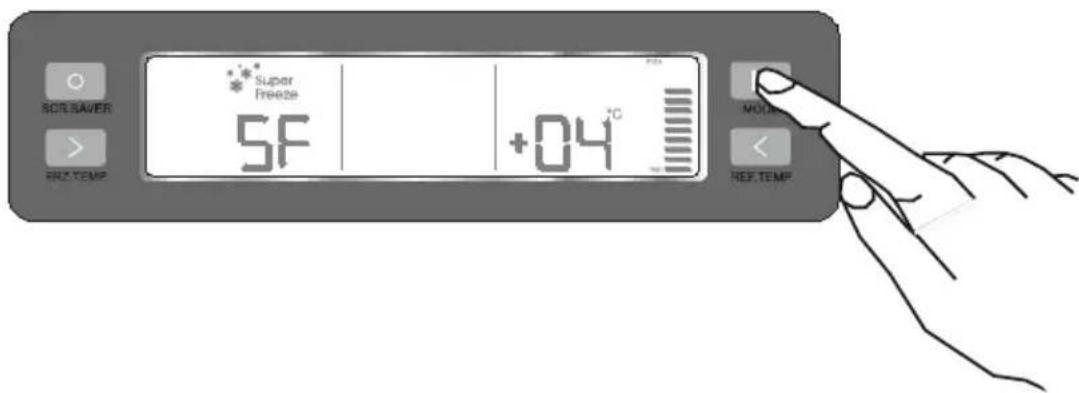

• To conceal fresh foods and vegetables How to use ;

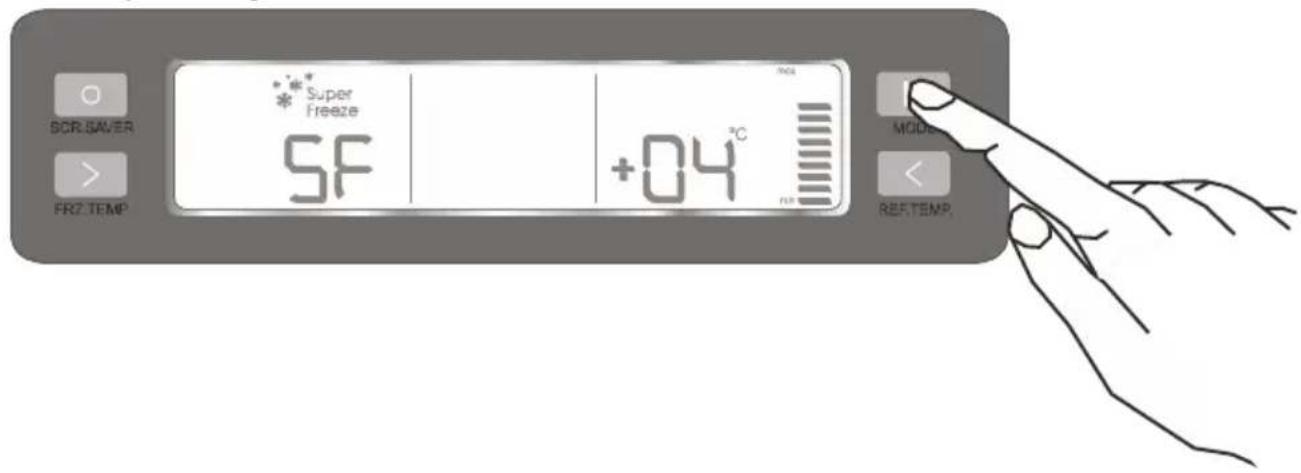

• Press mode buton until Super Freezing symbol will light.

• Symbol will blink 5 times and a beep of confirmation will sound if user does not push any button within 2 seconds. Freezer temperature segment will show “SF” during this mode.

• Freezer bar graphic lights will be off.

• 3 hours after being activated, your refrigerator starts giving signals. This signal tells that the quickfreezer compartment is ready for the foods to be placed in it. Your refrigerator will give intermittent beep sounds for 1 minute in every 5 minutes; provided that the doors are not opened, this signal giving will last 1 hour. When this sound is heard, foods to be frozen must be placed away from the already frozen ones. When the door of the freezer or cooler is opened, this signal stops. When your foods are cooled enough, your refrigerator will automatically go out of the quick freezing mode. After a period of maximum 24 hours after the function is activated, the freezing process will be completed.

• Holiday and Economy modes will not work until Super Freezing mode finishes.

• Super cooling and refrigerator temperature adjusting can be enabled.

• Freezer temperature adjusting can be done but will not be active until super freezing finishes.

• Mode will be cancelled if selected super freezing mode symbol again. Note: “SUPER FREEZE” will be cancelled automatically after 24 hour or when freezer Sensor <-32°C.EN - 10 - Super cooling mode When will apply;

• To cool the prepared foods.

• To cool and conceal a lots of food in refrigerator compartment.

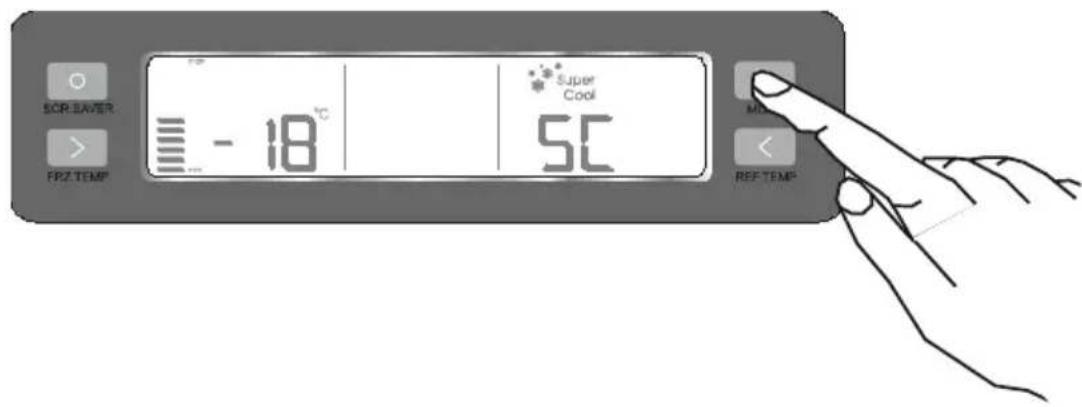

• To cool the drinks more quickly How to use;

• Press mod button until super cooling symbol will light.

• Symbol will blink 5 times and a beep of confirmation will sound if user does not push any button within 2 seconds.

• Refrigerator temperature segment will show “SC” during this mode.

• Refrigerator bar graphic lights will be off.

• Holiday and Economy modes will not work until super cooling mode finishes.

• Super Freezing and Freezer temperature adjusting can be enabled.

• Refrigerator temperature adjusting can be done but will not be active until super cooling finishes.

• Mode will be cancelled if selected super cooling mode symbol again Note: When the sensor of the refrigerator compartment reaches -4°C or the function stops automatically after 8 hours. The reason of this time period was restricted as 8 hours is to prevent food freezing risks which can be occured by powerful cooling attribute.EN - 11 - Turbo mode “Turbo” mode cannot be selected individually. When will apply; Turbo symbol will light when both Super cooling and super freezing symbol is selected How to use ;

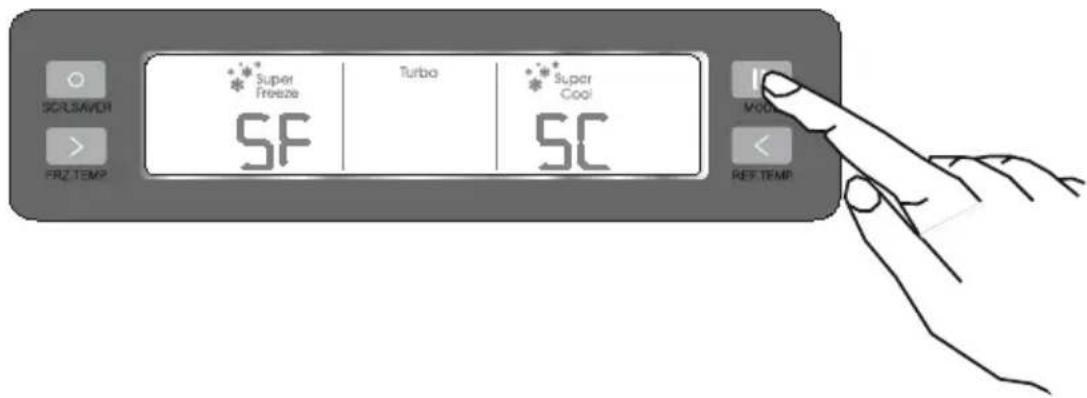

• Press Mode button until Super Freezing symbol will light. Symbol will blink 5 times and a beep of confirmation will sound if user does not push any button within 2 seconds.

• Please repeat the same operation to set “Super Cooling”

• After the two functions are selected, you will see “Turbo” symbol which is displayed automatically between super freezing and super cooling

• When “Turbo” mode is on, Frzeer temperature segment will show “SF” and Refrigerator temperature segment will show “SC”.

• Freezer and refrigerator bar graphic lights will be off.

• Holiday and Economy modes will not work until “Turbo” mode finishes.

• Freezer and refrigerator temperature’s adjusting can be done but will not be active until super freezing and super cooling are deactivated.

• Turbo symbol will be off as soon as one of the modes (super freezing or super cooling) is cancelled manually or automatically.EN - 12 - Holiday mode When will apply You can activate the function if you go to holiday and if you use only the freezer compartment. How to use ;

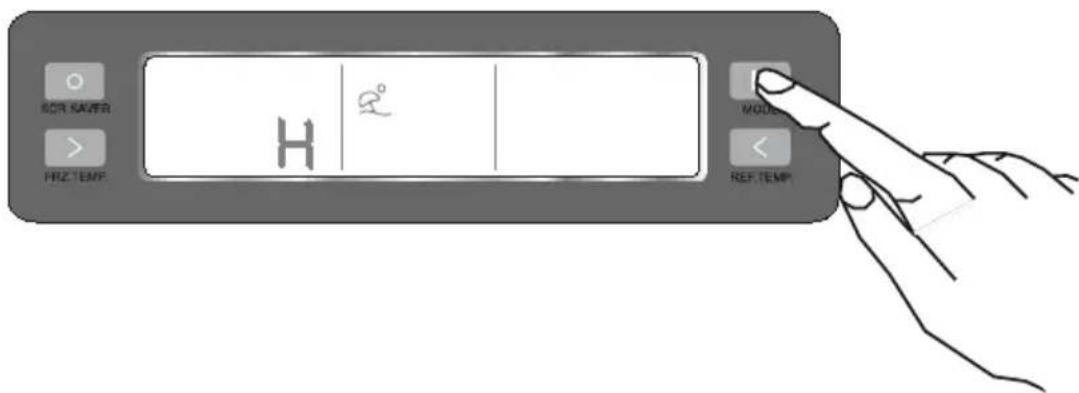

• Press mod button until Holiday symbol will light.

• Symbol will blink 5 times and a beep of confirmation will sound if user does not push any button within 2 seconds.

• Freezer compartment will go on working with the set value defined on the control circuit during the holiday mode.

• Freezer temperature segment will show “H” during this mode.

• Refrigerator temperature segment and bar graphic lights will be off.

• Mode will be cancelled if selected holiday symbol again.

• Appliance will go on to work with previous manually adjusted values. If no temperature values have been adjusted manually, it will go on with initial values (Freezer Compartment -16°C and Refrigerator Compartment +8°C).EN - 13 - Economy mode When will apply;

• If you want to use at a set value is defined on the control circuit

• Both compartments will work in the normal regulation with the set values How to use ;

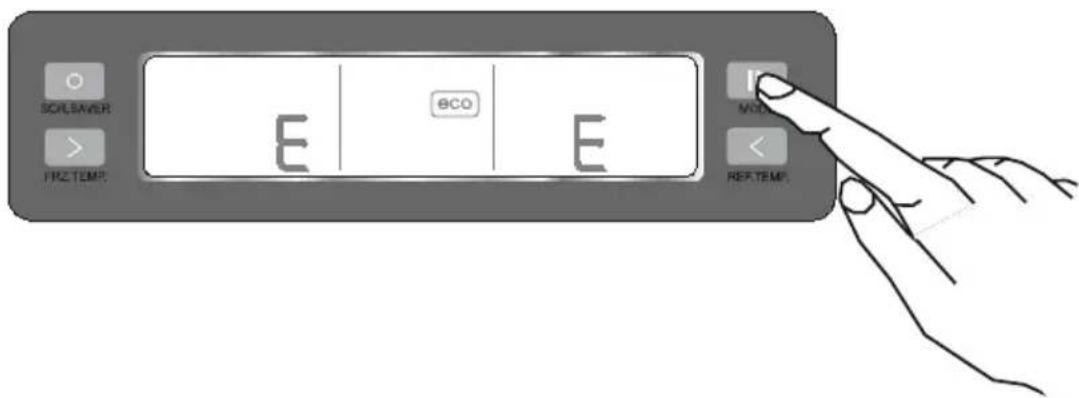

• Press Mode button until Super Freezing symbol will light.

• Symbol will blink 5 times and a beep of confirmation will sound if user does not push any button within 2 seconds.

• During mode economy symbol will light, freezer/refrigerator temp. segments will show “E”. Bars will be off.

• Freezer and refrigerator bar graphic lights will be off.

• The other modes will not work till economy mode finishes.

• Mode can be cancelled by selecting symbol again.EN - 14 - Child lock function When will apply; This refrigerator is equipped with a lock system for protection against children’s misusing. Setting the Child lock Press the ”FRZ.TEMP.“ and “REF.TEMP” buttons continuously for 5 sec at the same time. When the function is engaged,the lock symbol will light. Cancelling the Child lock Press the ”FRZ.TEMP.“ and “REF.TEMP” buttons continuously for 5 sec at the same time. Lock symbol will cancel. Note: When there is a power failure, the “Child Lock” will cancel automatically. No light mode When will apply; If you want to disable lamps for both of compartments, you can choose this mode. Lamps will not light till mode is cancelled. Setting this mode; Push both refrigerator and freezer button at the same time, open and close freezer door 3 times. Cancelling this mode; Function can be cancelled by the same way or after 24 hours appliance will directly cancel it.EN - 15 - Screen saving mode When will apply; If you do not want the control panel lights to be on and consume energy unnecessarily while you have not made any changes in your settings, you may activate this mode. How to use ;

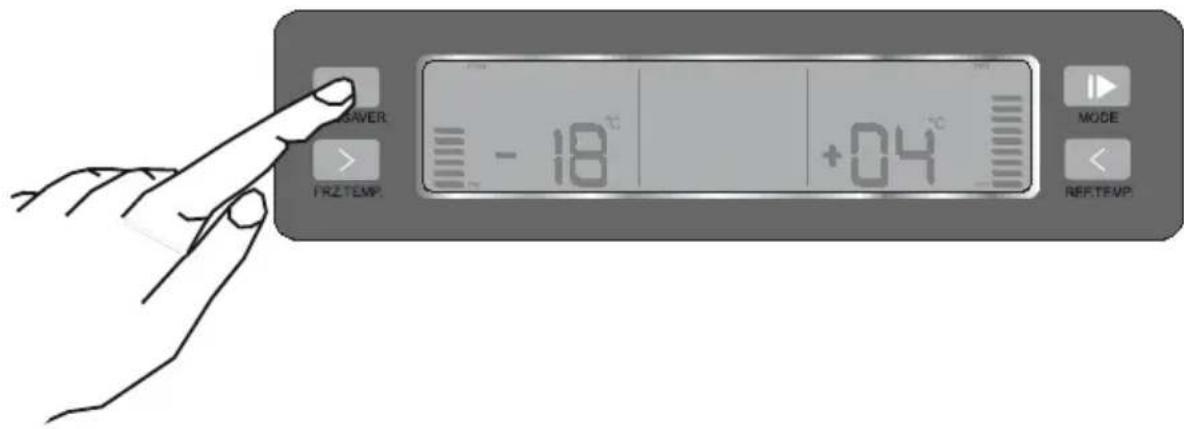

• When you press and hold "SCR. SAVER" button for 5 seconds, this mode will be activated.

• While this mode is activated, if no key is pressed and if doors are not opened for 10 seconds, lights of the control panel will go off.

• If you press on any key when the control panel’s light’s are off, currrent settings appear on the display to let you make any change you wish. If you do not cancel the screen saving mode or press any key for 10 seconds, control panel will dim again.

• To cancel the screen saving mode, press and hold the screen saving mode button again for 5 seconds.

• When the screen saving mode is activated, you can also activate child lock function.

• If you do not touch the keys for 10 seconds after activating the child lock function, control panel’s lights will go off. When you press any key following this, you can view previous settings andthe activated child lock and you can cancel the child lock function as described in that mode above.EN - 16 - Freezer compartment temperature adjustment

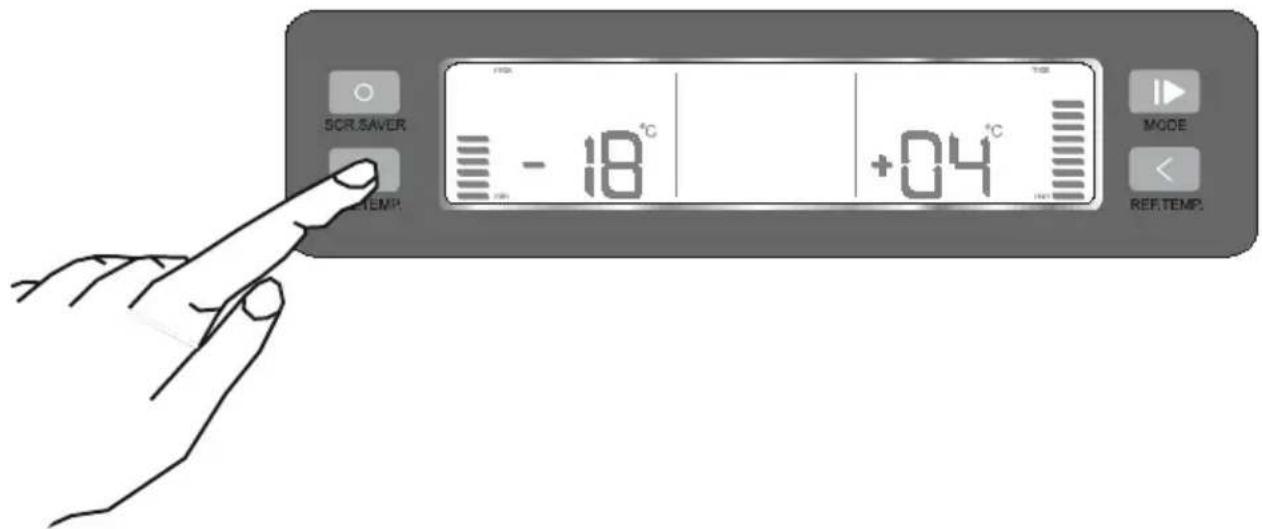

• The first pushing will make flashing on the freezer bar graphic display , if press “FRZ.TEMP.” button within 2 sec. Number segment will show -18°C.

• With each pushing on this button , the temperture decreases of 2 degrees. (-16°C, - 18°C, -20°C, -22°C, -24°C) Number segment and bar will blink 5 times and a beep of confirmation will sound.

• When number segment is -24°C. , If you push “FRZ.TEMP.” button, the number segment will go on from -16°C.

• If appliance was set to holiday, super freeze, super cool or economy mode before temp. adjusting ,appliance will go on to work in previous mode. When previous mode is cancelled / finished manually or automatically appliance will start to work in adjusted values. Note**: If Ambient sensor is > 38°C then user will not be able to adjust freezer Compartment's temp. to -22°C and -24°C. Then only -16°C, -18°C, -20°C will be available. Recommended settings for freezer compartment temperature Temperature bars Freezer cabinet inside temperature When to use it 3 bars

For little amount stoking 8 or 12 bars

For lots of food stokingEN - 17 - Cooler compartment temperature adjustment

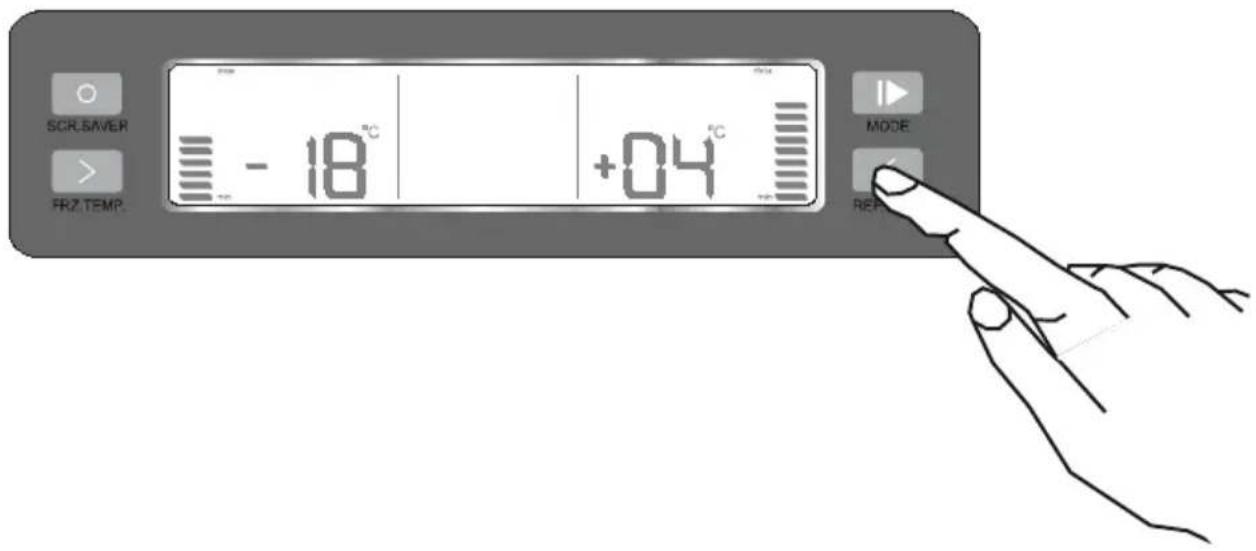

• The first pushing will make flashing on the cooler bar graphic display, if press “REF.TEMP” button within 2 sec. Number segment will show +6°C.

• With each pushing on this button , the temperture decreases of 2 degrees. (+8°C, +6°C, +4°C, +2°C) Number segment and bar will blink 5 times and a beep of confirmation will sound.

• When number segment is +2°C., If you push “REF.TEMP” button, the number segment will go on from +8°C.

• If appliance was set to holiday, super freeze, super cool or economy mode before temp. adjusting, appliance will go on to work in previous mode. When previous mode is cancelled / finished manually or automatically appliance will start to work in adjusted values. Recommended settings for cooler compartment temperature Temperature bars Cooler cabinet inside temperature When to use it 12 bars

For lots of food stoking 9 or 6 bars

Normal stoking 3 bars

For little amount stokingEN - 18 - Warnings about temperature adjustments

• Your temperature adjustments will not be deleted when an energy breakdown occurs.

• It is not recommended that you operate your fridge in environments colder than 10°C in terms of its efficiency.

• Temperature adjustments should be made according to the frequency of door openings and the quantity of food kept inside the fridge.

• Do not pass to another adjustment before completing an adjustment.

• Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open doors of your fridge frequently and do not place much food inside it in this period.

• A 5 minute delaying function is applied to prevent damage to the compressor of your fridge, when you take the plug off and then plug it on again to operate it or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.

• Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness. Climate Class Ambient Temperature

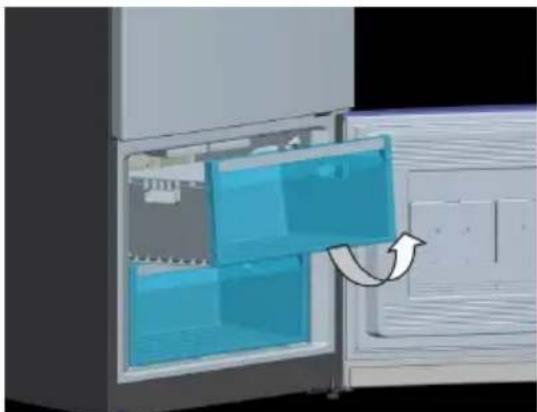

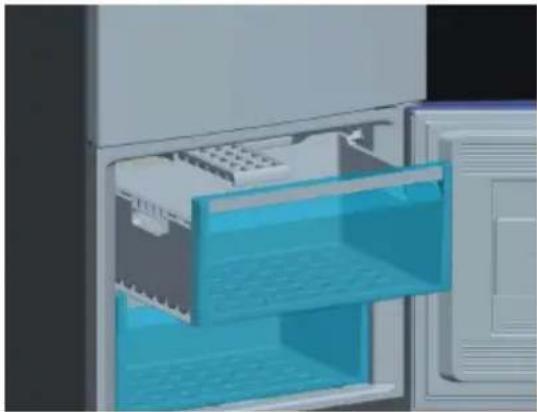

• To remove ice box; pull the upper freezer box out as far as possible and then pull the ice box out.

• Fill 3/4 full of water and place the ice box in freezer. Note: While placing the ice box in the freezer, place in a horizontal position. Otherwise the water in the ice box can be spill. Freezer box The freezer box allows foods are maintained more regularly. Removing The freezer box;

• Pull the box out as far as possible

• Pull the front of box up and out. ! Make the inverse of the same operation for the resetting the sliding compartment. Note: Always Keep the handle of box while removing the box. Odor Filter The filter in this area, blocks the bad smell in the cooler compartment. odor filterEN - 20 - Roller storage box You can adjust and use this department as 3 different functional department. Open Close Clack

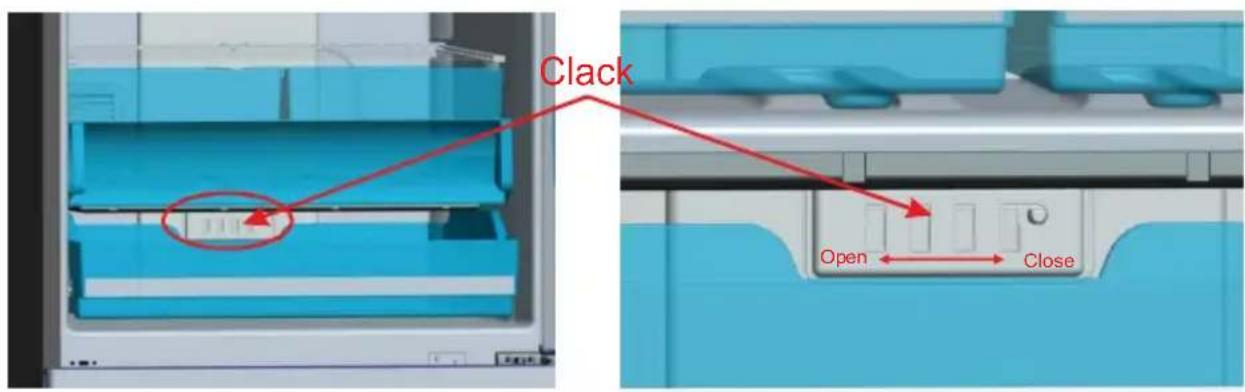

1- To use for 0 °C Department: If you want to use this compartment as 0°C box, you must

take the sliding part (cover, which is indicated in picture) from closed position to open position and at the same time adjust refrigerator setting as 2°C.

2- To use for Crisper Department: If you want to use this compartment as crisper, you

must take the sliding part (cover, which is indicated in picture) from open position to closed position.

3- To use for Chiller Department: If you want to use this compartment as chiller, you must

take the sliding part (cover, which is indicated in picture) from closed position to open position and at the same time adjust refrigerator setting as 4°C or 5°C. Thus, temperature of this department has been adjusted as 1-2°C colder than refrigerator compartment's.

• While this department is used as 0 °C Department, Keeping food in the Chiller compartment instead of the freezer or refrigerator compartment allows food retain freshness and flavour longer, while preserving its fresh appearance. When chiller tray becomes dirty, remove it and wash it with water. (Water freezes at 0°C, but foods containing salt or sugar freeze at temperature lower than that) Normally people use the chiller compartment for raw fish, lightly pickled, rice, etc...

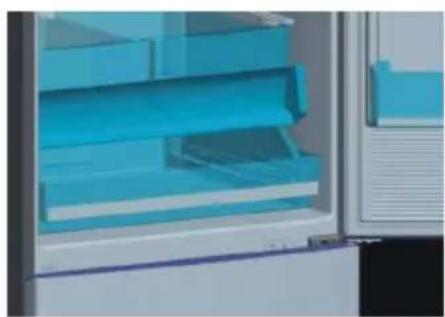

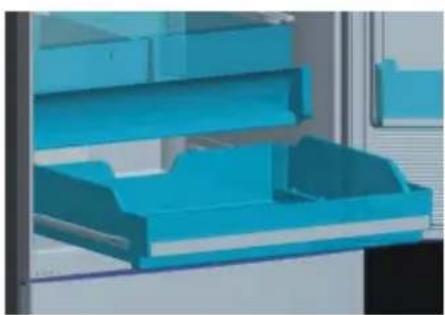

• Pull the chiller shelf out toward you. the cover will open automatically ! Do not put foods you want to freeze or ice trays in order to make ice. Picture. 1 Picture. 2 Picture. 3EN - 21 - Fresh dial In case of the crisper is totally full, the fresh dial is located in front of crisper, should be opened. By means of this the air in the crisper and humidity rate will be controlled and endurance life will be increased. If you see any condensation on glass shelf, you must open this klape which is on behind of shelf.

• Open the cover fully. (Picture-1)

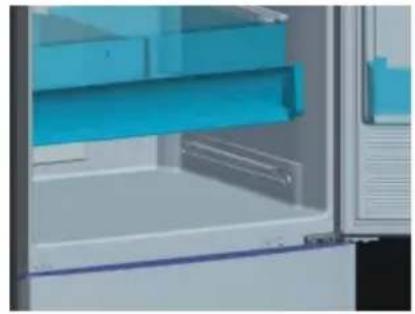

• Pull the chiller shelf out toward you. (Picture-2)

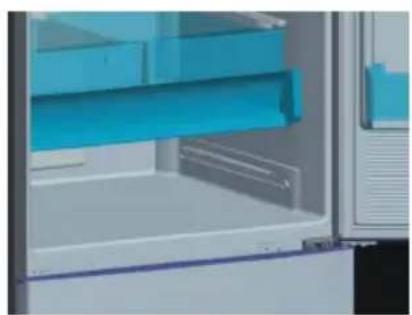

• Pull the wheels of chiller shelf up from rail to remove. (Picture-3) Temperature indicator This appliance is sold in France. In accordance with regulations valid in this country it must be provided with a special device (see figure) placed in the lower compartment of the fridge to indicate the coldest zone of it.EN - 22 - PART- 3. FOOD PLACEMENT Cooling Compartment

• To prevent humidification and odor formation, the food should be placed in the refrigerator in enclosed cups or with their top being covered.

• The hot food and drinks should also be cooled in the room temperature before being placed in the refrigerator.

• Please do not prop the packaged food and containers against the lamp and cover of the cooling compartment.

• Fruits and vegetables: Can be placed in the crisper directly without wrapping them.

• Some recommendations have been specified below for the placement and storage of your food in the cooling compartment. NOTE: Potatoes, onions and garlic should not be stored in the refrigerator. Food Storing time Where to place in the fridge department Vegetables and fruits 1 week In the Crisper (without being wrapped) Meat and fish 2 to 3 days Covered with plastic folio and bags Or in a meat box (on the glass shelf) Fresh cheese 3 to 4 days In the special door shelf Butter and Margarine 1 week In the special door shelf Bottled product, Milk and Yoghurt Until the expiry date recommended by the producer In the special door shelf Eggs 1 month In the egg shelf Cooked food All shelves Deep Freeze Compartment

• Please use the deep freeze compartment of your refrigerator for storing the frozen food for a long time and for producing ice.

• If you are going to use the refrigerator with maximum freezing capacity:

• Place the foods that you want to freeze to the top basket of the freezer department without exceeding the freezing capacity of your refrigerator ( for 466 model ).

• Place the foods that you want to freeze to the bottom basket of the freezer department without exceeding the freezing capacity of your refrigerator ( for 566 model ).

• While you use Quick Freeze Mode , you mustn't storage an exist foozen food near the fresh foods that you want to freeze. Then enable the “Quick Freeze” mode again. You may place your food next to the other frozen food after they are frozen (for at least 24 hours after the 2

• Please do not place the food you shall newly freeze nearby the already frozen food.EN - 23 -

• You should freeze the food to be frozen (meat, minced meat, fish, etc.) by dividing them into portions in such a way that they can be consumed once.

• Please do not refreeze the frozen food once they are thawed. It may pose a danger for your health since it might cause problems such as food poisoning.

• Do not place the hot meals in your deep freeze before they become cold. You would cause the other food frozen beforehand in the deep freeze to become putrefied.

• When you buy frozen food, makes sure that they were frozen under appropriate conditions and the package is not torn.

• While storing the frozen food, the storage conditions on the package should certainly be observed. If there is not any explanation, the food must be consumed within the shortest time possible.

• Frozen foods must be carried without corrupting them and placed on the quick freezing shelf as soon as possible. Do not use door shelves for freezing purpose.

• If there had been humidification in the frozen food package and it has a foul smell, the food might have been stored under unsuitable conditions previously and gone rotten. Do not purchase this type of foods!

• The storage durations of frozen food change depending on the ambient temperature, the frequent opening and closing of the doors, thermostat settings, food type and the time elapsed from the purchase time of the food to the time it is placed into the freezer. Always abide by the instructions on the package and never exceed the indicated storage duration.

• If you keep open freezer door for a long time or forget open, there will be a frost on sub-grade of freezer. Therefore that can cause to prevent of air curcilation. For overcame this situation, first plug out and wait for thawing. After this frost will thaw, you must clean freezer.

• To increase storage volume of freezer, you can remove baskets, cover..etc

• The declared volume on label is equal which the appliances is used without baskets, covers, etc... ICE PACK

• If a power failure or malfunction occurs, that ice pack can be used to slow down the thawing process. The longest storage time is obtained by placing the ice pack directly on the food in the top compartment.

• To save space, the ice pack can be storaged in the door compartment.

• The ice pack can also be used to cool food temporarily, for example in a cold bag.

• Some recommendations have been specified on pages 24, 25 and 26 for the placement and storage of your food in the deep freeze compartment.EN - 24 - Note: Frozen foods, when thawed, should be cooked just like fresh foods. If they are not cooked after being thawed they must NEVER be re-frozen. Meat and fish Preparing Storing time (months) In room temperature Defrost time -hour- Steak Wrapping in a foil 6-10 1-2 Lamb meat Wrapping in a foil 6-8 1-2 Veal roast Wrapping in a foil 6-10 1-2 Veal cubes In small pieces 6-10 1-2 Lamb cubes In pieces 4-8 2-3 Minced meat In packages without using spices 1-3 2-3 Giblets (pieces) In pieces 1-3 1-2 Bologna sausage/salami Should be packaged even if it has membrane Until it is defrosted Chicken and turkey Wrapping in a foil 7-8 10-12 Goose and Duck Wrapping in a foil 4-8 10 Deer, Rabbit, Wild Boar In 2.5 kg portions and as fillets 9-12 10-12 Freshwater fishes (Salmon, Carp, Crane, Siluroidea)

Until it is thawed completely Lean fish; bass, turbot, flounder 4-8 Until it is thawed completely Fatty fishes (Tunny, Mackarel, bluefish, anchovy) 2-4 Until it is thawed completely Shellfish Cleaned and in bags 4-6 Until it is thawed completely Caviar In its package, aluminum or plastic container 2-3 Until it is thawed completely Snail In salty water, aluminum or plastic container

Until it is thawed completely After cleaning the bowels and scales of the fish, wash and dry it; and if necessary, cut the tail and head.EN - 25 - Vegetables and Fruits Preparing Storing time (months) In room temperature Defrost time -hour- Cauliflower Take the leaves apart, cut the heart into pieces, and leave it in water with a little lemon juice for a while

10 - 12 It can be used as frozen

String beans and beans Wash and cut to small pieces

10 - 13 It can be used as frozen

Beans Hull and wash 12 It can be used as frozen Mushroom and asparagus Wash and cut to small pieces

6 - 9 It can be used as frozen

Cabbage Cleaned 6 - 8 2 Eggplant Cut to pieces of 2cm after washing

10 - 12 Separate them from one another

Corn Clean and pack with its stem or as sweetcorn 12 It can be used as frozen Carrot Clean and cut to slices 12 It can be used as frozen Pepper Cut the stem, cut into two pieces and remove the core

8 - 10 It can be used as frozen

Spinach Washed 6 - 9 2 Apple and pear Peel and slice 8 - 10 (In Fridge) 5 Apricot and Peach Cut into two pieces and remove the stone

Strawberry and Blackberry Wash and hull 8 - 12 2 Cooked fruits Adding 10 % of sugar in the container

Plum, cherry, sourberry Wash and hull the stems 8 - 12 5 - 7EN - 26 -

• It should not be frozen with its shells. The white and yolk of the egg should be frozen separately or as having been well mixed. The taste of some spices found in cooked dishes (anise, basilica, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a strong taste when they are stored for a long period. Therefore, the frozen food should be added little amount of spices or the desired spice should be added after the food has been thawed. The storage period of food is dependent on the oil used. The suitable oils are margarine, calf fat, olive oil and butter and the unsuitable oils are peanut oil and pig fat. The food in liquid form should be frozen in plastic cups and the other food should be frozen in plastic folios or bags. Preparing Storing time (months) In its own packet 2 - 3 In slices 6 - 8 In its package 6 Albumen 10 - 12 30 gr of it is equal to a yolk. Egg mixture (Albumen – yolk) Some salt or sugar is added for preventing it from becoming dense. 10 50 gr of it is equal to a yolk. Yolk Some salt or sugar is added for preventing it from becoming dense.

8 - 10 20 gr of it is equal to a yolk.

• Eggs Storing Conditions Pure Milk – In its own packet It can be left in its original package for storing for a short time. For long term storage It should be stored in a plastic In closed container Dairy Products Pastry Packet (Homogenize) Milk Cheese-excluding white cheese Butter, margarine Storing time (months) Thawing time in room temperature (hours) Thawing time in owen (min.) Bread 4 - 6 2 - 3 4-5 (220-225 °C) Biscuits 3 - 6 1 - 1,5 5-8 (190-200 °C) Pastry 1 - 3 2 - 3 5-10 (200-225 °C) Pie 1 - 1,5 3 - 4 5-8 (190-200 °C) Phyllo dough 2 - 3 1 - 1,5 5-8 (190-200 °C) Pizza 2 - 3 2 - 4 15-20 (200 °C)EN - 27 - Defrosting

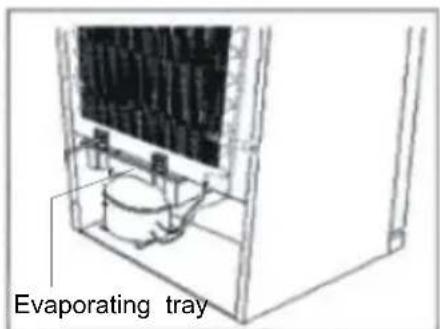

• Your refrigerator makes fully automatic defrosting. The water formed as a result of defrosting passes through the water collection spout, flows into the vaporization container behind your refrigerator and evaporates by itself in there. PART- 4.

CLEANING AND MAINTENANCE

• Make sure you have disconnected the plug from the socket before starting the cleaning.

• Please do not clean the refrigerator by pouring water in it.

• You may wipe the inner and outer parts of your device by using warm and soapy water with a soft cloth or sponge.

• Please remove the parts one by one and clean them with soapy water. Do not wash them in a dishwasher.

• Never ever use flammable, combustible or melting materials such as thinner, gasoline or acid for cleaning purposes.

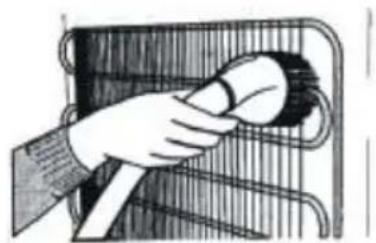

• You should clean the condenser (back of the appliance) with broom ones a year in order to provide energy saving and increase the productivity. THE POWER SUPPLY MUST BE DISCONNECTED. Evaporating trayEN - 28 - Replacing The Light Bulb Replacing the Refrigerator Light Bulb (If the illumination is occured via lamp )

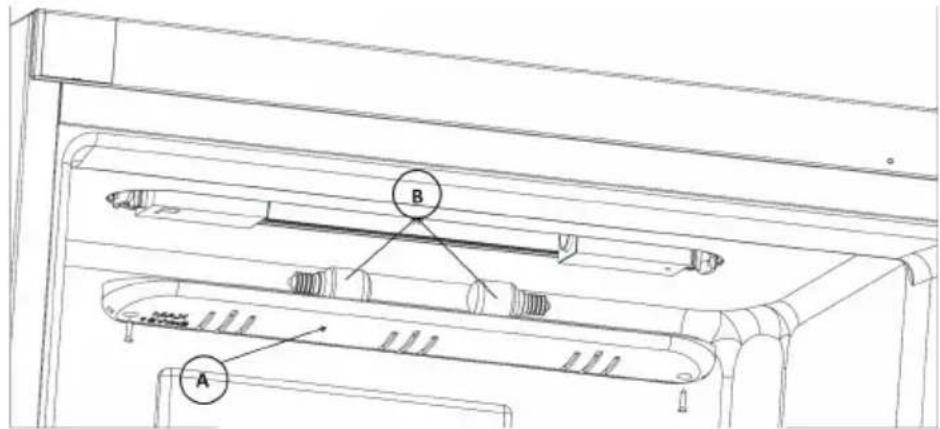

1. Unplug the unit from the power supply,

2. Remove the screws on each side of the refrigerator lamp cover(A).

3. Change the light bulb (B) with a new one (not more than 15 Watt)

4. Place the light cover in its place and plug the unit.

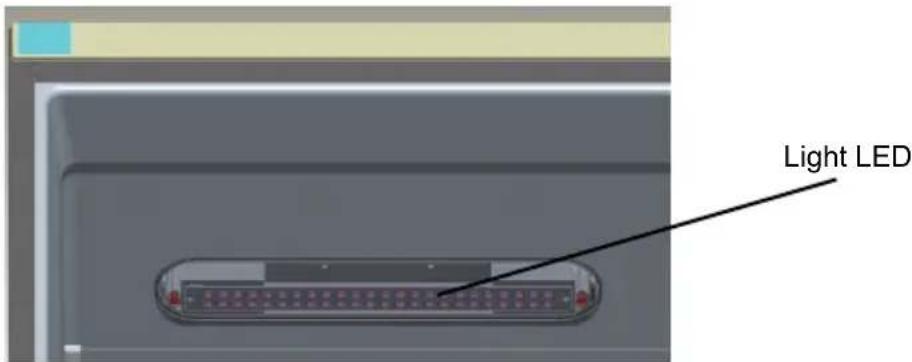

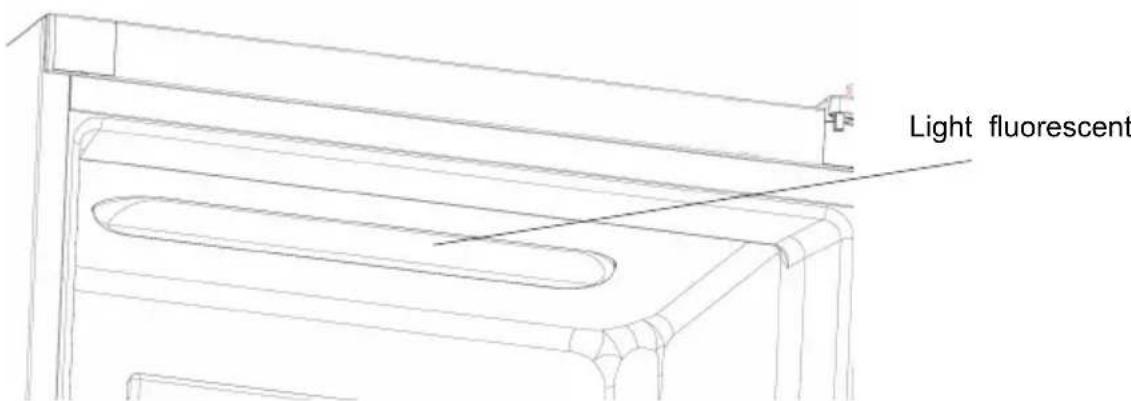

Replacing The Light Led Please call the service man. Replacing The Refrigerator Light Fluorescent Lamp (If the illumination is occured via Fluorescent Lamp) Please call the service man. (If the illumination is occured via LED strip) Light LED Light fluorescentEN - 29 - SHIPMENT AND REPOSITIONING PART- 5.

• Original package and foam may be kept for re-transportation (optionally).

• You should fasten your fridge with thick package, bands or strong cords and follow the instructions for transportation on the package for re-transportation.

• Remove movable parts (shelves, accessories, vegetable bins etc.) or fix them into the fridge against shocks using bands during re-positioning and transportation. Carry your fridge in the upright positio. Repositioning the Door

• It is not possible to change the opening direction of your fridge door, if the door handles on your fridge are installed from the front surface of the door.

• It is possible to change the opening direction of the door on models without any handles.

• If the door opening direction of your fridge may be changed, you should contact the nearest Authorized Service to have the opening direction changed.EN - 30 - ERROR TYPE ERROR TYPE WHY WHAT TO DO

Failure Warning There is/are some part(s) Out of order or there is a failure in cooling process Call Service for assistance as soon as possible.

1. Do not freeze the foods that are

thaw and use in short time period.

2. Set the freezer temperature to

colder values or set the super freeze , until the compartment gets to normal temperature.

3. Do not put fresh food until this

to colder values or set the super cooling mode until the compartment gets to normal temperature.

2. Do not open the door much until

this failure is off LF and LC not cold enough Warning It is the combination of LF and LC Error type You w ill see this failure w hen first starting the appliance. It w ill be off after the compartments gets normal temperature

2. Decrease the refrigerator

temperature values LOPO Low voltage Warning When the pow er supply gets low er than 170 V the appliance gets to steady position. This not a failure. This prevents any damages on the compressor. This w arning w ill off after the voltage gets required level The foods starts to freeze because of the too much cold temperature Refrigerator comp. too Cold

This caution w ill be seen especially after long term of pow er failure Freezer comp. Not Cold enough

Ideal temperature for Ref. Compartment is +4

C. If you see this w arning your foods have risk of spoiling. Refrigerator comp. Not Cold enough

Check Warnings; Your fridge warns you if the temperatures for cooler and freezer are in improper levels or when a problem occurs in the appliance. Warning codes are displayed in the Freezer and Cooler Indicators.EN - 31 - If your refrigerator does not operate;

• Is there a power failure?

• Is the plug connected to the socket correctly?

• Is the fuse of the socket to which the plug is connected or the main fuse blown?

• Is there any failure at the socket? To check this, plug your refrigerator to a socket this is surely operating. Control warnings; If the temperatures of the cooling and freezer compartments are not in the suitable levels or there is a problem in the appliance, your refrigerator will warn you. Warning codes appear in the Freezer and Cooling Compartment Setting Displays. If your refrigerator is operating noisily; Normal Noises Crackling (Ice Cracking) Noise:

• It is heard during the automatic defrosting process.

• Once the device has been cooled or heated (expansions in the device material). Short Cracking Noise

• It is heard when the thermostat turns on and off the compressor. Compressor Noise

• It is the normal engine noise. This noise indicates that the compressor is operating normally. As the compressor is being introduced, it might operate a little bit more noisily for a short period of time. Bubbling and burbling sound:

• This noise is emitted as the coolant fluid flows through the pipes within the system. Water flowing sound:

• This is the normal sound of water flowing into the evaporation container during the defrosting process. This sound may be heard during the defrosting process performed in the device. Water blowing sound:

• It is the normal fan sound. This sound may be heard due to air circulation in No Frost refrigerators as the system is operating normally. If the edges of the refrigerator cabin contacted by the door seal are hot;

• Especially in summer months (in hot weathers), there might be heating on the surfaces contacted by the seal on the refrigerator when the compressor is operating and this is quite normal. If there is humidification in the inner parts of your refrigerator;

• Has the food been properly packaged? Have the cups been well dried before they were put into the refrigerator?EN - 32 - Conformity Information

• This appliance is designed for use at an ambient temperature within the 16°C - 43°C range.

• The appliance is designed in compliance with the IEC60335-1 / IEC60335-2-24, 2004/108/EC standards.

• Are the doors of the refrigerator opened very frequently? When the door is opened, the humidity found in the air in the room enters the refrigerator. Especially if the humidity rate in the room is too high, the more frequently the door is opened the faster will be the humidification.

• It is normal to have water drops formed on the back wall following the automatic defrosting process. (In Static Models) If the doors are not being properly opened and closed:

• Are the food packages preventing the doors from being closed?

• Have the door compartments, shelves and drawers been properly placed?

• Have the door seals been defective or torn?

• Is your refrigerator standing on an even ground? IMPORTANT NOTES:

• Compressor protection function will be activated after sudden power breakdowns or after unplugging the appliance, because the gas in the cooling system is not stabilized yet. Your fridge will start after 5 minutes, there is nothing to worry about.

• If you will not use your fridge for a long time (e.g. in summer holidays) unplug it. Clean your fridge according to Part 4 and leave the door open to prevent humidity and smell

• If the problem persists after you have followed all the instructions above, please consult to the nearest authorized service.

• The appliance you bought is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer use the appliance in a way that does not comply with these features, we emphasize that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period.

• The lifetime of your appliance stated and declared by the Department of the Industry is 10 years (the period for retaining parts required for the proper functioning of the appliance).EN - 33 - Tips For Saving Energy 1– Install the appliance in a coll, well vantilated room , but not in direct sunlight and not near heat source (radiator, cooker.. etc). Otherwise use an insulating plate. 2– Allow ward food and drinks to cool down outside the appliance. 3– When thawing frozen food, place it in the refrigerator compartment. The low tem- perature of the frozen food will help to cool the refrigerator compartment when it is thawing. So it causes energy saving. If the frozen food is put out, it causes wast- age of energy. 4– When placing, drinks and slops they must be covered. Otherwise humidity in- creases at the appliance. Therefore the working time gets longer. Also covering drinks and slops helps to save smell and taste. 5– When placing food and drinks, open the appliance door as briefly as possible. 6– Keep close the covers of any different temrepature compartment in the appliance (crisper, chiller ...etc ). 7– Door gasket must be clean and pliable. Replace gaskets if worn.EN - 34 -

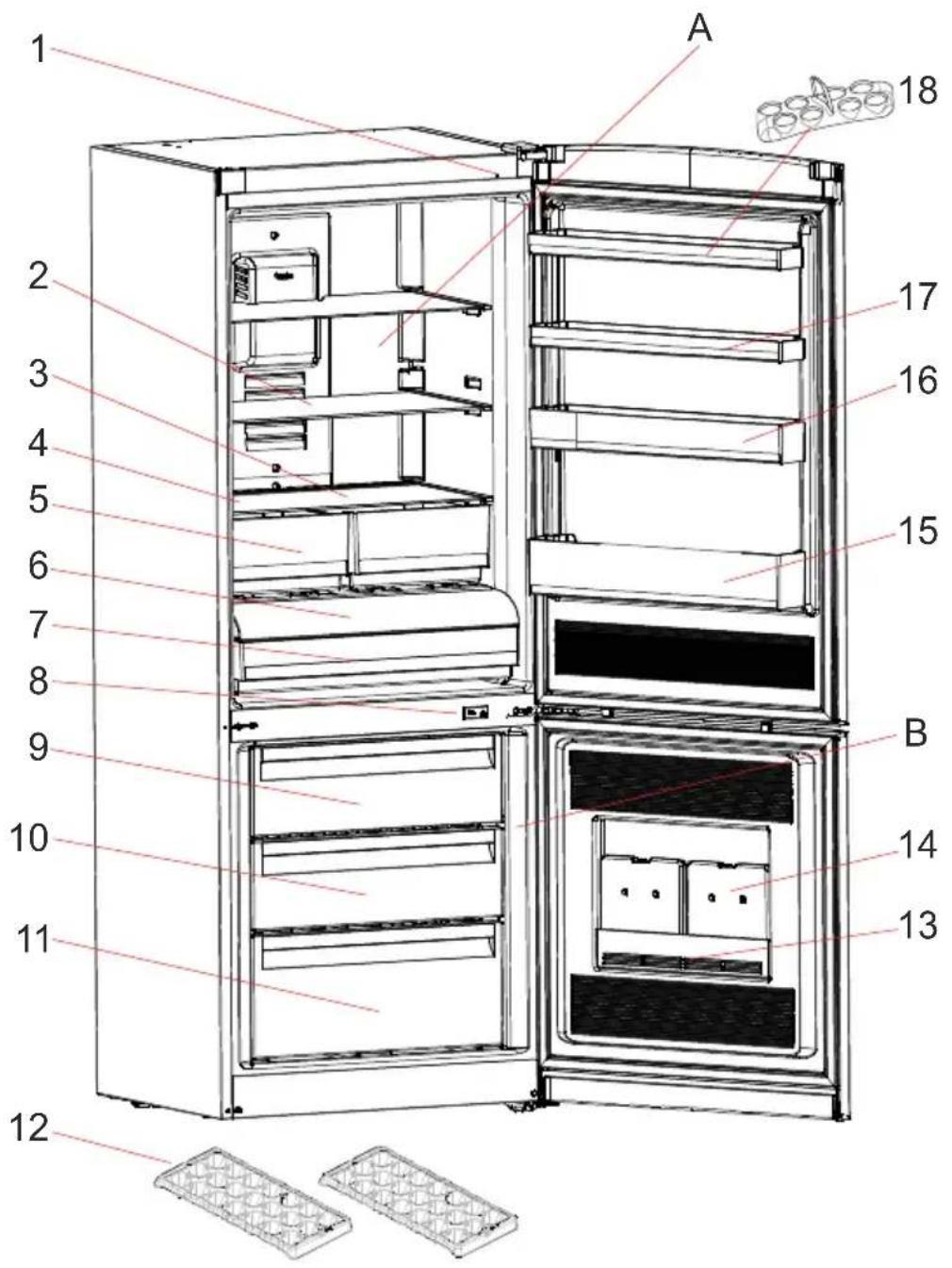

This figure has been drawn for information purposes about parts and accessories of the appliance. Parts may vary according to the model of the appliance. A) Fridge Compartment B) Freezer Compartment
