SBM 1823 FHA - Fridge HOTPOINT-ARISTON - Free user manual and instructions

Product type	Refrigerator with freezer compartment
Brand	Hotpoint-Ariston
Model	SBM 1823 FHA
Power supply	220-240 V ~ 50 Hz, 150 W
Refrigerant	R134a, 90 g
Freezing capacity	4 kg/24h
Climate class	N (normal)
Cooling system	No Frost (frost-free)
Door reversibility	Yes, procedure described in the manual
Interior lighting	Replaceable 10 W bulb
Shelves	Removable and height-adjustable
Door bins	Removable, including can rack and bottle holder
Cleaning	Warm water with baking soda or neutral soap
Defrosting	Automatic (No Frost)
Safety	Grounding mandatory, do not use extension cord
Support	Contact after-sales service with model and serial number

Frequently Asked Questions - SBM 1823 FHA HOTPOINT-ARISTON

How to adjust the temperature of the refrigerator and freezer?

Temperature adjustment is done via the FREEZER OPERATION and REFRIGERATOR OPERATION buttons. An intermediate position is recommended for a good balance between preservation and energy consumption.

What to do if the interior light does not turn on?

First check that the appliance is plugged in and that the FREEZER OPERATION button is not set to OFF. If the bulb is burned out, replace it with an identical 10 W bulb following the procedure described in the manual.

The appliance is equipped with the No Frost system: is manual defrosting necessary?

No, the No Frost system prevents frost formation, so no manual defrosting is necessary. It automatically manages humidity and cold.

What to do if the motor does not start?

Wait 8 minutes after plugging in: the appliance is equipped with a motor protection system that delays startup. Also check that the FREEZER OPERATION button is not set to OFF and that the socket is powered.

How to clean the interior and exterior of the appliance?

Use a sponge soaked in warm water with baking soda or neutral soap. Never use solvents, abrasives, or bleach. Clean the rubber seals regularly.

Is it possible to reverse the door opening direction?

Yes, the door is reversible. The manual provides illustrated steps to reverse the opening direction. It is recommended to follow the instructions carefully.

What types of food can be frozen and what is the maximum capacity?

You can freeze fresh food in the upper compartment. The maximum freezing capacity is 4 kg per 24 hours. Do not refreeze thawed food.

What to do in case of a power outage?

Do not open the freezer door. Frozen food will keep for approximately 9 to 14 hours safely. After power is restored, check the condition of the food.

How to replace the refrigerator light bulb?

Unplug the appliance. Remove the bulb protective cover. Replace it with a 10 W bulb of the same type. Reassemble the cover and plug back in.

Where are the serial number and model located on the appliance?

The rating plate is located inside the refrigerator compartment, bottom left. It indicates the model (Mod.) and serial number (S/N).

USER MANUAL SBM 1823 FHA HOTPOINT-ARISTON

Technical diagram illustrating five-step assembly or installation process for a refrigerator, with labeled steps and component views.

Architectural floor plan diagram showing room layouts and structural elements (no text or labels)

I Care 2 4 1 OFF MAX

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Positioning and connection

Reversible doors

Description of the appliance, 13

Overall view

Start-up and use, 14-15

Starting the appliance

Setting the temperature

Chiller system

Using the refrigerator to its full potential

Using the freezer to its full potential

Maintenance and care, 16

Switching the appliance off

Cleaning the appliance

Avoiding mould and unpleasant odours

Replacing the light bulb

Precautions and tips, 17

General safety

Disposal

Respecting and conserving the environment

Troubleshooting, 18

Assistance, 18

GB

! Before placing your new appliance into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance.

! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Positioning and connection

Positioning

1. Place the appliance in a well-ventilated humidity-free room.
2. Do not obstruct the rear fan grills. The compressor and condenser give off heat and require good ventilation to operate correctly and save energy.
3. Leave a space of at least 10 cm between the top part of the appliance and any furniture above it, and at least 5 cm between the sides and any furniture/side walls.
4. Ensure the appliance is away from any sources of heat (direct sunlight, electric stove, etc.).
5. In order to maintain the correct distance between the appliance and the wall behind it, fit the spacers supplied in the installation kit, following the instructions provided.

Levelling

1. Install the appliance on a level and rigid floor.
2. If the floor is not perfectly horizontal, adjust the refrigerator by tightening or loosening the front feet.

Electrical connections

After the appliance has been transported, carefully place it vertically and wait at least 3 hours before connecting it to the electricity mains. Before inserting the plug into the electrical socket ensure the following:

• The appliance is earthed and the plug is compliant with the law.
• The socket can withstand the maximum power of the appliance, which is indicated on the data plate located on the bottom left side of the fridge (e.g. 150 W).
• The voltage must be in the range between the values indicated on the data plate located on the bottom left side (e.g. 220-240V).
• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it (see Assistance). Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.
! The cable must not be bent or compressed.
! The cable must be checked regularly and replaced by authorised technicians only (see Assistance).
! The manufacturer declines any liability should these safety measures not be observed.

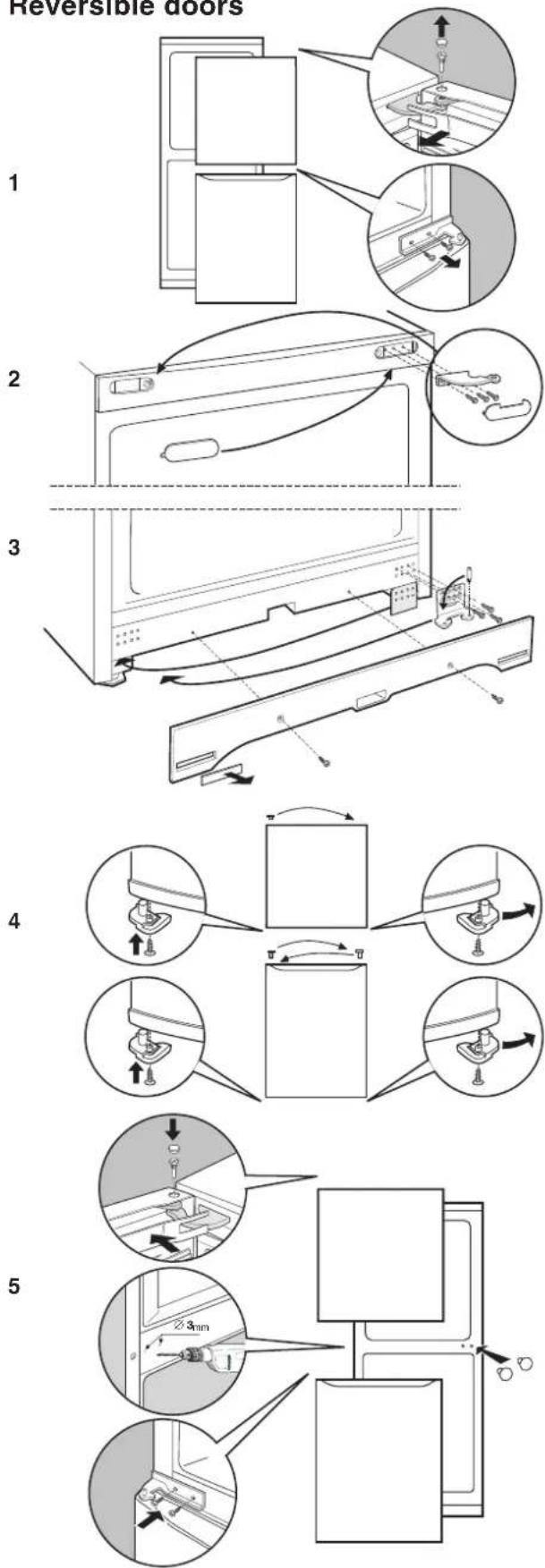

Reversible doors

Reversible doors 1 2 3 4 5

Description of the appliance

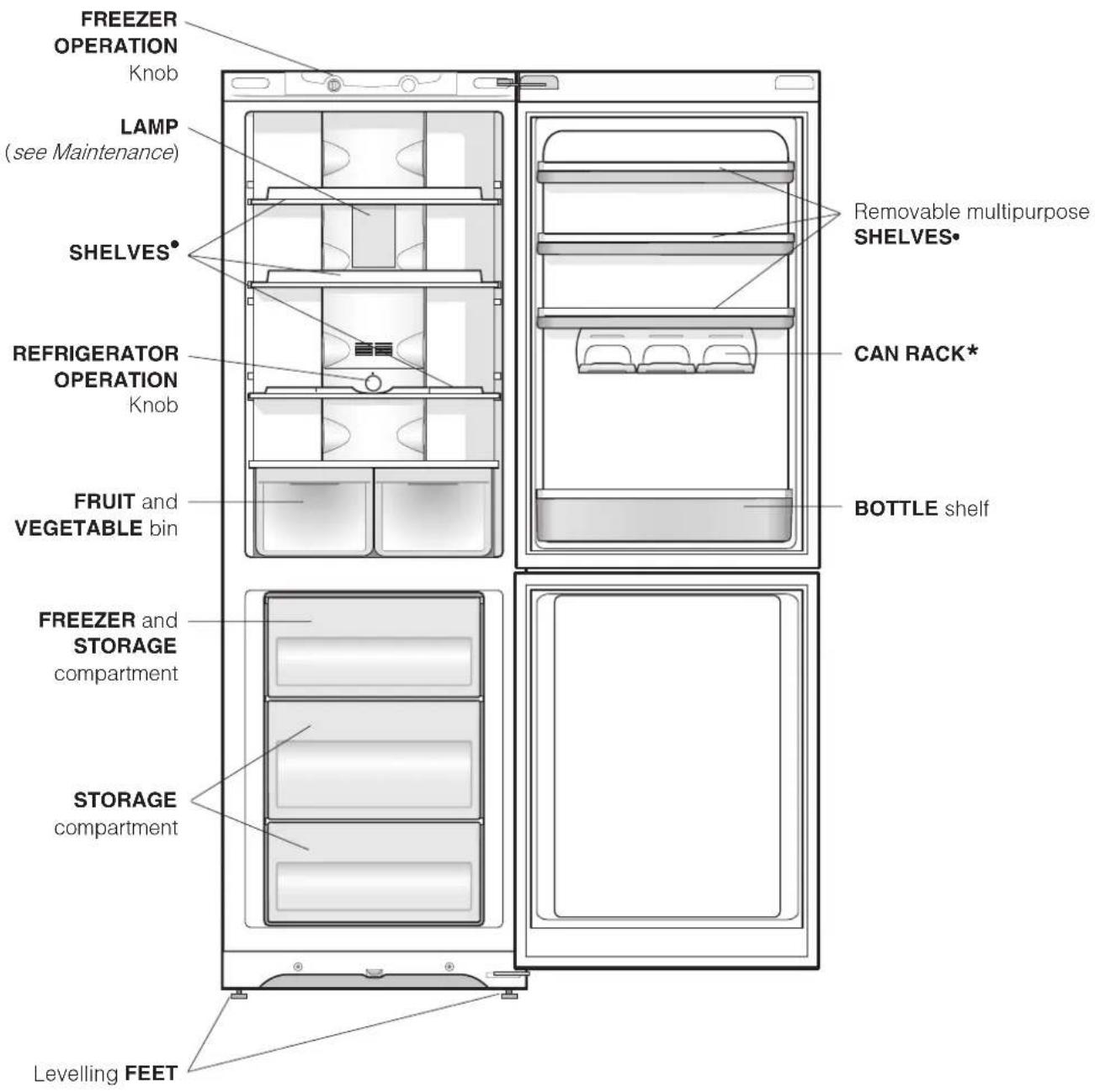

Overall view

The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not directly represent the appliance purchased. For more complex features, consult the following pages.

FREEZER OPERATION Knob LAMP (see Maintenance) SHELVES® REFRIGERATOR OPERATION Knob FRUIT and VEGETABLE bin FREEZER and STORAGE compartment STORAGE compartment Leveling FEET Removable multipurpose SHELVES® CAN RACK* BOTTLE shelf

• Varies by number and/or position.
  * Available only on certain models.

Starting the appliance

! Before starting the appliance, follow the installation instructions (see Installation).

! Before connecting the appliance, clean the compartments and accessories well with lukewarm water and bicarbonate.
! The appliance comes with a motor protection control system which makes the compressor start approximately 8 minutes after being switched on. The compressor also starts each time the power supply is cut off whether voluntarily or involuntarily (blackout).

1. Insert the plug into the socket and ensure that the internal light illuminates (the FREEZER OPERATION knob must not be on the OFF position).

2. Turn the FREEZER OPERATION knob and REFRIGERATOR OPERATION knob to an average value. After a few hours you will be able to put food in the refrigerator.

Setting the temperature

med low low

The temperature inside the refrigerator compartment automatically adjusts itself according to the position of the thermostat knob.

min=warmest

max = coldest

We recommend, however, a medium position.

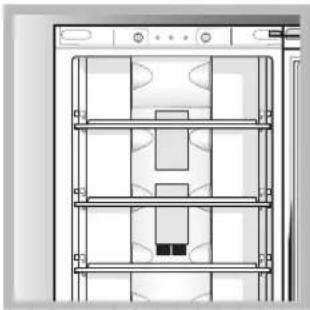

Chiller system No Frost

Architectural floor plan diagram showing room layouts and structural elements (no text or labels)

It is recognisable by aeration cells located on the back walls of the compartments.

The No Frost system circulates cold air continuously to collect humidity and prevent ice and frost formation. The system maintains an optimal humidity level in

the compartment, preserving the original quality of the food, preventing the food from sticking together and making defrosting a thing of the past. Do not block the aeration cells by placing food or containers in direct contact with the refrigerating back panel. Close bottles and wrap food tightly.

1 2

SHELVES: with or without grill. Due to the special guides the shelves are removable and the height is adjustable (see diagram), allowing easy storage of large containers and food. Height can be adjusted without complete

removal of the shelf.

Using the refrigerator to its full potential

• Place only cold or lukewarm foods in the compartment, not hot foods (see Precautions and tips).
• Remember that cooked foods do not last longer than raw foods.
• Do not store liquids in open containers. They will increase humidity in the refrigerator and cause condensation to form.

Using the freezer to its full potential

I Care 2 4 1 OFF MAX

The temperature inside the freezer compartment automatically adjusts itself according to the position of the thermostat knob. 1 = warmest max = coldest We recommend, however, a medium position.

I Care is the optimal temperature for energy saving levels.

OFF switches the appliance off, including the refrigerator.

• Do not re-freeze food that is defrosting or that has already been defrosted. These foods must be cooked and eaten (within 24 hours).
• Fresh food that needs to be frozen must not come into contact with food that has already been defrosted. Fresh food must be stored in the top FREEZER and STORAGE compartment where the temperature drops below -18°C and guarantees rapid freezing.
  ! to avoid blocking the air circulation inside the freezer compartment, it is advisable not to obstruct the ventilation holes with food or containers.
• Do not place glass bottles which contain liquids, and which are corked or hermetically sealed in the freezer because they could break.
• The maximum quantity of food that may be frozen daily is indicated on the plate containing the technical properties located on the bottom left side of the refrigerator compartment (for example: Kg/24h: 4)

! Do not open the door during freezing.

! If there is a power cut or malfunction, do not open the freezer door. This will help maintain the temperature inside the freezer, ensuring that foods are conserved for at least 9 -14 hours.

Switching the appliance off

During cleaning and maintenance it is necessary to disconnect the appliance from the electricity supply:

1. set the FREEZER OPERATION knob on OFF

2. pull the plug out of the socket

Cleaning the appliance

• The external and internal parts, as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and bicarbonate of soda or neutral soap. Do not use solvents, abrasive products, bleach or ammonia.
• The removable accessories may be soaked in warm water and soap or dishwashing liquid. Rinse and dry them carefully.
• The back of the appliance may collect dust which can be removed by delicately using the hose of a vacuum cleaner set on medium power. The appliance must be switched off and the plug must be pulled out before cleaning the appliance.

Avoiding mould and unpleasant odours

• The appliance is manufactured with hygienic materials which are odour free. In order to maintain an odour free refrigerator and to prevent the formation of stains, food must always be covered or sealed properly.
• If you want to switch the appliance off for an extended period of time, clean the inside and leave the doors open.

Replacing the light bulb

To replace the light bulb in the refrigerator compartment, pull out the plug from the electrical socket. Follow the instructions below.

Access the light bulb by removing the cover as indicated in the diagram.

Replace it with a similar light bulb within the power range indicated on the cover (10W).

Diagram of a mechanical device with an arrow indicating direction (no text or symbols present)

! The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

This appliance complies with the following Community Directives:

- 73/23/EEC of 19/02/73 (Low Voltage) and subsequent amendments;

-89/336/EEC of 03.05.89 (Electromagnetic Compatibility) and subsequent amendments; - 2002/96/CE..

General safety

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
• The appliance must be used to store and freeze food products by adults only and according to the instructions in this manual.
• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
• Do not touch the appliance with bare feet or with wet or moist hands and feet.
• Do not touch the internal cooling elements: this could cause skin abrasions or frost/freezer burns.
• When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.
• Before cleaning and maintenance, always switch off the appliance and disconnect it from the electrical supply. It is not sufficient to set the temperature adjustment knobs on OFF (appliance off) to eliminate all electrical contact.
• In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance.
• Do not use any sharp or pointed utensils or electrical equipment - other than the type recommended by the manufacturer - inside the frozen food storage compartments.
• Do not put ice cubes taken directly from the freezer into your mouth.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Keep packaging material out of the reach of children! It can become a choking or suffocation hazard.

Disposal

• Observe local environmental standards when disposing packaging material for recycling purposes.
• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.
  Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Respecting and conserving the environment

• Install the appliance in a fresh and well-ventilated room. Ensure that it is protected from direct sunlight and do not place it near heat sources.
• Try to avoid keeping the door open for long periods or opening the door too frequently in order to conserve energy.
• Do not fill the appliance with too much food: cold air must circulate freely for food to be preserved properly. If circulation is impeded, the compressor will work continuously.
• Do not place hot food directly into the refrigerator. The internal temperature will increase and force the compressor to work harder and will consume more energy.
• Defrost the appliance if ice forms (see Maintenance). A thick layer of ice makes cold transference to food products more difficult and results in increased energy consumption.
• Regularly check the door seals and wipe clean to ensure they are free of debris and to prevent cold air from escaping (see Maintenance).

If the appliance does not work, before calling for Assistance (see Assistance), check for a solution from the following list.

Malfunctions:

The internal light does not illuminate.

The motor does not start.

The refrigerator and the freezer do not cool well.

The food inside the refrigerator is beginning to freeze.

The motor runs continuously.

The appliance makes a lot of noise.

Some of the external parts of the refrigerator become hot

Possible causes / Solutions:

• The plug has not been inserted into the electrical socket, or not far enough to make contact, or there is no power in the house.
• The appliance comes with a motor protection control (see Start-up and use).
• The doors do not close properly or the seals are damaged.
  • The doors are opened too frequently.
• The TEMPERATURE ADJUSTMENT knob is not in the correct position
• The refrigerator or the freezer have been over-filled.
• The TEMPERATURE ADJUSTMENT knob is not in the correct position.

- The door is not closed properly or is continuously opened.

- The outside ambient temperature is very high.

- The appliance has not been installed on a level surface (see Installation).

- The appliance has been installed between cabinets that vibrate and make noise.

- The internal refrigerant makes a slight noise even when the compressor is off. This is not a defect, it is normal.

- These raised temperatures are necessary in order to avoid the formation of condensation on certain parts of the product.

Assistance

Before calling for Assistance:

• Check if the malfunction can be solved on your own (see Troubleshooting).
• If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service Centre

Communicating:

• type of malfunction
• appliance model (Mod.)
• serial number (S/N)

This information can be found on the data plate located on the bottom left side of the refrigerator compartment.

model serial number Mod. RG 2330 TI Cod. 93139180000 S/N 704211801 220 - 240 V- 50 Hz 150 W Fuse A Max 15 w Total 340 75 Gross Bruto Brut Gross Bruto Brut Net Util Utile Gross Bruto Brut Freez. Capac Poder de Cong kg/24 h 4,0 Class N Classe N Classe Compr. R 134 a Test Pressure HIGH-235 P.S-I LOW 140 Kompr. kg 0,090 Made in Italy 13918

Never call on unauthorized technicians and always refuse spare parts which are not originals.

Italiano, 1 Françaisista 911

Portuges, 35Espanol, 27

SBM 1820 F/HA

SBM 1821 F/HA

SBM 1822 F/HA

SBM 1823 F/HA

Sommaire

Installation, 20

Architectural floor plan diagram showing room layouts and structural elements (no text or labels)

I Care 2 4 1 OFF MAX

Diagram of a mechanical device with an arrow indicating direction (no text or symbols present)

Causes / Solution possibles:

Architectural floor plan diagram showing room layouts and structural elements (no text or labels)

I Care 2 4 1 OFF MAX

Mando

Diagram of a mechanical device with an arrow indicating direction (no text or symbols present)

Technical diagram illustrating five-step appliance assembly or cleaning process with labeled steps and component illustrations.

Visão geral

Architectural floor plan diagram showing room layouts and structural elements (no text or labels)

I Care 2 4 1 OFF MAX

Diagram of a mechanical device with a directional arrow indicating movement or force (no text or symbols present)
